Speco O2iB9 User manual

Intensifier® Technology IP Bullet Camera
QUICK INSTALLATION GUIDE
O2iB9
Please read this manual carefully before installation and operation of the product.

1
Notice
Thank you for purchasing this product. This guide is designed to be a reference tool for the product. Please read
it carefully before operating the product and retain it for future reference. Should you require any technical
assistance, please contact Speco Technologies Technical Support.
INFORMATION
This equipment has been tested and found to comply with limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at its own expense.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s authority
to operate the equipment.
CAUTION –To prevent electric shock and risk of the fire hazards
Do NOT use power source other than that specified.
Do NOT expose this appliance to rain or moisture.
PRECAUTIONS
Please read the manual carefully before the installation in order to set up the camera correctly and
to obtain the best picture quality.
Please keep the manual in good condition for your future reference and service application.
Installation and services should only be carried out by an authorized personnel according to local
safety regulations.
This installation should be made by a qualified service person and should conform to all local codes.
The lighting flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of non-insulated dangerous voltage within
the product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE THE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION

2
If any liquid or solid matter gets into the housing, immediately disconnect the camera from power
supply and have it checked by your authorized dealer before reusing.
Avoid installing the camera at extremely hot or cold places.
If you are not a certified person, never try to dismantle the camera.
To avoid electric shock, never remove the screws or covers. There are no parts inside that need
maintenance by the user. All maintenance should be carried out by qualified personnel.
Avoid installing the camera at a place of high humidity.
Avoid installing the camera at the place exposed to gas or oil.
Keep the top glass of the lens always clean in order to obtain the best picture quality all the time.
Be careful not to be stained by fingerprint.
Don't face the camera directly toward sunlight or sunlight reflecting area.
IMAGE SENSOR may go defective at this condition.
Please give a special attention to keep the unit from dangerous drop or external shock during the
process of transportation or handling.
Never try to touch the camera in wet hand. It may cause an electric shock.
Do not expose the camera to radioactivity. It causes a serious damage on the IMAGE SENSOR.
LIMITATION OF LIABILITY
This publication is provided “AS IS” without warranty of any kind, either express or implied, including
but not limited to, the implied warranties of merchantability, fitness for any particular purpose, or non-
infringement of the third party's right.
This publication could include technical inaccuracies or typographical errors. Changes are added to
the information herein, at any time, for the improvements of this publication and / or the corresponding
product(s).
DISCLAIMER OF WARRANTY
In no event shall seller be liable to any party or any person, except for replacement or reasonable
maintenance of the product, for the cases, including but not limited to below :
(1) Any damage and loss, including without limitation, direct or indirect, special, consequential or
exemplary, arising out of or relating to the product.
(2) Personal injury or any damage caused by inappropriate use or negligent operation of the user.
(3) Unauthorized disassemble, repair or modification of the product by the user.
(4) Inconvenience or any loss arising when images are not displayed, due to any reason or cause
including any failure or problem of the product.
(5) Any problem, consequential inconvenience, or loss or damage, arising out of the system
combined by the devices of third party.
(6) Any claim or action for damages, brought by any person or organization being photogenic subject,
due to violation of privacy with the result of that surveillance-camera's or video server’s picture,
including saved data, for some reason, becomes public or is used for the purpose other than
surveillance.
1. PRODUCT OVERVIEW
Key Features
2.0 Mega pixel 1/2.8" SONY progressive scan CMOS image sensor for excellent image quality
Low light, Ultra high sensitivity camera
4.0mm Megapixel Lens
Built-in temperature / humidity sensor
Heater operation according to humidity

3
Perfect 3-Axis mechanism inside
Triple Streaming of H.264 and M-JPEG
Up to 30 frames per second at all image resolutions
Supports image resolutions Full HD (1920 x 1080)
Integrated motion detection with pre- and post-alarm image / video buffering
Supports CBR (constant bit rate) and VBR (variable bit rate) modes
Supports Tampering-Alarm in VA (video analytics) function
Controllable frame rate
Video access through any standard Web browser
Privacy Masking up to 8 areas
Supports IEEE 802.3af Power over Ethernet injectors, mid- and end-spans
Integrated HTTP Web server supporting 8 simultaneous user connections
HTTPS supported (Hyper Text Transfer Protocol Secured)
DDNS and DHCP client
Specification
CLASSIFICATION
Night Vision Outdoor IR Camera
General
CPU
ARM1176JZF-STM ( 400 MHz, Instruction cache : 32kbyte,
data cache : 16kbyte, MMU )
Flash
2Gbit Flash Memory
SDRAM
2Gbit DDR3 Memory
Image Pickup
Image Sensor
2.0 Megapixel 1/2.8" SONY progressive scan CMOS image sensor
Total Pixels
1952(H) x 1116(V) 2.18 Megapixel
Effective Pixels
1944(H) x 1104(V) 2.14 Megapixel
S/N Ratio
More than 50dB
Min. Illumination
0.1Lux
IR Distance
None
Day & Night
Only Color
Lens Control
Manual Iris
Lens
4.0mm Megapixel Lens
Video
Video compression
H.264 High Profile @ Level 4.1, Motion JPEG
Resolutions
Up to 1920 x 1080
Frame Rate
H.264 Up to 30fps with 1920 x 1080
H.264 Up to 30fps with VGA
MJPEG Up to 30fps with VGA resolution
Video Streaming
Support Multi Stream with H.264, MJPEG
Adjustable Frame rate
VBR / CBR in H.264
Image Setting
Brightness, contrast, Sharpness
Auto White Balance
Auto Exposure
Privacy Mask
DSS, Corridor-view (in H.264), Mirror / V-Flip, etc.
Backlight
D-WDR(Low / Middle / High)
Shutter Speed
1/4 ~ 1/2000
Noise Reduction
2D / 3DNR
Network
Security
Password Protection
User Access log
HTTPS Encryption
Supported Protocol
HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP
System
Integration
Intelligent Video
Motion detection 12 x 12 blocks
Alarm Trigger
Motion Detection, Tampering Alarm
Firmware Upgrade
Remote Upgrade via Network
API
CGI Interface Document
Physical
Etc
1 x Factory Reset Button
Power Source
DC 12V / 1.5A, POE (Power Over Ethernet) : 802.3af
Power
Max. 2.9

4
Consumption
Net Weight
520g
LED's
Power, Network Connection
Dimension(mm)
185(W) x 76(Ø) Including Bracket
Environment
Operating
Temperature
-10 degree ~ 50 degree Celsius (-14F ~ 122F)
Storage
Temperature
-20 degree ~ 60 degree Celsius (-4F ~ 140F)
Software
Included Software
IP Scanner (Windows only)
Package
Package Contents
Network Camera, Use Manual, External Power Adaptor (option)
※Specifications are subject to change without prior notice.
2. NAME AND FUNCTION OF EACH PART
2.1 Package Contents
APPEARANCE
DESCRIPTION
IP Camera x 1
Installation Guide x 1
Tapping screw (Ø4 x 30) x 3
Plastic anchor x 3
L-Wrench (3mm) x 1
CD x 1
Junction Adaptor
Top Rubber x 1
Top Adapter Plate x 1
Junction Box

5
Top Rubber x 1
Junction Box x 1
Sponge x 1
Tapping screw (Ø4 x 30) x 4
Plastic anchor x 4
Screw PH (M4 x 8 ) x 3
Screw PH (M4 x 12) x 4
2.2 Name and Function
NO.
ITEM
DESCRIPTION
Power Connector
DC12V Input
Network and
POE Connector
POE (Power over Ethernet) and LAN cable
Lens
4mm Megapixel lens
3. INSTALLATION
3.1 How to mount to ceiling / wall
Ceiling
1
2
3
1
2
3

6
Ceiling_Junction Box
Wall
Power
LAN Cable
Plastic anchor x 3
(B) Bracket nut
(A) L-Wrench
Tapping screw (Ø4 x 30) x 3
Ceiling Tile
Ceiling Tile
Plastic anchor x 4
Junction Base Sponge
Junction Box Assembly
Tapping screw (Ø4 x 30) x 4
Top Adapter Plate
Top Rubber
Camera Ass'y
PH (M4 x 8) x3
PH (M4 x 12) x4
Finish with
Super X

7
①Drill three screw holes on the wall plate to fix three plastic anchors (supplied) in the holes.
②Fix the plastic anchors in the holes.
③Position the bracket on the screw points.
④Fix the bracket by tightening the screws.
⑤Slightly loosen bolt (A), Bracket nut (B), then adjust the direction of the camera and then tighten
bolt the Bracket nut.
3.2 3-Axis Adjustment
①Panning 360˚
Slightly loosen Pan Bracket nut then
adjust pan of the camera and
tighten the Bracket nut.
②Tilt 90˚
Slightly loosen Tilt bolt then
adjust tilt of the camera and
tighten the bolt firmly.
③Rotation 360˚
Slightly loosen Tilt bolt then adjust rotation of the camera
and tighten the bolt firmly.
3.3 Installation Example
3.3.1 Installation Example
Rotating 360°
Tilt 90°
Bracket nut
Pan 360°

8
3.3.2 Connecting to the Network

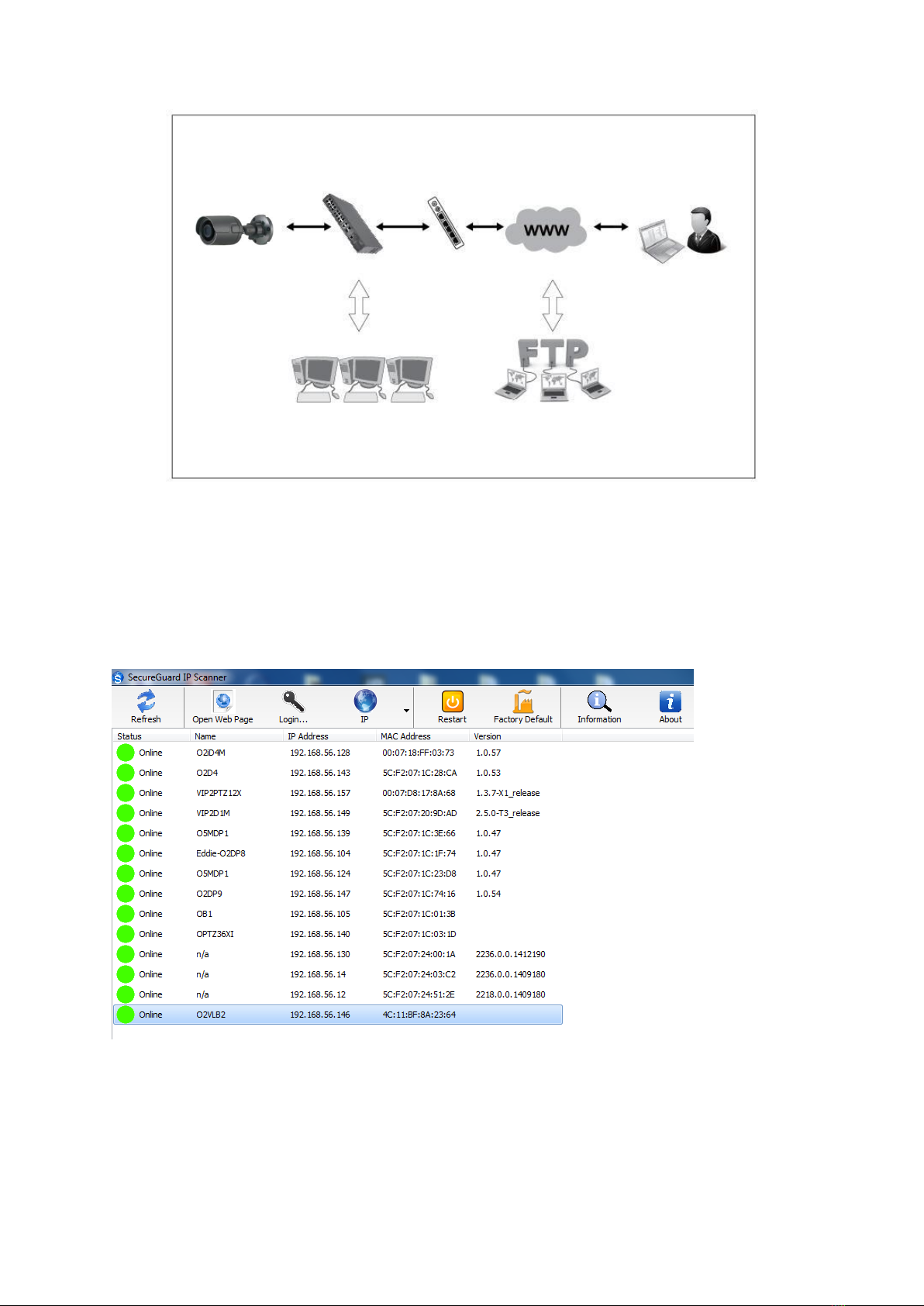

Open up IP Scanner.
IP Scanner can search for the device on the local network.
Please note that only devices that are on the same subnet can be discovered.
The device is set to DHCP mode by default.
In the device list, you can view the IP address, model number, and MAC address of each device. Select the
applicable device and double click to open up the web viewer.
3.3.3 Accessing the Camera’s Web Setup Page
1) Open the browser and enter the camera’s IP address in the address bar or double click the device in IP
Scanner.
LAN Switch Router Internet RemoteAccess
LocalAccess E-Mail / FTP

9
2) Enter the user name and password when prompted.
3) Default user name is admin and password is 1234.
4) If prompted for installation of the Active-X plug-in, allow the installation. Active-X is needed to view video
from Internet Explorer.

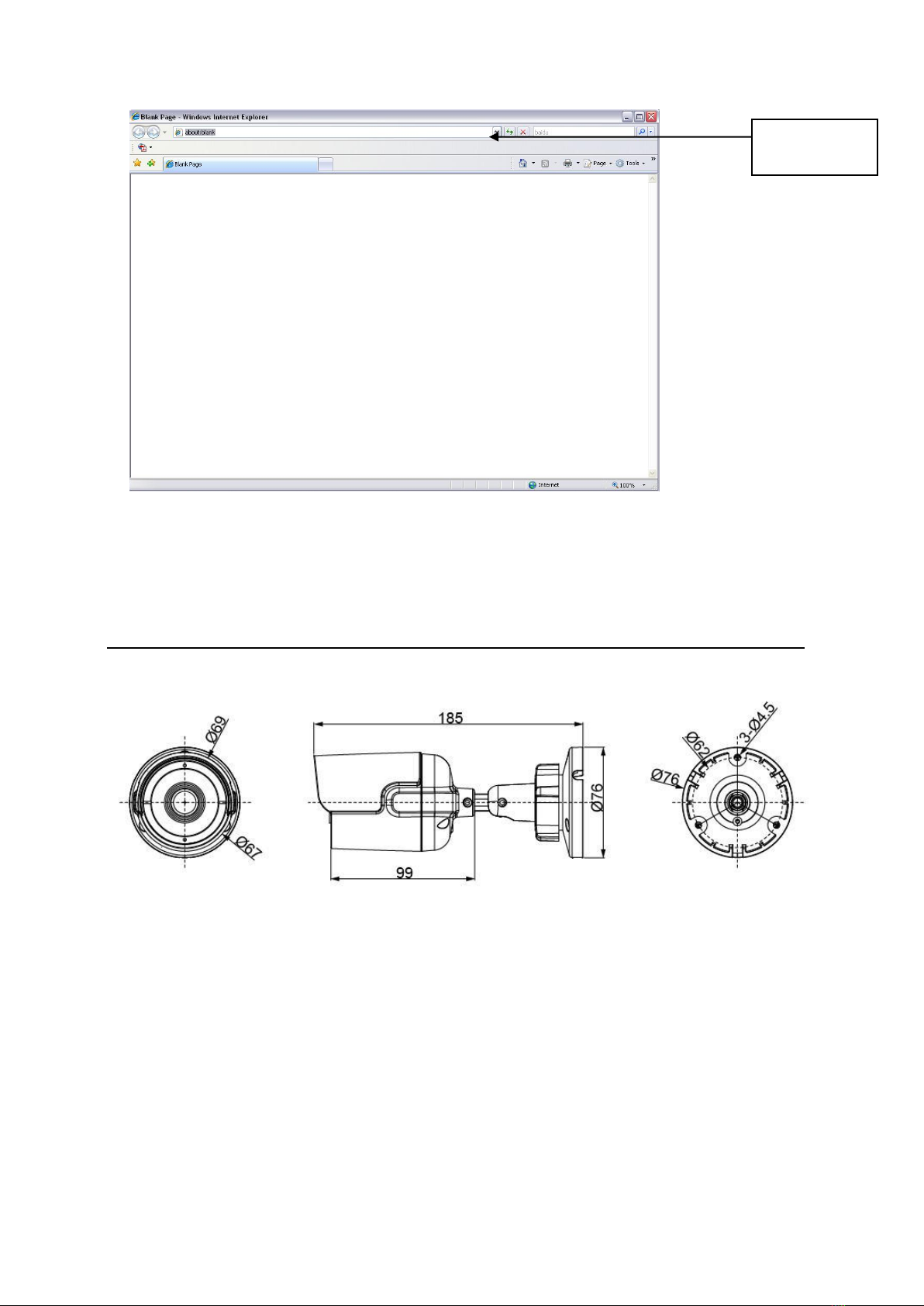

4. DIMENSION (mm)
Enter the IP
address here
