AC&NC JetStor SAS 780JH JBOD Subsystem User manual

JetStor SAS 780JH
JetStor SAS 780JHD
JBOD Subsystem
User Manual
Revision 1.4

80 Bays SAS to SAS/SATA JBOD Subsystem
2 User Manual
Table of Contents
Preface ................................................................................................................................ 4
Before You Begin ............................................................................................................. 5
Safety Guidelines ................................................................................................................................................................... 5
Controller Configurations................................................................................................................................................... 5
Packaging, Shipment and Delivery ................................................................................................................................ 5
Unpacking the Shipping Carton ................................................................................................................................ 6
Chapter 1 Product Introduction ................................................................................. 7
1.1 Technical Specifications ........................................................................................................................................... 8
Chapter 2 Identifying Parts of the JBOD Subsystem ............................................ 9
2.1 Main Components ...................................................................................................................................................... 9
2.1.1 Front View ............................................................................................................................................................. 9
2.1.1.1 LCD Panel Function Buttons ............................................................................................................. 10
2.1.1.2 LCD Display Panel LED ........................................................................................................................ 11
2.1.1.3 Menu Diagram ........................................................................................................................................ 12

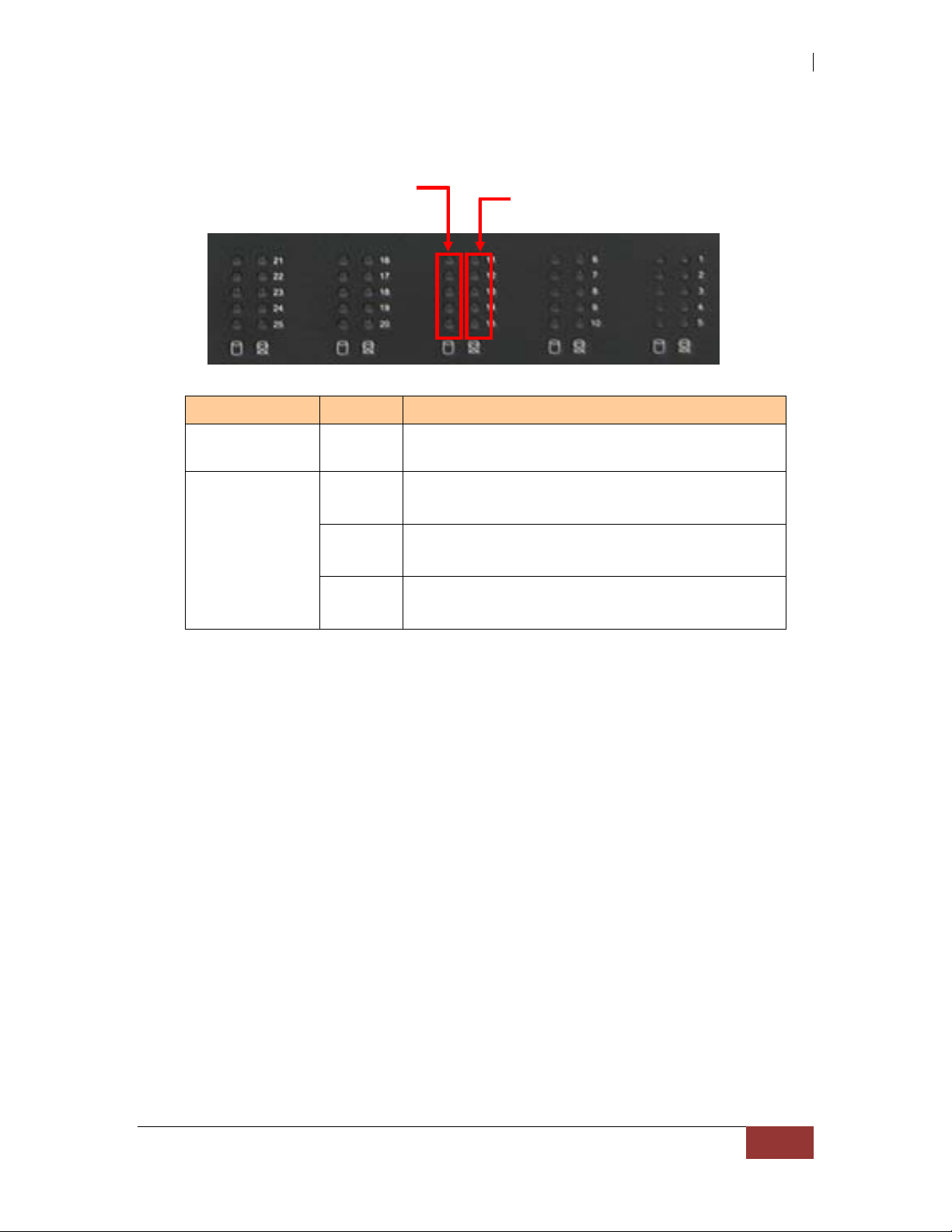

2.1.1.4 HDD Status LEDs ................................................................................................................................... 13

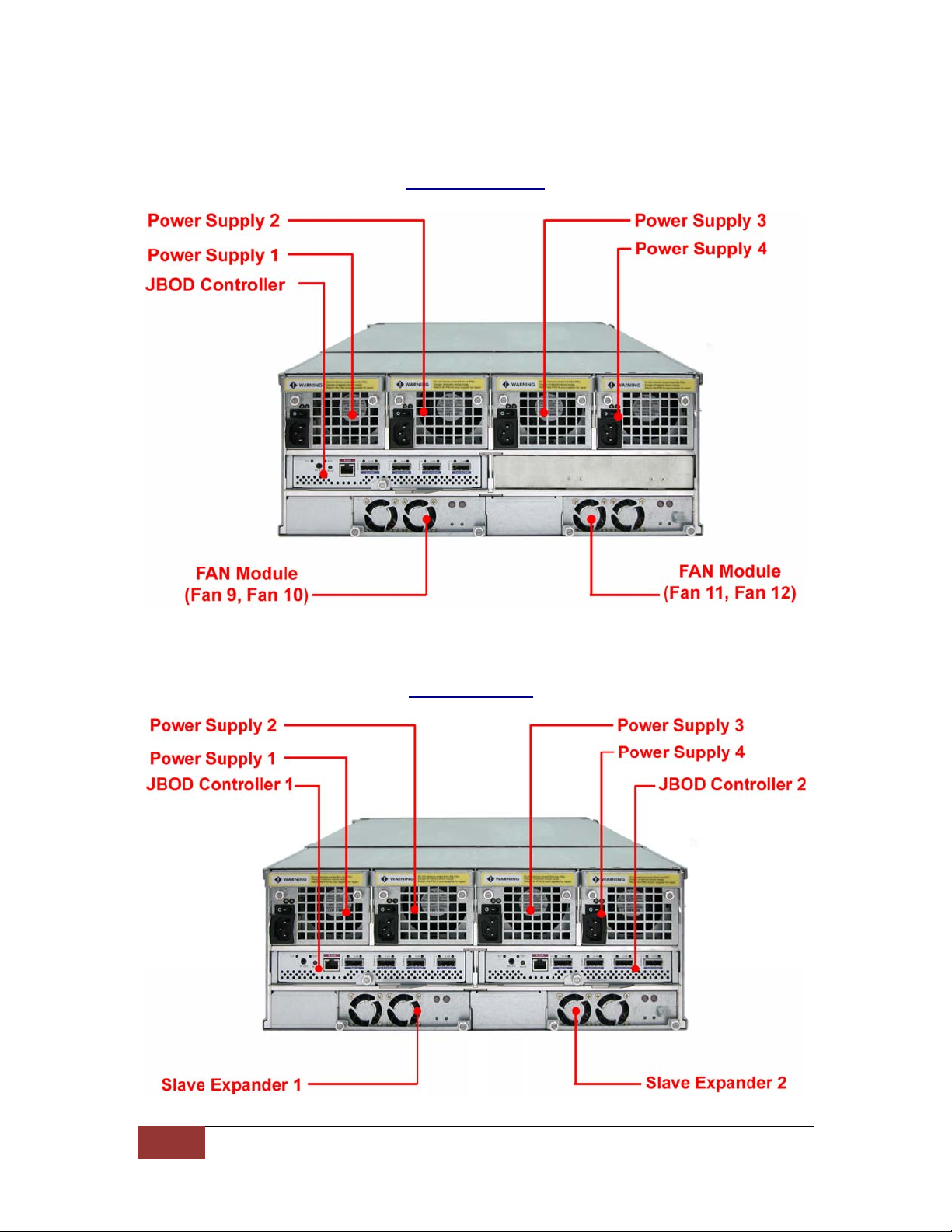

2.1.2 Rear View ............................................................................................................................................................ 14

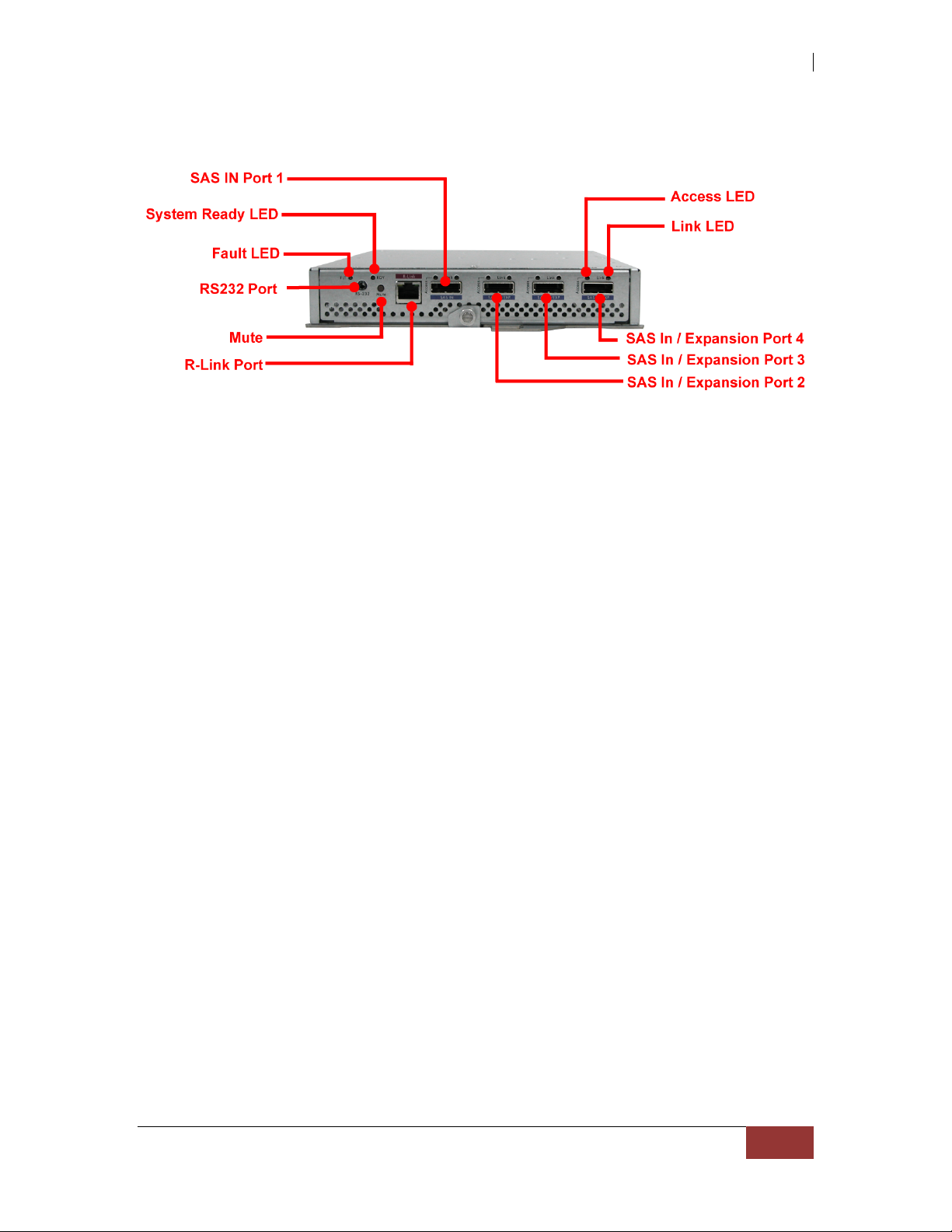

2.2 JBOD Controller Module ...................................................................................................................................... 15

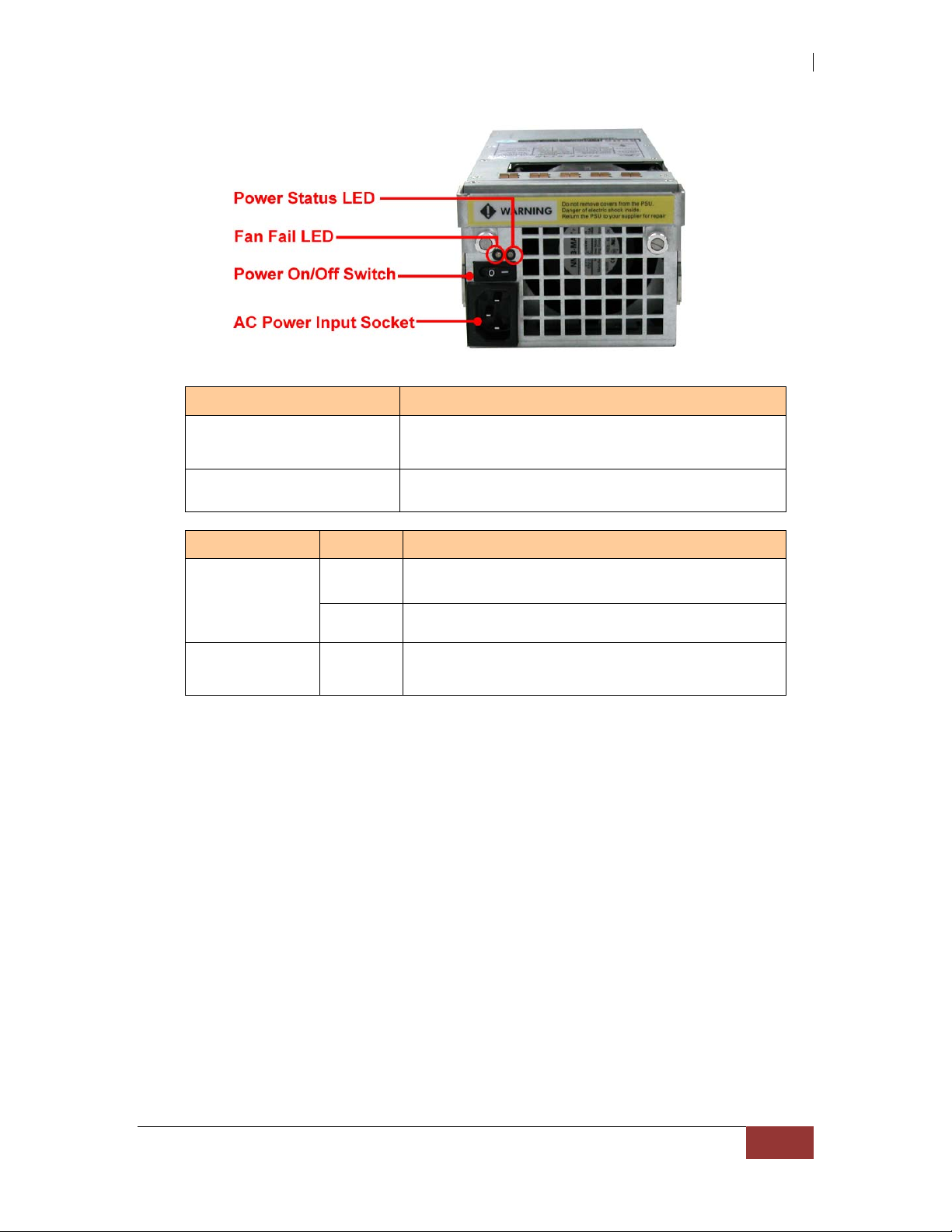

2.3 Power Supply Fan Module (PSFM) .................................................................................................................. 16
2.4 Fan Module................................................................................................................................................................. 18
2.4.1 FAN Panel ........................................................................................................................................................... 19

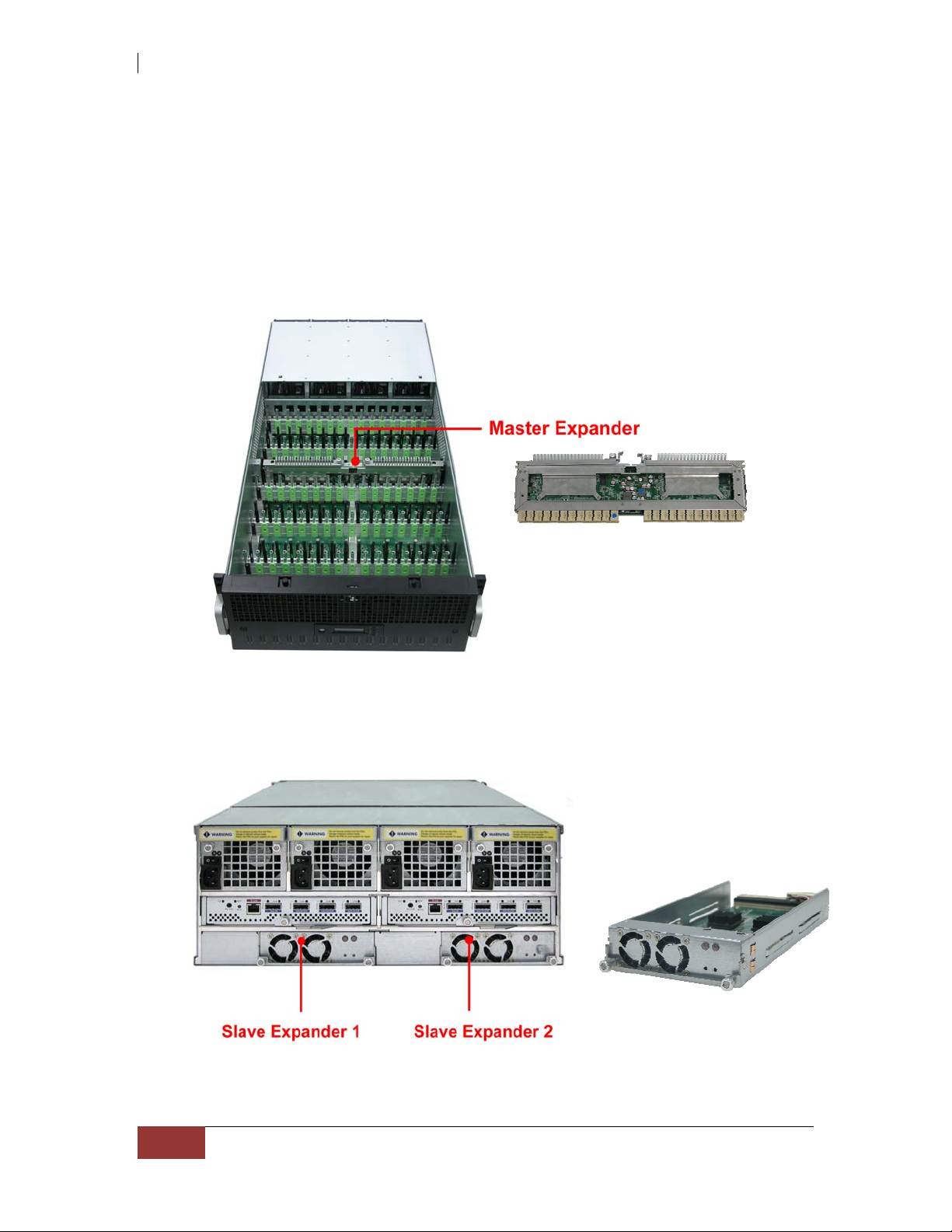

2.5 Expander Module ..................................................................................................................................................... 20
2.6 Disk Drive Installation into the Disk Slot ...................................................................................................... 21
2.6.2 To install a SAS disk drive (Single or Dual Controller Mode) or SATA disk drive (Single
Controller Mode) in a disk tray: ............................................................................................................................. 23
Chapter 3 Getting Started with the Subsystem ................................................... 30
3.1 Installing the Rails and Mounting into Rack .............................................................................................. 30
3.2 Removing the Disk Array from the Rack ...................................................................................................... 41
3.3 Preparing the JBOD and Connecting to RAID Subsystem ................................................................... 44
3.4 Preparing the JBOD and Connecting to SAS HBA in Host System ................................................. 44
3.5 Powering On .............................................................................................................................................................. 44
3.6 Powering Off .............................................................................................................................................................. 45
Chapter 4 Maintenance ............................................................................................. 46
4.1 Upgrading the JBOD Controller Firmware ................................................................................................... 46

80 Bays SAS to SAS/SATA JBOD Subsystem
User Manual 3
4.2 Replacing JBOD Subsystem Components .................................................................................................... 49
4.2.1 Replacing JBOD Controller Module ....................................................................................................... 49
4.2.2 Replacing Power Supply Fan Module ................................................................................................... 50
Appendix A Zoning Configurations ........................................................................ 51
A.1 Zoning mode 0: Default No Zoning ............................................................................................................. 51
A.2 Zoning mode 1 ........................................................................................................................................................ 52
A.3 Zoning mode 2 ........................................................................................................................................................ 53
A.4 Zoning mode 3 ........................................................................................................................................................ 54

80 Bays SAS to SAS/SATA JBOD Subsystem
4 User Manual
Preface
About this manual
This manual provides information regarding the hardware features and installation of
the JetStor SAS 780JH(D) JBOD subsystem. Information contained in the manual
has been reviewed for accuracy, but not for product warranty because of the various
environment/OS/settings. Information and specifications will be changed without
further notice.
This manual uses section numbering for every topic being discussed for easy and
convenient way of finding information in accordance with the user’s needs. The
following icons are being used for some details and information to be considered in
going through with this manual:
Copyright
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying,
recording or otherwise, without the prior written consent.
Trademarks
All products and trade names used in this document are trademarks or registered
trademarks of their respective owners.
Changes
The material in this document is for information only and is subject to change without
notice.
WARNING!
These are warnings that the user must follow to avoid
unnecessary errors and bodily injury during hardware and
software operation of the subsystem.
CAUTION:
These are cautions that user must be aware of to
prevent damage to the subsystem and/or its
components.
NOTES:
These are notes that contain useful information and tips
that the user must give attention to in going through
with the subsystem operation.
IMPORTANT!
This is important information that the user must
remember.

80 Bays SAS to SAS/SATA JBOD Subsystem
User Manual 5
Before You Begin
Before going through this manual, you should read and focus on the following safety
guidelines. Notes about the subsystem’s controller configuration and the product
packaging and delivery are also included here.
Safety Guidelines
To provide reasonable protection against any harm on the part of the user and to
obtain maximum performance, user is advised to be aware of the following safety
guidelines particularly in handling hardware components:
Upon receiving the product:
 Place the product in its proper location.
 Do not try to lift it by yourself alone. Two or more persons are needed to remove
or lift the product to its packaging. To avoid unnecessary dropping out, make
sure that somebody is around for immediate assistance.
 It should be handled with care to avoid dropping that may cause damage to the
product. Always use the correct lifting procedures.
Upon installing the product:
 Ambient temperature is very important for the installation site. It must not
exceed 30◦C. Due to seasonal climate changes; regulate the installation site
temperature making it not to exceed the allowed ambient temperature.
 Before plugging-in any power cords, cables and connectors, make sure that the
power switches are turned off. Disconnect first any power connection if the power
supply module is being removed from the enclosure.
 Outlets must be accessible to the equipment.
 All external connections should be made using shielded cables and as much as
possible should not be performed by bare hand. Using anti-static hand gloves is
recommended.
 In installing each component, secure all the mounting screws and locks. Make
sure that all screws are fully tightened. Follow correctly all the listed procedures
in this manual for reliable performance.
Controller Configurations
This JBOD subsystem supports dual JBOD controller configurations.
Packaging, Shipment and Delivery
 Before removing the subsystem from the shipping carton, you should visually
inspect the physical condition of the shipping carton.
 Unpack and verify that the contents of the shipping carton are complete and in
good condition.
 Exterior damage to the shipping carton may indicate that the contents of the
carton are damaged.
 If any damage is found, do not remove the components; contact the dealer where
you purchased the subsystem for further instructions.

80 Bays SAS to SAS/SATA JBOD Subsystem
6 User Manual

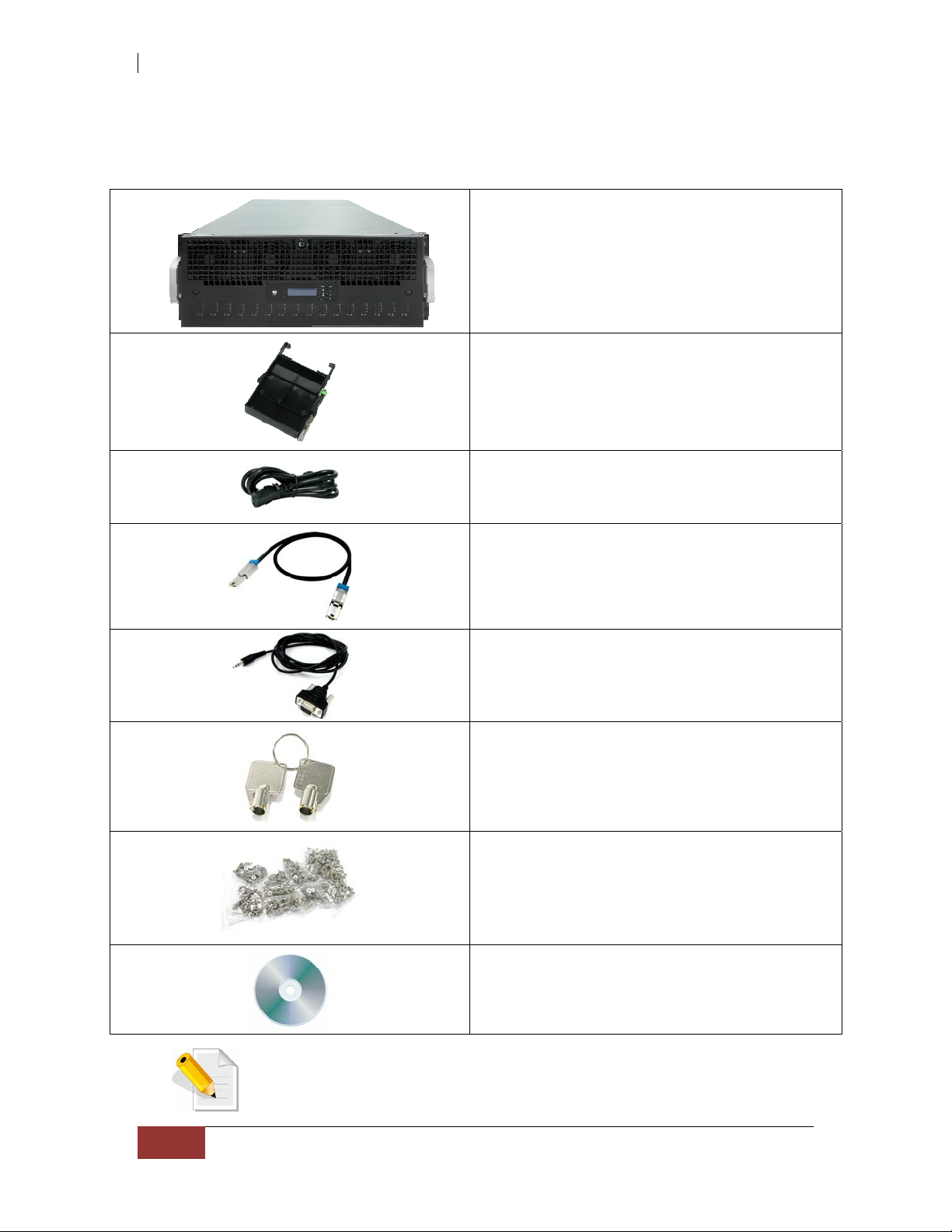

Unpacking the Shipping Carton
The shipping carton contains the following:
NOTE: If any damage is found, contact the dealer or vendor for
assistance.
JBOD Subsystem Unit
80 pairs of HDD side brackets
Four (4) Power cords
One (1) external SAS cable for single JBOD
controller
Note: Two SAS cables for dual JBOD controllers
One (1) external serial cable for single JBOD
controller
Note: Two serial cables for dual JBOD
controllers
Key of Top Cover
Screws
User Manual

80 Bays SAS to SAS/SATA JBOD Subsystem
User Manual 7
Chapter 1 Product Introduction
The JetStor SAS 780JH(D) JBOD Subsystem
The JetStor SAS 780JH(D) JBOD subsystem features the latest SAS2 (6Gb/s) interface
and designed to fit in with the environments which needed highly reliable and relentless
data growth. It is also a versatile SAS2 / SATA3 Disk Expansion system, ideal for high
capacity and scalability storage in IT demands. Based on the 6G SAS2.0 technology, it
supporting the choice of SAS2 and SATA3 drive configurations to deliver the best cost-
performance index with higher bandwidth.
Features
 80 hot-swappable drive bays in a rackmount 4U chassis
 Simultaneously support SAS2 or SATA3 disk
 Single or dual SAS2 JBOD controller module
 Each SAS2 JBOD controller module consist of four mini SAS (4X) port
 Modulized design of JBOD controller, power supply and cooling system
 Four 650W high efficiency redundant hot swappable power supplies
 Incorporates a cableless design for maximum signal integrity
 Utilizes industry-standard SCSI Enclosure Services to monitor enclosure and disk
environmental conditions
Enclosure monitoring
 S.E.S. support for standard enclosure management
 System LED indications
 Fan speed monitoring
 Power supply monitoring
 System voltage monitoring
 System temperature monitoring
 System alarm

80 Bays SAS to SAS/SATA JBOD Subsystem
8 User Manual
1.1 Technical Specifications
RAID Controller JBOD
Controller option Single / Redundant
Host Interface Two / Four 6Gb/s SAS (SFF-8088)
Disk Interface 6Gb/s SAS, 6Gb/s SATA
SAS Expansion Two / Four 6Gb/s SAS (SFF-8088)
- Direct Attached 80 Disks
- Expansion Refer to RAID controller specification
Monitor Port support Yes
Enclosure
Platform Rackmount
Form Factor 4U
# of Hot Swap Trays 80
Disk Status Indicator Access / Fail LED
Backplane SAS2 / SATA3
# of PS/Fan Modules 650W x 4 w/PFC
# of Fans 12
Power requirements AC 90V ~ 254V Full Range
50Hz~60Hz
Environmental
Relative Humidity 10% ~ 85% Non-condensing
Operating Temperature 10°C ~ 40°C (50°F ~ 104°F)
Physical Dimension 930(L) x 482.6(W) x 177(H) mm
Weight (Without Disk) 45.5 / 48Kgs
Specification is subject to change without notice.

80 Bays SAS to SAS/SATA JBOD Subsystem
User Manual 9
Chapter 2 Identifying Parts of the JBOD Subsystem
2.1 Main Components

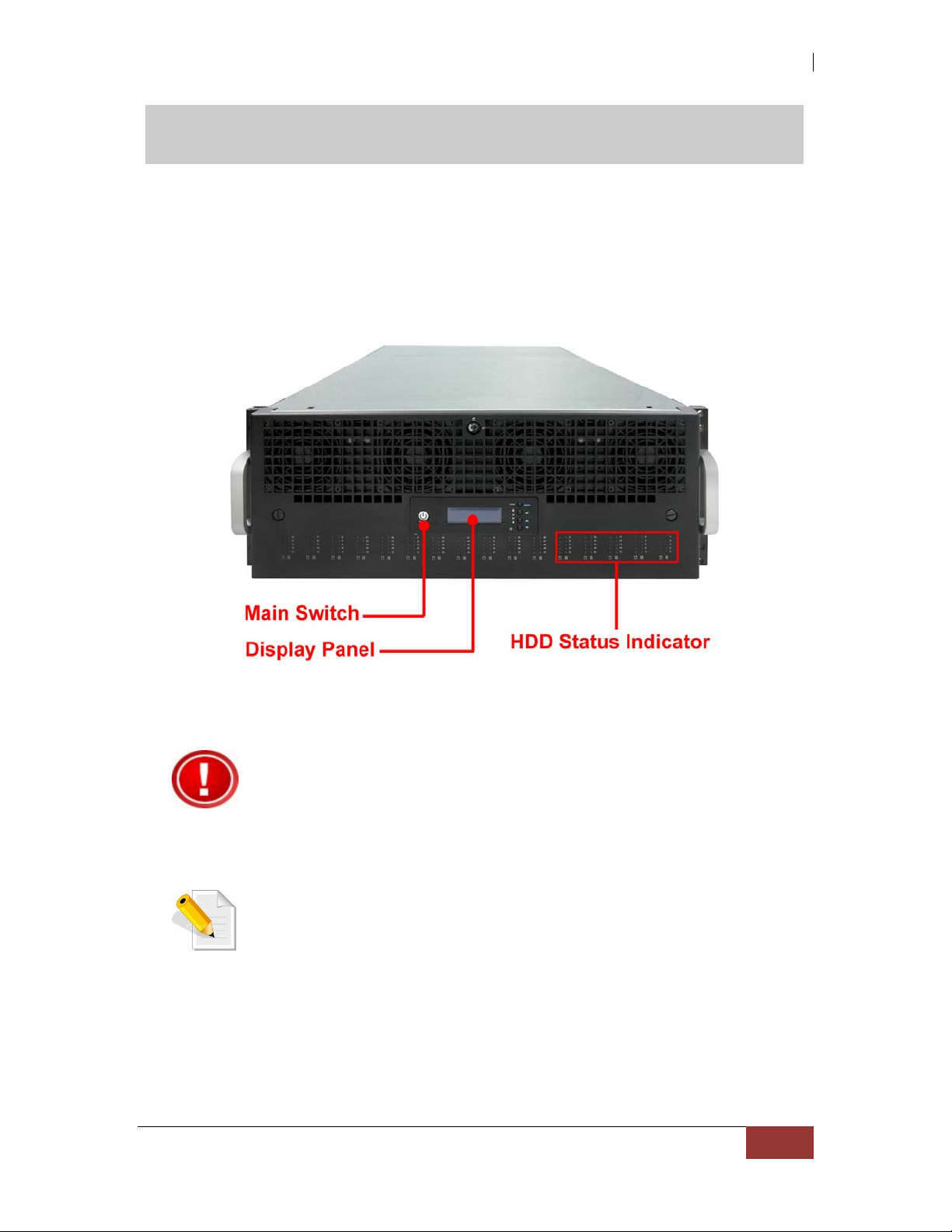

2.1.1 Front View
IMPORTANT: When powering off the JBOD subsystem, turn off first
the Main Switch last for more than 4 seconds and allow at least 4
minutes for the subsystem to shutdown properly. Then turn off the
switches of the 4 Power Supply Fan Modules.
NOTES:
The hot-swap design allows for the replacement of front bezel
without interrupting system operation.

80 Bays SAS to SAS/SATA JBOD Subsystem
10 User Manual
2.1.1.1 LCD Panel Function Buttons
Parts Function
Up and Down
Arrow buttons
Use the Up or Down arrow keys to go through the
information on the LCD screen. This is also used to
move between each menu.
Select button This is used to enter the option you have selected.
Exit button EXIT
Press this button to return to the previous menu.
NOTE: This button can also be used to silence the
alarm beeper when in main menu. If you are in
submenu and a failure event happens, press the
EXIT button few times as necessary to go back to
main menu, and press again to silence the alarm.

80 Bays SAS to SAS/SATA JBOD Subsystem
User Manual 11

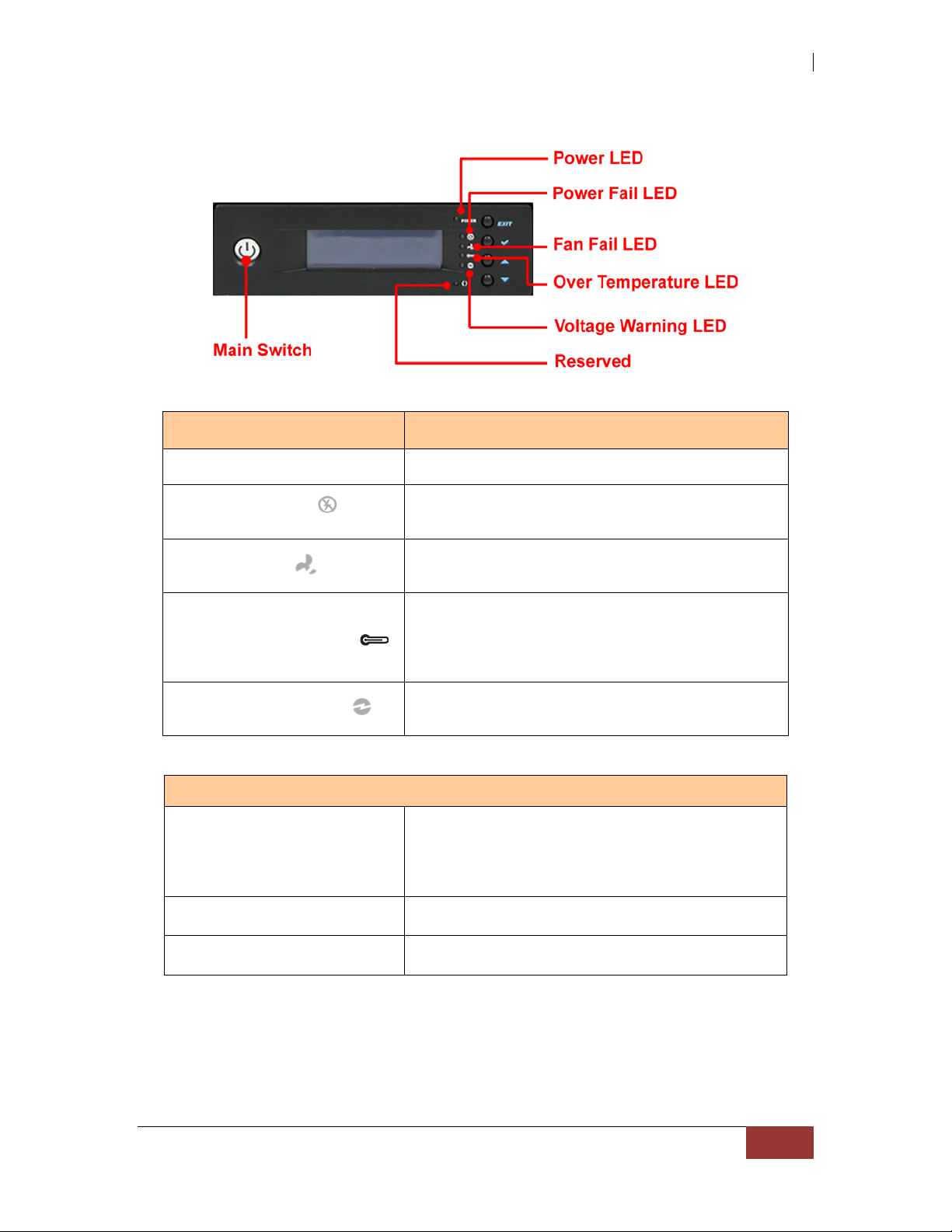

2.1.1.2 LCD Display Panel LED
Parts Function
Power LED Green indicates power is ON.
Power Fail LED If one of the redundant power supply unit fails,
this LED will turn to RED and alarm will sound.
Fan Fail LED Turn RED when fan fails, or speed is lower than
3000 RPM
Over Temperature LED
If system backplane temperature is over 85oC or
BP and disk temperatures exceed 55oC, the Over
Temperature LED will turn RED and alarm will
sound.
Voltage Warning LED An alarm will sound if detected voltage in the
controller is abnormal and LED will turn RED.
Main Switch Button
Flashing Blue Indicates that the system is powering off. The main switch button will flash blue at least 4
minutes for the subsystem to shutdown properly.
Light Blue Indicates that the system is on.
No Light Indicates that the whole system is power off.

80 Bays SAS to SAS/SATA JBOD Subsystem
12 User Manual
2.1.1.3 Menu Diagram
Model-Name
F/W V x.x.xx
Temperature Temp01 30’C
:
Temp10 30’C
BP 30’C
JBOD 30’C
MA CPU 30’C
MB CPU 30’C
MC CPU 30’C
MD CPU 30’C
SA CPU 30’C
SB CPU 30’C
SC CPU 30’C
SD CPU 30’C
Power Status
Good
FAN Status FAN01: 3970rpm
Good
:
FAN12: 3970 RPM
Voltage Status
Good
Status Disabled Disable Buzzer / Enable Buzzer
power 1 : Good
power 2 : Good
power 3 : Good
power 4 : Good
BP 5V 4.94V
BP 3.3V 3.2V
BP 12V 12.48V
JBOD BP 5V 4.94V
JBOD BP 3.3V 3.2V
JBOD BP 12V 12.48V
M_AB BP 5V 4.94V
M_AB BP 3.3V 3.2V
M_AB BP 12V 12.48V
M_CD BP 5V 4.94V
M_CD BP 3.3V 3.2V
M_CD BP 12V 12.48V
S_AB BP 5V 4.94V
S_AB BP 3.3V 3.2V
S_CD BP 5V 4.94V
S_CD BP 3.3V 3.2V
Only for dual JBOD controller
Onl
y
for dual JBOD controller

80 Bays SAS to SAS/SATA JBOD Subsystem
User Manual 13
2.1.1.4 HDD Status LEDs
The Front Panel shows the disk drives status.
Indicator Color Description
Activity LED Blue
Blinking Indicates the disk drive is busy or being accessed.
Power
On/Fail LED
Green Indicates the disk drive in this slot is good.
RED Indicates the disk drive in this slot is failed.
LED is
off Indicates there is no disk drive in this slot.
Activit
y
LED Power On/Fail LED

80 Bays SAS to SAS/SATA JBOD Subsystem
14 User Manual
2.1.2 Rear View
Single Controller
Dual Controller

80 Bays SAS to SAS/SATA JBOD Subsystem
User Manual 15
2.2 JBOD Controller Module
NOTE: SAS IN/Expansion Port can be flexibly configured as either SAS IN PORT
or SAS Expansion PORT by customer's request
SAS IN Port: SAS cable must be connected to this port and to the SAS HBA, or other
Expansion Chassis’ SAS Expansion Port, if this chassis is connected in daisy-chain.
System Ready LED: Green indicates Expansion Chassis is Powered On and Ready.
Fault LED: Red (LED is on) indicates there is problem within the Expansion Chassis. If
LED is off, the Expansion Chassis is in normal condition.
RS-232 Port: Used for upgrading the Firmware of JBOD controller in the Expansion
Chassis.
Mute: Use this button to silence the alarm beeper. If another failure event happens, the
alarm beeper will sound again and this button can be pressed again to silence
alarm.
R-Link Port: Use to connect to Telnet for upgrading the Firmware of JBOD controller
Link LED (SAS IN and SAS Exp): Green indicates SAS In/Exp. Port has connected or
linked.
Access LED (SAS IN and SAS Exp): Blue indicates SAS In/Exp. Port is being accessed.
SAS Expansion Port: SAS cable must be connected to these ports and to other SAS IN
Port of other expansion chassis for daisy-chaining.

80 Bays SAS to SAS/SATA JBOD Subsystem
16 User Manual
2.3 Power Supply Fan Module (PSFM)
The 80bay JBOD subsystem contains four 650W Power Supply/Fan Modules.
All PSFM are inserted at the rear of the chassis.
NOTE: Each PSFM delivers Full-Range 100V ~ 240V (+/-10%)
voltage AC electricity. Each PSFM consists of 1 power supply and 1
fan.
Fan

80 Bays SAS to SAS/SATA JBOD Subsystem
User Manual 17
Part Description
AC Power Input Socket Use to connect the power cord from power
source.
Power On/Off Switch Use to power on or power off the PSFM.
Indicator Color Description
Power Status
LED
Green Indicates the power supply module is good.
Red Indicates the power supply module is faulty.
Fan Fail LED Red Indicates fan in the PSFM has failed.
When the power cord connected from main power source is inserted to the AC
Power Input Socket the Power Status LED becomes RED. When the switch of the
PSFM is turned on, the LED still shows RED. After the main switch in front panel is
turned on, the LED turns GREEN, which means it is functioning normally.

80 Bays SAS to SAS/SATA JBOD Subsystem
18 User Manual
2.4 Fan Module
The 80bay JBOD subsystem contains 12 fans.

80 Bays SAS to SAS/SATA JBOD Subsystem
User Manual 19
2.4.1 FAN Panel
Indicator Color Description
Fan Fail LED
No light Indicates the fan is normal.
Red Indicates the turbo fail is faulty.

80 Bays SAS to SAS/SATA JBOD Subsystem
20 User Manual
2.5 Expander Module
The 80bay JBOD subsystem contains Master and Slave Expander Modules. The
Expander Module contains the SAS expander. It can be used to upgrade the SAS
expander firmware. It also contains the SES module (SCSI Enclosure Services).
SES is the protocol used for enclosure environmental control.
The master expander module monitors the following enclosure conditions:
temperature, power supply voltage, and fan speed.
The slave expander module monitors the temperature and power supply voltage
conditions. (Only for dual JBOD controller)
