Access VENETIAN DUAL TOUCH PAD CONTROL 3672 Quick start guide

INSTALLATION &
OPERATIONAL
INSTRUCTIONS
3672 VENETIAN DUAL
TOUCH PAD CONTROL
Item # 734392 / 786354
Manufactured by
Access Tubs
A Division of Spa World Corp.
5701 NW 35th Avenue
Miami, Florida 33142
America’s Walk-In Tub

1
INSTALLATION INSTRUCTIONS & OWNER’S MANUAL
(Refer to individual model sheets for specications)
BEFORE BEGINNING INSTALLATION, CHECK THE FOLLOWING ITEMS
AND READ THE INSTRUCTIONS CAREFULLY.
CHECK ENTIRE UNIT FOR CONCEALED DAMAGE. If there is any damage, DO NOT INSTALL!
Shipping damages must be reported to the carrier immediately. All damage must be discovered
and reported prior to installation in order to have it covered under the warranty!
COMPARE COLOR OF UNIT WITH OTHER FIXTURES. If color is not su󰀩ciently compatible with
xtures, DO NOT INSTALL!
PLANNING THE INSTALLATION
1. Make certain the oor structure is level and adequate to support installation. See oor loading in
tub specications.
2. Building codes require that a panel(s) be constructed to allow ample clearance for plumbing repairs
and pump service or removal. (Please refer to your local codes for regulations.)
3. Using the tub itself, or installation drawings, measure and mark locations for waste pipe, water
supply, wiring runs, and service access.
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions and save these instructions.
WARNING! Examine all plumbing for damage and water test before nal installation. If
damage has occurred, call our Technical Service Department at 877-249-2388.
WARNING! Alterations or modications of the plumbing system without expressed written
authorization will invalidate all warranty claims.
WARNING! Installation must comply with current local and state building, plumbing, and
electrical codes.
WARNING! It is the responsibility of the installer or owner to determine code requirements
prior to installation.
WARNING! Connections should be made by licensed plumbers and electrician.
IMPORTANT INSTRUCTIONS:
* Do Not lift by plumbing at any time! Lift by the tub deck.
* Tub must be supported by the suboor and bedding, not by the tub lip.
* Run pump and test all functions and plumbing prior to nishing installation.
* Run pump only when water in tub is two inches over jets.
The plumbing system on all Access Tubs meets ETL, and ANSI standards at time of
manufacture. Any modications to the plumbing system, including the pump, will void the warranty and approvals.
IMPORTANT SAFETY INSTRUCTIONS
PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, AND INJURY.
SAVE THESE INSTRUCTIONS!

2
READ AND FOLLOW ALL INSTRUCTIONS
1. DANGER: To reduce the risk of injury, do not permit
children to use this unit unless they are closely supervised
at all times.
2. Use this unit only for its intended use as described in this
manual. Do not use attachments not recommended by
the manufacturer.
3. Never drop or insert any object into any opening.
4. Do not operate this unit without the guard over the suction
fitting.
5. The unit must be connected only to a supply circuit that
is protected by a Ground-Fault Circuit Interrupter (GFCI).
Such a GFCI should be provided by the installer and
should be tested on a routine basis.To test the GFCI push
the test button.The GFCI should interrupt power. Push the
reset button. The power should be restored. If the GFCI
fails to operate in this manner, there is a ground current
flowing indicating the possibility of an electrical shock.
Do not use this unit. Disconnect the unit and have the
problem corrected by a qualified service representative
before using.
6. A green colored terminal (or a wire connector marked `G’,
`GR’, `GROUND’, or `GROUNDING’) is provided within
the terminal compartment. To reduce the risk of electrical
shock. connect this terminal or connector to the grounding
terminal of your electrical service or supply panel with a
continuous green insulated copper wire equivalent in size
to the circuit conductors supplying the equipment. but no
smaller than No.10 AWE (5.6mm)
7. A pressure wire connector on your bath is provided on
the exterior of the terminal box within this unit to permit
connection of a No. 8 AWE (8.4mm) solid copper bonding
conductor between this unit and all electric equipment
and exposed metal in the vicinity, as needed to comply
with local requirements.
8. SAVE THESE INSTRUCTIONS.
ATTENTION
Check tub for concealed damage.
Check color compatibility with other xtures.
Check to insure that the bath has the proper components.
Access Tubs will not be held responsible for tub
damage or color compatibility problems after whirlpool is installed.
Access Tubs will not be held responsible for cost
of installation or repair if an incorrect tub is installed.
Read instructions before starting installation.

3
CONSTRUCTION
The tub surface is made of Lucite XL® Acrylic. The substructure
is a composite laminate constructed of fire retardant fillers.
ELECTRICAL
Factory wired for 120 Volt 20 Amps. Ground-Fault Circuit
Interrupter (GFCI) is required. The 20 Amp GFCI breaker must
not supply any other circuits or devices. A second GFCI circuit of
15 Amps if needed for the Inline Heater. An access panel must
be installed to permit pump service.
The unit must be connected only to a supply circuit that is
protected by a Ground-Fault Circut Interrupter (GFCI). Such a
GFCI should be provided by the installer and should be tested on
a routine basis.To test the GFCI push the test button. The GFCI
should interrupt power. Push the reset button. The power should
be restored. If the GFCI fails to operate in this manner, there is
a ground current flowing indicating the possibility of an electrical

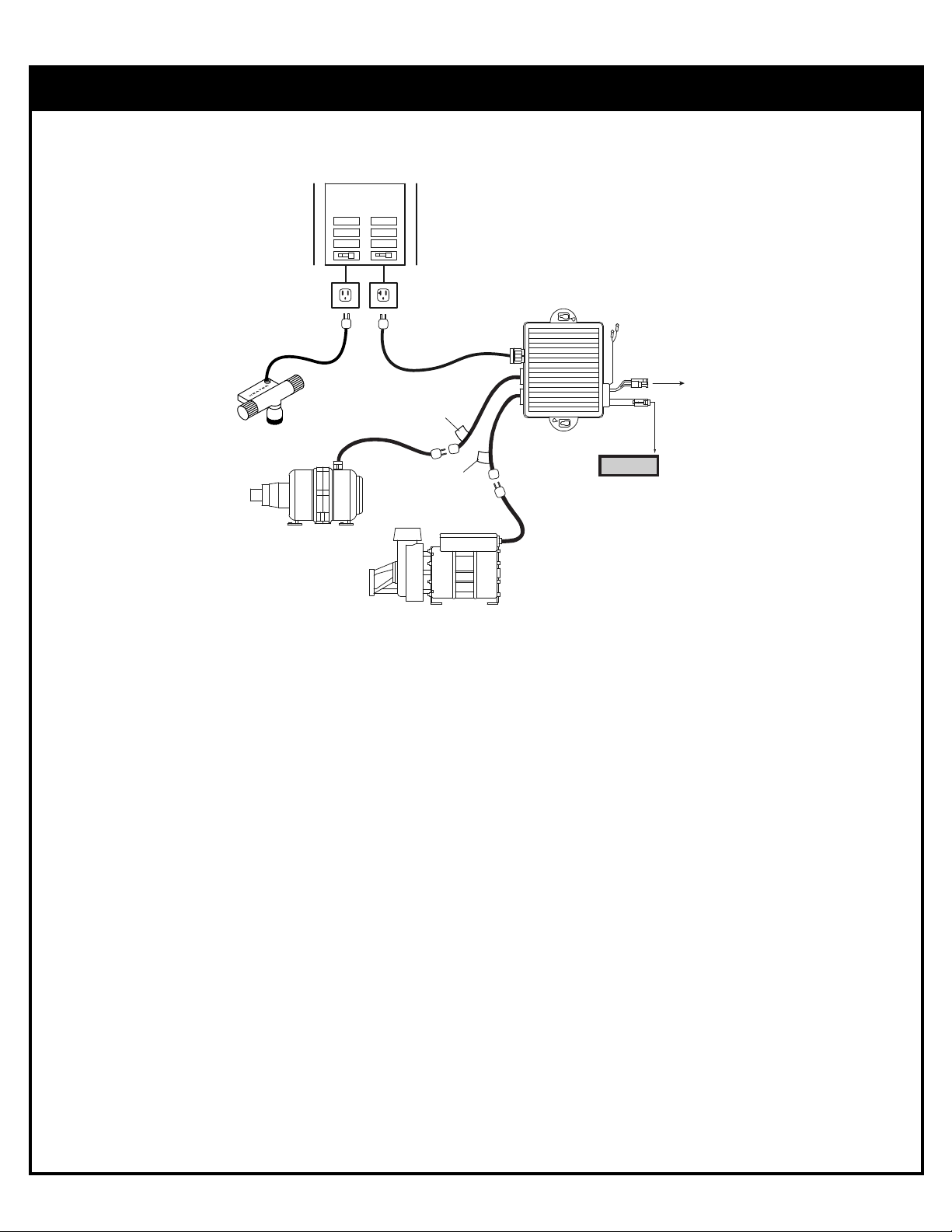

shock. (See schematic on Pg. 5)
ELECTRICAL ROUGH-IN
WARNING: When using electrical products basic precautions
should always be followed including the following: Rough-in
wiring to equipment on a Ground-Fault Circuit Interrupter (GFCI).
The GFCI circuit breaker must not supply any other devices
or circuits. An access panel must be installed to permit pump
service.
WARNING: Failure to follow instructions exposes users to risk of
electrical shock or fire.
PLUMBING ROUGH-IN
The bath waste pipe protrudes below the base approximately one
inch. Provide supply pipe, rough-in waste and vent per local code.
NOTE: On some models, the pump may exceed beyond the
perimeter of the tub. If you have such a model, please make
allowance during installation. See Page 4.
BATH WASTE AND OVERFLOW
Recommended Geberit 151.506.00.0 17-24 inch Cable
Overflow and Waste with a 151.550.21.1 Chrome Cap
Read instructions enclosed with bath waste drain (not included)
for proper setting and fitting. Water tight installation of the drain
is the installer’s responsibility.
IT IS THE INSTALLERS RESPONSIBILITY TO
SUPPLY ACCESS TO PUMP AND EQUIPMENT.
1. Once the tub is leveled, the tub must be supported or
stabilized with plaster or mortar. If the tub has a supporting
base, then mortar is not required.
2. For Caulking, we recommend 100% sanitary silicone rather
than latex.
3. For quieter operation, you may choose to insulate the
surrounding.
PROTECTION OF TUB
Use a section of the box, cut to size, and place in the bottom of
the tub. When possible, keep the box cover over the tub. These
steps will help protect the tub from abrasion or damage during
installation.
SETTING TUB IN PLACE
The tub needs to be set in mortar or plaster to level tub and pre-
vent shifting after installation.
Apply mortar to the floor area that makes contact with the tub
base. Set tub in opening and push on bottom of tub to secure in
mortar. TUB MUST NOT “HANG” FROM LIP OF TUB! Do not
allow tub lip and edges bear any weight of the tub. Do not fill tub
with water until mortar has hardened. Seal all joints with sanitary
silicone.
FINISHING
Before finishing with your choice of material, make sure access
entries are available to the pump, bath waste pipe, and plumbing
fixtures. Finish as desired and seal around tub, preferably with
sanitary silicone.
CLEAN PUMP SYSTEM
After tub is installed and ready to use, remove all construction
debris and clean the pump and system.
SUGGESTION: During construction, we suggest that you cover
tub to avoid use as trash receptacle.
TESTING
Connect trap to bath waste pipe. Temporarily connect garden
hose for water testing. Tub must be clean before filling. Seal drain
with plug and fill tub 2” above jet fittings. Run pump approximately
20 minutes. Check for leaks. Turn pump off and let water sit in tub
about 5 minutes. Check for leaks in return pipe and fittings. Drain
the tub and shut off circuit breaker.
NOTE: ALL TUBS ARE FACTORY TESTED FOR PROPER
WATERTIGHT OPERATION. However, the tub must be filled with
water to check for leaks that may have resulted from handling,
before finishing the tub installation.Access Tubs is not responsible
for any defects that could have been discovered, repaired or
avoided by following this testing and inspection procedure.
GENERAL NOTES
INSTALLATION

4
ELECTRICAL
Factory wired for 120 Volt 20 Amps. Ground Fault Circuit
Interrupter (GFCI) is required of 20 Amps for the Water Pump
and Blower. A second GFCI circuit of 15 Amps is needed for
the Inline Heater. The GFCI breaker must not supply any other
circuits or devices. Note: A 30 Amp circuit must be installed to
use with any permanently connected (hardwired) unit.
FINISHING
Before finishing with your choice of material, make sure
access entries are available to the pump, bath waste, and
plumbing fixtures. Finish as desired and seal around tub, pref-
erably with silicone.
NOTE:
1. For Caulking, we recommend 100% sanitary silicone
rather than latex.
2. For quieter operation, you may choose to insulate the
construction area.
3. IT IS THE INSTALLERS RESPONSIBILITY TO SUPPLY
ACCESS TO PUMP AND EQUIPMENT.
REMINDER: During construction, we suggest that you cover
tub to avoid use as trash receptacle.
INSTALLATION CONTINUED
PLUMBING ROUGH-IN
The bath waste opening protrudes below the base
approximately one inch. You may be required to cut a hole
in the subfloor to accommodate bath waste. In slab on grade
or prestressed concrete floors where cutting is not desired,
the tub may be raised up by building the platform higher and
using extra mortar under the tub. If a joist must be notched,
verify that structure will not be weakened. Remove only what
is necessary. Provide supply pipe, rough-in waste and vent
per code.
PLUMBING
PVC Schedule 40 piping, self draining pump and fittings come
completely preplumbed unless requested otherwise. The
pump and whirlpool system are completely contained within
the tub perimeter. On some models, the pump may exceed
beyond the perimeter of the tub. If you have such a model,
please make allowances during installation.

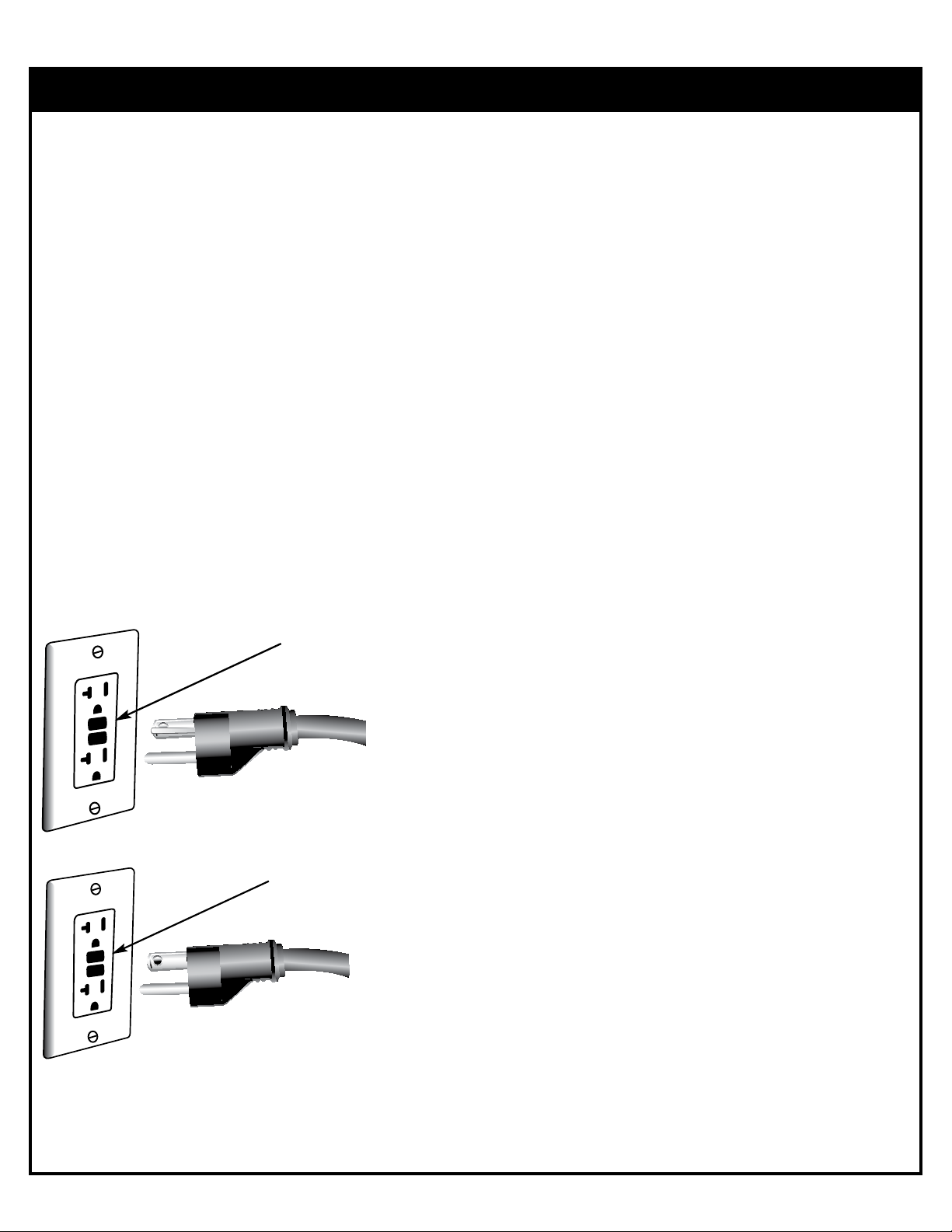

INCOMING POWER
Standard GFCI 120V, 20 Amps
Pump/Blower Power Supply
NEMA 5-20P OUTLET
Second Standard GFCI 120V, 15 Amps
Inline Heater Power Supply

5

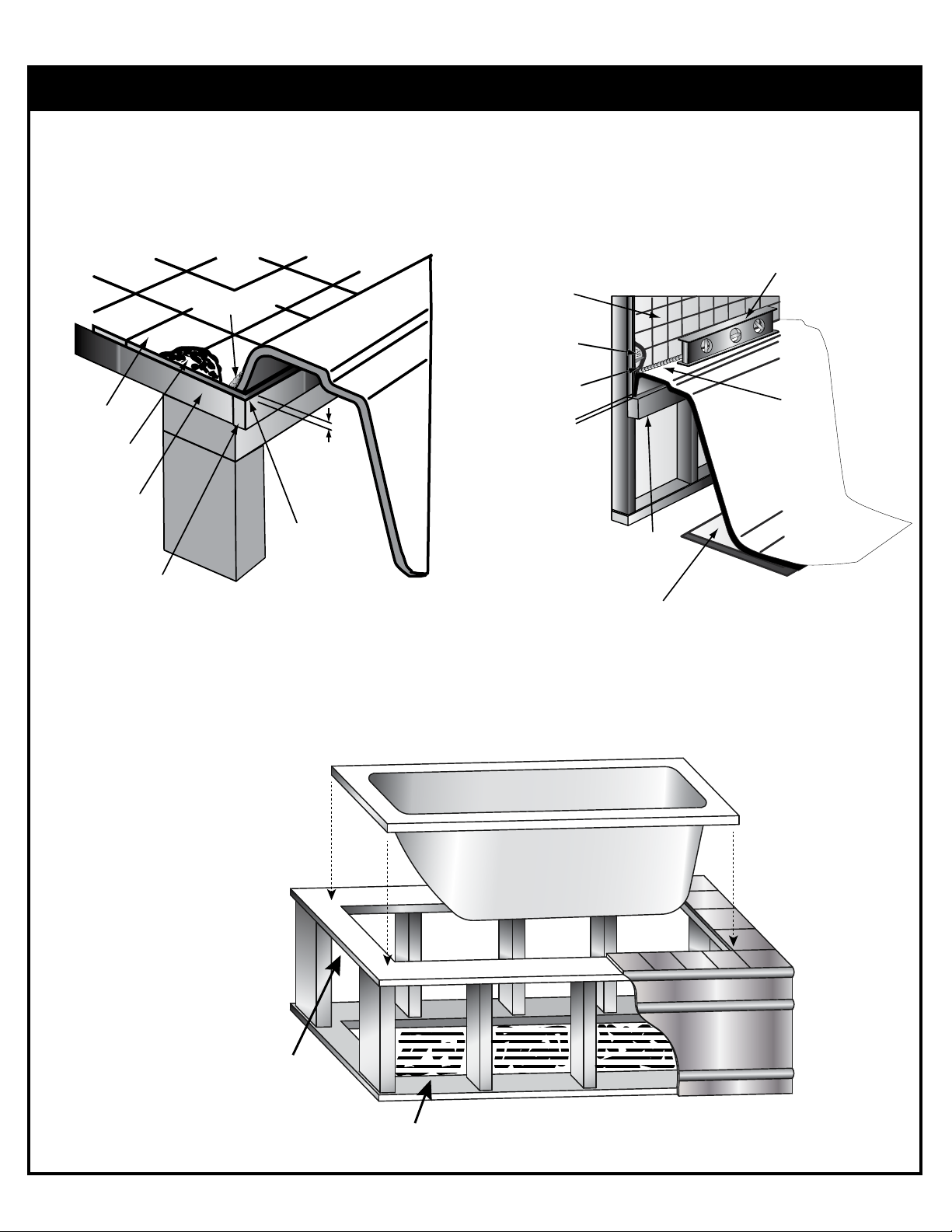

TYPICAL INSTALLATIONS
Make absolutely certain that access panels and/or service openings are properly placed and that all possible areas where
service may be required are accessible.
TUB TO BE SUPPORTED BY THE SUPPORT BASE AND BEDDING, NOT BY THE LIP OF TUB
Note: For caulking, we highly recommend using 100% silicone rather than a latex silicone because it keeps its elasticity and
does not deteriorate.
FOR A QUIETER WHIRLPOOL, WE SUGGEST:
a. Insulate the surround.
b. Set tub in mortar.
SEALANT
TILE
GROUT
SUB-FLOOR
FLASHING
1” x4”
(NOT FOR SUPPORT)
1/8”
MAKE SURE TUB IS LEVEL
TILE
GROUT
FLASHING
1/8”
CLEARANCE
MORTAR/BASE SUPPORT
1” x4”
(NOT FOR SUPPORT)
SEALANT
TUB
INSULATION
MORTAR
INSTALLATION CONTINUED

6
INSTALLATION CONTINUED
Purge Cycle:
There are two different purges: The first at 30
minutes after the tub is used and the second every
24 hours at the time determined by when power is
turned on at the breaker box.

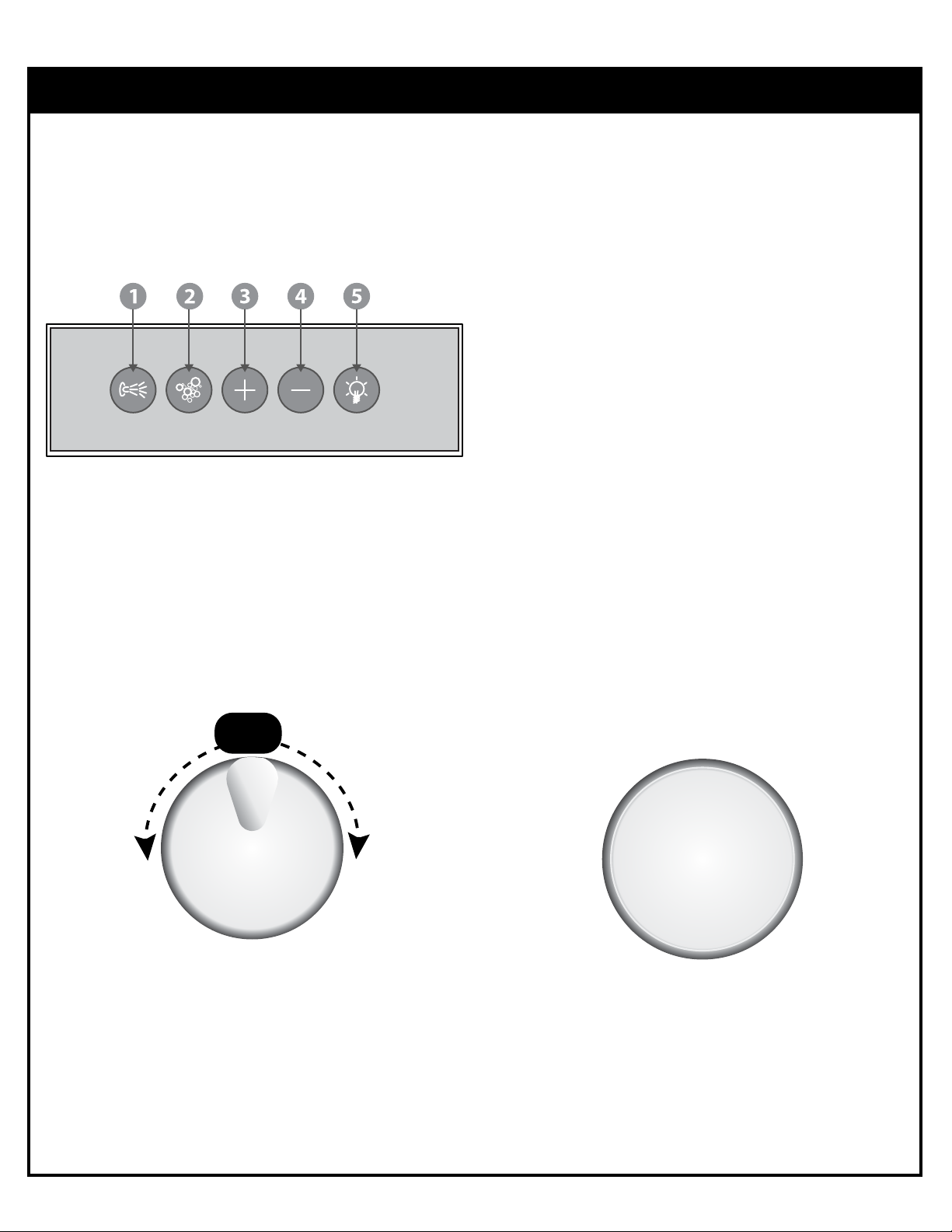

1. Pump On/Off:
1st Press - the pump starts
2nd Press - the pump stops
2. Blower On/Off:
1st Press - the blower starts
2nd Press - the blower stops
3. Air Jet Speed (INCREASE)
4. Air Jet Speed (DECREASE)
5. Light Button:
1st Press - turn on light
2nd Press & Hold - turn off light
Cycling Colors - When turned on, Chromalight
will be in Cycle Mode where the colors will slowly
cylce from one to the next. To manually select your
desired color, press the button again and again
until the desired color is reached. It will stay on this
color until turned off.
ACCESS TOUCH PLUS
START UP AND OPERATIONAL INSTRUCTIONS
6
Increase Pressure Decrease Pressure
6. Water Jet Pressure Control
Turn control knob to increase or
decrease the speed and pressure for
the water jets. The water jets pressure
control is divided between 2 air
pressure controls on either side of the
tub.
7. Aromatherapy Cap
Unscrew cap and insert your favorite
fragrance beads to bathe in a
soothing aroma scent.

7
120V/60Hz Variable Blower & On/Off Pump
120V 20A for Blower/Pump
GROUND FAULT
CIRCUIT INTERRUPTER
CLASS A
120V 15A Tee-Heater
GROUND FAULT
CIRCUIT INTERRUPTER
CLASS A
VARIABLE BLOWER
SL0-6-75-120/60 > 11A
Tee-Heater
120/60 8.3A
1HP ON/OFF PUMP 120/60 > 7A
TOUCHPAD
CONTROL
EVO2-T-CB/L-P1B2/12/3-WD1+VB24
WATER DETECTORS
FOR PUMP
BLUE B-CORE
for Blower
RED P-CORE
for Pump
ELECTRICAL
FEEDER
120V/60Hz
CHROMATHERAPY LIGHT
INSTALLATION CONTINUED
OTHER COMPONENTS
INLINE WATER HEATER
The electric inline water heater works to maintain the water’s tempurature keeping it warm and comfortable for a much longer
time. Please note that the inline water heater does not heat the water beyond the water’s original tempurature but drastically
the reduces the rate at which the water loses heat.
CHROMATHERAPY
Chromatherapy offers the option to bath in various color wave lengths promoting health and wellness. To activate simply press
down on the Chromatherapy button. Every subsiquent push of the button cycles through the various settings including 9 differ-
ent colors and an automatic more which cycles through all the colors automatically. To deactivate simply hold down the button.
AROMATHERAPY
Unscrew the Aromatherapy covering to insert your choice of Aromatherapy Bead Canisters. The circulating air picks up the
bead’s scent and carries it out through the air massage bubbles releasing the fragrance when the bubbles reach the surface.
The Air Blower must be on to operate the Aromatherapy.

8
USER SHOULD periodically flush operating system (not to exceed 90 days). As a minimum, shall consist of filling and running
system and draining. Access Tubs recommends flushing with a mild solution of water and sanitizer such as chlorine or other
commercially available whirlpool bath flushing products.
DO NOT use abrasives. They may dull or scratch surface of the acrylic.
DO NOT use oil based solvents. Clean with only a damp cloth or mild detergent or any common glass cleaner.
DO NOT use bubble bath while the whirlpool is operating.
DO NOT turn on pump without water in the bathtub. To do so may cause damage to the pump.
DO NOT alter the position of the pump. To do so may void your warranty.
FOR MINOR SCRATCHES
The procedure to remove light surface scratches or burnish marks is quite easy. Simply apply rubbing compound to the affected
area and buff lightly. Then apply paste wax and gently buff again to return the original shine.
REPAIR TO THE SURFACE
Should a deep scratch or more serious damage be encountered, please call Technical Service at Access Tubs for assistance.
When calling, please have the serial number, date of purchase, and color of your tub.
CLEANING RECOMMENDATIONS
To clean the pipes and pump:
Fill the tub and pour a cup of bleach (or dishwasher soap [i.e. Cascade] if bleach is not available), run pump for five (5) minutes
and let it sit for ten (10) minutes. Run the pump for five (5) minutes, then rinse two (2) times. Wipe off the surface after the rinse
because the bleach may discolor some color trimmings.
After using bleach or dishwasher soap, you should follow this cleaning procedure:
Fill the tub with water and run the pump for 5 minutes, then rinse it 2 times. Clean with a soft damp cloth, do not use abrasive
cleaners as they may scratch and dull surface of the unit.
PROBLEM
Pump not starting
Pump humming but not priming
Pump not moving water
No jet pressure
Leak in plumbing
SOLUTION
Check wiring; Check the on/off switch; Check water level; Reset GFI at outlet.
Air trapped in line; Check for clogged jets. Add water, may have to open top union.
Possible obstruction in impeller. Possible frozen clutch (requires replacement).
Clogged jet; air control not open; jet not open; missing part in jet.
Call Tech Service: 877-249-2388
NOTE: Caustic drain openers will damage the surface and the pump! Extreme heat from portable heaters
and cigarettes can damage the surface of the tub. DO NOT USE OIL BASED BATH ADDITIVES.
USER MAINTENANCE
TROUBLESHOOTING

9
10 YEARS STRUCTURAL
BATH SHELL: Access Tubs warrants its bath shells against loss of
water through the fiberglass laminate of the tub body as a result of a
defect in materials and workmanship, for a period of ten (10) years
from the purchase date.
10 YEARS SURFACE
The acrylic surface is warranted against blistering, cracking and
chipping resulting from a defect in the acrylic surface material for a
period of ten (10) years from the purchase date. SCRATCHES ARE
NOT COVERED UNDER WARRANTY.
1 YEAR PUMP • 1 YEAR BLOWER • 1 YEAR PARTS
PLUMBING AND EQUIPMENT
Access Tubs warrants factory installed plumbing parts and fittings,
and electrical components to be free from defect in materials and
workmanship for a period of one (1) years from the purchase date, a
period of one (1) years from the purchase date for the pump, and a
period of one (1) years from the purchase date for the blower.
EXTENT OF WARRANTY/RESPONSIBILITY OF PURCHASER
This warranty applies only to original purchaser of the Access Tubs.
Warranty Card must be signed and sent to Access Tubs within ten
(10) days of purchase to activate warranty. Original purchaser must
establish, by dated sales slip, invoice or delivery receipt, the date of
purchase. The warranty applies to Access Tubs manufactured after
October 1, 2010.
WARRANTY PERFORMANCE
In the event of any defect in workmanship or materials covered under
the terms of the “Bath Shell” warranty, Access Tubs will repair the
defect and will be responsible for the labor cost incurred by its agent
in doing so. Travel, trip or mileage costs incurred by the authorized
agents are not covered under this warranty. Access Tubs, at its sole
discretion, may elect to replace the defective bath. All costs involved
in replacing the unit are not covered under this warranty.
In the event of any malfunction or defect covered under the terms
of the “Plumbing and Equipment” warranty, Access Tubs will repair
or replace the defective item for a period of one (1) years from the
purchase date for parts, a period of one (1) years from the purchase
date for the pump, a period of one (1) years from the purchase date
for the blower. Labor cost to repair an Access Tubs is covered
for a period of ninety (90) days and must be performed by an
authorized agent of Access Tubs. The purchaser is responsible to
provide adequate access to the equipment and plumbing. Any labor
costs attributed to removing decking or any other obstacle to
gain easy access to the equipment or plumbing are not covered.
Travel, trip or mileage costs incurred by the authorized agent for
in-home service are not covered under this warranty.
Written notice of any malfunction or defect must be provided within
ten (10) days of the time it is discovered, to Access Tubs, 5701 NW
35th Avenue, Miami, Florida 33142. Access Tubs reserves the right
to inspect the malfunction or defect on location.
RESPONSIBILITIES OF OTHERS
Inspecting the unit prior to installation is the responsibility of the
installer or building contractor who acts on behalf of the user. They
are responsible for ensuring the unit is free of defect or damage.
Notices are placed on and in the unit and on the shipping carton
advising the installer of this responsibility. In the event of a problem,
the unit must not be installed. Access Tubs is not responsible for
failures or damage that could have been discovered, repaired, or
avoided by proper inspection and testing prior to installation.
Damage occurring in transit is the responsibility of the carrier.
The user or installer MUST open the crate and inspect the unit
for damage when it is delivered. If damage is discovered, it must
be reported immediately to the seller and the carrier in writing,
and an inspection requested. Failure of the carrier to respond
should be reported to the seller and the carrier. Your freight
claims should be filed promptly thereafter.
LIMITATIONS AND EXCLUSIONS
This warranty does not cover any claim arising from abuse, misuse,
negligence, accident, improper installation or operations on the part
of the purchaser. This warranty is void if the Access Tubs is subject
to alteration, or if repairs are attempted by anyone other than an
authorized agent of Access Tubs. This warranty does not extend to
plumbing or components installed by dealers, installers or by any
party other than Access Tubs.
Access Tubs will not be liable for loss of use of the Atlantis Whirlpool
Bath, inconvenience, or any other incidental or consequential costs,
expense or damages. Please note that some states do not allow the
exclusion or limitation of incidental damages.
DISCLAIMER
Except as expressly provided, there shall be no warranty or obligation,
express or implied, oral or statutory. No dealer or other person has
the authority to make any warranties or representations concerning
Access Tubs or its products. In no event shall Access Tubs be held
responsible for any such warranties or representations.
OTHER RIGHTS
This warranty gives you specific legal rights, and you may have other
rights which may vary from state to state.
TECHNICAL SERVICE
Contact the retail seller or the local authorized warranty service
center. If you do not know who your local representatives are, contact
Access Tubs Service Department at the address listed below, or call
877.249.2388.
LIMITED WARRANTY COVERAGE
READ CAREFULLY, THE WARRANTY APPLIES ONLY TO ORIGINAL OWNER
Access Tubs • A Division of SpaWorld Corp.
5701 NW 35th Avenue, Miami, Florida 33142

10
NOTES
INSTALLER INFORMATION
DATE OF INSTALL:
INSTALLER’S NAME:
PLUMBER: CONTRACTOR:
LICENSE #:

11

M a d e i n
U S A
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.
INSTALLER: SAVE INSTALLATION INSTRUCTIONS WITH HOMEOWNER
HOMEOWNER: KEEP INSTALLATION INSTRUCTIONS FOR FUTURE REFERENCE
Please leave owner’s manual with warranty.
If you have any problems or questions during installation,
please call technical service at
877-249-2388
Record the numbers here for handy reference:
Model No.
Serial No.
Date of Purchase
Manufactured by
Access Tubs
A Division of Spa World Corp.
5701 NW 35th Avenue
Miami, Florida 33142
Ph: 877.249.2388 • Fax: [phone]
Email: [e-mail]
10-1011
America’s Walk-In Tub
