HAND CHAIN HOIST
1/2 - 20 TONS
73141-1
MAR.2019

-2-
It is the responsibility of the owner/user to install, inspect, test, maintain, and operate these hand
chain hoists in accordance with ASME B30.16, Safety Standard for Overhead Hoists.
These general instructions deal with the normal installation, operation and maintenance situations
encountered with the hand chain hoists described herein. The instructions should not be interpreted
to anticipate every possible contingency or to anticipate the final system or configuration that uses
these hand chain hoists. Read and observe the instructions stated in the manual furnished with
equipment to be used with these hand chain hoists.
These instructions include information for a variety of hand chain hoists. Therefore, all instructions
and information may not apply to one specific hand chain hoist. Disregard those portions of the
instructions that do not apply.
If the hand chain hoist owner/user requires additional information, or if any information in these
instructions is not clear, contact Acco Material Handling Solutions, York, Pennsylvania or the distributor
of the hand chain hoist. Do not install, inspect, test, maintain, or operate this hand chain hoist unless
this information is fully understood.
This hand chain hoist should not be installed, operated, or maintained by any person who has not read
all the contents of these instructions. Failure to read and comply with these instructions or any of the
warnings or limitations noted herein can result in serious bodily injury or death, and/or property damage.
Only trained and qualified personnel shall operate and maintain this equipment.
Equipment described herein is not designed for, and should not be used for lifting, supporting, or
transporting humans.
User should not use this hand chain hoist in conjunction with other equipment unless necessary and /
or required safety devices applicable to the system are installed by the user.
Modifications to upgrade, rerate or otherwise alter these hand chain hoists shall be authorized only by
the original equipment manufacturer or qualified professional engineer.
PRIOR TO INSTALLATION
Check for damage during shipment. Place claim with carrier if any damage is discovered. DO NOT install
or use a damaged hand
chain hoist.
Check and verify that structure or other equipment that will support the hand chain hoist has a rated load
capacity equal to or greater than the rated load capacity of the hand chain hoist to be used.

-3-
OPERATION
Before initial operation of hoist :
1. Read and comply with all instructions and warnings furnished with or attached to hoist.
2. Check lubricant.
3. Check operation of brake.
4. Check that chain is properly seated in sheaves and that chain is not twisted, kinked,
or damaged.
Before each shift:
1. Inspect hooks for nicks, gouges, cracks, and signs of pulling apart or twist.
2. Inspect hook latch for proper operation.
3. Check chain for kinks or twists.
4. Check operation of brake.
5. Replace warning label if missing or illegible.
Before operating :
1. Be certain all personnel are clear of the load to be lifted and moved.
2. Make sure load will clear stock piles, machinery, or other obstructions when hoisting and traveling
the load.
3. Eliminate any twists or kinks in the load chain.
SAFETY PRECAUTIONS
1. READ these instructions and Safety Standard for Overhead Hoists before installing, operating, or
maintaining this equipment.
2. DO NOT lift more than rated load.
3. DO NOT operate hoist when it is restricted from forming a straight line with the direction of loading.
4. DO NOT operate with twisted, kinked, or damaged chain.
5. DO NOT operate if chain is not seated in sheaves or sprockets.
6. DO NOT wrap chain around load or use chain as a sling.
7. DO NOT operate unless load is properly applied to the saddle or bowl of the hook.
8. DO NOT operate if load is applied to the tip of the hook.
9. DO NOT operate with damaged or missing hook latches.
10. DO NOT lift people.
11. DO NOT lift or move loads over people.
12. DO NOT operate with side-pulling or side-loading of load to hoist.
13. DO NOT operate a damaged or malfunctioning hoist.
14. DO NOT operate with other than hand power.
15. DO NOT remove, deface, or obscure warning label or labels on hoist.
16. DO NOT leave load suspended when hoist is unattended unless specific precautions have been
instituted and are in place.
17. DO NOT lengthen load chain or repair damaged load chain.
18. DO NOT use chain as a ground for welding.
19. WARN personnel of approaching loads.

-4-
INSPECTION AND MAINTENANCE
Prior to initial use, all new, altered, and repaired hoists shall be inspected in accordance with Table 2.
Thereafter, inspections shall be conducted at intervals shown in Table 1. Items to be inspected
are indicated in Table 2 by F (frequent) or P (periodic).
Refer to ASME B30.16 for additional information on inspection, test, and maintenance.
Frequent Inspections - Visual inspection by the operator or other authorized person. This inspection
includes listening for unusual sounds while the hoist is operated that may indicate deficiencies.
Exception : Brakes require more than audio-visual inspection. Check daily by operating hoist with and
without load, stopping at various positions to test holding power and amount of drift, if any occurs.
TO ADJUST BRAKE (refer to Figure 1) :
1. Fully tighten nut to position A.
2. Slack off nut from position A to position B and insert adjusting spring.
NOTE : Replace brake disc if thickness is less than 0.08 inch.
Periodic Inspections - Audio-visual inspection as for Frequent Inspections, with some disassembly to
allow a more detailed inspection if external conditions indicate the need.
FIGURE 1
TABLE 1 - FREQUENCY OF INSPECTION
SERVICE*
FREQUENT
INSPECTION
PERIODIC
INSPECTION
Normal
Heavy
Severe
Monthly
Weekly to Monthly
Daily to Weekly
Annually
Semi-Annually
Quarterly

-5-
HOOKS
Refer to ASME B30.10, Safety Standard for Hooks. Inspect hooks and measure hook
throat opening at least once a month. Between regular inspections check visually daily
for deformation, distortion, twisting, damage, and missing or damaged hook latches.
Inspect as follows :
1. Measure hook throat opening from metal to metal of the hook as shown by dimension
N1 in Figure 2. DO NOT measure from latchto metal. Hook must be replaced when throat
opening measurement has increased 5%, not to exceed 0.25 inch over the original throat
opening dimension of a new hook, as follows:
FIGURE 2
TABLE 2 - INSPECTION CHART
In chart, F indicates Frequent Inspection, P indicates Periodic Inspection
LOCATION CHECK FOR FPLOCATION CHECK FOR F P
Braking mechanism
(See Page 4)
Slipping under load
Hard to release
Brake Parts
Brake Discs
Pawl; Ratchet
Pawl Spring
Glazing
Oil contamination
Excessive wear
Corrosion; stretch
Load Chain
(See Page 7)
Stretch
Excessive wear
Twist
Broken, cracked, or
damaged links
Deposits of foreign
material
Inadequate lubrication
Hooks
(See below)
Chemical damage
Cracks
Deformation
5%, not to exceed 0.25 inch
in excess of normal throat
opening
Any twist from plane of
unbent hook
Cracks (dye penetrant,
magnetic particle, or other
suitable detection method)
Hook Retaining
Members (Pins,
Bolts, Nuts)
Hook Latch
Suspension Members
(Sheaves, hand-
wheels, chain
attachments,
suspension bolts
or pins)
Bearing; Shafts
Gears
Load Block;
Suspension Hsg.
Trolley; Supporting
Structure
Bolts, Nuts, Rivets
WARNING Label
Not tight or secure
Damaged; does not close
Excessive wear
Distortion
Cracks
Excessive wear
Distortion
Cracks
Inadequate lubrication
Distortion
Broken or worn teeth
Cracks
Inadequate lubrication
Distortion
Cracks
Possible inability to
continue supporting
imposed loads
Not tight or secure
Removed or illegible
For maintenance
(replacement required)
maximum throat opening
MM INCH MM INCH MM INCH MM INCH MM INCH MM INCH N1x105% and N+0.25”
1/2 73 2.874 16 0.63 20 0.787 36 1.417 27.5 1.083 31 1.22 1.28
1 86 3.386 20 0.787 24 0.945 40 1.575 28.5 1.122 33 1.299 1.36
2 113 4.449 24 0.945 30 1.181 50 1.969 35 1.378 41 1.614 1.69
3 133 5.236 28 1.102 42 1.654 54 2.126 41 1.614 45 1.772 1.86
5 152 5.984 36 1.417 46 1.811 61 2.402 44 1.732 50 1.969 2.07
71/2 185 7.283 42 1.654 66 2.598 71 2.795 43 1.693 49 1.929 2.03
10 236 9.291 62 2.441 90 3.543 80 3.15 51.5 2.028 66 2.598 2.73
15 270 10.63 65 2.559 90 3.543 110 4.331 60 2.362 90 3.543 3.72
20 323 12.72 79 3.11 118 4.646 120 4.724 85 3.346 94 3.701 3.89
N1
CAPACITY
Ton
STANDARD HOOK DIMENSION
N
A
B
E
M

ANY HOOK THAT REQUIRES REPLACEMENT BECAUSE OF EXCESSIVE BENDS,
TWISTS, OR THROAT OPENING INDICATES ABUSE OR OVERLOADING OF THE HOIST.
THEREFORE, OTHER LOAD-SUPPORTING COMPONENTS OF THE HOIST SHOULD BE
INSPECTED FOR POSSIBLE DAMAGE WHEN SUCH CONDITIONS ARE FOUND.
NEVER REPAIR HOOKS BY WELDING OR RESHAPING. HEAT APPLIED TO THE HOOK
WILL ALTER THE ORIGINAL HEAT TREATMENT OF THE HOOK MATERIAL AND REDUCE
THE STRENGTH OF THE HOOK.
NEVER WELD HANDLES OR OTHER ATTACHMENTS TO THE HOOK. HEAT APPLIED TO
THE HOOK WILL ALTER THE ORIGINAL HEAT TREATMENT OF THE HOOK MATERIAL
AND REDUCE THE STRENGTH OF THE HOOK.
-6-
2. Measure hook depth at load bearing point (base, bowl, or saddle) of the hook. Hook must
be replaced when wear at load bearing point is 10% of the original depth of the hook load
bearing point.
3. Any bend or twist of the hook from the plane of the unbent hook requires replacement of
the hook.
4. A hook latch, when required, that is missing shall be replaced.
5. A hook latch, when required, that is inoperative shall be repaired or replaced.
6. A hook with a hook latch that does not close the throat opening of the hook shall be
removed from service or moused until the latch is replaced or repaired.
7. Hooks having damage from chemicals, corrosion, or deformation shall be repaired or
replaced. Damage in the form of cracks, nicks, and gouges may be repaired by
a designated person by grinding longitudinally, following the contour of the hook, provided
no dimension of the hook is reduced by more than 10% of the original dimension of a
new hook. If the repair reduces the dimension of the hook by more than 10% of the
original dimension of a new hook, the hook shall be replaced.

10
71/2
20
15
9.0 0.35
9.0 0.35
inside
11 links = 8.52 inches
11 links = 8.52 inches
11 links = 10.26 inches
11 links = 9.36 inches
11 links = 12.04 inches
11 links = 12.04 inches
11 links = 12.04 inches
11 links = 12.04 inches
11 links = 12.04 inches

(Refer to Figure 6).
(Refer to Figure 5).
(Refer to Figure 7).

-9

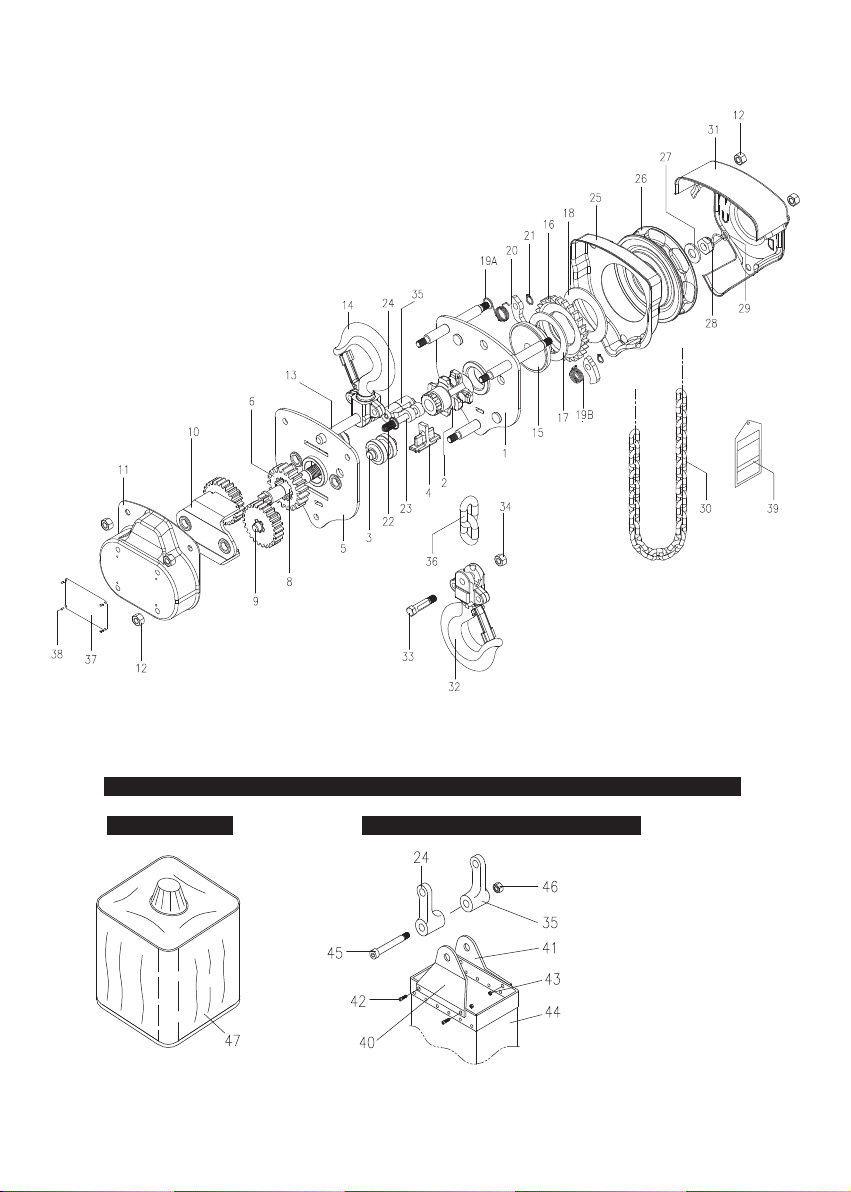

CHAIN BLOCK EXPLODED VIEW (1/2 - 20 TON)
(Optional parts)
Weather Cover Chain Container(1/2, 1, 2, 3 & 5 Ton)

-10-
71/2

-11-
Item Description 1/2T
1T 2T 3T 5T 7 1/2 T 10T 15T 20T
1 SIDE PLATE I 73140-201 73140-301
2 LOAD SHEAVE 73140-202 73140-302
3 CHAIN GUIDE 73140-203 73140-003
4 CHAIN STRIPPER 73140-204 73140-004
5 SIDE PLATE II 73140-205 73140-305
6 1ST GEAR 73140-206 73140-306
8 PINION SHAFT 73140-208 73140-008
9 2ND & 3RD GEAR 73140-209 73140-309
10 SUPPORT PLATE 73140-210 73140-310
11 GEAR COVER 73140-211 73140-311
12 U-NUT 73140-212 73140-012
13 TOP HOOK PIN 73140-213 73140-013
14 TOP HOOK ASSEMBLY 73140-014 73140-114 73140-214 73140-314 73140-414 72140-514 73140-614 73140-714 73140-814
14-01 HOOK N/A N/A N/A 73140-314H 73140-414H 72140-514H 73140-614H 73140-714H 73140-814H
14-02 TOP FRAME A N/A N/A N/A 73140-314A 73140-414A 72140-514A 73140-614A 73140-714A 73140-814A
14-03 TOP FRAME B N/A N/A N/A 73140-314B 73140-414B 72140-514B 73140-614B 73140-714A 73140-814A
14-05 U-NUT N/A N/A N/A 73140-314C 73140-414C
14-07 SPRING WASHER N/A N/A N/A N/A N/A N/A N/A 73140-714D 73140-814D
14-08 NUT N/A N/A N/A 73140-314E
14-11 HEX BOLT N/A N/A N/A 73140-314F
14-12 HEX WRENCH BOLT N/A N/A N/A 73140-314G 73140-314G
14-13 SAFETY LATCH SPRING N/A N/A N/A 73140-314S 73140-314S 73140-714S 73140-814S
14-14 SAFETY LATCH(c) N/A N/A N/A 73140-314L 73140-414L 73140-714L 73140-814L
14-15 HEX BOLT N/A N/A N/A N/A N/A N/A N/A 73140-714M 73140-814M
14-16 HEX NUT N/A N/A N/A N/A N/A N/A N/A 73140-714N 73140-814N
14-17 SPRING WASHER N/A N/A N/A N/A N/A N/A N/A 73140-714P 73140-814P
15 HUB 73140-215 73140-015
16 RATCHET GEAR 73140-216 73140-016
17 DISC A 73140-217 73140-017
18 DISC B 73140-218 73140-018
19A PAWL SPRING A 73140-219A 73140-319A
19B PAWL SPRING B 73140-219B 73140-019B
20 PAWL 73140-220 73140-020
21 SNAP RING 73140-221 73140-021
22 END SPRING
23 END ANCHOR PIN 73140-223 73140-023
24 END ANCHOR A(b) 73140-224 73140-024
25 BRAKE COVER 73140-225 73140-325
26
CHAIN WHEEL(OVER LOAD)
73140-026 73140-126 73140-226 73140-326
27 WHEEL WASHER
28 PINION NUT
29 COTTER PIN
30 HAND CHAIN
31 WHEEL COVER 73140-231 73140-331
32 BOTTOM HOOK ASSEMBLY 73140-032 73140-132 73140-232 73140-332 73140-432 73140-532 73140-632 73140-732 73140-832
32-01 BOTTOM FRAME N/A N/A N/A 73140-332A 73140-432A 73140-532A 73140-632A 73140-732A 73140-832A
32-02 AXLE N/A N/A N/A 73140-332B
32-03 SHEAVE N/A N/A N/A 73140-332C
32-04 NEDDLE BEARING N/A N/A N/A 73140-332D
33 HOOK BOLT 73140-233 73140-333 N/A N/A
34 U-NUT 73140-234 73140-034 N/A N/A
35 END ANCHOR B(b) 73140-235 73140-035
36 LOAD CHAIN 70011-3 70011-5
37 LABEL (a) 73140-037 73140-137 73140-237 73140-337 73140-437 73140-537 73140-637 73140-737 73140-837
38 RIVET
39 WARNING LABEL(A)
24 END ANCHOR A 73140-224A 73140-024A
35 END ANCHOR B 73140-235B 73140-035B
40 CONTAINER HANGER A 73140-240 73140-040
41 CONTAINER HANGER B 73140-241 73140-041
42 HEX WRENCH BOLT
43 U-NUT
44 CHAIN CONTAINER ASS'Y 73140-444
45 HANGER BOLT 73140-245 73140-045
46 U-NUT 73140-246 73140-046
47 WEATHER COVER 73140-247 73140-047 73140-647 73140-747 73140-847
73140-447
73140-040
73140-041
73140-246
73140-244
73140-045
73140-046
73140-044
73140-047
73140-043
73140-035
70011-6
73140-038
68083
73140-042
OPTION(CHAIN BOX PART)
73140-025
73140-022
73140-031
73140-431
73140-023
73140-024
73140-223
73140-224
73140-425
73140-027
73140-028
73140-029
70011-7
73140-001
73140-401
73140-402
73140-002
73140-005
73140-405
73140-203
73140-204
73140-003
73140-004
73140-006
73140-406
73140-009
73140-010
73140-011
73140-409
73140-410
73140-411
73140-514S
73140-208
73140-008
73140-212
73140-012
73140-020
73140-021
73140-019A
73140-419A
73140-013
73140-215
73140-216
73140-217
73140-218
73140-514L
73140-714G
73140-413
73140-514C
73140-414E
73140-414F
73140-514G
73140-015
73140-016
73140-017
73140-018
73140-019B
73140-241
73140-245
73140-219B
73140-220
73140-221
73140-426
73140-644
73140-024A
73140-035B
73140-432D
73140-433
73140-434
70011-1
73140-033
73140-034
73140-432B
73140-432C
73140-224A
73140-235B
73140-240
73140-235

-12-
NOTE:
(a) Not shown. Attached to load block. Replace if missing or not legible.
(b) Not Shown. Refer to Figure 7.
(c) Not Shown. Replace if missing, damaged, or inoperative.
TO ORDER PARTS: Provide product name and serial number, hand chain hoist capacity, part number,
part description,and quantity required. Use only
Acco authorized replacement parts in the service and
maintenance of this hand chain hoist.

-13-
GENERAL CONDITIONS OF WARRANTY
WARRANTIES: The Seller warrants to the original using Buyer thereof that the goods sold under this
Agreement are free from defects in workmanship and materials for a period of two years from the date of
shipment to the original using Buyer. No other express warranties are given and no affirmation of Seller
or Seller's agents, by word or action, shall constitute a warranty. No warranty is made for components and
accessories made by others when such items are warranted by their respective manufacturers.
Any variations in details between the goods furnished herein and those covered in Buyer's specifications
are due to standards of manufacture not to be construed as exceptions to the specifications.
REMEDIES:
DISCLAIMER OF IMPLIED WARRANTIES:
(a) SELLER MAKES NO WARRANTY OF MERCHANTABILITY IN RESPECT TO THE GOODS
SOLD UNDER THIS AGREEMENT.
(b) This sale is made WITHOUTANY WARRANTY BY SELLER THAT THE GOODS ARE SUITABLE FOR
ANY PARTICULAR PURPOSE..
(c) Buyer hereby waives all other warranties, guarantees, obligations, liabilities, rights, and remedies arising
by law or otherwise including any obligation or liability of the Seller arising from tort, and Buyer shall
indemnify Seller from any liability, loss, damage, or claim arising from Buyer's tortious use of the goods
sold hereby.
(a) Under no conditions shall any goods be returned to Seller without it's prior written consent.
(b) The Buyer's sole and exclusive remedy for breach of any warranty is limited to Seller furnishing, at it's
expense, duplicate or repaired parts F.O.B. Seller's plant with installation at Buyer's expense if discovery
of a claimed defect occurs during the allowable warranty period, and if Seller's inspection determines a defect
exists.
(c) The quantity of material shown by invoice shall in all cases govern settlement for shortages, unless
notice of shortage, appropriately documented, is given to the carrier and the Seller upon delivery by the Carrier.
(d) Claims for errors, deficiencies or imperfections shall be deemed waived by the Buyer unless Seller is
notified in writing of the basis of such claims within 10 days after discovery of claimed defect and such discovery
occurs within the warranted period.
(e) Neither Buyer nor User shall be entitled under this Agreement to recover from Seller any incidental or consequential
damages of any nature including but not limited to the cost of any labor expended by others in connection with the
goods sold hereby by reason of any alleged nonconformity or breach of warranty on the part of the Seller, nor
costs of material or account thereof, nor any lost profits whether determinable or speculative.
Installation or operation of the equipment in any manner other than as recommended by Seller, shall void the
warranty.

76 Acco Drive, York, Pennsylvania 17402
FAX [phone]
