AccuEnergy Accuvim II User manual

I
Ethernet Modual
Copyright©2007 V1.01
This manual may not be reproduced in whole or in part by any means, without
written permission of Accuenergy.
The information contained in this document is believed to be accurate at the
time of publication, however, Accuenergy assumes no responsibility for any
errors which may appear here and reserves the right to make changes without
notice. Please ask the local representative for latest product specifications
before ordering.

II
Ethernet Modual
Please read this manual carefully before dong installation, operation and
maintenance of Acuvim II meter.
Following symbols are used in this user’s manual and on Acuvim II meter to
alert the dangerous or to prompt in the operating or set process.
Dangerous symbol, Failure to observe the information may result in
injury or death.
Alert symbol, Alert the potential dangerous. Observe the information
after the symbol to avoid possible injury or death.
Focus symbol, avoid inadvertent operations which may lead to
abnormal working of instrument, even damage to the instrument or
physical harm.
This mark is on product for UL Listed product
Installation and maintenance of the Acuvim II meter should only be performed
by qualified, competent personnel that have appropriate training and
experience with high voltage and current device.
This document is not fit for any untrained people. Accuenergy is not
responsible for any problem happens under proper operation.

III
Ethernet Modual
Chapter 1 Introduction------------------------------------------------------------------1
1.1 Ethernet Introduction---------------------------------------------------2
1.2 Function Description of Ethernet module-----------------------------2
Chapter 2 Wiring and Connection-----------------------------------------------------5
2.1 Appearance and Dimensions--------------------------------------------6
2.2 Installation Method------------------------------------------------------7
2.3 Denition of RJ45 Interface---------------------------------------------8
2.4 Cable-----------------------------------------------------------------------9
2.5 Connection Method------------------------------------------------------9
Chapter 3 Function Description of Ethernet MODULE----------------------------11
3.1 Initializing Ethernet Module-------------------------------------------12
3.2 Searching IP Address of Ethernet Module----------------------------22
3.3 Description of Modbus/TCP protocol---------------------------------24
3.4 Browse Webpage and Set Parameters--------------------------------32
3.5 Mail Function------------------------------------------------------------45
Appendix----------------------------------------------------------------------------------47
Appendix A Technical Data and Specications---------------------------------------48
Appendix B Ordering Information------------------------------------------------------49
Appendix C Revision History------------------------------------------------------------50
Content

IV
Ethernet Modual
Starting!
This manual is about Ethernet module of Acuvim II meter. With Ethernet
module, Acuvim II meter can be linked to Ethernet network easily, and it can
realize distribution automation based on Ethernet.
Please read this manual carefully before operating and setting the Acuvim II
meter to avoid unnecessary trouble.
Chapter 1 helps you to understand the fundamental concept of Ethernet, and
application points of Ethernet module.
Chapter 2 describes in detail hardware features of Ethernet module.
Chapter 3 describes in detail function application of Ethernet module.
Appendix lists technical data and specications and ordering information of
Ethernet module.

1
Chapter 1 Introduction
Ethernet Introduction
Function Description

2
Ethernet Modual
Ethernet module is an extended communication module of Acuvim II
meter. With Ethernet module, Acuvim II meter can be linked to Ethernet
easily.
1.1 Ethernet Introduction
Ethernet was originally developed by Xerox and then developed further
by Xerox, DEC, and Intel. Ethernet uses a Carrier Sense Multiple Access
with Collision Detection (CSMA/CD) protocol, and provides transmission
speeds up to 10 Mbps.
Now Ethernet stands for LAN with CSMA/CD protocol.
Ethernet is not a material network, and it is the technology standard.
Ethernet is the most current communication standard in LAN. This
standard denes the used type of cable and the used method of Signal
processing in LAN.
1.2 Function Description of Ethernet module
Please read appendix of technical data and specifications of Ethernet
module before using it.
﹡The Ethernet module supports Modbus/TCP protocol. It is used as
server, and the default value of protocol port is 502, and the user dened
range of protocol port is 2000~5999. Device address is the same as
Acuvim II meter.
﹡The Ethernet module supports SMTP protocol. It has Mail Function and
supports “Send mail for timing” mode and “Send mail for event” mode.
﹡The Ethernet module supports HTTP protocol. It is used as HTTP server,

3
Ethernet Modual
and the default value of protocol port is 80, and the scope of protocol
port is 6000~9999.

4
Ethernet Modual

Chapter 2 Wiring and Connection
Appearance and Dimensions
Installation Method
Denition of RJ45 Interface
Cable
Connection Method
5

6
Ethernet Modual
Ethernet module must be linked
to Acuvim II meter when it is to
be used. In addition, Ethernet
module must be the rst extended
module linked to Acuvim II meter.
2.1 Appearance and Dimensions
（Side View）
（Top View）
NOTE
The environment temperature and
humidity should fulll the requirement
of Acuvim II meter. Otherwise it may
cause the meter damage.
22mm
90mm
55.6mm

7
Ethernet Modual

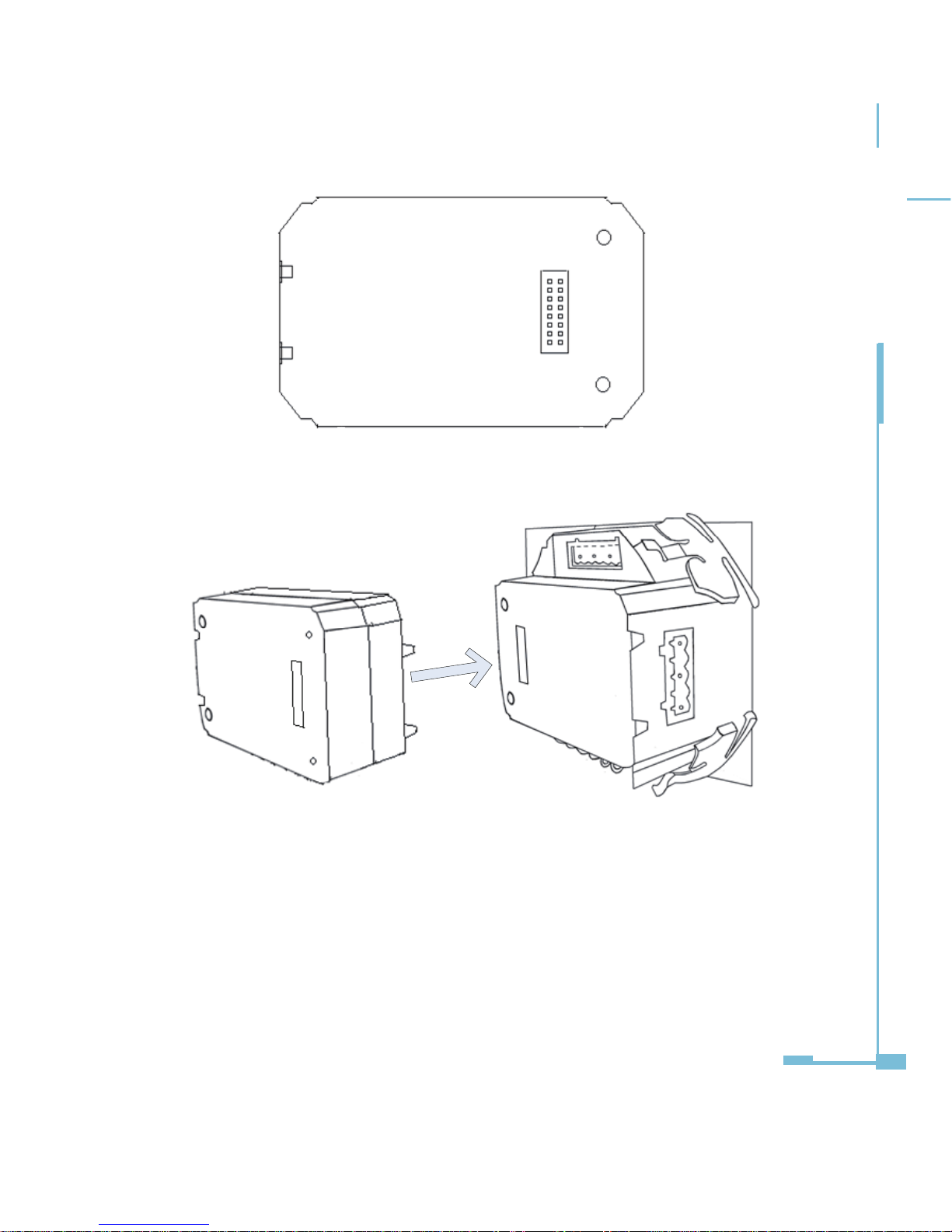

（Bottom View）
2.2 Installation Method
Ethernet module is linked to Acuvim II meter by communication plug. It
can also be linked to other extended modules like IO modules.
1. Insert the installation clips to the counterpart of Acuvim II meter,
and then press the Ethernet module lightly, so linking is established.
2. Tighten the installation screw.

8
Ethernet Modual
Note:
1. lightly in installation or it may cause damage to the IO modules;
2. Installation with power is forbidden.
2.3 Denition of RJ45 Interface
The Ethernet module uses standard RJ45 connector access Ethernet
network. The mechanical and electrical characteristics of connector are
consistent with the requirements of IEC 603-7.
（Top View）
Script ID Content
1 TX+ Tranceive Data+
2 TX- Tranceive Data-
3RX+ Receive Data+
4n/c Not connected
5 n/c Not connected
6 RX- Receive Data-
7 n/c Not connected
8 n/c Not connected
LED_L (yellow): display speed status. LED on indicates 100Mbps, while

9
Ethernet Modual
LED off indicates 10Mbps.
LED_R (green): display link and activity status combined. LED on
indicates link status, while LED ash indicates activity.
2.4 Cable
Shielded twisted-pair cable (standard 568A or standard 568B) is usually
recommended as reference to the EIA/TIA standard.
2.5 Connection Method
1. Direct Connect
Ethernet module use cross line (standard 568A) to connect to computes.
Users may refer to the third chapter “Function description of Ethernet
module” for using Ethernet module. Module supports Modbus/TCP and
HTTP functions for direct connect.
2. Indirect Connect
Ethernet module use straight line (standard 568B) access Ethernet
through router or hub. Users may refer to the third chapter “Function
description of Ethernet module” for using Ethernet module.

10
Ethernet Modual

11
Chapter 3 Function Description
Initializing Ethernet Module
Searching IP Address of Ethernet Module
Description of Modbus/TCP protocol
Browse Webpage and Set Parameters
Mail Function

12
Ethernet Modual
Detail of Ethernet module will be described in this chapter. It includes
how to set parameters of module, how to get IP address and Mac
address of module, content about Modbus/TCP protocol, how to visit
webs, and how to use mail function.
3.1 Initializing Ethernet Module
AXM-Net default settings are
IP Address (192.168.1.254);
Subnet Mask (255.255.255.0);
Gateway (192.168.1.1);
Primary DNS Server (202.106.0.20).
If you don’t know the settings of module when power on for the st time,
you may use the panel of Acuvim II to get them and to congure them.
This procedure shows how to configure Ethernet module settings by
panel:

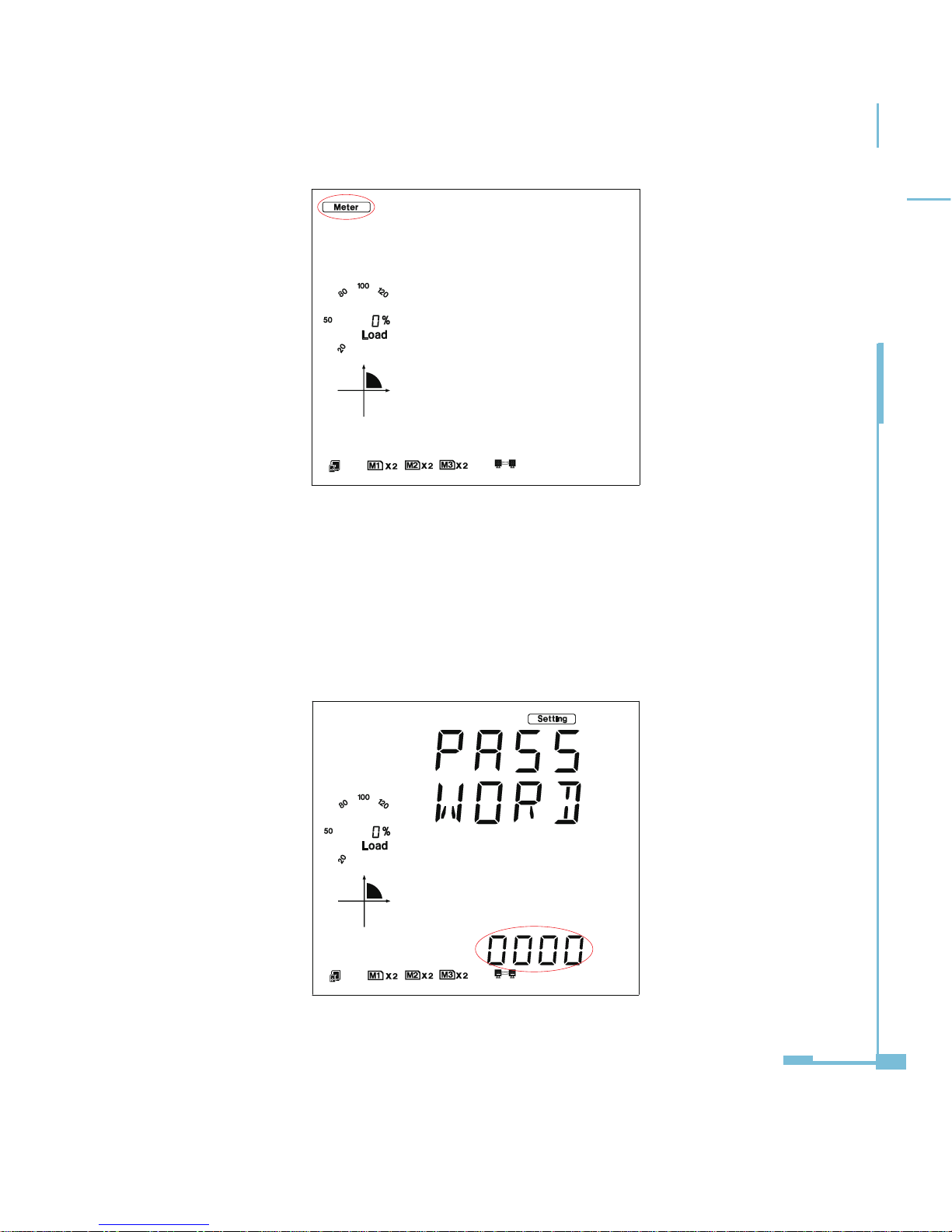

a) Press “H” key and “V/A” key simultaneously on Acuvim II will go to the
menu selecting mode. Cursor “Meter” ashes in this mode.

13
Ethernet Modual
Figure 3-1
b) Press “P” key or “E” key, move cursor to “Setting”. Press “V/A” key,
go to the meter parameter setting mode. Device address page is the rst
page of “Setting” mode. It shows the Modbus address of the device for
several seconds, and then the screen goes to Access Code page. Press “V/
A” key, go to the parameter setting page. Press “P” key or “E” key, move
cursor to “NET”, press “V/A” key, go to Ethernet module setting page.
Figure 3-2

14
Ethernet Modual

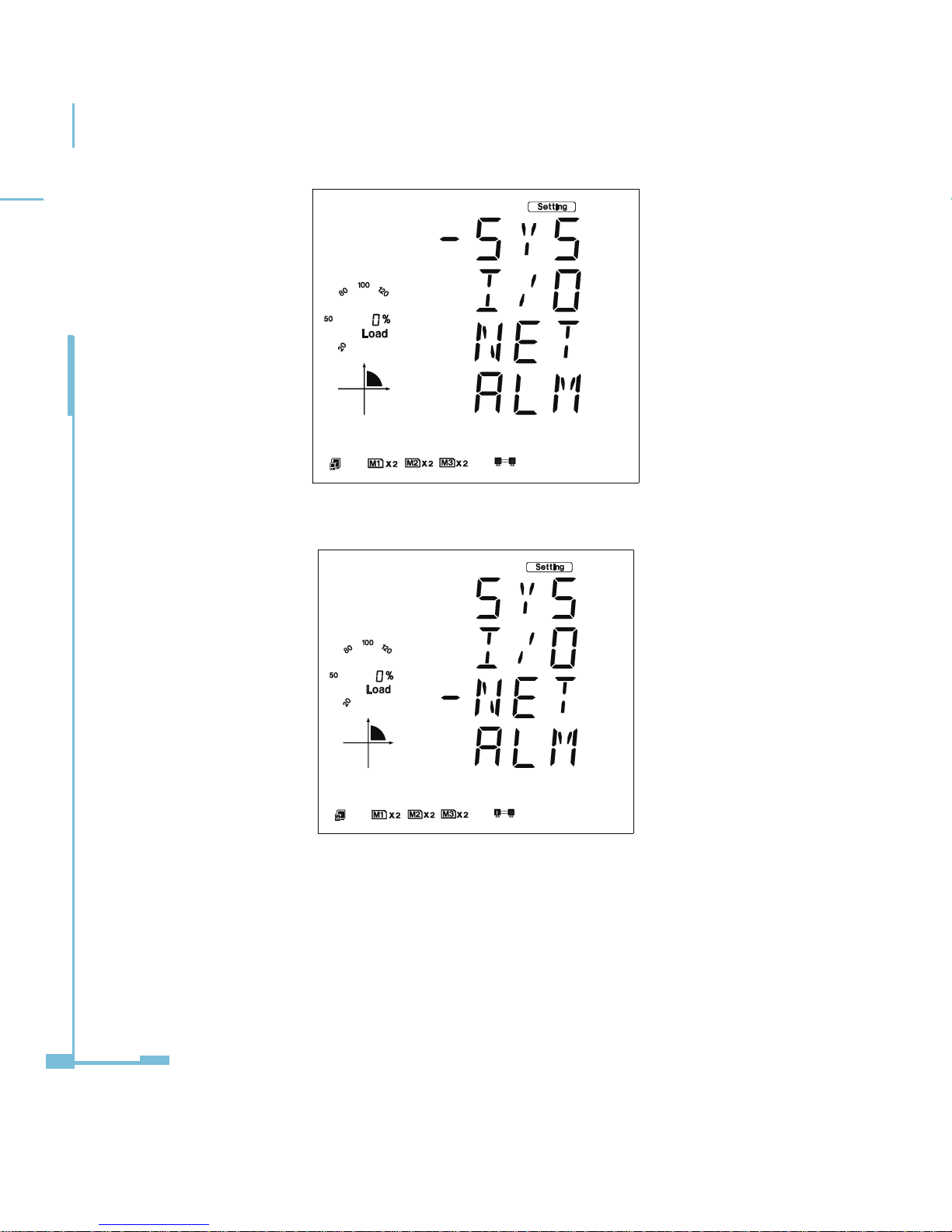

Figure 3-3
Figure 3-4
c) Set conguration mode in the rst setting page. “AUTO” means that
users congure module settings with DHCP protocol while “MANU” means
that users configure module settings with manual setting. Press “V/A”
key, go to setting state, and the pointed area will ash. Press “P” key or
