NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
1
Copyright
Copyright © 2012 by National Enhance Technology Corp. All rights reserved.
rademarks
NETSYS is a trademar of National Enhance Technology Corp.
Other brand and product names are registered trademar s or trademar s of their respective holders.
Legal Disclaimer
The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics. With respect
to any examples or hints given herein, any typical values stated herein and/or any information regarding the application of the
device, National Enhance Technology Corp. hereby disclaims any and all warranties and liabilities of any ind, including without
limitation warranties of non-infringement of intellectual property rights of any third party.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETSYS reserves the right to ma e changes to
the products described in this document without notice. NETSYS does not assume any liability that may occur due to the use or
application of the product(s) or circuit layout(s) described herein.
Maximum signal rate derived from IEEE Standard specifications. Actual data throughput will vary. Networ conditions and
environmental factors, including volume of networ traffic, building materials and construction, and networ overhead, lower actual
data throughput rate. Netsys does not warrant that the hardware will wor properly in all environments and applications, and ma es
no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for
a particular purpose. Make sure you follow in line with the environmental conditions to use this product.

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
2
Foreword: VDSL2 solution
Attention:
Be sure to read this manual carefully before using this product. Especially Legal Disclaimer, Statement
of Conditions and Safety Warnings.
NV-202P is a Long Reach Ethernet Extender with PoE equipped with two 10/100Mbps Ethernet ports with power injector. It delivers
data and electrical power to access points using standard Category 5 Ethernet cable that provide an economical solution for
commercial-grade applications.
Operators in various enterprises will now be able to deploy PoE devices in any service location, install networ security cameras,
wireless access point security / VOIP, or access control systems in any place where you have basic wire connectivity.
The NV-202P also supports both central office (CO) and customer-premises equipment (CPE) modes selectable through DIP Switch.
Compliant with ITU-T G.993.2 VDSL2 standard, the NV-202P supports a maximum bandwidth of up to 100Mbps symmetric in VDSL2
solution. Since VDSL2 has the characteristic of higher bandwidth over shorter distances, the ideal architecture for Telecoms is to use
fiber optic lines as the bac bone and a VDSL2 line as the last mile into the home or office. With outstanding throughput, the NV-202P
can complement a fiber networ to offer the best solution for delivering Triple play(Video/Voice/Data) or home entertainment
services.
Caution:
The NV-202P is for indoor applications only. This product does not have waterproof protection, please do not use in outdoor
applications.

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
3
Safety Warnings
For your safety, be sure to read and follow all warning notices and instructions before using the device.
 DO NO open the device or unit. Opening or removing the cover may expose you to dangerous high voltage points or other
ris s. ONLY qualified service personnel can service the device. Please contact your vendor for further information.
 Use ONLY the dedicated power supply for your device. Connect the power to the right supply voltage (110V AC used for
North America and 230V AC used for Europe. NV-202P supports 48 VDC power input
 Place connecting cables carefully so that no one will step on them or stumble over them. DO NOT allow anything to rest on
the power cord and do NOT locate the product where anyone can wor on the power cord.
 DO NO install nor use your device during a thunderstorm. There may be a remote ris of electric shoc from lightning.
 DO NO expose your device to dampness, dust or corrosive liquids.
 DO NO use this product near water, for example, in a wet basement or near a swimming pool.
 Connect ONLY suitable accessories to the device.
 Make sure to connect the cables to the correct ports.
 DO NO obstruct the device ventilation slots, as insufficient air flow may harm your device.
 DO NO place items on the device.
 DO NO use the device for outdoor applications directly, and ma e sure all the connections are indoors or have waterproof
protection place.
 Be careful when unplugging the power, because it may produce spar s.
 Keep the device and all its parts and accessories out of the reach of children.
 Clean the device using a soft and dry cloth rather than liquid or atomizers. Power off the equipment before cleaning it.
 This product is recyclable. Dispose of it properly.

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
4
ABLE OF CON EN S
COPYRIGHT ........................................................................................................................................................ 1
FOREWORD: VDSL2 SOLUTION ........................................................................................................................ 2
SAFETY WARNINGS ........................................................................................................................................... 3
CHAPTER 1. UNPACKING INFORMATION ......................................................................................................... 6
1.1 Chec List ......................................................................................................................................................................................6
CHAPTER 2. INSTALLING THE BRIDGE............................................................................................................. 7
2.1 Hardware Installation......................................................................................................................................................................7
2.2 Pre-installation Requirements ........................................................................................................................................................7
2.3 General Rules ................................................................................................................................................................................8
2.4 Connecting the Bridge....................................................................................................................................................................9
2.5 Connecting the RJ-11 / RJ-45 Ports .............................................................................................................................................10
2.6 VDSL2 bridge Application.............................................................................................................................................................12

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
5
CHAPTER 3. HARDWARE DESCRIPTION........................................................................................................ 14
3.1 Front Panel...................................................................................................................................................................................15
3.2 Front Indicators ............................................................................................................................................................................16
3.3 Rear Panel ...................................................................................................................................................................................18
APPENDIX A: CABLE REQUIREMENTS ........................................................................................................... 24
APPENDIX B: PRODUCT SPECIFICATION....................................................................................................... 26
APPENDIX C: DIN-RAIL MOUNT INSTALLATION.............................................................................................. 29
APPENDIX D: TROUBLESHOOTING ................................................................................................................ 30
APPENDIX E: COMPLIANCE INFORMATION ................................................................................................... 36
WARRANTY ....................................................................................................................................................... 39
CHINESE SJ/T 11364-2006................................................................................................................................ 40

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
6
CHAP ER 1. UNPACKING INFORMA ION
1.1 Check List
Carefully unpac the pac age and chec its contents against the chec list.
Package Contents:
1 x NV-202P 1 x QR code for user’s
manual hyperlin .
Accessory: 4 x Rubber Feet , 1 x DC48V /1.875A Des top
Adapter, 1x AC to DC Power cord
Notes:
1. Please inform your dealer immediately for any missing or damaged parts. If possible, retain the carton including the
original pac ing materials. Use them to repac the unit in case there is a need to return for repair.
2. If the product has any issue, please contact your local vendor.
3. Do not use sub-standard power supply. Before connecting the power supply to the device, be sure to chec
compliance with specifications. The NV-202P support DC48V / 1.875A power input.
4. The power supply included in the pac age is commercial-grade. Do not use in industrial-grade applications.
5. If you would li e to use the telephone, please purchase a suitable external splitter and install to the line port.
6. Please loo for the QR code on the bottom of the product, the user can launch the QR code scanning program to
scan and download the user’s manual electronic format file. Above QR code icon is for reference.

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
7
Chapter 2. Installing the Bridge
2.1 Hardware Installation
This chapter describes how to install the bridge and establish the networ connections. The NV-202P may be installed
on any level surface (e.g. a table or shelf or rail). However, please ta e note of the following minimum site requirements
before one begin.
2.2 Pre-installation Requirements
Before you start the actual hardware installation, ma e sure you can provide the right operating environment, including
power requirements, sufficient physical space, and proximity to other networ devices that are to be connected.
If you experience any error or problem, please be sure, Netsys will care for you and the problem. Please contact your local
dealer for support. If you are told to send the device for RMA and repair, ALWAYS ship the whole device with power
supplies.
Verify the following installation requirements:
 Power requirements: DC 48V power.
 The bridge should be located in a cool dry place, with at least 10cm/4in of space at the front and bac for ventilation.
 Place the bridge away from direct sunlight, heat sources, or areas with a high amount of electromagnetic interference.
 Chec if the networ cables and connectors needed for installation are available.
 Do not install phone lines strapped together with AC power lines, or telephone office line with voice signal.
 Avoid installing this device with radio amplifying station nearby or transformer station nearby.

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
8
2.3 General Rules
Before ma ing any connections to the bridge, please note the following rules:
• Ethernet Port (RJ-45)
All networ connections to the bridge Ethernet port must be made using Category 5 UTP/STP or above for
100Mbps, Category 3, 4 UTP for 10Mbps.
No more than 100 meters of cabling may be use between the MUX or HUB and an end node.
• VDSL2 Port (RJ-11)
All networ connections to the RJ-11port must use 24~26 gauge with twisted pair phone wiring.
We do not recommend the use of the telephone line 28 gauge or above.
The RJ-11 connectors have six positions, two of which are wired. The router uses the center two pins. The
pin out assignment for these connectors is presented below.
Please note that the line port is no polarity, therefore user can reverse the two wires of the phone cable
when installed.
RJ-11 Pin out Assignments
Pin# MNEMONIC FUNC ION
1 NC Unused
2 NC Unused
3 DSL Used
4 DSL Used
5 NC Unused
6 NC Unused_

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
9
• External Splitter
Our devices support both ISDN interfaces U(2w) and S/T(4w). When using an external splitter, ma e sure
that you are using one that is compatible with the interface you want to use.
2.4 Connecting the Bridge
The bridge has two Ethernet ports which support connection to Ethernet operation and PoE function. The devices attached to these
ports must support auto-negotiation or 10Base-T or 100Base-TX unless they will always operate at half duplex. NV-202P fast
Ethernet port is used to connect to external power splitter(PoE) or build in power splitter of networ ing devices such as IP CAM,
VOIP, wireless AP, sensor scanner or other power splitter(PD side) more than 30W.
Notes:
1. The RJ11 Line port is used to connect to telephone that is connected to VDSL2 CO and CPE bridge
(Point-to-point solution).
2. The Slave device (CPE) must be connected to the Master device (CO) through the telephone wire. The Slave
cannot be connected to another Slave, and the Master cannot be connected to another Master. Please confirm the
DIP switch status before the lin is established.

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
10
2.5 Connecting the RJ-11 / RJ-45 Ports
 The line port has 2 connectors: RJ-45 and terminal bloc . It is used to connect from NV-202P (CO) using single pair phone cable
to NV-202 (CPE) side (point to point solution). Ta e note that NV-202P line port cannot be used at the same time. Either RJ-11
port is connected or terminal bloc is connected using straight connection (Figure 2.4) or cross-over connection (Figure 2.5)

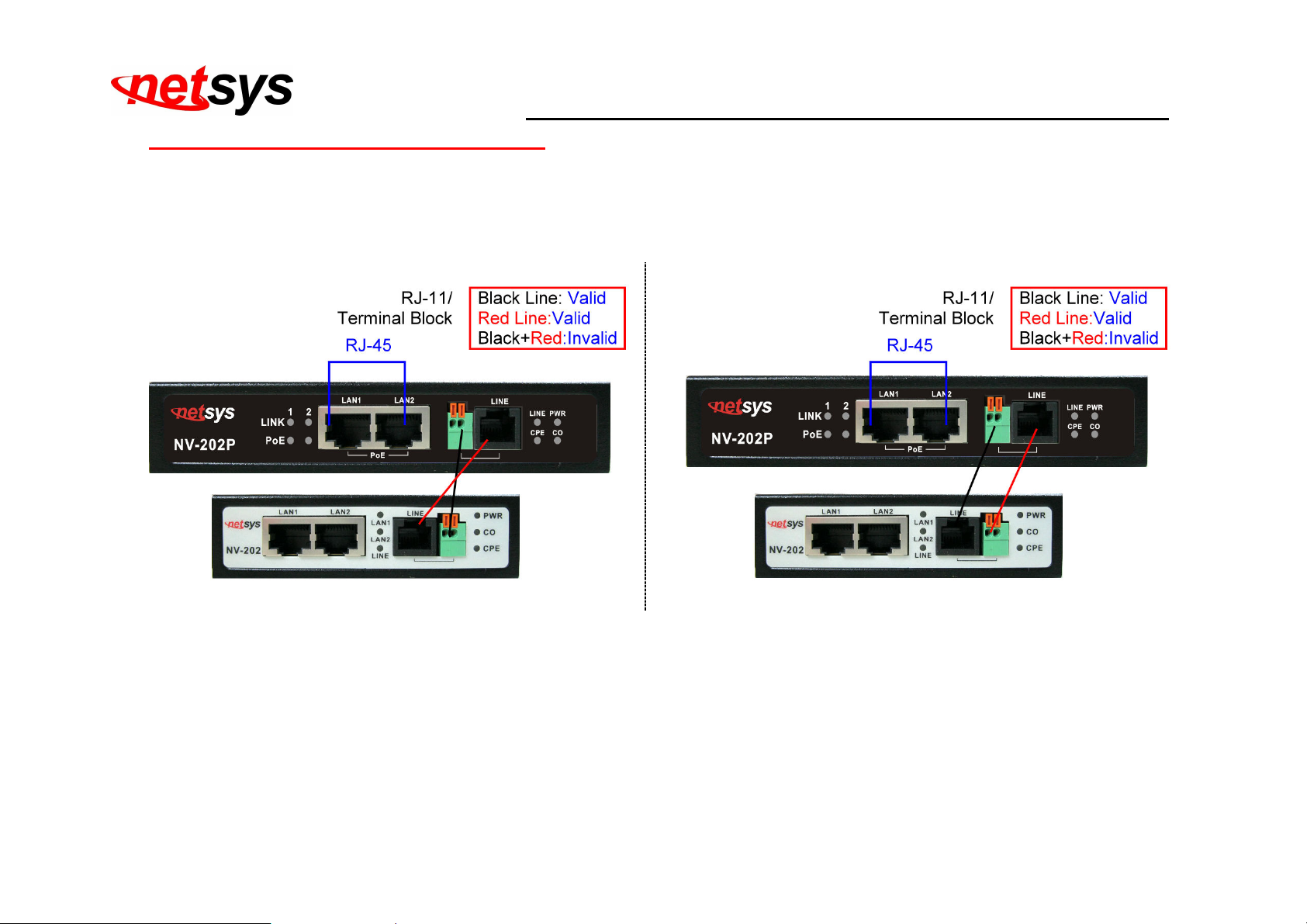

Figure 2.4 NV-202P line ports straight connection Figure 2.5 NV-202P line ports crossover connection
 When inserting a RJ-11 plug, ma e sure the tab on the plug clic s into position to ensure that it is properly seated.
 Do not plug a RJ-11 phone jac connector into the Ethernet port (RJ-45 port). This may damage the bridge. Instead, use only
twisted-pair cables with RJ-45 connectors that conform to Ethernet standard.

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
11
Notes:
1. Be sure each twisted-pair cable (RJ-45 Ethernet cable) does not exceed 100 meters (333 feet).
2. We recommend use Category 5~7 UTP/STP cables for Cable bridged or Bridge connections to avoid any
confusion or inconvenience in the future when you attached to high bandwidth devices.
3. Use 24 ~ 26 gauge twisted pair phone wiring, we do not recommend 28 gauge or above.
4. Be sure the phone cable has been installed before NV-202P is powered on.

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
12
2.6 VDSL2 bridge Application
1. User can use NV-202 bridge (CO mode) to connect NV-202P bridge (CPE mode), or use NV-202P bridge (CO mode) to connect
NV-202 bridge (CPE mode) that to do a variety of applications. The bridge’s line port supports 100Mbps maximum for data service
across existing phone wiring. It is easy-to-use which do not require installation of additional wiring. Every modular phone jac in the
home can become a port on the LAN. Networ ing devices can be installed on a single telephone wire that can be installed within
suitable distance (depends on speed) (Figure 2.6)
Figure 2.6 NV-202 / NV-202P point to point application diagram

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
13
2. If user need use over 1.5 m cable length and also need bigger bandwidth application, such as connect to ip camera. User can
use NV-202P (CO mode) and NV-202 (CPE mode) to achieve the IP surveillance for long distance application. (Figure 2.7)
Figure 2.7 NV-202 / NV-202P point to point application diagram

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
14
Chapter 3. Hardware Description
This section describes the important parts of the bridge. It features the front panel and rear panel.
NV-202P Outward

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
15
3.1 Front Panel
The figure shows the front panel. (Figure 3.1)
Figure 3.1 Front Panel
ip:
At a quick glance of the front panel, it is easy to determine if it has Ethernet signal from its RJ-45 port and
if there is VDSL line signal on RJ-11 port.
And the table shows the description. (Table 3-1)
able 3-1 Description of the bridge front connectors
Connectors ype Description
LAN1 / LAN2 RJ-45 For connecting to an Ethernet equipped device.
Line RJ-11/Terminal Bloc
For connecting to VDSL2 bridge. (Do not use RJ11 and Terminal
Bloc at the same time.)

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
16
3.2 Front Indicators
The bridge has Eight LED indicators. The following Table shows the description. (Table 3-2)
able 3-2 LED Indicators Description and Operation
LED Color Status Descriptions
On(Steady) Lights to indicate that the VDSL2 bridge had power
PWR
(Power LED) Green Off The device is not ready or has malfunctioned.
On(Steady) The device has a good Ethernet connection.
Blin ing The device is sending or receiving data.
LAN 1-2
(Ethernet LED) Green
Off The LAN is not connected.
On(Steady) The device has a good PoE connection.
Blin ing
The device is detected to a PoE device, but the power supply does not
feeding to the PD.
PoE 1-2
(PoE LED) Green
Off The device is not connected to a PD device yet.
CO (Local Side)
(CO LED) Green On(Steady) Indicate the VDSL2 bridge is running at CO(Master) mode.
CPE (Remote Side)
(CPE LED) Green On(Steady) Indicate the VDSL2 bridge is running at CPE(Slave) mode.
On(Steady) The Internet or networ connection is up.
Blin ing slowly The CO device is auto-detecting CPE device.
Blin ing fastly 1. The CO device has detected a CPE device and ready to connect.
2. The device is sending or receiving data.
LINE
(VDSL LINK LED) Green
Off The Internet or networ connection is down or has malfunctioned.

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
17
Note:
It is normal for the connection between two bridged to ta e up to 3 minutes, due to NV-202P to establish a lin mechanism in
auto-negotiation, that detects and calculates CO and CPE both PBO and PSD level, noise levels and other arguments for getting a
better connection.

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
18
3.3 Rear Panel

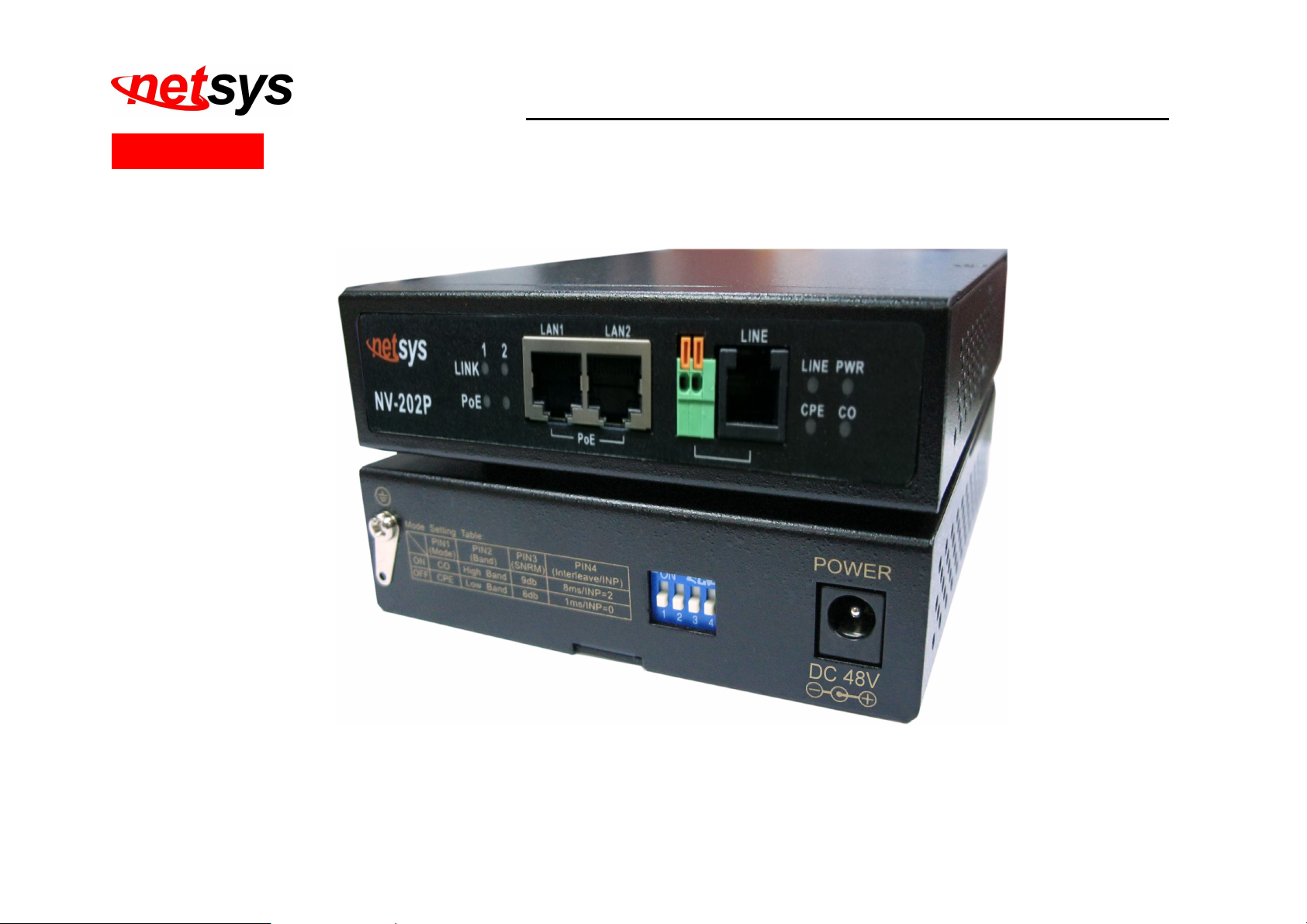

The following figure shows the rear panel. (Figure 3.2)
Figure 3.2 Rear Panel
And the table shows the description. (Table 3-3)
able 3-3 Description of the bridge front connectors
Connectors ype Description
Power DC Power Jac External Power Adapter: Input: AC 85~240Volts/50~60Hz
Output: DC 12V/1A
DIP Switch 4 Pins DIP Switch Provide 4 selectable transmission modes.
Ground Earthing strip Please connect the ground lug to the earth. To prevent an electric
shoc when user touches.
The following figure shows the DIP switch connection. By switching the transmission modes, you can obtain a best transmission
mode to suit with phone line quality or distance or connectivity. (Figure 3.3)

NV-202P Long Reach Ethernet Extender with PoE User’s Manual Ver. A
19
Figure 3.3 DIP switch setting
The following is table of DIP Switch configuration. (Table 3-4)
able 3-4 DIP Switch Configuration
Pin 1 Pin 2 Pin 3 Pin 4
On/OFF
CO/CPE Mode Band SNRM Interleave / INP
On CO Mode High Band 9db 8ms / INP=2
Off CPE Mode Low band 6db 1ms / INP=0
Note:
1. The DIP switch default values are OFF.
2. Please power off NV-202P, before ma ing any transmission mode configuration.
