Accuphase PS-1210 Quick start guide

Clean Power Supply PS-1210
Service Information
STARTING WITH SERIAL No. A6Y001
Attention mark indicating critical components for safety.
Replacement must be made with identical parts of special part number.
このマークのついている部品は、安全上重要な部品です。
必ず指定されている部品番号の部品を使用して下さい。
Authorized Technical Service Only
サービス資格のある技術者が使用して下さい
These servicing instructions are for use by qualified personnel only.
To reduce the risk of electric shock do not perform any servicing
other than that contained in the operating instructions unless you are
qualified to do so. Refer all servicing to qualified service personnel.
ここに記載したサービスに関する指示事項は、サービスに関する資格を
有する者のみが使用するものです。感電防止の観点から、サービス資格
を有していない方は、取扱指示事項以外のサービスは絶対に行わないよ
うにして下さい。
CAUTION / 注意

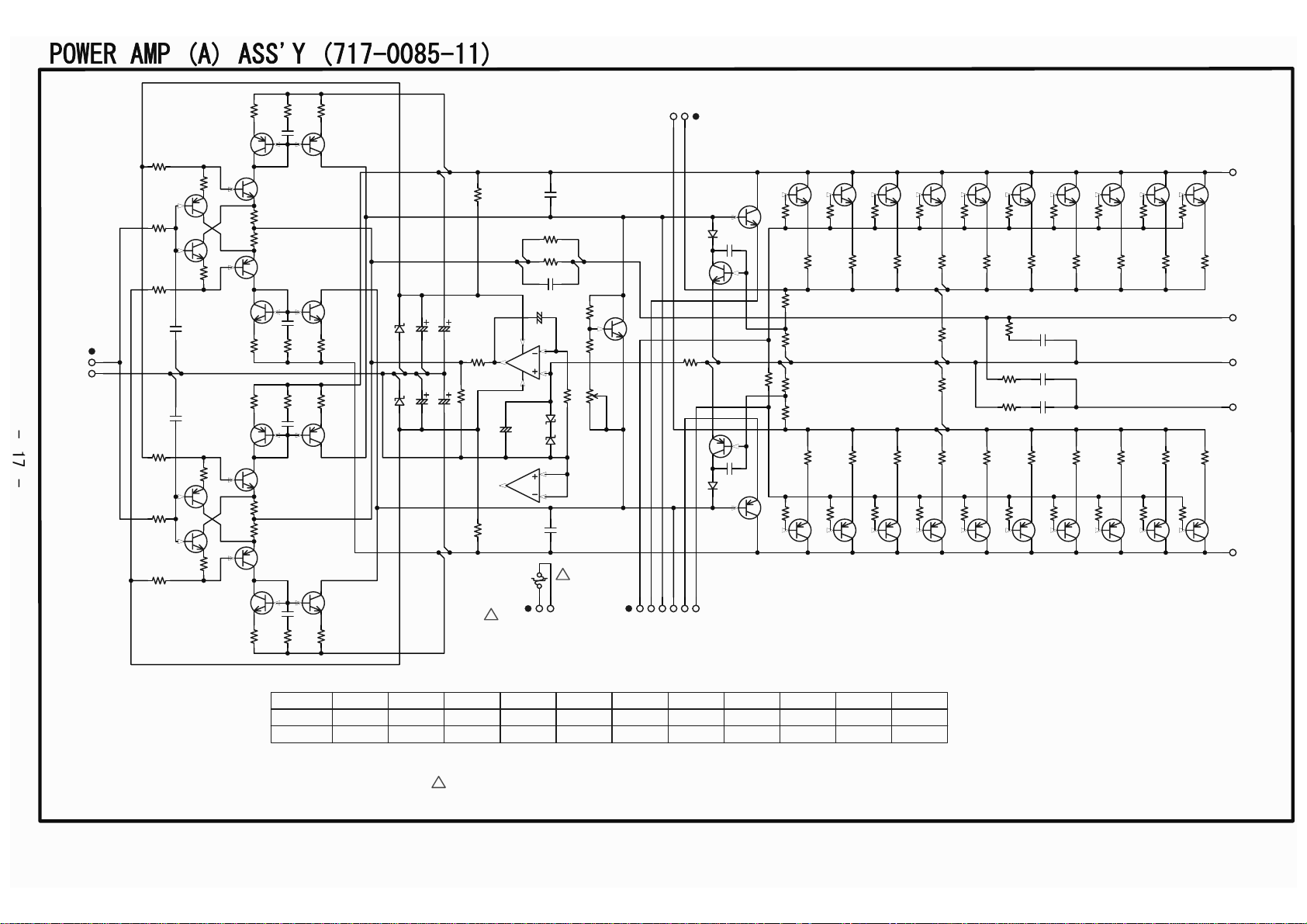

PS-1210 Schematic Diagram 回路図
Bi‑lingual

EXPLANATION OF SURFACE PARTS
（外観部品）
−１−
Meter for D type
ﾒｰﾀ
(178‑9014‑00)
*for U type
(178‑9015‑00)
*for E/B type
(178‑9016‑00)
Circuit Protector
ｻｰｷｯﾄﾌﾟﾛﾃｸﾀ D/U type
(311‑0203‑00):20A
*for E/B type
(311‑0072‑00):7.5A
AC Outlet for D/B type
ACｺﾝｾﾝﾄ (D/B ﾀｲﾌﾟ)
(305‑1215‑00)
Case
ｹｰｽ
(100‑0065‑02)
Front Panel Assembly
ﾌﾛﾝﾄﾊﾟﾈﾙAss'y
(130‑0188‑11)
Foot
脚
(238‑0023‑00)
Bottom Plate
ﾎﾞﾄﾑﾌﾟﾚｰﾄ
(155‑0089‑02)
Panel End Cap(L)
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ(L)
(132‑0119‑04)
Sub Panel
ｻﾌﾞﾊﾟﾈﾙ
D/B type
(134‑0155‑02)
U/E type
(134‑0156‑02)
Push‑button
ﾌﾟｯｼｭﾎﾞﾀﾝ
(388‑5066‑03)
Rubber Cushion
ｺﾞﾑｸｯｼｮﾝ
(250‑2093‑04)
Spacer
緩衝ｽﾍﾟｰｻ
(250‑1042‑04)
Panel End Cap(R)
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ(R)
(132‑0120‑04)
Binding Screw
ﾊﾞｲﾝﾄﾞﾈｼﾞ/4pcs.
(604‑0408‑00)
Washer
歯付きﾜｯｼｬ/4pcs.
(639‑1041‑02)
Hexa Hole screw
六角穴付ﾎﾞﾙﾄ/6pcs.
(60A‑0306‑00)
Washer
ﾜｯｼｬ/6pcs.
(637‑9045‑04)

FRONT VIEW (前面)
FRONT VIEW (SUB-CHASSIS SIDE)
(ｻﾌﾞｼｬｰｼ前面図)
Circuit Protector
ｻｰｷｯﾄﾌﾟﾛﾃｸﾀ
20A for 100V,120V
(311‑0203‑00)
7.5A for 230V
(311‑0072‑00)
Foot
脚
(238‑0023‑00)
Front Panel Assembly
ﾌﾛﾝﾄﾊﾟﾈﾙ Ass'y
(130‑0188‑11)
1. Front Panel=131‑0188‑11
ﾌﾛﾝﾄﾊﾟﾈﾙ
2‑1.Panel End Cap=132‑0119‑04
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ(L)
2‑2.Panel End Cap=132‑0120‑04
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ(R)
3. Frame for Protector=113‑0105‑03
保護ﾌﾚｰﾑ
1pce.
1pce.
1pce.
1pce.
1
2-1
4
3
−２−
Meter
ﾒｰﾀ
Japanese Model
(100V:D type)
(178‑9014‑00)
2-2
Foot
脚
(238‑0023‑00)
Circuit Protector
ｻｰｷｯﾄﾌﾟﾛﾃｸﾀ D/U type
(311‑0203‑00):20A
E/B type
(311‑0072‑00):7.5A
Meter
ﾒｰﾀ /D type
(178‑9014‑00)
USA Model
(120V:U type)
(178‑9015‑00)
European Model
(230V:E/B type)
(178‑9016‑00)
4. Meter Frame=170‑0062‑04
ﾒｰﾀｰﾌﾚｰﾑ
5. Sub Panel
ｻﾌﾞﾊﾟﾈﾙ
D/Btype=134‑0155‑02
U/Etype=134‑0156‑02
1pce.
1pce.
5
AC Outlet D/B type
ACｺﾝｾﾝﾄ D/B ﾀｲﾌﾟ
(305‑1215‑00)
Push Button
ﾌﾟｯｼｭﾎﾞﾀﾝ
(388‑5066‑03)
AC Outlet for D type
ACｺﾝｾﾝﾄ D/B type
(305‑1215‑00)
Meter
Transformer
ﾒｰﾀｰ銘板
(180‑9175‑04)

Power Transformer
ﾊﾟﾜｰﾄﾗﾝｽ
D type (510‑9020‑20)
U type (510‑9021‑20)
E/Btype (510‑9022‑20)
TOP VIEW (上面)
BOTTOM VIEW (底面)
AC Inlet
ACｺﾈｸﾀﾌﾟﾗｸﾞ
D/U/B type (301‑3304‑00)
E type (301‑3308‑00)
Protection Assembly
ﾌﾟﾛﾃｸｼｮﾝ Ass'y
D type(720‑0074‑11)
U type(720‑0074‑12)
E type(720‑0074‑13)
Electrolytic Capacitor
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ/C003〜006
22,000μF/90V
(CE331WGM2223WAQ)
Polypropylene Capacitor
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ
D/U type C007:6.8μF/250V
(CQ922N2E685J)
E/B type C007:2.2μF/250V
(CQ922N2E225J)
Circuit Protector
ｻｰｷｯﾄﾌﾟﾛﾃｸﾀ
20A; D/U type (311‑0203‑00)
7.5A;E/B type (311‑0072‑00)
Diode /D002
ﾀﾞｲｵｰﾄﾞ
(S50VB60)
Polypropylene Capacitor
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ
C001,002: 0.01uF/250V
(CF99MF2E103MR46)
Inrush Protect Assembly
ｲﾝﾗｯｼｭ防止 Ass'y
D type (716‑0726‑01)
U type (716‑0726‑02)
E/Btype (716‑0726‑03)
Attention mark indicating critical components for safety.
Replacement must be made with identical parts of special part number.
このマークのついている部品は、安全上重要な部品です。
必ず指定されている部品番号の部品を使用して下さい。
−３−

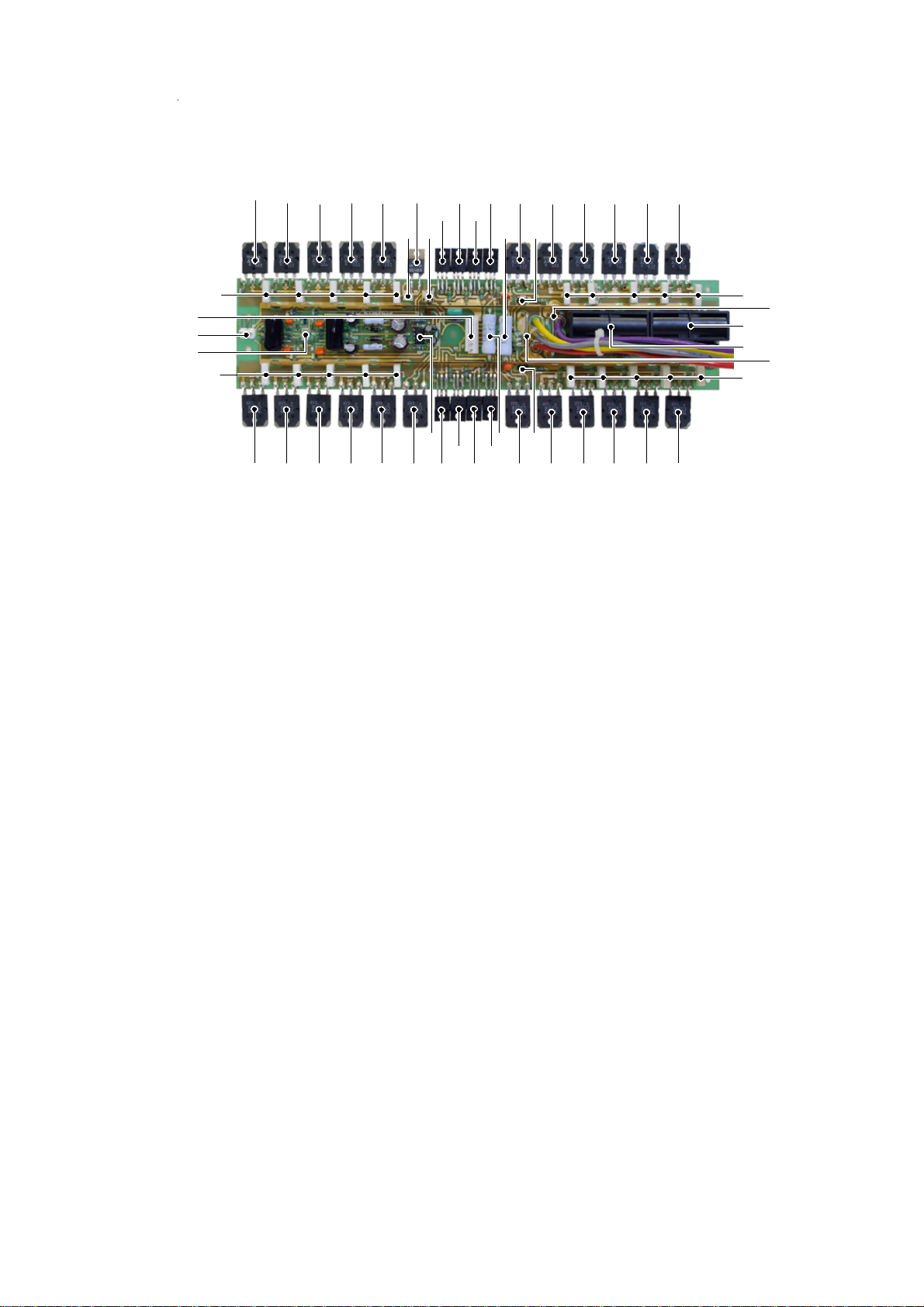

Power Amp Assembly A
ﾊﾟﾜｰｱﾝﾌﾟ Ass'y Aﾀｲﾌﾟ
D/Utype (717‑0085‑11)
E/Btype (717‑0085‑13)
Diode /D001
ﾀﾞｲｵｰﾄﾞ
(S25VB60)
Metal Film Resistor
金属皮膜抵抗器 / R007
(RN143DA3R3JS)3.3Ω 2W
AC Outlet (See Rear View / 後面図参照）
ACｺﾝｾﾝﾄ
D/Btype (305‑1215‑00);3pcs.
U type (305‑9002‑04);3pcs.
E type (305‑1218‑00/305‑1210‑00);3pcs.
Wire Resistor
抵抗線抵抗器
R005:(D/U type)
(592‑0002‑00)10mΩ
R005:(E/B type)
(592‑0003‑00)25mΩ
Meter Switch Assembly
ﾒｰﾀ‑ｽｲｯﾁ Ass'y
(716‑0724‑00)
Filter Amp Assembly
ﾌｨﾙﾀｰｱﾝﾌﾟ Ass'y
(714‑0024‑10) Power Amp Assembly B
ﾊﾟﾜｰｱﾝﾌﾟ Ass'y Bﾀｲﾌﾟ
D/Utype (717‑0086‑11)
E/Btype (717‑0086‑13)
Line Filter
ﾗｲﾝﾌｨﾙﾀ
D/U type(520‑9008‑00)
Meter Connector Assembly
ﾒｰﾀ‑ｺﾈｸﾀ Ass'y
(716‑0725‑00)
Relay /001
ﾘﾚｨ
D/U type(362‑2106‑00)
E/B type(362‑3101‑00)
Relay /002
ﾘﾚｨ
D/U type(362‑2106‑00)
E/B type(362‑3101‑00)

AC Inlet
ACｺﾈｸﾀﾌﾟﾗｸﾞ
(301‑3304‑00)
Foot
脚
(238‑0023‑00)
−４−
Attention mark indicating critical components for safety.
Replacement must be made with identical parts of special part number.
このマークのついている部品は、安全上重要な部品です。
必ず指定されている部品番号の部品を使用して下さい。
R
E
A
R
V
I
E
W
(
後
面
)
AC Inlet /USA Model
ACｺﾈｸﾀﾌﾟﾗｸﾞ/U ﾀｲﾌﾟ
(301‑3304‑00)
AC Inlet /European Model
ACｺﾈｸﾀﾌﾟﾗｸﾞ/E ﾀｲﾌﾟ
(301‑3308‑00)
Rear Panel /USA Model
ﾊﾞｯｸﾊﾟﾈﾙ (Uﾀｲﾌﾟ)
(135‑0177‑02)
Rear Panel /European Model
ﾊﾞｯｸﾊﾟﾈﾙ (Eﾀｲﾌﾟ)
(135‑0178‑12)
AC Socket / European Model
ACｿｹｯﾄ / E ﾀｲﾌﾟ
(305‑1218‑00)
AC Socket / European Model
ACｿｹｯﾄ / E ﾀｲﾌﾟ
(305‑1210‑00)
AC Outlet / Japanese Model
ACｺﾝｾﾝﾄ / D ﾀｲﾌﾟ
(305‑1215‑00)
Japanese Model (D/B type)
USA Mode (U type)
European Model (E type)
Not Supplied
Power Supply Cord for
J type with 2pin & wire.
2Pﾌﾟﾗｸﾞ電源ｺｰﾄﾞ/D,Bﾀｲﾌﾟ
用
(680‑1404‑10)
Power Supply Cord for
Utype
電源ｺｰﾄﾞ/ U ﾀｲﾌﾟ用
(680‑2402‑00)
Power Supply Cord
E/B type
電源ｺｰﾄﾞ/ E,Bﾀｲﾌﾟ用
(680‑3402‑00)
Foot
脚
(238‑0020‑22)
Foot
脚
(238‑0020‑22)
Foot
脚
(238‑0020‑22)
Foot
脚
(238‑0023‑00)
Foot
脚
(238‑0023‑00)
AC Outlet / B type
230V‑out Model
ACｺﾝｾﾝﾄ / 230V;Bﾀｲﾌﾟ
(305‑1215‑00)
Not Supplied
Power Supply Cord for
J type with 3‑pin plug.
3Pﾌﾟﾗｸﾞ電源ｺｰﾄﾞ/Dﾀｲﾌﾟ用
(680‑1405‑10)
Rear Panel /Japanese Model
ﾊﾞｯｸﾊﾟﾈﾙ (D/B ﾀｲﾌﾟ)
(135‑0176‑02)
Socket Ass'y/ USA Model
ｿｹｯﾄAss'y
(305‑9002‑04)
Not Supplied

MISCELLANEOUS(本体その他使用部品）
NO.
Screws for
ﾈｼﾞ類
Accessories
付属品
Description(部品名)
Front Panel / ﾌﾛﾝﾄﾊﾟﾈﾙ用
Binding Screw/ ﾊﾞｲﾝﾄﾞﾂﾒﾂｷ
Flat Screw /丸ｻﾗBﾀｲﾄﾈｼﾞ
Panel End Cap/ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ
Binding Screw/ﾊﾞｲﾝﾄﾞ平ﾜｯｼｬ付
Case /ｹｰｽ用
Binding Screw /ﾊﾞｲﾝﾄﾞﾈｼﾞ
Oval Head Screw/Bﾀｲﾄﾈｼﾞ
Washer /歯付平ﾜｯｼｬ
Sub Panel / ｻﾌﾞﾊﾟﾈﾙ用
Hexa Hole Screw/六角穴付ﾎﾞﾙﾄ
Washer /ﾜｯｼｬ
Bottom Plate /ﾎﾞﾄﾑﾌﾟﾚｰﾄ用
Binding Neil Screw
ﾊﾞｲﾝﾄﾞWHﾂﾒ付Bﾀｲﾄ
Foot /脚用(底面)
Binding Screw /ﾌﾞﾚｻﾞｰBﾀｲﾄﾈｼﾞ
Foot /脚用(背面)
Binding Screw /ﾌﾞﾚｻﾞｰBﾀｲﾄﾈｼﾞ
Power Transformer/電源ﾄﾗﾝｽ
Pan Head ISO Metric Screw
Owner's Manual (英語)
取扱説明書 (日本語)
Caution Notes (英語)
注意書 (日本語)
注意書(ACｺｰﾄﾞ用/日本語)
目隠しｼｰﾙ/ｽﾃｯｶ
案内状
Power Supply Cord (D type)
電源ｺｰﾄﾞ (D type)
(U type)
(E/B type)
Parts No.(部品
No.)
61B‑0308‑04
613‑0308‑04
631‑0044‑10
604‑0408‑00
612‑0308‑00
639‑1041‑02
60A‑0306‑00
637‑9045‑04
631‑0054‑00
611‑0414‑02
611‑0414‑02
600‑0306‑00
820‑2234‑00
820‑0234‑00
821‑0011‑00
821‑0010‑00
821‑0014‑00
180‑9230‑00
859‑1011‑00
680‑1404‑10
680‑1405‑10
680‑2402‑00
680‑3402‑00
Remarks(備考)
3×8mm 4pcs.
3×8mm 2pcs.
3×6mm 4pcs.
4×8mm 8pcs.
3×8mm 5pcs.
4mm dia. 8pcs.
3×6mm 6pcs.
6pcs.
3×10mm 14pcs.
4×14mm 4pcs.
4×14mm 6pcs.
5×12mm 8pcs.
English
Japanese
English
Japanese
Japanese
国内のみ(D only)
国内のみ(D only)
2‑conductor
3‑conductor
2‑conductor
3‑conductor
NO.
C003,004
005,006
C001,002
C007
R006
R006
R007
R003
R004
Packing
Material
梱包材
Description(部品名)
PC Board for
Filter Amp Assembly
Meter Switch Assembly
Power Amp Assembly/(A)
Power Amp Assembly/(B)
Protection Assembly
Meter / ﾒｰﾀ
Japanese Model
USA Model
European Model
Pilot Lamp (Inside of Meter)
ﾊﾟｲﾛｯﾄﾗﾝﾌﾟ
Circuit Protector (D&U) 20A
ｻｰｷｯﾄﾌﾟﾛﾃｸﾀ (E&B) 7.5A
Electrolytic Capacito
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ
Polypropylene Capacitor
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ
Polypropylene Capacitor
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ / for D&U
for E&B
Metal Film Resistor for D&U
金属皮膜抵抗器
Metal Film Resistor for E&B
金属皮膜抵抗器
Metal Film Resistor
金属膜抵抗器
Oxide Metal Resistor for D&U
金属酸化物被膜抵抗器 for E&B
Metal Film Resistor
金属膜抵抗器
Outer Carton Box
ﾀﾞﾝﾎﾞｰﾙｹｰｽ
Center Pad / 中ﾊﾟｯﾄﾞ
Top Pad / ﾄｯﾌﾟﾊﾟｯﾄﾞ前
Top Pad / ﾄｯﾌﾟﾊﾟｯﾄﾞ後
Bottom Pad / ﾎﾞﾄﾑﾊﾟｯﾄﾞ
Joint /ｼﾞｮｲﾝﾄ
Cover
保護ｶﾊﾞ
Accessories Case
Poly Bag (保護ｶﾊﾞ)
ﾋﾞﾆｰﾙ袋 (取扱説明書)
Cord Cramper
ｺｰﾄﾞｸﾗﾝﾊﾟ
Parts No.(部品No.)
115‑1639‑10
115‑1640‑00
115‑1642‑10
115‑1643‑10
115‑1645‑10
178‑9014‑00
178‑9015‑00
178‑9016‑00
176‑4501‑10
311‑0203‑00
311‑0072‑00
CE331WGM2223WAQ
CF99MF2E103MR46
CQ922N2E685J
CQ922N2E225J
RN143FA4R7JS
RS143FA220JS
RN143DA3R3JS
RS143DA103J
RS143FA220JS
RN142EK3010F
RN142EK2490F
RN142EK2940F
801‑0249‑00
803‑0393‑00
803‑0385‑00
803‑0386‑00
803‑0388‑00
249‑0012‑00
810‑4867‑04
801‑0269‑00
810‑2030‑04
812‑2435‑04
280‑0043‑00
Remarks(備考)
for Meter
for 100‑120V
for 230V
22,000uF/90V
0.01uF/250V
6.8uF/250Vfor100‑120V
2.2uF/250V for 230V
4.7Ω/3W
for 100‑120V
22Ω/3W
for 230V
3.3Ω/2W
10kΩ/2W 100‑120V
22kΩ/10W 230V
310Ω for 100V
249Ω for 120V
294Ω for 230V
本体用
付属品ｹｰｽ
for AC Cord
for Manual
電源ｺｰﾄﾞ用
−5 −

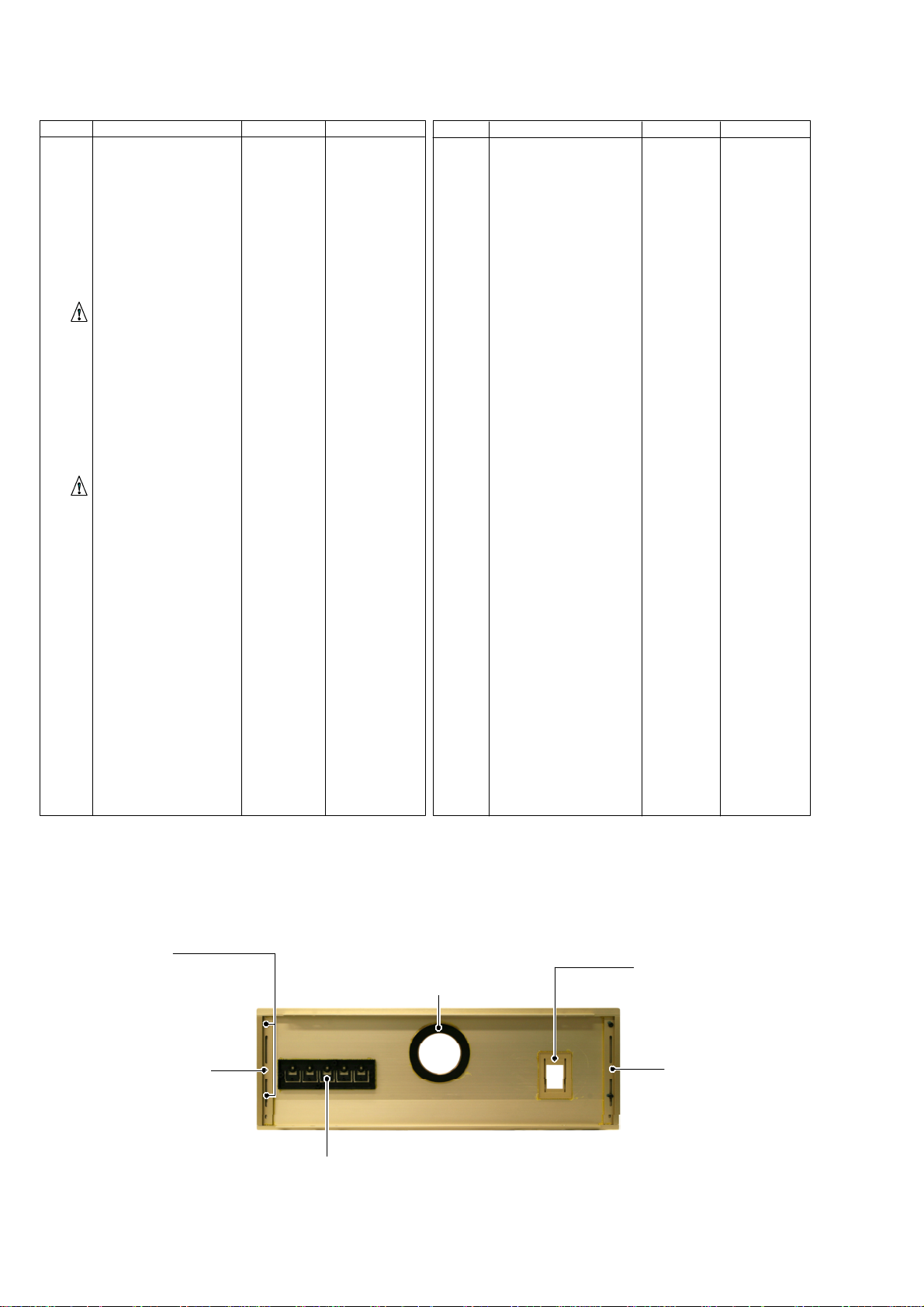

Back View of Front‑Panel Assembly
(ﾌﾛﾝﾄﾊﾟﾈﾙ背面図)
Panel End Cap (R)
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ (R)
(132‑0120‑04)
Panel End Cap (L)
ﾊﾟﾈﾙｴﾝﾄﾞｷｬｯﾌﾟ (L)
(132‑0119‑04)
Push Button
ﾌﾟｯｼｭﾎﾞﾀﾝ
(388‑5066‑03)
Meter Frame
ﾒｰﾀｰﾌﾚｰﾑ
(170‑0062‑04)
Rubber Cushion
ｺﾞﾑｸｯｼｮﾝ
(250‑2088‑04)
Frame
保護ﾌﾚｰﾑ
(113‑0105‑03)
Binding Screw
ﾊﾞｲﾝﾄﾞ平ﾜｯｼｬ付
(631‑0044‑10)

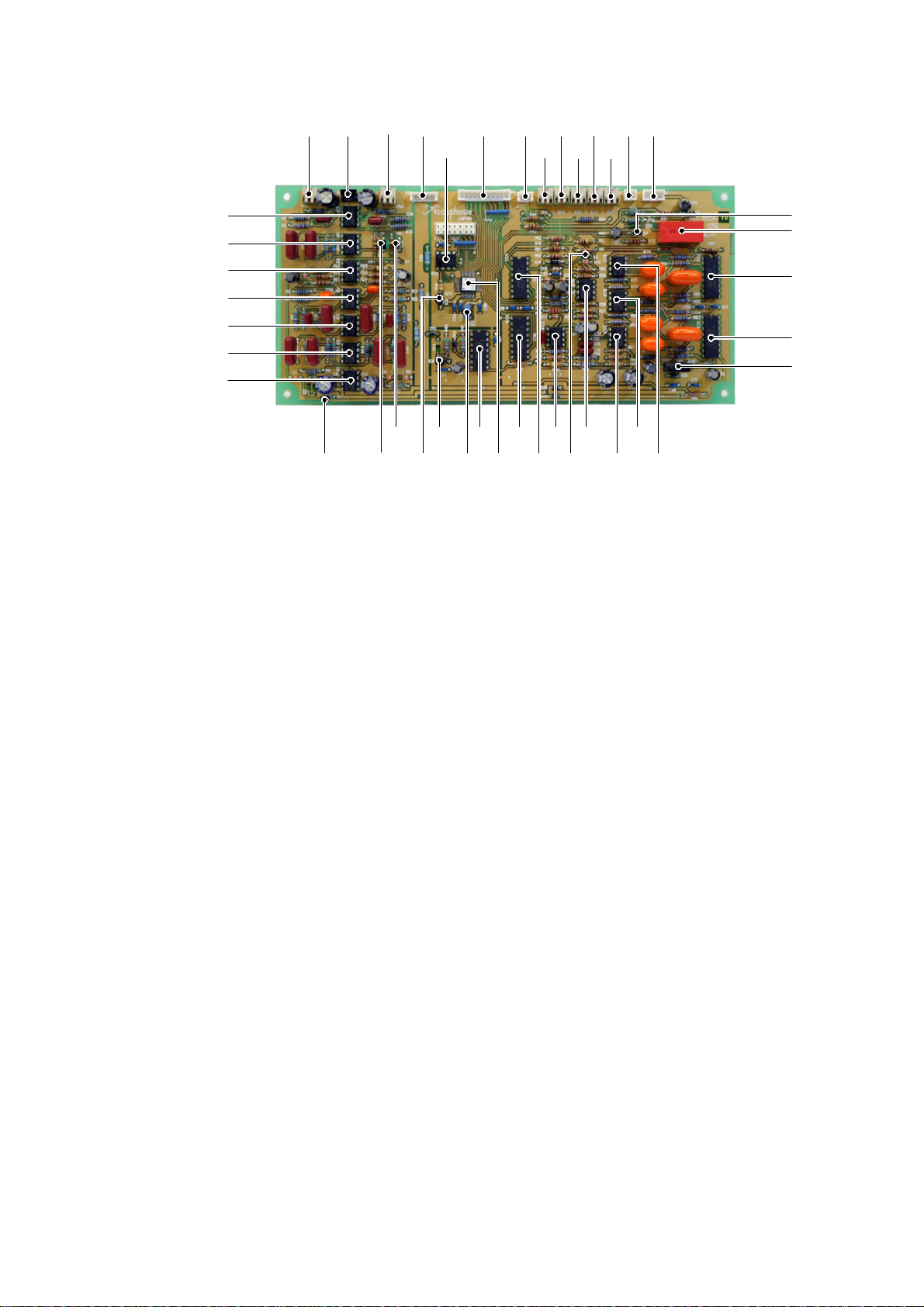

Filter Amp Assembly (714-0024-10)
ﾌｨﾙﾀｰｱﾝﾌﾟAss'y
PPS Capacitor C1,3,5,6,9 CQ922HE1H104F‑F 0.1uF/50V
PPSｺﾝﾃﾞﾝｻ 13,17,19
R11,21 RD142EA101J 100Ω 1/4W
R12,20,42,44,59 RD142EA103J 10kΩ 1/4W
60,63,66,88,89
R22,23,32,62,67 RD142HA104J 100kΩ1/4W
R27,40,41 RD142HA223JFS 22kΩ 1/4W
R39 RD142CA473J 47kΩ 1/6W
Carbon Film Resistor R43,50,51,72,79 RD142EA102J 10kΩ 1/4W
炭素皮膜抵抗器 R45,47 RD142EA222J 2.2kΩ1/4W
R52,57 RD142EA472J 4.7kΩ1/4W
R53 RD142EA473J 47kΩ 1/4W
R54 RD142EA752J 7.5kΩ1/4W
R58 RD142EA105J 1MΩ 1/4W
R61 RD142EA181J 180Ω 1/4W
R65 RD142EA154J 150kΩ1/4W
R73,74 RD142HA8R2JFS 8.2Ω 1/4W
R90 RD142EA220J 22Ω 1/4W
R1,2,28,29 RN142EK1002D 10kΩ 1/4W
R3 RN142EK3321F 3.32kΩ1/4W
R4,33,34 RN142EK1002F 10kΩ 1/4W
R5 RN142EK1453D 145kΩ 1/4W
R6,68,70 RN142EK2211F 2.21kΩ1/4W
R7 RN142EK2773D 277kΩ 1/4W
R8,14 RN142EK7232D 7.23kΩ1/4W
R9 RN142EK3323D 332kΩ 1/4W
R10,26,46,69,71 RN142EK1001F 1kΩ 1/4W
R13 RN142EK3323F 332kΩ 1/4W
R15 RN142EK2081D 2.08kΩ1/4W
R16 RN142EK2491D 2.49kΩ1/4W
R17 RN142EK1383D 138kΩ 1/4W
R18 RN142EK1653D 165kΩ 1/4W
Metal Film Resistor R19 RN142EK2003D 200kΩ 1/4W
金属皮膜抵抗器 R24 RN142EK3001D 3kΩ 1/4W
R25,31 RN142EK8662D 86.6kΩ1/4W
R30 RN142EK3973D 397kΩ 1/4W
R35 RN142EK1743D 174kΩ 1/4W
R48 RN142EK3831F 381kΩ 1/4W
R49 RN142EK1650F 165Ω 1/4W
R55 RN142EK2320F 232Ω 1/4W
R56 RN142EK1212F 12.1kΩ1/4W
R64 RN142EK2002F 20kΩ 1/4W
R75 RN142EK8252F 82.5kΩ1/4W
R76 RN142EK1582F 15.8kΩ1/4W
R77 RN142EK7502F 75kΩ 1/4W
R78 RN142EK1622F 16.2kΩ1/4W
R80,86 RN142EK3242F 32.4kΩ1/4W
R81,84 RN142EK1623F 163kΩ 1/4W
R82,83 RN142EK3162F 31.6kΩ1/4W
R85,87 RN142EK1503F 150kΩ 1/4W
Fuse Resistor R36,37,38 RF142EAR47J 47Ω / 4W
ﾌｭｰｽﾞ抵抗
Resistor Array RA1,2 RD92AK06C472J18
抵抗ｱﾚｲ
Connector Plug K1 308‑0216‑00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308‑0408‑00
K3 308‑1407‑00
K4 308‑1102‑00
K5 308‑0207‑00
K6 308‑0206‑00
K7 308‑0407‑00
Relay RELAY1 362‑1212‑00
ﾘﾚｨ
Potention Meter VR1,2,6 583‑0136‑00
半固定抵抗器 VR3,5,7 583‑0246‑00
VR4 583‑0547‑00
FET Q1,2 2SK330‑Y
Q3,4 2SK2541
Crystal XTAL1 527‑0012‑00
ｾﾗﾛｯｸ
Diode D1,3,5〜9,13 MA165
ﾀﾞｲｵｰﾄﾞ 17〜22,24
D10,12,15,16 1SR139‑400
D14 EK03
D25,26 11EQS10
Zener Diode D2,4,11,23,27 HZ5BLL
ﾂｪﾅｰﾀﾞｲｵｰﾄﾞ
IC1〜7,15〜19 UPC4570C
IC8,9 S‑80845CNY‑T‑G
IC IC10 M93C46‑WBN6P
IC11 HD64F3672FYV
IC12 TC74HC14AP
IC13,14,21,22 TC4053BP
IC20 NJM78M05FA
DigitalTransistor X1,2 RN1202
ﾃﾞｼﾞﾀﾙﾄﾗﾝｼﾞｽﾀ C2,20,34,37,39 CE04W1E101VK 100uF /25V
C8,12 CE04W2A330RE3E 33uF /100V
Electrolytic Capacitor C11,14 CE04W2A270HE 27uF /100V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C24 CE04W1H010VK 1uF / 50V
C31,33,45,52 CE04W1H100VK 10uF / 50V
C38,40 CE04W2A470VK 4.7uF/100V
C49 CE04W1A221VK 220uF /10V
Ceramic Capacitor C21〜23,25〜29 CK92Y5V1H104Z 0.1uF /50V
磁器ｺﾝﾃﾞﾝｻ 32,46,50,51,53
Polypropylene C4,7,16,18 CQ93PP1H152FM‑F 1500pF/50V
Capacitor C10,15 CQ922N2A101JAPSF 100pF/100V
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ C41〜44 CQ922N2A104GAPSF 0.1uF/100V
C47,48 CQ922N2A204GAPSF 0.2uF/100V
Polyester Capacitor C30,35,36 CQ922M1H103J‑B 0.01uF/50V
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ
−6−
K1
K3
IC8
K5 K7 K4
K2 VR4
IC21
IC20
IC5
VR5
IC14
IC11
VR3
VR6
VR2
IC2
IC9
IC1
IC10
VR1
IC22
IC12 IC13
VR7
Q3
RELAYE1
IC17
IC18
IC19
X2
IC16
IC15
K6
IC7
IC6
IC4
IC3
X1 Q1
Q2
XTAL1

−７−
PC Board 115‑1641‑00
PCﾎﾞｰﾄﾞ
Connector Plug K1 308‑0412‑00
ｺﾈｸﾀﾌﾟﾗｸ
Meter Switch Assembly (716‑0724‑00)
ﾒｰﾀｰｽｲｯﾁ Ass'y
Power Transformer T1 510‑9005‑10 Japanese model
ﾊﾟﾜｰﾄﾗﾝｽ T1 510‑9005‑10 USA model
T1 510‑9008‑10 European model
Diode D1 S1VB60
ﾀﾞｲｵｰﾄﾞ
K1 308‑0206‑00
Connector Plug K2 308‑0236‑00
ｺﾈｸﾀﾌﾟﾗｸﾞ K3,4 308‑0207‑00
K5 308‑0212‑00
Electrolytic Capacitor C1,2 for J/U type CE04W1H680VK 68uF /50V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C1 for E/B type CE04W2A100VK 10uF/100V
C2 for E/B type CE04W1J470VK 47uF /63V
Metallized Film C3 CF99MF2E103MR46 0.01uF/250V
Capacitor
MPｺﾝﾃﾞﾝｻ
Oxide Metal R1 for J type RS143AA101JS‑P 100Ω 1W
Film Resistor R1 for U type RS143AA221JS‑P 220Ω 1W
金属酸化物皮膜抵抗器 R1 for E/B type RS143AA751JS‑P 750Ω 1W
Metal Plate Resistor R2〜5 RW994AJ3R3J‑S 3.3Ω 10W
金属板抵抗器
Fuse Resistor R6,7 RF993HG2R2J 2.2Ω 5W
ﾌｭｰｽﾞ抵抗器 R8 RF142EAR10J 0.1Ω1/4W
(100V) (716-0726-01) ○
Type Ass'y No. J1
(120V) (716-0726-02) ×
(230V) (716-0726-03) ×
×
J2
○
○
○
J3
○
×
×
J4
×
○
○
J5
○
×
J
U
E○means Jumper Wire
See the parts list for each type parts as shown below.
下記に示す部品は仕向により異なります。
①Power Transformer:T1
②Electrolytic Capacitor :C1 and C2
③Resistor :R1
PC Board 115‑1640‑00
PCﾎﾞｰﾄﾞ
LED Spacer 250‑1119‑00
LED ｽﾍﾟｰｻ
Connector Plug K1 308‑1102‑00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Push Switch S1〜5 354‑1103‑00
ﾌﾟｯｼｭｽｲｯﾁ
Carbon Film Resistor R1 RD142EA102J 1kΩ 1/4W
炭素皮膜抵抗器
LED D1〜5 SEL2610C
Meter Connector Assembly (716‑0725‑00)
ﾒｰﾀ‑ｺﾈｸﾀ Ass'y
In‑rush Assembly D type (716‑0726‑01)
ｲﾝﾗｯｼｭ Ass'y U type (716‑0726‑02)
E/B type (716‑0726‑03)
D1 D2 D3 D4 D5
S1
S2 S3 S4
S5
R1K1
K1
K4 K5
K3
K1
K2
C3
T1 R7
R2
R4
R6
R5
R3
J3
J4
J5
J1J2
D1

Power Amp(A) Assembly (717‑0085‑11)for D/U type
ﾊﾟﾜｰｱﾝﾌﾟ(A)Ass'y
PC Board 115‑1642‑10
PCﾎﾞｰﾄﾞ
Heat Sink 240‑0087‑02
ﾋｰﾄｼﾝｸ
Transistor Insulator 250‑1198‑04 3pcs.
ﾄﾗﾝｼﾞｽﾀ絶縁ｽﾍﾟｰｻ 250‑1218‑04 1pce.
250‑1190‑04 1/5pcs.
Connector Plug K1 308‑0207‑00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308‑0608‑00
K8 308‑0221‑00
K9 308‑0206‑00
Thermal Switch TS1 369‑0030‑00
ｻｰﾏﾙｽｲｯﾁ
Potentiometer VR1 583‑0126‑00 100Ω
半固定抵抗器
Wire Resistor R82,83 592‑0002‑00 10mΩ
抵抗線抵抗器
Zener Diode D1,2 1Z15A
ﾂｪﾅｰﾀﾞｲｵｰﾄﾞ D5,6 HZ9A2L
Diode D3,4 1SR139‑400
ﾀﾞｲｵｰﾄﾞ
Q1,2 2SA1376A‑K
Q3,4 2SC3478A‑K
Q5,6 2SC3902‑S/T
Q7,8 2SA1507‑S/T
Transitor Q9,10,13,14 2SA1837
ﾄﾗﾝｼﾞｽﾀ Q11,12,15,16 2SC4793
Q17,20 2SC5358‑O
Q18 2SC3668‑Y
Q19 2SA1428‑Y
Q21 2SA1986‑O
Q22,24,26,28,30 2SC5358‑O/R
32,34,36,38,40
Q23,25,27,29,31 2SA1986‑O/R
33,35,37,39,41
IC IC1 UPC4570C
Ceramic Capacitor C1,2 CC92CH1H101J 100pF /50V
磁器ｺﾝﾃﾞﾝｻ
Electorlytic Capacitor C7,8 CE04W1E821KZEE 820uF /25V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C9,10 CE04W2A470VR 47uF / 63V
C12,13 CE04W1C100VPE 10uF / 16V
C3,4,5,6 CQ922N2A472JAPSF 4700pF/100V
Polypropylene Capacitor C11 CQ922N2J182JAPHF 1800pF/250V
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ C14,15 CQ922N2E332JAPSF 3300pF/250V
C16,18 CQ922N2E225J 2.2uF /250V
C17 CQ922N2D224JN 0.22uF/200V
R1,2 RD142EA101JFS 100Ω 1/4W
R3〜6 RD142EA100JFS 10Ω 1/4W
R7〜10 RD142EA302JFS 3kΩ 1/4W
Carbon Film Resistor R11〜14 RD142EA121JFS 120Ω 1/4W
炭素皮膜抵抗器 R15〜18 RD142EA121JF 120Ω 1/4W
R19〜22 RD142HA150JFS 15kΩ 1/4W
R29 RD142EA273JFS 27kΩ 1/4W
R31 RD142EA221JFS 220Ω 1/4W
R32 RD142EA220JFS 22Ω 1/4W
R33 RD142EA273JF 27Ω 1/4W
R34 RD142EA120JF 12kΩ 1/4W
R35〜54 RD142EA2R2JFS 2.2Ω 1/4W
R78,79 RD142EA102JF 1kΩ 1/4W
R80,81 RD142EA104JFS 100kΩ1/4W
R84〜87 RD142EA562JFS 5.6kΩ1/4W
Metal Film Resistor R25 RN142EK9090F 909Ω 1/4W
金属皮膜抵抗器 R30 RN142EK7150F 715Ω 1/4W
R75,77 RN143AA1R0JS‑P 1.0Ω 1W
Oxide Metal Film Resistor R23,24 RS143DA751JS‑P 750Ω 1W
金属酸化物皮膜抵抗器 R26,27 RS143HA103JS‑P 10kΩ 5W
R76 RS143AA100JS‑P 10Ω 1W
Metal Plate Resistor R55〜74 RW993DJR22K‑H 0.22Ω 2W
金属板抵抗器
Q41
K8 C18
K1
Q39 Q37 Q33 Q16
Q13
Q21
Q17
TS1 Q12 Q31 Q29 Q25
Q35
Q30 Q26
Q9 Q18
Q22
Q38 Q28 Q24Q20Q14
C16
R27
R74,72,70,68,66
R73,71,69,67,65
R64,62,60,58,56
R63,61,59,57,55
R82
R83
Q15
Q10
VR1
K2
−８−
IC1
K9
Q32
Q34Q36
Q40
Q11 Q27 Q23
Q19
R26
(717‑0085‑13)for E/B type

−９−
K1
Diode D1,2 1SR139‑400
ﾀﾞｲｵｰﾄﾞ
IC IC1 UPC1237HA
Electrolytic Capacitor C1 CE04W1A221VK 220uF /100V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C3 CE04W1H100VK 10uF / 50V
C4 CE04W1V470VK 47uF / 35V
Polyester Capacitor C2 CF922N1H223JMMTF 0.022uF/50V
ﾎﾟﾘｴｽﾃﾙｺﾝﾃﾞﾝｻ C6 CF922N1H154JMMTF 0.15uF /50V
R1 RD142EA274J 270kΩ 1/4W
Carbon Film Resistor R2,3 RD142HA683J FS 68kΩ 1/2W
炭素皮膜抵抗器 R4 RD142EA623JF 62kΩ 1/4W
R8,10 RD142EA124JFS 120kΩ 1/4W
Oxide Metal Film Resistor R5 RS143AA912JS‑P 9.1kΩ 1W
金属酸化物皮膜抵抗器 R6 RD143AA101JS‑P 100Ω 1W
Fuse Resistor R7 RF142EAR10J 1Ω 1/4W
ﾌｭｰｽﾞ抵抗器
Q11
Connector Plug 308‑0408‑00 K1
ｺﾈｸﾀﾌﾟﾗｸ 308‑0709‑00 K2
308‑0212‑00 K3
PC Board 115‑1643‑10
PCﾎﾞｰﾄﾞ
Heat Sink 240‑0087‑02
ﾋｰﾄｼﾝｸ
Transistor Insulator 250‑1198‑04 2pcs.
ﾄﾗﾝｼﾞｽﾀ絶縁ｽﾍﾟｰｻ 250‑1218‑04 2pcs.
Connector Plug K1 308‑0304‑00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308‑0608‑00
K6 308‑0221‑00
Wire Resistor R51,52 592‑0002‑00 :10mΩ
抵抗線抵抗器
Zener Diode D1.2 HZ153L
ﾂｪﾅｰﾀﾞｲｵｰﾄﾞ
Diode D3,4 1SR139‑400
ﾀﾞｲｵｰﾄﾞ
Electorlytic Capacitor C1,2 CE04W1H101ASH 100uF/50V
ｱﾙﾐ電解ｺﾝﾃﾞﾝｻ C3,4 CE04W1H100VK 10uF /50V
C5,6,11,12 CE04W2A470VK 47uF/100V
Polypropylene Capacitor C7,8 CQ922N2E322JAPSF 3200pF/250V
ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝｺﾝﾃﾞﾝｻ
Transitor Q1 2SC3478A‑K
ﾄﾗﾝｼﾞｽﾀ Q2 2SA1376A‑K
Q3 2SA1837
Q4 2SC4793
Q5 2SC3668‑Y
Q6 2SA1428‑Y
Q7 2SC5358‑O
Q8 2SA1986‑O
Q9,11,13,15,17 2SC5358‑O/R
19,21,23,25,27
Q10,12,14,16,18 2SA1986‑O/R
20,22,24,26,28
Carbon Film Resistor R1,2 RD142EA101JF 100Ω 1/4W
炭素皮膜抵抗器 R3,4 RD142HA153JFS 1.5kΩ 1/4W
R5,6 RD142EA221JF 220Ω 1/4W
R11〜30 RD142EA2R2JFS 2.2Ω 1/4W
R53,54 RD142EA102JF 1kΩ1 1/4W
R55,56 RD142EA104JF 100kΩ 1/4W
R57 RD142EA120JF 12Ω 1/4W
Metal Plate Resistor R31〜50 RW993DJR22K‑H 0.22Ω 2W
金属板抵抗器
Fuse Resistor R58,59 RF142EAR47J 0.47Ω
ﾌｭｰｽﾞ抵抗
R51
R41,43,45,47,49
R42,44,46,48,50
R31,33,35,37,39
R32,34,36,38,40
K2
Q10
Q13 Q27
Q4
Q21
Q17 Q25
Q23
Q19
Q12 Q20
Q16 Q22Q18
Q14 Q26
Q3
Q24 Q28
Power Amp (B)Assembly (717‑0086‑11)for D/U type
ﾊﾟﾜｰｱﾝﾌﾟ(B)Ass'y (717‑0086‑13)for E/B type
Protection Assembly (720‑0074‑11) D type/100V Model
ﾌﾟﾛﾃｸｼｮﾝ Ass'y (720‑0074‑12) U type/120V Model
(720‑0074‑13) E,B type/230V Model
K2
K3
R52
Q9 Q15 Q7
K1
K6
C6
C2
IC1
D2
D1
R6
R5
Q8
Q1
Q2
Q6
Q5

アキュフェーズ製品の消費電力
−１
0−
●All figures are for one unit, operating at a tempurature of 20℃.
全て１台の電力値（室温20℃）を示します。
●Power consumption will vary to a certain extent,depending on how long the unit has been turned on.
消費電力は、通電時間によっても変化します。
●When connecting saveral conponents, add up the VA figures given in brackets.
複数台接続する場合は（ ）内のVA 値を加算して目安にしてください。
●For further details and information on older products ,please contact an authorized service
staion on your Accuphase dealer.
旧製品など詳しくは、当社品質保証部にお問い合せ下さい。
(1) Integrated amplifiers and power amplifiers.
プリメインアンプ、パワーアンプ
＊Actual power consumption during use will be somewhere between the zero output figure and the
IEC-65rating.
＊Models marked with a (△) can be connected when driving loudspeakers with an impedance of about
8ohms at normal listening levels.
＊△マークの機種はインピダンス８Ω程度のスピーカで、通常音量で使用の場合は接続可能です。
＊実際に使用する場合の消費電力は、無信号時と電気用品取締法の値の間になります。
(2) Preamplifiers,CD players,Tuners,etc
プリアンプ、ＣＤ、チューナー
Model Zero Outputl IEC-65 Connection
機種名 無信号時 電気取締法 接続
Integrated amplifiers
Power amplifiers
パワーアンプ
プリメインアンプ
Pre amplifiers
プリアンプ
CD players
CDプレーヤ
Tuner,Divider
ﾁｭｰﾅｰ/ﾃﾞﾊﾞｲﾀﾞｰ
Model
Equalizer / ｲｺﾗｲｻﾞ
P
o
w
e
r
c
o
n
s
u
m
p
t
i
o
n
o
f
A
c
c
u
p
h
a
s
e
p
r
o
d
u
c
t
The ※mark indicates power ratings with option installed.
印はオプション増設時の電力を示します。
△
△
△
△
△
△
Perform music
playback at
regular volume
levels and
check the
meter reading
(W)
実際に音を
出して､ﾒｰﾀｰ
の指示値(W)
を確認します｡
機種名 Power consumption Connection
消費電力 接続
Add VA figures for
desired components.
VA値を加算して機種
を選択します｡
M-8000
M-2000
P-7100
P-7000
P-5000
P-3000
P-1000
PX-650
PX-600
A-60
A-50V
A-45
A-30
A-20V
E-550
E-530
E-450
E-408
E-407
E-308
E-213
E-212/E-211
170W(285VA)
180W(222VA)
135W(188VA)
125W(180VA)
75W/(113VA)
55W(79VA)
148W(215VA)
48W(65VA)
166W(244VA)
300W(475VA)
330W(440VA)
235W/(315VA)
170W/(230VA)
160W(210VA)
200W(300VA)
180W(230VA)
60W(90VA)
55W(82VA)
45W(58VA)
46W(65VA)
42.5W(60VA)
30W(51VA)
853W(1,200VA)
950W(1,300VA)
945W(1,325VA)
930W(1,360VA)
630W(880VA)
480W(672VA)
1,070W(1,480VA)
275W(380VA)
690W(890VA)
530W(785VA)
550W(800VA)
430W(560VA)
255W(350VA)
250W(315VA)
298W(410VA)
280W(400VA)
450W(570VA)
460W(610VA)
410W(560VA)
255W(335VA)
230W(300VA)
220W(262VA)
C-2810
C-2800
C-2410
C-2400
C-2000
DC-330
DC-300
C-275V/C-275
CX-260
C-245
C-265
VX-700
DP-800/DC-801
DP-100/DC-101
DP-90/DC-91
DP-500
DP-85
DP-78
DP-77
DP-67
DP-57
DG-38
DG-28
DF-45
DF-35
T-1000
43W(51VA)※48W(58VA)
41W(54VA)※50W(63VA)
33W(43VA)※40W(50VA)
32W(40VA)※40W(50VA)
30W(37VA)※32W(40VA)
20W(33VA)
25W(30VA)
※20W(31VA
25W(29VA)
16W(23VA)
17W(23VA)
55W(63.5VA)
18W/24W (28.4/25VA)
20W/24W (22/36VA)
12W/42W (18/45VA)
20W(25VA)
25W(32VA)
25W(33VA)
24W(30VA)
17W(27VA)
14W(15VA
23W(23VA)
12W(15VA)
36W(46VA)
21W(2VA)
18W(23VA)

−１１−
C
I
R
C
U
I
T
A
D
J
U
S
T
M
E
N
T
/
回
路
調
整
Notes ※1. Internal input resistance of volt‑ohm meter should be higher than 10k‑ohms.
テスターは、入力抵抗10kΩ以上のものをお使い下さい。
※2. Adjustments should be made in case of the PC Board or Transistors being changed.
調整はPCボードあるいはトランジスタを交換した場合に行って下さい。
※3. We recommand to use Digital Volt Meter (Multi‑meter) for Test Equipment.
測定にはディジタルメータをお使い下さい。
※4. On STEP 1、2 and 4 , use the Slide‑Transformer for the adjustment of input supply voltage.
ステップ1、2、4 の入力電圧の調整ではスライダックを使用します。
※5. ＊This mark indicates factory alignment value.
＊アスタリスクマークの値は工場調整時を示します。
STEP
ｽﾃｯﾌﾟ ADJUST
調整箇所
ADJUST ITEM
調整項目
TEST EQ'PT
検出器
CONNECTING POINT
接続点 LOAD
負荷 REMARKS
調整・備考
POWER AMP ASSEMBLY ( D & U type :717‑0085‑11 / 717‑0085‑13 )
パワーアンプAss'y の調整 ( E & B type :717‑0086‑11 / 717‑0086‑13 )
Bias Current of
Power Amp
バイアス電流
717‑0085‑11
717‑0085‑13 V.O. Meter set range
to less than DC 0.3V.
ﾃｽﾀｰ
DC0.3V以下のﾚﾝｼﾞ VR1
None
無負荷
1
PERFORMANCE ADJUSTMENTS ( Filter Amp Assembly :714-0024-10 )
動作性能・調整 ( フィルターアンプ Ass'y )
2Confimation
Input Voltage
入力電圧確認
※3
Output of Slide
Transformer
ｽﾗｲﾀﾞｯｸ出力端子
Slide-
Trans
ｽﾗｲﾀﾞｯｸ
Set Voltage to 100V
or 120V or 230V
ﾃｽﾀｰの指示
100Vに調整する
3
Output Voltage
出力電圧
(50Hz) VR2
Adjust for the reading of
V.O. meter of designated
Output Voltagge.
ﾃｽﾀｰの指示100Vに
調整 (U:120V E:230)
Output Voltage
出力電圧
(60Hz)
※3
VR1
4Confimation of ±
10% Input Voltage
入力電圧±10%
対出力電圧確認
Meter Calibration ( Filter Amp Assembly :714-0024-10 )
メータ調整 ( フィルターアンプ Ass'y )
Notes. Meter Adjustments is unnecessary except replacement of
PC Board.
ﾒｰﾀ調整はPCﾎﾞｰﾄﾞを交換した場合にのみ行って下さい。
5
6
7
8
9
WATTAGE
定格電力
OUTPUT
VOLTAGE
出力電圧
INPUT
VOLTAGE
入力電圧
INPUT
DISTORTION
入力歪率
Set Meter Switch to
"VOLT-AMPERE"
ﾒｰﾀｽｲｯﾁ；
"VOLT-AMPERE"
Set Meter Switch to
OUTPUT VOLTAGE
ﾒｰﾀｽｲｯﾁ；
OUTPUT VOLTAGE
VR3
VR5
VR6
VR7
Slide-
Trans
ｽﾗｲﾀﾞｯｸ
Adjust VR3 to 1200W of
meter reading.
1200W指示になる様に
VR3
を調整する｡
AC Outlet
ACｿｹｯﾄ
AC Outlet
ACｿｹｯﾄ
AC Outlet
ACｿｹｯﾄ
Set VR2 to green-zone of
"100V or 120V or 230V"
ﾒｰﾀｸﾞﾘｰﾝｿﾞｰﾝｾﾝﾀｰの指示
100VにVR5を調整する｡
Set VR1 to green-zone of
"100V or 120V or 230V"
ﾒｰﾀｸﾞﾘｰﾝｿﾞｰﾝｾﾝﾀｰの指示
100VにVR6を調整する。
Confirm the distortion
value of output voltage is
less than 0.5%.
出力電圧の歪率が0.5%
以下である事を確認。
Confirm constant output
voltage (±2%)against input
voltage.
入力電圧変化で出力電圧
が100V±2%以内である事
を確認。
Bias Current of
Power Amp
バイアス電流
717‑0086‑11
717‑0086‑13
1.Copy the value of
Test Point K6&K8.
ﾃｽﾄﾎﾟｲﾝﾄK6,K8の値を
控える
2.Adjust for "10mV" V.O
.
Meter scale with the
value of K6+K8.
ﾃｽﾄﾎﾟｲﾝﾄK6,K8の合計が
"10mV"となるように
調整
＊USA Model ="8mV"
Pins of Test
Point K8
ﾃｽﾄﾎﾟｲﾝﾄK8の両端
Pins of Test
Point K6
ﾃｽﾄﾎﾟｲﾝﾄK6の両端
Output of Slide
Transformer
ｽﾗｲﾀﾞｯｸ出力端子
Connect a Power Amp
or an Integrated Amp.
ﾊﾟﾜｰｱﾝﾌﾟ又はﾌﾟﾘﾒｲﾝｱﾝﾌﾟ
を接続(＊5:600W/16.7>)
V.O. Meter set
rangetoless
than AC 300V
ﾃｽﾀｰ
AC300V以下のﾚﾝｼﾞ
Adjust for the reading of
V.O. meter of designated
Output Voltagge.
ﾃｽﾀｰの指示100Vに
調整 (U:120V E:230)
Connect a Power Amp
or an Integrated Amp.
ﾊﾟﾜｰｱﾝﾌﾟ又はﾌﾟﾘﾒｲﾝｱﾝﾌﾟ
を接続(＊5:600W/16.7>)
(約900W / 11.1>)
VR4
Meter Lamp
ﾒｰﾀﾗﾝﾌﾟ
10
None
無負荷
Notes. Output Voltage as follows.
USA model ： 120V
European model ： 230V
Since VR7 is an adjustment,
a setup is unnecessary.
通常は調整済の為、調整は不要
Set Meter Switch to
INPUT DISTORTION
ﾒｰﾀｽｲｯﾁ；
INPUT DISTORTION
Set Meter Switch to
OUTPUT DISTORTION
ﾒｰﾀｽｲｯﾁ；
OUTPUT DISTORTION
METER LAMP
FLASHING
ﾒｰﾀﾗﾝﾌﾟﾌﾗｯｼﾝｸﾞ
OUTPUT
DISTORTION
出力歪率
None
無負荷
None
無負荷
Set Meter Switch to
INPUT VOLTAGE
ﾒｰﾀｽｲｯﾁ；
INPUT VOLTAGE
(When readjustment is nece‑
ssity, Input distortion
is measured and adjusted)
(再調整が必要の場合は､入力
の歪率を測定し調整します)
Adjustment mode: Power supply
ON is with pushing S1,2,3 and
5 of meter switch,and LED 1 ,5
checks lighting at same time.
調整ﾓｰﾄﾞ；ﾒｰﾀｽｲｯﾁAss'yのS1,2,3,
5を押しながら電源ON→LED1,5が
同時点灯する事を確認。
Connect a Lamp with
the amount of wattage
of 1200W.
電力負荷が1200W となる
電球を接続
(＊5:1200W/8.3>)
VR4 is set up on the point
which flashing stops. It
flashing‑checks with 1200W+
+100W lamps. And Power OFF.
ﾌﾗｯｼﾝｸﾞが止まるﾎﾟｲﾝﾄに
VR4を設定。1200W＋100Wの
ﾗﾝﾌﾟでﾌﾗｯｼﾝｸﾞ確認し､電源
を切る｡
Connect a Lamp with
the amount of wattage
of 1200W.
電力負荷が1200W となる
電球を接続
(＊5:1200W/8.3>)

ADJUSTMENT POINT
回路調整箇所
−１2 −
VR7:DISTORTION50Hz
VR6:IN /VOLT
VR4:FLASH
VR3:VA
VR2:50Hz
VR1:60Hz
Power Amp (A) Assembly
ﾊﾟﾜｰｱﾝﾌﾟ(A)Ass'y
D & U type / 717‑0085‑11
E & B type / 717‑0085‑13
Power Amp (B) Assembly
ﾊﾟﾜｰｱﾝﾌﾟ(B) Ass'y
D & U type / 717‑0086‑11
E & B type / 717‑0086‑13
Filter Amp Assembly
ﾌｨﾙﾀｰｱﾝﾌﾟ Ass'y
(714‑0024‑10)
VR1
Test Point / K6
ﾃｽﾄﾎﾟｲﾝﾄ
Test Point / K8
ﾃｽﾄﾎﾟｲﾝﾄ
VR5:OUT/VOLT
TOP VIEW (上面)
ADJUSTMENT MODE FOR METER FLASHING (STEP10)
メータ調整モード設定 (STEP10）
A power switch is turned on with pushing simultaneously the meter switch
S1,and 2, 3 and 5, and it checks that LED 1 and 5 lights up simultaneously.
A power supply is turned off after adjustment.
ﾒｰﾀｽｲｯﾁ S1,2,3,5を同時に押しながら電源ｽｲｯﾁを入れ､LED1､LED5が同時点灯する事
を確認する｡調整後､電源をOFFし調製ﾓｰﾄﾞを解除する｡
LED1 LED5
S1 S2 S3 S5
POWER
電源
The lamp for lighting should be used
for the load at the time of adjustment.
調整時の負荷は照明用ﾗﾝﾌﾟを使う事を進めます｡
＋
＋
＋
＝
100W 100W
500W 500W
1200W

−１3 −
PACKING (梱包図)
Poly Bag for AC cord
ﾋﾞﾆｰﾙ袋/電源ｺｰﾄﾞ用
(810‑2030‑04)
Poly Bag for Owner's Manual
ﾋﾞﾆｰﾙ袋/取扱説明書用
(812‑2435‑04)
Accessories Case
付属品ｹｰｽ
(801‑0269‑00)
Manual
取扱説明書
Caution Notes
注意書
Power Supply Cord
電源ｺｰﾄﾞ
お客様ｶｰﾄﾞ(国内のみ)
目隠しｼｰﾙ(国内のみ)
案内状(国内のみ)
Top Pad (F)
ﾄｯﾌﾟﾊﾟｯﾄﾞ
(803‑0385‑00)
Center Pad
中ﾊﾟｯﾄﾞ
(803‑0393‑00)
Cover
保護ｶﾊﾞ
(810‑4867‑04)
Top Carton Box
上箱ﾀﾞﾝﾎﾞｰﾙ
(800‑0270‑04)
Bottom Pad (R)
ﾎﾞﾄﾑﾊﾟｯﾄﾞ
(803‑0388‑00)
Top Pad (R)
ﾄｯﾌﾟﾊﾟｯﾄﾞ
(803‑0386‑00)
Top PadCase
ﾄｯﾌﾟﾊﾟｯﾄﾞｹｰｽ
(801‑0248‑00)
Bottom Carton Box
底箱ﾀﾞﾝﾎﾞｰﾙ
(801‑0249‑00)
Bottom Pad (F)
ﾎﾞﾄﾑﾊﾟｯﾄﾞ
(803‑0387‑00)
Joint /6pcs.
ｼﾞｮｲﾝﾄ
(249‑0012‑00)
Sticker
ｽﾃｯｶ /3pcs.
(180‑9117‑24)
Wrapping Sheet
ｼｰﾄ
(810‑4545‑04)
Accessories (See 5‑page)
付属品 (5頁参照)

AC IN
AC 100V
50/60Hz
!
BRN
GRN
BLU
LINE FILTER
F001
!
1
2
3
4
CP001
311-0203-00-S
!
!
RELAY 001
362-2106-00
D001
S25VB60
!
2W
3.3
R007
510-9020-20
T001
!
22000uF
90V
C003
22000uF
90V
C004
22000uF
90V
C005
22000uF
90V
C006
D002
S50VB60
10m
R5
592-0002-00
0.5W
15k
R001
0.5W
15k
R002
10n
C002
10n
C001
Th001
!
RELAY 002
362-2106-00
2W
10k
R003
301F
R004
1
2
3
4
K1
1
2
3
4
5
6
7
K2
1
2
K3
Protection ASS'Y
WHT
WHT
Power Amp(B) ASS'Y
Power Amp(A) ASS'Y
1
2
K9
K5
K3
K4
K7
K3
K5
K4
K6
1
2
3
4
K7
1
2
3
4
5
6
7
8
9
10
11
K4
1 2
K6
1
2
K5
1
2
3
4
5
6
7
8
9
10
11
K1
1
2
K1
1
2
K1
1 2 3
K2
1 2
K5
1 2
K4
Inlash Protect ASS'Y
716-0726-01
1 2
K1
1
2
K3
1 2 3 4
K2
+-
Filter Amp ASS'Y
Meter Switch ASS'Y
1 2 3 4
K1
Meter Connecter ASS'Y
6.8u
C007
3W
4.7
R006
Rear (BRN)
Front (BRN)
D type
VIO RED GRY
YEL
BLK
1 2 3
K1
12 34 56 78 910 1112 1314
K3
714-0024
717-0085-11
717-0086-11
720-0074-11
716-0725
716-0724
WHT
RED
VIO
GRY
BLU
BRN
GRN
RED
VIO
1 2
K8
1 2
K6
T.P. T.P.
4mV
4mV
1 2 3 4 5 6
K2
1 2 3 4 5 6
K2
BLK
GRY
BRN RED ORG YEL GRN BLU BRN RED ORG YEL GRN BLU
GRN
BLK
BLU
RED
GRY
VIO
BRN
BLK GRY
RED
VIO
BLK
W
W
W
W
W
W
W
W
520-9008-00
W
+30V
-30V
!
!
! !
+15V(70mA)
-15V(60mA)
!
Attention mark indicating critical components for safety.
Replacement must be made with identical parts of specified part number.
OUTPUT : AC100V 50/60Hz
! ! !
!
PS-1210 MASTER CIRCUIT DIAGRAM
-
1
4
-

1
2
K6
308-0206-00
1
2
K5
308-0207-00
1
2
3
4
K2
308-0408-00
10k
R88
D27
HZ5BLL
1
8
2
3
4
IC18A
UPC4570C
1
8
2
3
4
IC19A
UPC4570C
1
8
2
3
4
IC17A
UPC4570C
to Power Ground
to Voltage Detection Point
(3V)
+5V
-5V
7
6
5
IC17B
UPC4570C
7
6
5
IC18B
UPC4570C
7
6
5
IC19B
UPC4570C
1
8
2
3
4
IC15A
UPC4570C
7
6
5
IC15B
UPC4570C
100k
R67
162kF
R84 82.5kF
R75 162kF R81
31.6kF
R82 31.6kF R83
150kF
R87 75.0kF
R77 150kF R85
32.4kFR86 32.4kF
R80
16.2kF
R78
15.8kF
R76
100nG
C41
100nG
C42
100nG
C43
100nG
C44
200nG
C48
200nG
C47
1.00kF
R69
2.21kF
R68
1.00kF
R71
2.21kF
R70
150kR65
D21
MA165
12.1kF
R56
232F
R55
10k
R44
D23
HZ5BLL
2.2k
R47
D20
MA165
D13
MA165
1.00kF
R46
165F
R49 3.83kF
R48
20.0kF
R64
D17
MA165
2.2k
R45
+5V
0X
12 1X 13 0Y
21Y 10Z 51Z 3A
11 B 10 C
9INH 6
XC 14 YC 15
ZC 4
VDD 16
VEE 7
GND 8
IC22 TC4053BP
0X
12 1X 13 0Y
21Y 10Z 51Z 3A
11 B 10 C
9INH 6
XC 14 YC 15
ZC 4
VDD 16
VEE 7
GND 8
IC21 TC4053BP
0X
12
1X
13
0Y
2
1Y
1
0Z
5
1Z
3
A
11
B
10
C
9
INH
6
XC 14
YC 15
ZC 4
VDD 16
VEE 7
GND 8
IC14 TC4053BP
0X 12
1X 13
0Y 2
1Y 1
0Z 5
1Z 3
A11
B10
C9
INH 6
XC
14
YC
15
ZC
4
VDD
16
VEE
7
GND
8
IC13 TC4053BP
-5V +5V
-5V +5V
+5V-5V
D14
EK03
4.7kR52
+5V
-5V
-5V
D19 MA165
100k
R62
1k
R51
1k
R50
10kR66
D18
MA165
X2
RN1202
D24
MA165
1
2
3
4
K7
308-0407-00
0.5W
8.2
R74
180
R61
0.5W
8.2
R73
D9
MA165 D6 MA165
AC30V
+15V
-15V
AC30V
2.21kF
R6
X1
RN1202
47k
R53
76
5
IC16B
UPC4570C
1
8
2
3
4
IC16A
UPC4570C
I
G
O
IC20
NJM78M05FA
+5V
7.5k
R54
4.7k
R57
1M
R58
100nC25
100nC23
+5V
Flashing
MeterCutOff
Mute
B1
A2
B2
C2
LED1
LED2
LED3
LED4
LED5
Bott1
Bott2
Bott3
Bott4
Bott5
LED1
LED2
LED3
LED4
LED5
MeterCutOff Flashing B1 Mute A2 B2 C2 Bott1 Bott2 Bott3 Bott4 Bott5
E10T_2
E10T_1
E10T_0
+5V
47k
R39
NMI
RST
OverVA
10k
R89
1 4 6 8
16 13 11
9
RELAY1
362-1212-00
10u
50V
C45
10u
50V
C52
10u 50V
C31
10u
50V
C33
+5VS
+5V
1
2
3
4
5
6
7
8
9
10
11
K4
308-1102-00
E10T_2
E10T_1
NMI
RST
Bott5
Bott4
Bott2
Bott1
E10T_0
Bott3
+5V
+5V
4.7k
RA1
RD92AK06C_18
4.7k
RA2
RD92AK06C_18
D22
MA165
10k
R60 10k
R59
34
IC12B
TC74HC14AP
1 2
IC12A TC74HC14AP
56
IC12C
TC74HC14AP
98
IC12D
TC74HC14AP
1110
IC12E
TC74HC14AP
13 12
IC12F TC74HC14AP
D10
1SR139-400
0.5W
22k
R40
0.5W
22k
R41
+5V
+5VS
VCC +5V
1
8
2
3
4
IC1A
UPC4570C
7
6
5
IC1B
UPC4570C
RST
+5V
10k
R42
Q4
2SK2541_
1k
R79
1k
R72
Q3
2SK2541_
100u
25V
C39
1kR43
MeterCutOff
D12
1SR139-400
220u
10V
C49
100n
C53
100n
C21
100n
C50
100n
C26
100n
C32
10n
C30
10n
C35
10n
C36
100n
C28 100n C29
100n
C22
+15Vb
-15Vb
1u
50V
C24
3
2
1
50kVR4
583-0547-00
3
2
1
1kVR6
583-0136-00
1 2
3 4
5 6
7 8
910
11 12
13 14
K3
308-1407-00
I
G
O
IC8
S-80845CNY-T-G
7
6
5
IC4B
UPC4570C
7
6
5
IC7B
UPC4570C
10.0kD
R28
10.0kD
R29
1.5nF
C18
86.6kD
R25
86.6kD
R31
174kD
R35
D4
HZ5BLL
D2
HZ5BLL
7
6
5
IC5B
UPC4570C
200kD
R19
397kD
R30
3.00kDR24
7
6
5
IC6B
UPC4570C
1
8
2
3
4
IC7A
UPC4570C
1
8
2
3
4
IC5A
UPC4570C
1kF
R26 100k
R23
100k
R32
D5
MA165
D7
MA165
+15V
-15V
S
-Y
Q1
2SK330_
S
-Y
Q2
2SK330_
100
R21
D8
MA165
100u
25V
C20
10k
R20
7
6
5
IC2B
UPC4570C
138kD
R17
2.08kD
R15
277kD
R7
+15V
-15V
1
8
2
3
4
IC2A
UPC4570C
1
8
2
3
4
IC3A
UPC4570C
10.0kD
R1 10.0kDR2
1.5nF
C4
72.3kD
R14
72.3kD
R8
145kD
R5
100
R11
D3
MA165
100u
25V
C2
10k
R12
1kF
R10
1
8
2
3
4
IC6A
UPC4570C
165kD
R18
2.49kD
R16
332kD
R9
+15V
-15V
332kF
R13
76
5
IC3B
UPC4570C
1
8
2
3
4
IC4A
UPC4570C
3.32kF
R3
10.0kFR4 10.0kF
R33
10.0kFR34
+15V
-15V
1.5nF
C7
1.5nF
C16
-15V
+15V +15V
-15V
D1
MA165
100k
R22
I
G
O
IC9
S-80845CNY-T-G
100p
C15
100p
C10
0.5W
22k
R27
XI 1
XO 3
G
2
3.58MHz
XTAL1
527-0012-00
10k
R63
D11
HZ5BLL
0.47
R37
0.47
R36
D15
1SR139-400
D16
1SR139-400
+15V
-15V
0.47
R38
+15Vb
+15Vb
+15Vb
-15Vb
-15Vb
-15Vb
+15Vb
100n
C27
1
2
K1
308-0216-00
100u
25V
C37
100u
25V
C34
3
2
1
20kVR7
583-0246-00
3
2
1
20k
VR5
583-0246-00
3
2
1
20kVR3
583-0246-00
100n
C46
100n
C51
47u
100V
C40
47u
100V
C38
100nF
C19
100nF
C17
100nF
C1
100nF
C5
100nF
C3
100nF
C6
100nF
C13
100nF
C9
3
2
1
1kVR2
583-0136-00
3
2
1
1kVR1
583-0136-00
27u
100V
C14
27u
100V
C11
33u
100V
C12
33u
100V
C8
to Power Amp Ass'y (A) K1
to Meter Connector Ass'y K1
to Inrush Ass'y K1
to Meter Switch Ass'y K1
This connector is used only for the programming of softwear (007-0046).
Meter Input Voltage
Meter Output Voltage
Meter VA
Meter Distortion
from Power Amp
Flash Point
50Hz
60Hz
D25
11EQS10
D26
11EQS10
from Common Ground
from AC30V(Blue)
CS
1
SK
2
DI
3
DO
4
VCC 8
NC 7
ORG 6
GND 5
IC10
M93C46-WBN6P
P52
13
P53
14
P54
15
P55
16
P10
17
P11
18
P12
19
P56
20
P57
21
P74
22
P75
23
P76
24
NMI 25
P80 26
P81 27
P82 28
P83 29
P84 30
E0 31
E1 32
E2 33
P20 34
P21 35
P22 36
P14 37 P15 38 P16 39 P17 40
NC 41 NC 42 NC 43 NC 44
PB3 45 PB2 46 PB1 47 PB0 48
AVCC
1
NC
2
NC
3
VCL
4
RST
5
TST
6
VSS
7
OSC2
8
OSC1
9
VCC
10
P50
11
P51
12
IC11
HD64F3672FYV
22
R90
+5V
-
1
5
-
F I L T E R A M P A S S ' Y ( 7 1 4 - 0 0 2 4 - 1 0 )
Ass'y(B) K1

D1
SEL2610C
D2
SEL2610C
D3
SEL2610C
D4
SEL2610C
D5
SEL2610C 1k
R1
1
2
3
4
5
6
7
8
9
10
11
K1
308-1102-00
12 34
S1
354-1103-00
12 34
S2
354-1103-00
12 34
S3
354-1103-00
12 34
S4
354-1103-00
12 34
S5
354-1103-00
from Filter Amp Ass'y K4
1
2
3
4
K1
308-0412-00
M+
L1
L2
M-
to Meterfrom Filter Amp Ass'y
- 16 -
M E T E R S W I T C H A S S ' Y ( 7 1 6 - 0 7 2 4 - 0 0 )
M E T E R C O N N E C T O R A S S ' Y ( 7 1 6 - 0 7 2 5 - 0 0 )
I N - R U S H P R O T E C T A S S ' Y ( 7 1 6 - 0 7 2 6 - 0 1
)
1
2
K1
308-0206-00
1
2
K3
308-0207-00 D1
S1VB60
1
2
K5 308-0212-00
2.2
R7
2.2
R6
0.1
R8
1
2
K4
308-0207-00
250V10n
C3
1W
100
R1
10W3.3
R3
10W3.3
R2
10W3.3
R4
10W3.3
R5
Type
U (120V)
E (230V)
Ass'yNo.C1C2R1
716-0726-02
716-0726-03
T1
510-9005-1068/50V 68/50V 220 1W
10/100V 47/63V 750 1W 510-9008-10 J2,J3,J5
J1,J3,J5
jumper
J2,J4
!Attention mark indicatingcritical components for safety.
Replacement must be made with identical parts of specified part number.
CAUTION
D (100V) 716-0726-01 68/50V 68/50V 510-9005-10100 1W
Remarks:Circuit shows D(AC100V) setting
J1
J2
J5
J4
J3
1
3
K2 308-0236-00
!
!
!
!!
!
!!!
!!!
1
3
5
7
2
4 8
6
T1 510-9005-10
68u
50V
C1
68u
50V
C2
OL
1
CV
2
LH
3
AC
4
G
5
RD
6
MT
7
VC
8
IC1 UPC1237HA
270kR1
0.5W68kR2 0.5W68kR3
1
2
K3
308-0212-00
1
2
3
4
K1
308-0408-00
+H
1
2
3
4
5
6
7
K2
308-0709-00
from Output
from GND
D:31.7V U:38V E:71V
to OutRL.+
to OutRL.-
to ThSw
to ThSw
to ThSw
to ThSw
1
2
K4
308-0207-00 +H
100u
35V
C5
0.1
R7
Only AC100V setting with Fan
0.022uF
C2
!Attention mark indicating critical components for safety.
Replacement must be made with identical parts of specified part number.
CAUTION
D2
1SR139-400
2W
100
R9
D3
1Z10A
type
D(100V)
U(120V)
Ass'y No.
720-0074-11
720-0074-12
R6
100 1W
220 1W
E/B(230V) 720-0074-13 22k 1W
R5
9.1k 1W
11k 1W 100 1W
R2 R3
220k 1/2W 100k 1/2W
68k 1/2W
D3,4
open
1Z10A
open 68k 1/2W
1W
100
R6
62k
R4
D4
1Z10A
J1
jumper
J1
J1
open
3.3V
82k 1/2W 68k 1/2W
!
1W
9.1k
R5
220u
10V
C1
47u
35V
C4
*
*
*
*
*
*
*
10u
50V
C3
120k
R10
D1 1SR139-400
120k
R8
150n
C6
P R O T E C T I O N A S S ' Y ( 7 2 0 - 0 0 7 4 - 1 1 )

909F
R25
-S/T
Q6
2SC3902_
-S/T
Q8 2SA1507_
Q14
2SA1837_
Q16
2SC4793_
1
8
2
3
4
IC1A
UPC4570C
76
5
IC1B
UPC4570C
5W10kR26
5W10kR27
2W
0.22
R55
2W
0.22
R56 2W
0.22
R58 2W
0.22
R60 2W
0.22
R62 2W
0.22
R64 2W
0.22
R66 2W
0.22
R68 2W
0.22
R70 2W
0.22
R72 2W
0.22
R74
2W
0.22
R57 2W
0.22
R59 2W
0.22
R61 2W
0.22
R63 2W
0.22
R65 2W
0.22
R67 2W
0.22
R69 2W
0.22
R71 2W
0.22
R73
1 2
K8
308-0221-00
T.P.
1W10
R76
10u
16V
C12
10u
16V
C13
220nC17
-O/R
Q22
2SC5358_ -O/R
Q24
2SC5358_ -O/R
Q26
2SC5358_ -O/R
Q28
2SC5358_ -O/R
Q30
2SC5358_ -O/R
Q32
2SC5358_ -O/R
Q34
2SC5358_ -O/R
Q36
2SC5358_ -O/R
Q38
2SC5358_ -O/R
Q40
2SC5358_
-O/R
Q23
2SA1986_ -O/R
Q25
2SA1986_ -O/R
Q27
2SA1986_ -O/R
Q29
2SA1986_ -O/R
Q31
2SA1986_ -O/R
Q33
2SA1986_ -O/R
Q35
2SA1986_ -O/R
Q37
2SA1986_ -O/R
Q39
2SA1986_ -O/R
Q41
2SA1986_
-O
Q20
2SC5358_
-O
Q21
2SA1986_
715F R30
12
R34
1
2
K1
308-0207-00 101
C1
-S/T
Q5
2SC3902_
-S/T
Q7 2SA1507_
101
C2
2.2
R36
100
R1
100
R2
10
R3
10
R4
10
R5
10
R6
120
R11
120
R12
120
R13
120
R14
27kR29
220
R31
22
R32
D11Z15AD21Z15A
Q13
2SA1837_
Q15
2SC4793_
1W1.0
R75
1W1.0
R77
3k
R7
3k
R8
3k
R9
3k
R10
K3
K4
K5
K6
K7
2W
750
R23
2W
750
R24
1 2
K9
308-0206-00
0.5W
15
R19
0.5W
15
R20
0.5W
15
R21
0.5W
15
R22
-O
Q17
2SC5358_
Q9
2SA1837_
Q11
2SC4793_
Q10
2SA1837_
Q12
2SC4793_
*
*
E(230V)
D,U(100,120V)
Type Ass'y No.
717-0085-11
717-0085-13
C14,15
2200p/250V
3300p/250V
6.2k
3k10
22
R11--18
120
240
R19--22 R23,24 R30R25 R26,27
10k 5W
33k 5W
909F
1210F
715F
953F3.6k 2W
750 2W15
30
!Attention mark indicating critical components for safety.
Replacement must be made with identical parts of specified part number.
CAUTION
Remarks:Circuit shows D,U(AC100,120V) setting
1 2 3 4 5 6
K2
308-0608-00
10m
R82
592-0002-00
10m
R83
592-0002-00
2.2
R53
2.2
R51
2.2
R49
2.2
R47
2.2
R45
2.2
R43
2.2
R41
2.2
R39
2.2
R37
2.2
R38 2.2 R40 2.2 R42 2.2 R44 2.2 R46 2.2 R48 2.2 R50 2.2 R52 2.2 R54
1k
R78
1k
R79
2.2
R35
120
R15
120
R16
120
R17
120
R18
-Y
Q19
2SA1428_
-Y
Q18 2SC3668_
last No. C20,D6,IC1,K9,Q41,R87,VR1
D3
1SR139-400
D4 1SR139-400
5.6k
R84
5.6k
R86
5.6k
R85
5.6k
R87
R7--10R3--6
4.7n
C3
4.7n
C4
4.7n
C5
4.7n
C6
D6
HZ9A2L
D5
HZ9A2L
R82,83
592-0002-00
592-0003-00
27k
R33
250V 2.2u
C16
250V 2.2u
C18
!
!
47u 100V
C9
47u 100V
C10
-K
Q1
2SA1376A_
-K
Q2
2SA1376A_
-K
Q3
2SC3478A_
-K
Q4
2SC3478A_
3
2
1
100
VR1 583-0126-00
TS1 369-0030-00
D:31.7V U:38V E:71V
D:-31.7V U:-38V E:-71V
100n
C19
100n
C20
1.8n
C11
100k
R80
100k
R81
820u 25V
C7
820u 25V
C8
309-5107-04
309-5108-04
309-5110-04
309-5106-04
309-5109-04
250V
3.3n
C14
250V3.3n
C15
-
1
7
-
P O W E R A M P ( A ) A S S ' Y ( 7 1 7 - 0 0 8 5 - 1 1 )
to
Filter Amp
Ass'y K1
from Protction Ass'y K1 from Power Amp (B) Ass'y K2

1 2
K6
308-0221-00
T.P.
-O/R
Q9
2SC5358_ -O/R
Q11
2SC5358_ -O/R
Q13
2SC5358_ -O/R
Q15
2SC5358_ -O/R
Q17
2SC5358_ -O/R
Q19
2SC5358_ -O/R
Q21
2SC5358_ -O/R
Q23
2SC5358_ -O/R
Q25
2SC5358_ -O/R
Q27
2SC5358_
-O/R
Q10
2SA1986_ -O/R
Q12
2SA1986_ -O/R
Q14
2SA1986_ -O/R
Q16
2SA1986_ -O/R
Q18
2SA1986_ -O/R
Q20
2SA1986_ -O/R
Q22
2SA1986_ -O/R
Q24
2SA1986_ -O/R
Q26
2SA1986_ -O/R
Q28
2SA1986_
-O
Q7
2SC5358_
-O
Q8
2SA1986_
12
R57
K3
K4
K5
*
*
E(230V)
D,U(100,120V)
Type Ass'y No.
717-0086-11
717-0086-13
R51,52
592-0002-00
592-0003-00
!Attention mark indicating critical components for safety.
Replacement must be made with identical parts of specified part number.
CAUTION
1 2 3 4 5 6
K2
308-0608-00
10m
R51
592-0002-00
10m
R52
592-0002-00
C7,8
2200p/250V
3300p/250V
2.2
R29
2.2
R27
2.2
R25
2.2
R23
2.2
R21
2.2
R19
2.2
R17
2.2
R15
2.2
R13
2.2
R11
2.2
R12 2.2 R14 2.2 R16 2.2 R18 2.2 R20 2.2 R22 2.2 R24 2.2 R26 2.2 R28 2.2 R30
1k
R53
1k
R54
100k
R55
100k
R56
-Y
Q5 2SC3668_
-Y
Q6 2SA1428_
D4 1SR139-400 D3
1SR139-400
Q3
2SA1837_
-K
Q22SA1376A_
-K
Q12SC3478A_
Q4
2SC4793_
220
R5
220
R6
100
R1
100
R2
0.5W
15k
R3
0.5W
15k
R4
D1
HZ153L
D2
HZ153L
10u
50V
C3
10u
50V
C4
5W
1k
R7
5W
1.2k
R10
5W
1.2k
R8
5W
1k
R9
47u
100V
C5
47u
100V
C6
1
2
3
K1
308-0304-00
R7,9
open
1k 5W
47u
100V
C11
47u
100V
C12
R58,59
0.47
open
R8,10
open
1.2k 5W
!
!
D:31.7V U:38V E:71V
D:-31.7V U:-38V E:-71V
+14.5V
-14.5V
+35V
-35V
2W
0.22
R31
2W
0.22
R33
2W
0.22
R35
2W
0.22
R37
2W
0.22
R39
2W
0.22
R41
2W
0.22
R43
2W
0.22
R45
2W
0.22
R47
2W
0.22
R49
2W
0.22
R32
2W
0.22
R34
2W
0.22
R36
2W
0.22
R38
2W
0.22
R40
2W
0.22
R42
2W
0.22
R44
2W
0.22
R46
2W
0.22
R48
2W
0.22
R50
100n
C9
100n
C10
100u
50V
C1
100u
50V
C2
0.47
R58
0.47
R59
Remarks:Circuit shows D,U(AC100,120V) setting
309-5111-04
309-5113-04
309-5112-04
+14.5V
0V
-14.5V
TO FILTER AMP Ass'y
DC OUT
250V
3.3n
C7
250V
3.3n
C8
-
1
8
-
P O W E R A M P ( B ) A S S ' Y ( 7 1 7 - 0 0 8 6 - 1 1 )
to Power Amp (A) Ass'y K2

MEMO
−１９−
