Radial Engineering SB-48UB User manual

www.radialeng.com
TruetotheMusic
Radial Engineering Ltd.
®
®TruetotheMusic
SB-48UB
POWERBAR
UNBALANCED/BALANCED
48V PHANTOM SUPPLY
USER GUIDE
Radial Engineering Ltd. SB-48UB®Phantom Supply SB-48UB®Phantom Supply

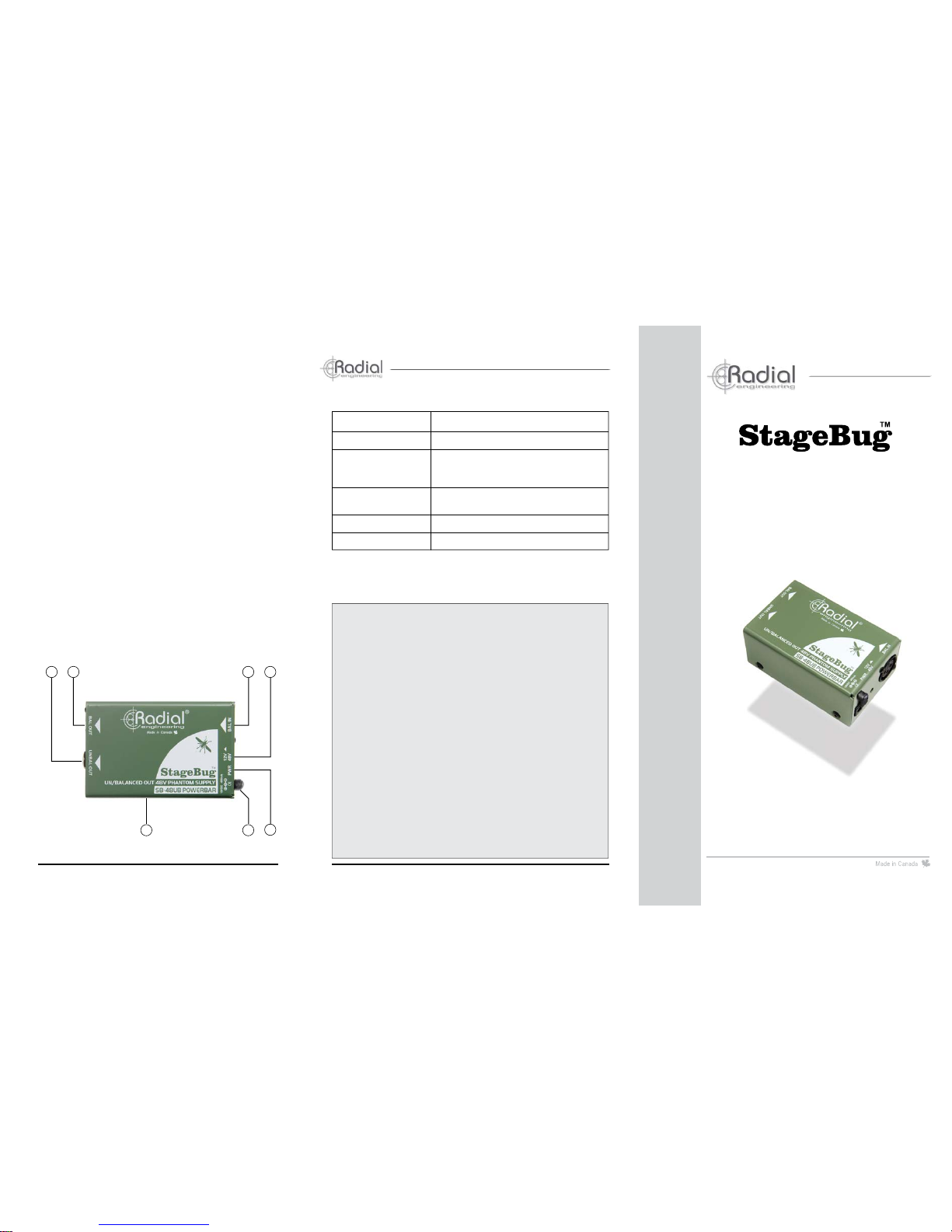

FEATURES
1. ¼” OUT – Unbalanced ‘guitar level’output used to feed a stage
amp or guitar effects pedals using standard coaxial cable.
2. XLR-M OUTPUT: Used to connect the mic signal to the mixing
consoleor preamp. Equipped with a capacitor toblock other sourc-
es of phantom power to prevent damage to your mic or direct box.
3.XLR-FINPUT:UsedtoconnectyourmicrophonetotheStageBug
SB-48UB.Phantompowerisgeneratedinsidethe SB-48UB and in-
jectedintothemiccapsuleviatheXLR-Fconnectorsand mic cable.
4. +12/48V SWITCH: Used to change the phantom supply from
the standard +48 volts to +12 volts for speciality microphones.
5.POWER INPUTANDLED:Thepowerjackacceptstheincluded
15VDC/400mApoweradapter.The LED illuminates when the power
supply is connected and the SB-48UB is active.
6. CABLE CLAMP: Used to lock down the power supply cable and
prevent accidental disconnection.
7.FULL-BOTTOMNO-SLIPPAD: This provides electrical isolation
and plenty of ‘stay-put’ friction to keep the SB-48UB in one place.
RADIAL ENGINEERING 3 YEAR
TRANSFERABLE LIMITED WARRANTY
RADIAL ENGINEERING LTD. (“Radial”) warrants this product to be free from defects in material
and workmanship and will remedy any such defects free of charge according to the terms of this
warranty. Radial will repair or replace (at its option) any defective component(s) of this product
(excluding finish and wear and tear on components under normal use) for a period of three (3)
yearsfromtheoriginaldateof purchase. Intheeventthataparticularproduct isnolongeravailable,
Radial reserves the right to replace the product with a similar product of equal or greater value. In
theunlikelyeventthatadefectis uncovered,pleasecall604-942-1001oremailservice@radialeng.
com to obtain an RA number (Return Authorization number) before the 3 year warranty period
expires. The product must be returned prepaid in the original shipping container (or equivalent) to
Radialor toan authorized Radialrepair centerand you must assume therisk ofloss or damage.A
copy of the original invoice showing date of purchase and the dealer name must accompany any
request for work to be performed under this limited and transferable warranty. This warranty shall
notapply if theproduct hasbeen damaged dueto abuse,misuse, misapplication, accidentor asa
result of service or modification by any other than an authorized Radial repair center.
THERE ARE NO EXPRESSED WARRANTIES OTHER THAN THOSE ONTHE FACE HEREOF
ANDDESCRIBEDABOVE.NOWARRANTIESWHETHEREXPRESSED ORIMPLIED,INCLUD-
INGBUTNOTLIMITEDTO,ANYIMPLIEDWARRANTIESOF MERCHANTABILITYORFITNESS
FOR A PARTICULAR PURPOSE SHALL EXTEND BEYOND THE RESPECTIVE WARRANTY
PERIODDESCRIBEDABOVEOF THREEYEARS.RADIALSHALLNOT BERESPONSIBLE OR
LIABLE FOR ANYSPECIAL, INCIDENTALOR CONSEQUENTIAL DAMAGES OR LOSS ARIS-
ING FROM THE USE OF THIS PRODUCT. THIS WARRANTY GIVESYOU SPECIFIC LEGAL
RIGHTS, AND YOU MAYALSO HAVE OTHER RIGHTS, WHICH MAY VARY DEPENDING ON
WHERE YOU LIVEAND WHERE THE PRODUCT WAS PURCHASED.
StageBug SB-48UB™User Guide • Part# R870 1214 00
© Copyright 2014 all rights reserved •
Specifications and
appearance are subject to change without notice.
Radial Engineering Ltd.
1588 Kebet Way, Port Coquitlam BC V3C 5M5
tel: [phone] • fax: [phone]
[email protected] • www.radialeng.com
67
43
5
1 2
Circuit type: Non-radiating phantom power supply
Number of channels: Single channel for one microphone
XLR connector: Lo-Z balanced microphone level output;
AES standard pin-1=ground, pin-2=hot (+),
pin-3=cold (-)
¼” connector: Hi-Z unbalanced instrument level output;
tip=hot, sleeve=ground.
Phantom output: Switchable +48 / +12 volts DC
Power supply: 15VDC / 400mA external supply included
STAGEBUG SB-48UB SPECIFICATIONS
To meet the requirements of California Proposition 65, it is our responsibility to inform you of the following:
WARNING:Thisproduct contains chemicalsknown to theStateof Californiatocause cancer,
birth defects or other reproductive harm.
Please take proper care when handling and consult local government regulations before discarding.

INTRODUCTION
Thank you and congratulations on your purchase of the Radial
StageBugSB-48UBhi-Ztolo-Z signal converter and phantom power
supply.TheStageBugSB-48UBisauniquedevicethatmakesiteasy
to interface phantom powered microphones and direct boxes with
guitar-centric boxes of all types.
As most users will likely be familiar with the use of phantom power,
this manual has been kept short and to the point. We do however
suggest that you take a moment to give it a quick read so that you
familiarize yourself with the features that are built into the SB-48UB.
For more detailed information, please visit the FAQ section on the
Radial website. This is where we post questions and answers that
come from users after the product is released. If you do not find an
answer,weinviteyoutosendusanemailat[email protected] and
we will do our best to answer your query in short order.
The SB-48UB features a balanced microphone input with 48V phan-
tom to power a condenser microphone. What makes it unique is that
it is equipped with both balanced XLR and unbalanced 1/4” outputs.
The unbalanced ¼” output enables the artist to connect a condenser
microphone directly to devices that do not supply phantom power
such as the Radial PZ-Pre instrument preamp, a guitar effects pedal,
or a stage amplifier. Since both outputs may be used concurrently,
you can also send the dry mic signal directly to the PAsystem using
the XLR output.
GETTING SET
Before connecting the StageBug SB-48UB make sure the sound system and/or
stage amplifier is turned off and all levels are set to zero. This will avoid loud tran-
sients caused by the phantom voltage that could damage equipment downstream
suchas loudspeakers and tweeters. Do not turnup the volume until all connections
are made and the power supply is plugged in.
There is no power switch.As soon as you plug in the power supply, the SB-48UB
willspringto life and the front panel LEDwill illuminate. As an added safety feature,
theSB-48UB is equipped with a lockingcable clamp that lets you securethe power
supply cable so that it will not accidentally be dislodged. After use, remember to
turn down the volume levels on the PA and/or stage amp before you disconnect
cables or the power supply.
USING THE 12/48V SWITCH
You can change the phantom power voltage from 48 volts to 12 volts using the
set & forget recessed 12/48V switch on the side of the SB-48UB. Use a small
screwdriver to access the switch.
Whentheswitchisintheoutwardposition,theSB-48UBwillsupply48voltsofphan-
tom power. This is the normal setting for the majority of condenser microphones.
There are however, some miniature clip-on mics that are designed for use with 12
volt supplies. Pushing the 12/48V switch inward will supply the mic with 12 volts
of phantom power. Check the microphone manufacturer’s specification to ensure
this switch is set accordingly.
Radial Engineering Ltd. Radial Engineering Ltd. Radial Engineering Ltd.
SB-48UB®Phantom Supply SB-48UB®Phantom Supply SB-48UB®Phantom Supply
MAKING CONNECTIONS
Connect the source microphone to the SB-48UB’s balanced XLR
input.
There are two audio outputs to choose from. The unbalanced ¼”
output is designed for guitar type devices such as effects pedals or
stage amplifiers. It employs a step-up transformer to optimize the
impedance and signal level.
Using the unbalanced ¼” output with an instrument amplifier.
AMP
CONDENSER MIC
The balanced XLR male output follows the AES standard with pin-
1 ground, pin-2 (+), pin-3 (-). This would be used when the PA or
recording system cannot deliver its own phantom power to your
condenser microphone.
PA SYSTEM
CONDENSER MIC
Using the balanced XLR output to feed the PA system.
Once all of the connections are made and the power is on, slowly
turn up the volume to test and make sure everything is working. It
is good practice to always test at low volumes as this can further
avoid loud transients from harming your audio system should a
connection be faulty.
PA SYSTEM
CONDENSER
MIC
AMP RADIAL PZ-PRE
CO
