Ace Bayou X Rocker User manual

1
IMPORTANT: You must keep your original retall receipt as proff of purchase.
HAVE THIS ITEM NUMBER READY WHEN CONTACTING CUSTOMER SERVICE:517201
Get ready to experience sound as you never have!
Do not return this product to the store.
Emall [email protected] or call
866-969-2603/931.359.2603 for trouble shooting advice.
Thank you for purchasing the X Rocker! we know you will
enjoy your X Rocker experience as much as we do.
Welcome to the world of interactive audio. WIth
your new X Rocker you can now not only hear your
music but achually FEEL it. Whether you are listening
to music, watching a movie, or playing a game, you
will become a part of it.
Need Help? Email: [email protected] Web:www.thexrocker.com Phone: [phone]

2

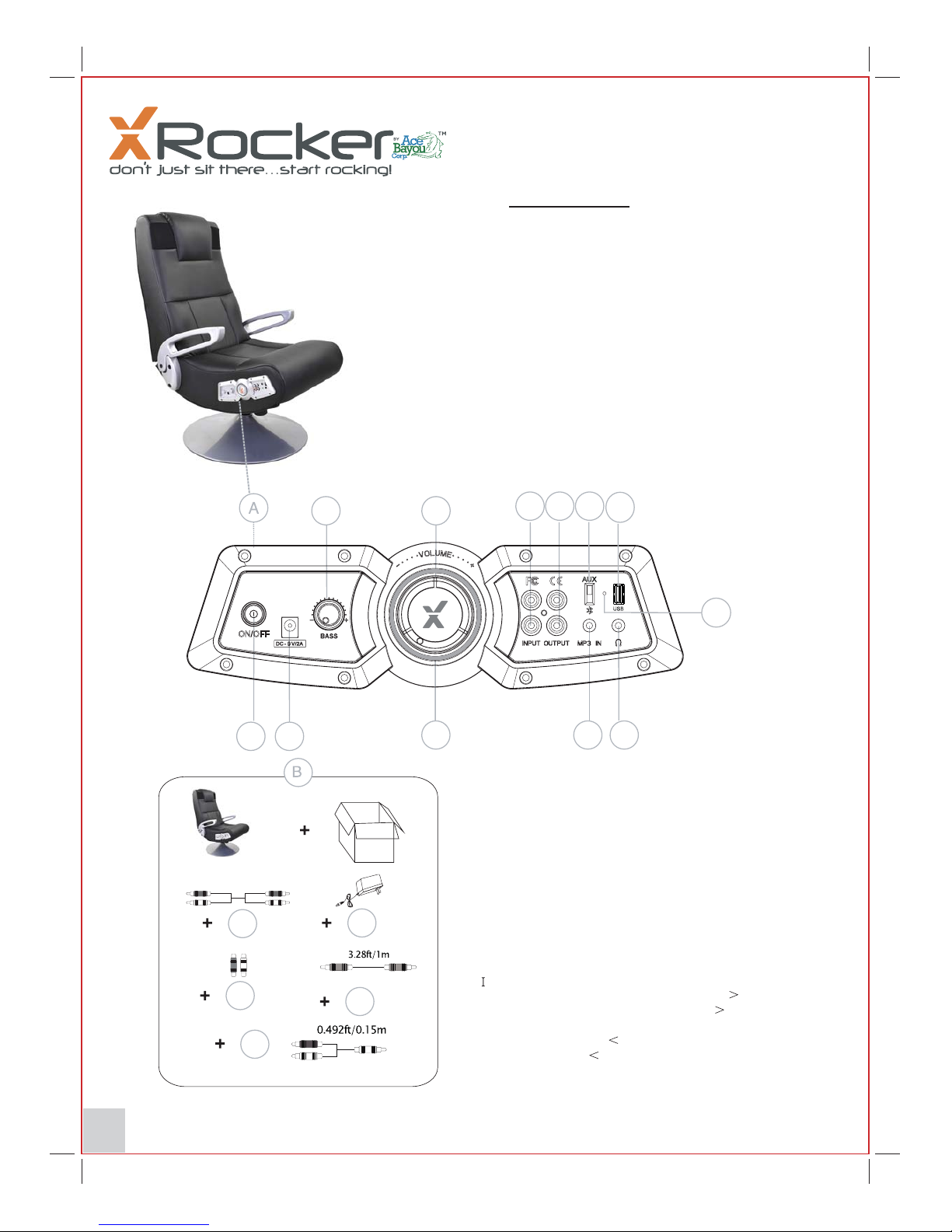

FEATURES
A-Control Panel
A1
A2
-Bass Volume Adjustment
A3
-Volume Adjustment
A4
-Audio Input Jack
A5
-Audio Output Jack for linking multiple chairs
A6
-Wire mode / Bluetooth mode Switch
A7
-USB Power Port
Power On/Off Switch
A8
-
9V DC Power Input Jack
-
Power Indicator LightA9-
MP3 Input JackA
A
10-
11-Headphone Jack
A12-Bluetooth indicator light
A9
A1
Need Help? Email: [email protected] Web:www.thexrocker.com Phone: [phone]
B4
*SOME PARTS MAY VARY SLIGHTLY
9.84ft/3m
B2
B1
B5
B3
B-Accessories Supplied
B1-3m RCA Stereo to RCA stereo plug cable(1 PC)
B4-1m 3.5mm stereo male to 3.5mm stereo male cable (1PC)
B3-RCA female to female barrel adapter (2 PCS)
B5-0.15m RCA stereo male to 3.5mm stereo male cable (1PC)
B2-INPUT:100-240V AC 50/60Hz
OUTPUT:9 V DC 2000mA 18W Main POWER Adapter.
C-Audio Specifications
.The unit specifications:
Signal-to-Noise Ratio(Amplifier):Subwoofer: 50dB
Satellite: 60dB
Frequency Response: 60Hz~15kHz
Distortion: Subwoofer: 4% (F=100Hz)
Satellite: 1% (F=1kHz)
Input: DC 9
V
/2A
A2 A3 A4 A5
A6
A7 A8 A10 A11
A12

Need Help? Email: [email protected] Web:www.thexrocker.com Phone: [phone]
ATTENTIONS:
READ BEFORE USAGE:
USB port only can be used to charge electronic devices.
Bluetooth connection has a 30 feet / 10 meters. range of virtually unlimited wireless listening in your home.
When using in wire mode, Please keep the band to “AUX” (A5)
When using in Bluetooth mode, Please keep the band to “ ” (A5)
Foldable constuction for ease of storage and portability.
Side control panel with volume, bass control, input/output jacks, and band switch.
Ergonomic design with full back support.
Headphone jack for personal use.
Easy to clean heavy duty uphonlstery grade PU cover.
Play your Bluetooth device through your X Rocker.
Control your music from your Bluetooth device.
Connect device without ever going near X Rovker.
FUNCTIONS:
Always make sure hinge is locked before moving.
Always make sure hinge is locked before sitting in the chair.
Excessive use of audio equipment couOG lead to hearing loss.
Excessive sound pressure from earphones and headphones can cause hearing loss.
Children under the age of 13 should not use this product without adult supervision.
Strictly for indoor use. Do not expose to direct sunlight, moisture or extreme temperatures.
If the cover becomes wet, disconnect the power immediately and don’t use until it is completely dry.
Do not attempt to remove the cover or any components. Removal of the cover or tampering with components puts you
at risk for injury or death from electrical shock.
1. Lift X Rocker out of box.
2. Keep the chair in the folded position and place it on the floor so that back side of the chair is touching the floor and
the bottom of the seat is facing up.
3.
Review the set up diagrams to familiarize yourself with the X Rocker’s components, accessories, and set-up.
4. Please completes steps 1-7 to assemble the chair.
5. Unpack the power adapter and connect it to the main power outlet, then to the power jack on the control panel.(A8)
6. Press the power adapter and confirm that the power indicator light (A9) is on. In bluetooth mode, Please keep the
band to” ”(A5), confirm that its indicator light is flashing.(A12)
7. Follow the connection diagrams. They show how to connect the X Rocker to the audio source of your choice .
8. Adjust the bass and volume levels to your preference---start rocking.
SET UP:
More information please see additional assembly instruction!

Need Help? Email: [email protected] Web:www.thexrocker.com Phone: [phone]
4
MP3/CD/DVD/GAMES/PSP

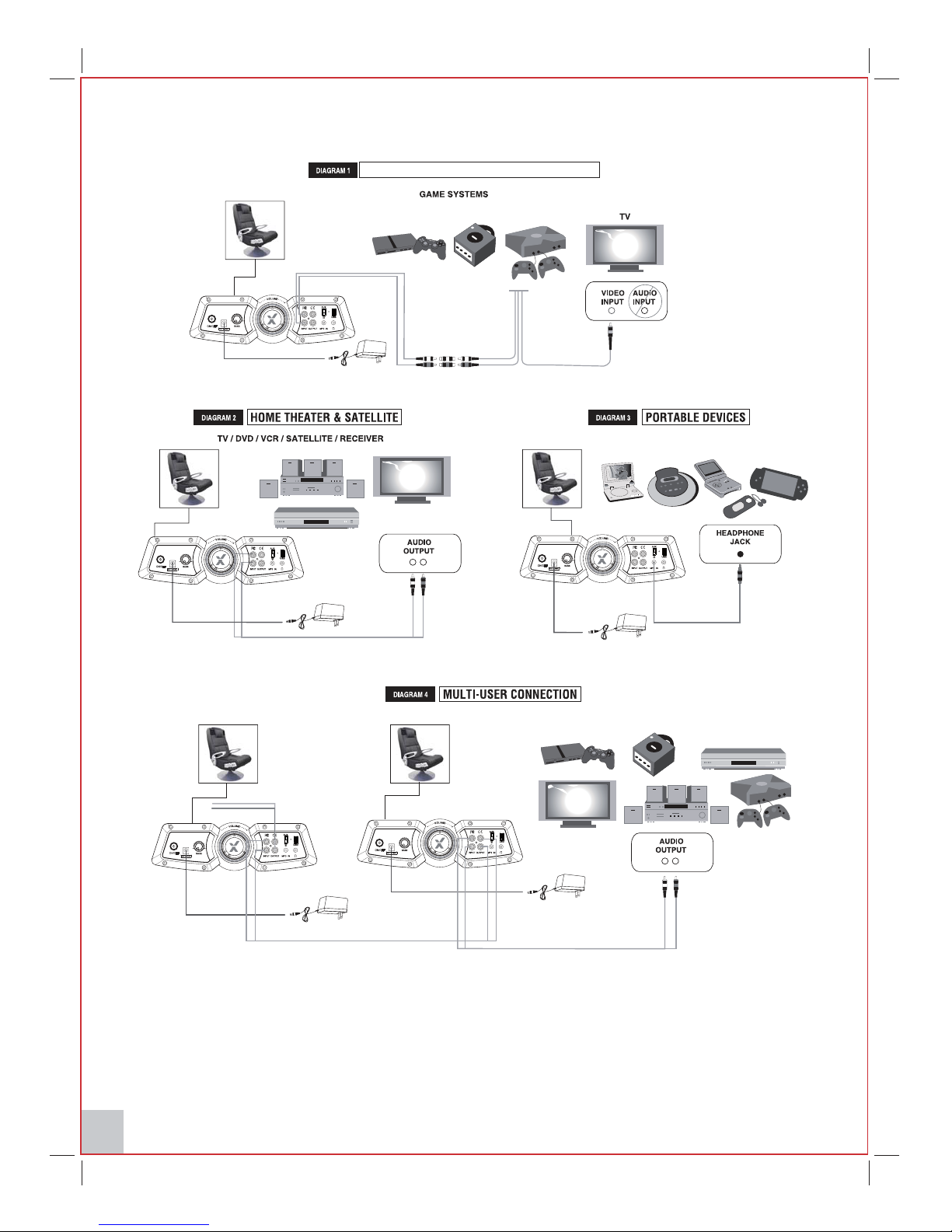

WIRE MODE CONNECTION GUIDE
red
white
green
green
white
red
yellow
X Rocker
X RockerX Rocker
To next chair
X Rocker X Rocker
XBOX , XBOX 360 , PLAYSTATION 3 & Wii
TMTMTM
red
white

Call
Need Help? Email: [email protected] Web:www.thexrocker.com Phone: [phone]
5

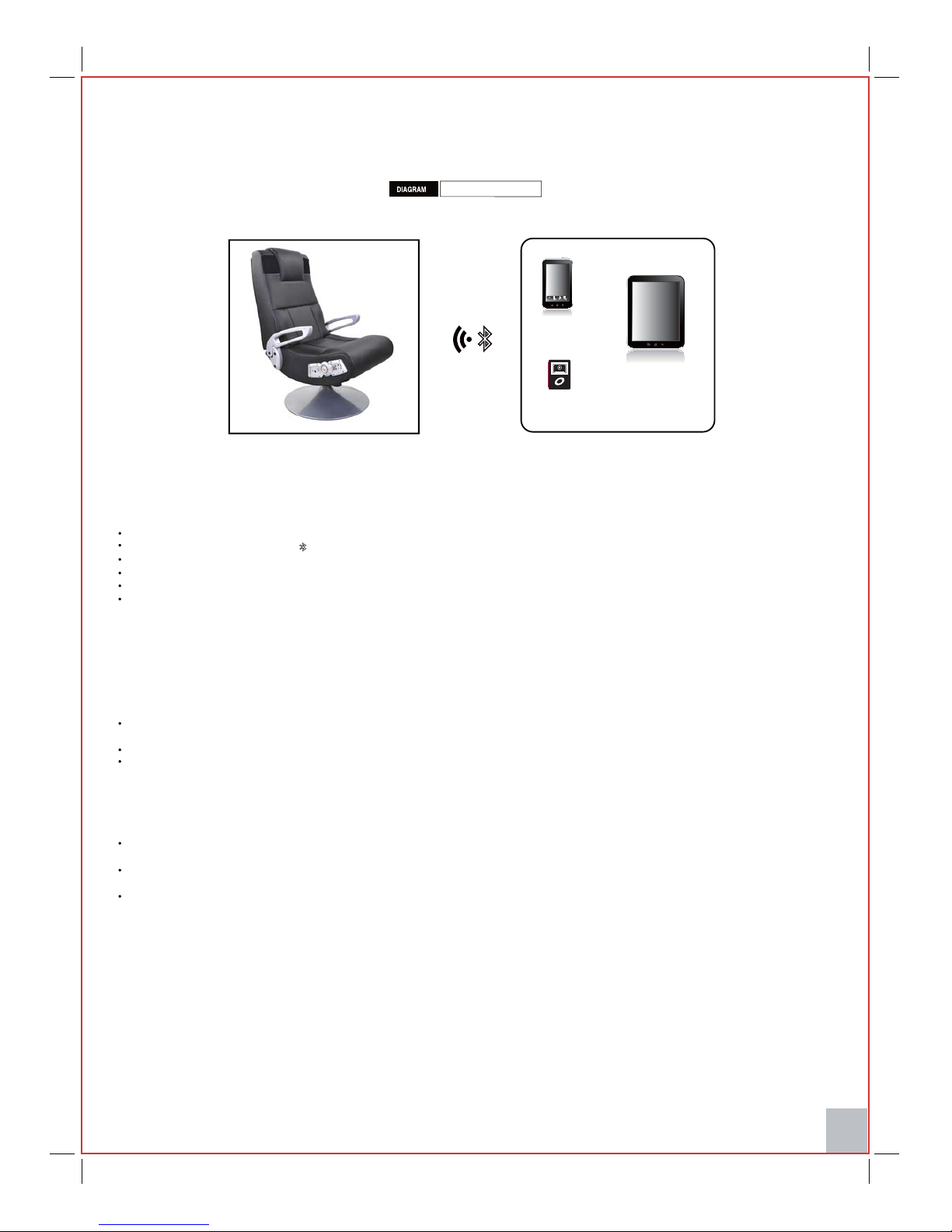

BLUETOOTH MODE CONNECTION GUIDE
Bluetooth Device
Pairing Your X Rocker:
Only 1 device can be paired to X Rocker at a time, to pair X Rocker with a mobile device, refer to the Bluetooth paring procedures
in corresponding mobile phone or music player user manual and follow the steps below:
Make sure the band(A6) is on “ ” position, and blue Bluetooth indicator light is flashing on the control panel.
Select the device name “X Rocker” on the screen of your device, add the unit to the your device’s paired device list.
When pairing is successful, the blue LED indicator(A12) will stay on, if you play music, the indicator(A12) will be slowly flashing.
Confirm the connection on your device.
Your X ROCKER is now connected and ready to play music! Just play music on your device as you normally would and the sound will
come out of your X Rocker!
Keep in mind that X Rocker has a 30 feet / 10 meters range.
Make sure there are no wires or leads that are inserted into your device before using Bluetooth.
ReconnectingYour Device
If you move out of range, or turn off the Bluetooth feature on your mobile device, X Rocker will disconnect from your device.
To reconnect, simply access the Bluetooth Manager on your device and select “X Rocker” device listed.
Changing Connected Device
If you want to switch from one device to another, follow the steps below:
End the existing Bluetooth connection with the connected device, access the Bluetooth Manager and disable the Bluetooth
function of the device.
The X Rocker can now be connected to a different device.
Follow the directions in “PAIRING YOUR X ROCKER” to connect a different device.
Out of Range or Lost Signal
If the music device is out of range(beyond 30 feet / 10 meters) of the X Rocker, or there is somthing blocking the Bluetooth
signal, the LED light will turn off to indicate that the Bluetooth connection with the music device has been lost.
To avoid a lost connection:
Move the music device back into the range(within 30 feet / 10 meters), and/or make sure there is a clear line of sight and that there
are no obstructions between the X Rocker and the music device.
Within 30 seconds, the connection will automatically be re-established and the blue LED light will turn on.
For your own device, you need to re-start your music player .
If the connection is lost for more than 30 seconds, the connection will need to be re-established, follow the directions in
“Reconnecting Your Device”.
Bluetooth License
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Ace Bayou
Corporation is under license. Other trademarks and trade names are those of their respective owners.
