Acer Aspire X1935 User manual

Acer
Aspire X1935
Service Guide
PRINTED IN TAIWAN

ii
Revision History
Please refer to the table below for the updates made on this service guide.
Date Chapter Updates

iii
Copyright
Copyright © 2012 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.

iv
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Pentium Dual-Core, Celeron Dual-Core, Core 2 Duo, Core 2 Quad, Celeron, and combinations thereof, are
trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.

v
Conventions
The following conventions are used in this manual:
SCREEN
MESSAGES Denotes actual messages that appear on screen.
NOTE Gives additional information related to the current topic.
WARNING Alerts you to any physical risk or system damage that might result from doing
or not doing specific actions.
CAUTION Gives precautionary measures to avoid possible hardware or software
problems.
IMPORTANT Reminds you to do specific actions relevant to the accomplishment of
procedures.

vi
Service Guide Coverage
This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on
card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic
service guide. In such cases, please contact your regional offices or the responsible personnel/channel to
provide you with further technical details.
FRU Information
Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available
on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in
the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a
DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the
list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

vii
System Tour 1
Features 1
Block Diagram 5
System Components 6
Front Panel 6
Rear Panel 7
Hardware Specifications and Configurations 8
Power Management Function(ACPI support function) 12
System Utilities 13
CMOS Setup Utility 13
Entering CMOS setup 14
Navigating Through the Setup Utility 14
Setup Utility Menus 15
Main 15
System Disassembly and Assembly 25
Disassembly Requirements 25
Pre-disassembly Procedure 26
Removing the Side Panel 27
Removing the Front Bezel 28
Removing the Heat Sink Fan Assembly 29
Removing the Processor 31
Removing the HDD-ODD Bracket 33
Removing the Optical Drive and Hard Disk Drive 34
Detaching the Front Bezel 38
Removing the Memory Modules 39
Removing the Power Supply 40
Removing the Front I/O and Optional Card Reader Assembly 42
Removing the Mainboard 45
Assembly Requirements 47
Assembly Procedure 48
Removing the Side Panel 49
Romoving the Front Bezel 50
Removing the HDD-ODD Bracket 51
Reinstalling the I/O Shielding 52
Reinstalling the Main Board 53
Reinstalling the Power Supply 55
Reinstalling the Memory 57
Reinstalling the Front Bezel Power Button/LED Cable 58
Reinstalling the Optical Drive and Hard Disk Drive 59
Reinstalling the HDD-ODD Bracket 63
Reinstalling the Processor 64
Reinstalling the Heat Sink Fan Assembly 66
Reinstalling the Front Bezel 68
Reinstalling the Side Panel 69
System Troubleshooting 70
Hardware Diagnostic Procedure 70
System Check Procedures 71
Power System Check 71
System External Inspection 71
Table of Contents

viii
System Internal Inspection 71
Beep Codes 72
Checkpoints 73
BIOS Recovery 76
Jumper and Connector Information 77
M/B Placement 77
Jumper Setting 79
Internal Header Pin Definition 80
Connector Pin Definition 83
FRU (Field Replaceable Unit) List 86
Aspire X19350 Exploded Diagram 87
Aspire X1935 FRU List 88

Chapter 1 1
Features
Below is a brief summary of the computer’s many feature:
NOTE: The features listed in this section is for your reference only. The exact configuration of the system
depends on the model purchased.
Operating System
•Microsoft Windows 7 Home Premium x64
•Microsoft Windows 7 Home Basic x64
•Linpus XWindows
•Free DOS
Processor
•Intel Ivy Bridge / Sandy Bridge Processor.
•Socket type: LGA1155.
•FMB: 65W / 95W.
VRD power
•Dual Output 4 (3+4) phase + 1 Phase PWM design.
•2 *High side MOS + 2 * Low side MOS.
•Heatsink hole is reserved for MOS.
Chipset
•PCH: Intel B75
PCB
•DTX, max 4 Layers
Memory subsystem
•Socket Type: DDR III connector.
•Socket Quantity: 4 DIMMs.
•2 channels, 2 DIMMs per channel. Different colors for DIMM 0 and DIMM 1.
•Dual channel should be enabled always when plug-in 2 same memory size DDRIII. memory module.
•Max memory of 16 GB supported (using 4Gb tech).
•Support DDR3 1.5V 1333/1600(1GB / 2GB / 4GB).
System Tour
Chapter 1

2Chapter 1
Graphics
•Intel® HD Graphics Support (supported by CPU).
•Dual independent display on HDMI and VGA.
•DVMT 5.0 technology support.
•Enhanced 3D and Clear Video technology support.
•Need to measure VGA follow Acer VGA SOP.
•Monitor compatible is requested to the monitor AVL and DQM recommended list.
Hard disk drive
•Support up to one SATA ports. 3.5
•Capacity and models are listed on AVLC
Optical disk drive
•Support up to one SATA 5.25” standard ODD.
•Support DVD-ROM, DVD-SuperMulti, BD-combo.
•Maximum ODD depth to 185mm with bezel.
•Models are listed on AVLC.
Graphics card
•No mechanical retriction to support single slot graphics cards in the PCIe X16 slot.
SUPER IO
•Support PECI 3.0 and detect VRD/CPU/System temperature.
•ITE 8772E or other solution proposed by MB vender.
Audio
•Realtek ALC662VD.
•Rear IO: 3 jack.
•Front IO: 1*Microphone-in, 1*head phone jack.
Serial ATA controller
•SATA * 3 (different color to identify SATA 6Gb/s and SATA 3Gb/s)
•B75: 1 SATA 6 Gb/s header.
•HDD : Support AHCI/Native IDE.
Support Intel® Smart Response Technology.
•ODD: Support BD/SuperMulti/DVD ROM.
LAN
•Intel 82579V
Extension slot
•1 * PCIE x16 (PCIE V3.0)
•1 * PCIE x1 (PCIE V2.0)

Chapter 1 3
USB Ports
•USB2.0:
•Rear IO : * 4 ports
•Internal Header:
•*4 ports (2 * USB2.0 H5X2 Header) for B75
•- All ports should meet USB IF spec and support 1A current over drive.
•USB3.0:
•Internal Header: * 2 ports.
•One port support USB fast charging.(Meet USB battery charging spec. ver. 1.2. , Apple charging
including ipad.) The other port support standard USB 3.0 downstream port.
•Support fast charging in S0, S3, S4, S5, G3 to S5.
•All ports should meet USB IF spec and support 2A capability for each port (S0).
•reserve design for two USB 3.0 standard down stream ports.
•Internal USB 3.0 H10x2 connector, follow the Industrial standard
•H2x1 with Vbus which is required to provide 3A current to front daughter board
•Charging IC is required for fast charger. (ODM proposed)
•Rear IO: * 2 ports.
•All ports should meet USB IF spec and support 2A capability for each port (S0).
Buzzer
•1 on board buzzer.
Rear I/O connectors
•1 * PS2 KB+MS
•1 * VGA connector
•1 * HDMI
•1 * RJ45 + Dual USB2.0
•1 * Dual USB2.0 connector
•2 * USB 3.0 stack
•1 * 3 ports Audio jack
On-board connectors
•1 * ILM(Independent Loading Mechanism) for LGA 1155 CPU (assign by Acer).
•1 * 24-pin ATX PWR connector.
•1 * H2X4 Power Supply Connector.
•4 * DDR3 DIMM Socket.
•2 * SATA 3Gb/s.
•1 * SATA 6Gb/s.
•2 * USB2.0 H5X2 Header (support 4 ports).
•1 * USB 3.0 H10x2 Header (support 2 ports).
•1 * H2x1 for Vbus.
•1 * Front Audio Pannel H5X2 header.
•1 * Front Panel IO H7X2 Header for Acer pin define.
•1 * H1X4 CPU with SAMRT FAN controller.
•1 * H1X4 System with SAMRT FAN controller (co-lay with 3 pin FAN control).

4Chapter 1
•1 * H3X1 Clear CMOS Header (with jumper).
•1 * onboard Buzzer.
•2 * H1X2 GPIO header.
•1 * H10X2 TPM header.
•1 * 3pin ME enable / disable connector(Jumper).
System BIOS
•Type:
•Use SPI Flash.
•ME Size: /5MBytes (For B75).
•System BIOS: 8MBytes (For B75).
•Kernel:
•AMI Kernel with Acer skin.
Power supply
•Non PFC 220W / PFC 220W / Active PFC 220W.
•Support models are listed on AVLC.

Chapter 1 5

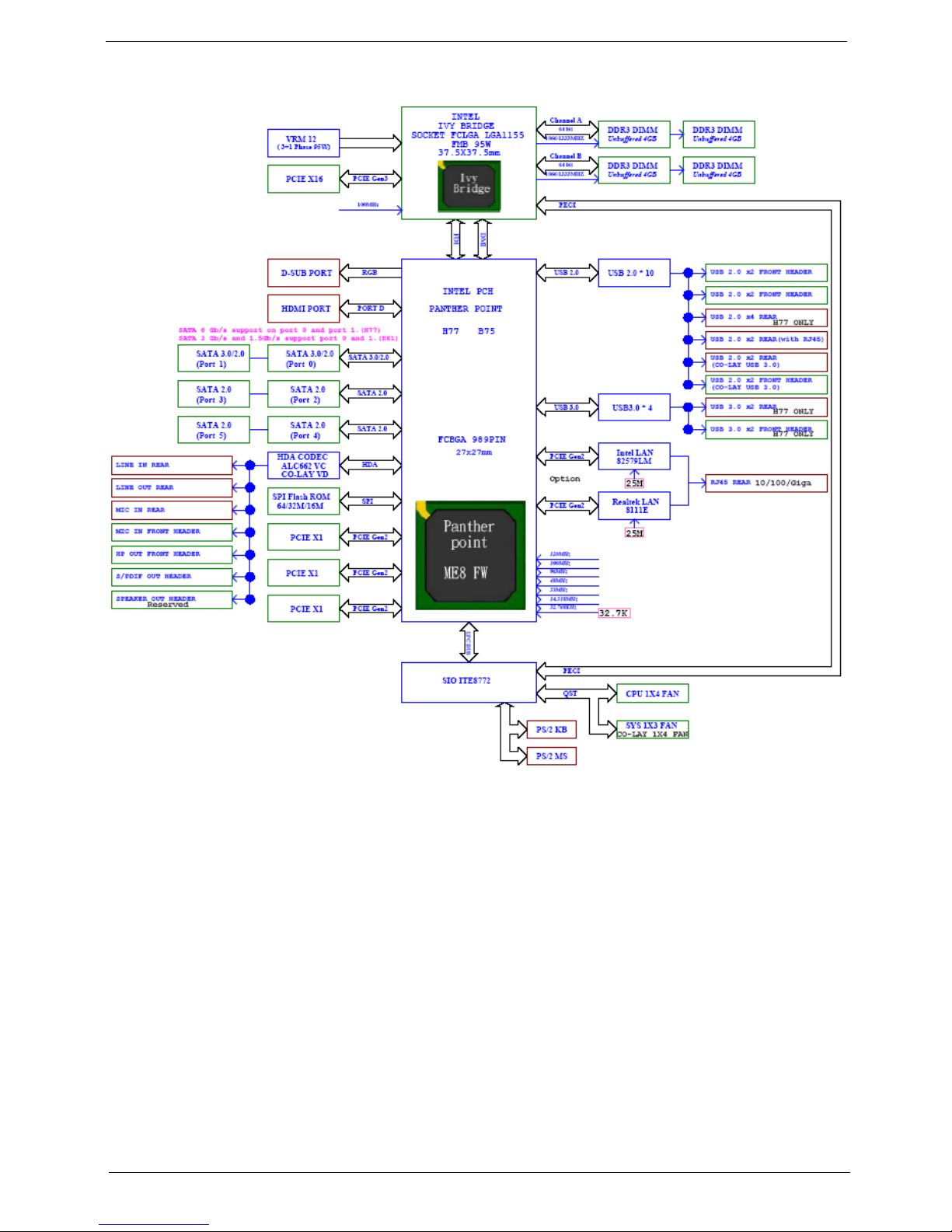

Block Diagram

6Chapter 1
System Components
This section is a virtual tour of the system’s interior and exterior components.

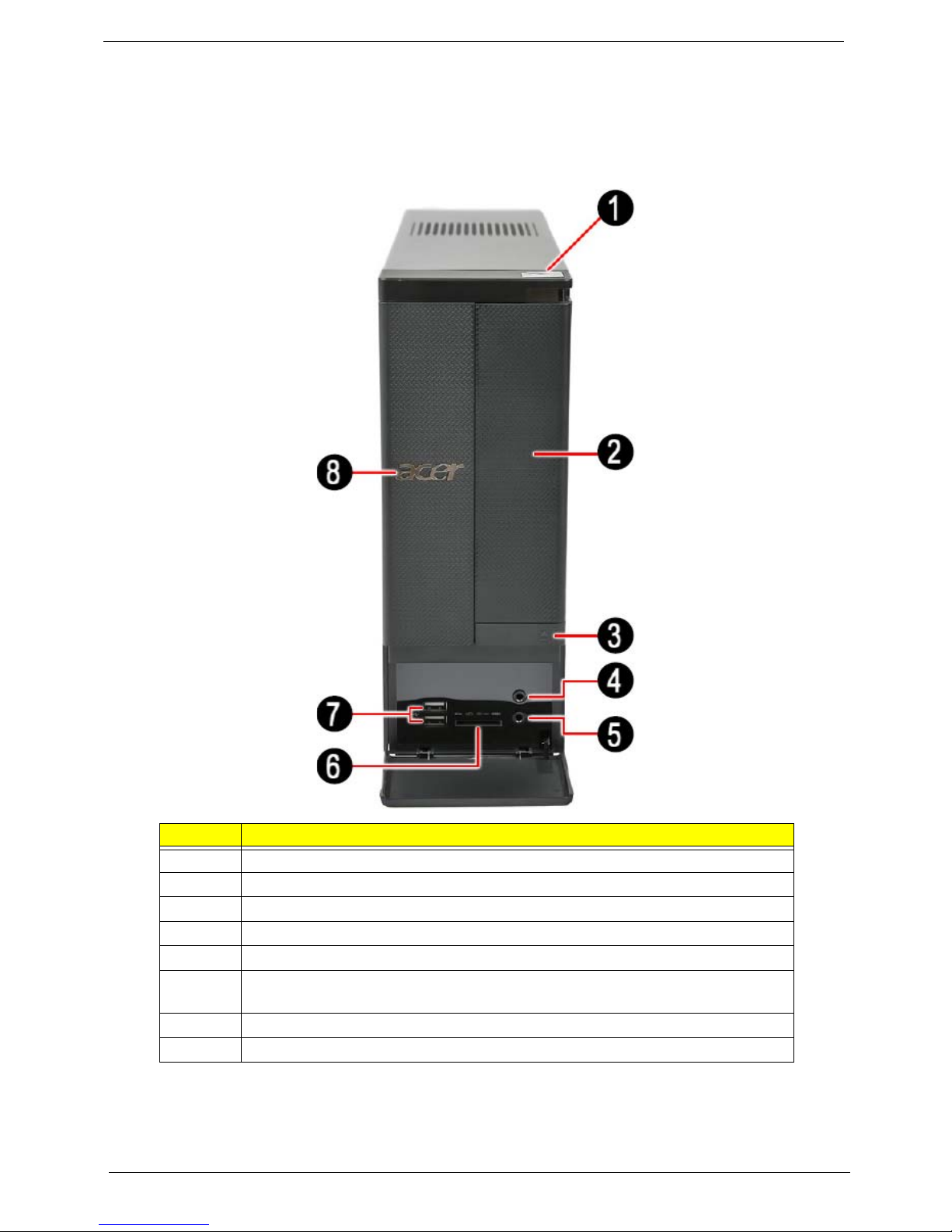

Front Panel
No. Component
1 Power button/indicator
2 Optical drive cover
3 Optical drive eject button
4 Headphone jack
5 Microphone-in jack
6 4-in-1 optional card reader supporting Memory Stick (MS), xD-Picture Card (xD),
Secure Digital (SD), MultiMediaCard (MMC) and Memory Stick PRO (MS PRO)
7 USB 2.0 ports
8Acerlogo

Chapter 1 7

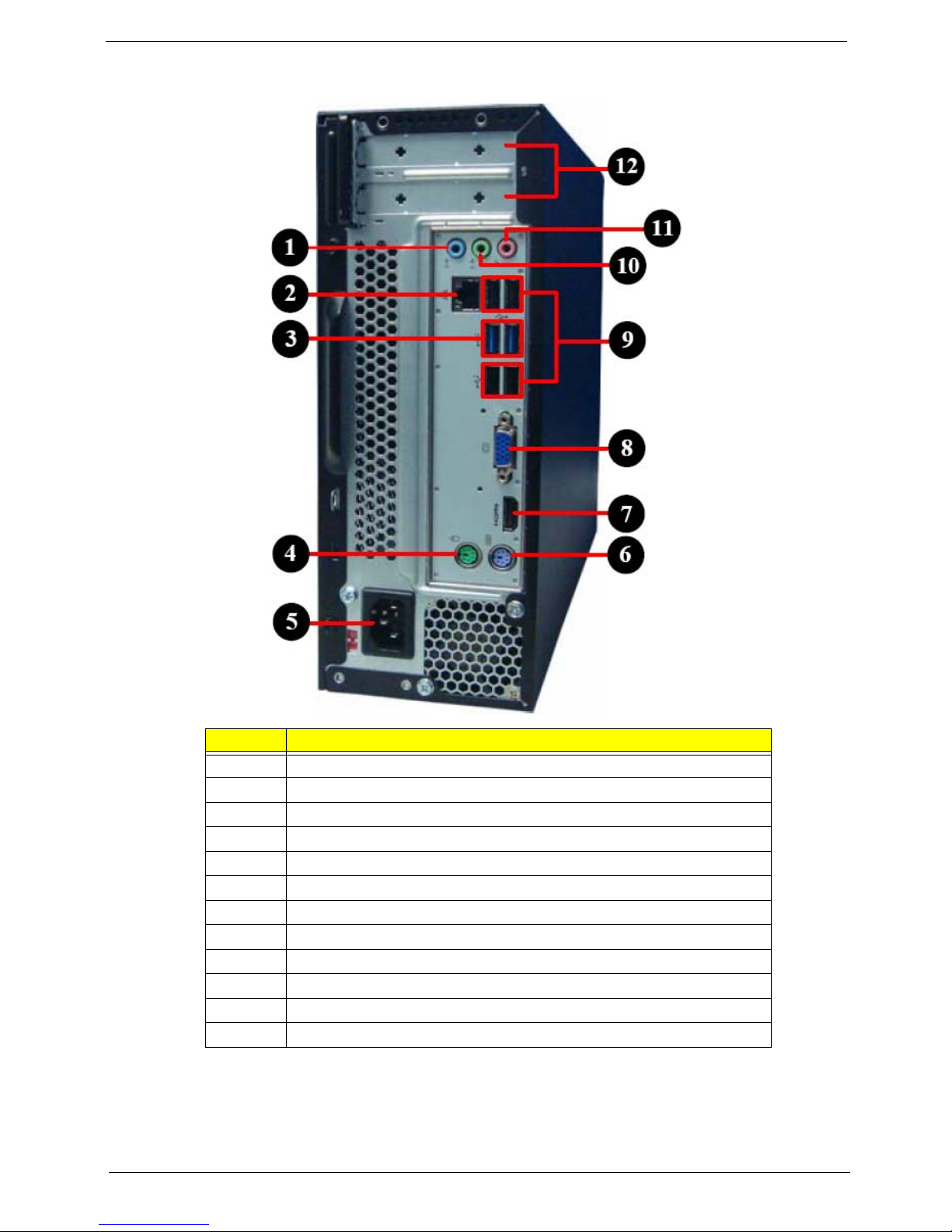

Rear Panel
No. Component
1 Line-in jack
2 RJ45 LAN connector
3 USB 3.0 ports
4 PS2 mouse port
5 Power connector
6 PS2 keyboard port
7 HDMI port
8 D-sub port
9 USB 2.0 ports
10 Line-out jack
11 Microphone jack
12 Expansion slot

8Chapter 1
Hardware Specifications and Configurations
Processor
BIOS
BIOS Hotkey List
Main Board Major Chips
Item Specification
Processor Type Intel Ivy Bridge / Sandy Bridge Processor
Socket Type LGA1155
Minimum operating speed 0 MHz (If Stop CPU Clock in Sleep State in BIOS Setup is set to Enabled.)
Item Specification
BIOS code programer AMI Kernel with Acer skin
BIOS version P01-A0
BIOS ROM type SPI Flash
BIOS ROM size 64Mb
Support protocol SMBIOS(DMI)2.7
Device Boot Support 1st priority: SATA HDD
2nd priority: CD-ROM
3rd priority: Removable Device
4th priority: LAN
5th priority: USB device
Support to LS-120 drive No
Support to BIOS boot block feature YES
Hotkey Function Description
Del Enter BIOS Setup Utility Press while the system is booting to enter BIOS Setup Utility.
Item Specification
Chipset Intel B75
USB controller Intel B75
Audio controller Intel B75+ALC662-VD
LAN controller Intel 82579V
SATA controller Intel B75
Super IO
controller ITE 8772F

Chapter 1 9
Memory Combinations
System Memory
Audio Interface
Slot Memory Total Memory
Slot 1 1GB,2GB,4GB 1G ~4GB
Slot 2 1GB,2GB,4GB 1G ~4GB
Slot 3 1GB,2GB,4GB 1G ~4GB
Slot 4 1GB,2GB,4GB 1G ~4GB
Maximum System Memory Supported 1G~16GB
Item Specification
Memory slot number 4 slot
Support Memory size per socket 1GB/2GB/4GB
Support memory type DDRIII
Support memory interface DDRIII 1333/1600MHz
Support memory voltage 1.5V
Support memory module package 240-pin DDRIII
Support to parity check feature Yes
Support to error correction code (ECC) feature No
Memory module combinations You can install memory modules in any combination as long as
they match the above specifications.
Item Specification
Audio controller Intel PCH B75
Audio controller type ALC662-VD
Audio channel codec 5.1
Audio function control Enable/disable by BIOS Setup
Mono or stereo Stereo
Compatibility The ALC662-VD supports host audio from Intel chipsets, and also from any
other HDA compatible audio controller. With EAX/Direct Sound 3D/I3DL2
compatibility, software utilities like Karaoke mode, environment emulation,
multi-band software equalizer, 3D positional audio, and optional Dolby R Digital
Live and DTS R CONNECT ™ programs, the ALC662-VD provides an
excellent home entertainment package and game experience for PC users.
Music synthesizer No
Sampling rate 192 kHz (max.)
MPU-401 UART support No
Microphone&Headphone jack Supported

10 Chapter 1
SATA Interface
USB Port
Item Specification
SATA controller Intel B75
Number of SATA channel SATA X 3(2 * SATA 3Gb/s, 1 * SATA 6Gb/s)
Support mode AHCI/IDE mode option
Item Specification
Universal HCI USB 2.0/1.1 or USB 3.0
USB Class Support legacy keyboard for legacy mode
USB Connectors Quantity USB2.0:
• Rear IO : * 4 ports
• Internal Header:
• *4 ports (2 * USB2.0 H5X2 Header) for B75
• All ports should meet USB IF spec and support 1A current over drive.
USB3.0:
Internal Header: * 2 ports.
• One port support USB fast charging.(Meet USB battery charging spec. ver.
1.2. , Apple charging including ipad.) The other port support standard USB
3.0 downstream port.
• Support fast charging in S0, S3, S4, S5, G3 to S5.
• All ports should meet USB IF spec and support 2A capability for each port
(S0).
• reserve design for two USB 3.0 standard down stream ports.
• Internal USB 3.0 H10x2 connector, follow the Industrial standard.
• H2x1 with Vbus which is required to provide 3A current to front daughter
board.
• Charging IC is required for fast charger. (ODM proposed)
• Rear IO: * 2 ports.
• All ports should meet USB IF spec and support 2A capability for each port
(S0).

Chapter 1 11
Environmental Requirements
Power Management
•Devices wake up from S3 should be less than.
•Devices wake up from S5 should be less than 10 seconds.
Item Specification
Temperature
Operating +5°C ~ +35°C
Non-operating -20 ~ +60°C (Storage package)
Humidity
Operating 15% to 80% RH
Non-operating 10% to 90% RH
Vibration
Operating (unpacked) 5 ~ 500 Hz: 2.20g RMS random, 10 minutes per axis in all 3 axes.
5 ~500 Hz: 1.09g RMS random, 1 hour per axis in all 3 axes.
Devices S1 S3 S4 S5
PowerButtonVVVV
USB Keyboard/Mouse V V N/A N/A
PME Disabled Disabled Disabled Disabled
RCT Disabled Disabled Disabled Disabled
WOR Disabled Disabled Disabled Disabled

12 Chapter 1
Power Management Function(ACPI support function)
Device Standby Mode
•Independent power management timer for hard disk drive devices(0-15 minutes,time step=1minute).
•Hard Disk drive goes into Standby mode(for ATA standard interface).
•Disable V-sync to control the VESA DPMS monitor.
•Resume method:device activated (keyboard for DOS, keyboard &mouse for Windows.
•Resume recovery time 3-5sec
Global Standby Mode
•Global power management timer(2-120minutes,time step=10minute).
•Hard disk drive goes into Standby mode(for ATA standard interface).
•Disable H-sync and V-sync signals to control the VESA DPMS monitor.
•Resume method: Resume to original state by pushing external switch Button,modem ring in,keyboard
an mouse for APM mode.
•Resume recovery time :7-10sec
Suspend Mode
•Independent power management timer(2-120minutes,time step=10minute)or pushing extern switch
button.
•CPU goes into SMM
•CPU asserts STPCLK# and goes into the Stop Grant State.
•LED on panel turns amber colour.
•Hard disk drive goes into SLEEP mode (for ATA standard interface).
•Disable H-sync and V-sync signals to control the VESA DPMS monitor.
•Ultra I/O and VGA chip go into power saving mode.
•Resume method: Resume to original state by pushing external switch Button,modem ring in,keyboard
an mouse for APM mode
•Return to original state by pushing external switch button,modem ring in and USB keyboard for ACPI
mode.
ACPI
•ACPI specification 1.0b
•S0,S1,S2 and S5 sleep state support.
•On board device power management support.
•On board device configuration support.
