Acer ZX4830 Series User manual

ZX4800/ZX4830 Series
Service Guide
PRINTED IN TAIWAN
Service guide files and updates are available
on the ACER/CSD web; for more information,
please refer to http://csd.acer.com.tw
Laptopblue

II
Revision History
Please refer to the table below for the updates made on this service guide.
Date Chapter Updates
Laptopblue

III
Copyright
Copyright © 2009 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.
Laptopblue

IV
Conventions
The following conventions are used in this manual:
SCREEN MESSAGES Denotes actual messages that
appear on screen.
NOTE Gives bits and pieces of additional
information related to the current
topic.
WARNING Alerts you to any damage that might
result from doing or not doing
specific actions.
CAUTION Gives precautionary measures to
avoid possible hardware or software
problems.
IMPORTANT Reminds you to do specific actions
relevant to the accomplishment of
procedures.
Laptopblue

V
Preface
Before using this information and the product it supports, please read the following general information.
1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.
add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered
in this generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.
2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information
available on your regional web or channel. If, for whatever reason, a part number change is made, it will
not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and
service of customer machines.
Laptopblue

VI
Laptopblue

VII
Table of Contents
System Specifications 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Your Computer tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Left View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
System Utilities 19
BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
CMOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Standard CMOS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Advanced BIOS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Advanced Chipset Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Integrated Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Power Management Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
PC Health . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Frequency Voltage Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
BIOS Security Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
BIOS Flash Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
DOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
WinPhlash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Using DMI Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Machine Disassembly and Replacement 38
Disassembly Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Pre-disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Removing the ODD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Removing the Stand Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Removing the Rear Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Removing the Audio Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Removing the Hard Disk Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Removing the ODD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Removing the Inverter Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Removing the Touchscreen Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Removing the Mainboard Shielding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Removing the Wireless LAN Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Removing the TV Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Removing the DIMM Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Removing the VGA Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Removing the Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Removing the Thermal Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Removing the CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Removing the Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Removing the USB Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Removing the IR Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Laptopblue

VIII
Table of Contents
Removing the Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Removing the LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Removing the Power Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Removing the Home Button Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Removing the Webcam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
Removing the Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Removing the Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Removing the Bluetooth Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Reassembly Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Replacing the Bluetooth Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Replacing the Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Replacing the Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98
Replacing the Webcam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100
Replacing the Home Button Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Replacing the Power Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Replacing the LCD Panel in the Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104
Replacing the Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106
Replacing the IR Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Replacing the USB Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Replacing the Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Replacing the CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Replacing the Thermal Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Replacing the Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
Replacing the VGA Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
Replacing the DIMM Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121
Replacing the TV Tuner Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122
Replacing the WLAN Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123
Replacing the Mainboard Shielding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125
Replacing the Touchscreen Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127
Replacing the Mainboard Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129
Replacing the Inverter Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132
Replacing the ODD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134
Replacing the HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137
Replacing the Audio Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139
Replacing the Rear Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140
Replacing the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Replacing the ODD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144
Troubleshooting 146
Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146
Component Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147
Wireless Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151
LCD Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .153
General Troubleshooting Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155
Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158
Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158
Jumper and Connector Locations 159
Mainboard Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159
Mainboard Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .161
BIOS Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162
BIOS Recovery by Crisis Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162
FRU (Field Replaceable Unit) List 165
Exploded Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .165
Laptopblue

IX
Table of Contents
Main Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166
FRU List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166
Screw List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173
Model Definition and Configuration 174
Test Compatible Components 178
Online Support Information 184
Index 185
Laptopblue

X
Table of Contents
Laptopblue

Chapter 1 1
System Specifications
Features
Below is a brief summary of the computer’s many features:
Operating system
•Genuine Windows® 7 Home Premium
•Genuine Windows® 7 Home Basic
Processor
•Intel® Core™2 Duo processor (1066/800 FSB)
•Intel® Pentium® processor
•Intel® Celeron® processor
Chipset
•Intel® GM40 Express Chipset - for ZX4800
•Intel® GM45 Express Chipset - for ZX4830
Memory
•Up to 4 GB of DDR2 800 MHz SDRAM (dual-channel support on two DIMMs)
Display
•20" Full HD 1600 x 900 pixel resolution, high brightness (250 nits) TFT LCD1
•6.7 million colors
•5 ms response time
•1000:1 (ACM) contrast ratio
Touchscreen
•Integrated Windows® 7 compliant multi-touch capable optical solution
Hard drive
•SATA 3 Gb/s hard disk up to 750GB
Optical drive
•SuperMulti DVD ROM
Card reader
•Multi-in-1 card reader, supporting:
Chapter 1
Laptopblue

2Chapter 1
•MultiMediaCard (MMC)
•Secure Digital™ (SD) Card
•SDHC™ Card
•Memory Stick™
•Memory Stick PRO™
•Memory Stick PRO-HG Duo™
Graphics
•Onboard Intel® GMA X4500HD (Intel® GM45) - for ZX4800
•Discrete ATI Radeon™ HD 4570 with 512 MB DDR2 Memory (Intel® GM45) - for ZX4830
TV-tuner
•Hybrid analog (NTSC/PAL/SECAM) and digital (DVB-T or ATSC format) TV-tuner card, supporting
hardware or software MPEG-2 stream encoding
Audio
•Integrated 5 W stereo speaker system
•High-definition audio with 5.1-channel support
Communication
•Built-in web cam and microphone
•Gigabit Ethernet, Wake-on-LAN ready
•WLAN*: 802.11b/g/Draft-N
•WPAN*: Bluetooth® 2.1+EDR (Enhanced Data Rate)
I/O ports
•Side:
•Two USB 2.0 ports
•Multi-in-one card reader
•High-definition headphone and microphone jacks
•Rear:
•Four USB 2.0 ports
•DC-in jack
•Ethernet (RJ-45) port
•IR blaster*
•TV-tuner port*
Software
•Gateway TouchSuite
•Adobe® Reader®
•CyberLink® PowerCinema® 7
•CyberLink® YouCam® 2.0 (online upgrade to 3.0)
Laptopblue

Chapter 1 3
•Norton Internet Security™ 2009 Trial
•Microsoft® Office 2007 Trial with Microsoft® Works 8.5
•Wild Tangent Games
Security
•Kensington lock slot
Dimensions
•421 (H) x 515 (W) x 80 (D) mm (with bezel)
BIOS
•AMI PnP BIOS compatible with SMBIOS 2.4
Adapter
•65 W adapter with cord - for ZX4800
•120 W adapter with power cord - for ZX4830
Certification
•FCC, CE, BSMI, CCC, C-Tick, ETL, Nemko (CB & Bauart)
System compliance
•PC 2001, ENERGY STAR®
Optional accessories
•Gateway USB keyboard and mouse (wireless optional)
NOTE: Items marked with * denote only selected models.
NOTE: The specifications listed above are for reference only. The exact configuration of your PC depends on
the model purchased.
Laptopblue

4Chapter 1

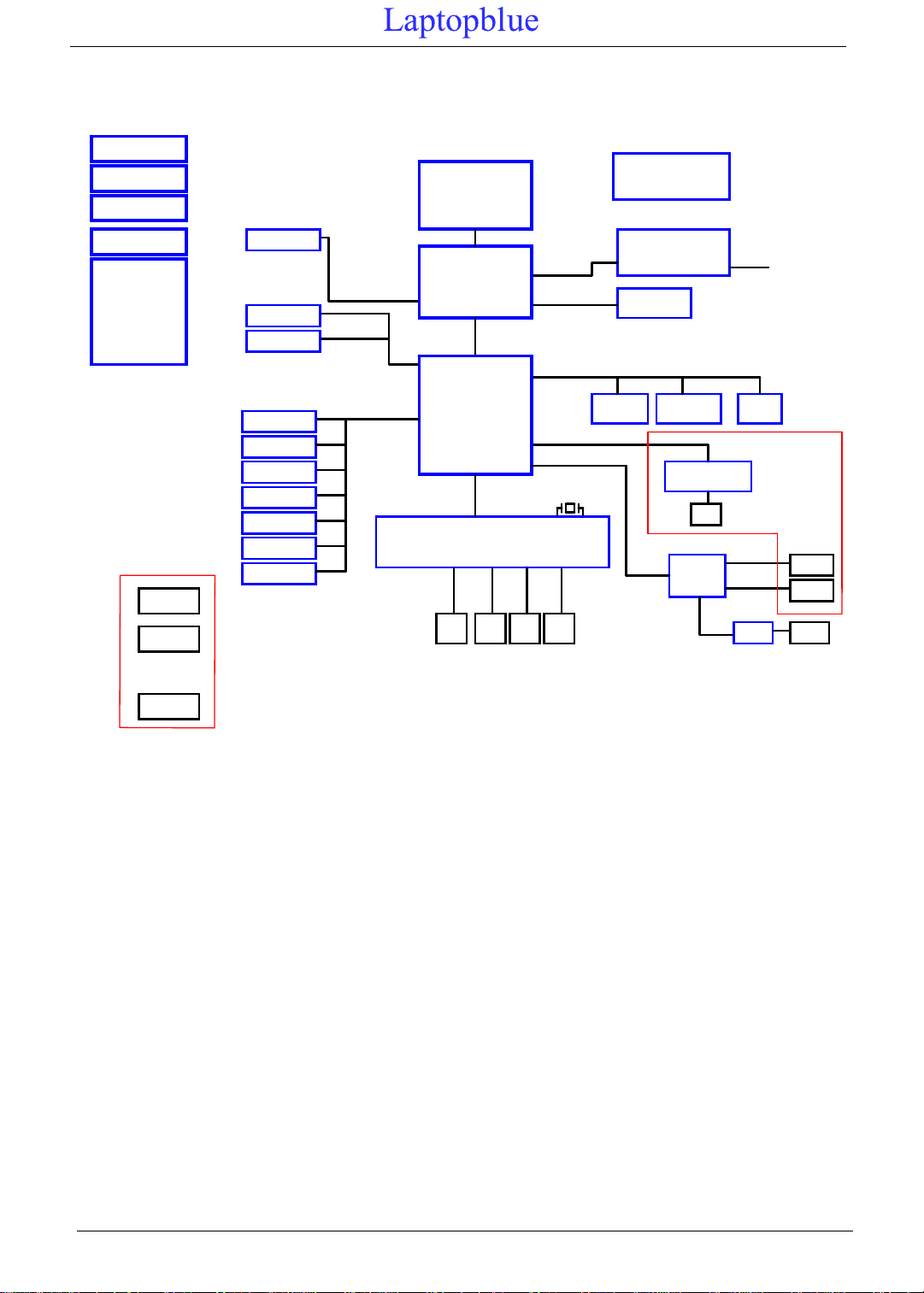

System Block Diagram
VCC_CORE
VCC1.5
VCCP
1.8VSUS
3VPCU
RVCC3
3VSUS
VCC3
5VPCU
RVCC5
VCC5
SMDDR_VTERM
SMDDR_VREF
VCC1.8
5VSUS
6IN1
MINI CARD-1
WLAN
MINI CARD-2
UMA TV
WLAN
Bluetooth
M/B USB2 X4
Side USB X2
P CIE -6 P CIE -5
LAN
RTL8111DL
Camera/ MIC
Touch Screen
CK505
CIR
Board
Key FLASH
ROM
FAN
DDRII-SODIMM1
DDRII-SODIMM2
667/ 800 MHZ DDR II
PCI-E 16X Lan
VGA CONNECTOR
LCD/LED
LVDS
IO Board
Power
Board
SATA - HDD
SATA - ODD
SATA
LCD PANEL
TV
PCIE-3
PCI-Express
SATA
Intel
PENRYN
uFCPGA
CLOCK GENERATOR
NB
CANTIGA
DMI(x2/x4)
F S B (667/800MHZ)
ICS9LPR363
SB
ICH9M
USB 2.0
LPC
ITE8512
32. 768KHz
PCI-Express
Card Reader JMB385
AUDIO CODEC
ALC268
Azalia
HP
MIC JACK
Port-A
Port-B
SPK AMP INT SPK
VGA
Board
I/O Board
Laptopblue

Chapter 1 5
Your Computer tour
This section describes port locations, indicators, and controls for the computer.
IMPORTANT:Your computer’s hardware options, port locations, and indicators may vary from this illustration.
Front View
Component Description
Power button Press this button to turn the power on or off.
You can also configure the power button to operate in Standby/Resume mode or
Hibernate mode.
Integrated
speakers 5W/channel stereo speakers built into the computer.
Web cam and
microphone For internet communication.
HD web cam and
microphone
Power
button
Integrated speakers
Laptopblue

6Chapter 1
Right View
IMPORTANT:Your computer’s hardware options, port locations, and indicators may vary from this illustration.
Component Icon Description
Optical disc drive Use this drive to listen to audio CDs, install games and
programs, watch DVDs, and store large files onto
recordable discs (depending on drive type). This drive may
be a CD, recordable CD, DVD, or recordable DVD.
Headphone jack Plug powered, analog front speakers, an external amplifier,
or headphones into this jack.
Microphone jack Plug a microphone into this jack.
Multi-in-1 reader Insert a memory card from a digital camera, MP3 player,
PDA, cellular telephone, or other device into the memory
card reader.
Optical Drive
Headphone and
microphone jacks
Multi-in-1 reader
Laptopblue

Chapter 1 7
Left View
IMPORTANT:Your computer’s hardware options, port locations, and indicators may vary from this illustration.
Component Icon Description
USB 2.0 port Plug USB (Universal Serial Bus) devices (such as a USB external
drive, printer, scanner, camera, keyboard, or mouse) into this port.
BCAS Card Reader TBD Subscription service available for select models only.
BCAS card reader
Two USB 2.0 ports
Laptopblue

8Chapter 1
Rear View
IMPORTANT:Your computer’s hardware options, port locations, and indicators may vary from this illustration.
Component Icon Description
Audio line in Line Out Connect to an external 5.1 speaker system through these jack.
IR Blaster IR Connect an IR blaster extension to this jack.
Kensington™ lock
slot Secure your computer to an object by connecting a Kensington cable lock to this slot.
TV-tuner port TV Tuner Connect your TV to this port.
Ethernet (network)
jack Plug an Ethernet network cable or a device (such as a DSL or cable modem for a broadband Internet connection) into this jack.
USB ports Plug USB (Universal Serial Bus) devices (such as a USB printer,
scanner, camera, keyboard, or mouse) into these ports.
DC-in jack Plug the power cord into this connector.
Audio line in
Kensington lock slot
Four USB
2.0 ports
LAN port TV tuner port
DC-in jack
IR
Blaster
Laptopblue

Chapter 1 9
Using the Keyboard
The keyboard has several different types of keys and buttons.
Feature Icon Description
Function keys Press these keys to start program actions. Each program uses
different function keys for different purposes. See the program
documentation to find out more about the function key actions.
Audio playback keys Press these keys to play your audio files and to adjust the
volume.
Windows key Press this key to open the Windows Start menu.
This key can also be used in combination with other keys to
open utilities. See “Windows Keys” on page 10.
Fn key Press this key in combination with keys that have alternate
functions defined, such as the F9-F12 keys.
Press <Fn> + < > to increase the brightness of the display.
Press <Fn> + < > to decrease the brightness of the display.
Application key Press this key to access shortcut menus and help assistants in
Windows.
Navigation keys Press these keys to move the cursor and to copy, cut, and
paste objects.
Laptopblue

10 Chapter 1
Windows Keys
The keyboard has two keys that perform Windows-specific functions.
Key Description
Windows key Pressed alone, this key has the same effect as clicking on the Windows Start button;
it launches the Start menu. It can also be used with other keys to provide a variety of
functions:
<>:Open or close the Start menu
<>+ <D>: Display the desktop
<>+ <E>: Open Windows Explore
<>+ <F>: Search for a file or folder
<>+ <G>: Cycle through Sidebar gadgets
<>+ <L>: Lock your computer (if you are connected to a network domain), or
switch users (if you're not connected to a network domain)
<>+ <M>: Minimizes all windows
<>+ <R>: Open the Run dialog box
<>+ <T>: Cycle through programs on the taskbar
<>+ <U>: Open Ease of Access Center
<>+ <X>: Open Windows Mobility Center
<>+ <BREAK>: Display the System Properties dialog box
<>+ <SHIFT+M>: Restore minimized windows to the desktop
<>+ <TAB>: Cycle through programs on the taskbar by using Windows Flip 3-D
<>+ <SPACEBAR>: Bring all gadgets to the front and select Windows Sidebar
<CTRL> + <>+ <F>: Search for computers (if you are on a network)
<CTRL> + <>+ <TAB>: Use the arrow keys to cycle through programs on the
taskbar by using Windows Flip 3-D
Note: Depending on your edition of Windows 7 some shortcuts may not function as
described.
Application
key This key has the same effect as clicking the right mouse button; it opens the
application's context menu.
Laptopblue
