Acer Aspire 1312 User manual

Acer Aspire 1310 series
User’s guide
As1310_E.book Page i Monday, March 17, 2003 3:07 PM

Changes may be made periodically to the information in this publication without obligation
to notify any person of such revision or changes. Such changes will be incorporated in new
editions of this manual or supplementary documents and publications. This company makes
no representations or warranties, either expressed or implied, with respect to the contents
hereof and specifically disclaims the implied warranties of merchantability or fitness for a
particular purpose.
Record the model number, serial number, purchase date, and place of purchase information in
the space provided below. The serial number and model number are recorded on the label
affixed to your computer. All correspondense concerning your unit should include the serial
number, model number, and purchase information.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in
any form or by any means, electronic, mechanical, photocopy, recording, or otherwise,
without the prior written permission of Acer Incorporated.
Model Number : _________________________________
Serial Number: ___________________________________
Purchase Date: ___________________________________
Place of Purchase: ________________________________
Copyright © 2003
All Rights Reserved
Acer Aspire 1310 Series Notebook Computer User's Guide
2nd Issue: March 2003
Acer Aspire 1310 series Notebook computer
All trademarks and registered trademarks are the properties of their respective companies.
As1310_E.book Page ii Monday, March 17, 2003 3:07 PM

iii
English
Englis
h
First things first
Yo u r g u i d e s
A set of guides is provided to help you set up and use your Aspire
computer.:
For more information on our products, services, and support, please
visit our web site www.global.acer.com.
Basic care and tips for using your computer
Turning your computer on and off
To turn on your computer, open the lid and press the power button
above the keyboard.
To turn the power off, you can do any of the following:
• Click on the Start button in Windows, and then select Shut Down
on the popup menu.
• Push the power button.
To use this method, you must first click on the Power
Management icon in Windows Control Panel, and then check
that the power button is set to shut down the computer when
pressed. See Windows Help for more information.
The Just for starters… poster shows you how to set up your
computer.
This User's Guide provides clear and concise information on
using your computer productively. You are advised to read
it thoroughly and keep it handy for future reference.
As1310_E.book Page iii Monday, March 17, 2003 3:07 PM

iv
English
Note: if you are unable to shut down the computer in the usual
way, press and hold the power switch for more than four seconds.
You should then wait at least two seconds before turning the
computer on again.
Taking care of your computer
Your computer will serve you well if you take care of it.
• Do not expose the computer to direct sunlight. Do not place it
near sources of heat, such as a radiator.
• Do not expose the computer to temperatures below 0°C (32°F), or
above 50°C (122°F).
• Do not expose the computer to magnetic fields.
• Do not expose the computer to rain or moisture.
• Do not spill water or any liquid on the computer.
• Do not subject the computer to heavy shock or vibration.
• Do not expose the computer to dust or dirt.
• Do not place objects on top of the computer.
• Do not slam the lid shut. Close the computer gently.
• Do not place the computer on unstable or uneven surfaces.
Taking care of your AC adapter
It is important that you look after your AC adapter.
• Do not connect the adapter to any other device.
• Do not step on the power cord or place heavy objects on it. Route
the power cord away from areas where people might walk on it or
trip over it.
• Do not pull on the power cord when disconnecting from the mains
power socket. Grasp and pull the plug instead.
• The total ampere ratings of equipment plugged into a power strip
should not exceed the ampere rating for that power strip.
As1310_E.book Page iv Monday, March 17, 2003 3:07 PM

v
English
Englis
h
Taking care of your battery pack
It is also important that you look after your computer's battery pack.
• Use the correct battery model for your computer. Do not use other
kinds of batteries.
• Turn the power off before removing or replacing the battery.
• Do not tamper with the battery. Keep the battery away from
children.
• Dispose of batteries according to local regulations. Recycle if
possible.
Cleaning and servicing
When cleaning your computer, it is important that you follow these
steps:
1 Turn off the computer and remove the battery.
2 Disconnect the AC adapter.
3 Clean with a soft cloth moistened with a little water. Do not use
liquid or aerosol cleaners.
Refer to the chapter entitled “Frequently asked questions” on page 67
if any of the following occurs:
• You drop the computer or damage the case.
• You spill liquid on the computer.
• The computer does not operate normally.
As1310_E.book Page v Monday, March 17, 2003 3:07 PM

vi
English
As1310_E.book Page vi Monday, March 17, 2003 3:07 PM

Contents
First things first iii
Your guides iii
Basic care and tips for using your computer iii
Getting familiar with your computer 1
A tour of your computer 3
Front view 3
Left view 5
Right view 6
Rear view 7
Bottom view 8
Features 9
Display 10
Indicators 11
Keyboard 13
Special keys 13
Keyboard ergonomics 17
Touchpad 18
Touchpad basics 18
Launch keys 20
Storage 21
Inserting and ejecting a diskette 21
Ejecting the optical drive tray 21
Emergency ejection of the optical drive tray 22
Connectivity options 23
Ethernet and LAN 23
Fax/data modem 23
Audio 25
Securing your computer 26
Security slot 26
Passwords 26
Operating on battery power 27
Battery pack 29
Battery pack characteristics 29
Installing and removing the battery pack 30
Charging the battery 31
Checking the battery level 31
Optimizing battery life 31
Battery-low warning 32
Power management 33
As1310_E.book Page vii Monday, March 17, 2003 3:07 PM

viii
English
Peripherals and options 35
External display devices 37
External input devices 38
External keyboard 38
External keypad 38
External pointing device 38
USB devices 39
IEEE 1394 Port 40
Printer 41
Audio devices 42
Expansion devices 43
PC Card 43
Miscellaneous options 45
Battery pack 45
AC adapter 45
Key component upgrades 46
Memory upgrade 46
Hard disk upgrade 47
Moving with your computer 49
Disconnecting from the desktop 51
Moving around 52
Preparing the computer 52
What to bring to short meetings 52
What to bring to long meetings 52
Taking the computer home 53
Preparing the computer 53
What to bring with you 53
Special considerations 53
Setting up a home office 54
Traveling with the computer 55
Preparing the computer 55
What to take with you 55
Special considerations 55
Traveling internationally with your computer 56
Preparing the computer 56
What to take with you 56
Special considerations 56
Software 57
System software 59
Launch Manager 59
BIOS Setup Utility 60
As1310_E.book Page viii Monday, March 17, 2003 3:07 PM

ix
English
Englis
h
Troubleshooting 65
Frequently asked questions 67
Appendix A Specifications 71
Appendix B Notices 77
Index 87
As1310_E.book Page ix Monday, March 17, 2003 3:07 PM

x
English
As1310_E.book Page x Monday, March 17, 2003 3:07 PM

Getting familiar with your
computer
As1310_E.book Page 1 Monday, March 17, 2003 3:07 PM

Your Aspire 1310 series notebook computer
combines solid performance, versatility,
multimedia capabilities and portability with
a stylish design. Increase your productivity
by working wherever you are.
This chapter provides an in-depth "tour" of
your computer's features.
As1310_E.book Page 2 Monday, March 17, 2003 3:07 PM

3
English
Englis
h
A tour of your computer
After setting up your new Aspire notebook computer, as illustrated in
the Just for starters… poster, take a few minutes to explore the unit.

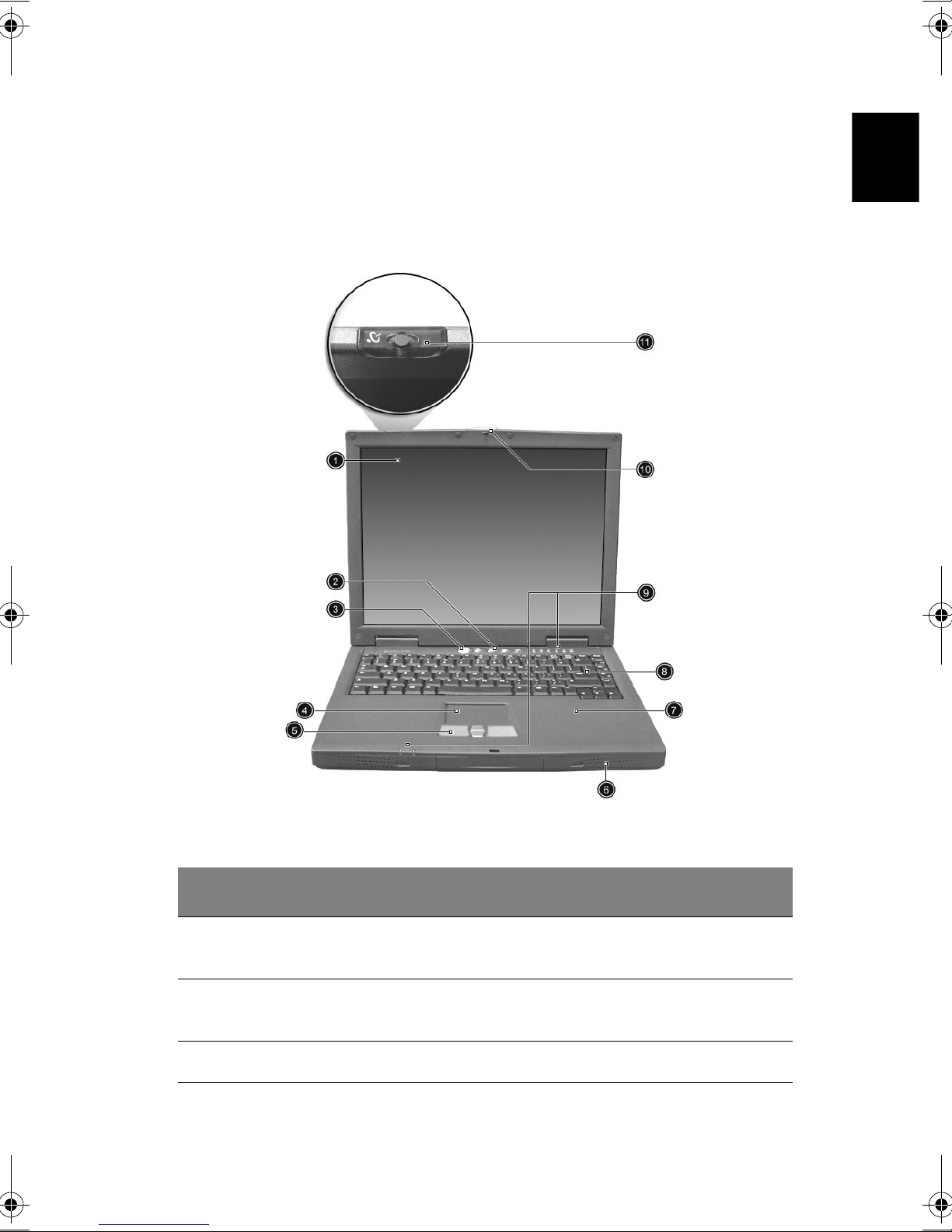

Front view
#Item Description
1 Display Large liquid crystal display (LCD) provides visual
output.
2 Launch keys 4 buttons that can be programmed to start
frequently used applications.
3 Power button Turns the computer on and off.
As1310_E.book Page 3 Monday, March 17, 2003 3:07 PM

Getting familiar with your computer
4
English
4 Touchpad Touch sensitive pad that functions like a computer
mouse.
5 Click buttons &
scroll key
Right and left buttons that provide the same
functions as the buttons on a computer mouse.
The scroll key scrolls the contents of a window up
and down.
6 Speakers Left and right speakers deliver stereo audio
output.
7 Palm rest Provides a comfortable platform for your hands
when typing on the keyboard.
8 Keyboard Full-size keyboard for inputting typed data.
9 Status
indicators
Light emitting diodes (LED) that show the status
of the computer and its components.
10 Latch Locks and releases the lid.
11 Wireless
communication
button
Lights when the Wireless LAN capability is
enabled.
#Item Description
Note: This wireless communication button works for models with
802.11b wireless LAN only.
As1310_E.book Page 4 Monday, March 17, 2003 3:07 PM

5
English
Englis
h
Left view
#Item Description
1 Modem jack Connects the built-in fax/data modem
to a phone line.
2 Network jack Connects the computer to an Ethernet
10/100-based network.
3 Microphone-in jack Connects an external microphone for
audio input.
4 Headphone jack Connects headphones for audio output.
5 PC card eject button Press the eject button to remove a PC
card from the PC card slot.
6 PC card slot The slot supports a standard Type II or
Type III PC card (PCMCIA or CardBus).
7 Floppy disk drive Supports a standard 3.5” diskette.
8 Floppy disk eject button Press the eject button to remove a
diskette from the floppy disk drive.
As1310_E.book Page Monday, March 17, 2003 3:07 PM

Getting familiar with your computer
6
English
Right view
#Item Description
1 Optical drive Depending on your model, the optical
drive is one of the following:
• CD-ROM drive for reading CDs.
• DVD-ROM drive for reading CDs
and DVDs.
• DVD/CD-RW combo drive for
reading CDs and DVDs, and
writing to CD-Rs and CD-RWs.
2 Optical drive
emergency eject hole
Used to eject an optical disc when the
computer is turned off.
3 Optical drive eject
button
Press the eject button to remove a disc
from the optical drive.
4 Optical disc read
indicator
Light emitting diode (LED) that indicates
when an optical disc is being read.
As1310_E.book Page 6 Monday, March 17, 2003 3:07 PM

7
English
Englis
h

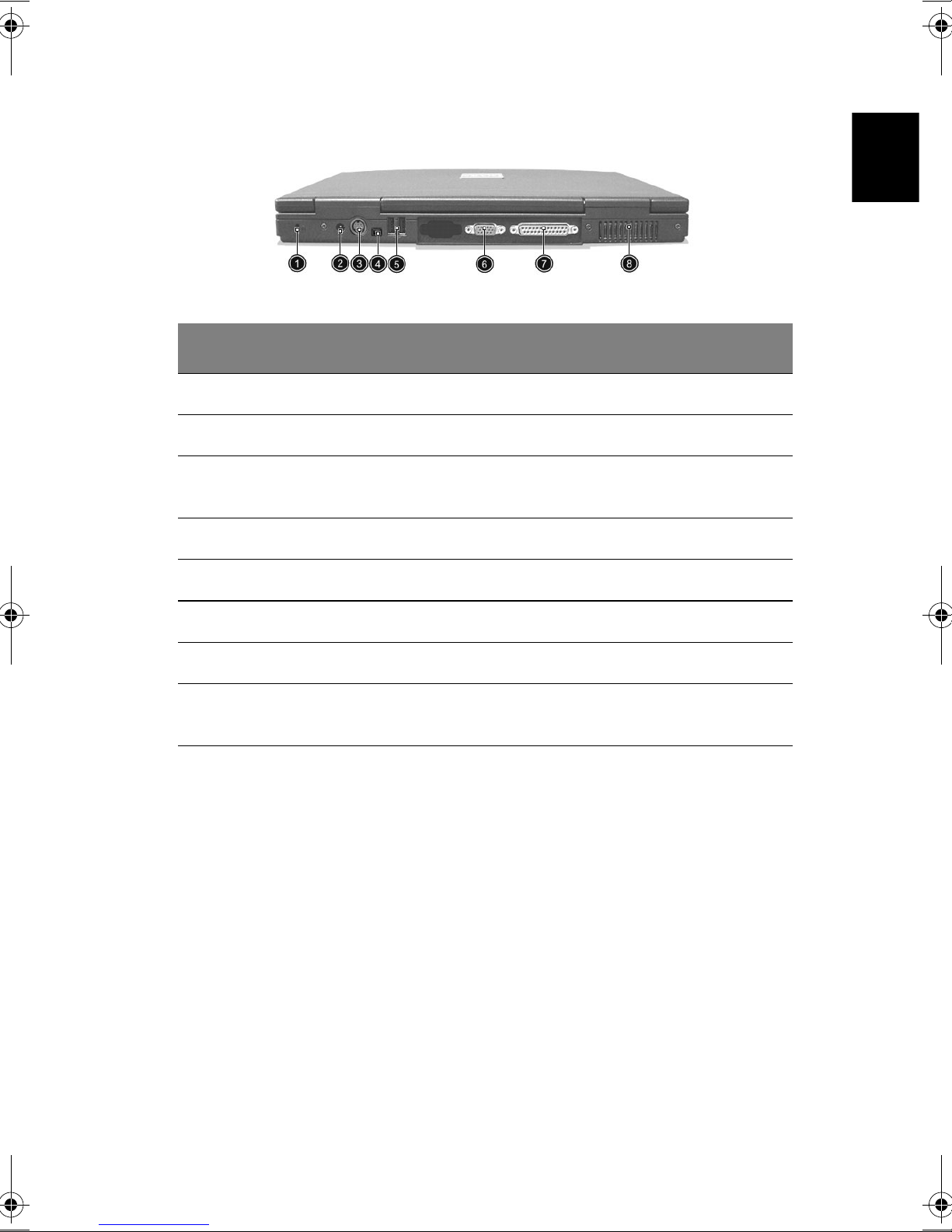

Rear view
#Item Description
1 Kensington lock slot For attaching a security connector.
2 DC-in jack Connects the AC adapter.
3 S-video Connects to a television or display device
with S-video input.
4 IEEE 1394 port Connects IEEE 1394 devices.
5 USB ports 2 ports for connecting USB devices.
6 External display port Connects an external (VGA) display monitor.
7 Parallel port Connects a parallel device, such as a printer.
8 Ventilation slots Enables the computer to stay cool, even after
prolonged use.
As1310_E.book Page 7 Monday, March 17, 2003 3:07 PM

Getting familiar with your computer
8
English
Bottom view
#Item Description
1 Ventilation slots Enables the computer to stay cool, even
after prolonged use.
2 Reset Switch Forces the computer to shut down in the
event of system lockup.
Note: Any unsaved data will be lost.
3 Battery release latch Slide and hold the latch, and then pull the
battery to remove it from the unit.
4 Battery The computer's removable battery.
5 Hard disk bay Removable cover provides access to the
computer's hard drive.
6 Memory compartment Removable cover provides access to the
memory slots for upgrading the
computer's memory.
As1310_E.book Page 8 Monday, March 17, 2003 3:07 PM

9
English
Englis
h
Features
Performance
• AMD Athlon XP1800+, XP1900+ or higher processor.
• VIA KN266 + VT8235.
• 2 memory slots supporting 266MHz DDR, upgradeable to 2GB.
• High-capacity, Enhanced-IDE hard disk.
• Microsoft Windows XP operating system.
Multimedia
• Built-in optical drive (CD-ROM, DVD-ROM, or DVD/CD-RW combo
drive).
• 14.1” or 15.0” TFT XGA LVDS panel.
• Built-in stereo speakers.
• Audio input and output jacks.
Connectivity
• Integrated 10/100Mbps Ethernet connection.
• Built-in 56Kbps fax/data modem.
• 2 universal serial bus (USB 2.0) ports.
• IEEE 1394 port
• 802.11b wireless LAN (optional)
Human-centric design and ergonomics
• All-in-one design (incorporating hard drive, optical drive and
floppy disk drive).
• Rugged, yet extremely portable, construction.
• Stylish appearance.
• Full-size keyboard with 4 programmable launch keys.
• Comfortable palm rest area with well-positioned touchpad.
Expansion
• PC card slot enables a range of add-on options.
• Upgradeable hard disk and memory modules.
As1310_E.book Page 9 Monday, March 17, 2003 3:07 PM

Getting familiar with your computer
10
English
Display
• The 14.1” or 15.0” display panel provides a large viewing area for
maximum efficiency and ease-of-use. The thin-film transistor (TFT)
Low Voltage Differential Signaling (LVDS) supports extended
graphics array (XGA), enabling 16.7 million colors at 1024 x 768
resolution.
• 3D graphics support.
• Supports simultaneous display between LCD and CRT display.
• S-video for output to a television or display device that supports
S-video input.
• “Automatic LCD dim” feature that automatically selects the best
setting for the display in order to conserve power.
• Dual display capability
As1310_E.book Page 10 Monday, March 17, 2003 3:07 PM
