Acer Aspire 1640 User manual

Aspire 1640 Series
Service Guide
PRINTED IN TAIWAN
Service guide files and updates are available
on the ACER/CSD web; for more information,
please refer to http://csd.acer.com.tw

2
Revision History
Please refer to the table below for the updates made on Aspire 1640 service guide.
Date Chapter Updates
200512/27 Chapter 1 Revise memory specification to 533MHz on page 20.
2006/02/15 Chapter 3 Revise disassembling SOP.

3
Copyright
Copyright © 2005 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.

4
Conventions
The following conventions are used in this manual:
SCREEN MESSAGES Denotes actual messages that appear
on screen.
NOTE Gives bits and pieces of additional
information related to the current
topic.
WARNING Alerts you to any damage that might
result from doing or not doing specific
actions.
CAUTION Gives precautionary measures to
avoid possible hardware or software
problems.
IMPORTANT Reminds you to do specific actions
relevant to the accomplishment of
procedures.

5
Preface
Before using this information and the product it supports, please read the following general information.
1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.
add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered
in this generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.
2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information
available on your regional web or channel. If, for whatever reason, a part number change is made, it will
not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and
service of customer machines.

6

Chapter 1 1
Features
This computer was designed with the user in mind. Here are just a few of its many features:
Platform
TIntel®Pentium®M 730/740/750/760/770/780 processor (2MB L2 cache, 1.60/1.73/1.86/2/2.13/
2.26 GHz, 533 MHz FSB)
TIntel®Pentium®M 725 processor (2MB L2 Cache, 1.60 GHz, 400 MHz FSB)
TIntel Celeron M processor 360/370/380 (1 MB L2 cache, 1.40/1.50/1.60 GHz, 400 MHz FSB)
TChipset: Intel®915GM
Memory
T256 MB/512 MB of DDRII 533 memory, upgradeable to 2 GB with dual so DIMM modules
Data storage
T40/60/80/100 GB ATA/100 hard disk
TDVD-Dual double-layer drive
TDVD/CD-RW combo drive
Display and graphics
TColor Thin-Film Transistor (TFT) LCD displaying at
-- 15” XGA (1024 X 768)
-- 15.4” WXGA (1280 X 800) supporting simultaneous multi-window viewing on dual displays via
Acer GridVista
TIntel®915GM integrated 3D graphics, featuring Intel Graphics Media Accelerator 900 and up to
128 MB of shared memory
TMicrosoft®DirectX®7.0 and dual independent display support
TMPEG-2/DVD hardware-assisted capability
TSimultaneous LCD and CRT display with LCD panel resolution at 70 Hz
Communication
TModem: 56K ITU V.92 modem with PTT approval; Wake-on-Ring ready
TLAN: 10/100 Mbps Fast Ethernet; Wake-on-LAN ready
TWireless LAN (optional): integrated miniPCI Acer InviLinkTM 802.11b/g Wi-Fi CERTIFIEDTM
solution
TAcer SignalUP wireless technology support
TWireless PAN (optional): integrated Bluetooth®
Audio
TAudio system with two built-in speakers
TSound Blaster ProTM and MS-Sound compatible
System Introduction
Chapter 1

2Aspire 1640
TBuilt-in microphone
Input devices
T88-/89-key Acer FineTouchTM keyboard
TTouchpad with 4-way integrated scroll button
TFour easy-launch buttons
TTwo front-panel buttons: wireless LED-button and Bluetooth®LED-button
I/O interface
TThree USB 2.0 ports
TEthernet (RJ-45) port
TModem (RJ-11) port
TExternal display (VGA) port
TMicrophone
TLine-in jack
THeadphones/speaker/line-out port
TOne Type II PC Card slot
TDC-in jack for AC adaptor

Chapter 1 3
System Block Diagram
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
A A B B C C D D
INTEL Mobile_479 CPU
DDR-II
ATA 66/100
HD Audio
AUDIO CODEC
DDR-II SODIMM1 DDR-II SODIMM2
IDE-ODD
PATA HDD
ATA 66/100
RJ11
Page: 19
Page: 16 Page: 16
Page: 10
CLOCK GEN ICS954206
Page:2, 3
Page: 5, 6 , 7, 8
Page: 12 , 13 , 14
Page:4
LINE OUT
INTEL ALVISO 915GM
NB
SB
DMI I/F
Page: 21
Page: 22Page: 22
Touchpad
KBC NS PC97551
Keyboard
INTEL ICH6-M
CELERON-M/PENTIUM-M
PCI BUS 33MHZ
RJ45
REALTEK RTL8100CL
USB 2.0
Page: 18
Page: 17
MINI-PCI Wireless LAN
Realtek
Page: 20
ALC260 (ALC883)
SPEAKER
HOST BUS 533/400MHZ
LPC 33MHZ
TI PCMCIA PCI1510A ( L-F )
+1.8VSUS +1.8V
TM4060/AS1640(ZL8 for Quanta project code)
REQ2# / GNT2# REQ1# / GNT1# AD20 AD17 INTB# , INTD# INTC#
Page: 10
Page: 21
FLASH
Page: 22
FAN
CPU CORE
CRT Page: 11
RGB
LVDS Page: 11
LVDS
BATTERY CHARGER
TYPE II SLOT Page: 18
MIC IN
+1.05V +2.5V
Bluetooth USB interface
USB4 Page:16
USB2,3,5
SYSTEM USB PORT *3
MODEMAMP
MAX9755
AD24 REQ0# / GNT0# INTA#
Page: 16
MINI-PCIE slot Wireless LAN
(Option)
PCI-E BUS
Page:23
SENTECH SC451ITSTR
SYSTEM 3V/5V
MAXIM MAX1999
Page:24
+1.5V
SENTECH SC1470 SI9183-AD
+1.5V_S5
SENTECH SC1565 SENTECH SC4215
Page:25
MAXIM MAX8724
Page:26
Page: 16
Page: 17
Page:16
Page: 19
Page: 19 Page: 20 Page: 20 Page: 17
+3VPCU +3V_S5/+3VSUS +3V +5VPCU +5VSUS +5V +15V
ON NCP5214
+0.9VSUS +0.9V
BLOCK DIAGRAM
3A
126Tuesday, August 09, 2005
Size Document Number Rev Date: Sheet of
Acer Incorporated
PROJECT:Lugano II

4Aspire 1640

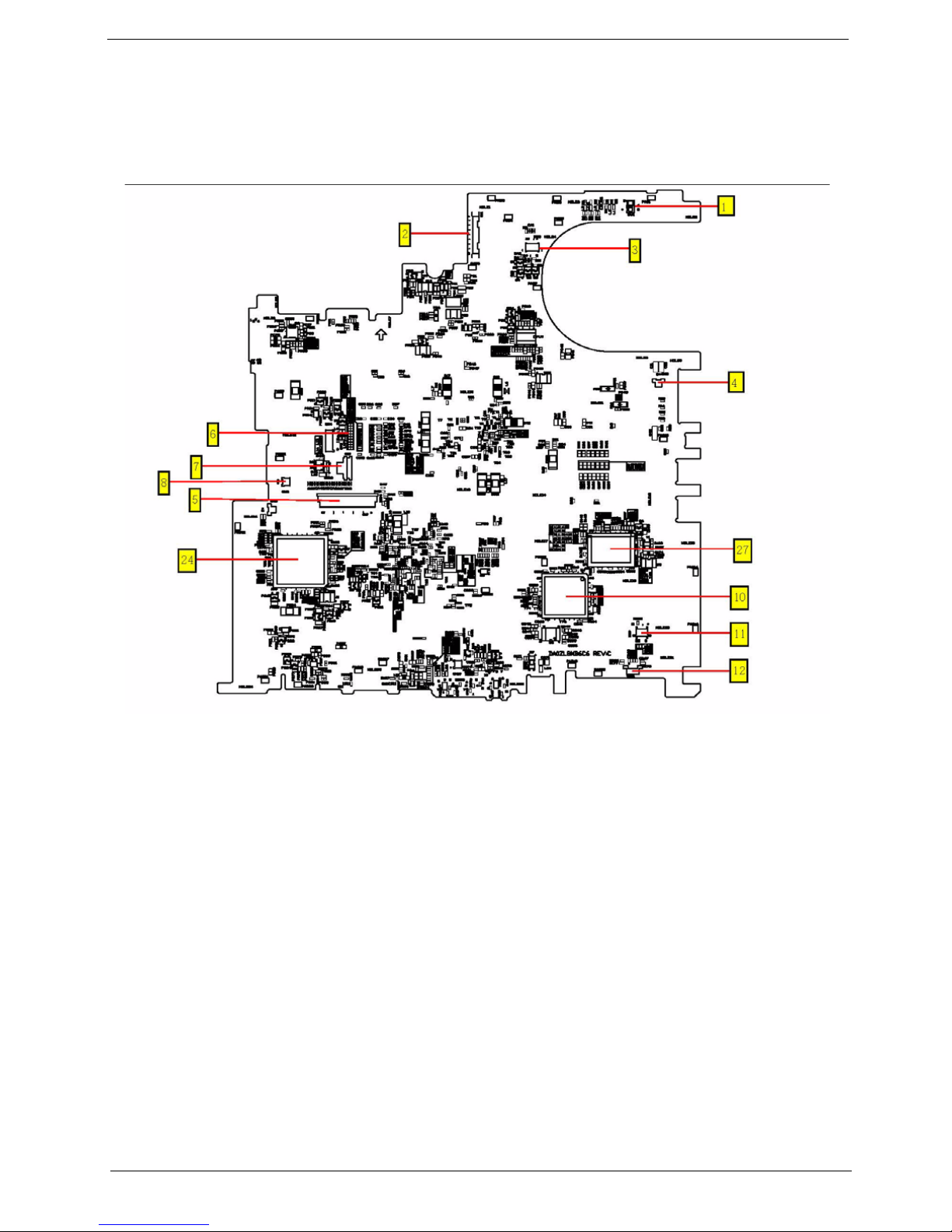

Board Layout
Top View

Chapter 1 5
Bottom View
1 SW1 Lid Switch 2 CN1 LCD Connector
3 CN2 Launch Board Connector 4 CN3 Modem Connector
5 CN7 Keyboard Connector 6 CN4 Bluetooth Module Connector
7 CN5 Touchpad Board Connector 8 CN6 Internal Microphone Connector
9 U17 Clock Generator 10 U4 PCMCIA Connector
11 CN9 MDC Connector 12 CN11 Internal Speaker Connector
13 CN13 Power Jack 14 CN12 CRT Connector
15 CN14 Battery Connector 16 CN15 Optical Disk Drive Connector
17 CN17 RJ45 & RJ11 Connector 18 CN26 Wireless LAN Controller
19 U11 North Bridge 20 U13 CPU Socket

6Aspire 1640
21 CN20 USB Connector 22 CN21 USB Connector
23 U19 BIOS ROM 24 U4 EC PC97551 (Power and I/O
Connector)
25 CN22 RTC Battery 26 CN18 Memory Socket 1
27 U1 LAN Chipset RTL8100CL 28 CN19 Memory Socket 2
29 U18 South Bridge 30 CN24 PCMCIA Connector
31 CN25 HDD Connector 32 CN27 USB Connector
33 CN28 Line-out/SPEDIF Jack 34 CN29 Microphone Jack
35 CN30 Line-in Jack 36 SW3 WLAN Button
37 SW2 Bluetooth Button 38 LED2 Charger LED
39 LED1 Power LED 40 U22 Audio Codec
41 U10 Fan Connector

Chapter 1 7
Panel
This is a brief introduction to the I/O ports, the features and the indicators.

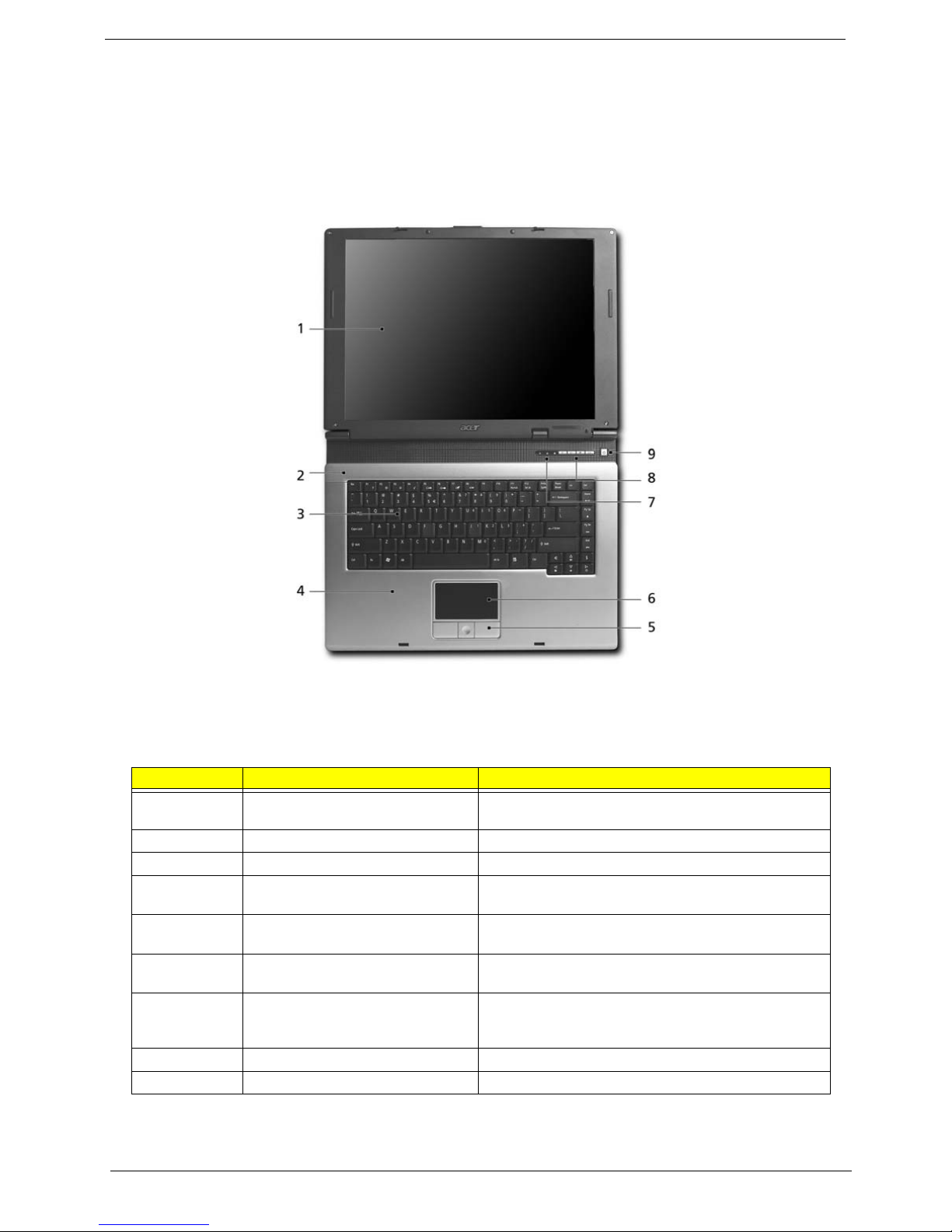

Front view
#Item Description
1 Display screen Also called LCD (Liquid Crystal Display), displays computer
output.
2 Microphone Internal microphone for sound recording.
3 Keyboard For entering data into you computer.
4 Palmrest Comfortable support area for your hands when you use the
computer.
5 Click buttons (Left and right) The left and right buttons function like the left and right
mouse buttons.
6 Touchpad Touch-sensitive pointing device which functions like a
computer mouse.
7 Status indicators LEDs (Light Emitting Diodes) that turn on and off to show
the status of the computer and its functions and
components.
8 Launch keys Buttons for launching frequently used programs.
9 Power button Turns the computer on and off.

8Aspire 1640
Closed front view
Left view
#Icon Item/ Port Description
1 Speakers Left and right speakers deliver stereo audio
output.
2 Power indicator Lights up when the computer is on.
3 Battery indicator Lights up when the battery is being charged.
4 Bluetooth communication button/
indicator (for selected models)
Press to enable/disable the Bluetooth function.
Indicates the status of Bluetooth communication
(optional).
5 Wireless communication button/
indicator
Press to enable/disable the wireless function.
Indicates the status of wireless LAN
communication (optional).
6 Line-in jack Accepts audio line-in devices (e.g., audio CD
player, stereo walkman).
7 Mic-in jack Accepts inputs from external microphones.
8 Speaker/Line-Out/Headphone jack Connects to audio line-out devices (e.g.,
speakers, headphones).
9 USB 2.0 port Connects to Universal Serial Bus (USB) 2.0
devices (e.g., USB mouse, UsB camera).
# Item Description
# Item Description

Chapter 1 9

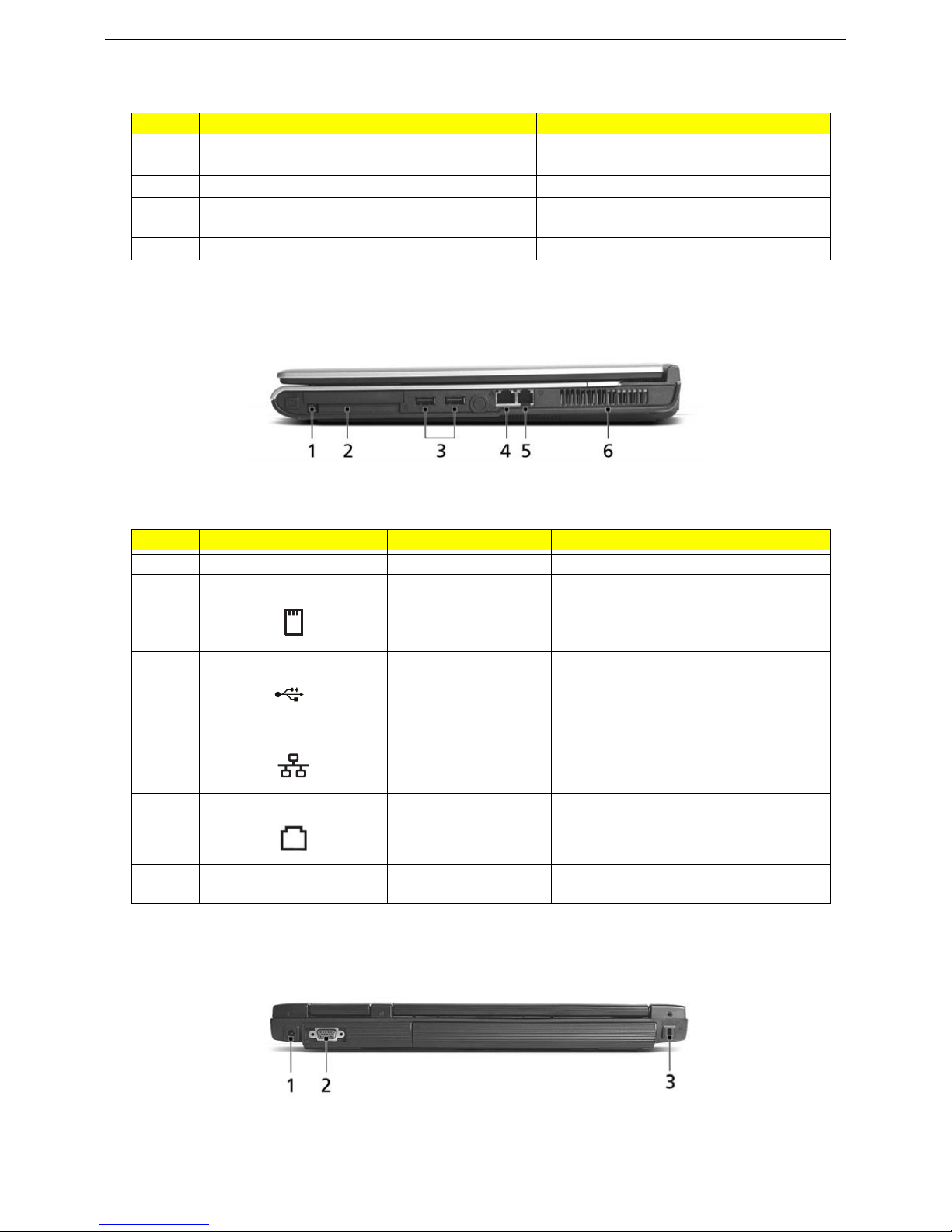

Right view
Rear view
#Icon Item/ Port Description
1 Optical drive Internal optical drive; accepts CDs or DVDs
depending on the optical drive type.
2 LED indicator Lights up when the optical drive is active.
3 Emergency eject hole Ejects the optical drive tray when the computer is
turned off.
4 Optical drive eject button Ejects the optical drive tray from the drive.
#Icon Item/ Port Description
1 PC Card slot eject button Ejects the PC Card from the slot
2 PC card slot Accepts one Type II CardBus PC Card.
3 USB 2.0 port Connects to Universal Serial Bus (USB) 2.0
devices (e.g., USB mouse, USB camera).
4 Network jack Connects to an Ethernet 10/100 based
network.
5 Modem jack Connects to a phone line.
6 Ventilation slots Enable the computer to stay cool, even after
prolonged use.

10 Aspire 1640

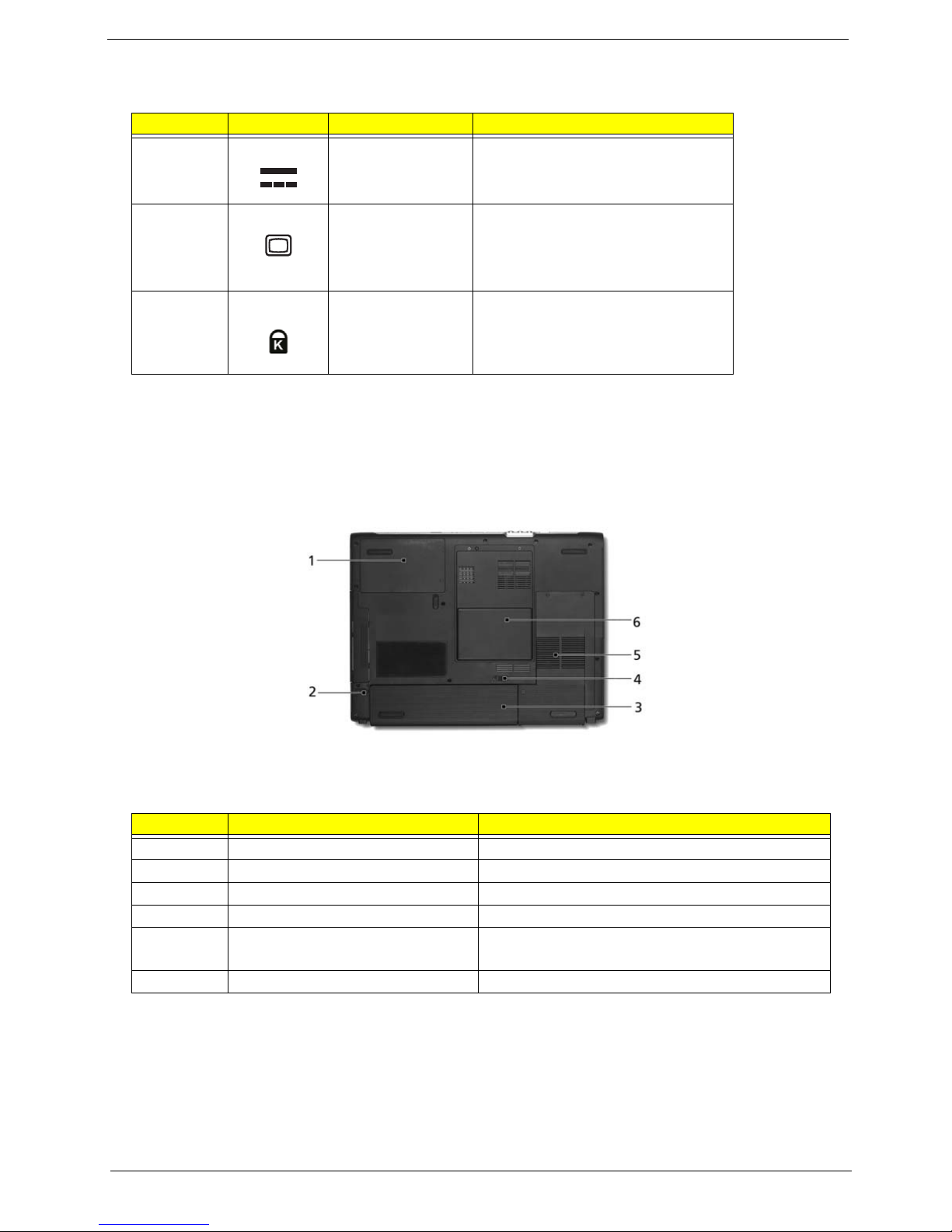

Bottom view
#Icon Port Description
1 Power jack Connects to an AC adaptor.
2 External display port Connects to a display device (e.g., external
monitor, LCD projector).
3 Security keylock Connects to a Kensington-compatible
computer security lock.
#Item Description
1 Hard disc bay Houses the computer’s hard disc (secured by a screw).
2 Battery release latch Unlatches the battery to remove the battery pack.
3 Battery bay Houses the computer’s battery pack.
4 Battery lock Locks the battery in place.
5 Cooling fan Helps keep the computer cool.
Note: Do not cover or obstruct the opening of the fan.
6 Memory comparment House the computer’s main memory.

Chapter 1 11

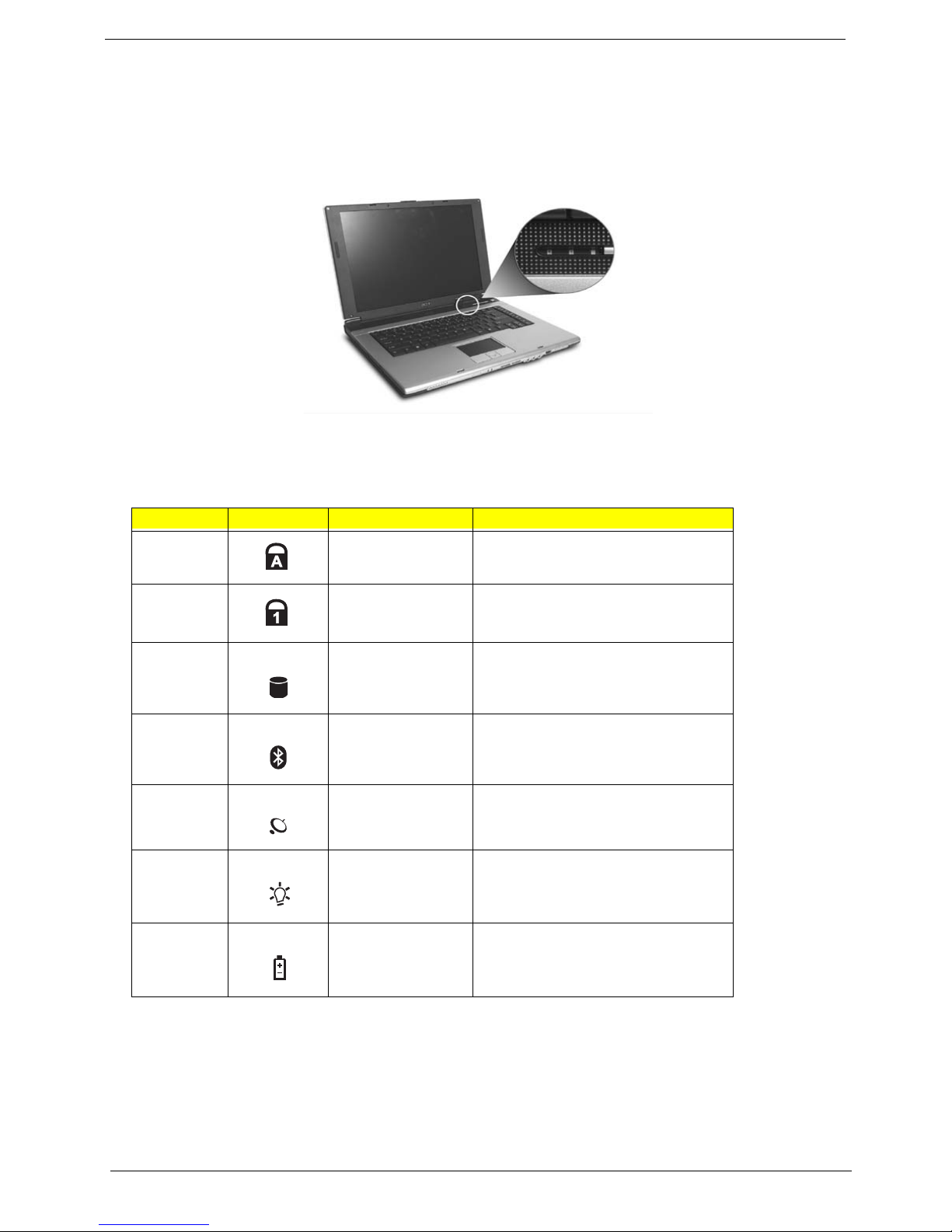

Indicators
The computer has three easy-to-read status icons on the upper-right above the keyboard, and four on the front
panel.
NOTE: 1. Charging: the light shows amber when the battery is charging.
NOTE: 2. Fully charged: light shows green when in AC mode.
#Icon Function Description
1 Caps Lock Lights when Caps Lock is activated.
2 Num Lock
(Fn-F11)
Lights when Numeric Lock is activated.
3 Media activity Indicates when the hard disk or optical
drive is active.
Bluetooth Indicates the status of Bluetooth
communication.
Wireless LAN Indicates the status of Bluetooth
communication.
4 Power Lights when the computer is on.
5 Battery Lights when the battery is being charged.
Icon Function Description

12 Aspire 1640
Launch Keys
Located at the upper-right, above the keyboard are four buttons. These buttons are called launch keys. They
are mail, Web browser, Acer Empowering key “ “, and one user-programmable button.
Press “ “ to run the Acer eManager. The mail and Web buttons are pre-set ot email and internet programs,
but can be reset by users. To set the Web browser, mail and programmable keys, run the Acer Launch
Manager.
Launch key Default application
P User-programmable
Acer eManager (user-programmable)
Web browser Internet browser (user-programmable)
Mail Email application (user-programmable)
Fn>
Hot Key Icon Function Description
Fn-F1
Fn-F2
"Acer
eManager" on page 23
Fn-F3
"Acer eManager" on page
23
Fn-F4
Fn>
Hot Key Icon Function Description
Fn-F1
Fn-F2
"Acer
eManager" on page 23
Fn-F3
"Acer eManager" on page
23
Fn-F4
Fn>
Hot Key Icon Function Description
Fn-F1
Fn-F2
"Acer
eManager" on page 23
Fn-F3
"Acer eManager" on page
23
Fn-F4

Chapter 1 13
Using the keyboard
The keyboard has full-sized keys and an embedded keypad, separate cursor keys, two Windows keys and
twelve function keys.
Lock keys and embedded numeric keypad
The keyboard has three lock keys which you can toggle on and off.
The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters
located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols
are not printed on the keys.
Lock key Description
Caps Lock
@
When @is on, all alphabetic characters typed are in uppercase.
Num Lock (Fn-F11)
]
When ]is on, the embedded keypad is in numeric mode. The keys function
as a calculator (complete with the arithmetic operators ), -, *, and /). Use this mode
when you need to do a lot of numeric data entry. A better solution would be to
connect an external keypad.
Scroll Lock (Fn-F12)
[
When [is on, the screen moves one line up or down when you press the up
or down arrow keys respectively. [does not work with some applications.
Desired access Num lock on Num lock off
Number keys on embedded
keypad
Type numbers in a normal manner.
Cursor-control keys on embedded
keypad
Hold <Shift> while using cursor-control
keys.
Hold <Fn> while using cursor-
control keys.

14 Aspire 1640
Windows keys
The keyboard has two keys that perform Windows-specific functions.
Hot Keys
The computer employs hot keys or key combinations to access most of the computer’s controls like screen
contrast and brightness, volume output and the BIOS Utility.
To activate hot keys, press and hold the <Fn> key before pressing the other key in the hot key combination.
Main keyboard keys Hold <Fn> while typing letters on embedded
keypad.
Type the letters in a normal manner.
Keys Description
Windows logo key
Start button. Combinations with this key perform shortcut functions. Below
are a few examples:
+ <Tab> (Activates the next Taskbar button)
+ <E> (Opens the My Computer window)
+ <F1> (Opens Help and Support)
+ <F> (Opens the Find: All Files dialog box)
+ <R> (Opens the Run dialog box)
+ <M> (Minimizes all windows)
<shift>+ +< M> (Undoes the minimize all windows)
Application key This key has the same effect as clicking the right mouse button; it opens the
application’s context menu.
Desired access Num lock on Num lock off
