Chapter 1 1
Features
This computer was designed with the user in mind. Here are just a few of its many features:
Performance
TIntel® Pentium® M 715 ~ 755 or higher
TIntel® 855GM chipset
TMemory upgradeable up to 2 GB with 2 slots
THigh-capacity, Enhanced-IDE hard disk
TLi-ion main battery pack
TPower management system with ACPI (Advanced Configuration Power Interface)
Display
T12.1” Thin-Film Transistor (TFT) Liquid Crystal Display (LCD) displaying 32-bit high colour up to
1024*768 eXtended Graphics Array (XGA) resolution
T3D graphics engine
TSimultaneous LCD and CRT display support
TDual independent display support
TSupports simultaneous display between LCD and CRT display
Multimedia
T16-bit high-fidelity AC’97 stereo audio
TBuilt-in speaker
Connectivity
THigh-speed fax/data modem port
TEthernet/Fast Ethernet port
TFast infrared wireless communication
TTwo USB 2.0 ports
TIEEE 1394 port
TInviLinkTM 802.11 b/g wireless LAN and Wi-Fi®
TBluetooth® wireless communication
T100-pin Acer EasyPort or I/O port replicator connector
Expansion
TOne type II CardBus PC Card slot
TUpgradeable memory
System Specifications
Chapter 1

2Chapter 1
System Block Diagram
A A
B B
C C
D D
E E
4 4 3 3 2 2 1 1
CPU DC/DC
DCBATOUT
3D3V_S5
INPUTS
INPUTS
2D5V_S3 1D2V_S0
MAX1999/MAX1909
CPU_CORE_S0
INPUTS
Skylark II - SC
OUTPUTS
AD+
ISL6218
OUTPUTS
5V_S5
DCBATOUT
PAGE:34,36,37
VCC_CORE_S0
Switching Power
MAX1845
DCBATOUT
OUTPUTS
BT+
Switching Power
OTHER DC/DC
HUB I/F
Dothan
Mobile CPU HOST BUS
SO-DIMM*2
10,11,12
7,8,9
ICH4-M
LPC BUS
PCI BUS
Montara-GM (855GM)
CLK GEN.
ICS
MiniPCI
802.11a/b
CRT CONN
LVDS RGB
LCD
400MHz
66MHz
Line Out
OP AMP
MIC IN
DEBUG
KBC
33
M38857M8
FWH
49LF004A
CONN.
LPC
32
3333
INT KB
TOUCH PAD
29
RTL8100CL
LAN
5,6
3
32
FIR
PCB LAYER
30
L1:COMPONENT L7:GND L2:GND L6:SIGNAL3 L5:SIGNAL2 L4:VCC L3:SIGNAL1 L8:COMPONENT
22
15,16,17
PCI7420
Cardbus+1394
Power Switchs TSP2220 PCMCA
SLOT*1
1394 CONN*1
USB*2
MDC
AC-LINK
TXFM
RJ45 RJ11
ITP
pull-H/L
DDR SDRAM
200/266 MHZ
950810CG
USB
NS SIO
PC87392
(NS)
HDD
ATA100
SPEAKER
IMVP IV (INTERSIL) ISL6218
19,20
18
25
26
28
4
13 14
23
23
38
24 2121
24
21
26
(MITSUBISHI) (SST)
(LANCOM) LF-H80P (TI)
1D5V_S5 1D5V_S0 1D25V_S0 VCC_IO_S0
38
35,37
USB
(Bluetooth)
04. 21.~ 2004-SA 05. 23.~ 2004-SB 06. 29.~ 2004-SC
TFDU6102 (VISHAY)
Project Code : 91.47I01.001
CPU Thermal MAX6509
G768D(GMT) Van Cntl Temp Sensor 31
31
ALC655
G1421B
(GMT)
(TI)
SEARIAL
PORT LINE INPS2CRT PRINTER LINE OUTRJ45 MICUSB*2AC IN
Port Replicator (100 PIN)
27
(REALTEK)
(REALTEK)
AC'97 CODEC
DC/DC&CHARGER
5V_S3 3D3V_S3 5V_S0 3D3V_S0
PAGE: 39
VCC_IO_S0
Skylark II
SC
Block Diagram
A3
142Tuesday, July 20, 2004
Title Size Document Number Rev Date: Sheet of
Acer Incorporated 8F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan, R.O.C.

Chapter 1 3

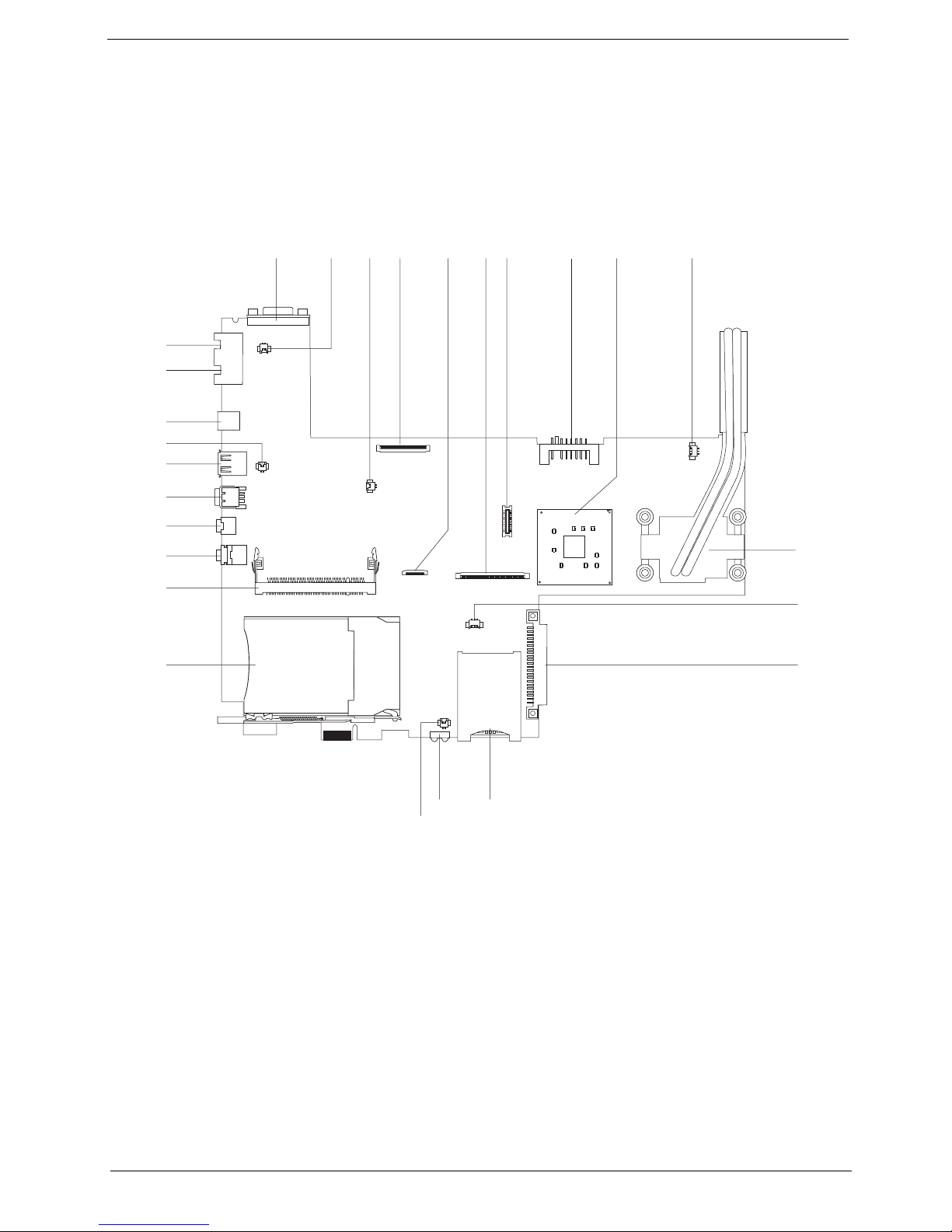

Board Layout
Top View
NOTE: The board layout is not ready as the service guide released. The board views (bot top and bottom) in
this chapter are for TravelMate 370. We will update the service guide as soon as we get the main board
layout.
1 External Display Port 14 3-in1 Card Reader Slot
2 Modem Cable Connector 15 Infrared Port
3 Speaker Connector 16 Microphone Connector
4 LCD FPC Connectors 17 PCMCIA Slot
5 Touchpad Board Connectors 18 Mini-PCI Slot
6 Keyboard Connector 19 Microphone/Line-in Jack
7 Modem Board Connector 20 Headphone/Speaker/Line-out Jack
8 Battery Connector 21 IEEE 1394 Port
9 North Bridge 22 USB Port
10 Fan Connector 23 Cover Switch Connector
11 CPU 24 DC-In
12 RTC Battery Connector 25 RJ45 Ethernet Connector
12
34567 9 10
12
13
14
15
16
17
18
19
20
21
22
23
24
26
8
11
25

4Chapter 1
Bottom View
13 HDD Connector 26 RJ11 Modem Connector
1 South Bridge 3 DIMM Slot
2 DIMM Slot 4 USB port
1
2
3
4

Chapter 1 5
Outlook View
A general introduction of ports allow you to connect peripheral devices, as you would with a desktop PC.
Open front view
#Item Description
1 Display screen Also called LCD (Liquid Crystal Display), displays computer output.
2 Status indicators LEDs (Light Emitting Diode) that turn on and off to show the status
of the computer and its components.
3 Power button Turns the computer on and off.
4 Launch keys Two special keys for frequently used programs.
5 Palmrest Comfortable support area for your hands when you use the
computer.
6 Click buttons (left,
center and right)
The left and right button functions are like the left and right mouse
buttons; the center button serves as a 4-way scroll button.
7 Touchpad Touch-sensitive pointing device which functions are like a computer
mouse.
8 Keyboard Inputs data into your computer.
9 Speaker Outputs sound.

6Chapter 1

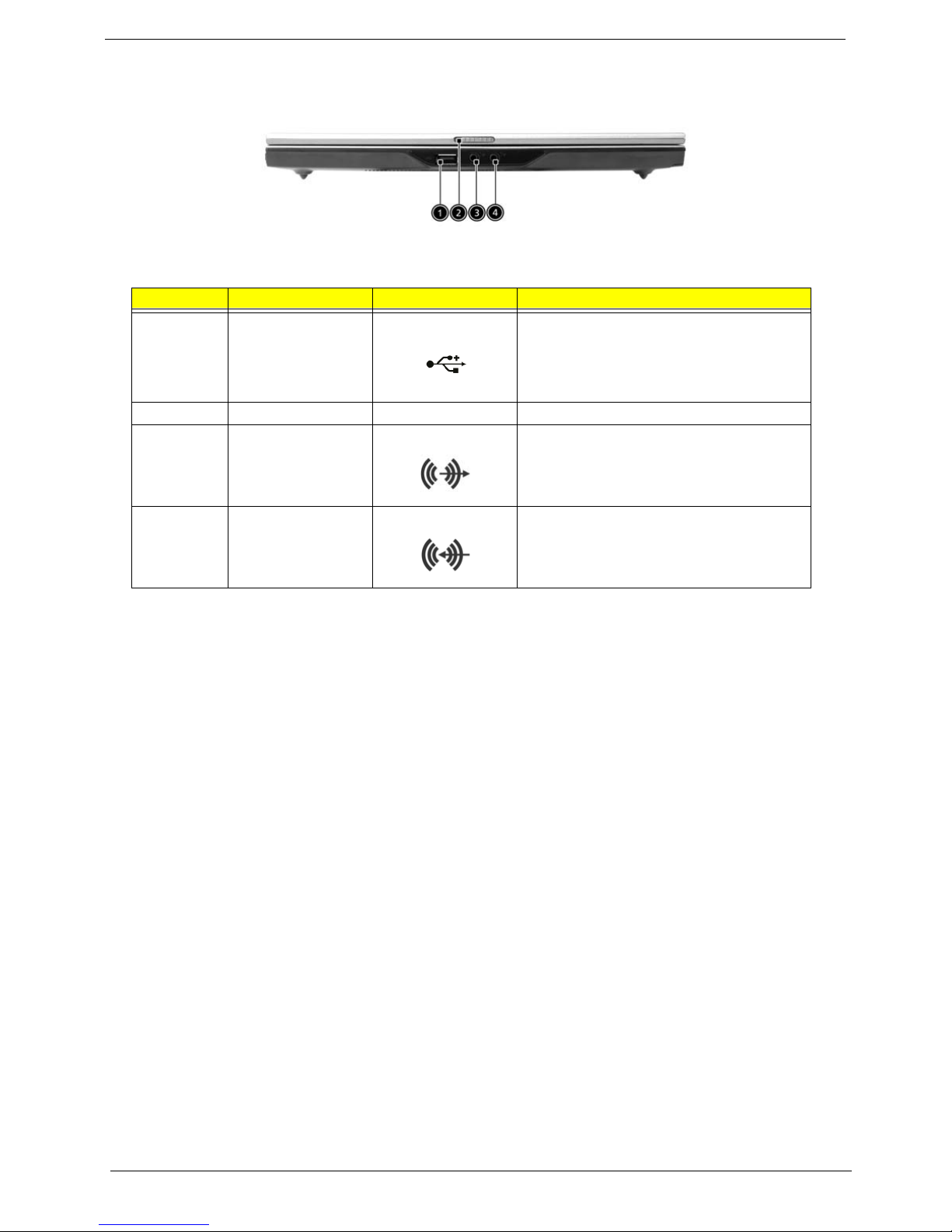

Front View
#Item Icon Description
1 USB 2.0 port Connects to Universal Serial Bus devices (e.g.
USB mouse, USB camera).
2 Latch Latch for opening and closing the computer.
3 Headphone/Speaker/
Line-out (SPDIF) jack
Connects to headphones or other line-out audio
devices (speaker).
4 Microphone/Line-in
jack
Accepts input from external microphones.

Chapter 1 7
Left view
#Item Description
1 Modem port Connects to a phone line.
2 Ethernet port Connects to an Ethernet 10/100-based network.
3 EasyPort Connects to Acer EasyPort or I/O port replicator.
4 DC-in jack Connects the AC adapter.
5 IEEE 1394 port Connects to IEEE 1394 devices.
6 PC Card slot Accepts one Type II 16-bit PC Card or 32-bit
CardBus PC Card.
7 Eject button Eject the PC Card from the slot.

8Chapter 1

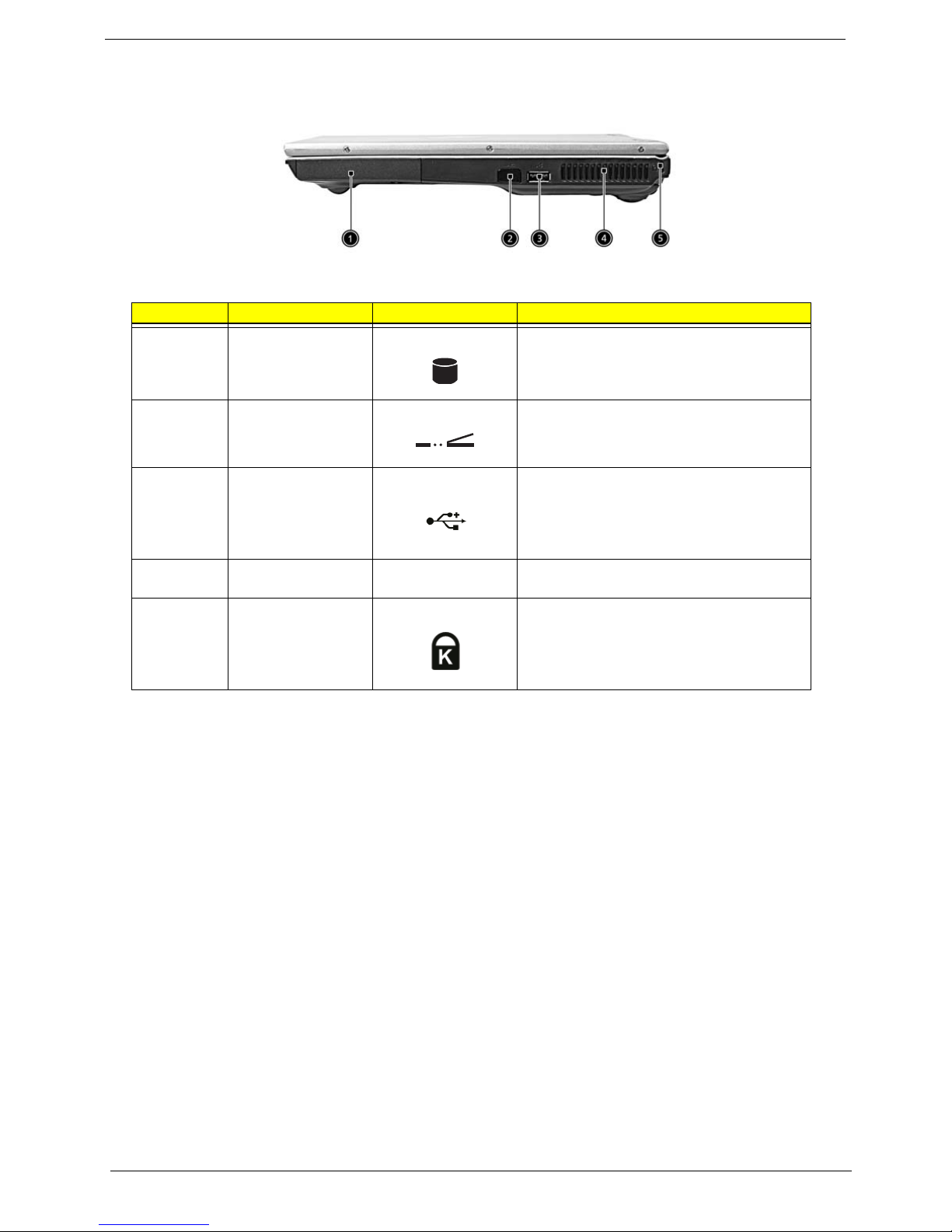

Right view
#Item Icon Description
1 HDD Houses the computer’s hard disk.
2 Infrared port Connects to Universal Serial Bus devices (e.g.,
USB mouse, USB camera).
3 USB 2.0 ports Connects to Universal Serial Bus devices (e.g.,
USB mouse, USB camera).
4 Ventilation slot Enable the computer to stay cool, even after
prolonged use.
5 Security keylock Connects to a Kensington-compatible computer
security lock.

Chapter 1 9
Rear view
#Item Description
1 Battery release latch Unlatches the battery to remove the battery pack.
External display port Connects to a display device (e.g., external
monitor, LCD projector) and displays up to 16.7
million colors with 2048 x 1536 pixel resolution.

10 Chapter 1
Bottom Panel
#Item Description
1 Memory compartment This compartment houses the computer’s main
memory.
2 Battery bay Houses the computer’s battery pack.
3 Ventilation slot Enables the computer to stay cool, even after
prolonged use.

Chapter 1 11
Indicators
The computer has seven easy-to-read status indicators on the display screen and three on the LCD panel.
The Wireless, Power and Sleep status indicators are visible even when the display is closed.
Icon Function Description
InviLinkTM /Bluetooth® Orange indicates that wireless LAN is enabled.
Blue indicates that Bluetooth® is enabled.
Power mode Lights green when power is on and standby
mode.
Sleep Lights when the computer enters standby mode
and blinks when it enters into or resumes from
hibernation mode.
Media activity Lights when the floppy drive, hard disk drive or
optical drive is active.
Battery charge Lights when the battery is being charged.
Caps lock Lights when Caps Lock is activated.
Num lock Lights when Num Lock is activated.

12 Chapter 1
Keyboard
The keyboard features full-size keys with an embedded keypad, separate cursor control keys, two Windows
keys, and twelve function keys.

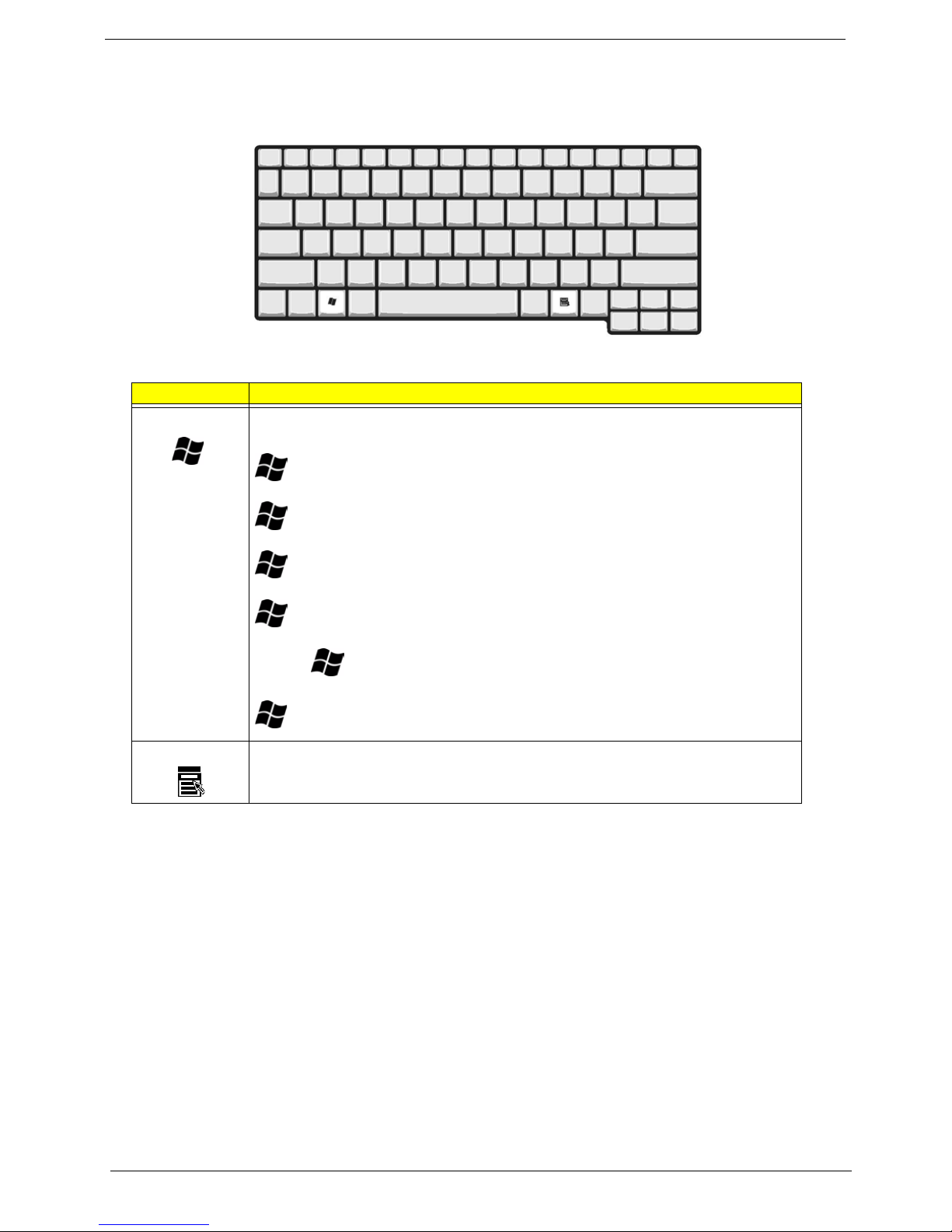

Special keys
Lock keys
The keyboard has three lock keys which you can toggle on and off.
Lock Key Description
Caps Lock When Caps Lock is on, all alphabetic characters are typed in uppercase.
Num lock
(Fn-F11)
When Num Lock is on, the embedded numeric keyboard can be used. The keys
function as a calculator (complete with the arithmetic operator +, -, *, and /). Use
this mode when you need to do a lot of numeric data entry. A better solution
would be to connect an external keypad.
Scroll lock
(Fn-F12)
When Scroll Lock is on, the screen moves one line up or down when you press
the up or down arrow keys respectively. Scroll Lock does not work with some
applications.

Chapter 1 13

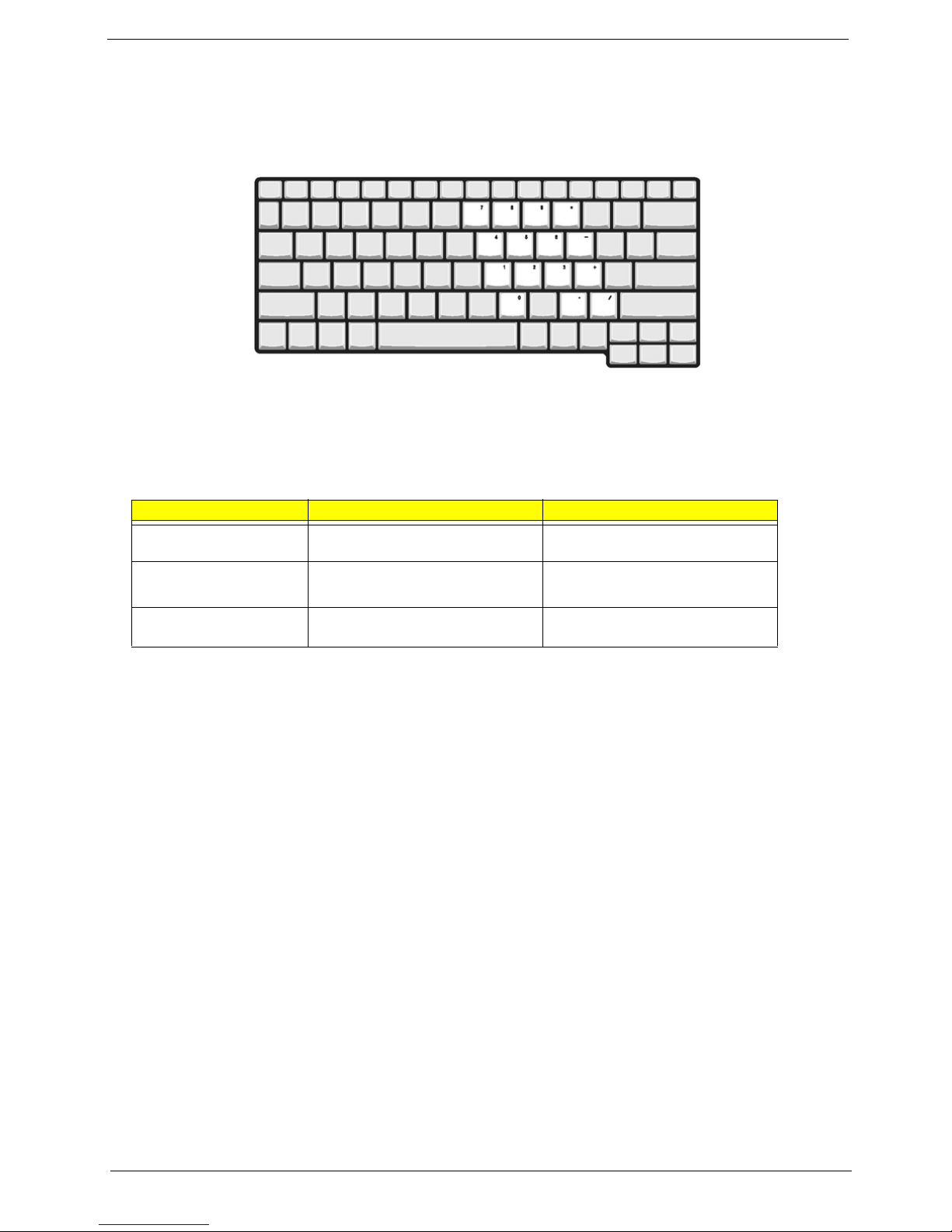

Embedded Keypad
The embedded keypad functions like a desktop numeric keypad. It is indicated by small characters located on
the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not
printed on the keys.
To use the embedded numeric keys, toggle the Num Lock on by pressing the Fn + F11 keys simultaneously.
With the embedded keypad turned on, the following actions are possible:
NOTE: If an external keyboard or keypad is connected to the computer, the Num Lock feature automatically
shifts from the internal keyboard to the external keyboard or keypad.
Desired Access Num Lock On Num Lock On
Number keys on embedded
keypad
Type numbers in the normal manner.
Cursor-control keys on
embedded keypad Hold jwhile using cursor-control
keys.
Hold Fn key while using cursor-control
keys.
Main keyboard keys Hold Fn key while typing letters on
embedded keypad.
Type the letters in the normal manner.

14 Chapter 1
Windows Keys
The keyboard has two keys that perform Windows-specific functions.
Key Description
Windows logo key Pressed alone, this key has the same effect as clicking on the Windows Start button; it
launches the Start menu. It can also be used with other keys to provide a variety of functions:
+ Tab (Activates the next Taskbar button)
+ E (Explores the My Computer)
+ F (Finds Document)
+ M (Minimizes all windows)
j+ + M (Undoes the minimize all windows action)
+ R (Displays the Run... dialog box)
Application key This key has the same effect as clicking the right mouse button; it opens the application’s
context menu.
