First things first
We would like to thank you for making an Acer notebook your choice for
meeting your mobile computing needs.
Your guides
To help you use your Acer notebook, we have designed a set of guides:
Basic care and tips for using your computer
Turning your computer on and off
To turn on the computer, simply press and release the power button below the
LCD screen beside the easy-launch buttons. See "Front view" on page 1 for the
location of the power button.
First off, the Just for Starters... poster helps you get started with
setting up your computer.
The printed User's Guide introduces you to the basic features and
functions of your new computer. For more on how your computer
can help you to be more productive, please refer to the
AcerSystem User's Guide. This guide contains detailed
information on such subjects as system utilities, data recovery,
expansion options and troubleshooting. In addition it contains
warranty information and the general regulations and safety
notices for your notebook. It is available in Portable Document
Format (PDF) and comes preloaded on your notebook. Follow
these steps to access it:
1 Click on Start, All Programs, AcerSystem.
2 Click on AcerSystem User's Guide.
Note: Viewing the file requires Adobe Reader. If Adobe Reader is
not installed on your computer, clicking on AcerSystem User's
Guide will run the Adobe Reader setup program first. Follow the
instructions on the screen to complete the installation. For
instructions on how to use Adobe Reader, access the Help and
Support menu.

v
To turn the power off, do any of the following:
•Use the Windows shutdown command
Click on Start, Turn Off Computer, then click on Turn Off.
•Use the power button
You can also shut down the computer by closing the display cover, or by
pressing the sleep hotkey <Fn> + <F4>.
Note: If you cannot power off the computer normally, press and
hold the power button for more than four seconds to shut down
the computer. If you turn off the computer and want to turn it on
again, wait at least two seconds before powering up.
Taking care of your computer
Your computer will serve you well if you take care of it.
•Do not expose the computer to direct sunlight. Do not place it near sources
of heat, such as a radiator.
•Do not expose the computer to temperatures below 0 ºC (32 ºF) or above
50 ºC (122 ºF).
•Do not subject the computer to magnetic fields.
•Do not expose the computer to rain or moisture.
•Do not spill water or any liquid on the computer.
•Do not subject the computer to heavy shock or vibration.
•Do not expose the computer to dust or dirt.
•Never place objects on top of the computer.
•Do not slam the computer display when you close it.
•Never place the computer on uneven surfaces.
Taking care of your AC adapter
Here are some ways to take care of your AC adapter:
•Do not connect the adapter to any other device.
•Do not step on the power cord or place heavy objects on top of it.
Carefully route the power cord and any cables away from foot traffic.
•When unplugging the power cord, do not pull on the cord itself but pull
on the plug.
•The total ampere ratings of the equipment plugged in should not exceed
the ampere rating of the cord if you are using an extension cord. Also, the
total current rating of all equipment plugged into a single wall outlet
should not exceed the fuse rating.

vi
Taking care of your battery pack
Here are some ways to take care of your battery pack:
•Use only batteries of the same kind as replacements. Turn the power off
before removing or replacing batteries.
•Do not tamper with batteries. Keep them away from children.
•Dispose of used batteries according to local regulations. Recycle if possible.
Cleaning and servicing
When cleaning the computer, follow these steps:
1 Turn off the computer and remove the battery pack.
2 Disconnect the AC adapter.
3 Use a soft, moist cloth. Do not use liquid or aerosol cleaners.
If either of the following occurs:
•the computer has been dropped or the body has been damaged;
•the computer does not operate normally
please refer to "Frequently asked questions" on page 23.
Caution
Changes or modifications not expressly approved by the manufacturer could
void the user's authority, which is granted by the Federal Communications
Commission, to operate this computer.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) This device must accept any interference received, including
interference that may cause undesired operation.
Users are requested to follow the RF safety instructions for wireless option
devices that are included in the user's manual of each RF option device.
An improper installation or unauthorized use may cause harmful interference
to radio communications. Also, any tampering of the internal antenna will void
the FCC certification and your warranty.
To prevent radio interference to the licensed service, this device is intended to
be operated indoors, and installation outdoors is subject to licensing.
For more information about our products, services, and support information,
please visit our website: http://global.acer.com.

Disposal instructions iii
First things first iv
Your guides iv
Basic care and tips for using your computer iv
Turning your computer on and off iv
Taking care of your computer v
Taking care of your AC adapter v
Taking care of your battery pack vi
Cleaning and servicing vi
Your Acer notebook tour 1
Front view 1
Closed front view 2
Left view 3
Right view 3
Rear view 4
Base view 5
Specifications 6
Indicators 9
Easy-launch buttons 10
Touchpad 11
Touchpad basics 11
Using the keyboard 13
Lock keys and embedded numeric keypad 13
Windows keys 14
Hotkeys 14
Special keys 16
Ejecting the optical (CD or DVD) drive tray 17
Using a computer security lock 17
Audio 18
Adjusting the volume 18
Using the system utilities 19
Acer eManager 19
Acer GridVista (dual-display compatible) 20
Launch Manager 21
Norton AntiVirus 22
Frequently asked questions 23
Requesting service 26
International Travelers Warranty (ITW) 26
Before you call 26
Arcade (for selected models) 27
Arcade hotkeys 28
The Arcade remote control (for selected models) 29
Finding and playing content 30
Advanced Settings 30
Arcade controls 30
Navigation controls 31
Player controls 31
Contents

Cinema 31
DVD settings 32
Album 33
Slideshow settings 34
Video 35
Playing a video file 35
Video Authoring 35
Music 36
Burner 36
Copy — backup your CD/DVD collection 36
Audio — create your own greatest hits CDs 36
Data — store files simply and easily 36
Video — your world in pictures 36
TV (for selected models) 37
Instant Replay 37
Recorded TV 38
Scheduling Recordings 38
TV Preview 38
Using TeleText Functions 38
TV Settings 39
Taking your notebook PC with you 41
Disconnecting from the desktop 41
Moving around 41
Preparing the computer 41
What to bring to meetings 42
Taking the computer home 42
Preparing the computer 42
What to take with you 42
Special considerations 43
Setting up a home office 43
Traveling with the computer 43
Preparing the computer 43
What to take with you 43
Special considerations 44
Traveling internationally with the computer 44
Preparing the computer 44
What to bring with you 44
Special considerations 44
Securing your computer 45
Using a computer security lock 45
Using passwords 45
Entering passwords 46
Setting passwords 46
Expanding through options 47
Connectivity options 47
Fax/data modem 47
Built-in network feature 48

Universal Serial Bus (USB) 48
PC Card slot 49
Installing memory 49
BIOS utility 50
Boot sequence 50
Enable disk-to-disk recovery 51
Password 51
Using software 52
Playing DVD movies 52
Power management 53
Acer eRecovery 53
Create backup 53
Restore from backup 54
Create factory default image CD 54
Re-install bundled software without CD 55
Change password 55
Troubleshooting 56
Troubleshooting tips 56
Error messages 56
Regulations and safety notices 58
ENERGY STAR guidelines compliance 58
FCC notice 58
Modem notices 59
Important safety instructions 62
Laser compliance statement 64
LCD pixel statement 64
Macrovision copyright protection notice 64
Radio device regulatory notice 65
General 65
European Union (EU) 65
The FCC RF safety requirement 66
Canada — Low-power license-exempt radio
communication devices (RSS-210) 67
Federal Communications Comission
Declaration of Conformity 68
Declaration of Conformity for CE Marking 69
Index 70

1
English
Your Acer notebook tour
After setting up your computer as illustrated in the Just for Starters... poster,
let us show you around your new Acer notebook.

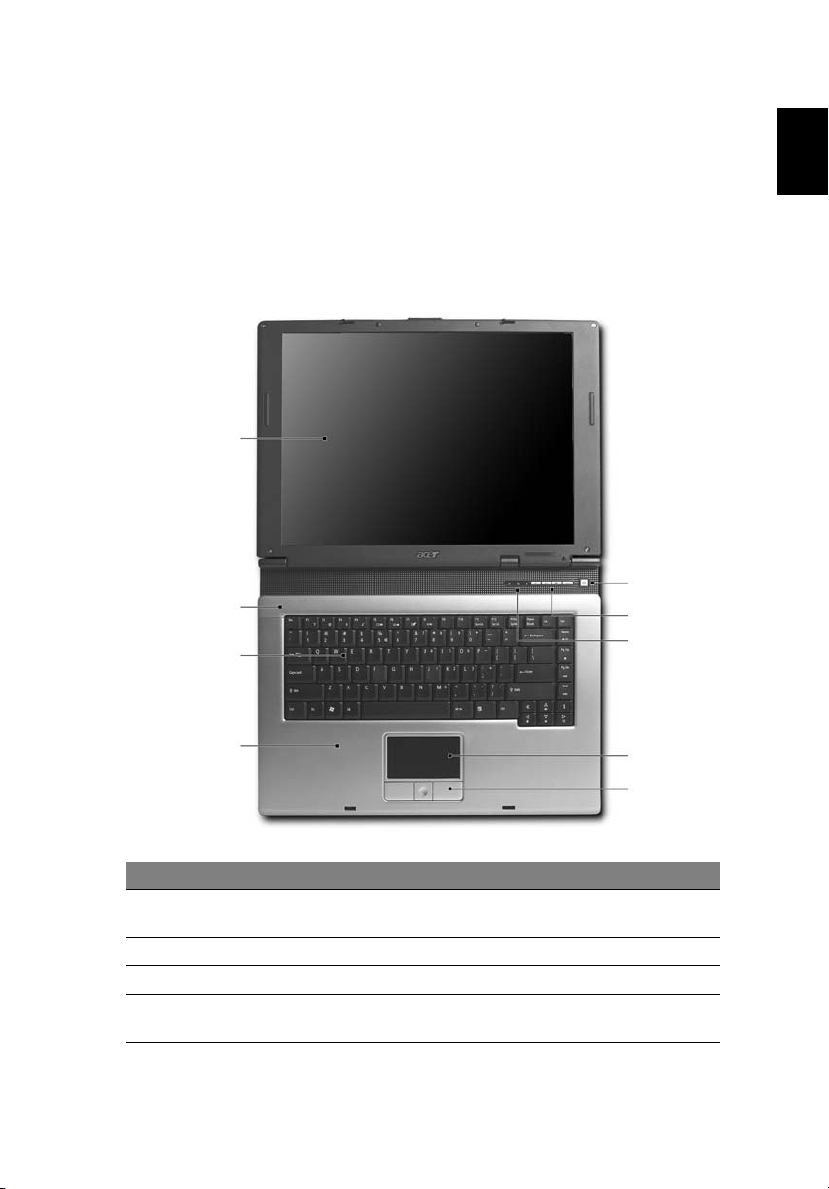

Front view
#Item Description
1 Display screen Also called Liquid-Crystal Display (LCD), displays
computer output.
2 Microphone Internal microphone for sound recording.
3 Keyboard For entering data into your computer.
4 Palmrest Comfortable support area for your hands when you use
the computer.
1
2
4
3
5
6
7
8
9

2
English
Closed front view
5 Click buttons
(left, center
and right)
The left and right buttons function like the left and
right mouse buttons; the center button serves as a 4-way
scroll button.
6 Touchpad Touch-sensitive pointing device which functions like a
computer mouse.
7 Status
indicators
Light-Emitting Diodes (LEDs) that light up to show the
status of the computer's functions and components.
8 Easy-launch
buttons
Buttons for launching frequently used programs.
See "Easy-launch buttons" on page 10 for more details.
9 Power button Turns the computer on and off.
#Icon Item Description
1 Speakers Left and right speakers deliver stereo
audio output.
2 Power indicator Indicates the computer's power status.
3 Battery indicator Indicates the computer's batttery status.
4Bluetooth
communication
button/indicator
Press to enable/disable the Bluetooth
function. Indicates the status of
Bluetooth communication (optional).
5 Wireless
communication
button/indicator
Press to enable/disable the wireless
function. Indicates the status of wireless
LAN communication (optional).
6 Line-in jack Accepts audio line-in devices (e.g., audio
CD player, stereo walkman).
7 Microphone-in jack Accepts input from external
microphones.
#Item Description
10

3
English
Left view
Right view
8 Headphones/speaker/
line-out jack
Connects to audio line-out devices (e.g.,
speakers, headphones).
9 USB 2.0 port Connects to USB 2.0 devices (e.g., USB
mouse, USB camera).
10 Latch Locks and releases the lid.
#Item Description
1 Optical drive Internal optical drive; accepts CDs or DVDs (slot-load
or tray-load depending on model).
2 Optical disk access
indicator
Lights up when the optical drive is active.
3 Optical drive eject
button
Ejects the optical disk from the drive.
4 Emergency eject
hole
Ejects the optical drive tray when the computer is
turned off.
#Icon Item Description
1 PC Card slot eject
button
Ejects the PC Card from the slot.
#Icon Item Description

4
English

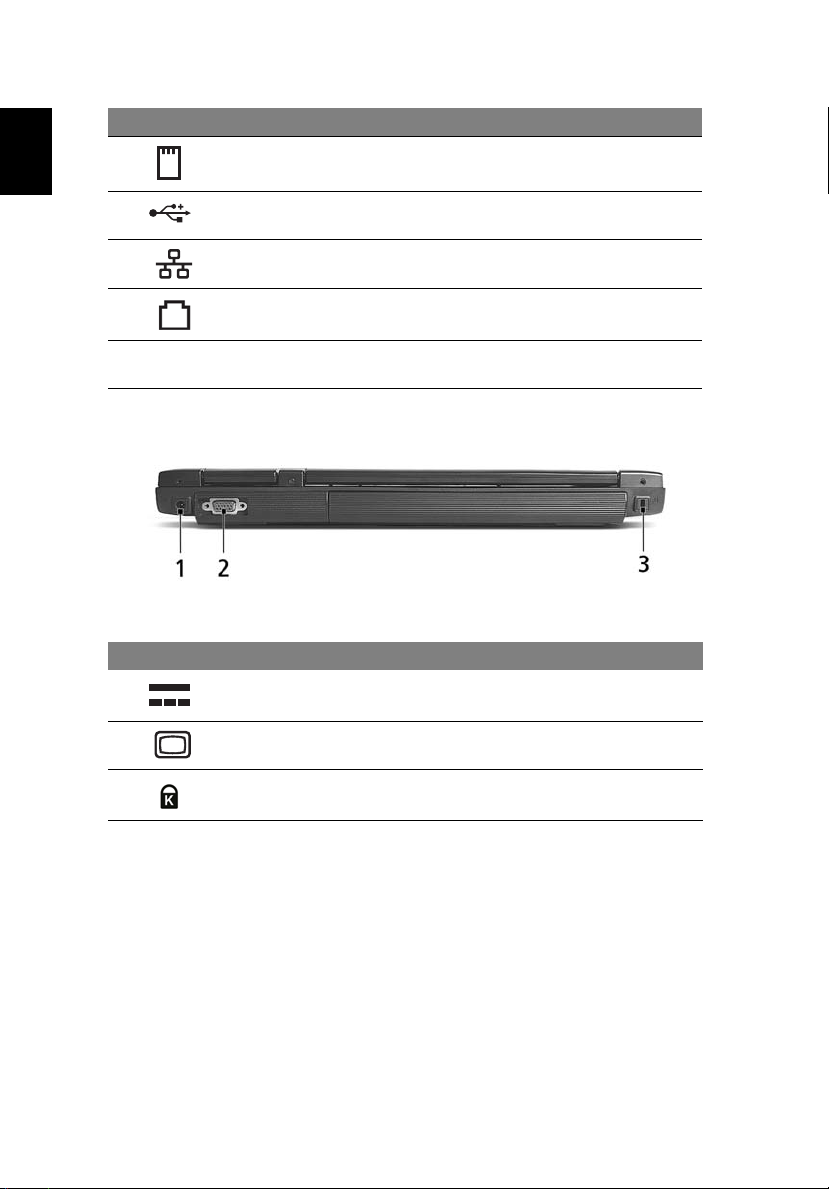

Rear view
2 PC Card slot Accepts one Type II PC Card.
3 Two USB 2.0
ports
Connect to USB 2.0 devices (e.g., USB mouse,
USB camera).
4 Ethernet (RJ-45)
port
Connects to an Ethernet 10/100-based
network.
5 Modem (RJ-11)
port
Connects to a phone line.
6 Ventilation slots Enable the computer to stay cool, even after
prolonged use.
#Icon Item Description
1 DC-in jack Connects to an AC adapter.
2 External display
(VGA) port
Connects to a display device (e.g., external
monitor, LCD projector).
3 Kensington lock slot Connects to a Kensington-compatible
computer security lock.
#Icon Item Description

5
English

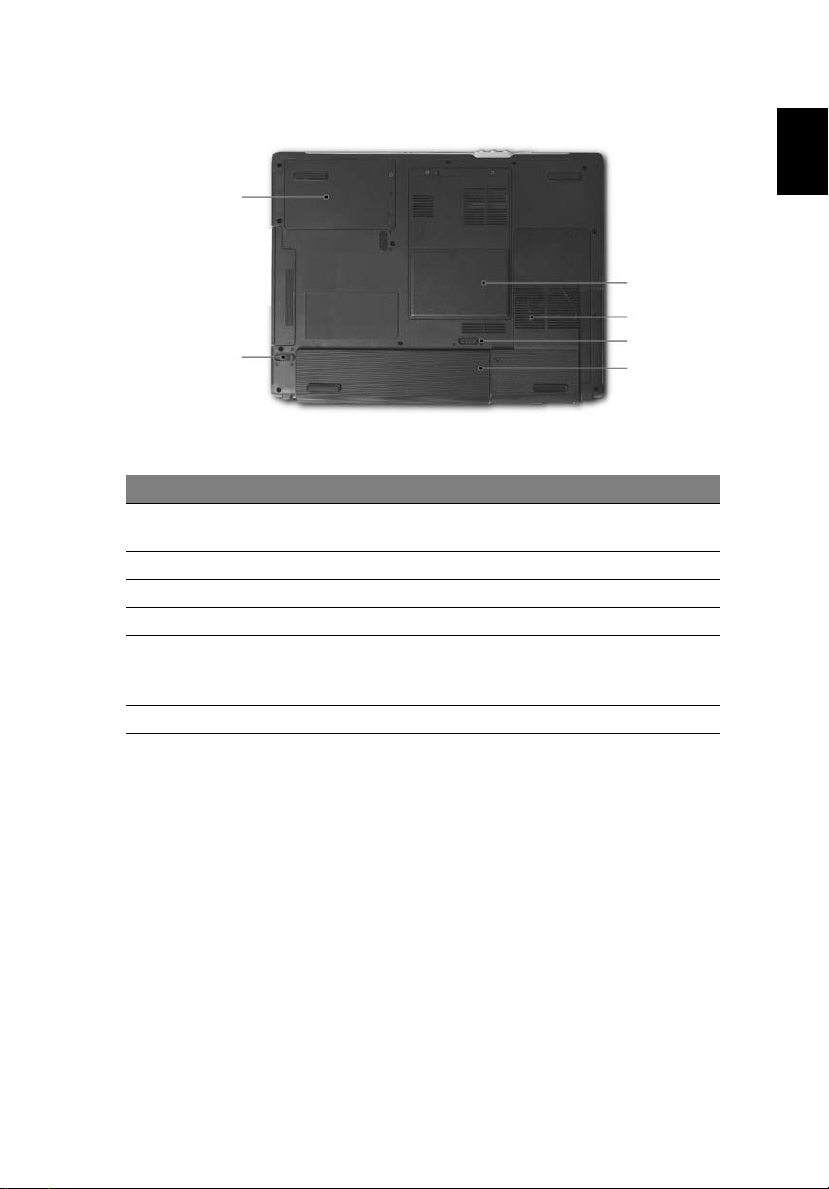

Base view
#Item Description
1 Hard disk bay Houses the computer's hard disk (secured with
screws).
2 Battery release latch Releases the battery for removal.
3 Battery bay Houses the computer's battery pack.
4 Battery lock Locks the battery in position.
5 Cooling fan Helps keep the computer cool.
Note: Do not cover or obstruct the opening of
the fan.
6 Memory compartment Houses the computer's main memory.
1
23
4
5
6

6
English
Specifications
Operating
system Genuine Windows®XP Home Edition
Genuine Windows®XP Professional
Platform •Intel®Pentium®M processor 735A (2 MB L2 cache, 1.70
GHz, 400 MHz FSB)
•Intel®Celeron®M processor 370/380/390 (1 MB L2
cache, 1.50/1.60/1.70 GHz, 400 MHz FSB)
SiS®M661MX / 963L / 302ELV (LVDS) chipset
System memory 256/512 MB or 1 GB of DDR333 MHz memory, upgradeable
to 2 GB using two soDIMM modules (dual-channel support)
Display and
graphics
15" XGA color TFT LCD with 1024 x 768 pixel resolution
15.4" WXGA color TFT LCD with 1280 x 800 pixel resolution
15.4" WXGA Acer CrystalBrite™color TFT LCD with 1280 x
800 pixel resolution
16.7 million colors
SiS®M661MX integrated 3D graphics with up to 64 MB of
VRAM, supporting Microsoft®DirectX®7.0 and dual
independent display
MPEG-2/DVD hardware-assisted capability
Acer CinemaVision™video technology (Acer Arcade)
Acer ClearVision™video optimization technology
(Acer Arcade)
Storage
subsystem
40/60/80/100 GB ATA/100 hard disk drive
Acer optical drive options:
•DVD-Dual
•DVD/CD-RW combo
Dimensions and
weight
364 (W) x 279 (D) x 33.9/38.9 (H) mm
2.76 kg (6.08 lbs.) for 15" LCD model
2.8 kg (6.17 lbs.) for 15.4"LCD model
Power
subsystem
ACPI 1.0b CPU power management standard: supports
Standby and Hibernation power-saving modes
29.6 W Li-ion battery pack (4-cell)
2.5-hour rapid charge; 3.5-hour charge-in-use
65 W AC adapter

7
English
Input devices 88-/89-key keyboard, 2.7 mm (minimum) key travel,
international language support
Touchpad with 4-way scroll button
12 function keys, four cursor keys, two Windows®keys,
hotkey controls, embedded numeric keypad
Six easy-launch buttons: Empowering Key, email, Internet,
WLAN, Bluetooth®, user-programmable button
Audio Audio system with two built-in speakers
MS Sound compatible
Communication WLAN: MINI PCI®802.11b/g dual-band connection,
supporting Acer SignalUp™wireless technology
(manufacturing option)
WPAN: Bluetooth®
LAN: 10/100 Mbps Fast Ethernet;
Wake-on-LAN ready
Modem: 56K ITU V.92 with PTT approval;
Wake-on-Ring ready
I/O interface Three USB 2.0 ports
PC Card slot (one Type II)
External display (VGA) port
Microphone/line-in jack
Headphones/speaker/line-out jack
Ethernet (RJ-45) port
Modem (RJ-11) port
DC-in jack for AC adapter
Software Acer eManager (eSettings, ePresentation, eRecovery)
Acer Arcade
Acer GridVista™
Acer Launch Manager
Acer System Recovery CD
Norton AntiVirus™
Adobe®Reader®
NTI CD-Maker™
Options and
accessories
256/512 MB or 1 GB DDR SDRAM soDIMM modules
Li-ion battery pack
65 W AC adapter
Environment Temperature:
Operating: 5 °C to 35 °C
Non-operating: -20 °C to 65 °C
Humidity (non-condensing):
Operating: 20% to 80%
Non-operating: 20% to 80%

8
English
Note: The specifications listed above are for reference only. The
exact configuration of your PC depends on the model purchased.
System
compliance Wi-Fi®
ACPI 1.0b
Mobile PC 2002
DMI 2.0
Warranty One-year International Travelers Warranty (ITW)

9
English

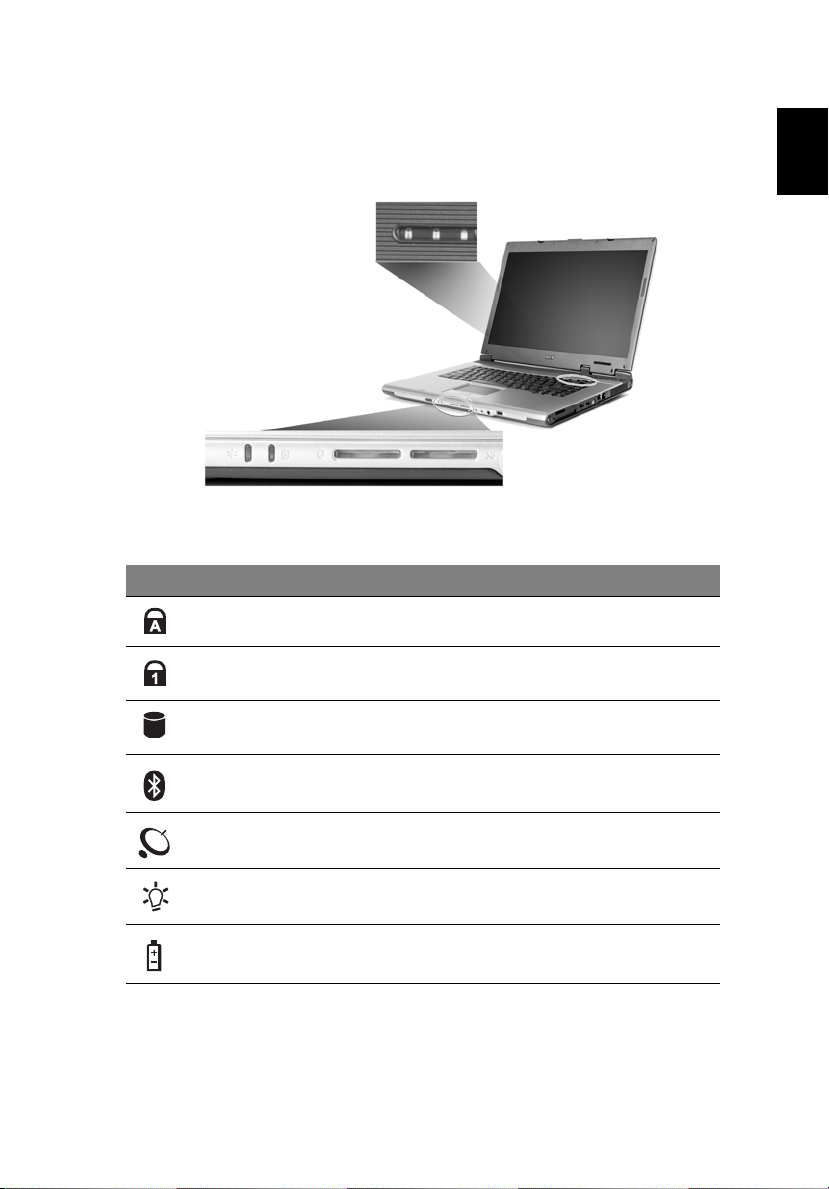

Indicators
The computer has seven easy-to-read status indicators, including four on the
front panel.
The power, battery and wireless communication status indicators are visible
even when the LCD display is closed.
Icon Function Description
Caps Lock Lights up when Caps Lock is activated.
Num Lock Lights up when Num Lock is activated.
HDD Indicates when the hard disk drive is active.
Bluetooth Indicates the status of Bluetooth communication.
Wireless LAN Indicates the status of wireless LAN communication.
Power Indicates the computer's power status.
Battery Indicates the computer's batttery status.

10
English
1. Charging: The light shows amber when the battery is charging.
2. Fully charged: The light shows green when in AC mode.
Easy-launch buttons
Located above the keyboard are four buttons. These buttons are called
easy-launch buttons. They are: mail, Web browser, Empowering Key < > and
one user-programmable button.
Press < > to run the Acer eManager. Please see "Acer eManager" on page
19. The mail and Web browser buttons are pre-set to email and Internet
programs, but can be reset by users. To set the Web browser, mail and
programmable buttons, run the Acer Launch Manager. See "Launch Manager"
on page 21.
Easy-launch button Default application
PUser-programmable
Acer eManager (user-programmable)
Web browser Internet browser (user-programmable)
Mail Email application (user-programmable)
