Aspire 4540/4240 Series Quick Guide
Original Issue: 07/2009
Aspire 4540/4240 Series Notebook PC
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies'
product names or trademarks are used herein for identification purposes only and belong to
their respective companies.

3
First things first
We would like to thank you for making an Acer notebook your choice for
meeting your mobile computing needs.
Your guides
To help you use your Acer notebook, we have designed a set of guides:
First off, the Just for Starters... poster helps you get started with setting up your
computer.
The Aspire Series Generic User Guide contains useful information applying to all
models in the Aspire product series. It covers basic topics such as Acer's
Empowering Technology, using the keyboard, audio, etc. Please understand
that due to its nature, the Generic User Guide as well as the AcerSystem User
Guide mentioned below will occasionally refer to functions or features which
are only contained in certain models of the series, but not necessarily in the
model you purchased. Such instances are marked in the text with language such
as "only for certain models".
The Quick Guide introduces you to the basic features and functions of your new
computer. For more on how your computer can help you to be more productive,
please refer to the AcerSystem User Guide. This guide contains detailed
information on such subjects as system utilities, data recovery, expansion
options and troubleshooting. In addition it contains warranty information and
the general regulations and safety notices for your notebook. It is available in
Portable Document Format (PDF) and comes preloaded on your notebook.
Follow these steps to access it:
1 Click on Start, All Programs, AcerSystem.
2 Click on AcerSystem User Guide.
Note: Viewing the file requires Adobe Reader. If Adobe Reader is not
installed on your computer, clicking on AcerSystem User Guide will run the
Adobe Reader setup program first. Follow the instructions on the screen to
complete the installation. For instructions on how to use Adobe Reader,
access the Help and Support menu.

4
English
Your Acer notebook tour
After setting up your computer as illustrated in the Just for Starters... poster,
let us show you around your new Acer notebook.
Top view
#Icon Item Description
1 Acer Crystal Eye
webcam
Web camera for video communication.
(only for certain models)
2 Microphone Internal microphone for sound recording.
3 Display screen Also called Liquid-Crystal Display (LCD),
displays computer output (Configuration
may vary by models).

5
English
4 Power button Turns the computer on and off.
5 HDD Indicates when the hard disk drive is
active.
Num Lock Lights up when Num Lock is activated.
Caps Lock Lights up when Caps Lock is activated.
6 Keyboard For entering data into your computer.
7 Palmrest Comfortable support area for your hands
when you use the computer.
8Power1Indicates the computer's power status.
Battery1Indicates the computer's battery status.
1. Charging: The light shows amber when
the battery is charging.
2. Fully charged: The light shows blue
when in AC mode.
9 Click buttons (left,
center* and right)
The left and right buttons function like
the left and right mouse buttons. *The
center button serves as Acer Bio-
Protection fingerprint reader supporting
Acer FingerNav 4-way control function
(only for certain models).
10 Touchpad Touch-sensitive pointing device which
functions like a computer mouse.
11 Touchpad toggle Turns the internal touchpad on and off.
12 +/- Volume Up/
Volume Down
Increase system volume/decrease system
volume.
13 PProgrammable
key
User-programmable.
Backup key Launches Acer Backup Management for
three-step data backup.
Wireless LAN
communication
button/indicator
Enables/disables the wireless LAN
function. Indicates the status of wireless
LAN communication.
Bluetooth
communication
button/indicator
Enables/disables the Bluetooth function.
Indicates the status of Bluetooth
communication. (only for certain models)
#Icon Item Description

6
English
1. The front panel indicators are visible even when the computer cover is closed
up.
Hotkeys
The computer employs hotkeys or key combinations to access most of the
computer's controls like screen brightness, volume output.
To activate hotkeys, press and hold the <Fn> key before pressing the other key
in the hotkey combination.
14 Speakers Left and right speakers deliver stereo
audio output.
Hotkey Icon Function Description
<Fn> + <F2> System
property
Starts System Property for displaying
system information.
<Fn> + <F3> Bluetooth Enables/disables the Bluetooth
function. (only for certain models)
<Fn> + <F4> Sleep Puts the computer in Sleep mode.
<Fn> + <F5> Display toggle Switches display output between the
display screen, external monitor (if
connected) and both.
<Fn> + <F6> Screen blank Turns the display screen backlight off
to save power. Press any key to
return.
<Fn> + <F8> Speaker
toggle
Turns the speakers on and off.
<Fn> + < > Brightness up Increases the screen brightness.
<Fn> + < > Brightness
down
Decreases the screen brightness.
<Fn> + < > Volume up Increases the sound volume
(only for certain models).
<Fn> + < > Volume down Decreases the sound volume
(only for certain models).
#Icon Item Description

7
English
Closed front view
Rear view
#Icon Item Description
1 Multi-in-1 card reader Accepts Secure Digital (SD),
MultiMediaCard (MMC), Memory
Stick (MS), Memory Stick Pro (MS
PRO), and xD-Picture Card.
Note: Push to remove/install the
card. Only one card can operate at
any given time.
#Item Description
1 Ventilation slots Enable the computer to stay cool, even after
prolonged use.

8
English

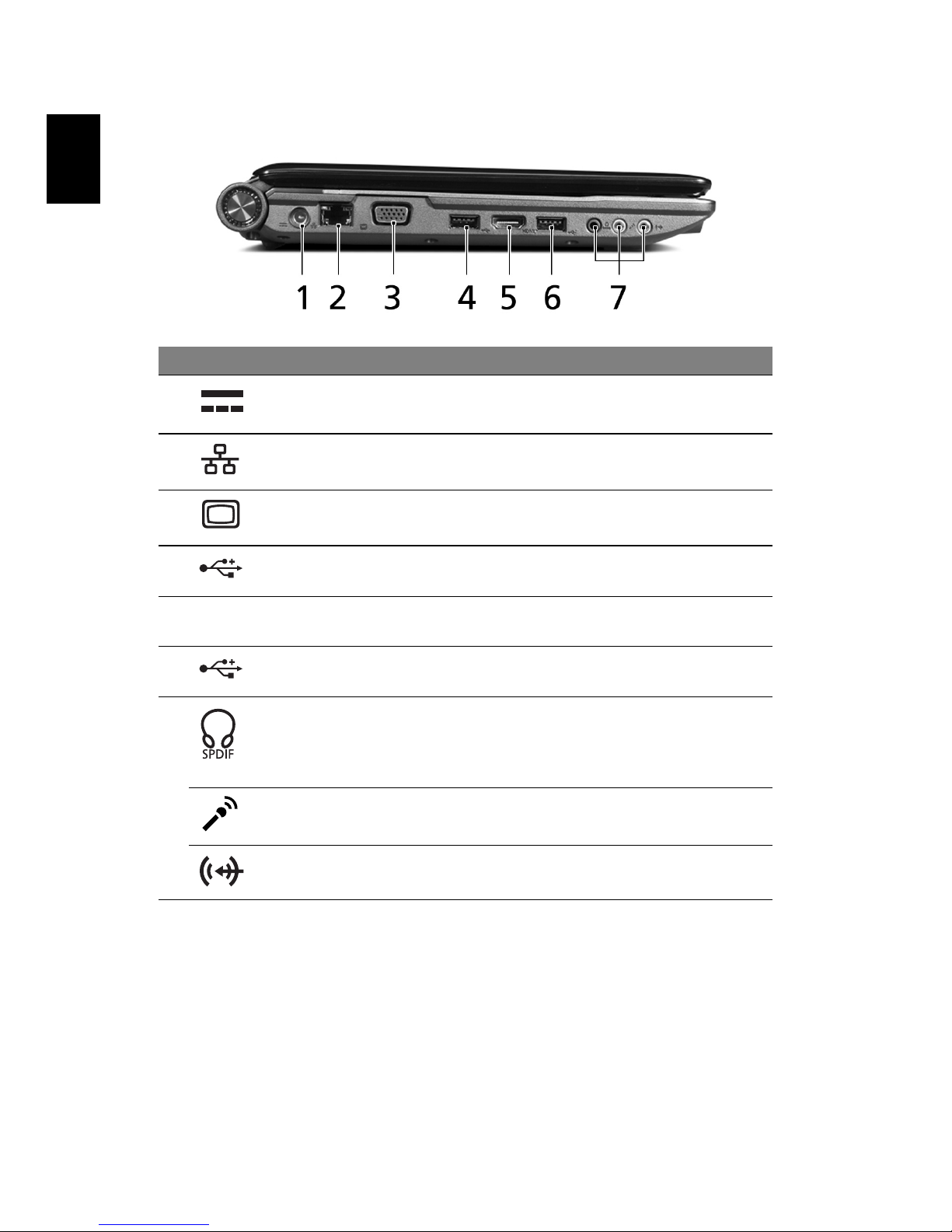

Left view
#Icon Item Description
1 DC-in jack Connects to an AC adapter.
2 Ethernet (RJ-45)
port
Connects to an Ethernet 10/100/1000-
based network.
3 External display
(VGA) port
Connects to a display device (e.g.,
external monitor, LCD projector).
4 USB 2.0 port Connects to USB 2.0 devices (e.g., USB
mouse, USB camera).
5 HDMI HDMI port Supports high definition digital video
connections (only for certain models).
6 USB 2.0 port Connects to USB 2.0 devices (e.g., USB
mouse, USB camera).
7 Headphones/
speaker/line-out
jack with
S/PDIF support
Connects to audio line-out devices
(e.g., speakers, headphones).
Microphone jack Accepts inputs from external
microphones.
Line-in jack Accepts audio line-in devices (e.g., audio
CD player, stereo walkman, mp3 player)

9
English

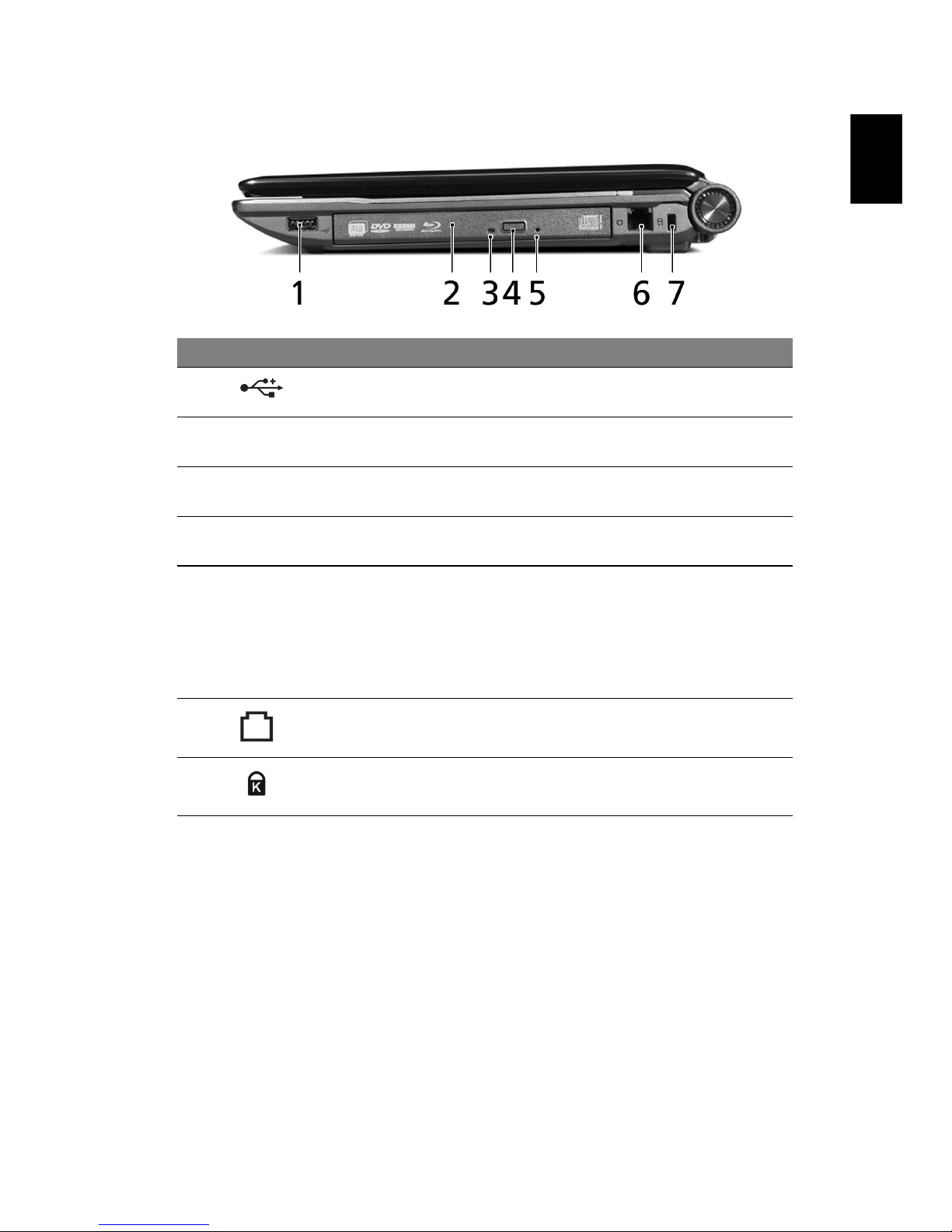

Right view
#Icon Item Description
1 USB 2.0 port Connects to USB 2.0 devices
(e.g., USB mouse, USB camera).
2 Optical drive Internal optical drive; accepts CDs or
DVDs.
3 Optical disk access
indicator
Lights up when the optical drive is
active.
4 Optical drive eject
button
Ejects the optical disk from the drive.
5 Emergency eject
hole
Ejects the optical drive tray when the
computer is turned off.
Note: Insert a paper clip to the
emergency eject hole to eject the
optical drive tray when the computer
is off.
6Modem
(RJ-11) port
Connects to a phone line.
7 Kensington lock slot Connects to a Kensington-compatible
computer security lock.

10
English

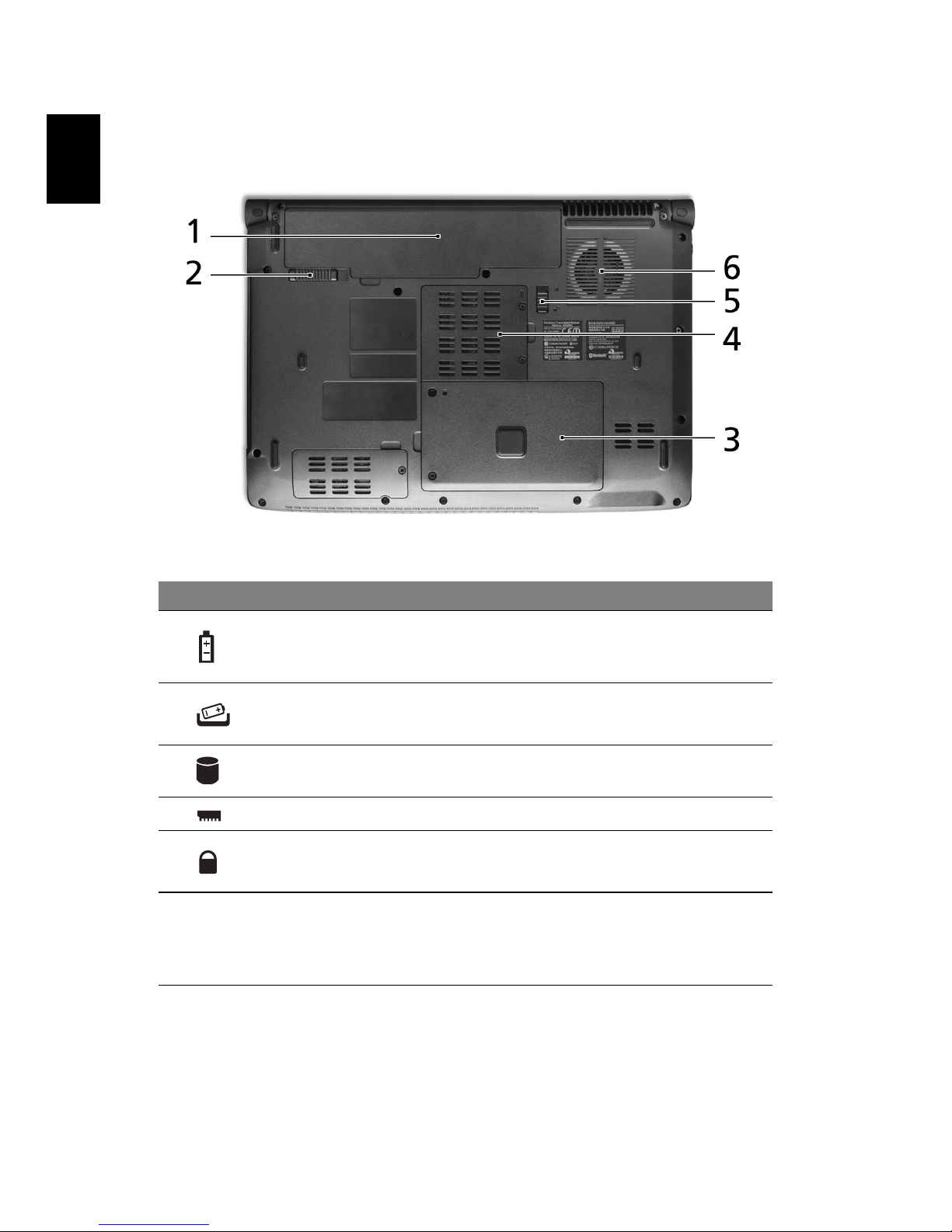

Base view
#Icon Item Description
1 Battery bay Houses the computer's battery pack.
2 Battery release latch Releases the battery for removal.
3 Hard disk bay Houses the computer's hard disk (secured
with screws).
4 Memory compartment Houses the computer's main memory.
5 Battery lock Locks the battery in position.
6 Ventilation slots and
cooling fan
Enable the computer to stay cool, even
after prolonged use.
Note: Do not cover or obstruct the
opening of the fan.

11
English
Specifications
Operating
system
•Genuine Windows 7®
Platform •AMD Better By Design Program, featuring:
•AMDTurion
™II Ultra dual-core processor*
•AMDTurion
™II dual-core processor*
•AMDAthlon
™64 II dual-core processor*
• AMD Mobile Sempron™ processor*
• AMD M880G Chipset
• Acer InviLink™Nplify™802.11b/g/Draft-N*
• Acer InviLink™802.11b/g*
System memory •Dual-Channel SDRAM support
•Up to 2 GB of DDR2 667 MHz memory, upgradeable
to 4 GB using two soDIMM modules
Display •16:9 aspect ratio
•14" HD 1366 x 768
Graphics •ATI Radeon™HD 4200 Graphics*
•ATI Mobility Radeon™HD 4570*
Audio •Dolby®-optimized surround sound system with two
built-in stereo speakers
•True5.1-channel surround sound output
•High-definition audio support
•S/PDIF (Sony/Philips Digital Interface) support for
digital speakers
•Acer PureZone technology with two built-in stereo
microphones
•MS-Sound compatible
Storage
subsystem
•2.5" hard disk drive
•Optical drive options:
•Blu-rayDisc
™/DVD-Super Multi double-layer
drive*
• DVD-Super Multi double-layer drive*
•Multi-in-1 card reader

12
English
Communication Acer Video Conference, featuring:
• Integrated Acer Crystal Eye webcam*
• Acer PureZone technology
•WLAN:
• Acer InviLink™Nplify™802.11b/g/Draft-N*
• Acer InviLink™802.11b/g*
•WPAN: Bluetooth®2.1+Enhanced Data Rate (EDR)*
•LAN: Gigabit Ethernet; Wake-on-LAN ready
•Modem: 56K ITU V.92; Wake-on-Ring ready
Privacy control •Acer Bio-Protection fingerprint solution*
•BIOS user, supervisor, HDD passwords
•Kensington lock slot
Dimensions
and weight
•342 (W) x 239 (D) x 23/38.6 (H) mm
(13.4 x 9.4 x 0.9/1.5 inches)
•2.3 kg (5.07 lbs.) with 6-cell battery pack
Power
subsystem
•ACPI 3.0
•48.8 W 4400 mAh
•3-pin 65 W AC adapter*
•3-pin 90 W AC adapter*
•ENERGY STAR®*
Special keys
and controls
•86-/87-/91-key keyboard
•Touchpad pointing device
I/O interface •Acer Bio-Protection fingerprint reader
•Multi-in-1 card reader (SD/MMC/MS/MS PRO/xD)
•USB 2.0 ports
•HDMI™port with HDCP support
•External display (VGA) port
•Headphones/speaker/line-out jack with S/PDIF
support
•Microphone-in jack
•Line-in jack
•Ethernet (RJ-45) port
•Modem (RJ-11) port
•DC-in jack for AC adapter
Environment •Temperature:
• Operating: 5 °C to 35 °C
• Non-operating: -20 °C to 65 °C
•Humidity (non-condensing):
• Operating: 20% to 80%
• Non-operating: 20% to 80%

13
English
Note: * Only for certain models
Note: The specifications listed above are for reference only. The
exact configuration of your PC depends on the model purchased.
