Acer
Travelmate 4720/4320
Service Guide
PRINTED IN TAIWAN
Service guide files and updates are available
on the ACER/CSD web; for more information,
please refer to http://csd.acer.com.tw
SG_TM4720_4320_Book.book Page i Friday, April 20, 2007 11 14 AM

ii
Revision History
Please refer to the table below for the updates made on Travelmate 4720/4320 service guide.
Date Chapter Updates
SG_TM4720_4320_Book.book Page ii Friday, April 20, 2007 11 14 AM

iii
Copyright
Copyright © 2007 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.
SG_TM4720_4320_Book.book Page iii Friday, April 20, 2007 11 14 AM

iv
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Core Duo and Core 2 Duo are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.
SG_TM4720_4320_Book.book Page iv Friday, April 20, 2007 11 14 AM

v
Conventions
The following conventions are used in this manual:
SCREEN
MESSAGES
Denotes actual messages that appear on screen.
NOTE Gives bits and pieces of additional information related to the current topic.
WARNING Alerts you to any damage that might result from doing or not doing specific
actions.
CAUTION Gives precautionary measures to avoid possible hardware or software
problems.
IMPORTANT Reminds you to do specific actions relevant to the accomplishment of
procedures.
SG_TM4720_4320_Book.book Page v Friday, April 20, 2007 11 14 AM

vi
Preface
Before using this information and the product it supports, please read the following general information.
1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.
add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered
in this generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.
2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information
available on your regional web or channel. If, for whatever reason, a part number change is made, it will
not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and
service of customer machines.
SG_TM4720_4320_Book.book Page vi Friday, April 20, 2007 11 14 AM

vii
Chapter 1 System Specification 1
Features 1
Your Acer Notebook Tour 4
Front View 4
Closed Front View 5
Left View 6
Right View 6
Rear Panel 7
Bottom Panel 7
Indicators 8
Easy-launch Buttons 9
Productivity Keys 10
Touchpad 11
Touchpad Basics 11
Using the Keyboard 13
Lock Keys and Embedded Numeric Keypad 13
Windows Keys 14
Hotkeys 15
Special Keys 16
Acer Empowering Technology 17
Empowering Technology Password 17
Acer eNet Management 18
Acer ePower Management 20
Acer ePresentation Management 22
Acer eDataSecurity Management 23
Acer eLock Management 24
Acer eRecovery Management 25
Acer eSettings Management 26
Windows Mobility Center 27
Using the System Utilities 28
Acer BiopProtect (for selected models) 28
Acer GridVista (dual-display compatible) 29
Launch Manager 30
Norton Internet Security 30
NTI Shadow 31
Hardware Specifications and Configurations 32
Chapter 2 System Utilities 39
BIOS Setup Utility 39
Entering BIOS Setup 39
BIOS Setup Primary Menus 39
BIOS Setup Navigation Keys 39
Information Menu 40
Main Menu 41
Advanced Menu 42
Security Menu 43
Boot Menu 45
Exit Menu 46
Table of Contents
SG_TM4720_4320_Book.book Page vii Friday, April 20, 2007 11 14 AM

viii
Chapter 3 Machine Disassembly and Replacement 47
Disassembly Requirements 47
General Information 48
Pre-disassembly Instructions 48
Disassembly Process 49
External Module Disassembly Process 50
External Modules Disassembly Flowchart 50
Removing the Battery Pack 51
Removing the SD Dummy Card 51
Removing the Express Dummy Card 52
Removing the Lower Cover 53
Removing the DIMM 53
Removing the WLAN Board Modules 54
Removing the Hard Disk Drive Module 55
Removing the Optical Drive Module 57
Main Unit Disassembly Process 59
Main Unit Disassembly Flowchart 59
Removing the Fan Module 60
Removing the CPU Heatsink Module 61
Removing the CPU 62
Removing the Middle Cover 63
Removing the Keyboard 64
Removing the LCD Module 67
Separating the Upper Case from the Lower Case 70
Removing the Touchpad Board Module 71
Removing the Fingerprint Board 73
Removing the LED Indicators Board 74
Remove the Daughter Board 75
Removing the Mainboard 77
Removing the Modem Board 78
Removing the Bluetooth Board 79
Removing the Speaker Modules 80
LCD Module Disassembly Process 82
LCD Module Disassembly Flowchart 82
Removing the LCD Bezel 83
Removing the Inverter Board 84
Removing the LCD with Brackets 85
Removing the LCD Brackets 87
Removing the LCD Module Hinges 89
Removing the Antennas 90
Removing the Microphone 91
Chapter 4 Troubleshooting 93
System Check Procedures 94
External CD/DVD-ROM Drive Check 94
Keyboard or Auxiliary Input Device Check 94
Memory Check 94
Power System Check 95
Touchpad Check 96
Power-On Self-Test (POST) Error Message 97
Index of Error Messages 98
Phoenix BIOS Beep Codes 100
Index of Symptom-to-FRU Error Message 104
Intermittent Problems 108
Undetermined Problems 109
SG_TM4720_4320_Book.book Page viii Friday, April 20, 2007 11 14 AM

ix
Chapter 5 System Block Diagram and Connector Locations 111
System Block Diagram 111
Board Layout 112
Top and Bottom View 112
Chapter 6 FRU (Field Replaceable Unit) List 117
Travelmate 4720/4320 Exploded Diagram 118
Travelmate 4720/4320 130
Appendix A Model Definition and Configuration 130
Appendix B Test Compatible Components 133
Microsoft® Windows® Vista™ Environment Test 134
Appendix C Online Support Information 135
SG_TM4720_4320_Book.book Page ix Friday, April 20, 2007 11 14 AM

x
SG_TM4720_4320_Book.book Page x Friday, April 20, 2007 11 14 AM

Chapter 1 1
Features
Below is a brief summary of the computer’s many feature:
Platform
KIntel®Core™2 Duo Mobile Processor T7300/T7500/T7700 (4 MB L2 cache, 2/2.2/2.4 GHz, 800 MHz
FSB) and T7100 (2 MB L2 cache, 1.8 GHz, 800 MHz FSB) supporting Intel®64 architecture
KMobile Intel®GM965 Express chipset
KIntel®Wireless WiFi Link 4965AGN (dual-band quad-mode 802.11a/b/g/Draft-N) network connection,
supporting Acer SignalUp™with InviLink™Nplify™wireless technology
KIntel®PRO/Wireless 3945ABG (dual-band tri-mode 802.11a/b/g) Wi-Fi CERTIFIED®network
connection, supporting Acer SignalUp™wireless technology
Display and Graphics
K14.1" WXGA TFT LCD, 1280 x 800 pixel resolution, supporting simultaneous multi-window viewing via
Acer GridVista™
KMobile Intel®GM965 Express chipset with integrated 3D graphics, featuring Intel®Graphic Media
Accelerator (GMA) X3000 with up to 256 MB of Intel®Dynamic Video Memory Technology 4.0 (8MB of
dedicated system memory, up to 256MB of shared system memory), supporting Microsoft®DirectX®9
and DirectX®10
KDual independent display support
K16.7 million colors
KMPEG-2/DVD hardware-assisted capability
KS-video/TV-out (NTSC/PAL) support
Storage Subsystem
K80/120/160 GB or larger hard disk drive with Acer DASP (Disk Anti-Shock Protection) enhancement
KOptical drive options:
jDVD-Super Multi double-layer drive
jDVD/CD-RW combo drive
K5-in-1 card reader supporting Secure Digital (SD), MultiMediaCard (MMC), Memory Stick®(MS),
Memory Stick PRO™(MS PRO), xD-Picture Card™(xD)
Input Devices
K88-/89-key Acer FineTouch™keyboard with 5-degree curve, inverted "T" cursor layout; 2.5mm
(minimum) key travel
KSeamless touchpad pointing device with 4-way scroll button (for selected models)
KSeamless touchpad pointing device with Acer BioProtect fingerprint reader supporting Acer FingerNav
4-way control function (for selected models)
K12 function keys, four cursor keys, two Windows®keys, hotkey controls, embedded numeric keypad,
international language support, independent Euro and US dollar sign keys
System Specification
Chapter 1
SG_TM4720_4320_Book.book Page 1 Friday, April 20, 2007 11 14 AM

2Chapter 1
KEasy-launch buttons: Acer Empowering Key, Internet, email, user-progammable
KProductivity keys: Lock, Presentation, Sync
KFront-access communication switches: WLAN and Bluetooth®
Audio
KTwo built-in Acer 3DSonic stereo speakers
KIntel®High Definition Audio support
KBuilt-in microphone
KMS-Sound compatible
Communication
KAcer Video Conference featuring:
jIntegrated Acer CrystalEye webcam supporting enhanced Acer PrimaLite™technology
jOptional Acer Bluetooth®VoIP phone
KWLAN: Intel®Wireless WiFi Link 4965AGN (dual-band quad-mode 802.11a/b/g/Draft-N) network
connection, supporting Acer SignalUp™with InviLink™Nplify™wireless technology, or Intel®PRO/
Wireless 3945ABG (dual-band tri-mode 802.11a/b/g) Wi-Fi CERTIFIED®network connection,
supporting Acer SignalUp™wireless technology
KWPAN: Bluetooth®2.0+EDR (Enhanced Data Rate)
KLAN: Gigabit Ethernet; Wake-on-LAN ready
KModem: 56K ITU V.92 with PTT approval; Wake-on-Ring ready
I/O Interface
KPC Card slot (one Type II)
K5-in-1 card reader (MS/MS PRO/MMC/SD/xD)
KFour USB 2.0 ports
KIEEE 1394 port
KFast Infrared (FIR) port
KExternal display (VGA) port
KS-video/TV-out (NTSC/PAL) port
KHeadphones/speaker/line-out jack
KLine-in jack
KMicrophone jack
KEthernet (RJ-45) port
KModem (RJ-11) port
KDC-in jack for AC adaptor
Power Subsystem
KACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes
K44 W 4000 mAh Li-ion battery pack (6-cell)
K3-pin 65 W AC adaptor
SG_TM4720_4320_Book.book Page 2 Friday, April 20, 2007 11 14 AM

Chapter 1 3
Dimensions and weight
K331 (W) x 248 (D) x 29.7/41.08 (H) mm (13.03 x 9.76 x 1.17/1.62 inches)
2.4 kg (5.29 lbs.) with 6-cell battery pack
Environment
KTemperature:
jOperating: 5 C to 35 C
jNon-operating: -20 C to 65 C
KHumidity (non-condensing):
joperating: 20%~80%
jNon-operating: 20%~80%
°°
°°
SG_TM4720_4320_Book.book Page 3 Friday, April 20, 2007 11 14 AM

4Chapter 1
Your Acer Notebook Tour
After knowing your computer features, let us show you around your new TravelMate computer.

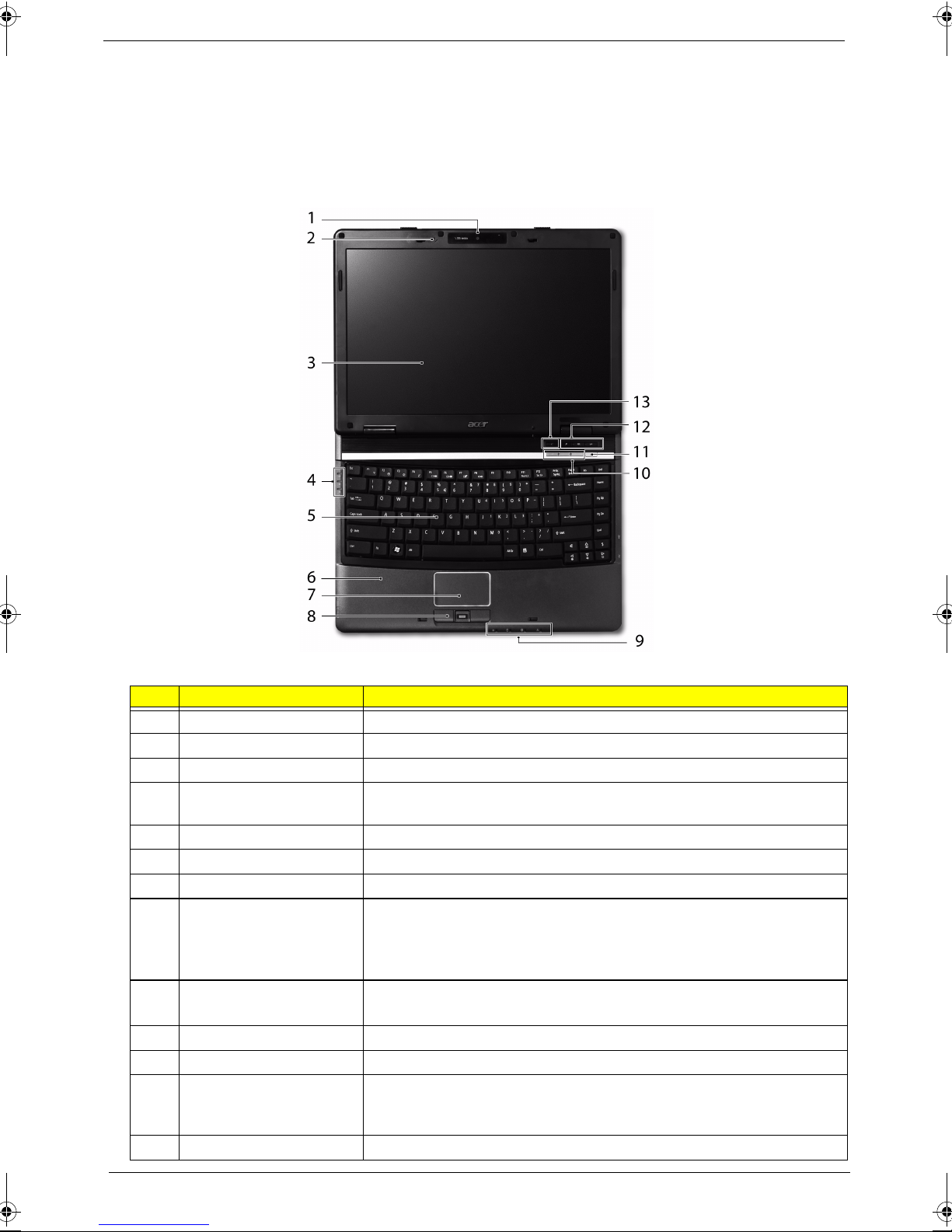

Front View
#Item Description
1 Acer CrystalEye 0.3 megapixel web camera for video communication.
2 Microphone Internal microphone for sound recording.
3 Display screen Also called Liquid-Crystal Display (LCD), displays computer output.
4 Status indicators Light-Emitting Diodes (LEDs) that light up to show the status of the
computer's functions and components.
5 Keyboard For entering data into your computer.
6 Palmrest Comfortable support area for your hands when you use the computer.
7 Touchpad Touch-sensitive pointing device which functions like a computer mouse.
8 Click buttons
(left, center and right)
The left and right buttons function like the left and right mouse buttons.
*The center button serves as a 4-way scroll button (for selected models)
or Acer BioProtect fingerprint reader supporting Acer FingerNav 4-way
control function. (for selected models)
9 Status indicators Light-Emitting Diodes (LEDs) that light up to show the status of the
computer's functions and components.
10 Easy-launch buttons Buttons for launching frequently used programs.
11 Power button Turns the computer on and off.
10 Productivity keys Three productivity keys give users one-touch access to protection and
manageability features for a more secure, smarter and easier way to
work.
11 Empowering key Launch Acer Empowering Technology
SG_TM4720_4320_Book.book Page 4 Friday, April 20, 2007 11 14 AM

Chapter 1 5
Closed Front View
#Icon Item Description
1 Speakers Left and right speakers deliver stereo audio output.
2 IEEE 1394 port (6-pin) Connects to IEEE 1394 devices.
3 Infrared port Interfaces with infrared devices (e.g., infrared printer and IR-
aware computer).
4 USB 2.0 port Connects to USB 2.0 devices (e.g., USB mouse, USB
camera).
5 Line-in jack Accepts audio line-in devices (e.g., audio CD player, stereo
walkman, mp3 player)
6 Microphone jack Accepts inputs from external microphones.
7 Headphones/speaker/
line-out jack
Connects to audio line-out devices
(e.g., speakers, headphones).
8 Bluetooth communication
switch
Enable/disable the Bluetooth function. (manufacturing
option).
9 Wireless communication
switch
Enable/disable the wireless function. (manufacturing option).
Latch Locks and releases the lid.
SG_TM4720_4320_Book.book Page 5 Friday, April 20, 2007 11 14 AM

6Chapter 1
Left View
Right View
#Icon Item Description
1 Kensington lock slot Connects to a Kensington-compatible computer security
lock.
2 Optical drive Internal optical drive; accepts CDs or DVDs
3 Optical disk access
indicator
Lights up when the optical drive is active.
4 Optical drive eject button Ejects the optical disk from the drive.
5 Emergency eject hole Ejects the optical drive tray when the computer is turned off.
6 USB 2.0 port Connects to USB 2.0 devices (e.g., USB mouse, USB
camera).
7 5-in-1 card reader Accepts Secure Digital (SD), MultiMediaCard (MMC),
Memory Stick (MS), Memory Stick Pro (MS PRO), and xD-
Picture Card.
Note: Only one card can operate at any given time.
#Icon Item Description
1 PC Card slot eject button Ejects the PC Card from the slot.
2 PC Card slot Accepts one Type II PC Card.
3 Two USB 2.0 ports Connect to USB 2.0 devices (e.g., USB mouse, USB
camera).
4 S-Video/TV-out (NTSC/
PAL) port
Connects to a television or display device with S-video input.
5 Ethernet (RJ-45) port Connects to an Ethernet 10/100/1000-based network.
6 External display (VGA)
port
Connects to a display device (e.g., external monitor, LCD
projector).
7 DC-in jack Connects to an AC adapter.
SG_TM4720_4320_Book.book Page 6 Friday, April 20, 2007 11 14 AM

Chapter 1 7
Rear Panel
Bottom Panel
#Icon Item Description
1 Ventilation slots Enable the computer to stay cool, even after prolonged use.
2 Modem (RJ-11) port Connects to a phone line.
#Item Description
1 Battery bay Houses the computer's battery pack.
2 Battery lock Locks the battery in position.
3 Hard disk bay Houses the computer’s hard disk (secured with screws)
4 Memory compartment Houses the computer's main memory.
5 Battery release latch Releases the battery to remove the battery pack.
SG_TM4720_4320_Book.book Page 7 Friday, April 20, 2007 11 14 AM

8Chapter 1
Indicators
The computer has four easy-to-read status indicators:
The front panel indicators are visible even when the computer cover is closed up.
NOTE: Battery LED status during charging:
• Amber:Charging.
• Green:Charging complete.
Icon Function Description
HDD Indicates when the hard disc or optical drive is active.
Num lock Lights when Num Lock is activated.
Cap lock Lights when Cap Lock is activated
Power Lights up when the computer is on.
Battery Lights up when the battery is being charged.
Bluetooth Indicates the status of Bluetooth communication.
Wireless LAN Indicates the status of wireless LAN communication.
Icon Function Description
SG_TM4720_4320_Book.book Page 8 Friday, April 20, 2007 11 14 AM

Chapter 1 9
Easy-launch Buttons
There are several conveniently located easy-launch buttons. They are: mail, Web browser, Empowering Key
< > and one user-programmable button.
Press < > to run the Acer Empowering Technology. The mail and Web browser buttons are pre-set to email
and Internet programs, but can be reset by users. To set the Web browser, mail and programmable buttons,
run the Acer Launch Manager.
Icon Easy-launch button Default application
Acer Empowering Technology Acer Empowering Technology (User-programmable)
Mail Email application (user-programmable)
Web browser Internet browser (user-programmable)
PProgrammable key User-programmable
1. Charging:
2. Fully charged:
"Acer
Empowering Technology" on page 1
"Launch Manager" on page 51
Easy-launch button Default application
SG_TM4720_4320_Book.book Page 9 Friday, April 20, 2007 11 14 AM

10 Chapter 1
Productivity Keys
Three productivity keys give users one-touch access to protection and manageability features for a more
secure, smarter and easier way to work.
KLock key - quickly locks and secures your system when you need to leave your desk.
KPresentation key - prepares your system display for presentation, a handy shortcut for busy
professionals.
KSync key - synchronizes your system to an externally attached storage device, for convenient backup.
Icon Easy-launch button Default application
Lock Launch Windows Lock function
Presentation Minimizes your open windows and prepares your display for
presenting
Sync Launch NTI Shadow
SG_TM4720_4320_Book.book Page 10 Friday, April 20, 2007 11 14 AM
