Service Manual
LCD Monitor Acer B/V193

1
1
Table of Contents
Important Safety Notice .........................................................................................01
01 Product Specification ..........................................................................................03
02 Flat Panel Specification .......................................................................................13
03 Exploded Diagram ..............................................................................................27
04 Troubleshooting ....................................................................................................32
05 Spare Parts List ...................................................................................................35
06 Schematics and Layouts.......................................................................................36
07 Assembly and Disassembly ................................................................................38
Appendix : User’s manual
Copyright
Copyright 2006 InnoLux Tech. Corp. Ltd
All Rights Reserved
This manual may not, in whole or in part, be copied, Photocopied, reproduced, translated, or
converted to any electronic or machine readable form without prior written permission of InnoLux Tech.
Corp. Ltd.
Acer B/V193 Service Manual

2
Important Safety Notice
1. Safety precautions
This monitor is manufactured and tested on a ground principle that a user’s safety
comes first. However, improper used or installation may cause damage to the
monitor as well as to the user.
Warning:
zThis monitor should be operated only at the correct power sources indicated on
the label on the rear of the monitor. If you’re unsure of the power supply in you
residence, consult your local dealer or Power Company.
zDo not try to repair the monitor by yourself, as it contains no user-serviceable
parts. This monitor should only be repaired by a qualified technician.
zDo not remove the monitor cabinet. There are high-voltage parts inside that may
cause electric shock to human bodies.
zStop using the monitor if the cabinet is damaged. Have it checked by a service
technician.
zPut your monitor only in a lean, cool, dry environment. If it gets wet, unplug the
power cable immediately and consult your closed dealer.
zAlways unplug the monitor before cleaning it. Clean the cabinet with a clean, dry
cloth. Apply non-ammonia based cleaner onto the cloth, not directly onto the
class screen.
zDo not place heavy objects on the monitor or power cord.
2. Product safety notice
Many electrical and mechanical parts in this chassis have special safety visual
inspections and the protection afforded by them cannot necessarily be obtained by
using replacement components rated for higher voltage, wattage, etc. Before
replacing any of these components read the parts list in this manual carefully. The
use of substitute replacement parts, which do not have the same safety
characteristics as specified in the parts list, may create shock, fire, or other hazards.
3. Service notes
zWhen replacing parts or circuit boards, clamp the lead wires around terminals
before soldering.
zKeep wires away from high voltage, high temperature components and sharp
edges.
zKeep wires in their original position so as to reduce interference.
zAdjustment of this product please refers to the user’ manual.

3
01 Product Specification
1. General:
Acer BV 193W(4:3) is designed with LVDS interface and dual (analog and digital signal) input, it
featured with embedded universal AC power supplies and audio input. It’s a green product and meets
all ROHS standard. The power button and display control buttons are on the front of the monitor. The
monitors shall automatically to display lower resolution video modes into 1280x1024 full screen
display. The image can be adjusted through OSD control.
1.1 Main Features
Features Specifications
Panel source HSD190MEN3-A00
Maximum resolution 1280 x 1024
Back light system 4 CCFL (top & bottom edge side)
Actual Resolution display SXGA (280 x 1024)
Pixel pitch 0.294(H) x 0.294(V)
Display area 376.32 (H) x301.056 (V) (19.0” diagonal)
Contrast ratio 700׃1 (min.), 1000׃1 (typ.)
Response time (Tr+Tf) 5ms (typ.),
Viewing angle 85°(H)/ 85°(R), 80°(V)/80°(D) typ. CR>=10)
Input interface Analog(D-sub 15 pin)
Digita(DVI-D connector )----option
Audio-In YES (option)
Earphone NA
Speakers YES(option)
Video Signal Inputs D-sub, DVI-D
Knobs and Indicators Power switch button, MENU button, Auto button, eColour, Down
button, Down button
Security Features Kensington®lock port, VESA®Wall-mountable interface, 100 mm
Power management Compatible with VESA,EPA,NUTEK,DPMS
Plug & Play VESA
University AC power supply YES
For Non-EMEA English (US), French, Italian, Finnish, Spanish, German, Dutch, Russian
For EMEA English (US),French, Italian,Simplified Chinese, Spanish, German a
Dutch, Traditional Chinese, Japanese
OSD language
Russia English (US), French, Italian, Finnish, Spanish, German, Dutch, Russian
1.2 Accessories
Items VGA
cable
DVI
cable
User’s
manual
Warranty
card
Quick-start
Guide
Installation
Guide
Description 1.8m 1.8m Multi English
●●●●
1. Operation Specifications

4
The unit should suffer no visible cosmetic damage and should operate with no degradation in display
quality during exposure to the operating conditions and after exposure to the non-operating conditions,
in any sequence.
2.1 Environmental conditions
Operating Specification
Temperature range 0°C to 40°C
Relative humidity 20% to 80%
Altitude 0 to 3048M (10000 ft)
Storage
Temperature range -25°C to 60°C
Relative humidity 5% to 80%
Altitude 0 to 9144M (30000 ft)
2.2 Safety, EMC, Ergonomics and Compatibility Requirements
Items Description
UL/cUL CB TUV/GS CCC Other
Safety ●●●●
FCC CE CCC VCCI-B
EMC ●●●●
TCO99 TCO03
Ergonomics ●●
Windows 95/98/Me Windows 2000 Windows XP vista
Compatibility ●●●●
Energy Star
Power
Management ●
2.3 Electrostatic Discharge Requirements
Item Condition Spec
Contact discharge : +4KV
Contact discharge : +8KV ●
Air discharge : + 8KV
Electrostatic Discharge IEC61000-4-2(EN55024)
Air discharge : +15KV ●
2.4 Reliability
Items Condition Spec Note
MTBF ≧40,000 Hours Excluding the
LCD, CCFL
CCFL Life time Luminance becomes 50% ≧40,000 Hours(min) Note1
Note1. Display an all WHITE field at mid Brightness and Contrast settings.
2. Electrical and Optical Characteristics and Performance
3.1 Main Power Supply
Items Condition Spec Note
AC Input Voltage Range Universal input full range 100~240VAC /50~60Hz

5
AC Input Current 100Vac
240Vac
1.2A(max)
0.6A(max)
AC Frequency Range 100Vac
240Vac
50Hz – 60Hz
100Vac,cold star,25°C 40A (max)
Inrush Current
240Vac,cold star,25°C 60A(max)
See Note2
Regulator Efficiency DC output full loading ≥75%
+16V output <350mv
Ripple and Noise
+5V output <150mv
16v loading: 0.3A~2.0A
5v loading: 0.75A~1.5A
Vcc16V(15.2V~18.5V)
DC Output Voltage
5v loading: 0.04A~1.5A Vcc5V(4.95V~5.45V)
See Note 3
DC output loading capability Vcc5V/1.5A,
Vcc16V/2.0A
Power consumption with Audio ≤45W
Protection See Table-1
Power management See Table-2
Note2.Before each test, the buck capacitor need to be discharged.
Before each test, it must be 10 minutes at least after the latest test
Note3. DC output voltage when no loading must meet load component de-rating standard.
+16v with no load ,16v output voltage 20v (max)
Table-1
Protection Condition Spec
OPP(Over power protection) nominal AC input 50W ( min )
SCP(short circuit protection) with auto-recovery function
Table-2
Status H-sy
nc
V-sy
nc Video Power LED
Power On on on active ≤45W BLUE
off on blanked < 2W Amber
on off blanked < 2W Amber
Power Saving
off off blanked < 2W Amber
Power Off -- -- -- < 1W Off
3.2 Backlight Power Supply
Panel: INL MT190AW01 V.5
Items Specification
Lamp 4 CCFL
Input Voltage 15.2V~18.5V
Input current 1.6A (Typ.), 2.0A (Max.)
On/Off switch level 5.5V≧Von≧2.0 V (on)
-0.3v ≤Voff ≤0.8 V (off)
Brightness PWM duty 35%~100%
PWM:High=3.3V(3.0~3.6V),Low=0.0V
CCFL operating Voltage 680Vrms (Typ.),

6
2.0 mA (min.)(With PWM Dim)
7.0mA (Typ.)
CCFL Current
8mA (Max.)
CCFL startup voltage ≧1700 Vrms (0˚C)
Operating frequency 40~80 KHz
Protect delay time > 1 second
Efficiency ≥70%(with dummy load)
3.3 Brightness output
The test to verify specifications in this section shall be performed under the following standard
conditions unless otherwise noted.
Temperature : 25 ± 5°C
Test pattern : white
Video Resolution : 1440 x 900
Video input level : 700 mV ± 2%
Warm-up time : 30 minutes
LCD Module BL
HSD190MEN3-A00 ≥250 cd/m2
Set brightness control and also contrast control at maximum, to measure the screen center,
the light output shall ≥BL cd/m2 (as panel spec)
3.4 White balance
Chromaticity Coordinate
Mode x y
Cool 9300K 0.283 ± 0.030 0.297 ± 0.030
Warm 6500K 0.313 ± 0.030 0.329 ± 0.030
User Panel While x Panel While y
The test standard conditions refer to Sec 3.3. (Brightness and contrast are under default
value)
3.5 Brightness uniformity
The test standard conditions refer to Sec 3.3.
%
≥75
)(backlightpointsnineofluminanceMax.
)(backlightpointsnineofluminanceMin.

7
4.Input / Output Signal Specifications
4.1Video signals
Items Condition Specification
Analog RGB signal Input impedance = 75 Ohm 0.7Vp-p
Sync Input impedance ≧1k Ohm TTL level, Separate H/V-sync(+/-)
4.2 Signal Timing
4.2.1 D-SUB Inputs
Through D-SUB connectors, this unit can support FH= 31.5 ~ 80 KHz, Fv=56 ~ 75Hz
and SXGA display modes as below:
Resolution H-Freq. (kHz) V-Freq. (Hz) Dot Clock (MHz) Mode
31.5 60.0 25.175
37.9 72.0 31.500
640 x 480
37.5 75.0 31.500
35.1 56.0 36.000
37.9 60.0 40.000
48.1 72.0 50.000
800 x 600
46.9 75.0 49.500
48.4 60.0 65.000
56.5 70.0 75.000
1024 x 768
60.0 75.0 78.750
64.0 60.0 108.000
1280 x 1024 80.0 75.0 135.000
VESA
IBM-AT Compatible
machine
PC-9800 series
640 x 350 31.5 70.0 25.175
720 x 400 31.5 70.0 28.322 US/IBM Text
832 x 624 49.7 74.6 57.283
60.2 75.0 80.000
1024 x 768 48.8 60.0 64.000
Power Macintosh series
Note: 1. Non-interlace signals only (An interlace signal cannot be display)
2. Please refer to F/W specification for more detail
3. Each frequency of Power Macintosh and Sun Ultra is a reference value
For DVD Player Input, Attached timing is supported: (Optional)
Mode Resolution (active dot) Resolution
(total dot)
Horizontal
Frequency (KHz)
Vertical
Frequency (Hz)
Nominal Pixel
Clock (MHz)
Remark
480P@60Hz 858x525 31.5 60.000 27.027
576P@50Hz 864x625 31.250 50.000 27.000
DVD
Player 720P@60Hz 1650x750 45.000 60.000 74.250
4.2.2 Digital signals
TMDS Signal: (min) ±200mVpp@24Bit
4.2.3 DDC signals
DDCsignals: 5V@50mATTLlevel
4.3Timing requirements
Scan Frequency Condition Specification
Horizontal Sync polarity: (+) or (-) 31.5 ~ 80 KHz.
Vertical Sync polarity: (+) or (-) 56-75Hz
Out of range
Excluding
Horizontal 31.5~80 KHz or
Vertical 56-75 Hz
Message “Input Not Supported” on screen

8
4.4DDC data
4.4.1 EDID Standard Compliance
EDID File Format : VESA’s EDID Standard Version #3, Revision #0,
EDID Structure : Version #1, Revision #3.
EDID Data Table : See the attached table (for example)
B193 DVI EDID table
B193VGA EDID table
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 04 72 4B 00 00 00 00 00
1 00 00 01 03 08 26 1E 78 EA 9A E5 A6 58 49 99 23
2 11 50 54 BF EF 00 01 01 01 01 01 01 01 01 01 01
3 01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70
4 13 00 78 2D 11 00 00 1E 00 00 00 FD 00 38 4B 1E
5 53 0E 00 0A 20 20 20 20 20 20 00 00 00 FF 00 30
6 30 30 30 30 30 30 30 30 30 30 30 0A 00 00 00 FC
7 00 42 31 39 33 0A 20 20 20 20 20 20 20 20 00
CS
V193 VGA EDID table
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 04 72 4C 00 00 00 00 00
1 00 00 01 03 08 26 1E 78 EA 9A E5 A6 58 49 99 23
2 11 50 54 BF EF 00 01 01 01 01 01 01 01 01 01 01
3 01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70
4 13 00 78 2D 11 00 00 1E 00 00 00 FD 00 38 4B 1E
5 53 0E 00 0A 20 20 20 20 20 20 00 00 00 FF 00 30
6 30 30 30 30 30 30 30 30 30 30 30 0A 00 00 00 FC
7 00 56 31 39 33 0A 20 20 20 20 20 20 20 20 00
CS
V193 DVI EDID table
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 04 72 4C 00 00 00 00 00
1 00 00 01 03 80 26 1E 78 EA 9A E5 A6 58 49 99 23
2 11 50 54 BF EF 00 01 01 01 01 01 01 01 01 01 01
3 01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70
4 13 00 78 2D 11 00 00 1E 00 00 00 FD 00 38 4B 1E
5 53 0E 00 0A 20 20 20 20 20 20 00 00 00 FF 00 30
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 04 72 4B 00 00 00 00 00
1 00 00 01 03 80 26 1E 78 EA 9A E5 A6 58 49 99 23
2 11 50 54 BF EF 00 01 01 01 01 01 01 01 01 01 01
3 01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70
4 13 00 78 2D 11 00 00 1E 00 00 00 FD 00 38 4B 1E
5 53 0E 00 0A 20 20 20 20 20 20 00 00 00 FF 00 30
6 30 30 30 30 30 30 30 30 30 30 30 0A 00 00 00 FC
7 00 42 31 39 33 0A 20 20 20 20 20 20 20 20 00
CS

9
6 30 30 30 30 30 30 30 30 30 30 30 0A 00 00 00 FC
7 00 56 31 39 33 0A 20 20 20 20 20 20 20 20 00 cs
4.5 Audio signal
Items Specification
Input impedance ≧10K ohm
Frequency response range 200Hz – 10kHz
Signal to noise ratio ≧40 dB
Output power ≧0.5W + 0.5W ( 10%THD )
3. Function Specifications
All the tests to verify specifications in this section shall be performed under the following standard
conditions unless otherwise noted. The standard conditions are:
Temperature : 25 ± 5°C
Warm-up time : 30 minutes minimum
Checking display modes : All the specified modes
5.1 Panel general specifications
5.1.1 General specifications
Supplier InnoLux
Model name HSD190MEN3-A00
Display Area 376.32 (H) x301.056 (V) (19.0” diagonal)
Pixel Pitch 0.294(H) x 0.294(V)
Display Colors: 16.7 Million (6-bit + HI-- FRC)
Number of Pixel 1280(H) x 1024(V)
Pixel Arrangement RGB vertical stripe
Brightness 300cd/m2(Typ.) 250cd/m2(Min.)
Contrast Ratio 700:1 Typical
Viewing Angle Hor:170°, Ver: 170°
(Typical, CR>10)
Display Mode Normally White
Frame rate 75Hz
Response Time Tr + Tf = 5ms Typical
Surface Treatment Anti-glare, Haze = 25%,
Hard coating (3H)
Lamp 4 CCFL
Outline Dimension 396 * 324 * 16.5(Typ)
5.1.2 LCD module defects
LCD module defects check follow to the IIS.
5.2Keypad Function
5.2.1 Control buttons on the front bezel
CONTROL KEY KEYS FUNCTION
[AUTO]
A. When OSD un-displays, press [AUTO] to perform auto-adjustment
B. When OSD displays, press [AUTO] to return to previous level menu
C. When “e Color OSD” OSD displays, press [AUTO] to exit the OSD

10
[MENU]
A. When OSD isn’t shown on screen, press [MENU] to enter OSD interface. The OSD
interface uses “ACER e Color Management” and “User” to instead “Contrast” and
“Brightness” separately. When press “ACER e Color Management” to show “e Color
OSD”, and press “User” to show OSD interface before. The translations of “ACER e
Color Management” and “User” are always English.
B. When OSD displays, press [MENU] to perform function of menu icon that is highlight or
enter next level menu
[►], [◄]
A. When “MENU OSD” displays, press these keys to change the contents of an
adjustment item, or change an adjustment value
B. When “MENU OSD” un-displays, if it is with audio, press [►] to show “Audio” OSD and
increase the volume, press [◄] to show “Audio” OSD and decrease the volume; else
it has no use to press these keys.
[e Color ]
A. When OSD un-displays, press [e Color] to show “e Color OSD”, and press again the
OSD can not disappear, but the time of “e Color OSD” disappearing is reset 10 second
again.
B. When OSD disappear not including “e Color OSD”, press [e Color] to show “e Color
OSD” OSD, the OSD before disappears, but the parameters of it should be saved
[POWER] Power on or power off the monitor
5.2.2 Hot Key Operation
HOT KEY OPERATION
FUNCTION
AUTO
e Color ◄►MENU POWER
FACTORY MODE ●●ON
Press [e Color ] & [MENU] at the
same time, and then press
[POWER] for DC power on. OSD
menu will be shown with “F”on the
left top. Select “F”for entering
factory mode.
5.3OSD Structure
The On-Screen Display (OSD) shall be an easy to use icon based menu through keypad OSD
buttons or remote control unit. The unit shall leave the factory with all OSD controls set to
their default values.
First Second Third Control Range Default Value
ACER e COLOR
Management
Empowering
Technology
User mode 50
Text mode 50
Standard mode 50
Graphics mode 60
Contrast
Movie mode 56
Brightness
User
Brightness User mode 77

11
Text mode 44
Standard mode 77
Graphics mode 97
Movie mode 77
ACM OFF
Focus --- 0 ~ 100 Depend on each timing
Clock --- 0 ~ 100 50 ○1
Horizontal --- 0 ~ 100 50
Position
Vertical --- 0 ~ 100 Depend on each timing
Warm (6500K) --- ---
Cool (9300K) --- ---
Red 0 ~ 100 80
Green 0 ~ 100 80
Color
User
Blue 0 ~ 100 80
NO-EMEA EMEA
English English
--- ---
Deutsch Deutsch
--- ---
Español Español --- ---
简体中文 Hollands
--- ---
繁體中文 Русский --- ---
Français Français --- ---
Italiano Italiano
--- ---
Language
日本語 Suomalain
en
--- ---
English
Hor. Position --- 0 ~ 100 50
Ver. Position --- 0 ~ 100 50
OSD
OSD Timeout --- 10~ 120 20
Analog --- --- ---
Digital --- --- ---
Input (Dual)
DDCCI ON/OFF ON
Input (Analg
only) DDCCI ON/OFF ON
Resolution --- --- ---
H. Freq --- --- ---
V. Freq --- --- ---
Info
S/N ETL000….0000(22)
Reset --- --- --- ---
Exit --- --- --- ---
Notes; ○1 Clock default 50 is for Visa timing. Others depend on timing.
6.0 SOP of firmware upgrade -----Manufacturer of Scaler is RealTek
6.1 Operational condition
Equipment: PC, ISP card, signal cable and power cable.
ESD requirements: antistatic wrists, antistatic gloves (fingers), and connecting
cable

12
Name of ISP program: RTDTool_4.6.exe
Manufacture of FW IC：RTD 2525L
6.2 Operational steps:
1. Connection: connect PC to PCBA with signal cable, and then keep AC and DC in open
state.
2. Adjust ISP programming

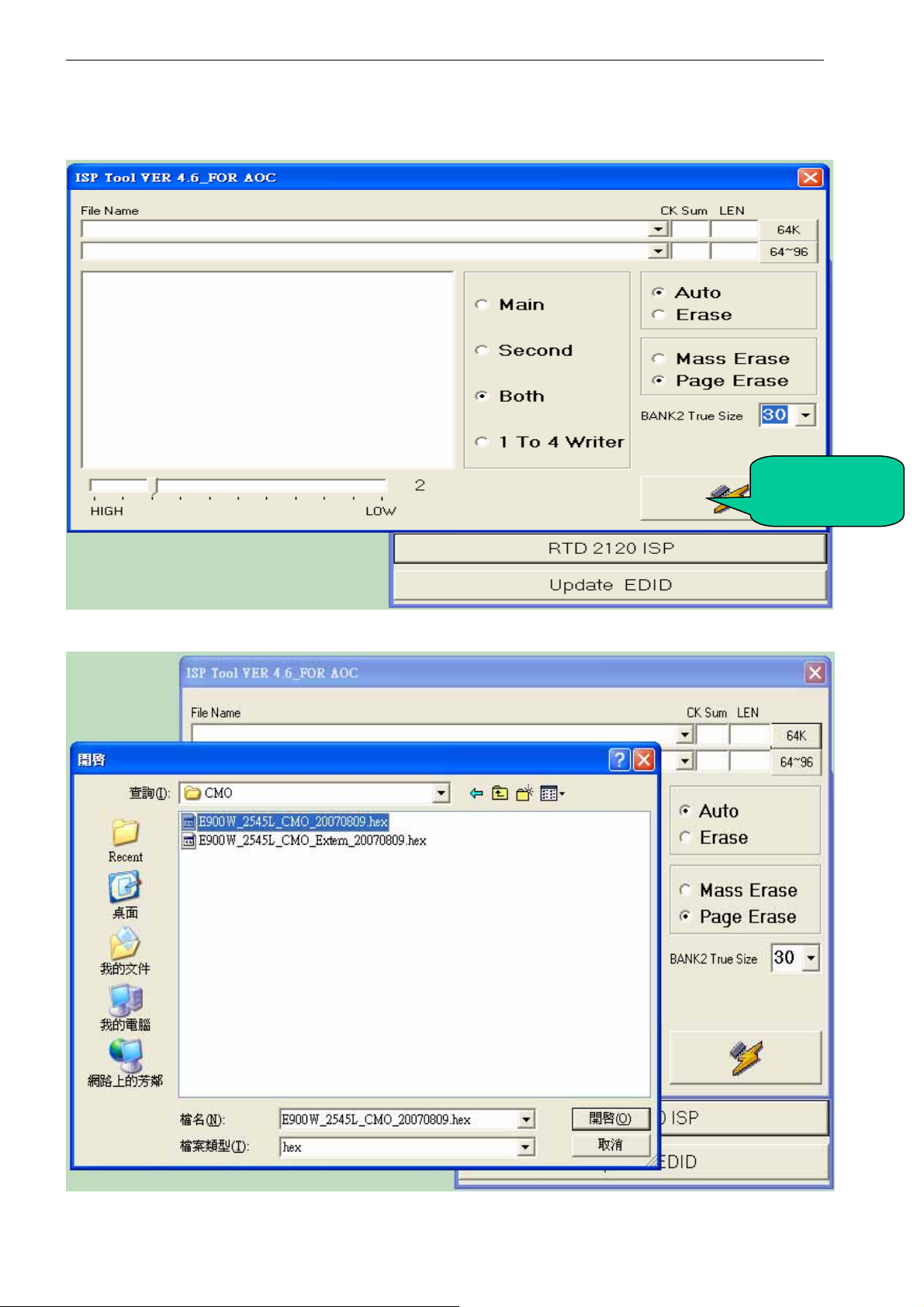

Firstly, double click RTDTool_4.6.exe and open ISP program, then select
“25XXV/2525L”, and RTD 2120 ISP button
One port of ISP
program card is
connected to PC
print port.
Click ISP
button

13
Secondly﹐select Bank2 size which is 30.
Thirdly, click “64K”button and download FW file as below Figure 3.
Select Bank2
size: 30

14
Fourthly, click “64~96”button, and download extern FW file as below Figure 4 .
Fifthly, click “program”button as below,then you will see ISP will going on. There will be
prompting if programming is OK.
Program
button

15
Note: Please see the configure as below Figure 6.
Programmi
ng speed
Configure
Inform

16
6.3 Factory Mode
HOT KEY OPERATION
FUNCTION
AUTO
e Color ◄►MENU POWER
FACTORY MODE ●●ON
Press [e Color ] & [MENU] at the
same time, and then press
[POWER] for DC power on. OSD
menu will be shown with “F” on the
left top. Select “F” for entering
factory mode.
◆Flowin
g
chart
After connecting, AC
ON, DC ON
Open ISP program
Choose
manufacturer and
LOAD FW files
Click program
button
Beginning
programming
Turn off power if
p
ro
g
rammin
g
is O
K
OK
OK
OK
OK
OK
OK NG
Choose Config
and adjust
programming

17
02. Flat Panel Specification

HannStar Display Corp.
Document Title HSD190MEN3-A Specification for Innolux Page No. 4 / 26
Document No. DC130-002772 Revision 1.0
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
1.0 GENERAL DESCRIPTIONS
1.1 Introduction
HannStar Display model HSD190MEN3-A* is a color active matrix thin film transistor (TFT)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This
model is composed of a TFT LCD panel, the voltage reference, common voltage, DC-DC
converter, column, and row driver circuit. This TFT LCD has a 19-inch diagonally
measured active display area with SXGA resolution (1024 vertical by 1280 horizontal pixel
array) .
1.2 Features
■19”SXGATFT LCD Panel
■4 CCFLs Backlight System
■Supported SXGA (V:1024 lines, H:1280 pixels) Resolution
■Supported to 75Hz Refresh Rate
■LCD Timing Controller
■RoHS Compliance
■VESA Compatible
1.3 Applications
■Desktop Monitors
■Display terminals for AV applications
■Monitors for industrial applications
1.4 General information
Item Specification Unit
Outline dimension 396 * 324 * 16.5(Typ) mm
Display area 376.32 (H) x301.056 (V) (19.0” diagonal) mm
Number of Pixel 1280(H) x 1024(V) Pixels
Pixel pitch 0.294(H) x 0.294(V) mm
Pixel arrangement RGB Vertical Stripe
Display color 16.7M (6-bits+Hi FRC)
Display mode Normally white
Surface treatment Antiglare, Hard-Coating(3H)
Weight 1950 g
Back-light 4-CCFLs, Top & bottom edge side
Input signal 2-ch LVDS
System 3.5(Typ.)
Power consumption B/L 19.8(Typ.) W
Optimum viewing direction 6 o’clock

HannStar Display Corp.
Document Title HSD190MEN3-A Specification for Innolux Page No. 5 / 26
Document No. DC130-002772 Revision 1.0
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
1.5 Mechanical Information
Item Min. Typ. Max. Unit
Horizontal(H) 395.5 396.0 396.5 mm
Vertical(V) 323.5 324.0 324.5 mm
Module Size
Depth(D) 16.5 mm
Weight (without inverter) -- 1950 -- g
Torque of customer screw hole -- -- 3.0 Kgf*Cm
2.0 ABSOLUTE MAXIMUM RATINGS
2.1 Absolute Rating of Environment
Item Symbol Min. Max. Unit Note
Storage temperature TSTG -20 60 oC
Operating temperature TOPR 0 50 oC (1)
Vibration (non-operating) VNOP -- 1.5 G (2)
Shock (non-operating) SNOP -- 70 G (3)
Storage humidity HSTG 10 90 %RH (3)
Operating humidity HOP 10 80 %RH (4)
Low pressure (operating) PLOP 697 -- HPa (5)
Low pressure (non-operating) PLNOP 116 -- HPa (6)
Note (1)Storage /Operating temperature
100
80
40
20
0020 40 60
-20-40
10
50
90
Humidity (%)
Temperature (oC)
Operating Range
Storage Range
65
60
