AceWav ACW EM8 User manual

Congratulations on purchasing ACW EM8. Follow these installation and configuration
instructions to get started. Use the web interface for easiest configuration. If you need
assistance, please contact Acewav at [e-mail] or visit www.acewav.tv.
Enable the video distribution effortlessly
Quick Start
Multi-channel Encoder Modulator-ACW EM8
Encoder Modulator
[phone] [email protected] www.acewav.tv

Please use the checklist to ensure that your order is complete:
Base unit × 1 Power cord × 1 Quick start guide × 1
Unpacking

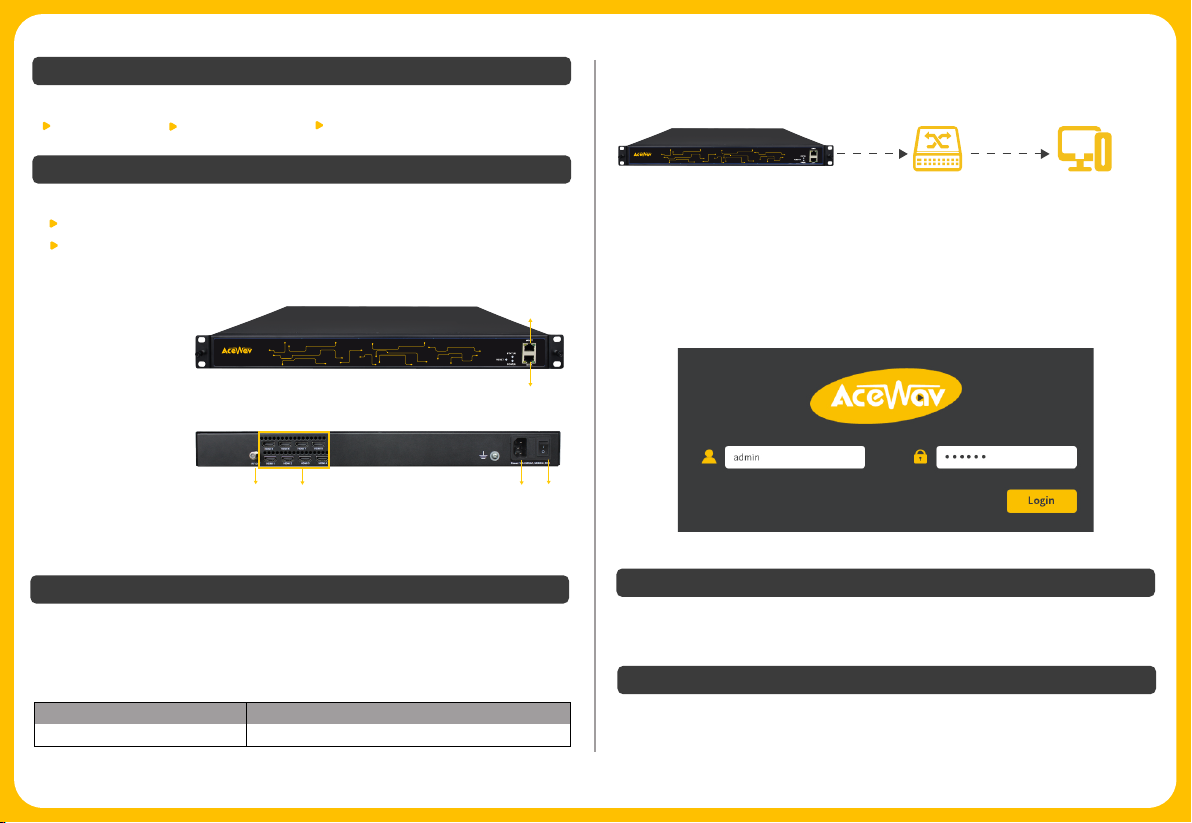

Rack Mounting and Cable Connecting
The built-in Ethernet port has a corresponding default IP address.
Launching Web Interface
1) Connect your management computer to the MGMT port on the device. Plug the
power cord to the power supply connector and then turn on the power switch.
The images shown here are for reference only. Actual product may look different.
Specifications are subject to change without advanced notice.
Documentation
Notice
Device Ethernet Port IP Address/Subnet Mask
192.168.1.10/255.255.255.0
MGMT
1. DATA 2. MGMT
Front panel
456
4. RF OUT 5. HDMI input
6. Power: AC 100~240V, 50-60Hz
Rear panel
7. Switch ON/OFF
7
The user manual can be obtained by emailing Acewav Sales team or Acewav Procare team.
3) Launch the web browser on the PC. Enter default IP address(http://192.168.1.10)
of the product in the browser address bar to connect with the unit. Input default user
name “admin” and default password “admin” to log in to the unit. The login tab is
displayed as below:
2) Change the IP address and subnet mask of management computer, making it in the
same network with the device.
Before beginning, please make sure that you have the following items:
The unit mounted in the rack with power supply
One computer for configuring the network connection
Please confirm that air intake and air exhaust of the unit will not be obstructed in
the rack.
*Note: In actual application, please avoid connecting MGMT port and DATA port to the same switch.
Switch Management
Computer
Encoder Modulator
Encoder Modulator
2
1
