ACG HS24H10 User manual

ACG Saws & Tools of Canada Inc.
www.ACGSaws.com
Safety and Operator Manuel
For HS24H10 and HS20H10
August 2022

SAFETY PROCEDURES
WARNING! In order to safely work with the hydraulic ring saw you have to follow all the
safety recommendations from the manufacturer and all the competent safety
organisations governing your territory and area.
It is mandatory and imperative that you read and comprehend the following instructions
to prevent any injury or even death to the operator or any one else in your surrounding
work area and property.
Only trained personnel or experienced operators shall use the cutting tool or saw. Any
repairs must be done by a trained or knowledgeable mechanic.
The saw must not be modified in any way without the express written permission from
the manufacturer. Unauthorised changes or modifications can result in Serious Injury or
even Death.
Safety regulations and obligations vary from local, regional and countries. It is your
responsibility to be informed and to follow all your local, regional, territory or country
safety authorities’ instructions and conform with all their safety recommendations and
obligations.
The OPERATOR is responsible to follow all the safety procedures to protect himself,
other person or property in his work area.
DO NOT OPERATE the tools if you have consumed prescription drugs that may affect
your judgement or ability to safely operate the tool or illegal drugs and alcohol.
It is imperative that you WEAR all the safety clothing and personnel protection
equipment such as hard hat, safety glasses, hearing protection, dust protection, safety
boots (leather and preferably rubber anti -shock boots in wet environment) gloves, long
sleeve shirt and pants plus any other protection or apparatus that may be deemed
necessary to protect your and others health and safety.
Play it safe, do not be sorry.

OPERATION
The saw is designed to safely cut only concrete, masonry and stone.
Visually inspect the saw for any defect or broken parts before using. NEVER operate a
defective saw or blade.
If damages or defects are noticed, have the saw repaired by trained and experienced
personnel only before using.
Keep the saw clean, free from any accumulated debris, slurry, oil, grease or any other
substances that would impair the safe operation of the saw.
Only a trained person who has read and understands the operating instruction, has
experience with the use and operation of saws, the related usage of the tool and
completely understands the instruction manual in conjunction with his experience and
knowledge in the safe operation of saws should operate the saw.
WARNING! Keep loose or torn clothing or body parts away from any moving parts.
Serious injury or death may result.
Plan your cutting operation before starting to prevent any injury or death by an
unsecured or falling part of the cut material or the binding of the blade caused by an
unsecured part being cut.
Have a person trained and qualified in the detection of electrical power location inspect
for live wires, live cables or pipes that may be near, behind or embedded in the material
being cut to de-energize before attempting to start cutting. Make sure that the tool is
properly grounded and wear the required protective equipment. Live electrical power
will cause serious injury or death.
Inspect the blade for any deformation, crack, missing parts, segments, any other
unusual sign of metal fatigue or defects.
Have the blade replaced immediately before reusing with one specified by the
manufacturer for this particular saw or tool.
The blade should only be changed by a trained or authorised person in the repair of the
tool.
WARNING! To safely operate the tool, you should be on solid ground with a firm grip on
both handles of the tool.
WARNING!
DO NOT operate on a slippery or uneven area.
DO NOT allow anyone in front of the tool or in line with the blade while working, flying
debris or slurry may INJURE someone.
DO NOT operate without all the guards in place and in good working order.

DANGER! All electrically operated tools should be grounded and hooked up to a ground
fault protection system.
All gasoline or petrol tools must be used in an outside environment. Never inside or in a
confined area.
Accumulation of fumes or gases will cause serious injury or death.
Be vigilant and very attentive to the work being performed and to your work area.
Never operate a tool or saw when you are tired, fatigued or stressed.
Follow all the safety recommendations.
Play it safe, your health and safety are your most important asset.
NEVER exceed the manufacturer recommended pressure rating and gallons per minute
(GPM) specification or the electric power requirements of the motor.
NEVER exceed the manufacturer recommended operating speed.
Make certain that the saw is in the neutral position before starting the hydraulic power
supply. and that the previous instruction on the visual inspection of the tool has been
carried out.
Remove any material, debris, water accumulation, slurry or any other foreign objects
from the work area that could prevent you from safely operating the tool.
The cutting operation may produce sparks when embedded steel is encountered in the
concrete being cut. No flammable material or fluid should be in your work area. DO
NOT operate the saw in a confined space or an area where a spark could produce an
explosion.
Always be alert and vigilant.
DO NOT use the saw or the tool other than its intended application.
Cut in step not to overload the tool to prevent overheating, damage to the motor or to
put too much stress on the blade.
DO NOT apply too much pressure to the tool and maintain a firm grip at all times.
Disconnect all power and water supply at the completion of your work.
DO NOT leave an un-attendant tool hook to the power supply.
Clean the tool completely

Technical Information
Hydraulic Hand Saw (HS24H10) (HS20H10)
Weight without blade
30.5 lbs - 13.84 kg
Width without the blade
9 in. - 229 mm
Height without the blade
28.5 in. - 724 mm
Length without the blade
28 in. - 712 mm
Power Requirement
Hydraulic
Maximum Flow
10 GPM - 37.8 lpm
Maximum Pressure
2500 psi - 172.5 bar
Maximum Blade Diameter
26 in. - 660mm
Maximum Cutting Depth with 26" Blade
11 in. - 280mm
Median Blade Diameter
24 in. - 610mm
Maximum Cutting Depth with 24" Blade
10 in. - 254mm
Minimum Blade Diameter
20 in. - 508mm
Maximum Cutting Depth with 20" Blade
8 in. - 203mm
Cooling of Blade
Water Cool Only (No Dry Cutting)

Troubleshooting
Saw will not start turning
Be certain that the power supply is hook
up. Accumulation of heavy slurry can
prevent saw from turning.
Sparks coming from the side of the blade
while turning
Not Enough water to cook the blade
Blade turning too slow
Check power supply. Worn out hydraulic
motor
Blade loose
Check locking screw on flange. Blade not
set properly. Loose blade Nut
On/Off handle sticking
Broken plunger O-ring, bent plunger rod
Hydraulic oil leak
Hole in supply or return line. Damaged
coupler fitting or loose fitting

Warranty
Limited Tool and parts Warranty
ACG Saws & Tools of Canada Inc. the manufacturer certifies that the tool is free from
any material or workmanship defect and warrant the tool with a limited warranty for a
period of 1 year from the date of the original purchase. Workmanship charges may
apply. Subject to certain exceptions, our responsibility under the warranty is limited to
the inspection and replacement of any parts that may be defective after being shipped
at our plant or any other point designated by the manufacturer. Cost of transport, labor
or other expense are not cover by the warranty and are the responsibility of the buyer.
The warranty does not cover normal wear & tear, abuse, lack of maintenance,
unauthorized repairs or attempt to repair by others than the manufacturer, misuse or the
tool being used other than its intended application. The Add on components or integral
units as electric, hydraulic motors, gas engine, transmission, batteries etc. are the
responsibility of the prime manufacturer warranty and are excluded from this warranty.
This warranty replaces all other implied or expressed warranty and all other such
warranty are therefor disclaimed.
Proof of purchase is mandator. An authorization return number must be issue by the
manufacturer before any tool may be ship to us for repair or warranty. The manufacturer
will repair the tool to its original designation at his desecration.
2590 Sheffield Road, Ottawa, Ontario K1B 3V7
1 [phone] 1 [phone]
www.ACGSaw.com

2022-02-25
ACG Saws & Tools of Canada Inc

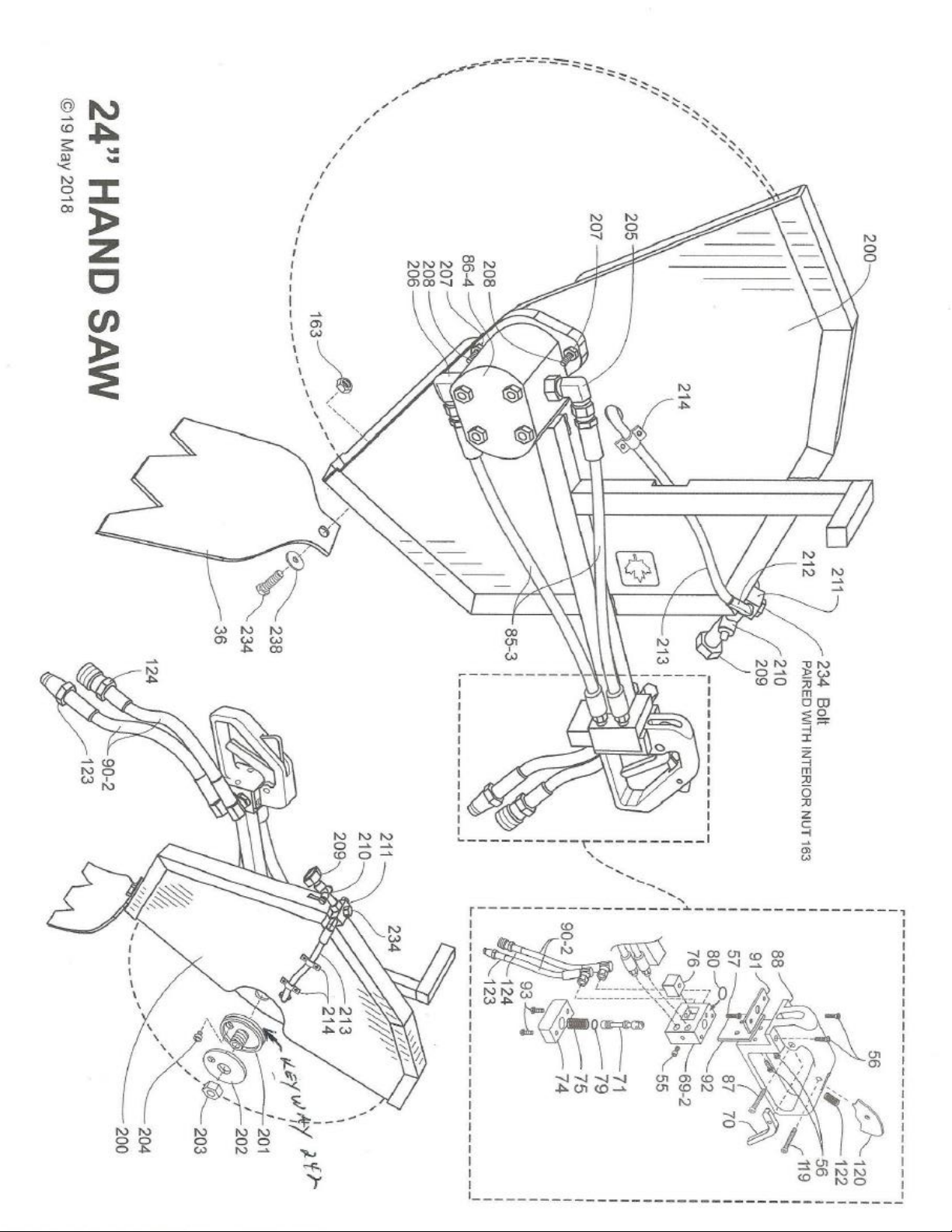

HS24H10 - 24" Hand Saw
Item #
Part #
Description
QTY
34
HDS034
Bolt
1
36
HDS036
Rubber Flop Guard
1
38
HDS038
Washer
1
55
HDS055
Flat Screw
1
56
HDS056
Flat Screw
4
57
HDS057
Cap Screw
1
69-2
HDS069-2
1/2" Hydraulic Valve Body
1
70
HDS070
Red Trigger
1
71
HDS071
Plunger
1
74
HDS074
Valve Cap
1
75
HDS075
Spring
1
76
HDS076
Stem Block
2
79
HDS079
Quad Seal #1
1
80
HDS080
Quad Seal #2
1
85-2
HDS085-3
1/2" Hose Assembly
2
86-4
HDS086-4
10 GPM Cassapa Motor
1
86-5
HDS086-5
Motor Seal
1
86-7
HDS086-7
Wiper Seal
1
87
HDS087
Handle Bolt
1
88
HDS088
Handle
1
90-2
HDS090-2
1/2" Hose Assembly
2
91
HDS091
Small Heat Insulator
1
92
HDS092
Large Heat Insulator
1
93
HDS093
Socket Cap Screw
2
119
HDS119
Spring Pin
1
120
HDS120
Trigger Lock
1
122
HDS122
Trigger Lock Spring
1

123
HDS123
Hydro Male Coupler
1
124
HDS124
Hydro Female Coupler
1
163
HDS163
Nut
1
200
HDS200
Guard & Handle Assembly
1
201-1
HDS201-1
Flanges & Nut Assembly
1
201
HDS201
Inner Flange
1
202
HDS202
Outer Flange
1
203
HDS203
LH Nut
1
204
HDS204
Hex Screw For Flange
1
205
HDS205
Small Motor Fitting
1
206
HDS206
Large Motor Fitting
1
207
HDS207
Nut
2
208
HDS208
Bolt
2
209
HDS209
Hose Adaptor
1
210
HDS210
1/4" Pet Cock Valve
1
211
HDS211
1/4" T
1
212
HDS212
1/4" Elbow
2
213
HDS213
1/4" Hose x 12"
2
214
HDS214
Clamp
3
240
HDS240
Flange Puller
1
241
HDS241
Wheel Adapter
1
241-1
HDS241-1
Wheel & Bushing
1
242
HDS242
Key Way
1
