ACME LIGHT AND EASY LED-0808 User manual

LIGHT AND EASY
LED-0808
User Guide
Please read these instructions carefully before use

1B

2B
CONTENTS
1. Features ................................................................................................3
2. General Instruction..................................................................................4
3. Overview.................................................................................................5
3.1 Front View.............................................................................................5
3.2 Rear View..............................................................................................6
4. Operation Guide......................................................................................6
4.0 Channel Asignment……………………………………………………..…6
4.1 Store Saved Colours.............................................................................8
4.2 Delete Saved Colours...........................................................................7
4.3 Program Chase.....................................................................................9
4.4 Insert step to Chase..............................................................................8
4.5 Delete Step From Chase ......................................................................9
4.6 Delete Chase......................................................................................11
4.7 Factory Reset......................................................................................10
4.8 Manual Mode......................................................................................12
4.9 Run Saved Colours.............................................................................10
4.10 Run CHASE......................................................................................14
4.11 Run Pre Set Colours…………………………………………………….12
4.12 Over control ......................................................................................15
4.13 Strobe................................................................................................16
4.14 Blackout ..........................................................................................16
4.15 Foot Switch (CA-8F).........................................................................16
4.16 Update by USB driver.......................................................................16

3B
1. Features
1. Light and Easy is a user friendly LED controller.
2. Designed to work on all 8-Channel LED lighting fixtures
3. Control up to 64 channels of 8 LED groups
4. 8 individual buttons for selecting 8 groups of lighting fixtures
5. LED display for easy navigation
6. 8 Color pre-set buttons
7. 6 saved colour with 4 Banks.
8. 8 Chases, each can save up to 32 steps.
9. 3 operation modes：Auto Chase, Sound Chase, Manual Control.
10. Optional Foot Controller (CA-8F) for ease of operation.
NOTE:
A knowledge of DMX is required to fully utilize this unit.

4B
2. General Instruction
Please read the user manual carefully, as it includes important information regarding
details of operation, maintenance, and technical data. Keep this manual with the unit for
future consultation.
WARNINGS！
Avoid any inflammable liquids, water or metal objects entering the unit.
Should any liquid be spilled on the unit, DISCONNECT the power supply to the unit
immediately.
STOP using the unit immediately In the event of serious operation problems and
contact your local dealer for a check immediately.
DO NOT open the unit--there are no user serviceable parts inside.
NEVER try to repair the unit yourself. Repaired by unqualified people could cause
damage or malfunction.
CAUTIONS！
After removing the packing Make that the unit is NOT damaged in any way. If in doubt,
DON'T use it and contact an authorized dealer.
Packaging material (plastic bags, polystyrene foam, nails, etc.) MUST NOT be left
within children's reach, as it can be dangerous.
This unit must only be operated by adults. DO NOT allow children to tamper or play
with it.
NEVER use the unit under the following conditions:
In places subject to excessive humidity.
In places subject to vibrations or bumps.
In places with a temperature of over 45℃/113℉or less than 2℃/35.6℉.
Protect the unit from excessive dryness or humidity (ideal conditions are between 35%
and 80%).
DO NOT dismantle or modify the unit.

5B
3. Overview
3.1 Front View
1. FIXTURE SELECTOR 1-8
use to select fixtures
2. AUTO CHASE
To run the chase automatically
3. SOUND CHASE
Run the chase to the music
4. AUTO FADER
5. MANUAL CONTROL
Press the button, you can turn to Manual control
6. CHANNELASSIGNMENT
Channel assignment
7. USB PORT
Use to update and connect with gooseneck lamp
8. PRESET COLOURS
Setting p，
9. SAVED COLOURS
Select 24 colors by UP/SOWN button
10. LED DISPLAY
The operation states will show on the LED display
11. PROGRAM/RECORD
enter or exit program/record
12. INSERT/TAP
Insert one step/set up a tap for chase
13. UP/DOWN button
Select bank, run chase manually, adjust the sound
sensitivity and the times chase auto run

6B
14. DEL/CLEAR
delete preset color, chase or step/clean output
15. SAVED CHASES
use to select chase 1-8
16. FADER 1-6
adjust the output of 1-8 channels
17. USER DIFINITION FADER
Keep for user-defined
18. MANUAL/MUSIC/AUTO
When using the CA-8 to control, the corresponding
LED on indicating Manual Mode, Sound Mode or
Auto Mode.
19. BLACKOUT/FOOTSWITCH
Blackout/change to the footswitch control status
20. STROBE
strobe
21. CHASE SPEED
Use to adjust the chase speed
22. FADER SPEED
use to adjust the fade speed which show as
percentage of the run time
3.2 Rear View
①POWER SWITCH
Power on/off the unit
②POWER IN
9-12DC min 300mA
③3pin DMX Out
3 pin DMX-512 output
④5pin DMX Out
5pin DMX512 output
○5 RJ45 CONNECTOR
RJ 45 Cable port
○6 CA-8F FOOT CONTROLLER
CA-8F connector
4
4. Operation Guide
Turn on the power, the controller access to the last control status of
LED-0808 or CA-8F. Press BLACKOUT/FOOT SWITCH button to
switch to LED-0808 or CA-8F control. Follow functions will be
available under LED-0808 controlling.
1、CP1.1-CP4.6
Saved colour, 4 banks, each bank with 6 saved colour
2、CAS1-CAS8
chase

7B
3、ST01-ST32
chase step
4、D000-D255
data
5、0.1 /08.8
21.30 /60.00
chase speed (the interval time between two steps)
(1) one digital after radix point: the unit is second
(2) Two digital after radix point: the digital before
radix point is minutes, and the digital after radix
point is seconds.
6、P000---P100
fade time: the percent of the chase speed
7、M001-M100
sound sensitivity
8、L001-L200
loop
9、NULL
null
10、LOCH
Lock

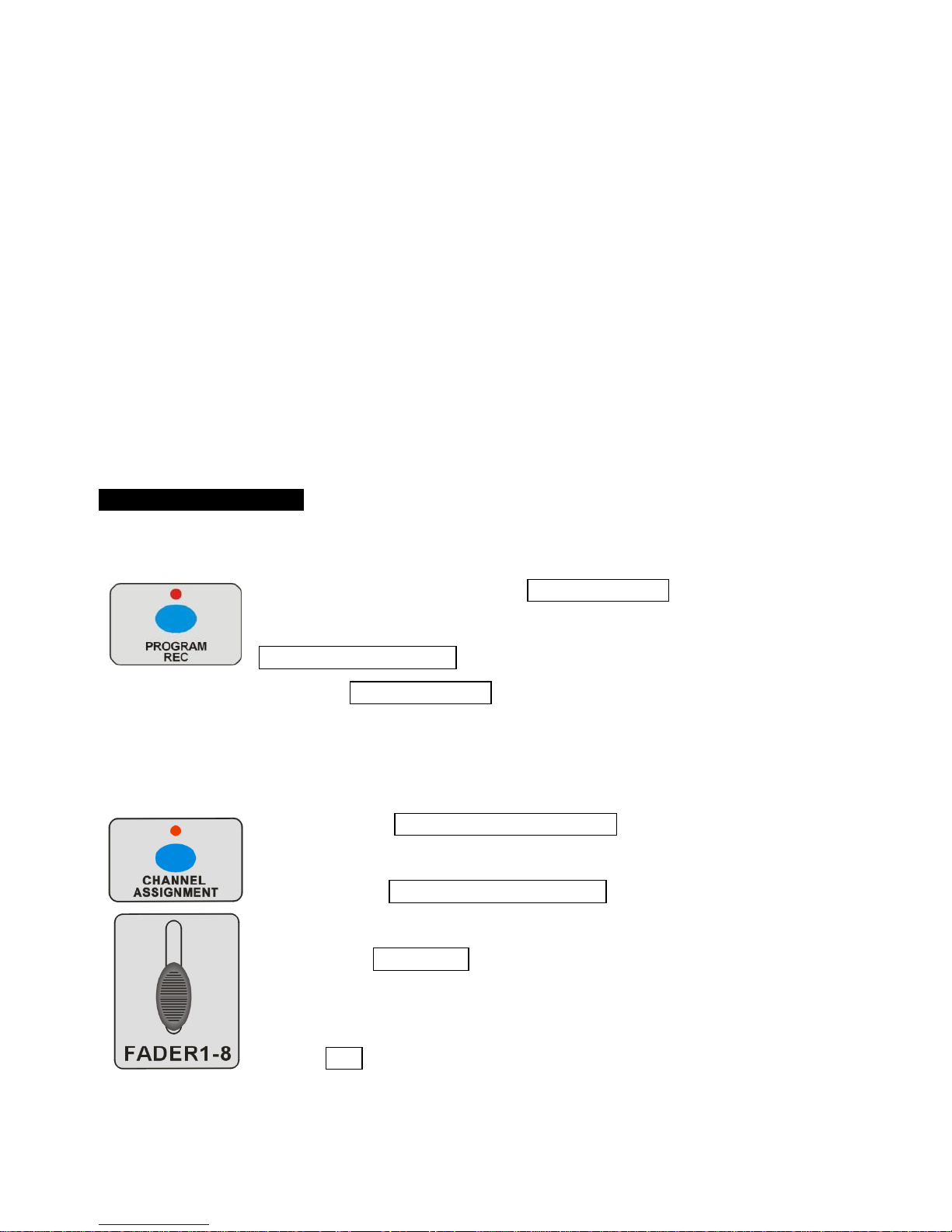

4.0 Channel Assignment
Enter programming mode: Hold PROGRAM/REC button for 3 seconds,
when the LED display shows “LOCK”, you should press
fixture selector button 6 for six times to unlock. That means the code is
“666666”. Then the PROGRAM/REC button and the LED indicator above the
saved colors button as well as the saved chases button will flash indicating
program is active.
1. Enter programming mode
2. Press CHANNEL ASSIGNMENT button for 3 seconds, the
LED indicator above bright indicating the program is active.
3. Press FIXTURE SELECTOR 1-8 button to choose fixture units.
4. Push FADER 1-8 to assign the color for each channel (1-8), that
all depends on the channel of the light. For example, if the first
channel of light is blue, then you should push the third fader
blue on the position of one, at the same time the display above
the fader will show the number ”1”on it.

8B
5. Pressing the PROGRAM/REC button, the all LED indicator
flash for 3 times and then go out indicating that has already
stored in it successfully.
6. Repeat steps 3-5 to assign all other color for the channel of the assigned lights.
Note: The value of the fader is 0 to 8, and then 1 to 8 means the channels which
you will assign for the fixtures. The value “0”that means you will turn off the channel
output. After you finish your setting for the channel turn on/off just press the
PROGRAM/REC button once then all the light will flash for 3 times, that means you
have saved the setting successfully.
7. Hold CHANNELASSIGNMENT button for 3 seconds to exit the channel assignment
mode, and the LED indicator above it will be off. Or hold PROGRAM/REC button for
3 seconds to exit programming mode.

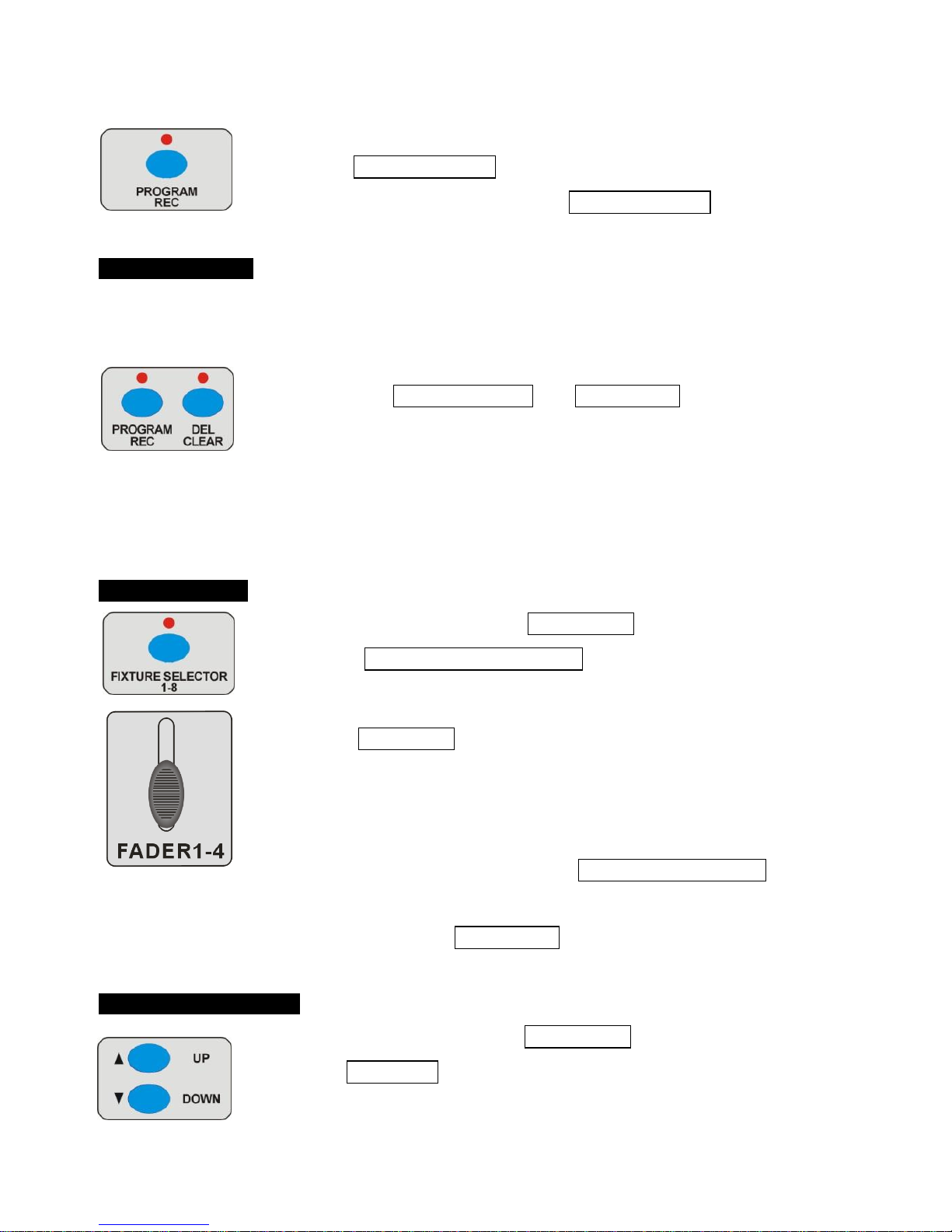

4.1 Store Saved Colour (Scene)
1 Enter programming mode.
2 Press FIXTURE SELECTOR 1-8 button to choose units.
3 Push fader FADER 1-8 to adjust the output.
4 Press PROGRAM/REC button.
5 Press UP/DOWN button to choose bank 1-6 to store saved color
(Jump this step if you have chosen a bank before).

9B

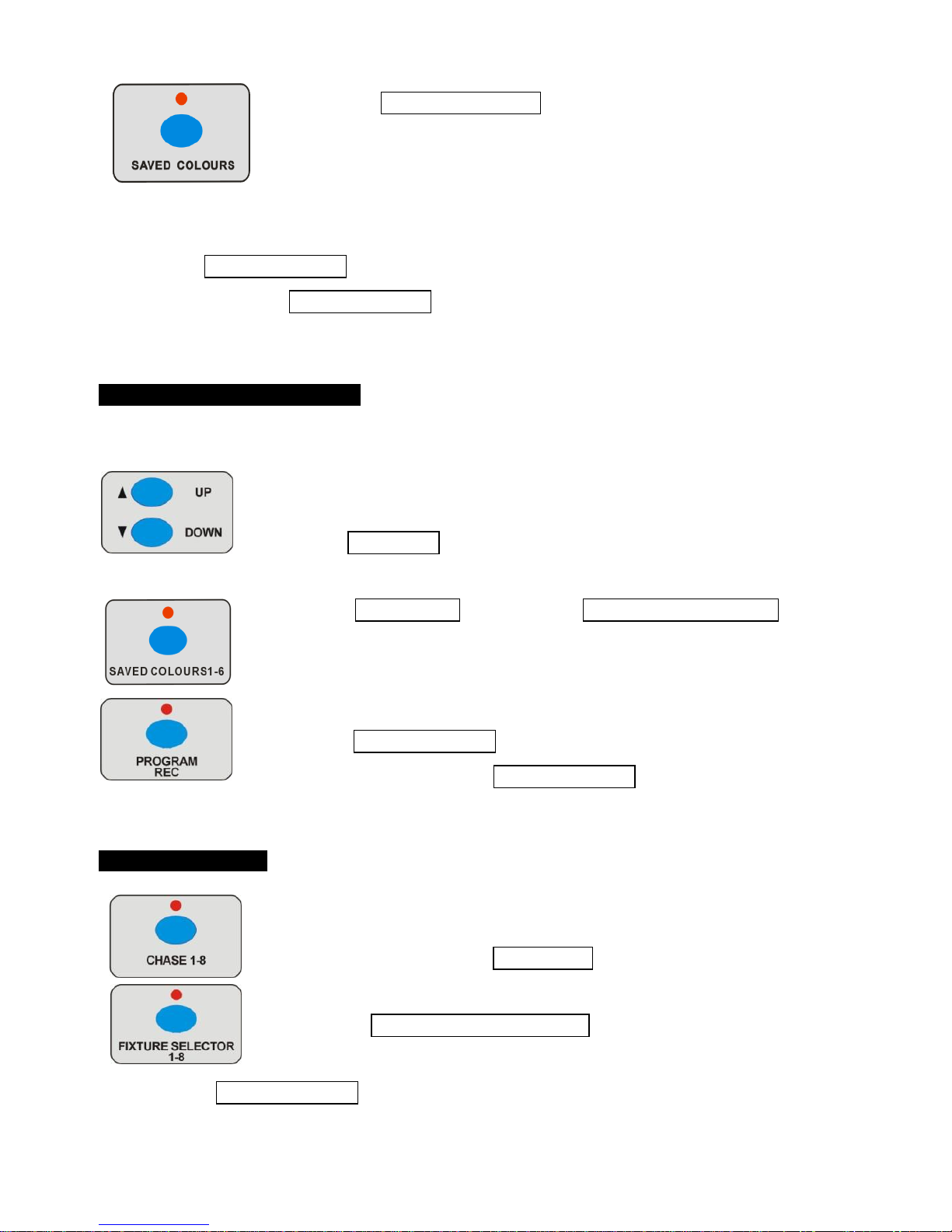

6 Press SAVED COLOURS button, all LED indicator flashing for 3
times and then go out, the corresponding LED flashing
indicating that has already stored successfully (when the LED
indicator off, means there is null color saved).
7 Repeat steps 2-6 to store more saved color.
8 Hold PROGRAM/REC button for 3 seconds to exit programming mode, the LED
indicator above PROGRAM/REC will be off.
9
4.2 Delete saved Color (Scene)
1 Enter programming mode.
2 Use UP/DOWN button to choose bank 1-6 the saved color
(Jump this step if you have chosen bank before).
3 Hold DEL/CLEAR button, press SAVED COLOURS 1-6, all LED
flashing for 3 times and then go out, the corresponding LED off
indicating the saved color have deleted successfully.
4 Repeat 2-3 steps to delete more color presets.
5 Hold PROGRAM/REC button for 3 seconds to exit programming
mode, the LED above PROGRAM/REC button will be off.

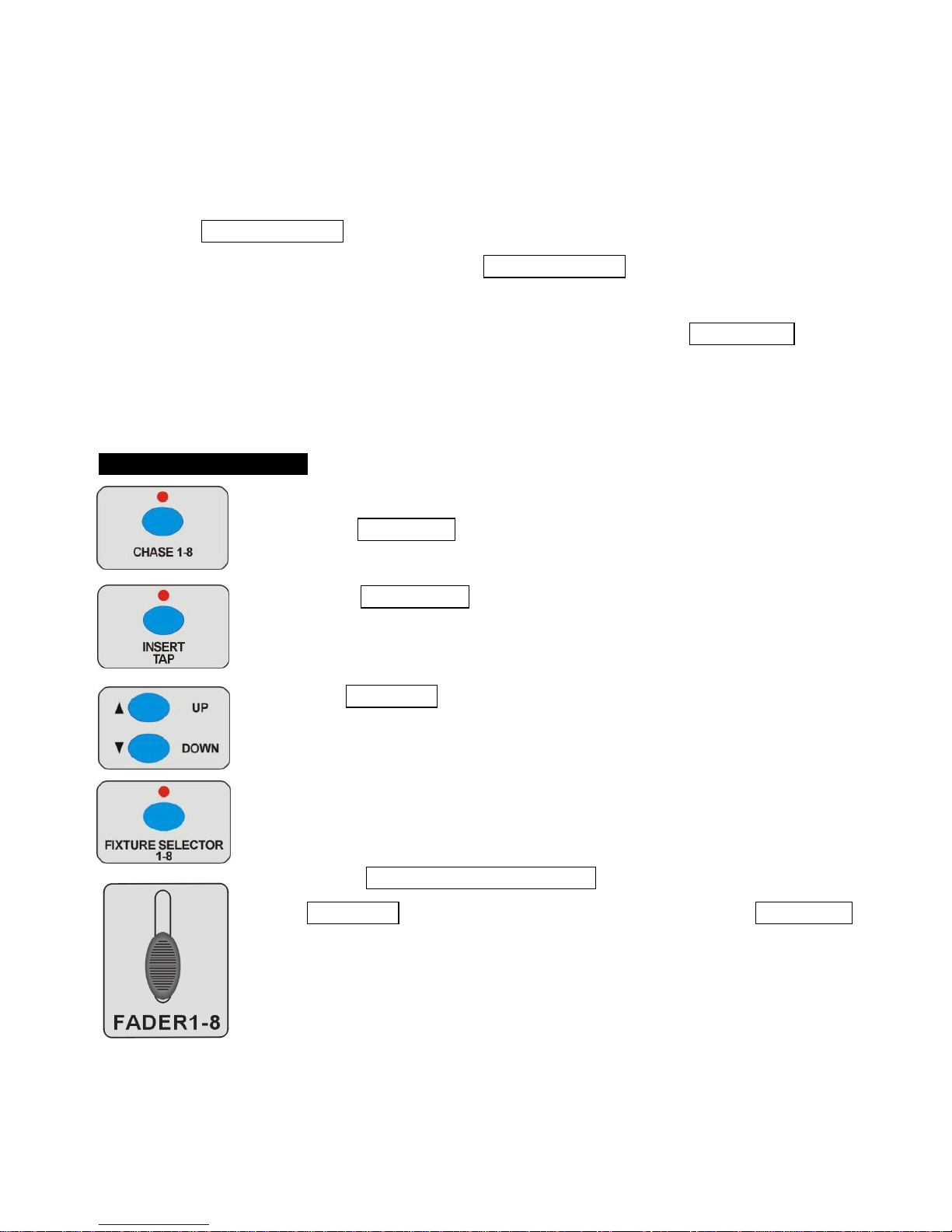

4.3 Program Chase
1 Enter programming mod.
2 Press CHASE 1-8 button to choose chase which
desired to store in.
3 Press FIXTURE SELECTOR 1-8 button to choose units, pushing
fader 1-8 to adjust the light effect, or open a saved color stored.
4 Press PROGRAM/REC button, all LEDs flashing for 3 times and then go out
