Acoustic Arc AH0810US User manual

AH0810US
913MHz Headphone System
User's Manual

INTRODUCTION
Thank you for purchasing this system ! This 900MHz stereo wireless
headphone system offers you advances in wireless transmission technology so
that you can listen to ultra stereo sound from your audio components upto 50
meters. The transmitter is compactable to any audio sources, say DVD player,
CD player, i-pod, MP3, TV set, VCR, Hi-Fi system or radio.
FEATURES
1. 900 MHz RF technology.
2. Auto Scanning system on headphone.
3. Phase Lock Loop (PLL) transmission system on transmitter.
4. Automatic battery recharging (rechargeable batteries supplied).
5. RF technology leaves you completely free to move around.
6. Transmission is not restricted solely to line of sight.
7. Rechargeable receiver headphones.
8. Charger built into the transmitter.
9. High quality stereo sound that is virtually interference-free.
10. Auto On/Off function.
PACKAGING
1. RF receiver headphones
2. RF transmitter
3. 6V 300mA power adapter
4. 3.5mm to 2 X RCA audio cord
5. 2 X AAA rechargeablebatteries, Ni-MH

INSTALLATION

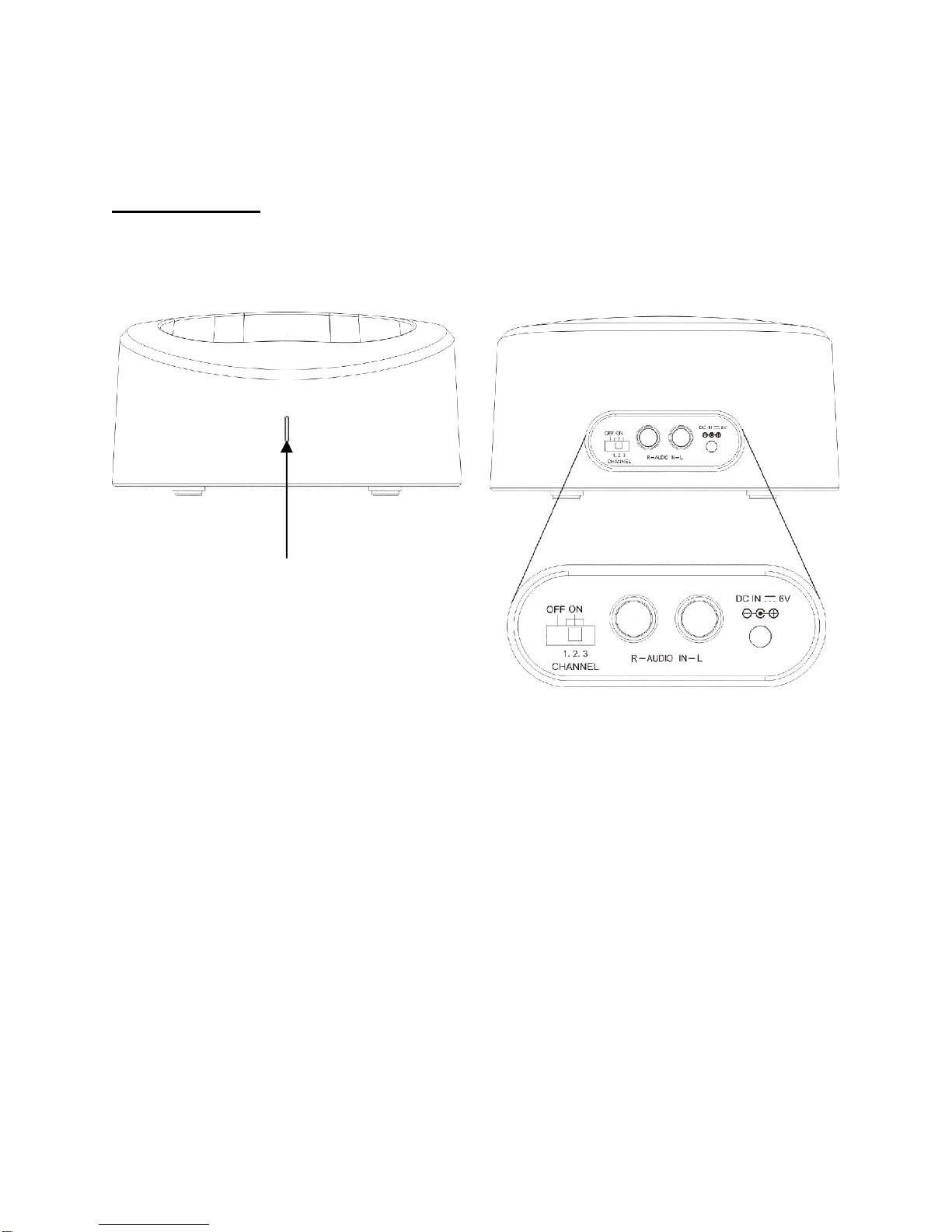

TRANSMITTER
1.Connect the mains adapter provided to an electrical outlet.
2.Connect the mains adapter cable to the DC IN input connector located on
the transmitter rear panel.
3.Use the RCA audio cable to connect the transmitter's rear panel audio jack
and any audio outputs present on a TV set, Hi-Fi system, VCR or radio-cassette
player.
The red Auto On indicator led will light up as soon as you have connected both
the power adapter to the mains outlet AND the audio cable to a signal source. If
the Auto On indicator led remains off, switch on the audio source and increase
its output level until the red indicator light comes on.
RED Led (Signal In dictator)/
GREEN Led(Charge in dictator)

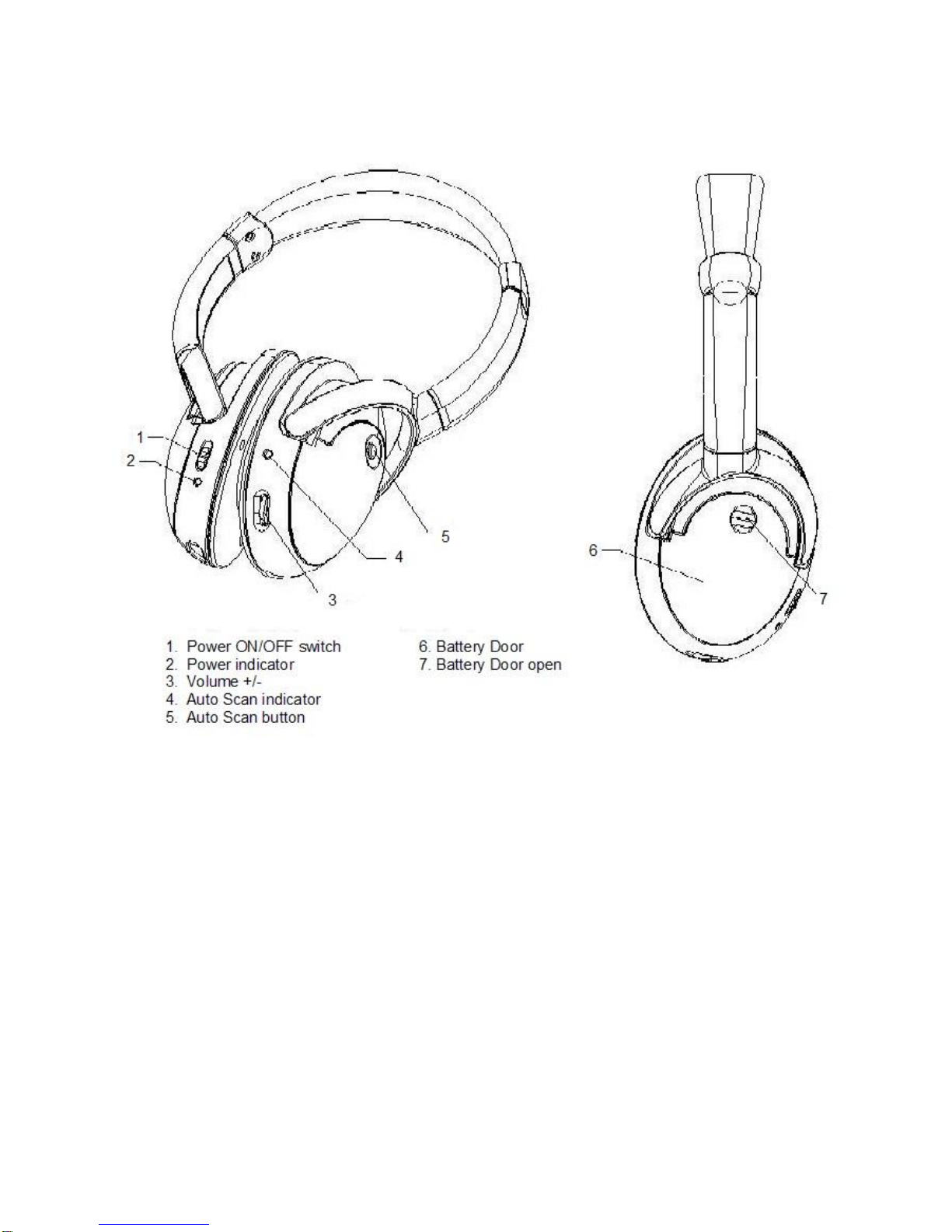

RECEIVER HEADPHONE
1.Remove the battery door from the left hand side (L) of receiver headphone.
2.Insert two rechargeable LR03/AAA size batteries. Taking care to ensure
correct polarity.
3.Put back the battery door to the left hand side of receiver headphone.
4.Switch off the receiver headphones and place it into the transmitter to charge
the batteries for 24 hours before the initial use.

OPERATION
1.Turn on the audio source (TV set or any audio devices) which the transmitter
has connected.
2.Switch on the headphone.
3.Place the headphone on your head and adjust the volume to obtain the
desired sound level.
4.If you cannot find the best reception frequency, press the "Auto Scan" button
on the headphones to get the fine scanned channel.
NOTE:
You should then be able to move around freely from one room to another
without any interference. If interference does occur (interruptions in the signal),
press the "Auto Scan" button once to find a better reception channel.
AFor better stereo reception, stay approximately seven meters away from
the transmitter when you press the "Auto Scan" button.
BIf it is impossible to find a satisfactory frequency, change the channel
setting on your transmitter, then press the "Auto Scan" button on the
headphones to find the corresponding channel.
To both protect the transmitter and save power, the transmitter will automatically
switch off after approximately four minutes if there is no audio signal, or the
signal that it receives from the audio source is too weak for proper reception. If
however the signal returns to an acceptable level, then the transmitter will
automatically switch back on.

CHARGING THE BATTERIES
1.Switch OFF the receiver headphone.
2.To recharge the headphone batteries, place the headphones on the
transmitter, taking care to ensure that the charge contacts touch the
transmitter's charge pins and the green charging indicator is ON.
3.The charge process starts automatically and the green indicator light comes
ON. Be sure to charge new batteries for 24 hours before using them for the
first time in the headphones. The green indicator light will be on continuously
during battery charging.
WARNING:
** Never attempt to recharge conventional dry cells.
** Never use another type of battery or non-rechargeable batteries to replace
the rechargeable (LR03/AAA) batteries supplied. When the headphones are not
in use, switch OFF the headphones to avoid damaging the batteries.
** The batteries must be fully charged before first use. An initial 24 hour
charge is required to guarantee an acceptable service life for the rechargeable
batteries. Always ensure that the headphones are switched to the Off
position while the batteries are charging.
IMPORTANT:
This unit should be operated with rechargeable batteries only. When replacing
the batteries or when disposing of the unit, always comply with applicable laws
relating to the disposal of batteries. Please place them in a proper disposal
container to ensure that they are eliminated safely and in an
environmentally-friendly way. Thank you.

TECHNICAL SPECIFICATIONS
Transmission mode : UHF stereo
Carrier frequency : 900MHz
Operating voltage : Transmitter – 6 V 300 mA
Receiver – 2.4 V (2 X rechargeable
batteries, LR03/AAA size)
Frequency response : 40 Hz – 11 KHz
Distortion : 1 %
Signal-to-noise ratio : 65 dB
Channel separation : 30 dB
Range : 50 meters (open area)
TROUBLESHOOTING
NO SOUND
-Ensure that the mains adapter is pushed fully into the power outlet and
that its cable is properly connected to the DC IN 6V connector on the
transmitter.
-Ensure that the headphones On/Off switch is switched to the On
-The headphones battery charge level may be too low. Recharge the
batteries or replace them with fully charged batteries.
-Ensure that your TV set, Hi-Fi system or audio component is switched on
and set to a channel that broadcasts an audio signal.
-Use the headphone volume control to increase the sound level (only
when use as a wireless headphone). When use as a corded headphone,
the headphone volume can be adjusted at the sound source eg. Hi-Fi, or
TV, etc.
-The connected audio/video equipment may not be in playback mode.
Start playback on by the equipment.
-The headphone output level is set too low. Adjust the volume to a suitable
level.

DISTORTION
-If distortion appears, press the “Auto Scan” button again.
-Use the channel selector to change the transmitter's transmission
frequency. Then you will need to adjust the tuning control by press the
“Auto Scan” button on the headphones.
-The headphones battery charge level may be too low. Recharge the
batteries or replace them with fully charged batteries.
-Ensure that the volume knob setting is correct.
-The headphones may be too far away from the transmitter. Move closer to
it.
-The audio signal input level is too low. Increase the volume from the audio
source of Hi-Fi, CD, or TV, etc.

The FCC Wants you to Know
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTE:This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment. Where shielded interface cables have been provided with the
product or specified additional components or accessories elsewhere
defined to be used with the installation of the product, they must be used
in order to ensure compliance with FCC regulation.
Industry Canada-ICES-003
CAUTION
To comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules, this device must only be installed on computer equipment
certified to comply with the Class B limits.
This Class B digital apparatus complies with Canadian ICES-003.
