Acqua GY-NE175FR User manual
1
FREEZER SERVICE MANUAL
GY-NE175FR
NO FROST
NOTE: Product specifications are subject to change with situation without notification.
2
■

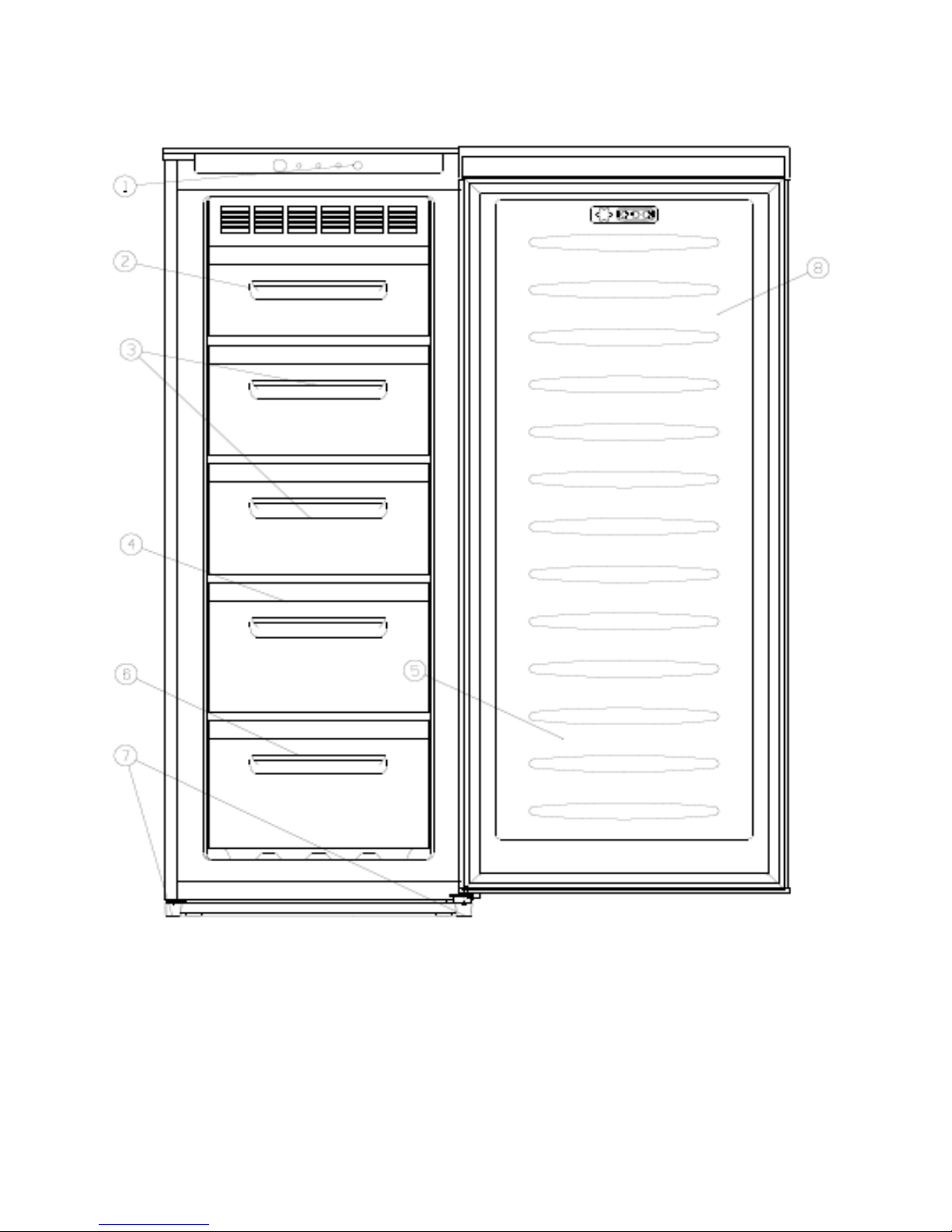

3

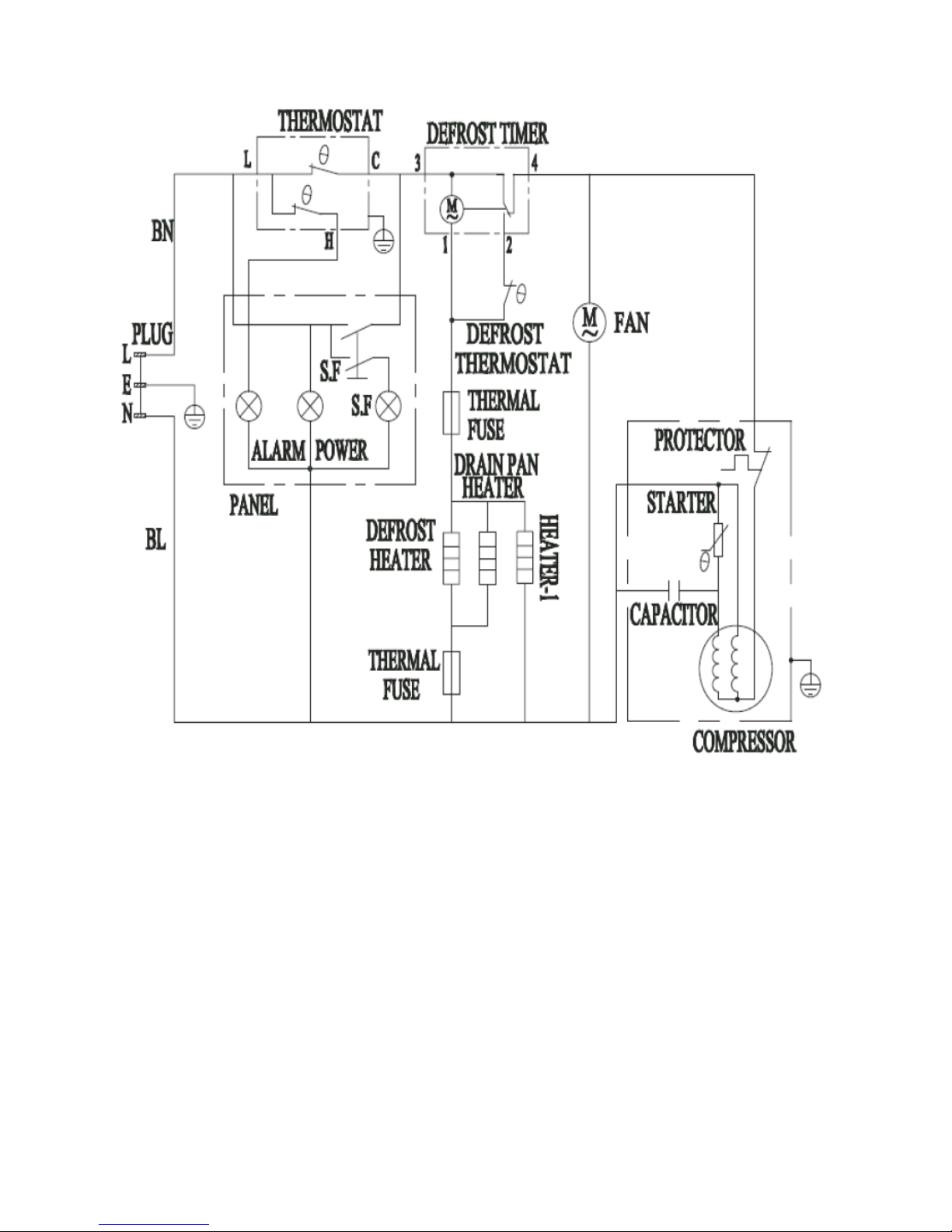

4

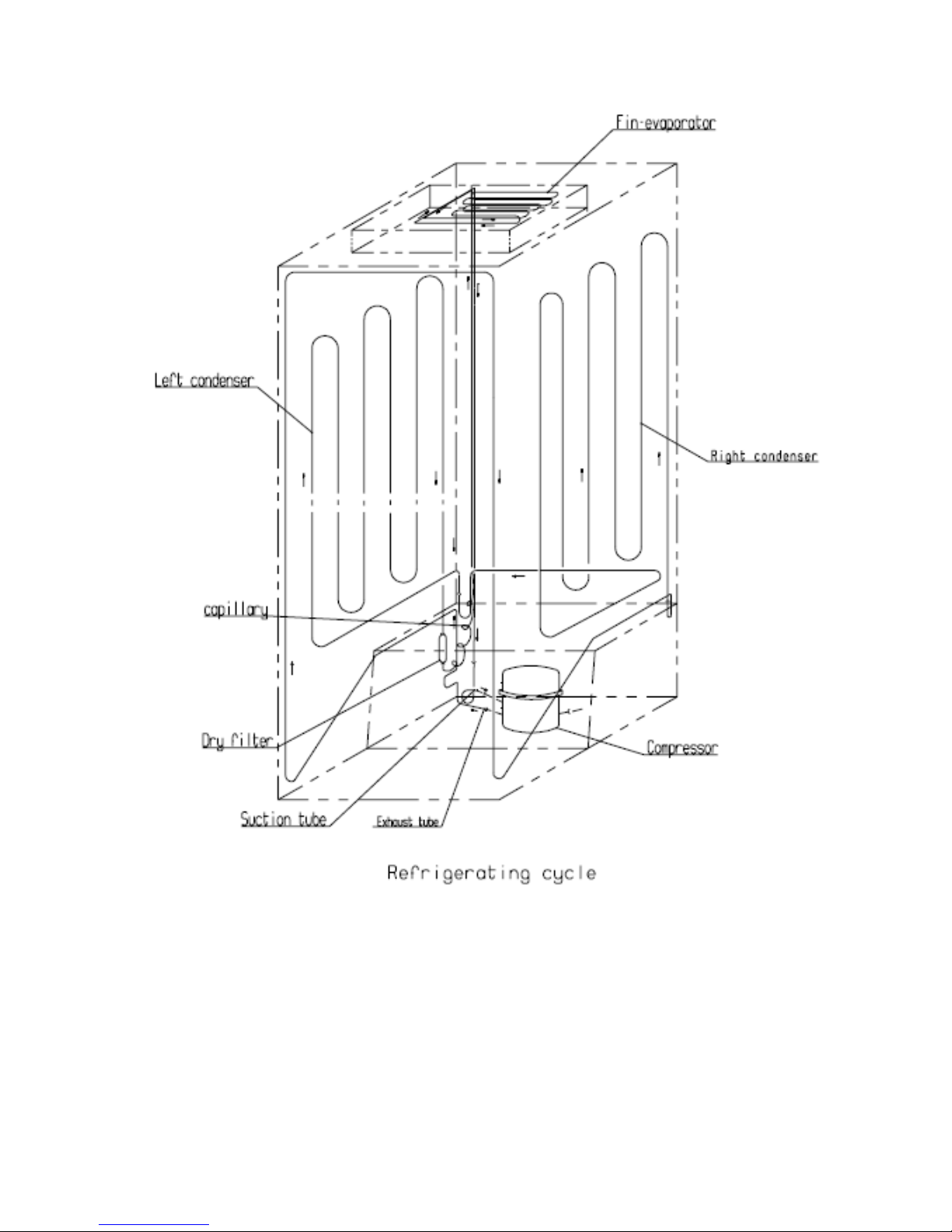

5
6
◆
◆◆
◆
◆
◆◆
◆

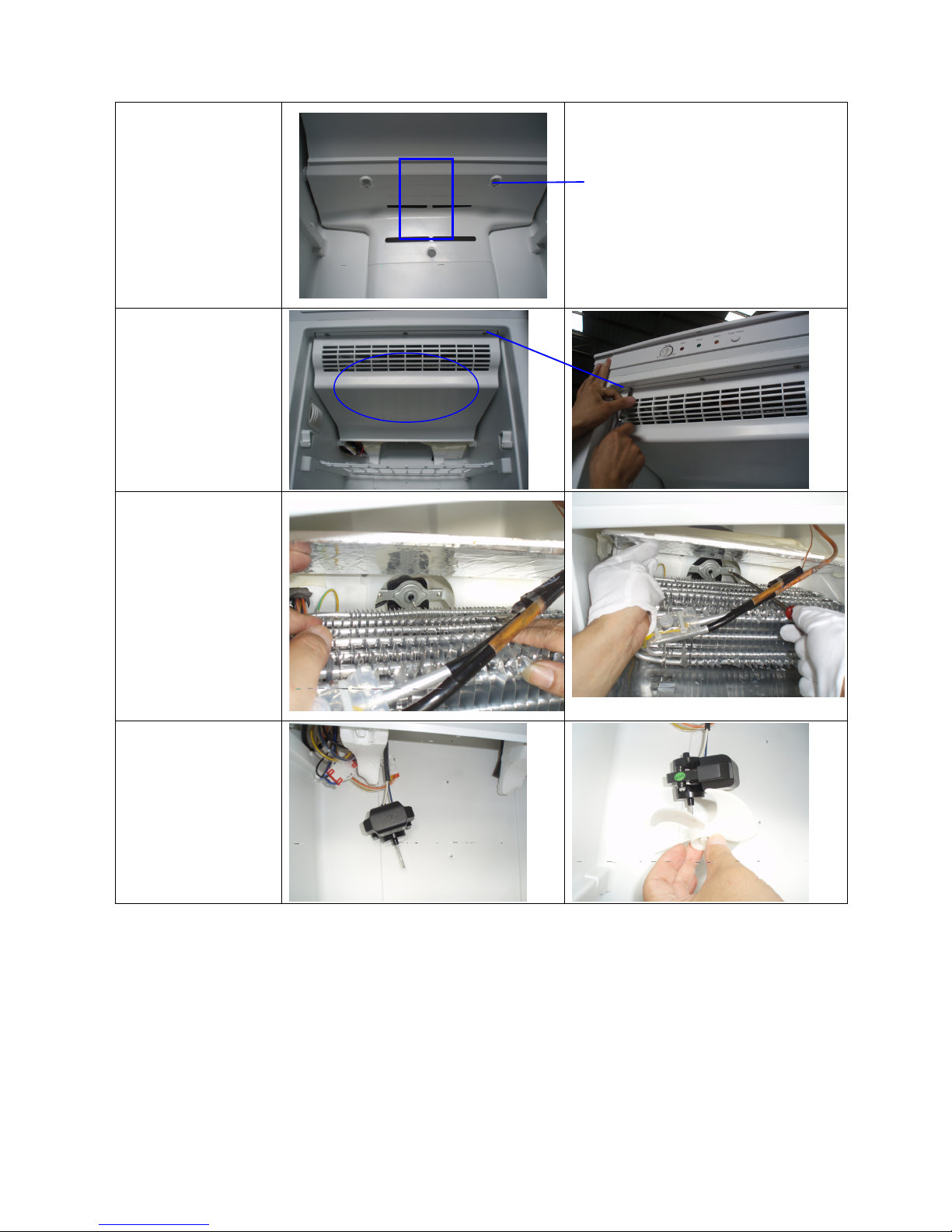

7
◆
◆◆
◆
8
GY-NE175FR Parts List
1 Screw cover of top cover 1051640
2 Sscrew ST4.2X13 1099042
3 Top cover plate 1110745
4 Tront Decorative Plate of Top Cover 1118978
5 Display Board Part 1305085
6 Thermostat Knob 1051745
7 Case 1391409
8 Temprature Head Guard 1050550
9 Timer 1119140
10 Timer Cover 1118557
11 Pipe Plug 1110989
12 Evaporating Dish 1078472
13 Junction Box 1051717
14 Junction Box Cover 1051718
15 Connecting Tube 1051127
16 Compressor 1374943
17 Sscrew M6X25 1111716
18 Process Tube 1051105
19 Dry Filter 1051109
20 Platen 1072839
21 Compressor Grounding Wire 1054600
22 Compressor Connecting Wire 1055620
23 Vibration Pad 1111696
24 Power Board Part 1076053
25 Self-tapping Screw ST4.2x13-F 1114961
26 Lock washers external teeth 65Mn 1099127
27 Copper screw nut M4 1099101
28 Copper screw bolt M4×8 1099102
29 Compressor Base Part 1110788
30 Special FlangeSelf-Tapping
Screw M4.8X16 1115414
31 Platen 1111096
32 Ajustable bottom feet part 1056884
33 Flange Screw M5X16 1099098
34 Front Feet Fixed Doard 1100828
35 Lower Hinge Fixed Board 1111187
36 Nut 1099075
37 WASHER 1099122
38 Hinge Axis 1103890
39 Adjustable Cushion 1110021
40 Wind Channel Cover 1118662
41 Screw ST4.2x16 0Cr18Ni9 1118194
42 Screw Hole Cover 1070958
43 Drawer Frame 1118675
44 Drawer Frame 1118679
45 Shelf Part 1118967
46 Drawer Panel 1403902
47 Gasket Part 1119063
48 Freezer Door 1387564
49 Limit Block 1052510
50 Sscrew ST4.2×16 1099043
51 Kok Cover 1119165
52 Kok Cover 1119164
53 Drawer Panel 1403904
54 Bafexedfolder 1118653
55 Drawer Panel 1408566
56 Drawer Frame 1118674
57 BafeFixedFolder 1118652
58 Wind Channel Cover 1118661
59 Refrigerator Middle Drawer 1118710
60 Insulation Foam 1118660
61 Water Drain 1119298
62 Certication 1111834
63 Temperature Fuse 1111833
64 Heater 1119102
65 Wing Slice Evaporator Part 1117079
66 Fan Leaf Fixxed 1111138
67 Fan Leaf 1111155
68 Fan Motor Supporter 1078444
69 Fan Motor 1117968
70 Vibration Pad 1110221
71 Drain Connecting Pipe 1118649
72 Fan Motor Supporter 1118705
73 Upper Hinge Fixed Board 1111191
74 Hinge Axis 1118353
75 Insulation Foam 1118658
76 Heater 1119103
77 Thermostat 1117126
78 Foam Pad 1121282
79 Insulation Foam 1118659
RS-20WC4SA( BD-155W/HC2(EXH) ) 1% PART
LIST(220V/50HZ,R600a)
1 Thermostat Knob 1051745
2 Timer 1119140
3 Compressor 1374943
4 Ajustable bottom feet part 1056884
5 Gasket Part 1119063
6 Fan Motor 1117968
7 Thermostat 1117126
No Part name Part No No Part name Part No
