Acqua GY-NE31FRS User manual

GY-NE31FRS & GY-NE31FRW
FROST FREE FREEZER
SERVICE MANUAL
Refrigerator
Service manual
NO FROST
Model: RS-31WC*BD-235WY
NOTE: product specificationsare subject to change.

1
Contents
Warnings and precautions for safety............................................................................................................................ 2
Parts Description.......................................................................................................................................................... 3
Circuit diagram ............................................................................................................................................................ 4
Technical Specifications .............................................................................................................................................. 4
Cooling diagram .......................................................................................................................................................... 5
Display controls ........................................................................................................................................................... 6
Compressor Protector test.......................................................................................................................................... 10
Compressor PTC starter test .......................................................................................................................................11
The guide for Disassembly Common parts of Refrigerator…………………………………...……………………11
◆The instruction of replacing the main board and display board..............................................................................11
◆The instruction of of replacing fan motor and freezer room sensor....................................................................... 12
◆The instruction of replacing temperature sensor. ................................................................................................... 13
◆The instruction of replacing evaporator temperature sensor and temperature fuse and heater. ............................. 14
◆The instruction of replacing PTC Starting relay and Overload protector. ............................................................. 16
◆The instruction of replacing Door switch. ............................................................................................................. 16
◆The instruction of replacing Display board. .......................................................................................................... 17
Troubleshooting......................................................................................................................................................... 18
◆The solution for digital display code problem: .................................................................................................... 18
◆The common problem judgement method ........................................................................................................... 18
◆The solution for the common problem................................................................................................................. 20
NOTE: ....................................................................................................................................................................... 22

2
Warnings and precautions for safety
Please observe the following safety precautions in order to use safely and correctly the refrigerator
and to prevent accident and danger during repair.
1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more than
three minutes before replacing PCB parts.
Shut off the power whenever replacing and repairing electric components.
2. When connecting power cord, please wait for more than five minutes after power cord was
disconnected from the wall outlet.
3. Please check if the power plug is pressed down by the refrigerator against the wall.
If the power plug was damaged, it may cause fire or electric shock.
4. If the wall outlet is over loaded, it may cause fire.
Please use its own individual electrical outlet for the refrigerator.
5. Please make sure the outlet is properly earthed, particularly in wet or damp area.
6. Use standard electrical components when replacing them.
7. Make sure the hook is correctly engaged.
Remove dust and foreign materials from the housing and connecting parts.
8. Do not fray, damage, machine, heavily bend, pull out or twist the power cord.
9. Please check the evidence of moisture intrusion in the electrical components.
Replace the parts or mask it with insulation tapes if moisture intrusion was confirmed.
10. Do not touch the icemaker with hands or tools to confirm the operation of geared motor.
11. Do not let the customers repair, disassemble and reconstruct the refrigerator for themselves.
It may cause accident, electric shock, or fire.
12. Do not store flammable materials such as ether, benzene, alcohol, chemicals, gas, or
medicine in the refrigerator.
13. Do not put flower vase, cup, cosmetics, chemicals, etc., or container with full of water
on the top of the refrigerator.
14. Do not put glass bottles with full of water into the freezer.
The contents shall freeze and break the glass bottles.
15. When you scrap the refrigerator, please disconnect the door gasket first and scrap it

3
Parts Description



6
Display controls

7

8
Measuring sensor resistance
Using a multimeter with the ohm switch to measure the resistor of sensor, normally at surrounding 25℃the
resistor should be about 2kohm and every with the temperature decreases 1℃the corresponding resistor value
would increase about 45ohm. If the measured value is not within the normal scope, the sensor is bad and needs to
repair or change.

9
Measuring Temperature fuse and heater resistance
Measuring Temperature fuse and heater resistance,About 322Ω then it is OK.
Compressor checking
Use a multi-meter to test the resistance between C & S, M&S and M&C :
Normal range of M&S : About 18.5Ω
Normal range of C&S : About 24.5Ω
Normal range of M&C : About 43Ω
If the test result is not in this range then it means the inner coil has some problem and the compressor
can not work properly.

10
Compressor Protector test
Use a multi-meter to test the resistance between the two end as the pic show :
If there show0 0Ωor almost 0Ωthen it is OK.
If there is no response then it is broken.

11
Compressor PTC starter test
Use a multi-meter to test the resistance between the two end as the pic show :
If there show the number is between About 18Ωthen it is OK.
If there show 000 or no response then it is broken.
The guide for Disassembly Common parts of Refrigerator
◆The instruction of replacing the main board and display board.
1. The location of the
electrical main board.
2. Unscrew electrical
box ( 2screws ).
3. Remove the
electrical box.
4. Open the electrical
appliances lifted the
lid.
5. Unplug the
electrical wires.

12
6. Remove the main
board screw
7. Take out the main
board.

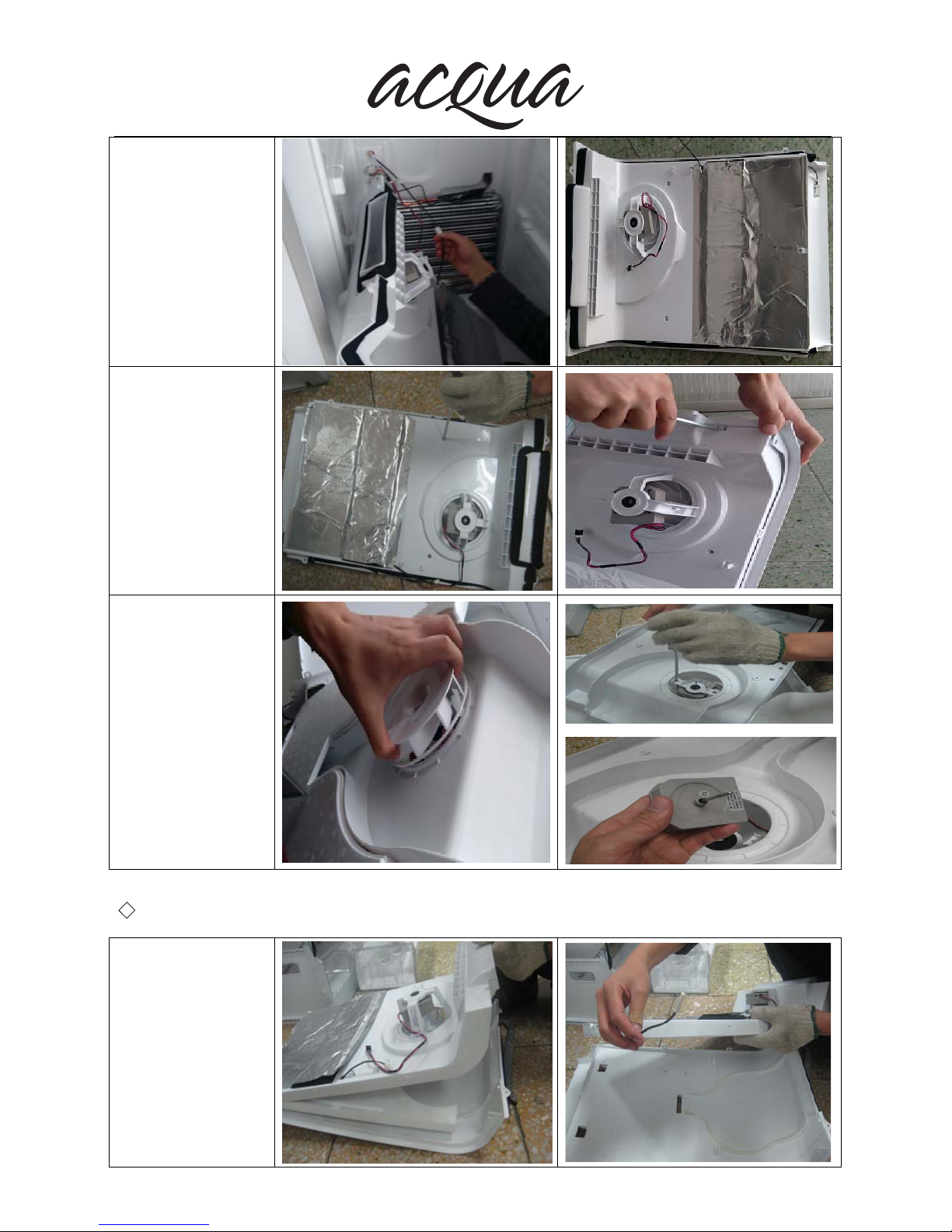

◆The instruction of of replacing fan motor and freezer room sensor
1.Remove the wind
channel cover screw
2.Remove the wind
channel cover screw.
3. Take out the wind
channel cover.

13
4.Disconnect the wire
of the terminal.
5. Take out the wind
channel cover Part.
6.Remove wind
channel cover
screws.
7. Use a screwdriver
to pry open the buckle
8.Unscrew the fan
motor screws
And take out fan motor
◆The instruction of replacing temperature sensor.
Open air duct Board
And take out freezer
sensor.

14
◆The instruction of replacing evaporator temperature sensor and
temperature fuse and heater.
1.Take out the defrost
sensor.
2.Take out the
temperature fuse.
3. Remove
evaporator fixing
screws.
4. Take out the
evaporator.

15
5.Use a screwdriver
or pliers to pry open
the receiving tank
retaining tabs
6.Take out the water
drain.
7.Use pliers to pry
open the heater fixed
buckle.
8. with a craft knife to
cut the Heater cable
fixing bolt.
Take out the heater.

16
◆The instruction of replacing PTC Starting relay and Overload protector.
1. The location of the
PTC Starting relay and
Overload protector.
2. Disconnect the
connect ing wire of the
PTC Starting relay and
Overload protector.
◆The instruction of replacing Door switch.
Using a screwdriver to
pry the upper cover
plate.
Take out the
magnetron switch.

17
◆The instruction of replacing Display board.
1. in the display panel
Paste tape.
2. With a craft knife to
pry open the display
board buckle .
3.Unplug the display
board wires and Take
out display board.

18
Troubleshooting
◆The solution for digital display code problem:
1 The digital display window
show “E3”
1. The freezer chamber Tem.
Sensor is open circuit or short
circuit.
2. The freezer chamber Tem.
Sensor is bad.
3. The control PCB is bad.
1. Using a Multimeter with the ohm
switch to measure the resistor of
sensor or checking the connecting is
well or not.
2. Change the sensor
3. Change the control PCB
2 The digital display window
show “E4”
1. The Evaporator Defrost
Sensor is open circuit or short
circuit.
2. The Evaporator Defrost
Sensor is bad.
3. The control PCB is bad.
1. Using a Multimeter with the ohm
switch to measure the resistor of
sensor or checking the connecting is
well or not.
2. Change the sensor
3. Change the control PCB
3 The
digital display window
show “EC”
1. The receive communicat ion
fault between the main
electrical PCB and the display
PCB.
2. The control PCB is bad.
3. The display PCB is bad.
1. Check the wire terminal is well or
not between the main electrical PCB
and display PCB.
2. Change the main electrical PCB.
3. Change the display PCB.
4 The freezer digital display
window show “EF”
1. The Fan motor is open
circuit or short circuit.
2. The Fan motor is bad.
3. The control PCB is bad.
1. Using a Multimeter with the ohm
switch to measure the resistor of Fan
motor or checking the connecting is
well or not.
2. Change the Fan motor
3. Change the control PCB
The testing method of sensor:
Using the multimeter with the ohm switch to measure the resistor of sensor, normally at surrounding 25℃the
resistor should be about 2kohm and every with the temperature decreases 1℃the corresponding resistor value
would increase about 45ohm.If the measured value is not within the normal scope, the sensor is bad and needs
to repair or change.
◆The common problem judgement method
Problem Cause
Refrigerator can’t start
1.1 Is the power cord connecting well?
1.2 Is the power voltage too low?
1.3 Is the sensor irrational setting?
1.4 Is the ambient temperature too low?
1.5 Is the circuit on power?
1.6 Is there some default in compressor
1.7 Is the refrigeration system blocked by ice or dirty, please stop the unit and restart

19
after 10 minutes to see if the compressor can start.
Weak cooling effects
2.1 Is there any heat source around the refrigerator?
2.2 Is there enough space around the refrigerator for rejection of heat?
2.3 Is the setting of the temperature appropriate?
2.4 Is there too much food or overheating food in it?
2.5 Does there open the door frequently?
2.6 Is the door completely closed?
2.7 Does the gasket destroyed or distort?
2.8 Does the gas leak?
The unit can not stop
running
3.1 Is there any heat source around the refrigerator?
3.2 Is there enough space around the refrigerator for rejection of heat?
3.3 Is the setting of the temperature appropriate?
3.4 Is there too much food or overheating food in it?
3.5 Does there open the door frequently?
3.6 Is the door completely closed?
3.7 Does the gasket destroyed or distort?
3.8 Is the thermostat good operation?
3.9 Does the gas leak?
Ice up in the freezing
chamber
4.1 Is the setting of the temperature appropriate?
4.2 Is there multi-moisture food and too close to the back wall of the refrigerator?
4.3 Is the ambient temperature too low?
4.4 Is the electric parts on good condit ion, specially the thermostat wich will cause the
unit non-stopping .
Abnormal noise
5.1 Is the refrigerator stably placed?
5.2 Does the refrigerator bump other objects?
5.3 Whether the internal accessory of the refrigerator is in the right place.
5.4 Whether the water plate of compressor is fall from the unit.
5.5 Does the tube of the refrigeration system bump each other?
5.6 The noise sound likes Water flow inside the refrigerator ,in fact ,it is normal, which is
caused both when refrigerator start and shut-down; in addition, frost-
dissolving
causes this sound, too, which is a normal phenomenon.
5.7 There will be a cracking sound in the cabinet ,when the cabinet or cabinet accessory
contracting or expanding, this sound will be made, which is normal.
5.8 The motor operation sound in the compressor is appears to be louder at night or
begin starting. which is a normal phenomenon; also the uneven placing would lead to
too much running noise.
There is a peculiar
smell in the units
6.1 Is the food with special smell sealed tight?
6.2 Does it have long time storing food or degenerated food?
6.3 Whether the internal cabinet needs cleaning.
the forefront or the
middle cabinet heats
7.1 As fridge Anti-condensation tube is placed here and caused the above phenomenon,
which is normal.
Refrigerator’s two
sides or the back heat
8.1 As condensation tube is placed here and caused the above phenomenon, which is
normal.
the cabinet surface
condensation 9.1 Air humidity is too large.
Other manuals for GY-NE31FRS
1
This manual suits for next models
1
Table of contents
Other Acqua Freezer manuals

Acqua
Acqua GY-NE80FR User manual

Acqua
Acqua GY-NE175FR User manual

Acqua
Acqua GY-NE26CF User manual

Acqua
Acqua GY-NE30CF User manual

Acqua
Acqua GY-NE200CF User manual

Acqua
Acqua GY-NE31FRS User manual

Acqua
Acqua GY-NE255FR User manual

Acqua
Acqua GY-NE280FRW User manual

Acqua
Acqua GY-NE155FR User manual

Acqua
Acqua GY-NE306CF User manual
