ACR Electronics ACR-EM-1A - REV Y Installation instructions

Product Support Manual
ACR/EM-1A, ACR/EM-1D™
Portable Safety Megaphone
FAA PMA Approved under A3-06-1402-
Product No. 2204, 2208
Y1-03-0014 Rev. Y
(25-60-01)
The technical data in this document (or file) is controlled for export under the Export
Administration Regulations (EAR), 15 CFR Parts 730-774, ECCN: EAR99. Violations of these
laws may be subject to fines and penalties under the Export Administration Act.

2
Y1-03-0014 Rev. Y
IF YOU HAVE ANY TROUBLE WITH
YOUR NEW MEGAPHONE, DO NOT RETURN
IT TO THE STORE!
CALL ACR ELECTRONICS AT
+1 (800) 432-0227. WE WILL HELP YOU
RESOLVE ANY PROBLEMS YOU MAY BE
EXPERIENCING. MANY QUESTIONS CAN BE
ANSWERED OVER THE PHONE.
REV DESCRIPTION DATE APVD.
L Format changes, add ACR/EM-1D content. 9/8/98 T. Martin
MUpdate parts list to reect design changes. 5/20/99 T. Martin
N Update and make corrections to parts list. 7/13/99 T. Martin
P Update to assign 4-digit product codes to parts list. 12/8/99 L. Subrattee
R Add FAA approval info to front cover. 4/27/04 T. Martin
U Update to add revision table and updated formatting. 2/7/08 T. Martin
V Updated for rebranding 4/3/09 T. Martin
W Updated to add export admin regulatory statement 11/24/09 T. Martin
Y Updated to make product references more consistent 1/15/10 T. Martin

3Y1-03-0014 Rev. Y
TABLE OF CONTENTS
SECTION 1 – DESCRIPTION 4
1.1 Options Matrix 4
SECTION 2 – OPERATION 4
2.1 Battery Monitor 4
SECTION 3 – MAINTENANCE 5
3.1 Cleaning 5
3.2 Battery Replacement 5
SECTION 4 – TESTING, TROUBLESHOOTING & REPAIR 5
4.1 Testing 5
4.2 Repair 6
SECTION 5 – DISASSEMBLY & ASSEMBLY 6
5.1 Disassembly 6
5.2 Assembly 7
SECTION 6 – TECHNICAL DATA 7
SECTION 7 - PARTS LIST 8
APPENDIX - WARRANTY, USEFUL LIFE, NOTICES 10
1. Limited Warranty 10
2. Useful Life Policy 10
3. Notices 10

4
Y1-03-0014 Rev. Y
SECTION 1 – DESCRIPTION
The ACR/EM-1A or ACR/EM-1D is a battery operated solid state megaphone specically
developed for use in enclosed areas such as in the interior of an aircraft or ship cabin. It
has been designed to minimize regenerative acoustic feedback that results in whistling and
other oscillations of this nature. It has a 90° sound projection angle to direct the sound to
persons in its immediate vicinity, as well as in the rear sections of any aircraft. The amplier
frequency band-pass has been selected to produce a crisp, clear reproduction of voice
signals. The operating power level is also sufcient to provide adequate sound under high
ambient noise level conditions without being over-powering. Specic attention has been
given to the physical size so that it can be used effectively in a crowded environment.
The integrated circuit amplier only uses a small current when turned “ON”. This extends the
life of the batteries so that several hours of operation may be expected when used normally
in an intermittent manner. A simplied block diagram of the megaphone is shown in Figure
1 (shown on page 5).
The ACR/EM-1A & ACR/EM-1D are the same except for installed options:
1.1 Options Matrix
MODEL MANUAL GAIN ALARM ACTUATOR BATTERY MONITOR
Visual Audible
ACR/EM-1A Yes Yes Yes No
ACR/EM-1D Yes No Yes Yes
SECTION 2 – OPERATION
A siren, incorporated into the megaphone, is automatically activated by unplugging the alarm
plug pin. (ACR/EM-1A only)
Note: A long lanyard with an alarm plug pin is supplied with the megaphone for use
as an anti-theft alarm (optional).
Squeezing the handle stops the siren, and the megaphone is ready for use. Re-insert the
alarm pin so that the alarm will not be reactivated when the handle is released.
Hold the megaphone in one hand. Place your mouth almost in contact with the microphone
mouthpiece at the rear of the assembly. Squeeze the handle, which will ex slightly, turning
the megaphone “ON” and speak slowly with loud, crisp, clear tones.
Adjust the volume control knob to a suitable sound level. The volume control may be adjusted
with the thumb of the same hand holding the megaphone.
When not in use, carry the megaphone by the neck strap, attached to top of unit.
2.1 Battery Monitor
Two types of battery monitors are available on the ACR/EM-1 series megaphones.
Visual - when the megaphone is activated by squeezing the handle, a green LED
indication means the remaining battery capacity is greater than 50% of initial capacity. If the
green LED is out, replace batteries.
Audible - when the megaphone is activated by squeezing the handle, a chirp heard in
the speaker means the remaining battery capacity is greater than 50% of initial capacity. If
the beep is not present, replace the battery. (ACR/EM-1D only)

5Y1-03-0014 Rev. Y
FIGURE 1
BLOCK DIAGRAM
ACR/EM-1A, ACR/EM-1D PORTABLE SAFETY MEGAPHONE
SECTION 3 – MAINTENANCE
3.1 Cleaning
External surfaces of the megaphone may be cleaned with a soft cloth, dampened in a
solution of mild household detergent. Do not immerse in water or use strong solvents. Clean
electrical contacts with a cloth dampened with isopropyl alcohol.
3.2 Battery Replacement
The power supply used in the megaphone consists of six standard 1½ volt “AA” size batteries.
Current drain is minimal (12 mA) with the megaphone “ON”, and increases when the user
speaks into the microphone.
Battery replacement is accomplished by removing three set screws (2) while holding the
microphone and mouthpiece assembly (1) in place. The six cells, contained in three tubes
with two cells per tube, are immediately accessible and will drop out when the megaphone
is tilted. New batteries may be dropped into the tubes, observing polarity marking adjacent
to each tube.
Replace microphone and mouthpiece assembly (1). Align keyway and secure with the three
set screws (2).
CAUTION: Observe polarity of cells carefully before replacement.
SECTION 4 – TESTING, TROUBLESHOOTING & REPAIR
4.1 Testing
Note: The megaphone consists of three major assemblies; the microphone and
mouthpiece assembly, the megaphone sub-assembly, and the horn and speaker
assembly. To locate a defect, follow the procedure outlined below:
1. Squeeze the handle. If a clicking sound is heard, the speaker is operating.
VO LUME
CON TR O L
MIC ROP HO N E
ASSEMBLY
AU DIO AM PLIFIER
SIREN C IR CU IT &
BA TT ERY MO N ITOR
M EG AP H ON E
SUB-ASSE MBLY
BATTERY
PACK
(6 x AA)
LE D
VISU AL
BATTERY
CHECK
SPEAKER
AS S E MBLY
N.O .
N.C .
HAND LE
SW ITC H
ALAR M
PLU G P IN
+ +
+ -
-
-
*

6
Y1-03-0014 Rev. Y
2. Remove the pin that activates the siren. If the alarm is of normal amplitude and sound
character, the amplier and siren circuitry are functioning properly. If the amplication
is low, check the batteries and then the amplier. If the sound character is abnormal,
check the batteries and then the siren circuitry. (ACR/EM-1A only)
3. If no sound is heard, remove the microphone and mouthpiece assembly and the
batteries. Check that both the microphone and battery contacts are clean. If not, clean
with a mild, non-abrasive cleaner such as alcohol.
4. Test amplier and speaker assembly by replacing the microphone with a spare
microphone assembly. If no sound can be produced after microphone replacement, it
may be assumed that the amplier or speaker assembly is defective.
5. To test the speaker, disassemble the speaker. Unplug the wires and apply 1 ½ volts
intermittently across the speaker. If no clicks are heard, the speaker is defective.
Possible faults and corrections are summarized below for ready reference.
TROUBLE POSSIBLE CAUSE CORRECTION
No sound from speaker
when handle is squeezed
(Step 1)
Exhausted batteries, defective
microphone, speaker or
amplier assembly
Replace defective component
No siren when alarm
pin is pulled (Step 2)
(ACR/EM-1A only)
Exhausted batteries, defective
siren circuitry or defective
amplier
Replace defective component
Sound is abnormally low or
distorted
Exhausted batteries or wrong
polarity of battery series
Check proper insertion of
batteries or replace batteries.
Speaker does not respond to
Step 5
Defective speaker Replace speaker
4.2 Repair
The megaphone consists of three major sub-assemblies; the microphone and mouthpiece
assembly, the megaphone sub-assembly, and the horn and speaker assembly. Repairs are
restricted to the replacement of these defective sub-assemblies or the batteries and lanyard
assemblies.
SECTION 5 – DISASSEMBLY & ASSEMBLY
5.1 Disassembly
Megaphone should be disassembled for repair or replacement of components only.
1. Remove microphone and mouthpiece assembly (1) by removing the three set
screws (2).
2. Remove battery cells (3) from the three tubes by tilting megaphone to allow cells to
drop out into the hand.
3. Unplug alarm plug pin (5) from side of housing. (ACR/EM-1A only)
4. Remove volume control knob (4) (pulls off).
5. Remove the three oval head screws (10) at periphery of the speaker end of the
housing (14).
6. Extract speaker (6) and megaphone assembly (9) by rstly turning horn (17) clockwise
45°. Pull entire assembly gently until it stops. Turn horn (17) counterclockwise 45°
then pull the entire assembly out.
7. Separate Speaker Assembly (6) and Megaphone Subassembly (9) by rstly
unplugging the speaker wires from the “out” header. Remove hex screw that holds the
assemblies together.
8. FURTHER DISASSEMBLY IS NOT RECOMMENDED.

7Y1-03-0014 Rev. Y
Inspect unit for any evidence of damaged parts, loose mountings or broken leads,
and dirty electrical contacts.
5.2 Assembly
1. Attach Horn (17) and Speaker Assembly (6) to Megaphone Subassembly (9). Ensure
alignment with location pins. Pass speaker wires through the provided slot.
2. Plug speaker connector into the “out” header on PCB.
3. Push entire assembly gently into the housing (14), until it stops. Turn clockwise 45°
and push all the way in. Turn counterclockwise 45° and align holes.
4. Secure with screws (10).
5. Replace volume control knob (4) on volume control shaft.
6. Plug the alarm plug (5) attached to lanyard into jack in the side of the case near
volume control. (ACR/EM-1A only)
7. Replace the six batteries (3) in three tubes at microphone end of megaphone case.
CAUTION: Observe polarity of batteries during installation procedure (see
instructions on battery tubes).
8. Replace microphone and mouthpiece assembly (1). Align keyway, and secure with the
three setscrews (2).
9. Assembly is complete. Test unit in accordance with Section 4.1.
SECTION 6 – TECHNICAL DATA
Dimensions 5.5” max diameter bell, 11.5” max long
Weight 2.3 lbs., including batteries
Materials Horn, handle – Anodized Aluminum
Housing – Aluminum
Attachment – Neck strap at top of unit
Gain Control Thumb operated
Amplier Integrated circuit, 2 watts power output
Speaker Re-entrant horn and driver type
input power ve (5) watts
90° dispersion angle
Microphone High Sensitivity
Batteries Six (6) standard 1½ volt “AA” cells
Power Drain 12 milliamps static current
550 milliamps maximum current
Frequency Response 500 to 3500 Hz
Anti-Removal Alarm (ACR/EM-1A
only)
Warbling tone 500 – 1200 Hz
Alarm Actuator (EM-1A only) Plug pin, retained by nylon cord
Battery Test Circuits Visual Flashing Green LED
Acoustical Beep (ACR/EM-1D only)

8
Y1-03-0014 Rev. Y
SECTION 7 - PARTS LIST
FIGURE 2
ACR/ EM-1A, ACR/EM-1D PORTABLE SAFETY MEGAPHONE
ILLUSTRATED PARTS LIST
Replaceable parts are illustrated in Figure 2 (shown above) and listed in the table (shown
on page 9). Part numbers shown in the “Part Number” column may be ordered from ACR
unless another manufacturer’s name is given in parentheses in the “Description” column.
In this case, replacement parts can be obtained directly from the original manufacturer.
Standard parts (MS-, AN-, etc.) and commercially available hardware (‘Commercial’) should
be obtained from commercial sources.
8
7
6
17
10
16
4
12
2
3
1
9
15
11
14
13
5

9Y1-03-0014 Rev. Y
ITEM QTY NOMENCLATURE ORDER SPARE PARTS
ACR/EM-1A
S/N < 9000
ACR/EM-1A
S/N ≥ 9000
ACR/EM-1D
ALL S/N
1 1 Microphone & Mouthpiece Assy 9211 9211 9211
2 1 Socket Setscrew Kit 9416 9416 9416
3 6 Battery AA Alkaline Commercial Commercial Commercial
4 1 Knob, control 9022 9022.1 9022.1
5 1 Plug pin, Alarm Included in 9161 & 9164 N/A
6 1 Speaker Assembly 9417
(upgrade kit)
9418 9418
7 3 Screw, Self tap (#4 x ¾) Commercial N/A N/A
8 2 Wire leads speaker (#26AWG) Commercial N/A N/A
9 1 Megaphone Subassy 9417
(upgrade kit)
9420 9422
10 3 Screw Machine (#4-40 x 3/8) Commercial Commercial Commercial
11 1 Handle Kit 9423 9423 9423
12 / 16 1 Strap Assembly Kit 9233 9233 9233
13 1 Lanyard Assembly, Anti theft 9164 9164 N/A
14 1 Housing Megaphone A1-18-1149 A1-18-1149 A1-18-1151-1
15 1 Lanyard Assembly, Siren 9161 9161 N/A
17 1 Horn, Megaphone A1-17-0809 A1-17-0809 A1-17-0809
*S/N ≥ 9000 are date coded 4/99 +

10
Y1-03-0014 Rev. Y
APPENDIX - WARRANTY, USEFUL LIFE, NOTICES
A.1 Limited Warranty
This product is warranted against factory defects in material and workmanship for a period
of 1 (one) year* from date of purchase or receipt as a gift. During the warranty period ACR
Electronics, Inc. will repair or, at its option, replace the unit at no cost to you for labor,
materials and return transportation from ACR. For further assistance, please contact our
Technical Service Department at ACR Electronics, Inc., 5757 Ravenswood Road, Fort
Telephone: +1 (954) 981-3333.
This warranty does not apply if the product has been damaged by accident or misuse, or as a
result of service or modication performed by an unauthorized factory. Except as otherwise
expressly stated in the previous paragraph, THE COMPANY MAKES NO REPRESENTATION
OR WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, OR ANY OTHER MATTER WITH RESPECT TO
THIS PRODUCT. The Company shall not be liable for consequential or special damages.
To place the warranty in effect, register online at www.acrelectronics.com or return the
attached card within 10 days.
*Five years for the following products: EPIRB, PLB, S-VDR, SSAS.
A.2 Useful Life Policy
The typical service life of a properly maintained Product is limited to 12 years from date of
manufacture. Products that are 12 years and 1 month or older from date of manufacture
will not be serviced by ACR or our Battery Replacement Centers. A Product that is 12 or
less years old from date of manufacture will be serviced as long as the unit appears t to be
placed back into its nal operational cycle. Service includes the replacement of those items
that must be replaced at service intervals and the verication that the device appears to be in
good mechanical and electrical working condition by an ACR authorized service technician.
A.3 Notices
ACR Electronics diligently works to provide a high quality Product Support Manual, however,
despite best efforts, information is subject to change without notice, and omissions and
inaccuracies are possible. ACR cannot accept liability for manual contents. To ensure that
you have the most recent version of the Product Support Manual, please visit the ACR
website at www.acrelectronics.com.
©2009 by ACR Electronics, Inc., part of Cobham plc. All rights reserved. Reproduction in
whole or in part is permitted only with permission of ACR Electronics, Inc.
Ongoing product improvements may change product specications without notice.
Trademarks or registered trademarks are the property of their respective owners.
This manual suits for next models
1
Table of contents
Other ACR Electronics Horn manuals
Popular Horn manuals by other brands

Valcom
Valcom PagePac V-5331001 quick start guide

PULSE+
PULSE+ PHV15 manual

SUPER NOVA
SUPER NOVA M99 Pure manual

Vixen Horns
Vixen Horns VXO8330/5901B installation guide

Altec Lansing
Altec Lansing MR931-12 HF HORN manual

Electro-Voice
Electro-Voice TransPlanar Constant-Directivity Horn HP94 Specification sheet

Marco

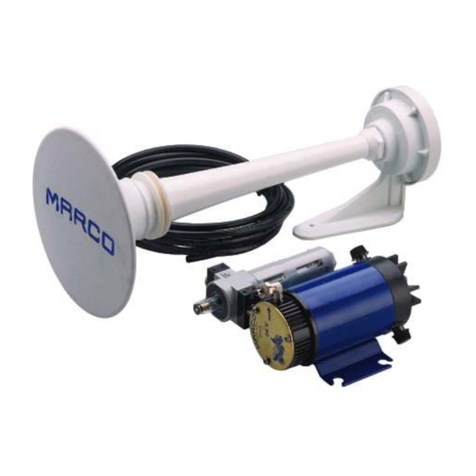

Marco PW2 150 000 12 manual

Altec Lansing
Altec Lansing 811B HF HORN manual

RF Elements
RF Elements UltraHorn CC Series quick start guide

WERMA Signaltechnik
WERMA Signaltechnik 761 Instructions for use

Vixen Horns

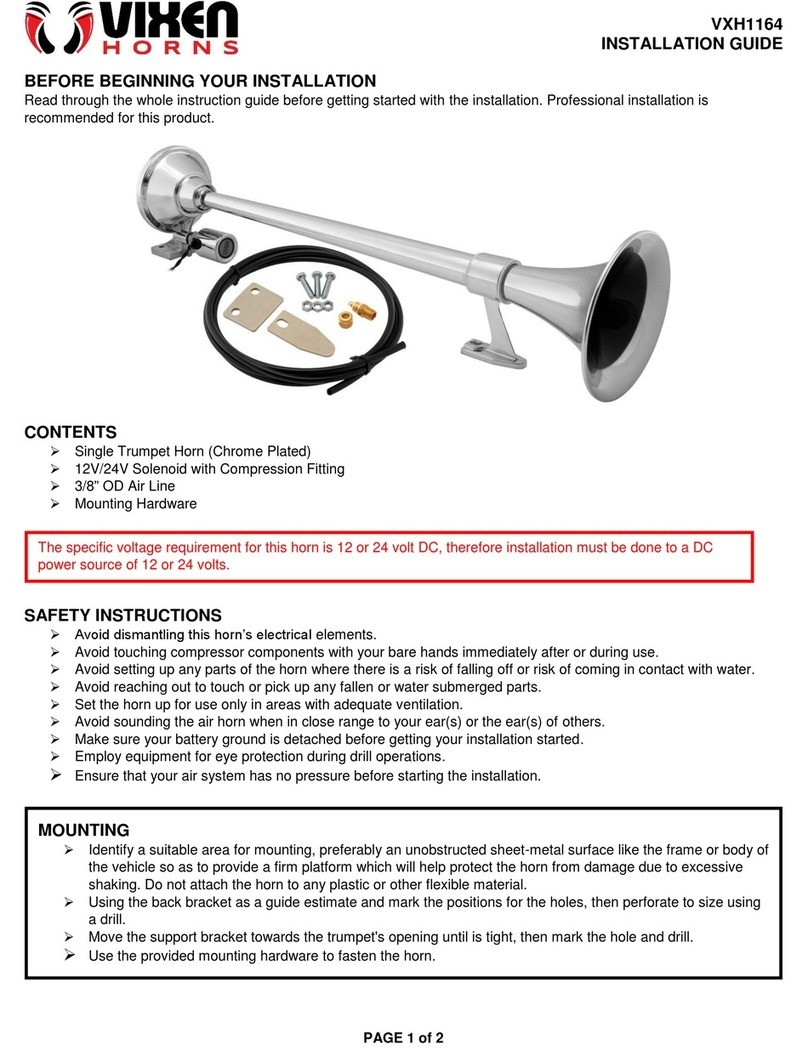

Vixen Horns VXH1164 installation guide

Vixen Horns
Vixen Horns VXS-9050C installation guide
