AR-B5205 Quick Manual
AR-B5205 P/N：220010368-G
1
AR-B5205
Quick Manual V1.2
Content:
1. Locations of Main Component, Connectors,Jumpers and Indicators.
2. The List of All Connectors and Jumper Settings Assorted by Function.
3. Description of Jumper Settings and Connector Pin Definitions.
AR-B5205 Quick Manual
AR-B5205 P/N：220010368-G
2

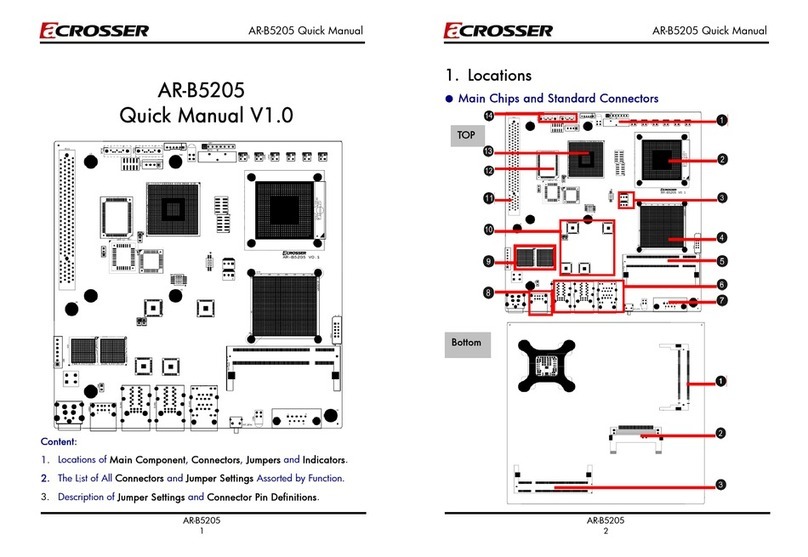

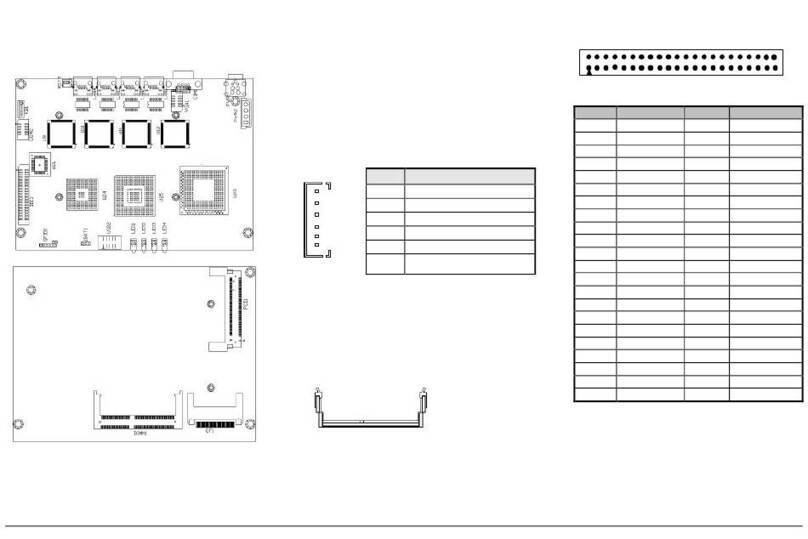

1. Locations


 Main Chips and Standard Connectors
TOP
Bottom

AR-B5205 Quick Manual
AR-B5205 P/N：220010368-G
3
BAT1
Battery Connector
USB1
USB connector
CPU
Intel Celeron M /Pentium M CPU
PCI Ethernet Controller IC x 2
Intel Ethernet controller 82541PI
FAN1 & FAN2
FAN connector
PCI EXPRESS Ethernet Controller IC x 4
Intel Ethernet controller 82574L
North Bridge
Intel 915GME
PCI1
PCI Slot
DDR2SODIMM1
Connector for DDR2 SDRAM
Super I/O Controller
Winbond W3627EHG
2LAN1~2LAN3
RJ45 connector for LAN1~LAN6
South Bridge
Intel Integrated Control Hub 6（ICH6）
COM1
RS232
SATA1 & SATA2
Connector for SATA Hard Disk
MPCI1
Mini-PCI Slot
CF1
Slot for Compact Flash
DDR2SODIMM2
Connector for DDR2 SDRAM
TOP
Bottom
AR-B5205 Quick Manual
AR-B5205 P/N：220010368-G
4


 Connector, Jumper and Indicators
LED2~LED7 (Right to Left)
LED indicator for LAN1~LAN6. (Right to Left)
CN7
CPLD Program Interface
USB2 & USB3
Each Connector for 2 ports USB
LED1
LED indicator for Power On and Hard Disk
JP5
CPU Core Selection - Banias or Dothan
VGA1
VGA1 is for CRT output.
RST_BTN1
Reset Bottom for System Reset
LED0
The same function with LED1
PWR1
Power connectorforAdapterPOWER-IN
CN8
Connector for PowerSwitch
ATX_12V1
Connector for RegularATX 4 pin 12V Input
CN5
LCM module interface
JP3
RTC Reset.
TOP

AR-B5205 Quick Manual
AR-B5205 P/N：220010368-G
5
KBMS1
PS/2 Keyboard and Mouse Connector
CN3
Power Supply for SATAHard Disk
GPIO1
Connector For General Purpose I/O
JP4
GPIO Power Level Switch
AR-B5205 Quick Manual
AR-B5205 P/N：220010368-G
6
2. List of Connectors and Jumper Settings
Function Part Reference Description and Note
Serial Port COM1 COM1 is for RS232
VGA & LCM 1. VGA1
2. CN5 1. VGA1 is for CRT output.
2. CN5 is interface for LCM Module.
CPU Core Selection
JP5 CPU Core is Banias or Dothan
Keyboard & Mouse KBMS1 KBMS1 is connector for PS/2 keyboard and Mouse.
Indicator 1. LED0 & LED1
2. LED2~LED7 1. LED0 & LED1 are for Hard Disk and Power
2. LED2~LED7 are for LAN1~LAN6
Power 1. PWR1
2. ATX_12V1
3. CN3
4. CN8
5. JP4
1. PWR1 is for Adapter Power IN
2. ATX_12V1 is for regular ATX 12V input.
3. CN3 is Power Supply to SATA Hard Disk.
4. CN8 is for POWER Bottom Switch
5. JP4 is for GPIO power Switch
GPIOs CPIO1 8 bits GPIO.
RTC JP3 RTC Reset.
USB USB2 & USB3 USB2 & USB3 are Pin header USB host.
Bypass CN7 CN7 is for programming Bypass CPLD
Reset RST_BTN1 Bottom For System Reset

AR-B5205 Quick Manual
AR-B5205 P/N：220010368-G
7
1. Jumper settings and Pin Definitions.
LED2~LED7 (Right to Left)
LED indicator for LAN1~LAN6. (Right to
Left)
Light SIGNAL
GREEN LINK/ACT
GREEN/YELLOW
100/1000
CN7
CPLD Program Interface
PIN SIGNAL
1 3.3V
2 TDO
3 TDI
4 NC
5 NC
6 TMS
7 GND
8 CLK
USB2 & USB3
Each Connector for 2 ports USB
PIN
SIGNAL PIN
SIGNAL
1
5V 2
5V
3
-USB0 4
-USB1
5
+USB0 6
+USB1
7
GND 8
GND
9
GND 10
GND
LED1
LED indicator for Power On and Hard
Disk
Light
SIGNAL
GREEN
POWER
Yellow
Hard Disk
JP5
CPU Core Selection – Banias or Dothan
Status DESCRIPTION
Close Banias
Open Dothan
AR-B5205 Quick Manual
AR-B5205 P/N：220010368-G
8
VGA1
VGA1 is for CRT output)
PIN SIGNAL PIN SIGNAL
1 RED 2 GND
3 GREEN 4 GND
5 BLUE 6 GND
7 V-SYNC 8 I2C Clock
9 H-SYNC 10 I2C Data
RST_BTN1
Reset Bottom for System Reset
Status Function
Push then
Release
System
Reset
LED0
The same function with LED1
Light SIGNAL
GREEN
POWER
Yellow
Hard Disk
PWR1
Power connector forAdapter POWER-IN
PIN SIGNAL
Up Side 12V
Bottom side
GND
CN8
Connector for Power Switch
Status SIGNAL
Close Turn-On
Open Turn-Off
ATX_12V1
Connector for Regular ATX 4 pin 12V
Input
PIN SIGNAL
Right Side
12V
Left Side GND

AR-B5205 Quick Manual
AR-B5205 P/N：220010368-G
9
CN5
LCM module interface
PIN SIGNAL
1 Reset
2 5V
3 DATA Out
4 DATA In
5 RTS
6 CTS
7 GND
JP2
RTC power and reset
Status Function
1-2 close
Normal (Default))
2-3 Close
RTC Reset
KBMS1
PS/2 Keyboard and Mouse Connector
PIN
SIGNAL
PIN SIGNAL
1 MS data
4 5V
2 KB data
5 MS clock
3 GND 6 KB clock
CN3
Power Supply for SATA Hard Disk
PIN SIGNAL
1 12V
2 GND
3 3.3V
4 5V
GPIO1
Connector For General Purpose I/O
PIN
SIGNAL PIN
SIGNAL
1 5V 2 GND
3 GPIO1 4 RP0
5 GPIO2 6 RP1
7 GPIO3 8 RP2
9 GPIO3 10 RP3
JP4
GPIO Power Level Switch
Status Function
1-2 close
5V (Default)
2-3 Close
3.3V
