DFI P5BV3+ User manual

355B0912
P5BV3+
Rev. C+
System Board
Users Manual

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose.The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 1999. All Rights Reserved.
Trademarks
Microsoft®MS-DOS®, WindowsTM, Windows®95 and Windows®98
are registered trademarks of Microsoft Corporation. Intel, Pentium
and Pentium with MMX technology are registered trademarks of
Intel Corporation. Cyrix, 6x86L, 6x86MX and M II are registered
trademarks of Cyrix Corporation. AMD, K5, K6, K6-2 and K6-III are
registered trademarks of Advanced Micro Devices, Inc. IBM 6x86MX
is a registered trademark of International Business Machine
Corporation. IDT C6, WinChip2 and WinChip3 are registered
trademarks of IDT Corporation. Award is a registered trademark of
Award Software, Inc. Other trademarks and registered trademarks
of products appearing in this manual are the properties of their
respective holders.
Caution:
Danger of explosion if battery incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to the battery manufacturers
instructions.

FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to tr y to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications..................................................................................
1.2 Package Checklist.........................................................................................................
Chapter 2 - Hardware Installation

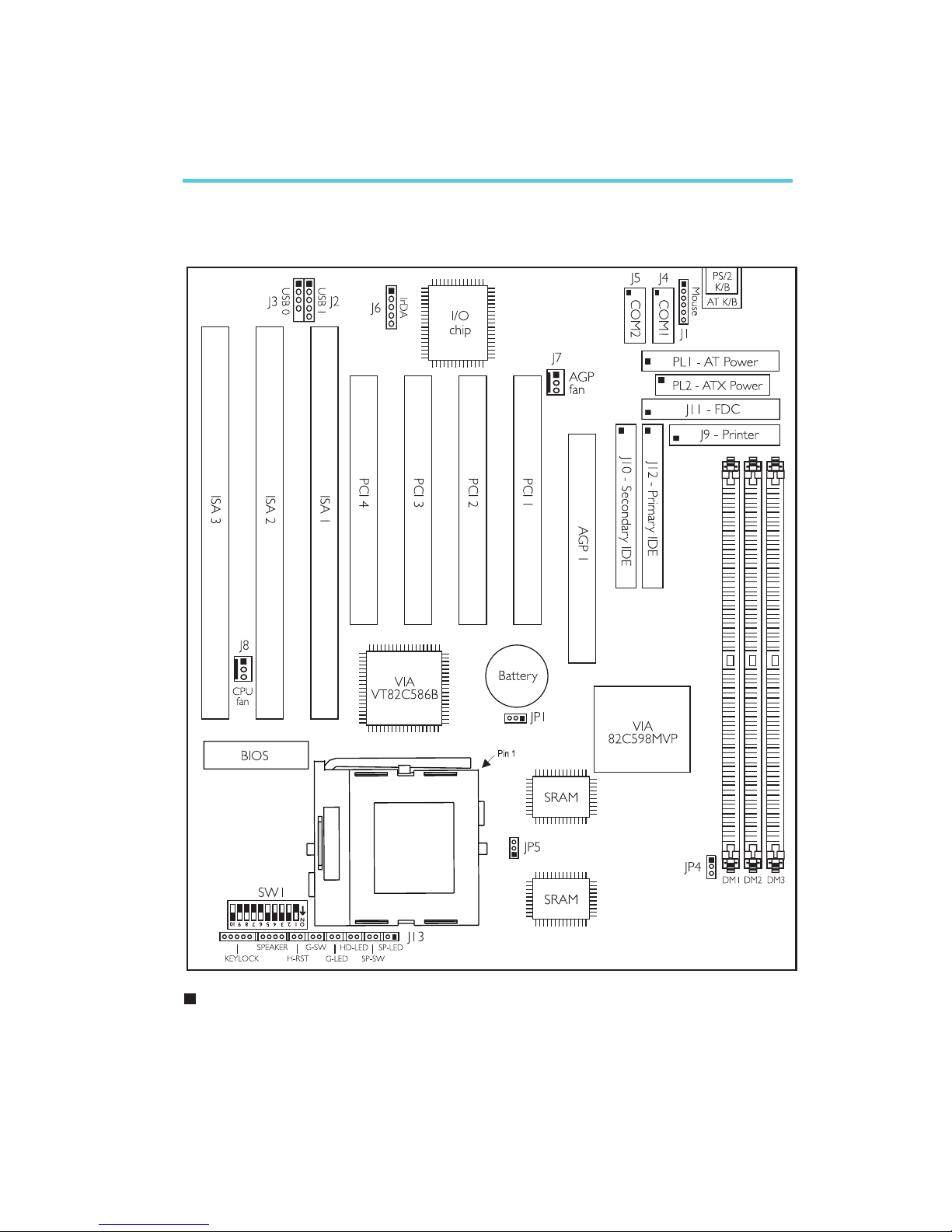

2.1 System Board Layout .............................................................................................
2.2 System Memory.............................................................................................................

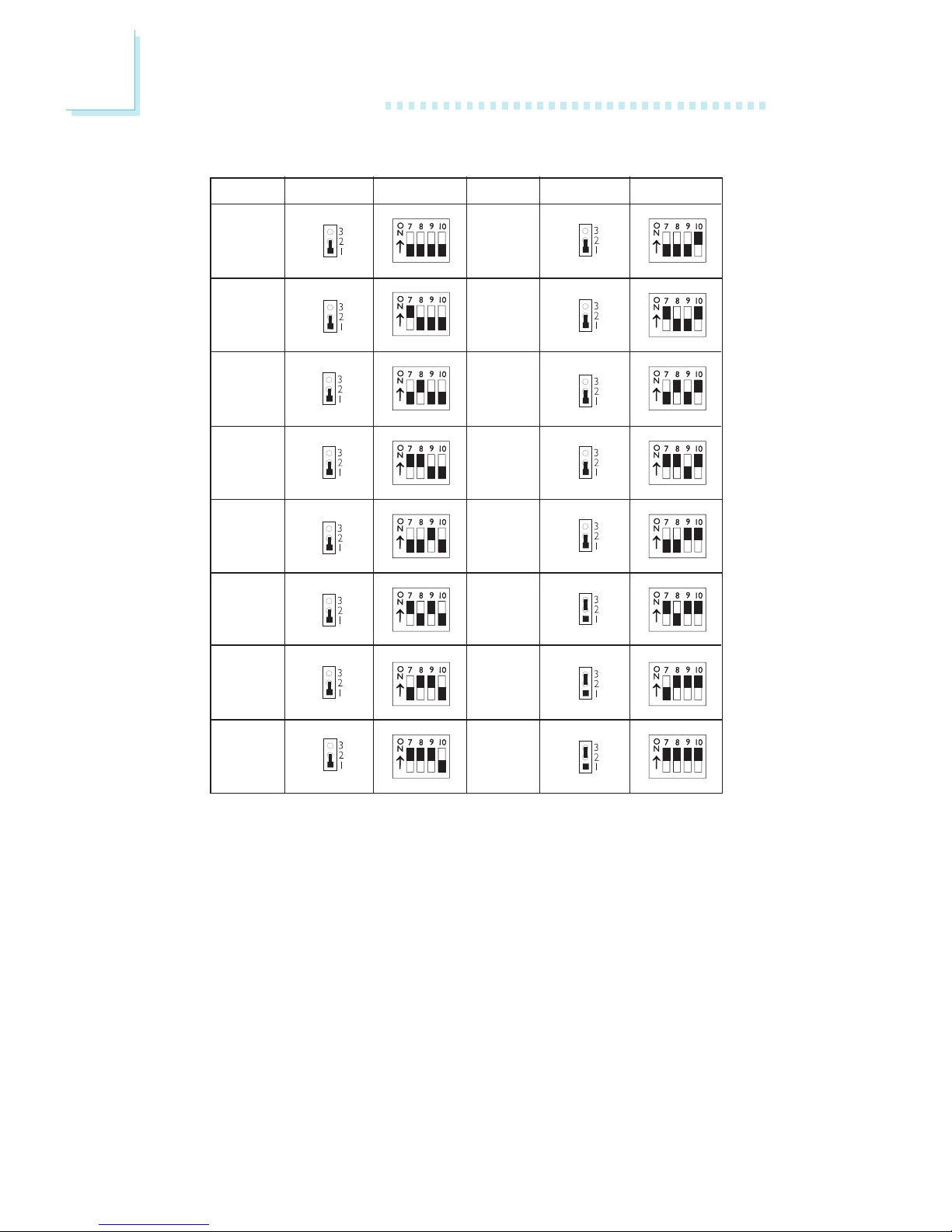

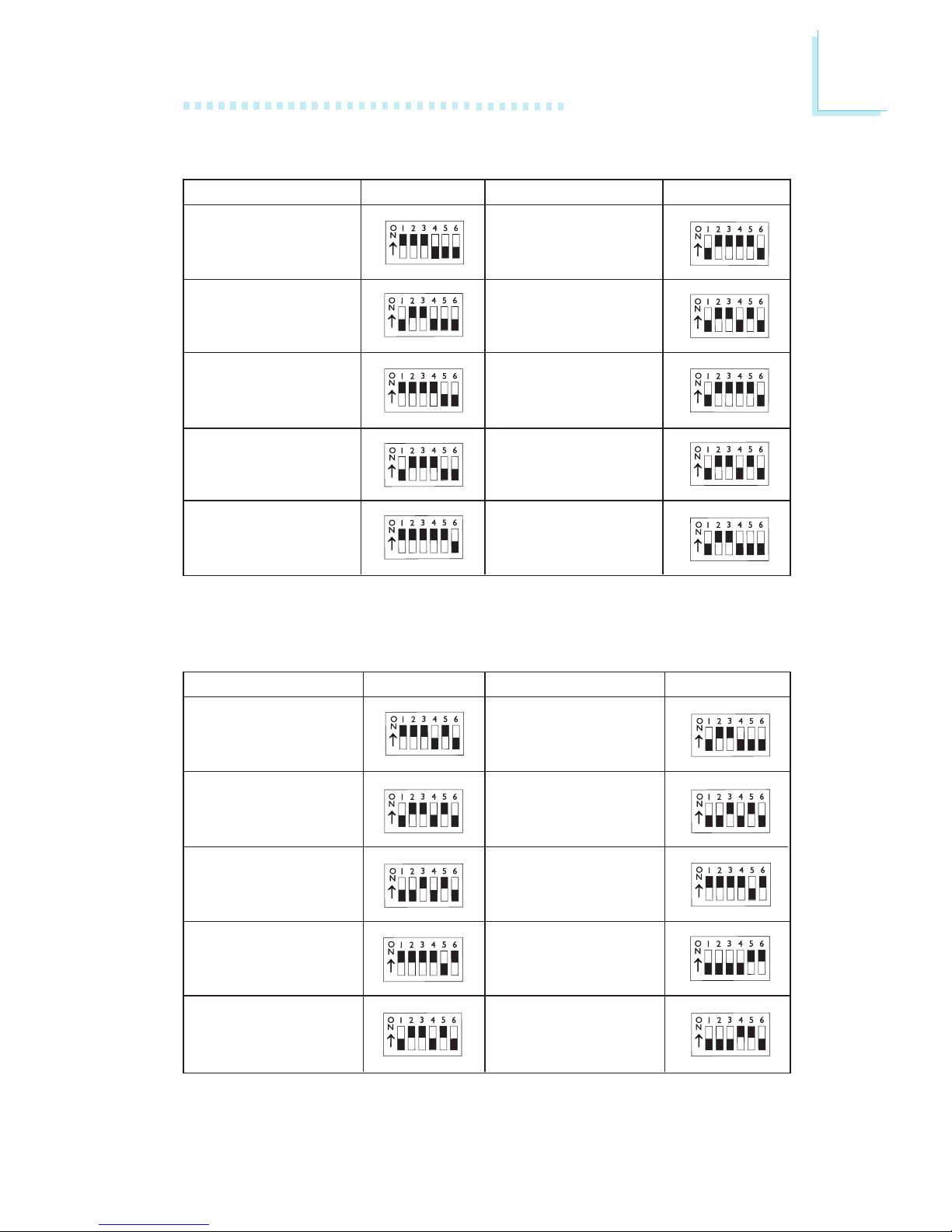

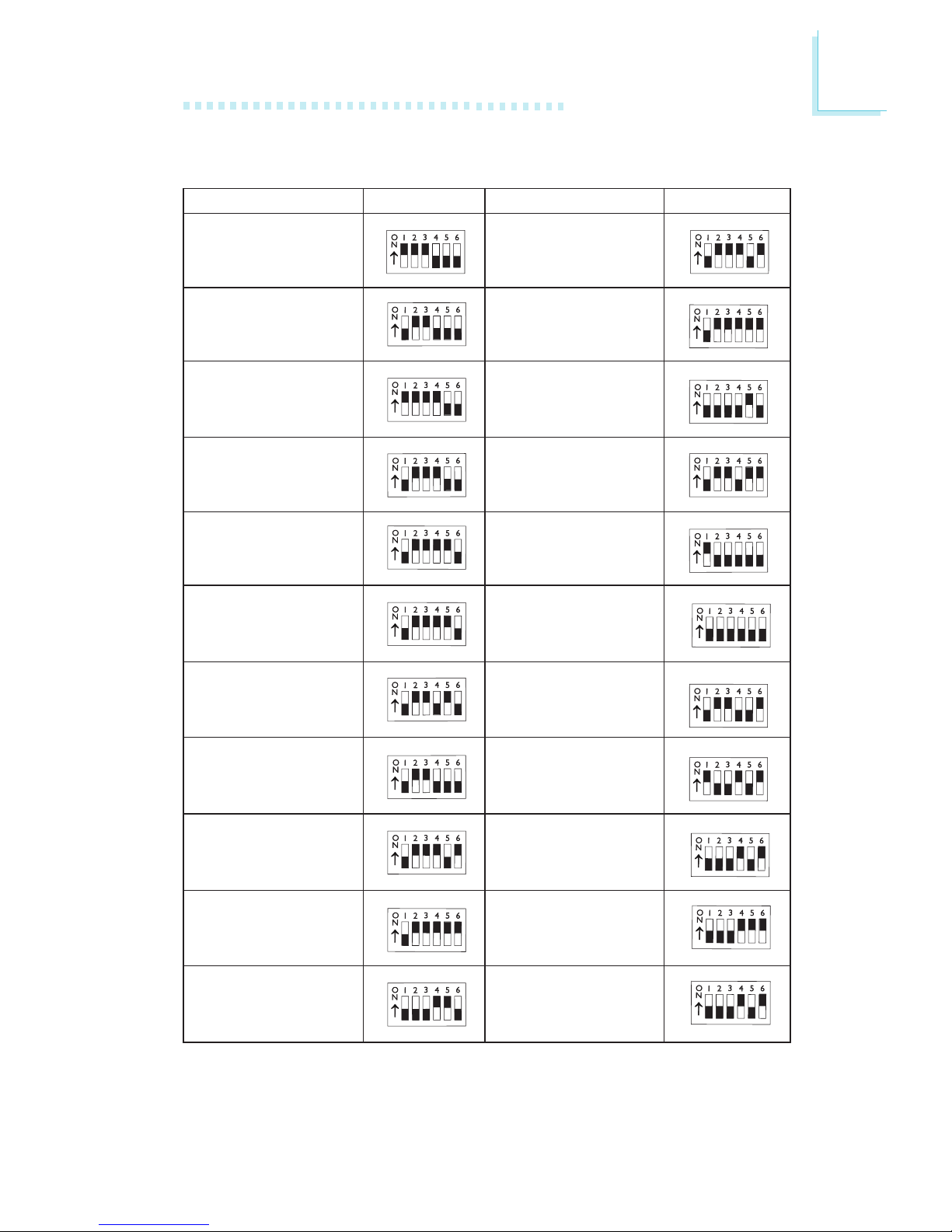

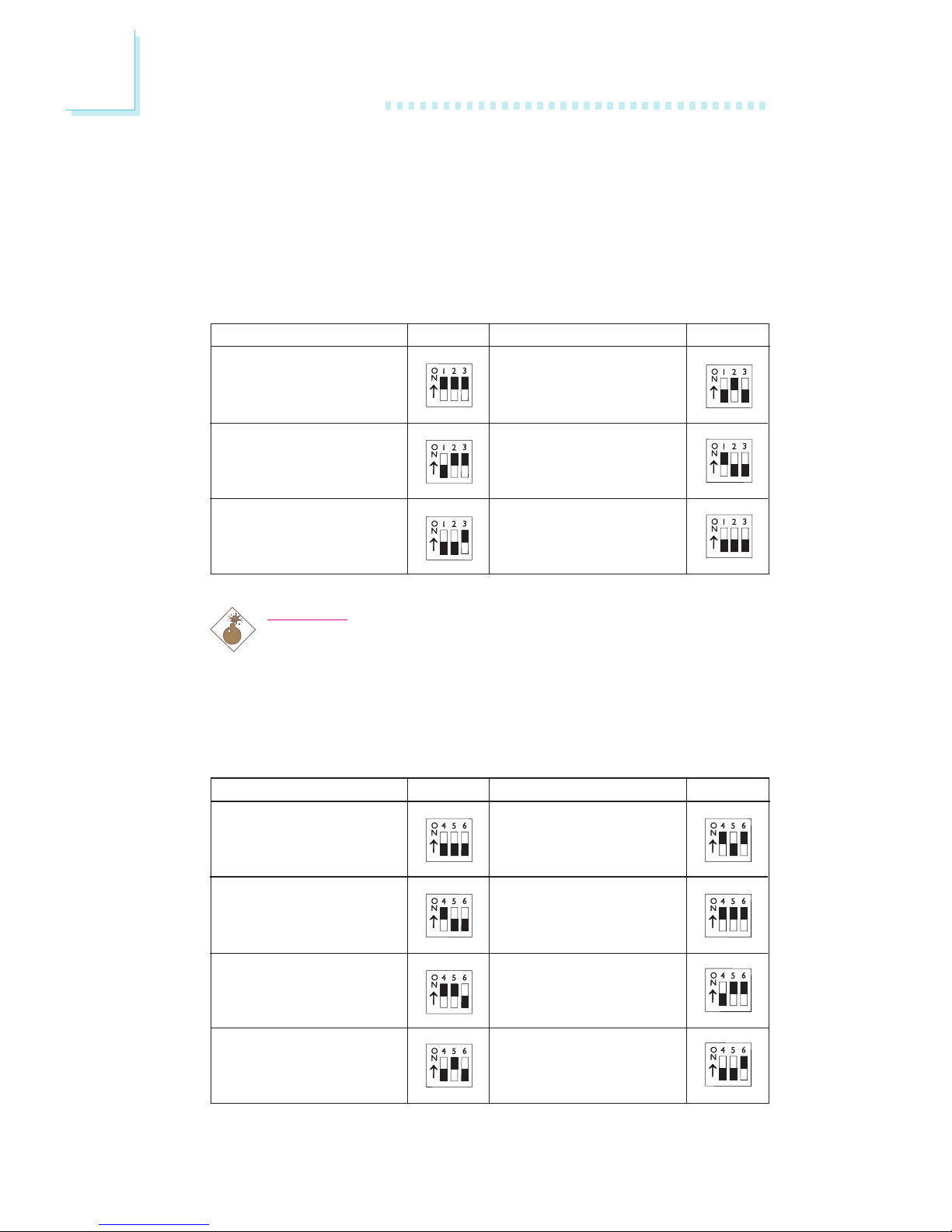

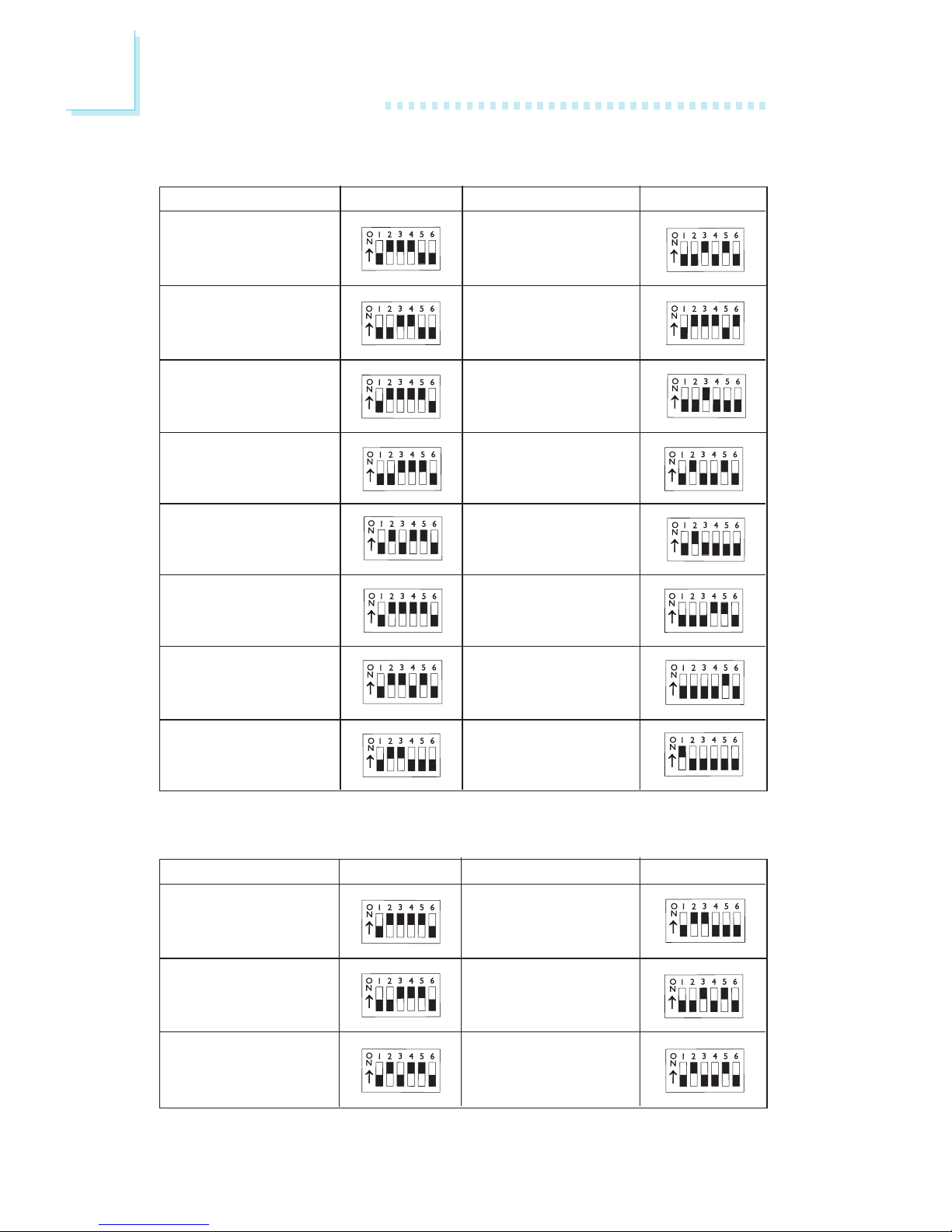

2.3 DIP Switch and Jumper Settings of the Processors...................
2.4 Jumper Settings for Clearing CMOS Data..........................................

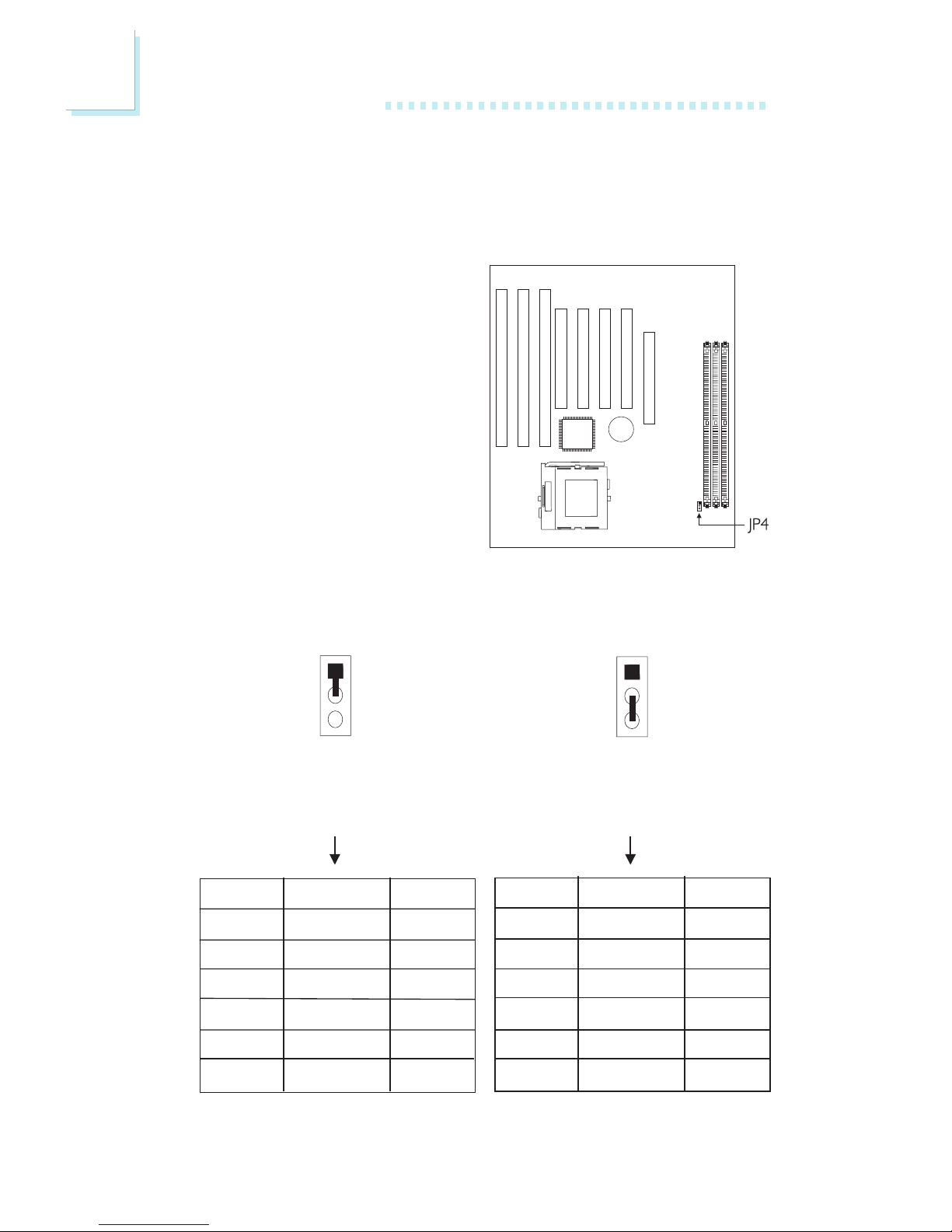

2.5 Jumper Settings for SDRAM Clock (DIMM)......................................
2.6 Connecting the Ribbon Cables and Wires of the Ports
and Connectors.............................................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 The Basic Input/Output System.....................................................................
3.1.1 Standard CMOS Setup....................................................................
3.1.2 BIOS Features Setup..........................................................................
3.1.3 Chipset Features Setup....................................................................
3.1.4 Power Management Setup............................................................
3.1.5 PNP/PCI Configuration....................................................................
3.1.6 Load Fail-Safe Settings......................................................................
3.1.7 Load Optimal Settings......................................................................
3.1.8 Integrated Peripherals.........................................................................
3.1.9 Supervisor Password..........................................................................
3.1.10 User Password.........................................................................................
3.1.11 IDE HDD Auto Detection...........................................................
3.1.12 Save & Exit Setup.................................................................................
3.1.13 Exit Without Saving..............................................................................
6
10
30
30
34
38
40
43
45
45
45
49
49
50
51
51
11
12
12
19
20
21

58
58
59
59
60
61
61
52
55
56
Chapter 4 - Supported Softwares
4.1 Desktop Management Interface....................................................................
4.2 System Health Monitor Utility..........................................................................
4.3 Drivers...................................................................................................................................
Appendix A - Identifying Processors
A.1 Intel Processors.............................................................................................................
A.2 Cyrix Processors..........................................................................................................
A.3 IBM Processors.............................................................................................................
A.4 AMD Processors.........................................................................................................
A.5 IDT Processors.............................................................................................................
Appendix B - System Error Message
B.1 POST Beep.......................................................................................................................
B.2 Error Messages..............................................................................................................
Appendix C - Troubleshooting
C.1 Troubleshooting Checklist.................................................................................... 63

6
Introduction
1
1.1 Features and Specifications
1.1.1 Features
Chipset
 VIA

Apollo 598MVP AGP system chipset
Processor
The system board is equipped with a switching voltage regulator
that supports 2.0V to 3.5V core voltage for various processors.
 AMD®K5 PR90/PR100/PR120/PR133/PR166, K6-166/200/233/
266/300, K6-2/250/266/300/333/350/366/380/400/450 or
K6-III/400
 Intel Pentium

90/100/120/133/150/166/200MHz or Intel
Pentium

processor with MMXTM technology-166/200/233MHz
 Cyrix®6x86L PR150+/PR166+/PR200+, 6x86MX-PR166/
PR200/PR233/PR266 or M II-200/266/300/333/366/380/400
 IBM® 6x86MX-PR200/PR233/PR266/PR300/PR333
 IDT®C6-180/200/225/240, WinChip2-200/225/233/240/266/
300 or future WinChip3 series
System Memory
 16MB to 384MB memory using unbuffered DIMMs
 Three 168-pin DIMM sockets using x64 SDRAM, 3.3V
 PC-100 SDRAM DIMM for 100MHz external system bus clock
processors
Chapter 1 - Introduction
DIMMs
2MBx64
4MBx64
8MBx64
16MBx64
Memory Size
16MB
32MB
64MB
128MB

7
1
Introduction
Level 2 Cache Memory
 512KB or 1MB pipeline burst, direct map write-through cache
installed on the system board.
Expansion Slots
The system board is equipped with 1 dedicated AGP slot, 3
dedicated PCI slots, 2 dedicated 16-bit ISA slots and 1 shared PCI/
ISA slot. All PCI and ISA slots are bus masters.
Desktop Management Interface (DMI)
The system board comes with a DMI 2.0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to Chapter 4 for instructions on
using the DMI utility.
Connectors
 2 connectors for external USB ports
 1 connector for IrDA interface
 2 serial ports
 1 parallel port
 2 IDE connectors
 1 floppy connector
 1 PS/2 mouse port
 1 PS/2 or AT keyboard port
 1 20-pin ATX power supply connector
 1 12-pin standard AT power supply connector
PCI Bus Master IDE Controller
 Two PCI IDE interfaces support up to four IDE devices
 Ultra DMA/33 supported (Synchronous Ultra DMA mode -
data transfer rate up to a maximum of 33MB/sec.)
 PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up
to 16.6MB/sec.)

8
Introduction
1
 Bus mastering reduces CPU utilization during disk transfer
 Supports ATAPI CD-ROM, LS-120, ZIP and SCSI sequential
boot-up
IrDA Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports infrared peripheral devices that meet the ASKIR or HPSIR
standard.
USB Ports
The system board is equipped with two connectors for external
USB ports. USB allows data exchange between your computer and
a wide range of simultaneously accessible external Plug and Play
peripherals.
BIOS
 Award BIOS, Windows

95/98 Plug and Play compatible
 Flash EPROM for easy BIOS upgrades
 Flash memory
The system board comes standard with 1MB flash memory. An
optional 2MB flash memory, which includes the ACPI and SDMS
functions, will be provided only upon request.
1.1.2 Intelligence
Monitors Processor Temperature and Overheat Alarm
The system board is able to detect the temperature of the
processor. An alarm will sound in case of processor overheat.
Monitors Processor/AGP Fan Speed and Failure Alarm
The system board is able to detect the fan speed (RPM-Revolutions
Per Minute) of the processor and AGP fans, and alerts you to attend
to any irregularity that may damage your system.
Monitors Power Voltages and Failure Alarm
The system board is able to detect the output voltage of the power
supply. An alarm will sound warning you of voltage irregularity.

9
1
Introduction
Automatic Fan Control
With the systems power switched on, the processors fan will rotate
only if the temperature of the processor is over 25oC.
Dual Function Power Button (ATX power supply only)
Depending on the setting in the BIOS setup, this switch will allow
your system to enter the Soft-Off or Suspend mode.
External Modem Ring-on (ATX power supply only)
The Modem Ring-on feature allows the system that is in the
Suspend mode or Soft Power Off mode to wake-up/power-on to
respond to incoming calls.
Note:
This feature supports external modem only. If you are using
this function, make sure to turn on the power of the modem
prior to powering-off the system.
RTC Timer to Power-on the System (ATX power supply only)
The RTC installed on the system board allows your system to
automatically power-on on the set date and time.
ACPI (ATX power supply only)
The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management.
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.

10
Introduction
1
1.2 Package Checklist
The system board package contains the following items:
þThe system board
þA users manual
þSerial, mouse and printer por t cables
Option 1:
- One card-edge bracket with a 9-pin and 25-pin serial port
cables
- One card-edge bracket with a 25-pin printer port cable and
a PS/2 mouse port cable
Option 2:
- One card-edge bracket with two 9-pin serial port cables
and a PS/2 mouse port cable
- One 25-pin printer port cable for chassis mounting
þOne 40-pin IDE hard disk cable
þOne 34-pin floppy disk drive cable
þOne CD
¨One card-edge bracket with two USB ports (optional)
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

11
2
Hardware Installation
2.1 System Board Layout
square denotes pin 1
Chapter 2 - Hardware Installation

12
2Hardware Installation
2.2 System Memory
2.3 DIP Switch and Jumper Settings of the
Processors
Make sure SW1 and JP5 are set correctly before applying power or
you may damage the processor or system board. There are 10
switches on SW1. The black rectangle in the diagram denotes the
part that is protruding, the adjustable switch.
In the example on the left:
Switch 1: Off Switch 6: Off
Switch 2: On Switch 7: Off
Switch 3: On Switch 8: Off
Switch 4: On Switch 9: Off
Switch 5: On Switch 10: On
Important:
If you are using a 100MHz ex-
ternal system bus clock processor,
make sure that you use PC-100
SDRAM DIMM ONLY. However,
if you encounter compatibility
problems, we recommend that
you try setting the SDRAM clock
according to the AGP clock (JP4
pins 1 and 2 On). This may help
solve some compatibility
problems.

13
2
Hardware Installation
DIP Switch Settings for Intel Processors
Intel Processors SW1: 1-6
90MHz -
60MHz - 1.5x
100MHz -
66MHz - 1.5x
120MHz -
60MHz - 2x
133MHz -
66MHz - 2x
150MHz -
60MHz - 2.5x
166MHz -
66MHz - 2.5x
200MHz -
66MHz - 3x
MMX166MHz* -
66MHz - 2.5x
MMX200MHz -
66MHz - 3x
MMX233MHz -
66MHz - 3.5x
Intel Processors SW1: 1-6
* Default
DIP Switch Settings for IDT Processors
C6-180 -
60MHz - 3x
IDT Processors SW1: 1-6 IDT Processors SW1: 1-6
WinChip2-266 -
100MHz - 2.33x
WinChip2-300 -
100MHz - 2.5x
C6-200 -
66MHz - 3x
C6-225 -
75MHz - 3x
C6-240 -
60MHz - 4x
WinChip2-200 -
66MHz - 3x
WinChip2-233 -
66MHz - 3.5x
WinChip2-225 -
75MHz - 3x
WinChip2-240 -
60MHz - 4x

14
2Hardware Installation
DIP Switch Settings for IBM Processors
IBM Processors SW1: 1-6 IBM Processors SW1: 1-6
6x86MX-PR200 -
66MHz - 2.5x
6x86MX-PR233 -
75MHz - 2.5x
6x86MX-PR266 -
83MHz - 2.5x
6x86MX-PR300 -
75MHz - 3x
6x86MX-PR333 -
83MHz - 3x
6x86MX-PR300 -
66MHz - 3.5x
DIP Switch Settings for Cyrix Processors
Cyrix Processors SW1: 1-6 Cyrix Processors SW1: 1-6
6x86MX-PR200 -
66MHz - 2.5x
6x86MX-PR233 -
75MHz - 2.5x
6x86MX-PR266 -
83MHz - 2.5x
6x86L PR166+ -
66MHz - 2x
6x86L PR200+ -
75MHz - 2x
M II-200 -
66MHz - 2.5x
M II-266 -
66MHz - 3x
M II-300 -
75MHz - 3x
M II-300 -
66MHz - 3.5x
M II-366 -
100MHz - 2.5x
M II-333 -
83MHz - 3x
M II-333 -
75MHz - 3.5x
M II-333 -
66MHz - 4x
M II-366 -
83MHz - 3.5x
M II-380 -
100MHz - 3x
M II-400 -
95MHz - 3.5x

15
2
Hardware Installation
DIP Switch Settings for AMD Processors
AMD Processors SW1: 1-6 AMD Processors SW1: 1-6
K6-200 -
66MHz - 3x
K6-233 -
66MHz - 3.5x
K6-266 -
66MHz - 4x
K6-300 -
66MHz - 4.5x
K6-2/250 -
100MHz - 2.5x
K6-2/300 -
100MHz - 3x
K6-2/266 -
66MHz - 4x
K6-2/333 -
95MHz - 3.5x
K6-2/350 -
100MHz - 3.5x
K6-2/400 -
100MHz - 4x
K5 PR90 -
60MHz - 1.5x
K5 PR100 -
66MHz - 1.5x
K5 PR120 -
60MHz - 2x
K5 PR133 -
66MHz - 2x
K5 PR166 -
66MHz - 2.5x
K6-166 -
66MHz - 2.5x
K6-2/333 -
66MHz - 5x
K6-2/366 -
66MHz - 5.5x
K6-2/380 -
95MHz - 4x
K6-2/300 -
66MHz - 4.5x
K6-2/450 -
100MHz - 4.5x
K6-III/400 -
100MHz - 4x

16
2Hardware Installation
Frequency Ratio SW1: 4-6
1.5x / 3.5x
Frequency Ratio SW1: 4-6
2x
2.5x
4x
4.5x
5x
3x 5.5x
External System Bus Clock / Frequency Ratio - DIP Switch Settings
If the processor you are using is not included in the previous tables,
please refer to the following tables and set SW1 according to the
external system bus clock and frequency ratio of your processor.
External System Bus Clock Settings
External System Bus Clock SW1: 1-3
60MHz
External System Bus Clock SW1: 1-3
66MHz
75MHz
83MHz
95MHz
100MHz
Warning:
We do not guarantee that 75MHz, 83MHz, 95MHz and
100MHz external system bus clock processors will work with all
types of add-in cards, memory modules or other devices.
Frequency Ratio Settings for Intel, Cyrix, IBM and AMD
Processors

17
2
Hardware Installation
Frequency Ratio Settings for IDT Processors
Frequency Ratio SW1: 4-6
3.5x
Frequency Ratio SW1: 4-6
2x / 3.3x
2.5x
4x
4.5x
2.33x / 5x
3x 2.66x / 5.5x

18
2Hardware Installation
DIP Switch and Jumper Settings for CoreVoltage
Voltage JP5SW1: 7-10
2.8V*
2.0V
2.1V 2.9V
3.0V
3.1V
Voltage JP5SW1: 7-10
2.2V
2.3V
2.4V
2.5V
2.6V
2.7V
3.2V
3.3V
3.4V
3.5V
* Default

19
2
Hardware Installation
2-3 On: Normal
(default)
1-2 On:
Clear CMOS Data
2.4 Jumper Settings for Clearing CMOS Data
Jumper JP1
Clear CMOS Data
If, for some reason, the CMOS
data becomes corrupted, the
system can be reconfigured with
the default values stored in the
ROM BIOS. To load the default
values, power off your system
and unplug the power cord. If
you are using an AT power
supply, you do not need to
unplug the power cord. Set JP1
pins 1 and 2 to On. Wait for a
few seconds and set JP1 back
to its default setting, pins 2 and 3 On.You may now plug the power
cord and power-on your system.
321 321

20
2Hardware Installation
2.5 Jumper Settings for SDRAM Clock (DIMM)
Jumper JP4
SDRAM Clock
JP4 is used to set the
SDRAMs clock according to
the CPU clock or AGP clock. If
you are using PC-100 SDRAM
DIMMs, it is recommended that
you set the SDRAM clock
according to the CPU clock (2-
3 On). This setting will provide
better system performance
specially when used with 75/
83/95/100MHz processors.
However, if you encounter
compatibility problems with PC-100 SDRAM DIMMs or you are
using EDO / PC-66 SDRAM DIMMs, set the SDRAM clock
according to the AGP clock (1-2 On).
2-3 On:
SDRAM CLK = CPU CLK
1-2 On:
SDRAM CLK = AGP CLK
(default)
1
2
3
1
2
3
CPU CLK
60MHz
66MHz
75MHz
83MHz
95MHz
100MHz
SDRAM CLK
60MHz
66MHz
60MHz
66MHz
66MHz
66MHz
AGP CLK
60MHz
66MHz
60MHz
66MHz
66MHz
66MHz
CPU CLK
60MHz
66MHz
75MHz
83MHz
95MHz
100MHz
SDRAM CLK
60MHz
66MHz
75MHz
83MHz
95MHz
100MHz
AGP CLK
60MHz
66MHz
60MHz
66MHz
66MHz
66MHz
