Acrosser Technology AR-B8172 User manual

AR-B8172 User Manual
1
AR-B8172 Board
ISA CPU card with DM&P CPU Vortex86DX
User Manual
Manual Rev.: 1.01
Book Number: AR-B8172-2011.07.02

AR-B8172 User Manual
2
Revision
Version
Date
Description
0.1
2011/03/11
Draft
1.0
2011/04/21
First Release
1.01
2011/07/02
Modified

AR-B8172 User Manual
3
Copyright 2011
All Rights Reserved.
Manual’s first edition:
For the purpose of improving reliability, design and function, the information in this document is
subject to change without prior notice and does not represent a commitment on the part of the
manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or documentation, even
if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are reserved.
No part of this Manual may be reproduced by any mechanical, electronic, or other means in any
form without prior written permission of the manufacturer.
Trademarks
AR-B8172 is a registered trademarks of Acrosser; IBM PC is a registered trademark of the
International Business Machines Corporation; Pentium is a registered trademark of Intel
Technologies Inc; Award is a registered trademark of Award Software International Inc; other
product names mentioned herein are used for identification purposes only and may be trademarks
and/or registered trademarks of their respective companies.

AR-B8172 User Manual
4
Table of Contents
1 Introduction .......................................................................................... 5
1.1 Specifications................................................................................................6
1.2 Package Contents .........................................................................................7
1.3 Block Diagram ...............................................................................................8
2 H/W Information.................................................................................... 9
2.1 Locations (Top side) ..................................................................................... 9
2.2 Connectors and Jumper Setting ................................................................ 10
2.3 Connector and Jumper Setting Table........................................................ 12
3 BIos Setting ........................................................................................ 17
3.1 Main Setup ................................................................................................... 18
3.2 Advanced Setup .......................................................................................... 19
3.3 PCIPnP Setup .............................................................................................. 21
3.4 Boot Setup ................................................................................................... 23
3.5 Security Setup ............................................................................................. 25
3.6 Chipset Setup .............................................................................................. 26
3.7 Exit Setup..................................................................................................... 28
4 BIOS REFRESHING, WATCHDOG AND GPIO PROGRAMMING ....29
4.1 BIOS Refreshing.......................................................................................... 29
4.2 WATCHDOG Programming......................................................................... 29
4.3 GPIO Programming..................................................................................... 32
5 ELECTRICAL CHARACTERISTICS................................................... 36
5.1 Basic Electrical Characteristics Table....................................................... 36

AR-B8172 User Manual
5
1 INTRODUCTION
AR-B8172 is based on a DM&P Vortex chip with 800MHz and L2 256KB cache. AR-B8172
equips 256MB DDR2-333MHz on-board memory, 512KB SRAM with battery backup, 1 x CF
socket, 1 x IDE connector, 1 x FDD connector, 1 x Parallel port, 1 x PC/104, 4 x USB 2.0, 1 x
RS-232, 1 x RS-232/422/485, 1 x VGA, 16-bit GPIO, 1 x 10/100MBbit LAN and 1 x Golden Finger
for ISA Bus.
AR-B8172 has XGI Z9s 2D Graphic Core with 64MB independent graphic memory. AR-B8172
support 1600 x 1200 @32bit VGAresolution fulfilled general 2D application demands.
AR-B8172 is the best choice ISA card for industrial SBC of factory automation environment.

AR-B8172 User Manual
6
1.1 Specifications
AR-B8172, ISA bus CPU card with DM&P CPU Vortex86DX.
On-board fanless DM&P Vortex86DX 800MHz / L1 32KB, L2: 256KB included in CPU.
AMI BIOS Core-8 / On chip SPI Flash 2MBits built-in.
Default On-board DDR2 256MB (128Mb*8*2) support DDR2 clock up to 333MHz.
Interfaces with 4 through holes, followAR-B1479A.
Support AR-B1047 for 1 device at a time (not support 2 device at the same time).
XGI Z9s Display Chipset / Video Memory: 64MB (max up to 64MB) / CRT: Up to 1600x1200 @
32bits.
RS-232 port: COM1: RS-232, COM2: RS-232/422/485 (internal) / LPT port x1 (Internal) /
USB2.0 port x4 (4x internal).
Enhanced IDE interface x1 (Ultra DMA 100/66/33) (Default: Secondary IDE*) / Supports Ultra
DMA 33/66/100 for 40pins connector.
CF socket x1 (Default: Secondary IDE/Master).
1 x 10/100 LAN (Built-in R6040) With RJ-45 (90 degree) connector build-in LED.
1x 3.5” Floppy driver connector (internal pin header connector).
1x PC/104 slot.
512KB SRAM (ISA interface).
GPIO: 16 bits. Use GPIO_P0 & GPIO_P1 with interrupt support (input / output). Group to 2x
pin header connectors (GPIO1, GPIO2).
RTC / Watchdog: Software programmable from 1~256 seconds.

AR-B8172 User Manual
7
1.2Package Contents
Check if the following items are included in the package.
Quick Manual
AR-B8172
1 x Software Utility CD

AR-B8172 User Manual
8

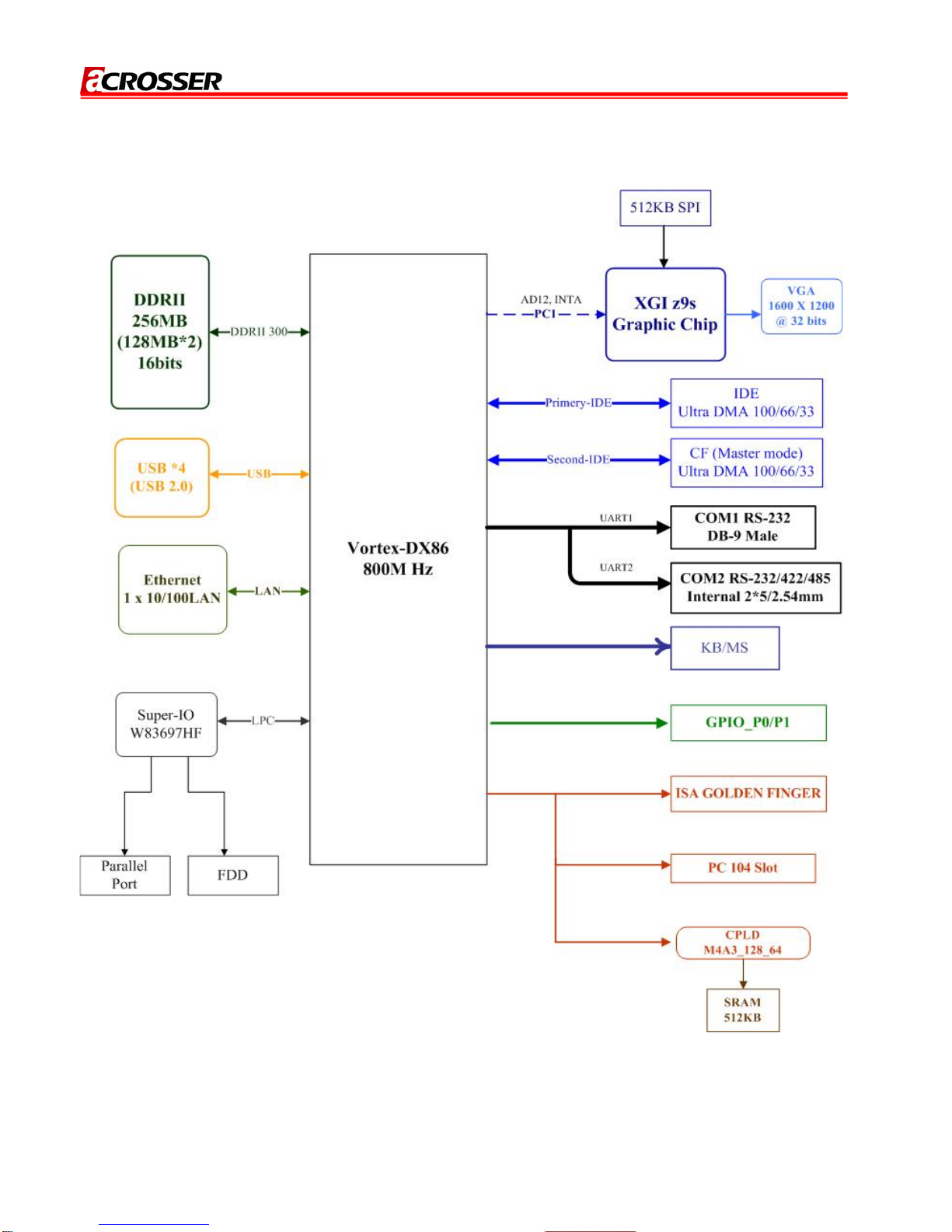

1.3 Block Diagram

AR-B8172 User Manual
9
2 H/W INFORMATION
This chapter describes the installation of AR-B8172. At first, it shows the function diagram and
the layout of AR-B8172. It then describes the unpacking information which you should understand,
as well as the jumper/switch settings for theAR-B8172 configuration:
2.1 Locations (Top side)
FDD1
FLOPPY Connector LPT1
PRINTER PORT COM1
RS232 DB9 Connector
IDE1
44PIN IDE Connector BZ1
BUZZER (On-Board) CN5/CN6
PC104 CONNECTOR
BAT1
BATTERY for RTC/SRAM VGA1
VGA DB15 Connector KM1 (KB_MS1)
Keyboard/Mouse Connector
U2, U3
System DDR2 RAM 128MBX2 U19
VGA SPI FLASH 512KB ISA1 ISABUS
U1
CPU Vortex DX 800MHz U17
GPU XGI z9s
U14
SRAM 512KB LAN1
Ethernet 10/100
U13
CPLD(SRAM Controller) U18
GPU DDR2 64MB

AR-B8172 User Manual
10
2.2 Connectors and Jumper Setting
2.2.1 Locations (Top side)
LED1/LED2
System/HDD Status LED (On board)
RST_BTN1
System Reset Button
CCMOS
Clear CMOS data
LED3/LED4
System/HDD Status LED Connector
PWR1
AT Power Input
ATX1
ATX Power Supply Connector
JP1
RS-232/422/485 Selection
with RS-485 termination resistor
SW4
SRAM Address Selection Switch
ATX_BTN1
ATX Power-ON Button
COM2
RS-232 Connector
USB1
USB 0/1 Connector
GPIO1
GPIO 0/1 Connector
CN7
RS-422/485 Connector
(Signal shared from COM2)
USB2
USB 2/3 Connector
KB_MS1
Keyboard/Mouse Connector
CN3
Reserved
CN4
Buzzer Connector (from BZ1)

AR-B8172 User Manual
11

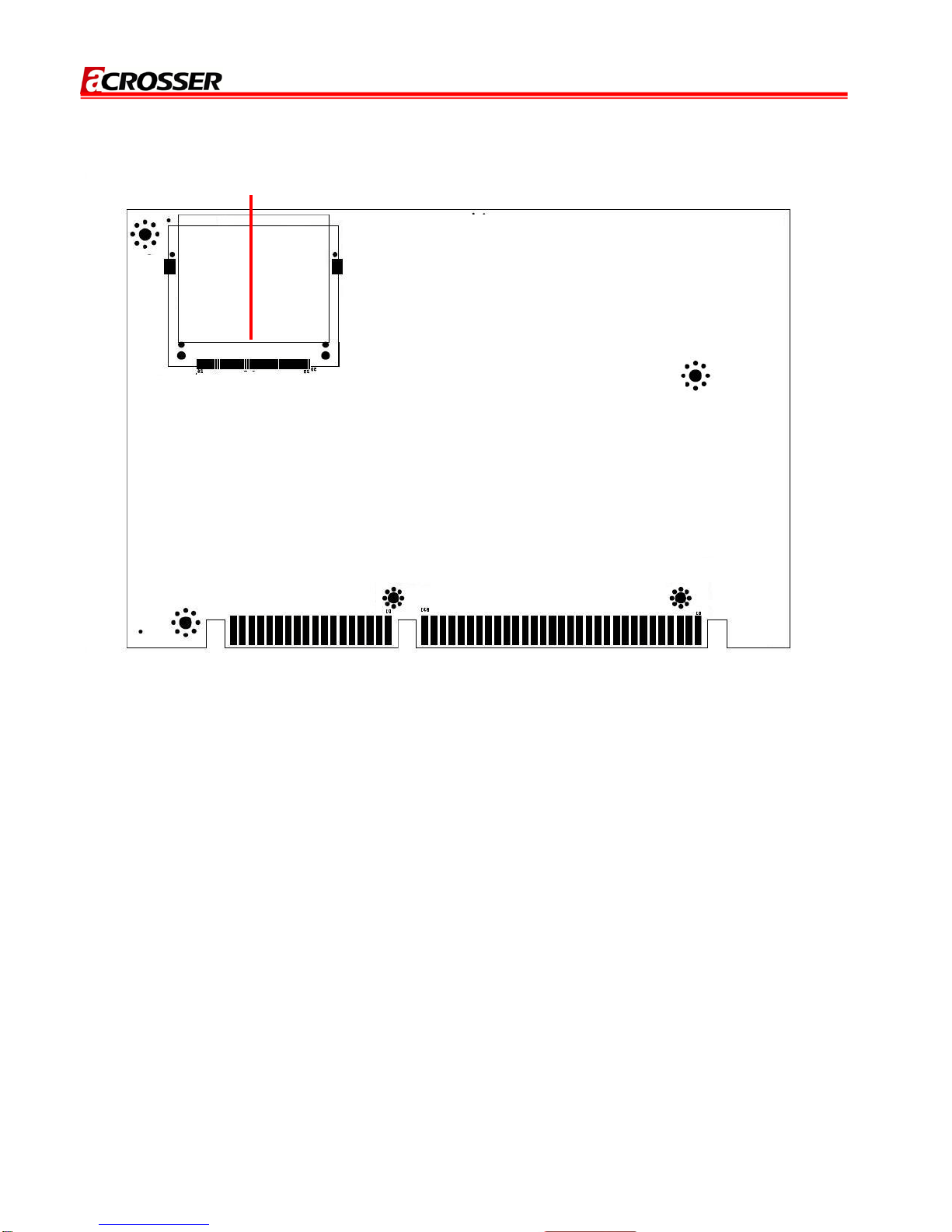

2.2.2 Locations (Bottom Side)
CF Slot

AR-B8172 User Manual
12

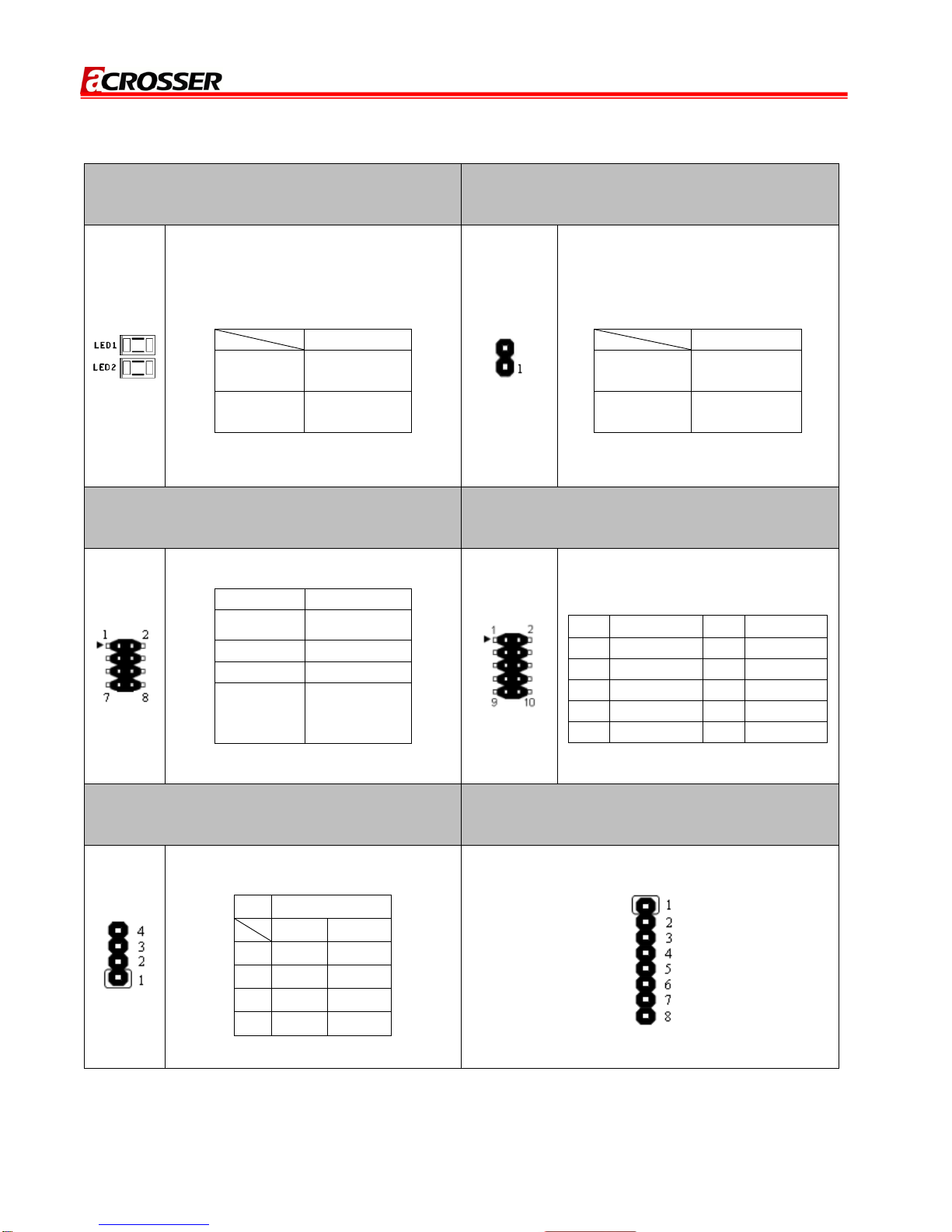

2.3 Connector and Jumper Setting Table
2.1 LED1/LED2 (On-board)
On-board Power/IDE (CF) status LED.
2.2 LED3/LED4
Power/IDE (CF) status LED external 2.54mm
1×2PIN connector.
FUNCTION
LED1
( Green) POWER LED
LED2
(Yellow) IDE/CF LED
FUNCTION
LED4
( POWER LED)
PIN1 : VCC+
PIN2 : LED Signal
LED3
( IDE/CF LED)
PIN1 : VCC+
PIN2 : LED Signal
2.3 JP1
COM2 RS-232/42/485 selection and RS-485
termination resistor.
COM2
COM2 RS-232 2.54mm 2×5PIN Connector
JUMPER
FUNCTION
1-2 (default) RS232
3-4
RS422
5-6
RS485
7-8
120Ω
TERMINATION
ENABLE
PIN
SIGNAL
PIN
SIGNAL
1
DCD
2
DSR
3
RXD
4
RTS
5
TXD
6
CTS
7
DTR
8
RI
9 GND 10 N.C
2.5 CN7
RS422/485 connector (signal from
COM2).
NOTE1
2.6 CN3 (reserved)
PIN
SIGNAL
RS485
RS422
1
485D+
422TX+
2
485D-
422TX-
3
N.C
422RX+
4
N.C
422RX-

AR-B8172 User Manual
13
2.7 RST_BTN1
System reset button (2.54mm 1×2PIN connector )
2.8 PWR1
AT power input
RST_BTN1
FUNCTION
SHORT RESET
OPEN
NORMAL
PIN
SIGNAL
1
+12V
2
GND
3
GND
4
+5V
2.9 SW4
SRAM address selection switch
2.10-11 USB1/USB2
USB 0/1 & 3/4 connector
PIN
FUCTION
PIN
FUCTION
1
SRAMSEG_SEL0 5 CPLD_ADR2
2
SRAMSEG_SEL1
6
CPLD_ADR3
3
CPLD_ADR0
7
ENA_SRAM
4
CPLD_ADR1 8 Reserve
PIN
SIGNAL
PIN
SIGNAL
1
+5V
2
+5V
3
D0-
4
D1-
5
D0+
6
D1+
7 GND 8 GND
9
GND
10
GND
2.12 CN4
External buzzer connector (signal shared from
BZ1)
2.13 CCMOS
Clear CMOS data
PIN
FUNCTION
1
VCC
2
BZ-
3
BZ-
JUMPER
FUNCTION
1-2
(default) NORMAL
2-3
Clear CMOS

AR-B8172 User Manual
14

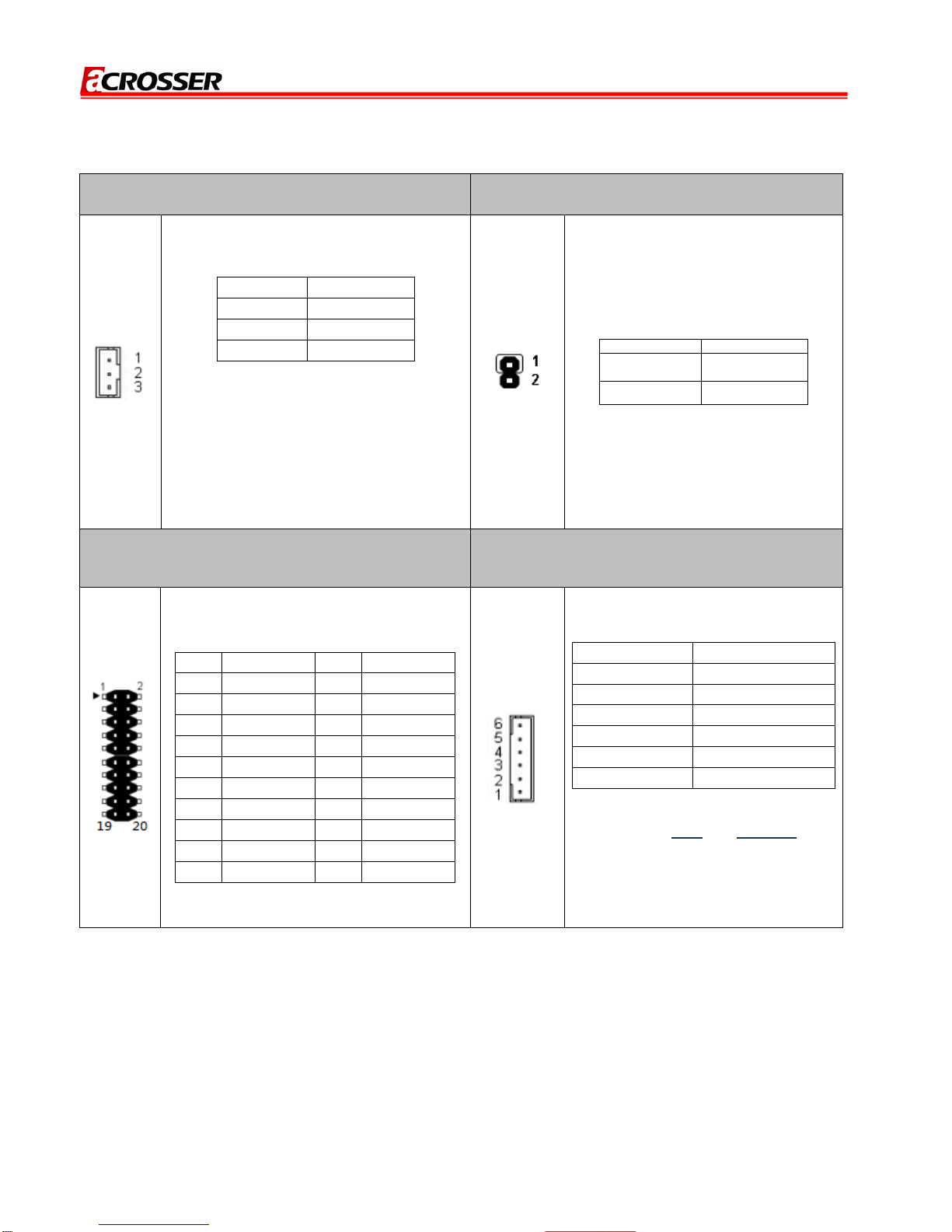

2.14 ATX1
ATX power supply connector
2.15 ATX_BTN1
ATX power-on push button Connector
PIN
SIGNAL
1
PSON
2
+5V
3
5VSB
1. For ATX power supply, please connect to
ATX1 connector to power supply.
2. For AT power, release PIN 2-3 open and
turn-on power supply directly to boot-up.
RST_BTN1
FUNCTION
Push to
SHORT
ATX power
button
OPEN Normal
2.16 GPIO1
GPIO 0/1 connector
2.17KB_MS1
Internal Keyboard/Mouse Connector
(JST2.0mm)
PIN
FUNCTION
PIN
FUNCTION
1
GPIO00
2
GPIO07
3
GPIO01
4
GPIO06
5
GPIO02
6
GPIO05
7
GPIO03
8
GPIO04
9
GND
10
+3.3V
11
GPIO10
12
GPIO17
13
GPIO11
14
GPIO16
15
GPIO12
16
GPIO15
17
GPIO13
18
GPIO14
19
GND
20
+3.3V
PIN
SIGNAL
1
Mouse Data
2
Keyboard Data
3
GND
4
+5V
5
Mouse Clock
6
Keyboard Clock
*PS/2 Keyboard Mouse
Connector KM1 and KB_MS1 is
shared signal, user could only uses
one connector at one time.

AR-B8172 User Manual
15
SRAM Access Configuration:
1. Enable SRAM access: SW4.PIN7 is “OFF” to Enable SRAM. If PIN7 is “On” then SRAM
access will be disable.
SW4
Logical description
OFF
H
ON
L
2. SRAM Address Selection:
SRAM Start Address
SRAMSEG_SEL0
SRAMSEG_SEL1
D000:0000
L
L
D400:0000
H
H
D800:0000
H
L
DC00:0000
L
H
2. Device IO Address Selection:
3. RAM is 512KB with 32 banks, each bank is 16KB size.
※Others mode not descript on the above tables are reserved.
Device IO Address
CPLD_ADR3
CPLD_ADR2
CPLD_ADR1
CPLD_ADR0
200h
L
L
L
L
214h
L
L
L
H
2A4h
L
L
H
L
2F4h
L
L
H
H
2C0h
L
H
L
L
2C4h
L
H
L
H
2D0h
L
H
H
L
2D4h
L
H
H
H
2E0h
H
L
L
L
2E4h
H
L
H
L

AR-B8172 User Manual
16
NOTE1:
COM2 RS-232 signals is shared with RS-422/485 (connector is CN7). RS-485 supports
10 nodes with two 120ohm termination resisters:

AR-B8172 User Manual
17
3 BIOS SETTING
This chapter describes the BIOS menu displays and explains how to perform common tasks
needed to get the system up. It also gives detailed explanation of the elements found in each of the
BIOS menus. The following topics are covered:
Main Setup
Advanced Setup
PCIPnP Setup
Boot Setup
Security Setup
Chipset Setup
Exit Setup

AR-B8172 User Manual
18
3.1 Main Setup

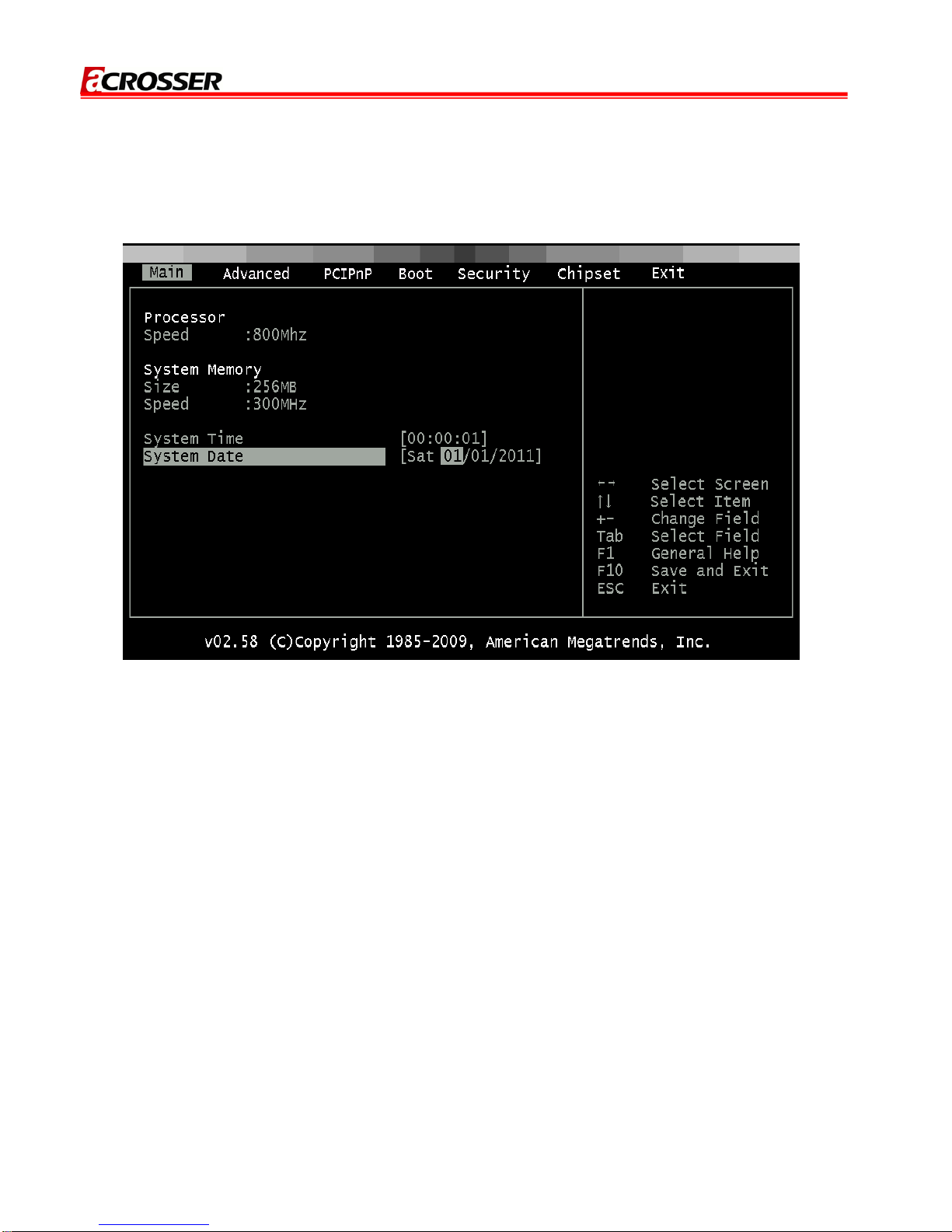

3.1.1 AMI BIOS
This is the interface of AMI BIOS:
3.1.2 Processor
This part shows the auto-detected CPU specification. DM&P Semiconductor is the
Vortex86SX 32-Bit Microprocessor, DDR2 128MB onboard, which is based on x86 structure. It is
the x86 SoC (System on Chip) with 0.13 micron process and ultra low power consumption design
(less than 1 watt)The CPU on the Vortex86SX is a high performance and fully static 32-bit X86
processor with the compatibility of Windows based, Linux and most popular 32-bit RTOS.
3.1.3 System Memory
This part shows the auto-detected system memory. The Vortex86DX is a high performance
with 256MB RAM and speed 133MHz onboard and fully static 32-bit x86 processor, which is
compatible with DOS and Linux. It integrates 32KB write through direct map L1 cache, PCI Rev.
2.1 32-bit bus interface at 33 MHz, SDRAM, DDR2, ROM controller, IPC (Internal Peripheral
Controllers with DMA and interrupt timer/counter included), Fast Ethernet MAC, FIFO UART,
USB2.0 Host and IDE controller into a System-on-Chip (SoC) design. The Vortex86DX are all
256MB onboard and the speed is 133MHz.
3.1.4 System Time:
The time format is based on the 24-hour military time clock. Press the “+” or “–“ key to
increment the setting or type the desired value into the field.
3.1.5 System Date:
Press the “+” or ” –“ to set the date you wanted. The BIOS determines the day of the week
from the other date information; this field is for information only.

AR-B8172 User Manual
19
3.2 Advanced Setup
3.2.1 IDE Configuration
OnBoard PCI IDE Controller
This can select the specification you wanted for the IDE device. This option specifies the
channel used by IDE controller on the motherboard,
Option Description
Disabled Set this value to prevent the computer system from using the onboard IDE controller.
Primary Set this value to allow the computer system to detect only the Primary IDE channel.
This includes both the Primary Master and the Primary Slave.
Secondary
Set this value to allow the computer system to detect only the Secondary IDE channel.
This includes both the Secondary Master and the Secondary Slave.
Both Set this value to allow the computer system to detect the Primary and Secondary IDE channels.
This includes the Primary Master, Primary Slave, Secondary Master, and Secondary Sla
ve. This is
the default setting.
Primary IDE Master/Slave
When you entered the IDE devices, the bios will auto-detected and show the detail information
of IDE devices. If you want to change IDE configuration, select the item and press the “Enter” to
configure the item you wanted.

AR-B8172 User Manual
20
3.2.3 SuperIO Configuration
You can use this screen to select options for the Super I/O settings. Use the up and down
<Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the
selected option. The settings are described on the following pages. The screen is shown below.
Onboard Floppy Controller
This item specifies the Floppy used by the onboard Floppy controller. The settings are
Disabled or Enabled.
Floppy Drive Swap
This option allows you to Enabled or Disabled the Floppy Drive Swap.
3.2.4 USB Configuration
USB Functions
Set this value to allow the system to enable or disable the onboard USB ports. The Optimal
and Fail-Safe default setting is Enabled.
Option Description
Disabled This setting makes the onboard USB ports unavailable.
Enabled This setting allows the use of the USB PORTS. This is the default setting.
Legacy USB Support
Legacy USB Support refers to the USB mouse and USB keyboard support. Normally if this
option is not enabled, any attached USB mouse or USB keyboard will not become available until a
USB compatible operating system is fully booted with all USB drivers loaded. When this option is
enabled, any attached USB mouse or USB keyboard can control the system even when there is no
USB drivers loaded on the system. Set this value to enable or disable the Legacy USB Support.
The Optimal and Fail-Safe default setting is Disabled.
Option Description
Disabled Set this value to prevent the use of any USB device in DOS or during system boot.
This
is the default setting.
Enabled Set this value to allow the use of USB devices during boot and while using DOS.
Auto This option auto detects USB Keyboards or Mice and if found, allows them to be
utilized
during boot and while using DOS.
