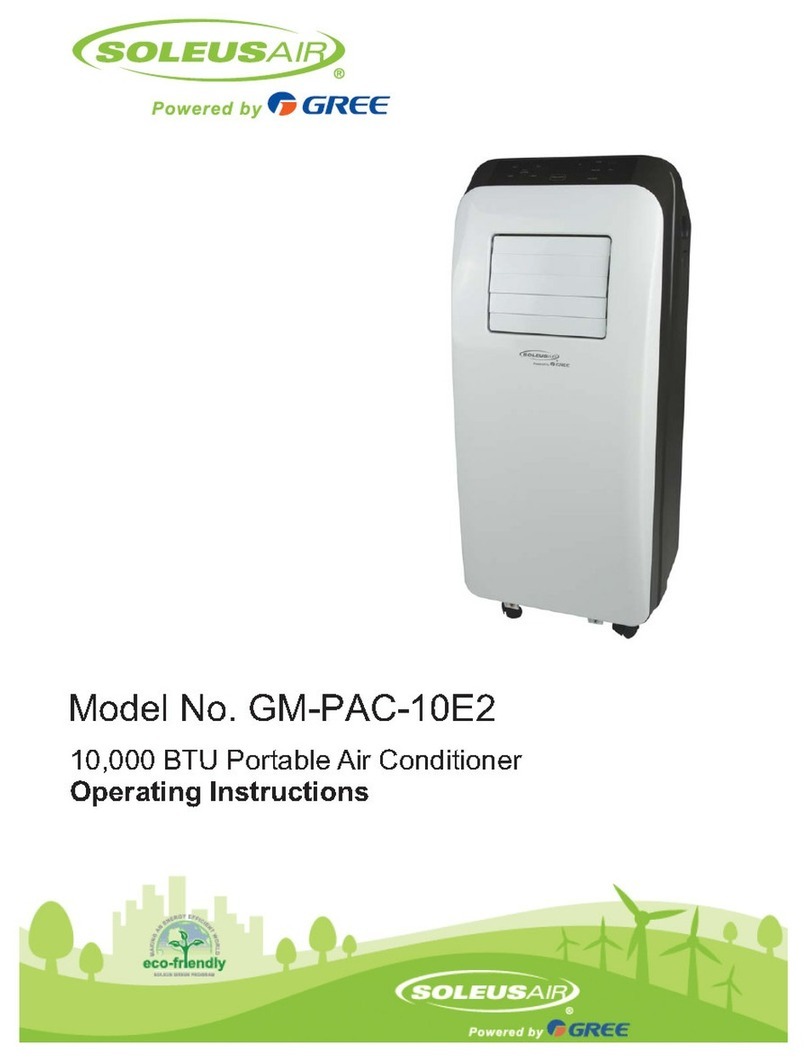

Soleus Air GM-PAC-10E2 User manual

10,000 BTU Portable Air Conditioner
Operating Instructions
Model No. GM-PAC-10E2

Thank you for choosing a Soleus Air Powered by Gree Portable Air Conditioner. This owner’s man-
ual will provide you with valuable information necessary for the proper care and maintenance of your
new product. Please take a few moments to thoroughly read the instructions and familiarize yourself
with all the operational aspects of your new Portable Air Conditioner.
For your own records, please attach a copy of your sales receipt to this manual. Also, write the store
name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: ______________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
IMPORTANT INSTRUCTIONS
Before installing and using your portable air conditioner, please read this owner’s manual carefully. Store this
manual in a safe place for future reference.
1) Always place the unit on a level surface.
2) Never use or store gasoline or other flammable vapor or liquid near this unit unless instructed by this
manual.
3) Maintain at least 10 inches (25 cm) clearance space around this unit. Do not block or cover air inlet or
outlet grilles.
4) The unit must be connected to a correctly grounded power supply.
5) Do not start or stop the unit by inserting or pulling out the power plug.
6) Do not use an adapter plug or extension cord.
7) Do not use the unit in the immediate surroundings of a bath, a shower or a swimming pool.
8) Do not insert anything into the air outlet. Do not obstruct air inlet or outlet grills unless instructed by this
manual.
9) Do not let children play near this unit.
10) Always inspect the cord for signs of damage before use. If the power cord is damaged, it must be replaced
by the manufacturer or a qualified service technician.
11) When cleaning the unit, always turn the unit off and unplug the power cord.
2
12) Avoid using heating appliance near the air conditioner.

LCDI POWER CORD AND PLUG
This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and
plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexible cord
with no termination on the load side and a LCDI attachment plug on the line side.
The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the
nominal current leakage between the cord shield and either load conductor exceeds a predetermined value.
The cord will remain de-energized until the devise has been manually reset. This is intended to reduce the risk
of a fire in the power cord or combustible materials nearby. The cord shields are not grounded and they must
be considered a shock hazards if exposed. The cord shield must not be connected to ground or to any exposed
metal.
The test and reset buttons on the LCDI Plug are used to check if the plug is functioning properly. To test:
1. Plug power cord into wall outlet
2. Press TEST Button, circuit should trip, cutting power to the air conditioner
3. Press RESET button for use
If a test is performed and the indicator light remains ON, current leakage has been detected. Do not use the air
conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Powered by Gree Customer Service for trou-
bleshooting recommendations.
WARNING:
1. DO NOT press the TEST button while the air conditioner is operating.
2. The TEST and RESET buttons should not be used as ĀONāand ĀOFFāswitches.
3. The cord and plug are not intended to offer protection to externally connected loads or supply circuits.
4. The cord and plug are intended for indoor use only.
RESET
TEST
3

INCLUDE
PARTS INCLUDED
Window Exhaust Adapter A
Screw (7 )
Exhaust Hose Window Exhaust Adapter C
Adjustable Window Slider (3)
Hose clip(2) Rubber plug Battery
(AAA.1.5V)
INCLUDE
Window ExhaustAdapter B
SUGGESTED TOOLS FOR WINDOW PANEL INSTALLATION
1. Screwdriver(medium size Phillips) 2. Tape measure or ruler 3. Knife or scissors
4. Saw (In the event that the window panel needs to be cut down in size because the window is too narrow for
direct installation.)
Manual
Remove control
Drain hose Hose Clamp
hook(2)
Power cord
(2 )
4

1, Control panel and display lamp
2, Remove control signal receiver window
3, Handel
4, Remote controller box
5, Air outlet
6, Vertical louvers
7, Horizontal louvers
8, Wheel
9, Air inlet
10, Grille
11, Air outlet
12,Air inlet
13,Power cord hook
14, Power cord
15, Window exhaust adapter A
16, Exhaust hose
17, Window exhaust adapter
18, Window exhaust adapter
19, Remove control
STRUCTURE
Front
Rear
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
B
C
5

6
SPECIFICATIONS
x The cooling capacity is measured at an ambient temperature of DB 95 °F, WB 83 °F.
x Noise level is measured at a distance of 3.28 ft away from the front of the unit, when the unit is in cooling mode.
x Power consumption is measured when the fan runs at the highest speed setting.
x These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit.
x If the environment temperature is higher than the max operating temperature or lower than the minimum operating
temperature, the air conditioner may not work properly.
PACKAGE CONTENTS
Portable Air Conditioner
Exhaust Hose (1)
Window Exhaust Adapter A (1)
Window Exhaust Adapter B (1)
Window Exhaust Adapter C (1)
Remote Control & AAA Batteries (2 batteries)
Window Kit - 3 Sliding Panels (1 single hose panel, 2 extension panels)
Drain Hose Assembly (drain pipe, hose clamp, hose clip, rubber plug, & screw)
Owner’s Manual
Model Number
Power Supply (Ph/V/Hz) 1/115/60Hz
Dehumidifying Capacity (Pints/Day) 60
Rated Cooling Capacity (BTU/h) 10,000
Rated Heating Capacity (BTU/h) /
Cooling Power Input (Watts) 1120
Heating Power Input (Watts) /
Rated Current Cooling (Amperage) 9.9
Rated Current Heating (Amperage) /
EER/C.O.P /
Noise Level db (A) H/L <=53
CFM 176
Design Pressure (PSIG) (H/L) /
Dimensions (W” x H” x D”) 13.375X30.75X15.5
Package Dimensions (W” x H” x D”)
Net/Gross Weight (Lbs) 53/66
Refrigerant Charge (Oz) 17
Refrigerant Type R-410A
Power cord hooks (2hooks & screws)
GM-PAC-10E2
15.75 X 32X 21.75

•
Attach the hooks to the back of air conditioner with the screws.
hoook
screw
•
Wind the power cord round the power cord hooks.
7
INSTALLATION OF THE POWER CORD HOOK

PARTS & WINDOW KIT ASSEMBLY
PARTS
EXHAUST HOSE & ADAPTERS
ASSEMBLY & INSTALLATION
INSTALLATION
When the unit is operating as an air conditioner or dehumidifier, the window kit and exhaust hose must be installed.
When the unit is operating in fan mode, the window kit and exhaust hose do not need to be installed .
MOUNTING THE EXHAUST HOSE
x Choose a suitable location, near a grounded electrical outlet and suitable window or door. Remove
packaging and locate components.
x Extend both ends of the exhaust hose approximately 6 inches.
x Screw the window kit adapter onto one end of the exhaust hose clockwise. Screw the hose adapter onto
the other end of the exhaust hose clockwise.
x Mount the exhaust hose onto the back of the unit by locking the hose adapters into place.
x For maximum efficiency do not bend the hose as much as possible.
8
Exhaust Hose Adapter
Exhaust Hose
Hose
Adapter

9
SINGLE HOSE WINDOW KIT INSTALLATION
When installing the exhaust hose, try and keep it as flat as possible. The less angles and bends
in the hose, the better the unit will perform. If bending or an angle is necessary, use single 90°
angles like the pictures above. Multiple bends will decrease performance and efficiency
This installation is OK The is a poor installation
22”
26”

CONTROL PABEL & DISPLAY
When pressing key is valid, buzzer makes a sound, indicate dlamp indicates relevant state, syste mwill last for
2 seconds.
OPERATING INSTRUCTIONS
l.
3.MODE Button
4. Fan speed
When the unit is running in Cool or Fan mode,press the Fan speed Button to select the fan speed
in High,
Middle, Low , Auto.
In cool mode, it can decrease the temperature of the room, and make people very
comfortable.
ON/OFF Button
2. "+","-" Button
In COOL mode, press "-" once, the set temperature will decrease 1 , press "+" once, the set temperature will
C
(F)
Receiver window
LED window
DRY mode lamp
Temperature selection button COOL mode lamp
MODE buttonFAN mode lampFAN Speed lamp ON/OFF button
Fan speed button
Button
CONTROL PANEL DISPLAY & OPERATING INSTRUCTIONS
6. Louver Direction
This unit has 4-Way directional louvers.
Use the louver guides to direct air where
cooling or fanning is needed most.Hold the
louver and adjust the air flow direction,
as show in the right diagram.
5.Water Full
When COOL or DRY is running, condensate will drain to
water tank. When water tank is filled. buzzer will sound 8
times, LED screen show error code ‘H8’.
In this case, reference page 8 to drain out water intank.
Press the button once to manually turn the unit on. Press once more to turn the unit off.
Press MODE Button repeatedly to cycle between the modes:Cooling,Dry,and Fan only mode.
Each press of
the MODE
button will light up a different lamp on the control panel. The exhause
hose and window kit must
be installed when the
unit is in Co olor Dry mode.When using the unit as a fan,it is unnecessary to keep the
exhaus
t hose and window kit connected to the unit.
Hold this hand grip to adjust the
direction of Horizontal Louvers
Hold this hand grip to adjust the
direction of Vertical Louvers
incresae 1C ( F).The set temperature rang from 16 Cto 30 C(61 F to 86 F)
