ACTi E41 Instructions for use

E41
1MP Bullet with D/N, IR, Basic WDR,
Vari-focal lens
Hardware User’s Manual
(PoE)
Ver. 2012/12/05

www.acti.com
E41 Hardware User’s Manual
2
Table of Contents
0. Precautions 3
1. Introduction 4
Package Contents ........................................................................... 4
Features and Benefits ..................................................................... 5
Safety Instructions .......................................................................... 6
Physical description ........................................................................ 8
Basic Connections ........................................................................... 9
Product Specification.................................................................... 10
2. Installation 11

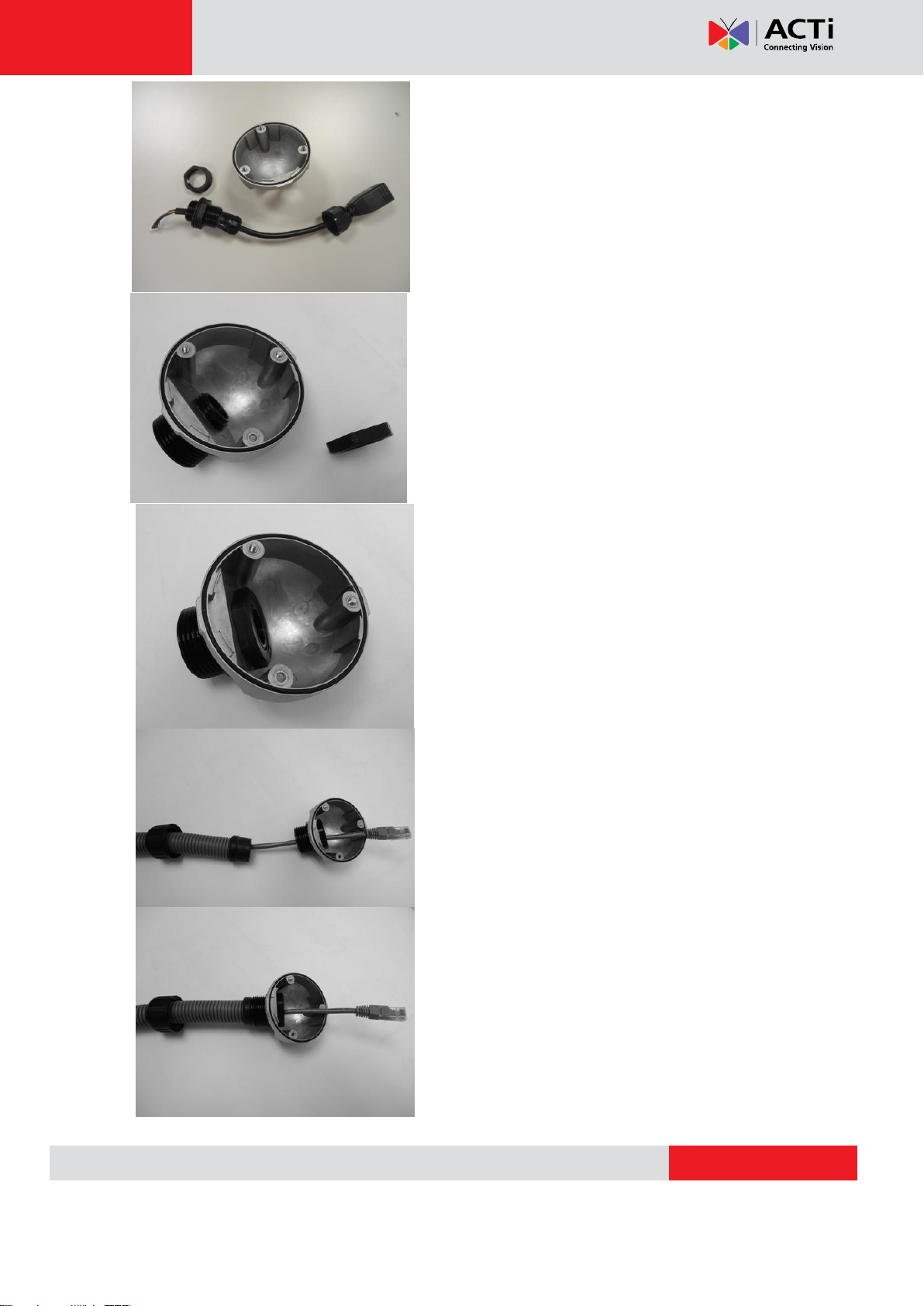

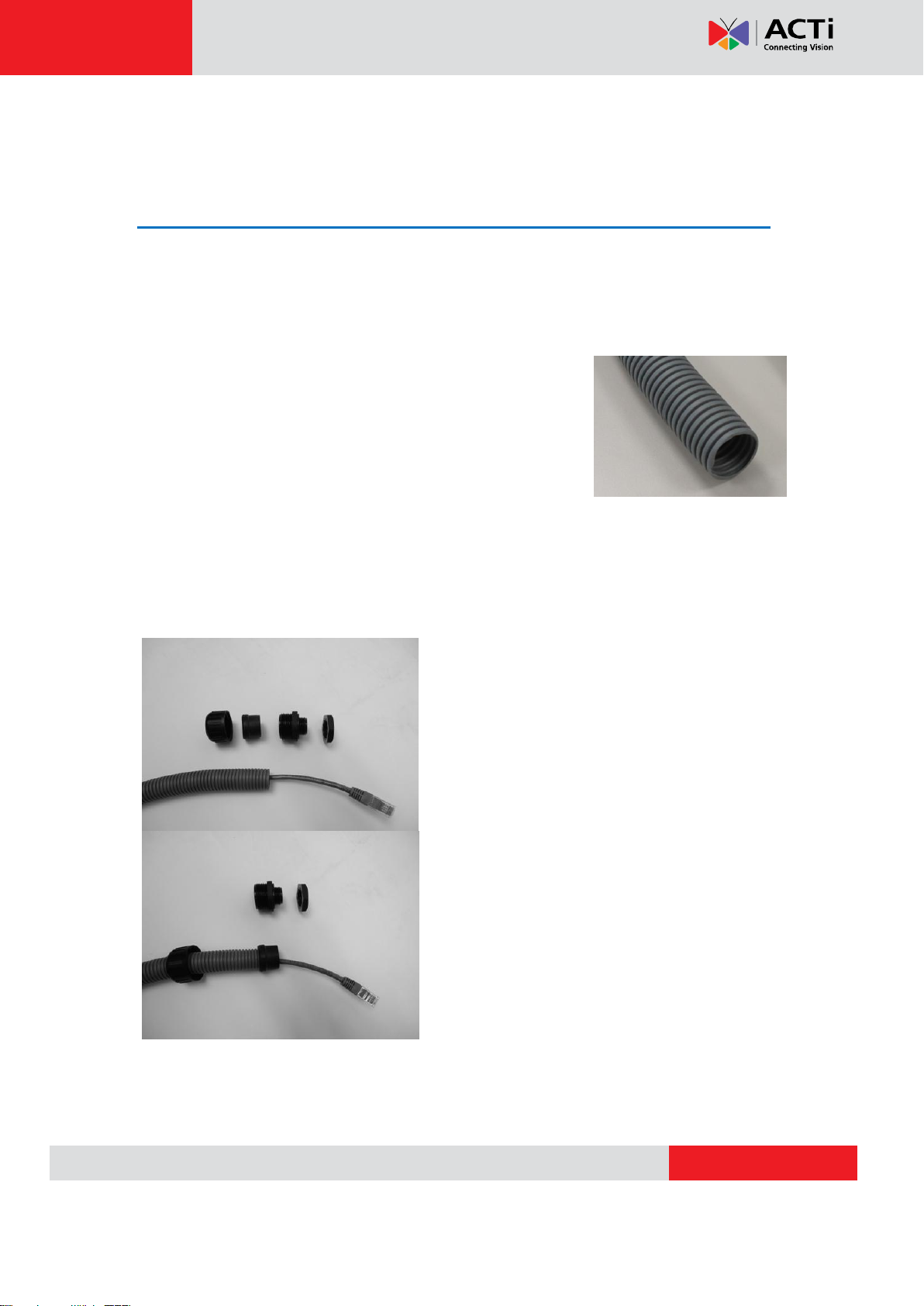

How to Do the Waterproof with Conduit Installation ................. 11

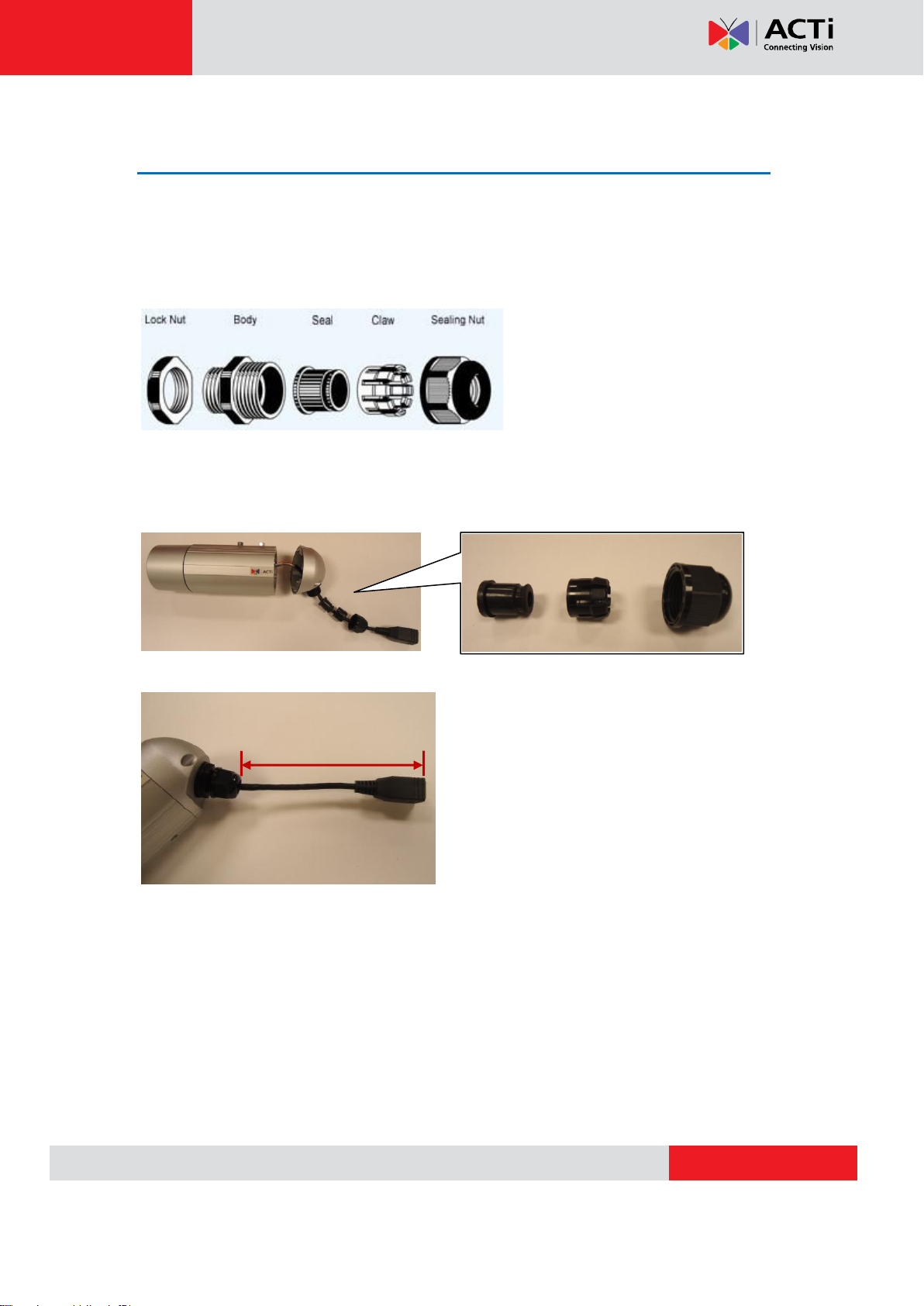

How to replace pre-installed network cable with cable gland .... 14

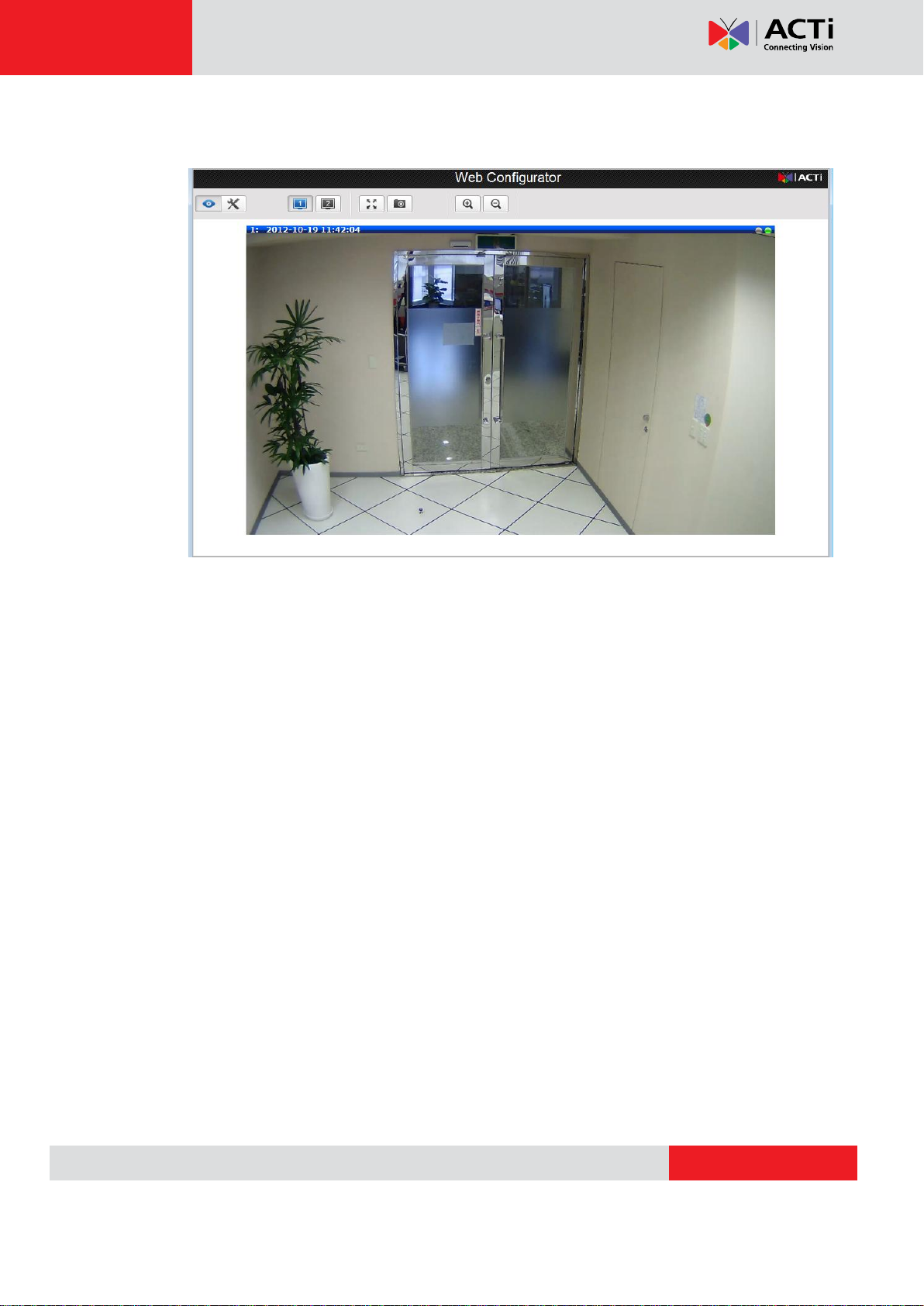

3.Accessing Camera 17

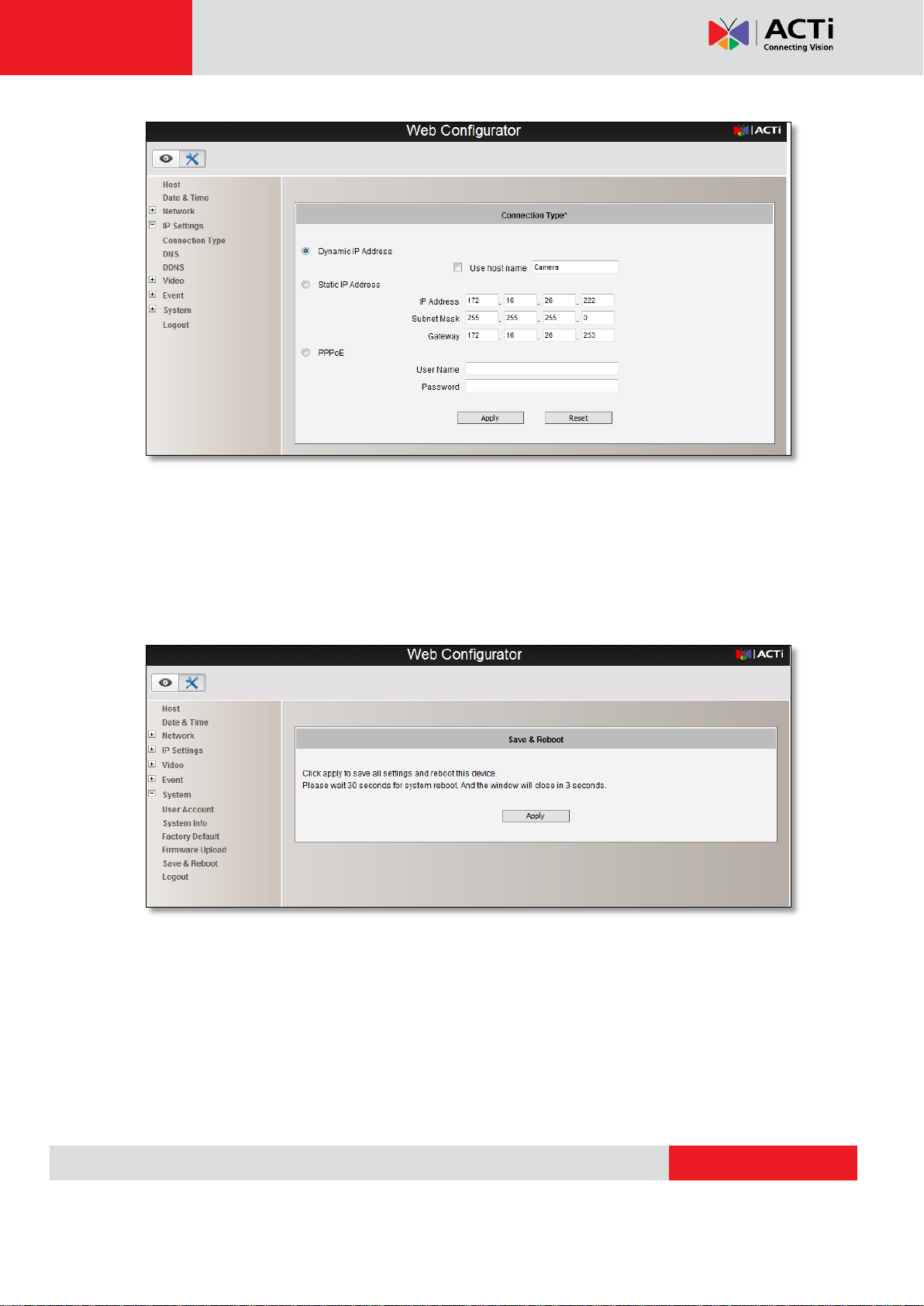

If you have DHCP server / router in your network: ...................... 17
If you do NOT have DHCP server / router in your network: ......... 17

www.acti.com
E41 Hardware User’s Manual
3
0. Precautions
Read these instructions
You should read all the safety and operating instructions before using this product.
Heed all warnings
You must adhere to all the warnings on the product and in the instruction manual. Failure to
follow the safety instruction given may directly endanger people, cause damage to the system
or to other equipment.
Servicing
Do not attempt to service this video device yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
Trademarks
All names used in this manual are probably registered trademarks of respective companies.
Liability
Every reasonable care has been taken during the writing of this manual. Please inform your
local office if you find any inaccuracies or omissions.We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product and
manuals without prior notice.
FCC/CE Regulation
NOTE:This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment.This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the users will be required to correct the
interference at their own expense.

www.acti.com
E41 Hardware User’s Manual
4
1. Introduction
Package Contents
E41 (Included camera stand/sun shield) Accessories
Conduit Gland
Warranty Card QIG

www.acti.com
E41 Hardware User’s Manual
5
Features and Benefits
This is a cutting-edge digital video surveillance camera.It can compress and transmit real time
images with outstanding image quality through a standard TCP/IP network.This camera is
your best choice to build an intelligent IP surveillance system.
H.264 High Profile/MJPEG Multi-Codec Dual Streaming
This device supports 2 compression formats, H.264 High Profile and MJPEG.It brings superior
image quality at 30 frames per second up to a resolution of 720p (1280 x 720) pixels and VGA
(640 x 480) pixels.
Built-in Hardware Motion Detection
No more external motion sensors are required.You may assign up to 3 video motion detection
areas.By tuning the object size and sensitivity, it will reliably detect objects passing though is
view. Hardware motion detection also offers better sensitivity and faster response time than
software motion detection.
Powerful Bundled Surveillance Software
To extend the capabilities of the IP Camera series, a powerful surveillance video management
software can be downloaded from ACTi website for free.Users can easily use an existing PC
as a digital video recorder.Scheduled recording and manual recording keep every important
video recorded in the local hard disk. Reliable and accurate motion detection with instant
warning enables immediate response in every condition. Quick and simple search and
playback function lets you easily find the images and video you want.To experience ACTi
NVR3, please go to: http://www.acti.com/nvr3.
Software Development Kit Support
This IP Camera can be integrated or controlled by applications from third party software
developers. Software developers can save considerable efforts by using our Streaming Library
or ActiveX control. Please contact us for details on integration support.

www.acti.com
E41 Hardware User’s Manual
6
Safety Instructions
Don’t open the housing of the product
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product manufacturer as they may
cause hazards.
Water and Moisture
Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink,
or laundry tub, in a wet basement, or near a swimming pool and the like.
Don’t use accessories not recommended by the manufacturer
Only install this device in a dry place protected from weather
Servicing
Do not attempt to service this video product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
Damage Requiring service
Disconnect this video product from the power supply immediately and refer servicing to
qualified service personnel under the following conditions.
1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the video product has been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in
this manual. Adjust only those controls that are covered by the instruction manual, as an
improper adjustment of other controls may result in damage, and will often require
extensive work by a qualified technician to restore the video product to its normal
operation.

www.acti.com
E41 Hardware User’s Manual
7
Safety Check
Upon completion of any service or repairs to this video product, ask the service technician to
perform safety checks to determine if the video product is in proper operating condition.

www.acti.com
E41 Hardware User’s Manual
8
Physical description
1) Reset Button
Step 1: Press and continue to hold the Reset Button for 15 seconds (with a sharp tipped object,
like a pen.) after the unit has successfully completed the boot process.
Step 2: The Ethernet LED light will turn off for about 1~2 seconds and flash on for another
second.By this time the reset to default operation is already completed.You may then release
the reset button.This length of time fluctuates slightly with the environment.The unit will come
back on and stay on after a few more seconds.The unit will start up with factory default
settings automatically.
2) Power LED
LED light will light up while the power is on. LED light will light off after the unit has successfully
completed the boot process.
3) Ethernet Port
The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this
IP device can auto detect the speed of local network segment (10Base-T/100Base-TX
Ethernet).

www.acti.com
E41 Hardware User’s Manual
9
Basic Connections
Follow the procedures below to connect the IP device to the respective apparatuses.
Please use a PoE (Power over Ethernet) supported switch or injector:
1) Connect your IP Camera to the PoE Switch / Injector by CAT5 or CAT6 cables with RJ45
connector.
2) Connect your PoE Switch / Injector to PC with another CAT5 / CAT6 network cable.

www.acti.com
E41 Hardware User’s Manual
10
E41
• Device
Device Type Bullet Camera
Image Sensor Progressive Scan CMOS
Day/ Night Yes
Minimum Illumination Color: 0.1 lux at F1.6 (30 IRE, 2400°K); B/W: 0 lux(IR LED on)
Color to B/Wswitch ISP based switch, configurable
Mechanical IR Cut Filter Yes
IR SensitivityRange 700 - 1100 nm
IR LED IR LED x15 (850 nm)
IR Working Distance 15 m (0 lux,30 IRE, MaxExposure Gain)
Electronic Shutter 1/5 - 1/10,000 sec (Auto mode); 1/5 - 1/2,000 sec (Manual mode)
• Lens
Focal Length / Aperture Vari-focal, f3.3-12 mm / F1.6
Iris Fixed iris
Focus Manual Focus
Mount Type Board Mount
Horizontal Viewing Angle 69.8°~ 19.1°
• Video
Compression H.264 HP, MJPEG
Maximum Frame Rate vs.
Resolution
30 fps at 1280 x720 (HD 720p); 30 fps at640 x480 (VGA);
Multi-Streaming Simultaneous dual streams based on two configurations
Bit Rate 28 Kbps - 6 Mbps (per stream)
Bit Rate Mode Constant, Variable
Basic WDR; White Balance: automatic, hold and manual;
Brightness; Contrast; Auto gain control; Digital noise reduction; Flickerless
PrivacyMask 4 configurable regions
Text Overlay User defined text on video
On-Screen Graphics User defined image layer on video
Image Orientation Image flip and mirror
• Network
Protocol & Service
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS,
DDNS, NTP, ICMP, ARP,IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security
IP address filtering;HTTPS encryption;Password protected user levels;
IEEE 802.1Xnetwork access control
• Alarm
Alarm Trigger Video motion detection (3 regions)
Alarm Response
Notifycontrol center; Change camera settings; Command other devices;
E-mail notification with snapshots; Upload video, snapshot to FTP server
• General
Power Source / Consumption PoE Class 2 (IEEE802.3af) / 3.74 W (IR on)
Weight 639g (1.41 lb)
Dimensions (Ø xL) 77 mm x213 mm (3.03" x8.39")
Bundled Accessories Bracket
Environmental Casing Weatherproof (IP66 rated)
Mount Type Wall, Ceiling, Corner, Pole
Operating Temperature -20 °C ~ 50 °c (-4 °F ~ 122 °F)
Operating Humidity 10% ~ 85% RH
Approvals CE, FCC, IP66
• Integration
Unified Solution Fullycompatible with ACTi software
ISVIntegration Software Development Kit (SDK) available ; ONVIF compliant
Firmware Access Browser
Microsoft Internet Explorer 6.0 or newer (full functionality);
Other browsers with VLC installed (partial functionality)
Image Enhancement
Product Specification
