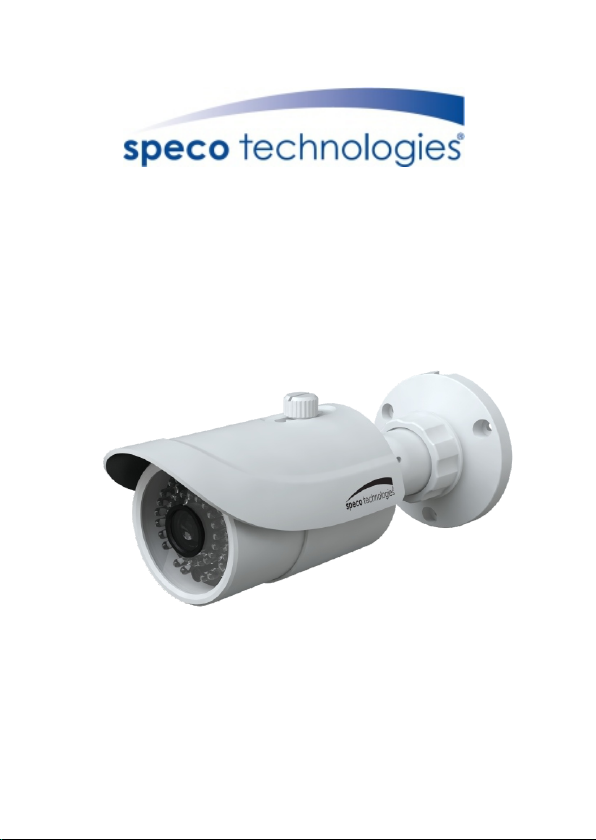

Speco VLB1TW User manual

VLB1TW Manual

Thank you for purchasing a Speco Technologies HD-TVI camera. Please
read this manual carefully for correct use of the product and keep it
for reference purposes.
►Warnings and Cautions
■ Disclaimer
■ Avoid Electric Shock
■ Avoid excessive moisture
■ Do not use camera beyond prescribed voltage range.
Page 1
■ Never attempt to disassemble the camera privately.
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications
without notice and without incurring any obligation.
To prevent electric shock, do not remove screws or cover.
Do not use strong or abrasive detergents when cleaning camera body.
Clean with dry cloth or mild detergent, wiping gently.
Only use recommended power supply. Ensure power input source
conforms to local voltage. Voltage outside of range could cause
damage or cause abnormal performance.
It may result in internal components being damaged.
VLB1TW
User Manual

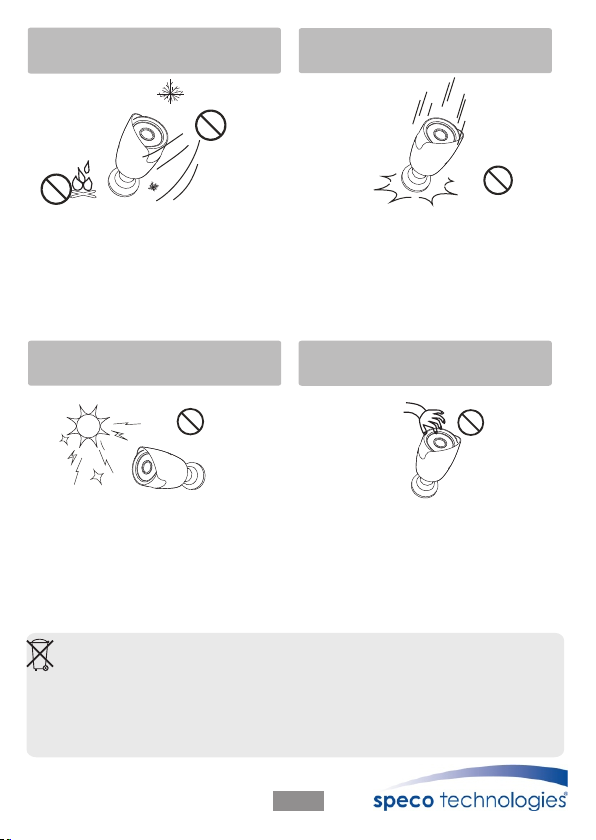

Use only under temperature conditions
between -4*F and +140*F.Provide
good ventilation when using in high
temperature conditions.
Do not drop the camera or subject it to
physical shock.
It may cause production malfunction.
Strong light will degrade image quality
and could cause damage.
Do not aim camera at sun or extra
bright place.
Do not place the camera in extremely
hot or cold environment.
Avoid touching the camera lens.
The lens is the most important component
of the camera. Be careful not to smear it
with fingerprints.
Page 2
If the camera no longer functions or can no longer be repaired, it must be disposed
of according to regulations reading electronic waste. By not disposing of electronic
items in household waste you will not only be following the law, but contributing
the protection of the environment.
Correct Disposal of This Product

► Components and Accessories
Camera
User manual
Screwdriver
Drill Template
Adapter Plate
Screws
► Overview
1
5
6
2
1
2
3
4
Power Cable
Bracket
Mounting Base
Video Cable
5
6
Lens Cover
Sun Shield
Page 3
3 4

HD-TVI
VIDEO IN
HDMI
VGA
HD-TVI DVR
VIDEO
HD Monitor

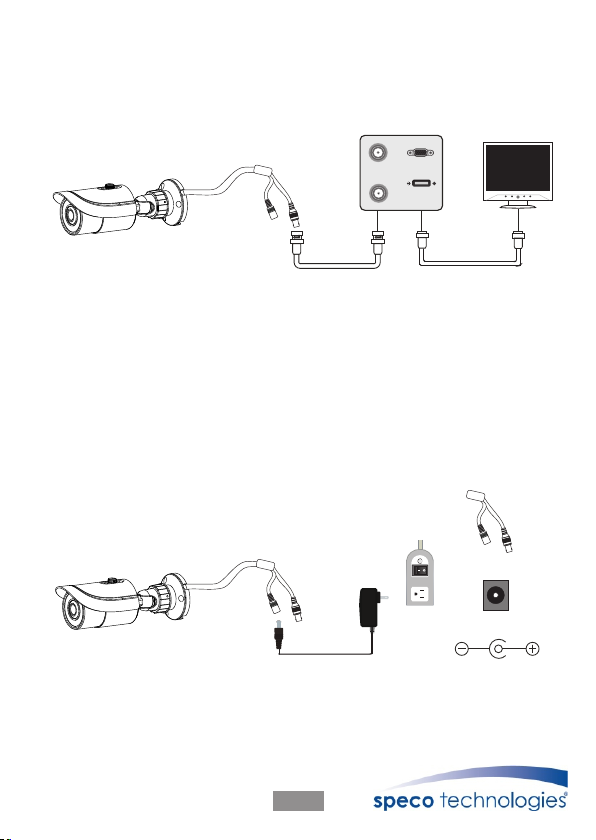

► Connecting to Monitor
► Connecting to Power
Connect the adapter to the power input connector in accordance with the
camera. The recommended adapter specification for the camera is DC12V.
DC12V
Page 4

Before you start, please make sure that the wall or ceiling is strong enough to
withstand three times the weight of the camera.

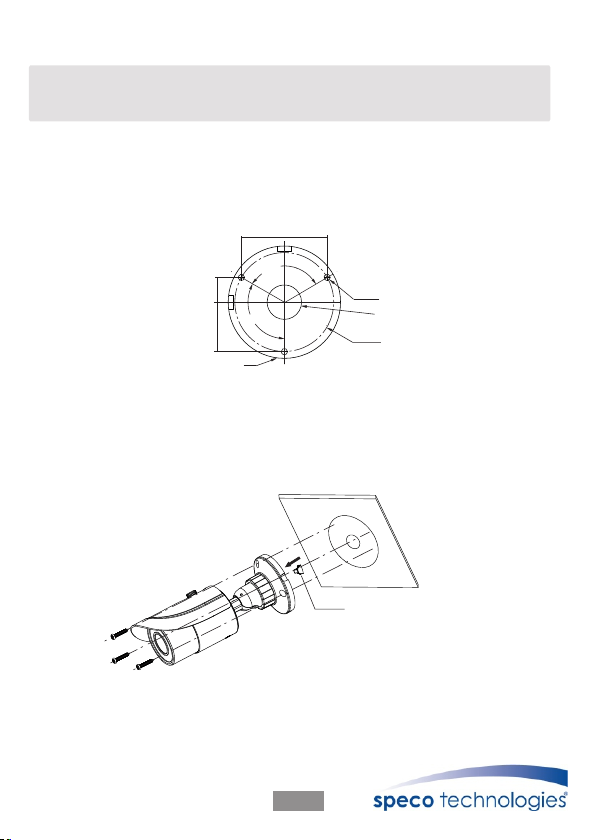

► Installation
*
2. Route the cables and connect the power cable and video cable.
3. Secure the mounting base with camera to the ceiling or wall with screws
as shown below.
Page 5
1. Drill the screw holes and the cable hole on the wall according to
the drill template.
∅4.6
∅25.1
∅82.0
∅72.2
120°
120°
62.5mm
18.1mm
36.1mm
Rubber Plug
4. Bracket adjustment. Before adjustment, preview the image of the

* This installation should be made by a qualified service person and should
confirm to all local codes.
Page 6
90° Tilt
360° Pan
5. Focus and zoom adjustment ( If the model you get is fixed lens, please
skip this step). Remove the lens cover and then adjust the focus and zoom
screws to get a clear image. Finally, tighten these two screws and the lens
cover.
6. Remove the protection film softly to finish the installation.
Focus
Zoom
Lens Cover
camera on a monitor and then loosen the fixed ring to adjust the view
angle of the camera.

► Features
This series of cameras adopt the latest HD-TVI technology and advanced
circuit design, feature high definition and sensitivity, low noise and
distortion and support HD video transmission with the common coaxial
cable, ensuring the requirement of the HD monitoring in the traditional
surveillance system.
● High Transmission Performance
Real-time transmission with high speed and long distance.
● ICR Auto Switch
The filter will filter infrared light during the daytime and change to
normal at night to ensure a high sensitivity and clear image.
● Color-B/W Auto Switch
The camera will display color image in daytime and become
monochrome automatically at night.
● Auto White Balance
Adjust the color temperature according to the environment
automatically.
● DNR
Reduce noise from brighteness and color signal.
● High Resolution
Adopt high performance HD-TVI sensor, providing high definition
and clear image, up to 1080P resolution.
Page 7

Model
Image Sensor
Pixels
Signal System
Min. Illumination
Lens
IR Visible Distance
IP Rank
Video Out
Resolution
Frame Rate
ICR
DNR
S / N Ratio
Electronic Shutter
AGC
White Balance
Power
Temperature
Humidity
Dimension ( mm )
Weight ( net )
VLB1TW
35 oz
1 / 3 '' CMOS
1920 x 1080
PAL / NTSC
0 Lux ( LED ON )
2.8 ~ 12 mm
66 ~ 98 feet (depending on scene reflection)
IP 66
TVI 2.0 and CVBS (960H) video output
1080 P ( 1920 x 1080 )
30 fps ( 60Hz ), 25 fps ( 50Hz )
Yes
Yes
> 52 dB ( AGC OFF )
Yes
Auto White Balance
DC12V ± 10%
- 4*F ~ 104*F
10% ~ 90%
3.4'' x 8.6''
1 / 50s ~ 1 / 67500s
► Specifications
