ACTi ACM-1432 Instructions for use

ACM-1432 Series
IP IR D/N CCD Outdoor AC24V Bullet
Camera
Ver. 2010/5/11

www.acti.com
ACM-1432 Series Hardware User’s Manual
2
Table of Contents
0. Precautions 3
1. Introduction 4
Package Contents ........................................................................... 4
Features and Benefits ..................................................................... 5
Safety Instructions .......................................................................... 6
Physical description ........................................................................ 8
Installation Procedure .................................................................. 10
Remove the back cover by unscrewing the three attachments ....10
Remove the sunshade by unscrewing the two screws.................10
Insert the network cable through the back cover and wire gland..11
Assemble the gland / network cable with the back cover.............11
Attach to the brackets and connect the cables according to the physical
description section.......................................................................11
Remove the front cap and adjust the focus / zoom ......................12
Restore the front cap, adjust the sunshade position on top of the
camera and secure the back cover...............................................12
Basic Connections ......................................................................... 13
Product Specification.................................................................... 14
2. Accessing Camera 15
If you have DHCP server / router in your network: ...................... 15
If you do NOT have DHCP server / router in your network: ......... 15

www.acti.com
ACM-1432 Series Hardware User’s Manual
3
0. Precautions
Read these instructions
You should read all the safety and operating instructions before using this product.
Heed all warnings
You must adhere to all the warnings on the product and in the instruction manual. Failure to
follow the safety instruction given may directly endanger people, cause damage to the system
or to other equipment.
Servicing
Do not attempt to service this video device yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
Trademarks
All names used in this manual are probably registered trademarks of respective companies.
Liability
Every reasonable care has been taken during the writing of this manual. Please inform your
local office if you find any inaccuracies or omissions.We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product and
manuals without prior notice.
FCC/CE Regulation
NOTE:This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment.This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the users will be required to correct the
interference at their own expense.

www.acti.com
ACM-1432 Series Hardware User’s Manual
4
1. Introduction
Package Contents
ACM-1432 Series Power Adaptor (Optional)
(No Bracket Included)
Product CD Terminal Blocks for Power and Audio
Warranty Card

www.acti.com
ACM-1432 Series Hardware User’s Manual
5
Features and Benefits
This is a cutting-edge digital video surveillance camera.It can compress and transmit real time
images with outstanding image quality (30 FPS @ D1, 720 x 480 NTSC 720 x 576 PAL)
through a standard TCP/IP network.This camera is your best choice to build an intelligent IP
surveillance system.
MPEG-4/MJPEG Dual Compression
This device supports two compression formats, MPEG-4 and MJPEG. It brings superior image
quality at 3 frames per second up to resolutions of D1 (720 x 480) and VGA (640 x 480).
Built-in Hardware Motion Detection
No more external motion sensors are required.You may assign up to 3 video motion detection
areas.By tuning the object size and sensitivity, it will reliably detect objects passing though in
view. Hardware motion detection also offers better sensitivity and faster response time than
software motion detection.
Powerful Bundled Surveillance Software
To extend the capabilities of the camera, a powerful surveillance program is included in the
package for free. Users can easily use an existing PC as a digital video recorder. Scheduled
recording and manual recording keep every important video recorded in the local hard disk.
Reliable and accurate motion detection with instant warning enables immediate response in
every condition.Quick and simple search and playback function lets you easily find the images
and video you want.
Software Development Kit Support
This camera can be integrated or controlled by applications from third party software
developers. Software developers can save considerable efforts by using our Streaming Library
or ActiveX control. Please contact us for details on integration support.
Digital Time Code Embedded
The “Digital Time Code Embedded”function records video time in the video stream.Therefore,
each image frame is marked with its original recording time. It is very useful when users want
to find the video at an exact time or between a certain time intervals.

www.acti.com
ACM-1432 Series Hardware User’s Manual
6
Safety Instructions
Don’t use the power supply with other voltages
This device is likely to be damaged or damage other equipments / personnel, if you use a
power supply with different voltage than the one included with this device.All warranty of this
product will be voided in the situations above.
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product manufacturer as they may
cause hazards.
Water and Moisture
Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink,
or laundry tub, in a wet basement, or near a swimming pool and the like.
Don’t use accessories not recommended by the manufacturer
Only install this device and the power supply in a dry place protected from weather
Servicing
Do not attempt to service this video product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
Damage Requiring service
Disconnect this video product from the power supply immediately and refer servicing to
qualified service personnel under the following conditions.
1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the video product has been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in
this manual. Adjust only those controls that are covered by the instruction manual, as an
improper adjustment of other controls may result in damage, and will often require

www.acti.com
ACM-1432 Series Hardware User’s Manual
7
extensive work by a qualified technician to restore the video product to its normal
operation.
Safety Check
Upon completion of any service or repairs to this video product, ask the service technician to
perform safety checks to determine if the video product is in proper operating condition.

www.acti.com
ACM-1432 Series Hardware User’s Manual
8
Physical description
1) Power Input
Connect the power adaptor here if your power input is DC12V.
If your power input is AC24V. Please follow the description on the connector to connect to
power.
2) Audio Terminal Connector
This IP Camera supports Audio input / output via terminal block.
PIN
NAME
DESCRIPTION
1
12V
DC Power Input
2
GND
Ground Pin
PIN
NAME
DESCRIPTION
1
N
AC Power Input
2
L
3
GND
E-Ground of power

www.acti.com
ACM-1432 Series Hardware User’s Manual
9
3) Reset Button
Step 1: Switch off IP device by disconnecting the power cable
Step 2: Press and continue to hold the Reset Button (with a sharp tipped object, like a pen.)
Step 3: Reconnect the power cable while continuing to hold the reset button. The red
Power LED light will flash on for 3 second first, turn off for about 15 seconds, flash on for
another second and turn off again. By this time the reset to default operation is already
completed. This will take around 20 seconds from power up. You may then release the
reset button.This length of time fluctuates slightly with the environment.The Power LED light
will come back on and stay on after a few more seconds.The unit will start up with factory
default settings automatically.
On (3s) On
1s
Power On
About 20 Seconds
Stay On
Off (about 15s) Off (10~15s)
Restore to Default
Complete
4) Ethernet Port
The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this
IP device can auto detect the speed of local network segment (10Base-T/100Base-TX
Ethernet).
5) Power LED Indicator
The LED indicator lights up once the power is turned up.It will light up again when the device is
fully booted up.

www.acti.com
ACM-1432 Series Hardware User’s Manual
10

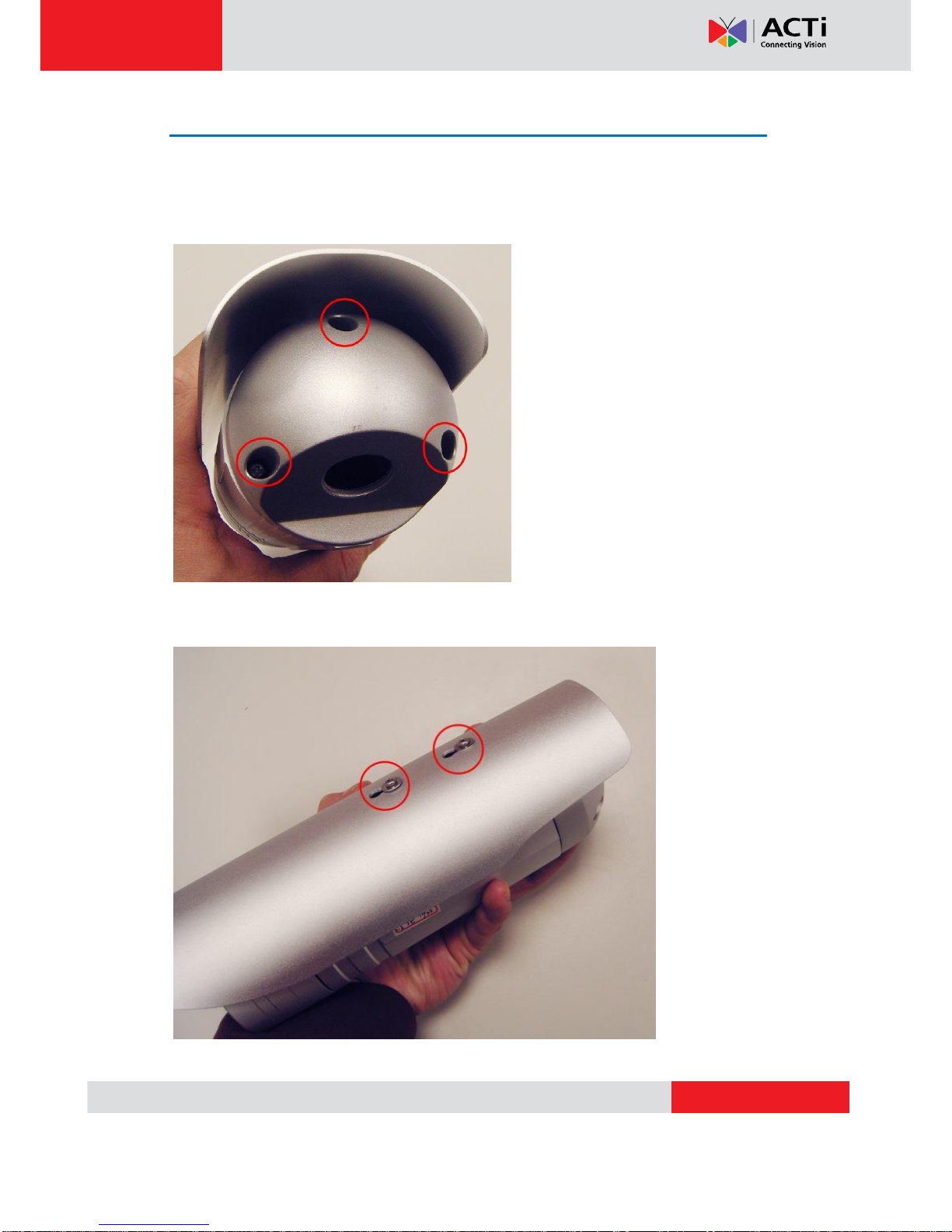

Installation Procedure
Remove the back cover by unscrewing the three attachments
Remove the sunshade by unscrewing the two screws

www.acti.com
ACM-1432 Series Hardware User’s Manual
11
Insert the network cable through the back cover and wire gland
Assemble the gland / network cable with the back cover
Attach to the brackets and connect the cables according to the physical
description section

www.acti.com
ACM-1432 Series Hardware User’s Manual
12
Remove the front cap and adjust the focus / zoom
Restore the front cap, adjust the sunshade position on top of the camera
and secure the back cover.

www.acti.com
ACM-1432 Series Hardware User’s Manual
13
Basic Connections
Follow the procedures below to connect the IP device to the respective apparatuses.
If you have a PoE (Power over Ethernet) supported switch or injector:
1) Connect your IP Camera to the Switch / Injector by CAT5 or CAT6 cables with RJ45
connector.
2) Connect your Switch / Injector to PC with another CAT5 / CAT6 network cable.
If your switch does not support PoE, and you are powering the camera with power
adaptor:
1) Connect the power adaptor to IP Camera
2) Connect IP device’s Ethernet port to Network switch (via RJ45 connectors).
3) Connect a PC to the Ethernet switch (via RJ45 connectors)
Please refer our PoE Guide for more details on Power over Ethernet related concepts.

www.acti.com
ACM-1432 Series Hardware User’s Manual
14
Product Specification
ACM-1431 ACM-1432
Device
Size
Effective Pixels
Horizontal Resolution
Color
B/W
IR Sensitivity
IR LED
CDS Sensor
IR Working Distance
Focal Length
Viewing Angle
Synchronization Sync. System
Day/Night functions Mechanical IR Cut Filter
Motion Detection
Electronic shutter
Fixed Shutter (Manual)
Flickerless
BLC
AGC
White Balance
Auto Iris Control
S/N Ratio S/N Ratio
Compression
Picture Resolution
Bit Rate
Image Frame Rate
Video Output Composite Output
Compression
Audio Line Input
Compression
Audio Line Output
Reset Button
LED
Casing IP66 Rated
Ethernet Port
Protocol
Web Browser
SDK
Security
Operating Temperature
Power Requirement PoE (IEEE 802.3af) with Class 3 AC 24 V±10%
Power Consumption
6.48 W (DC 12V) w/ IR ON
8.64 W (PoE) w/ IR ON
6.48 W (DC 12V) w/ IR ON
10.56 VA (AC 24V) w/ IR ON
Dimensions (Ø xL)
Weight
Approvals Certificate
Physical
Software
Power
CE, FCC, IP66
Weatherproof casing with IP66 standard
Ethernet(10/100 Base-T), RJ-45 connector
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP,
ICMP, ARP, IGMP, SMTP, FTP, UPnP
Microsoft Internet Explorer 6.0 or above
ACTi SDK-10000
685g (1.51lb), with sunshield
Password Protection: Configured by the Administrator
-20 ºC ~ 50 ºC (-4 ºF ~ 122 ºF)
77mm x 220 mm (3.03"x 8.66")
External I/O
Audio Output
Network
Lens
Video Compression
Audio Input
Functions
Better than 50 dB
Yes
AUTO, INDOOR1, INDOOR2, OUTDOOR1, OUTDOOR2, HOLD, MANUAL
1/60~1/100,000 sec. (NTSC); 1/50~1/100,000 sec. (PAL)
1/60 ~ 1/10,000 sec. (NTSC); 1/50 ~ 1/10,000 sec. (PAL)
1/120 sec (NTSC); 1/100 sec (PAL)
Yes
Automatic (User defined)
Internal
Yes
Yes (3 Windows)
20 ~30 M (30 IRE)
f3.7 ~ 12 mm / F1.4
78.1º~ 23.3º(Horizontal)
Min. scene
Illumination
Sony Exview HAD CCD
1/3 inch
811(H) x 508(V) (NTSC)
795(H) x 596(V) (PAL)
Color mode automatically switched to B/W mode under 4 Lux
0.05 Lux at F1.2 (30IRE,SAGC)
540 TVL
from 700 nm to 1100 nm
MPEG-4 SP, MJPEG selectable
Full D1 (720x480 in NTSC, 720x576 in PAL)
VGA (640x480 in NTSC, 640x480 in PAL)
CIF (352x240 in NTSC, 352x288 in PAL)
QCIF (160x112 in NTSC, 176x144 in PAL)
System Status
28K ~ 3M bps
30 fps at full D1 resolution (NTSC)
25 fps at full D1 resolution (PAL)
8kHz, Mono, PCM
Unbalanced, 1.4 Vp-p, 1Vrms, terminal block
8kHz, Mono, PCM
CVBS, 1.0Vp-p with 75 Ω loading, terminal block
Unbalanced, 1.4Vp-p, 1Vrms, terminal block
Factory Default
DC Iris
IR LED x24 (850 nm)

www.acti.com
ACM-1432 Series Hardware User’s Manual
15
2. Accessing Camera
If you have DHCP server / router in your network:
Many network server / routers are able to automatically provide IP addresses through DHCP. If
you are using such a network, just plug in your computer and IP Camera into the network and
your IP device will acquire network address by itself. Find and access the device with our IP
Utility program.You may download it at:
http://www.acti.com/product/detail/Software/ACTi_Utility_Suite
If you do NOT have DHCP server / router in your
network:
1. Configure your PC to use the same subnet by changing your PC’s IP address to the
subnet with prefix 192.168.0.XXX.The last number should be anything from 1 to 254
except 100 and other occupied IP addresses.Subnet mask should be 255.555.255.0.
2. The default IP used by this device is 192.168.0.100. Please make sure your PC is
NOT using this address and that no two equipments use the same IP address in
the network.
3. Change your IP address by going to Control Panel ->Manage Network Connections ->
Right click on the connection to change -> Option -> TCP/IP IPv4 Properties.

www.acti.com
ACM-1432 Series Hardware User’s Manual
16
4. Open Internet Explorer (Version 6.0 or above) , and type in the Default IP:
192.168.0.100
5. When you see the login window, please input default user and password:
Default User: Admin Password: 123456
6. After logging in, you will see the video from camera.To go to the main menu, click
the ”Setup”button on the top left.
Please set the settings as below.

IP address: 192.168. 0.xxx
Subnet mask: 255.255.255.
0
(NOTE: xxx should be a number
from 1 to 254 except 100, which is
used by the IP device. Please also
make sure that no two equipments
use the same IP address in the
same network..)

www.acti.com
ACM-1432 Series Hardware User’s Manual
17
If you are using a single camera, this is enough to access the device.
If you are using multiple devices, you need to change the current device to another
unused IP address, so that when the next device is connected to the network, no two
devices use the same IP. Please perform the following steps.
7. Go to WAN Setting
8. Change the IP mode to Static.
9. Change the IP to 192.168.0.101 or any other unused IPs. Do NOT use the PC’s IP
address or 192.168.0.100.). If this is not the first device you add to the network, please
also avoid other devices’IPs.

www.acti.com
ACM-1432 Series Hardware User’s Manual
18
10. Click “Apply”
11. Please go to Save & Reboot, and click ”Apply”. Internet Explorer will close after a few
seconds.This is normal.

www.acti.com
ACM-1432 Series Hardware User’s Manual
19
12. Wait for 30 seconds, and open IE again to connect to the new IP. (In this example,
192.168.0.101). For the second device or more you add into the network, please type
the correct IP.
13. Adjust the default Video setting by going to Video Setting
