ACTi CAM-5200S User manual

CIF 3
80
TVL IP Camera
w/ Audio
CAM-5200S/CAM-5201S
Ver. 090302
U er
’
Manual

0-1
0PRECAUTIONS
1. Read these instructions
All the safety and operating instructions should be read before the product is
operated.
2. Heed all warnings
All warnings on the product and in the instruction manual should be adhered to.
The symbol indicates the following items, please carefully read the
description next to each symbol.
a. Failure to follow the safety instruction given may directly endanger
people, cause damage to the system or to other equipment.
b. The requirements to make this device work, including hardware,
computer settings, network settings, and operation procedures.
c. The tips to make using this device easier, more convenient and more
efficient.
3. Servicing
Do not attempt to service this video product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing
to qualified service personnel.
Copyright
This manual is the intellectual property of ACTi and is protected by copyright. All
rights are reserved. No part of this document maybe reproduced or transmitted for any
purpose by any means including electronic or mechanical without the official written
permission from ACTi.
Trademarks
All names used in this manual for hardware and software are probably registered
trademarks of respective companies.
Liability
Every care has been taken during writing this manual. Please inform your local office
if you find any inaccuracies or omissions. We cannot be held responsible for any
0

0-2
typographical or technical errors and reserve the right to make changes to the product
and manuals without prior notice.
FCC/CE Regulation
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.

0-3
Table of Contents
0PRECAUTIONS________________________________________________ 0-1
Copyright __________________________________________________________________ 0-1
Trademarks ________________________________________________________________ 0-1
Liability ___________________________________________________________________ 0-1
FCC/CE Regulation __________________________________________________________ 0-2
1INTRODUCTION ______________________________________________ 1-1
1.1 Package Contents _______________________________________________ 1-1
1.2 Features and Benefits ____________________________________________ 1-2
1.3 Safety Instructions ______________________________________________ 1-4
1.4 Physical Description _____________________________________________ 1-6
1.5 Basic Connections ______________________________________________ 1-10

1-1
1INTRODUCTION
1.1 Package Contents
CAM-5200S/5201S Warranty Card
Product CD Terminal Blocks for Power & DI/O
Power Adaptor (Option) Accessory
1

1-2
1.2 Features and Benefits
The IP Camera is a cutting-edge digital video transmission device. It can
compress and transmit real time images with outstanding images quality at
reasonable bandwidth through a standard TCP/IP network. That’s because it
is Ethernet (LAN and WAN) ready and has the powerful ARM9 SoC and
the MPEG-4 compression ASIC inside. In addition, with these powerful
hardware platform, excellent SDK support and powerful respective
apparatuses (eg. the transcoder), this IP Camera is your best choice building
up either conventional IP surveillance system or intelligent IP surveillance
system.
Real-time MPEG-4 Compression
With hardware MPEG-4 compression chip inside, the composite video
inputs can be efficiently compressed into MPEG-4 bit stream without any
delay. The ASIC base compression engine can support CIF resolution.
QoS Enabled Video Streaming
For real-time video streaming requirements, the IP camera implemented
the 802.1pQ features inside the SoC as the streaming engine to make sure
the video streaming package is forwarded faster than normal TCP/UDP
packet.
Automatic Frame Rate Control
The IP Camera supports automatic/manual streaming frame rate control,
especially for multiple clients concurrent access the same video stream in
different network bandwidth.
Digital Time Code Embedded
The “Digital Time Code Embedded” function is to embed the recording
time in the MPEG bit stream. Therefore, each image frame has its
respective time when it was recorded. It is very useful when users want to
find the video at an exact time or between a certain time intervals.
Build-in LAN and WAN (Low Latency PPPoE Supported) Ports
The IP Camera provides two RJ-45 connectors. One is WAN and the other
is LAN. The WAN port connects to the internet and LAN port connects to
the local network. Since the internet’s bandwidth is very critical, the WAN
port is equipped with a low latency PPPoE (Point-to-Point over Ethernet)
which has excellent transmission speed and enables the IP Camera to
connect to an ADSL or a cable modem.

1-3
DDNS Supported
The IP Camera supports DDNS (Dynamic Domain Name Server), users
can set the IP Camera at a virtual domain name (such as cam1.Taipei.xxx)
at dynamic IP. Everyone can use the virtual domain name to view the
video anywhere that has the access to the internet.
Build-in Hardware Motion Detection
No more external motion sensors are required. Each IP Camera can be set
up to 3 detection areas. By tuning the object size and sensitivity, it is very
reliable to fit into your environment. Besides, hardware motion detection
delivers better sensitivity and respond faster than software motion
detection.
Bundle Powerful Surveillance Software
To extend the capabilities of the IP Camera, a powerful surveillance
program is included in the package and is totally free to use. Users can
easily utilize the existing PC to be a digital video recorder. Schedule
recording and manual recording keep every important image recorded in
the local hard disk. Reliable and accurate motion detection with instant
warning makes you responsive in every condition. Quick and simple
search and playback function lets you easily find the images you want.
Software Development Kit Support
The IP Camera can be integrated or controlled by user’s application
program through the Streaming Library or ActiveX control. With its high
level programming interface, software developer’s time and efforts to is
highly reduced.

1-4
1.3 Safety Instructions
Don’t use the power supply with other voltages
This device is likely to be damaged or damage other equipments /
personnel, if you use a power supply with different voltage than the one
included with this device. All warranty of this product will be voided in
the situations above.
Don’t open the housing of the product
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product
manufacturer as they may cause hazards.
Water and Moisture
Do not use this video product near water, for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in a wet basement, or near a
swimming pool and the like.
Don’t use accessories not recommended by the manufacturer
Only install this device and the power supply in a dry place
protected from weather
Servicing
Do not attempt to service this video product yourself as opening or
removing covers may expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
Damage Requiring service
Disconnect this video product from the power supply immediately and
refer servicing to qualified service personnel under the following
conditions.
1. When the power-supply cord or plug is damaged.
2. If liquid has been spilled, or objects have fallen into the video
product.
3. If the video product has been exposed to rain or water directly.
4. If the video product does not operate normally by following the

1-5
operating Instructions in this manual. Adjust only those controls
that are covered by the instruction manual as an improper
adjustment . Other controls may result in damage and will often
require extensive work by a qualified technician to restore the
video product to its normal operation.
Safety Check
Upon completion of any service or repairs to this video product, ask the
service technician to perform safety checks to determine that the video
product is in proper operating condition.

1-6
1.4 Physical Description
1. Microphone Input
Sensitivity: -44dB(0dB=1Vpp at 1KHz)
S/N Ratio: More than 58dB
Directivity: Omni directional
2. Auto Iris
Video / DC (switchable)
3. Video DC Level Adjustment
4. CCD Functions


Auto Electronic Shutter Speed Mode
AES On: 1/50 (60) sec. ~ 1/100,000 sec;
AES Off: 1/50 (60) sec.


Back Light Compensation
ON/OFF (Switchable)


Flickless

1-7
ON/OFF (Switchable)


Automatic Gain Control
ON/OFF (Switchable)


Auto White Balance
AWB / Push Lock WB Mode
5. WAN port
The IP Camera connects to the WAN (wide area network) via a
standard RJ45 connector. Supporting NWAY, this IP camera can
auto detect the speed of local network segment
(10Base-T/100Base-TX Ethernet). The WAN port is for FTTH
and can connect to a xDSL or cable modem.
With PoE built-in product, you can power the IP camera via
WAN port, LAN port or DC input. You can power the IP camera
with multiple power inputs at the same time. If you do, the IP
camera will gets the power from the first power input plugged
into it.
6. Power Input
DC 12V input.
NOTE: You may find a support package for help you
getting familiar with PoE. Please visit our web site, and
get the support document TS-00040.

1-8
PIN NAME DESCRIPTION
1 12V Power Input (DC +12V)
2 GND Ground Pin of Power Input
3 X No Connection
With PoE built-in product, you can power the IP camera via
WAN port, LAN port or DC input. You can power the IP camera
with multiple power inputs at the same time. If you do, the IP
camera will gets the power from the first power input plugged
into it.
7. Analog Video Output
The IP camera supports one channel analog video output.
8. LAN port
The IP Camera connects to the LAN (local area network) via a
standard RJ45 connector. Supporting NWAY, this IP camera can
auto detect the speed of local network segment
(10Base-T/100Base-TX Ethernet).
With PoE built-in product, you can power the IP camera via
WAN port, LAN port or DC input. You can power the IP camera
with multiple power inputs at the same time. If you do, the IP
camera will gets the power from the first power input plugged
into it.
9. Reset Button
Step 1: Switch off IP camera by disconnecting the power cable
Step 2: Using a suitable pointed object, press and continue to hold the
Reset Button depressed. While continuing to hold the reset button
depressed, reconnect the power cable.
Step 3: Keep holding the reset button depressed around 6 seconds,
release the reset button. The unit will start up with factory default
settings.
10. Action LED Indicator
The LED will light up after IP camera has successfully completed
NOTE: You may find a support package for help you
getting familiar with PoE. Please visit our web site, and
get the support document TS-00040.
NOTE: You may find a support package for help you
getting familiar with PoE. Please visit our web site, and
get the support document TS-00040.

1-9
the boot process.
11. DI/O
The IP Camera supports one alarm input and one alarm output.
DI:Logic Level 0: 0~0.4V; Logic Level 1: 3.3~30V
DO:Logic Level 0: 0.1~0.6V; Logic Level1: 2.4~5V

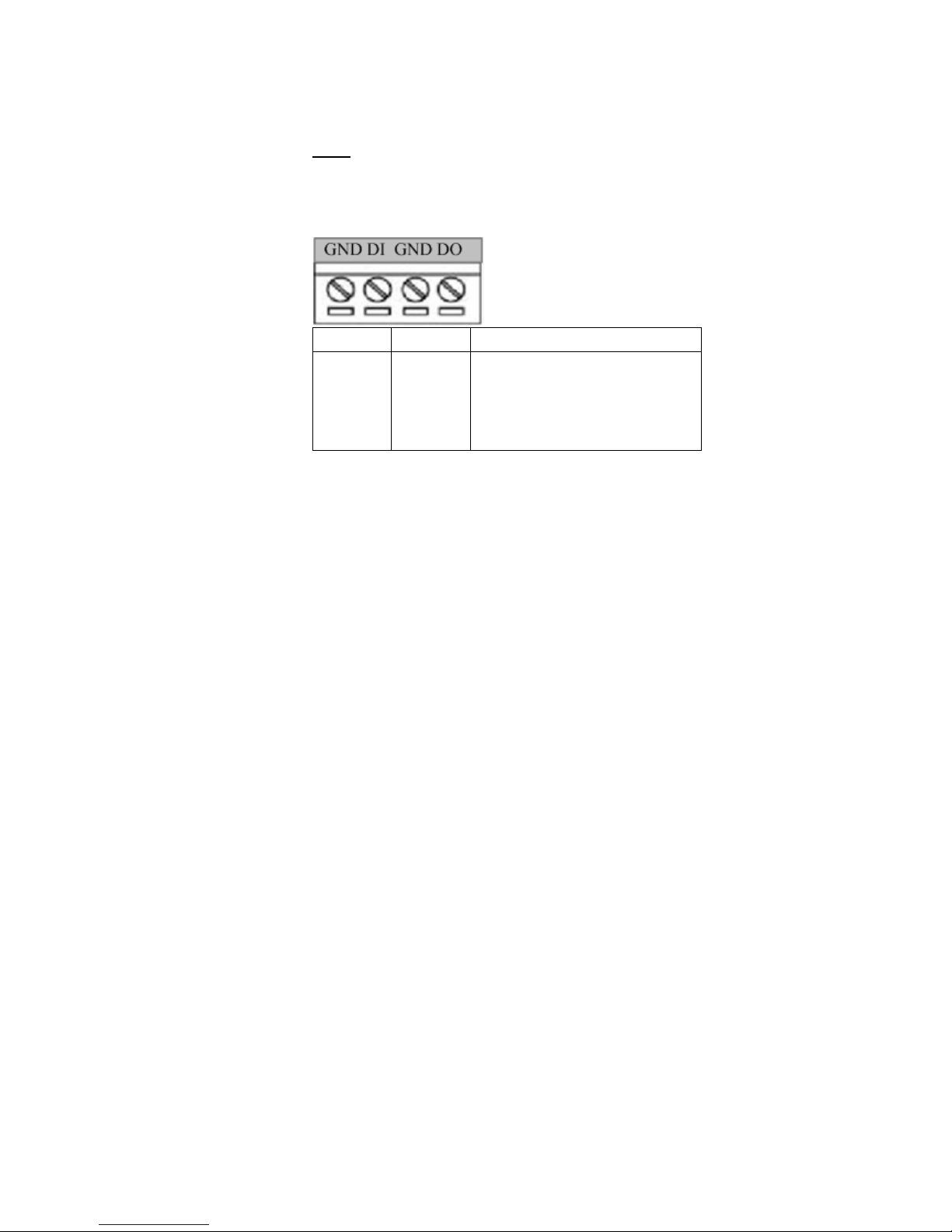

PIN NAME DESCRIPTION
1 GND Ground Pin
2 DI Digital Input
3 GND Ground Pin
4 DO Digital Output

1-10
1.5 Basic Connections
Follow the procedures below to connect the IP camera to the respective
apparatuses.
1. Connect an analog monitor to IP Camera video out (BNC connector).
2. Connect the power adaptor to IP Camera
3. Connect IP Camera’s LAN port to an Ethernet (RJ45 connectors). If your
IP camera has PoE built-in, you can regard it as a PD and connect it
directly to a PSE device like PoE switch.
4. Connect a PC to the Ethernet hub (RJ45 connectors)
NOTE: You may find a support package for help you getting familiar
with PoE. Please visit our web site, and get the support document
TS-00040.
