ACTi ACD-3100 User manual

i
1-channel MPEG-4 Video Decoder
ACD-3100
Ver. 090330
User’s Manual
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

ii
0PRECAUTIONS
1. Read these instructions
All the safety and operating instructions should be read before the product is
operated.
2. Heed all warnings
All warnings on the product and in the instruction manual should be adhered to.
The symbol indicates the following items, please carefully read the
description next to each symbol.
a. Failure to follow the safety instruction given may directly endanger
people, cause damage to the system or to other equipment.
b. The requirements to make this device work, including hardware,
computer settings, network settings, and operation procedures.
c. The tips to make using this device easier, more convenient and more
efficient.
3. Servicing
Do not attempt to service this video product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing
to qualified service personnel.
Trademarks
All names used in this manual for hardware and software are probably registered
trademarks of respective companies.
Liability
Every care has been taken during writing this manual. Please inform your local office
if you find any inaccuracies or omissions. We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product
and manuals without prior notice.
FCC/CE Regulation
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses,
0
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

iii
and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

iv
Table of Contents
0PRECAUTIONS__________________________________________________ii
Trademarks __________________________________________________________________ii
Liability _____________________________________________________________________ii
FCC/CE Regulation ____________________________________________________________ii
1INSTALLATION _______________________________________________ 1-1
1.1 Package Contents _______________________________________________ 1-1
1.2 Features and benefits ____________________________________________ 1-2
1.3 Safety instructions_______________________________________________ 1-3
1.4 Physical description _____________________________________________ 1-5

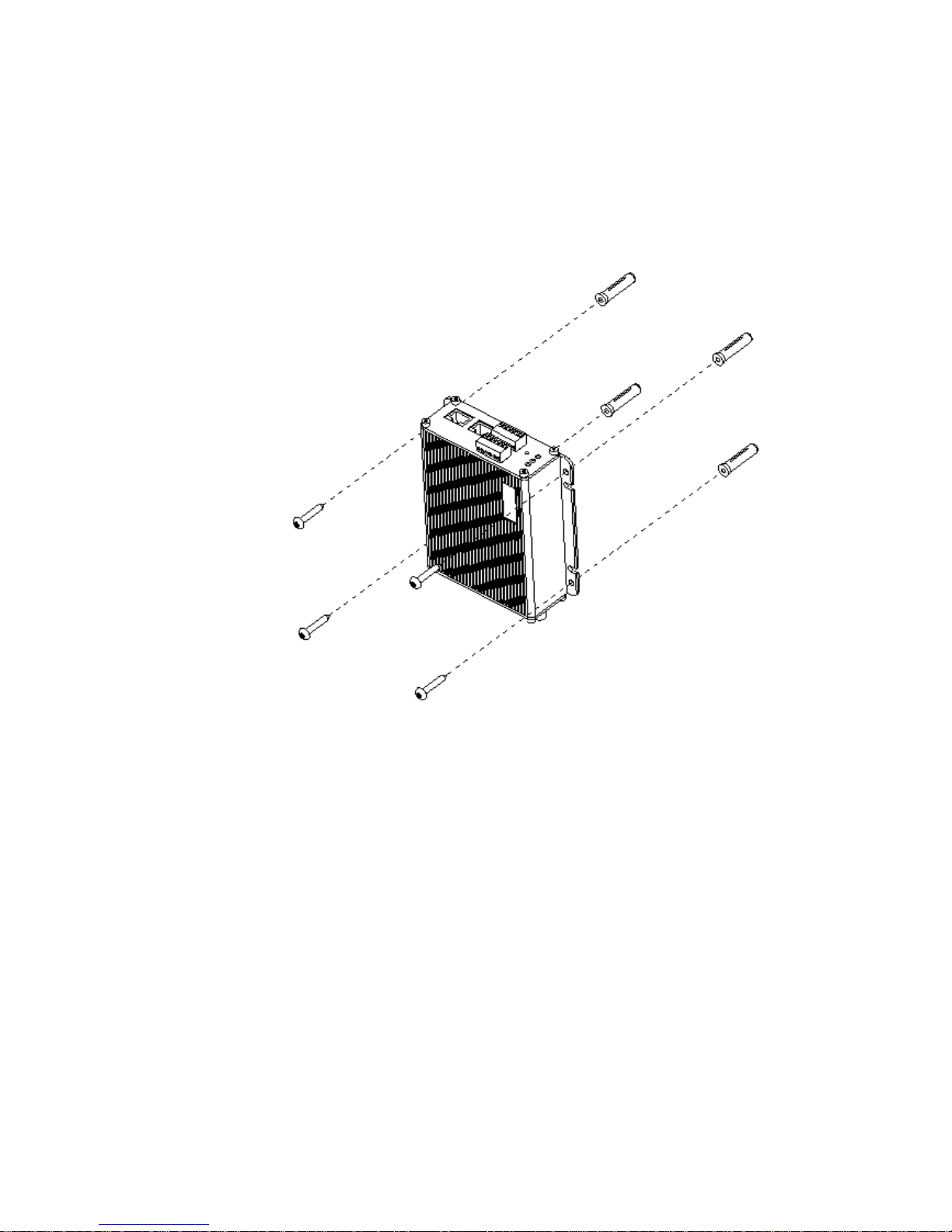

1.5 Mounting the video decoder_______________________________________ 1-8
1.6 Basic connections________________________________________________ 1-9
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

1-1
1INSTALLATION
1.1 Package Contents
ACD-3100 Warranty Card
Software CD Terminal Blocks & Screws
Power Adaptor (Option)
1
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

1-2
1.2 Features and benefits
The video decoder is a high resolution, Ethernet (LAN and WAN) ready
digital video decoder. Via an Ethernet network such as LAN or WAN, the
video decoder takes a MPEG-4 stream from our IP camera or video server,
and converts it in real-time with high quality analog video signals. This
allows analog video devices such as TV system, analog monitors or existing
analog video switches to be connected to our IP-base surveillance video
system.
Up to full D1 MPEG-4 video decoding
The video decoder can convert network MPEG-4 stream into analog
video signals. It also can automatically detect the remote stream format,
resolution and video standards. With ASIC based hardware decoder
inside, this video decoder is capable of decoding video at full frame
rate (30/25 fps). The analog video resolution of more than 500 TV
lines (depends on quality of video source)
Supports regular TV sysytem and analog monitors
The video decoder does not support composite video only, it also
supports Y/C video output. This feature allows analog video devices
such as regular TV sets, analog monitors and existing analog video
switches to be connected to our IP surveillance video system.
Digital Time Code Embedded
The “Digital Time Code Embedded”function is to embed the
recording time in the MPEG bit stream. Therefore, each image frame
has its respective time when it was recorded. It is very useful when
users want to find the video at an exact time or between a certain time
intervals.
DDNS Supported
The video decoder supports DDNS (Dynamic Domain Name Server),
users can set the video decoder at a virtual domain name (such as
cam1.Taipei.xxx) at dynamic IP. Everyone can use the virtual domain
name to view the video anywhere that has the access to the internet.
Bi-directional Audio Supported
The video decoder supports bi-directional audio function, 8kHz Mono audio
is provided.
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

1-3
1.3 Safety instructions
Don’t use the power supply with other voltages
This device is likely to be damaged or damage other equipments /
personnel, if you use a power supply with different voltage than the
one included with this device. All warranty of this product will be
voided in the situations above.
Don’t open the housing of the product
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product
manufacturer as they may cause hazards.
Water and Moisture
Do not use this video product near water, for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in a wet basement, or near a
swimming pool and the like.
Don’t use accessories not recommended by the manufacturer
Only install this device and the power supply in a dry place
protected from weather
Servicing
Do not attempt to service this video product yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
Damage Requiring service
Disconnect this video product from the power supply immediately and
refer servicing to qualified service personnel under the following
conditions.
1. When the power-supply cord or plug is damaged.
2. If liquid has been spilled, or objects have fallen into the video
product.
3. If the video product has been exposed to rain or water directly.
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

1-4
4. If the video product does not operate normally by following the
operating instructions in this manual. Adjust only those controls
that are covered by the instruction manual as an improper
adjustment . Other controls may result in damage and will often
require extensive work by a qualified technician to restore the
video product to its normal operation.
Safety Check
Upon completion of any service or repairs to this video product, ask
the service technician to perform safety checks to determine that the
video product is in proper operating condition.
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

1-5
1.4 Physical description
1. Action LED Indicator
The LED will light up after IP device has successfully completed the boot
process.
2. Serial Port LED Indicator
LEDs indicating when serial port is active.
3. Reset Button
Step 1: Switch off IP device by disconnecting the power cable
Step 2: Using a suitable pointed object, press and continue to hold the
Reset Button depressed. While continuing to hold the reset button
depressed, reconnect the power cable.
Step 3: Keep holding the reset button depressed around 6 seconds, release
the reset button. The unit will start up with factory default settings.
4. Terminal Blocks Pin 1~6
The IP device supports two alarm input and two alarm output. DI: Logic
Level 0: 0~0.4V; Logic Level 1: 3.3~30V DO: Logic Level 0:
0.1~0.6V; Logic Level1: 2.4~5V
Please find Support package” TS-00045”for details.
PIN
NAME
DESCRIPTION
1
DO1
Digital Output 1
2
DO2
Digital Output 2
3
GND
Ground Pin
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

1-6
4
DI1
Digital Input 1
5
DI2
Digital Input 2
6
GND
Ground Pin

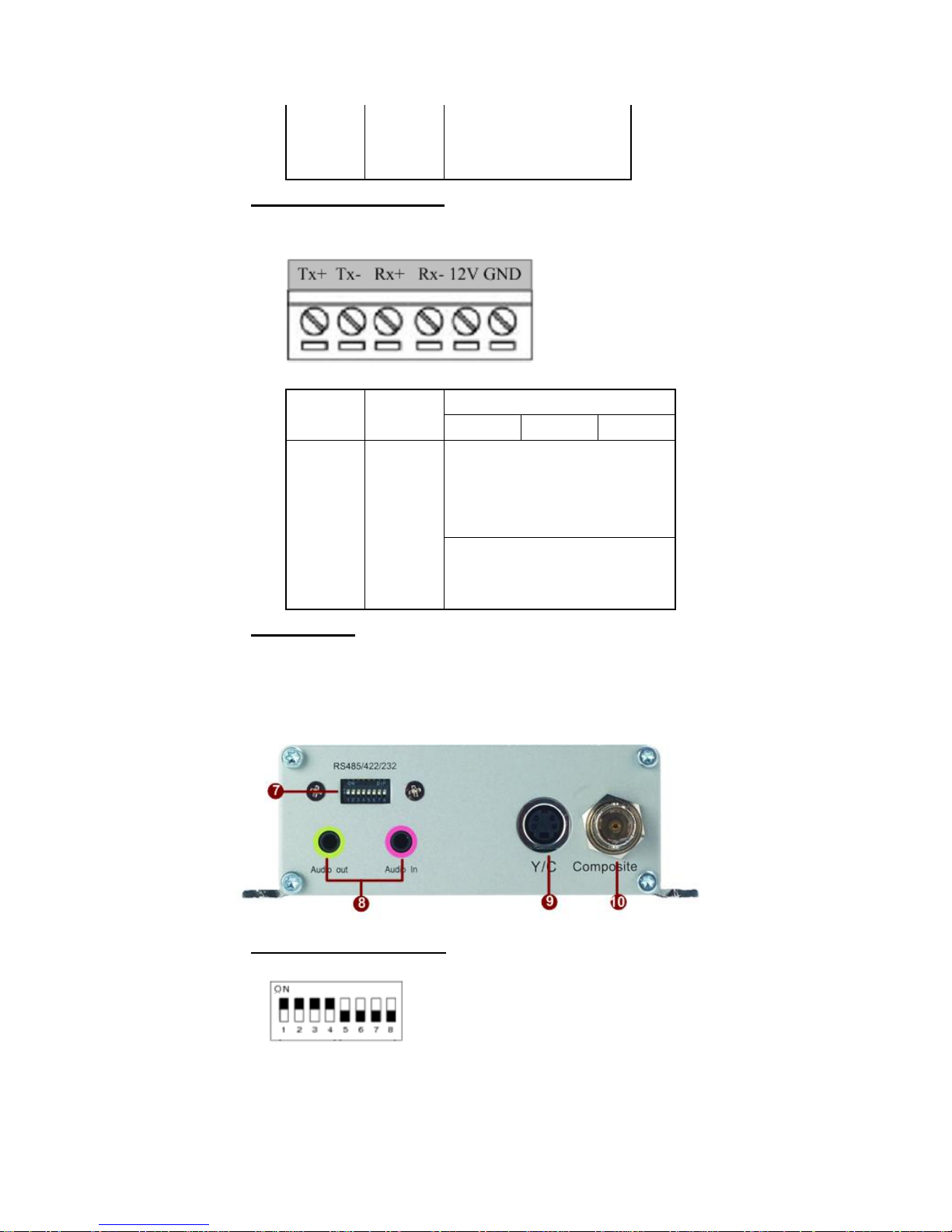

5. Terminal Blocks Pin 7~12
Pin 7~10: RS232/422/485. Default mode is RS-485
Pin 11~12: DC 12V power input
PIN
NAME
DESCRIPTION
RS-485
RS-422
RS-232
7
Tx+
D+
Tx+
Tx
8
Tx-
D-
Tx-
9
Rx+
Rx+
Rx
10
Rx-
Rx-
11
12V
Power Input (DC +12V)
12
GND
Ground Pin of Power Input &
RS-232
6. Ethernet Port
The IP device connects to the Ethernet via a standard RJ45 connector.
Supporting NWAY, this IP device can auto detect the speed of local
network segment (10Base-T/100Base-TX Ethernet).
7. Dip Switch for Serial Port
RS-485 or RS-422 pin define (default is RS-485)
RS-232 pin define
