ACTi V11 User manual

Step 4: Access the Device

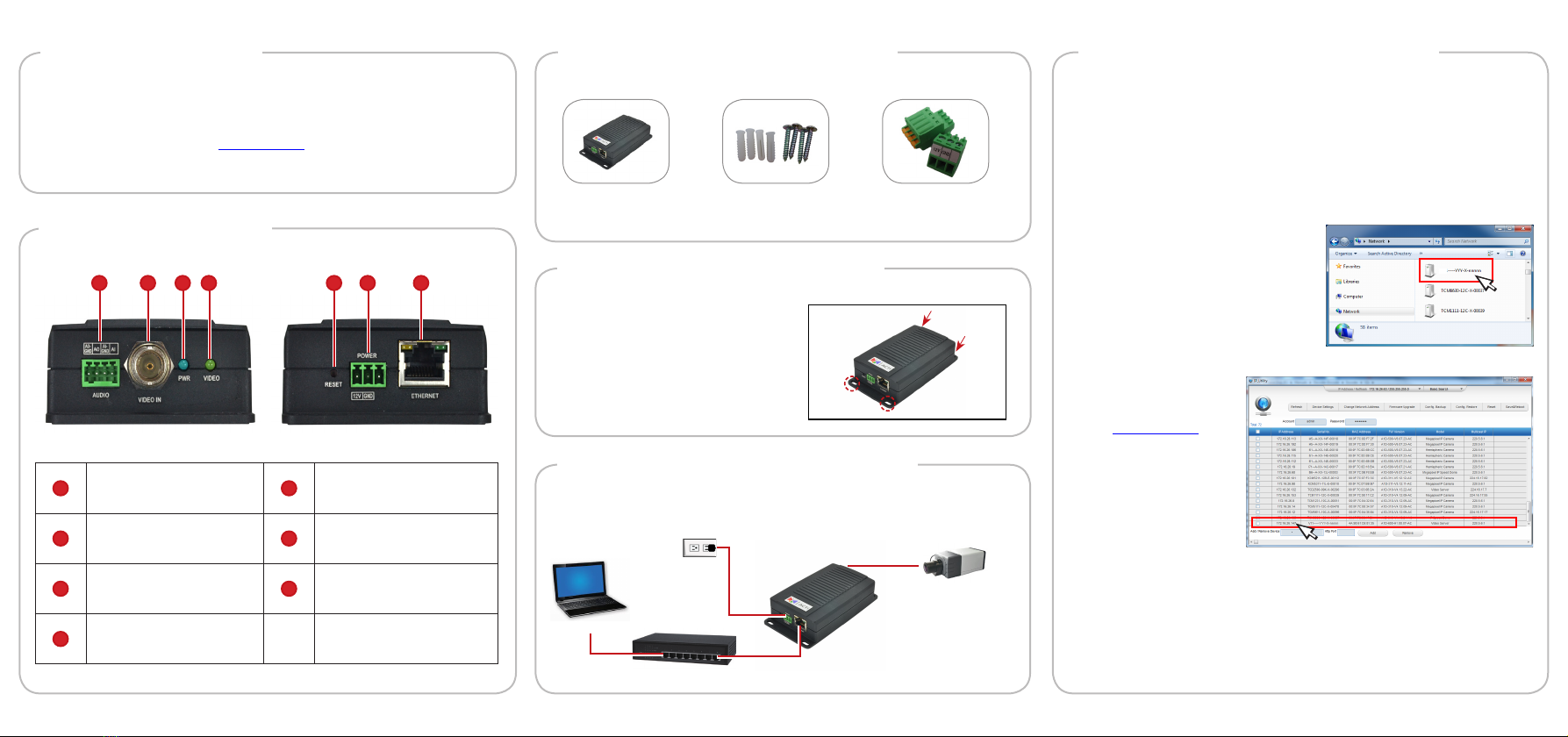

Device Overview
The device can be directly mounted
on a surface, such as walls.
Step 2: Mount the Device
Attach the 4 supplied screws to
secure the device.
Step 3: Connect the Device
Basic Connection Example
PC
Power Source
(optional)
PoE Switch
Analog Camera
1 Audio Input / Output
Connector 5 Reset Button
2 Video In Connector 6 DC 12V Power Connector
3 Power LED 7Ethernet Port
4 Video In Activity LED
Introduction
This guide contains all the information you need to quickly setup
the Video Encoder. For detailed information on installations or
operations, please refer to the Hardware Manual and Firmware
Manual on ACTi website (www.acti.com).
Step 1: Unpack the Device
Check if the package comes with the following items:
Video Encoder Mounting Screw
Pack
Terminal Blocks
• Power
• Audio
2 3 41 75 6
By IP Utility
a. Download IP Utility
from our website
(www.acti.com).
b. Run IP Utility to
start searching for
network devices.
c. Click the IP address
of the Encoder.
On Network with DHCP Server / Router (Automatic IP)
1. Connect the device and the PC within the same network segment.
Once connected, an IP address will be assigned to the Encoder.
2. Find the Encoder via Windows Explorer or IP Utility.
3. The Web Congurator appears with the IP address of the Encoder
on the URL bar. Login to access the Encoder.
Note: For full functionality, it is recommended to use Microsoft Internet Explorer®.
When using non-IE browsers, free 3rd party software plug-ins may be required.
Refer to the device Firmware Manual for more information.
By Windows Explorer
a. Go to Start > My
Computer > Network.
b. Double-click on the device name.
V11

Step 5: Log-in
Default
Account: admin
Password: 123456
1. On the Login page, type the Account and Password.
2. Select Language, if
necessary.
3. Click Login.
The Live View screen
appears.
4. Click to access the
Setup menu to modify
the Encoder settings.
For more detailed instructions, please refer to the “Firmware
Manual” downloadable from the website (www.acti.com).
On Network without DHCP Server (Default IP)
1. Ifnecessary,conguretheIPsettingsofyourPCtomatchwiththe
network segment of the Encoder.
2. Open a web browser and type 192.168.0.100 on the URL address bar.
The Web Congurator appears. Login to access the Encoder.
Encoder Defaults
IP Address:
192.168.0.100
Subnet:
255.255.255.0
PC can be assigned with
IP Address:
192.168.0.99 or
192.168.0.101 or
192.168.0.102 and so on
Subnet:
255.255.255.0
How to congure the PC IP address?
Click Start > Control Panel > Network and Sharing Center >
Change adapter settings. Then follow the steps below:
1
2
3
4
Note: For full functionality, it is recommended to use Microsoft Internet Explorer®.
When using non-IE browsers, free 3rd party software plug-ins may be required.
Refer to the device Firmware Manual for more information.
ACTi Connecting Vision and its logo are registered trademarks of ACTi Corporation.
Microsoft®and Windows®are registered trademarks of Microsoft Corporation.
All other products or company names mentioned in this document are trademarks or
registered trademarks of their respective owners.
Copyright © 2014, ACTi Corporation All Rights Reserved
Quick Installation Guide
V11 Encoder
V.2014.07.28
www.ac.com
Step 4: Access the Device (con’t.)
