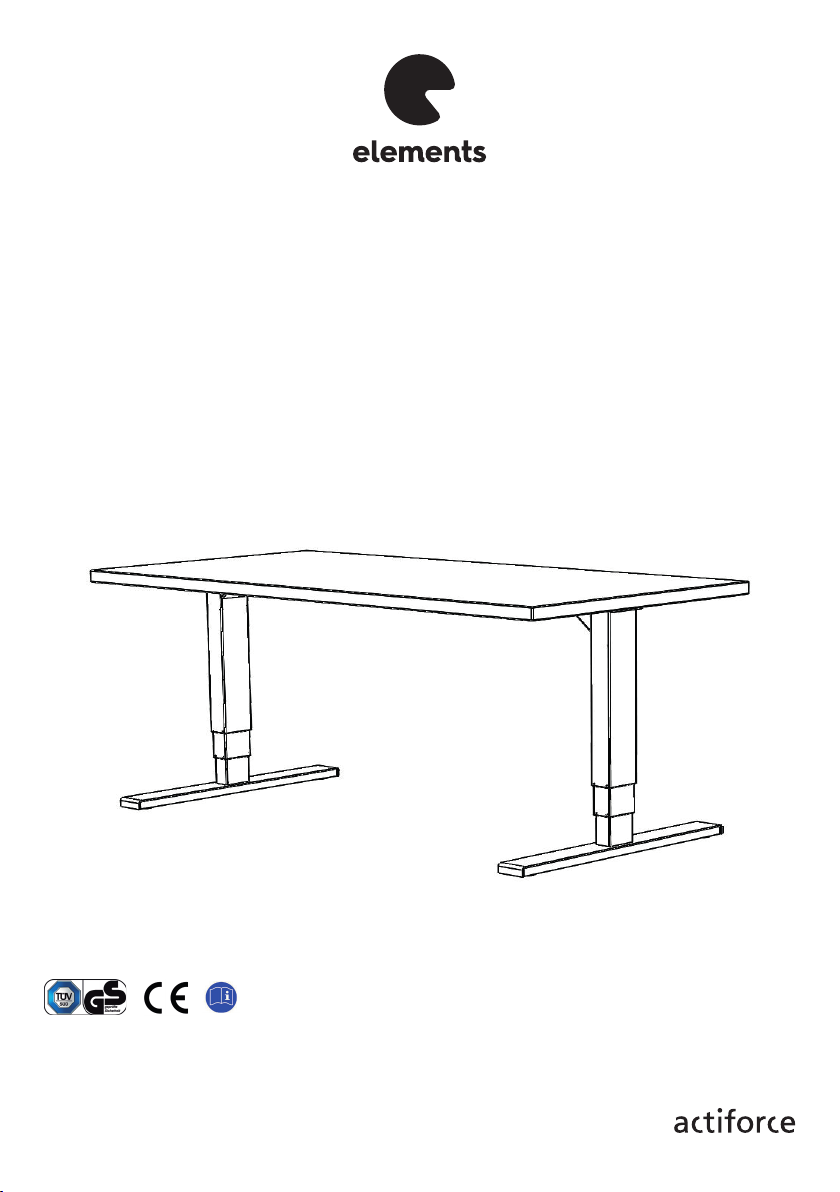

Actiforce Elements Solid 670 User manual

Solid (670)
Assembly Manual / Betriebs- und Montageanleitung
Montage handleding
English / Deutsch / Nederlands
ELE-SOL001-0EN-DE-NL
EN - Read this manual thoroughly and store in a safe place.
DE - Bitte sorgfältig lesen und sicher aufbewahren.
NL - Lees de handleiding aandachtig door en bewaar op een veilige plaats.

EN
English - 2.
Content
1. General
1.1 Local value of the assembly/operating manual
1.2 Intended use
1.3 Improper use
1.4 Danger
1.5 Checking the content box
2. Safety information
2.1 Symbols/warnings
2.2 Maximum weight allowed on table
2.3 Maximum weight allowed per column
2.4 Organizational measures
2.5 Informal safety measures
2.6 Note for those assembling the table
2.7 Transport and assembly
2.8 Use of the table
2.9 Specific dangers
2.10 In an emergency
2.11 Maintenance and upkeep
2.12 Cleaning
2.13 Persistent risks
3. Assembly
3.1 Checking the items supplied
3.2 Packaging
3.3 Tightening torques for screws used
3.4 Assembly of the table
3.4.1 Mounting the feet on column
3.4.2 Connect the motor cables
3.4.3 Mounting the column on the tabletop
3.4.4 Connecting the electrical components
3.4.5 Table test

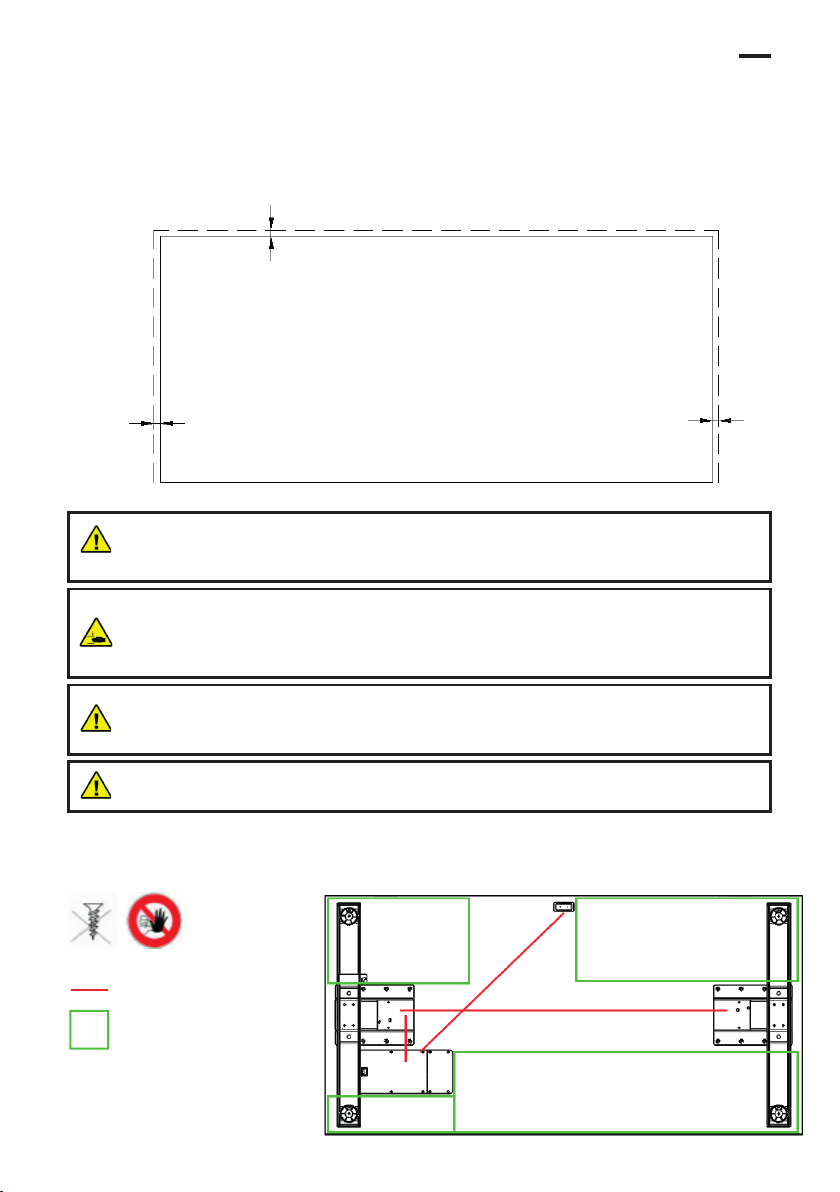

3.4.6 Clearance around the tabletop
3.4.7 Screw points on tabletop
4. Correct position of seat
5.Technical specifications
6. Operation and indicators
6.1 Indicators
4
4
4
4
5
6
6
7
7
7
7
7
7
8
8
8
8
8
9
9
9
10
10
11
12
13
14
15
15
16
17
19
19

EN
English - 3.
7. Recycling
7.1 Taking the table out of active duty
7.2 Taking the table apart
7.3 Recycling
8.Troubleshooting
9. EU-decleration of conformity
10. Customer service
11. Manufacturer
12. Certification
20
20
20
20
21
21
21
22

EN
English - 4.
1.1 Importance of the assembly/operating manual
The guideline for safe use and trouble-free operation of this table is knowledge of basic safety
information and regulations.This assembly/operating manual contains the most important infor-
mation needed for assembling and operating the table safely. This assembly/operating manual, in
particular the safety information contained herein, must be observed by any person building the
table and working on the finished surface. More importantly, the rules and regulations applying to
accident prevention in the locality in which the table is to be used must be observed at all times.
1.2 Intended use
The table must be used only as an electrically height-adjustable table for sitting/standing use in
offices or other enclosed areas. The table must be used for this purpose only. Any other use than
the above shall be deemed improper. Please observe the provisions of Section 2, Safety Infor-
mation. Children may be unaware of the dangers presented by the table if unsuper- vised. The
manufacturer can in no way be held liable for damage arising from improper use.
intended use shall also include:
– Observation of all information from the assembly/operating manual;
– Prohibition of any sort of addition to/conversion of the table.
1.3 Intended use
– Never use the table to lift people or loads!
– Do not exceed the maximum load of the table (see Section 5, Technical Specifications).
– Only use the product for office purposes.
1.4 Danger
Improper connection of the table grounding conductor can result in a risk of electric shock. Check
with a qualified electrician if you are in doubt as to whether the product is properly grounded. Do
not modify the plug provided with the product. If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the manufacturer or its service agent. WARNING:
Any changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
1. General

EN
English - 5.
1.5 Checking the content box
Assembly requires two people!
Dispose of the packaging material in an environmentally friendly manner.
Tools
Items
2x
2x
1x
1
2
3
1x 16x 4x 8x
4 5 6 7
8

MAX
80 KG
> 80 kg
< 80 kg
EN
English - 6.
2.1 Symbols/warnings
The assembly/operating manual uses the following terms and signs to indicate danger:
This symbol indicates an immediate threatening situation for any person’s life or
health. Failure to adhere to such information may have serious consequences
for health, or could even result in lifethreatening injury or death.
This symbol indicates important information. Failure to adhere to such information
could lead to damage to the table.
Reference to the obligation to read the operating manual.
Do not place objects or parts of the body under the table.
This could cause serious injury or even result in death.
2.2 Maximum weight allowed on table
Do not exceed the maximum permitted load of 80 kg on the table. Avoid
unbalanced load, distribute the weight evenly, otherwise overload may
occur. Overloading a table may cause breakage and close by individuals may
suffer serious injuries as a consequence.
Example
All weight should be distributed evenly.
2. Safety Information

50 kg
EN
English - 7.
Do not exceed the maximum permitted load of 50 kg on a column. Overloading
a table may cause breakage and close by individuals may suffer serious injuries
as a consequence.
2.4 Organizational measures
The table can best be assembled by two people.Turning the table, is a task in particular which
requires two people!
2.5 Informal safety measures
– Keep the assembly/operating manual in the place where the table is used at all times.
– Make sure that all safety information on the table (see Section 2.2, Symbols used on the table,
page 5) is legible, replacing the same if necessary.
2.6 Note for those assembling the table
– The table must be assembled/worked on by persons over the age of 16.
– The persons referred to above must have read and understood the assembly/operating
manual.
2.7Transport and assembly
– The table must be moved by two persons only, and in such cases must be retracted.
– Do not drag or pull the table over the floor.
– Assemble the table with the supplied tools only. They are the only tools which ensur that the
screws can be tightened to the correct torque.
2.8 Use of the table
– Do not allow children to use the table unsupervised. Children may be unaware of the danger
presented by the table. They would be in serious danger of injuring themselves, possibly even
with fatal consequences.
– The table must only be used in appropriate areas (see Section 5, Technical Specifications).
– Do not use the table on an uneven surface. In such conditions it will not be steady.
2.3 Maximum weight allowed per column

EN
English - 8.
2.9 Specific danger
– When adjusting the height of the table there is danger of injury. Make sure that there isno-one
else in the immediate surroundings of the table.
– When assembling the table, make sure there is ample space to avoid collision (i.e. inclination
of roof, fixed objects, filing cabinets, waste-paper bins etc.) in all imaginable directions.
– Make sure there is ample space to avoid collision if there are objects on the work surface such
as computers or computer peripherals.
– Make sure there is clearance of at least 25mm from all other furniture, all around the table.
2.10 In an emergency
– Have the table repaired by specialists. Refrain from using the table until it has been success-
fully repaired.
– Stop using the table at once if you notice anything unusual (strange sounds, smoke, etc.).
2.11 Maintenance and upkeep
– Do not perform any repairs on the work station table or other components yourself.
– Do not alter the construction of the work surface or its frame.
– Any faulty components removed must be replaced with new, original components from the
manufacturer. Use only original replacement parts made by the manufacturer. Have any such
work carried out by a specialist, making reference to this assembly/operating manual.
2.12 Cleaning
– Dust the table once a week with a dry cloth.
– Clean the table with a damp cloth and a weak solution of cleaner once a fortnight.
2.13 Persistent risks
This table has been built to the state of the art and to recognized safety regulations. Nonetheless,
its use may constitute a risk to the health and safety of users or third parties, damage to the table
or to other items. The table must be used only:
– for the purpose for which it was intended.
– if it is completely safe to do so.

EN
English - 9.
3.1 Checking the items supplied
– Carefully open the cardboard packaging.
– In doing so, do not use any long knife blades. They may damage the components inside.
– Check the parts supplied in section 1.5.
– Do not attempt to assemble the table if there is any damage or if there are any incorrect
components.
3.2 Packaging
– Remove the packaging. Treat as household waste/paper.
– Observe national legislation.
3.3Tightening torques for screws used
– Assemble the table with the tools supplied only.
Before attempting assembly, read the safety information in Section 2.
3. Assembly

1
6
6
2x
7 4x
8x 14Nm (maximum)
EN
English - 10.
3.4.1 Mounting the feet onto the column

EN
English - 11.
3.4.2 Connecting the motor cables
Make sure the plug is firmly inserted into the plug socket.
Do not pull the connectors further out of the tabletop.

5 8x
2x
16x max. 13Nm
EN
English - 12.

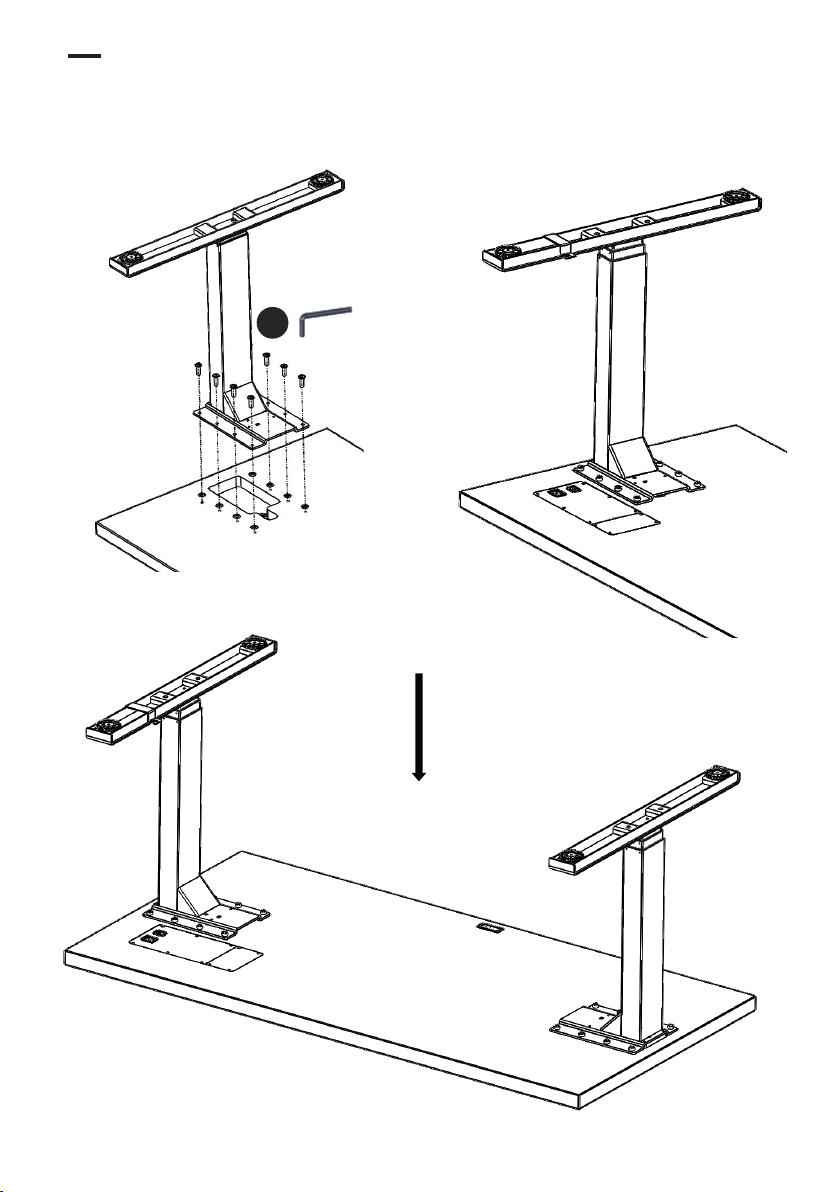

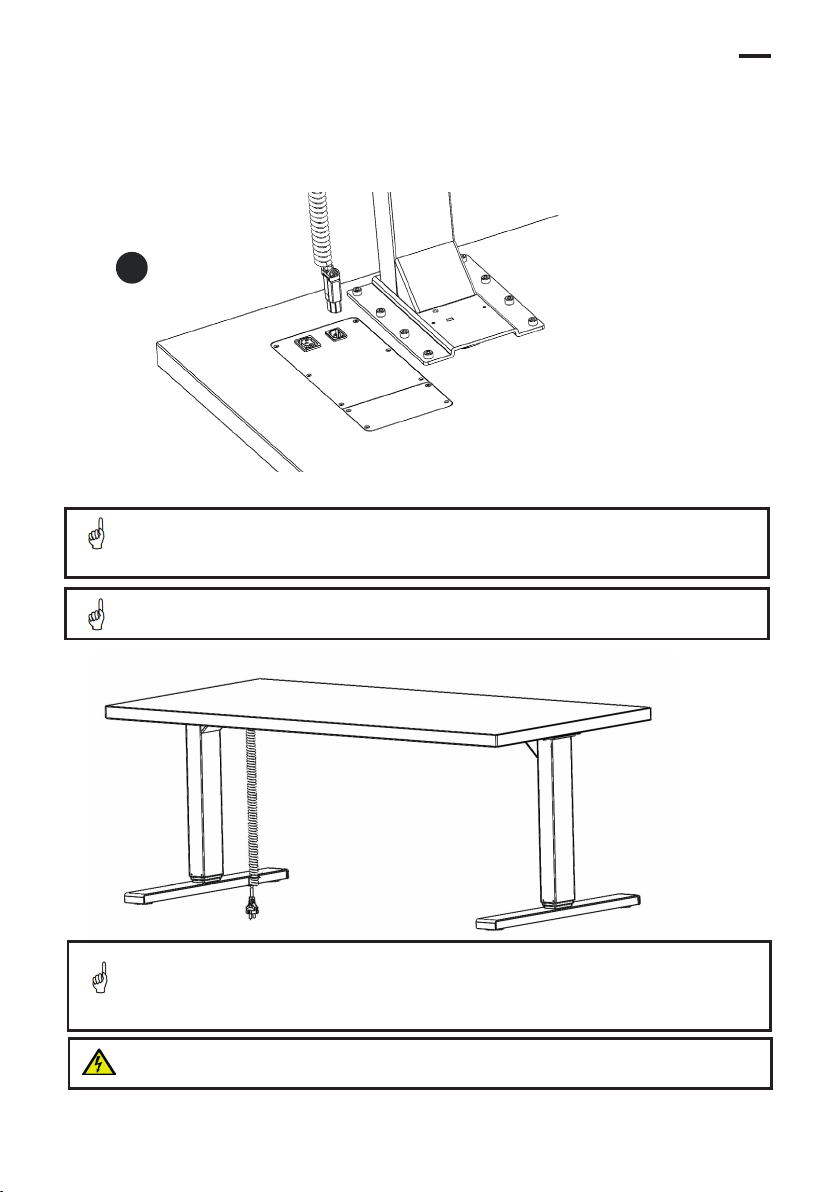

3.4.3 Mounting the column onto tabletop

4
EN
English - 13.

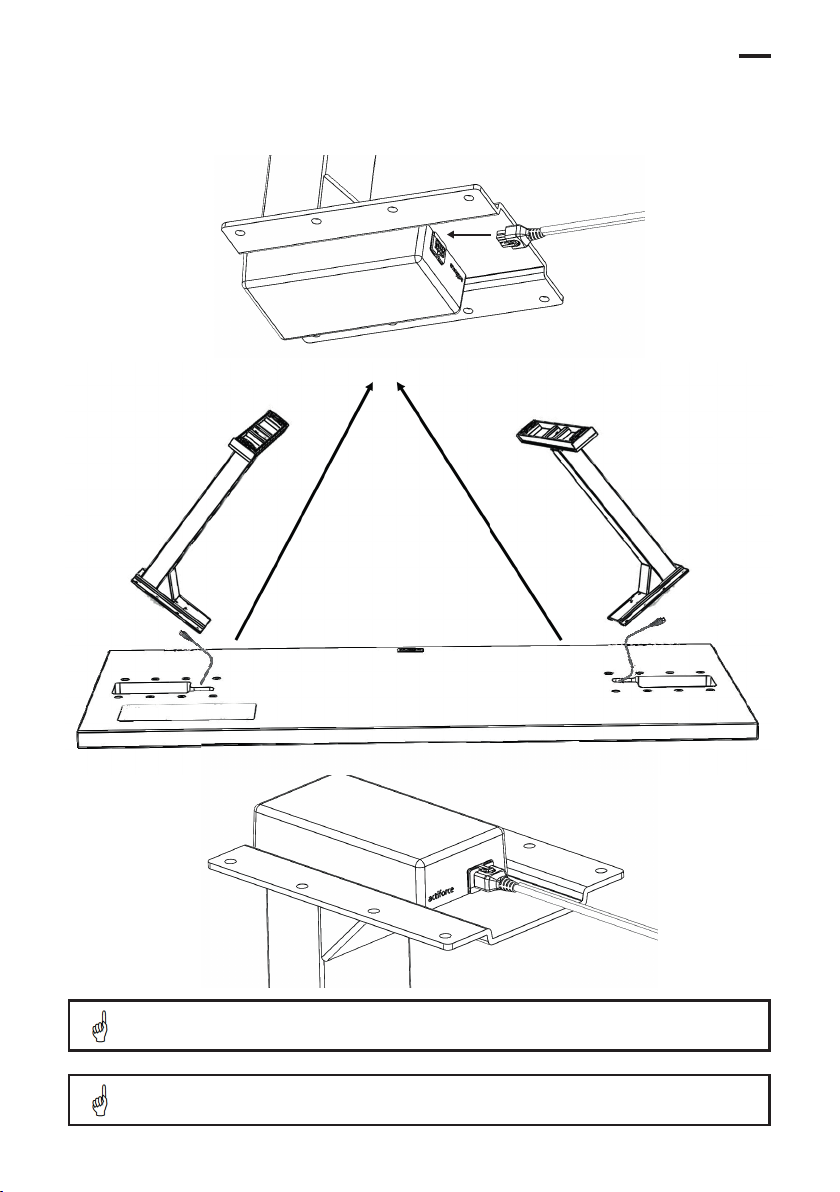

3.4.4 Connecting the electrical components
Keep in mind that the table which you are assembling is height adjustable. The cables
of the electrical components must be able to freely follow the movement of the table.
Initial start on next page.
Do not open the covers from the tabletop. There is danger of an electric shock.
In order to maintain the elasticity of the spiral cord over long time, it is recommended
to adjust the table into its lowest position when the workstation will not be in use for
any length of time

EN
English - 14.

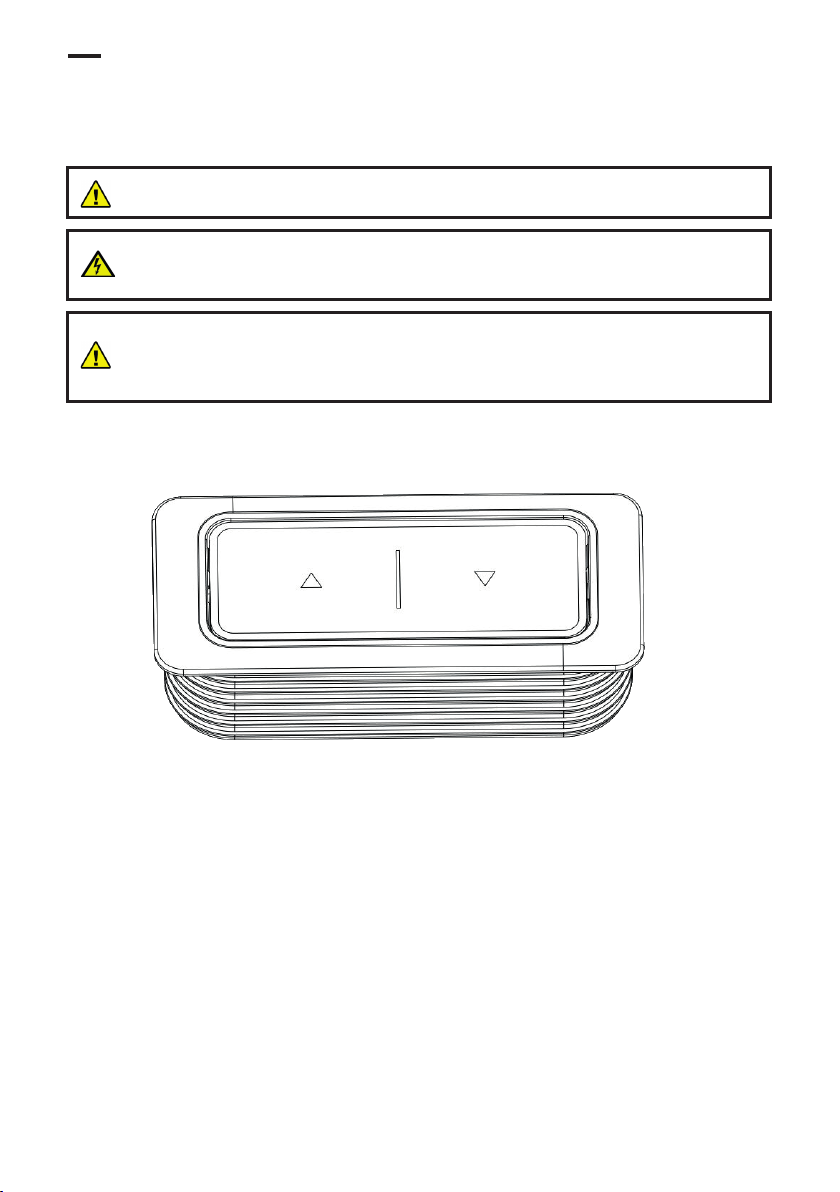

3.4.5Table test
Left button
Up
Right button
Down
Please make sure that the table can move freely and correct at all times
In case you need to disconnect cables from the electrical components always be sure
to disconnect power first.
In case the height adjustment is not operating normally stop using the table immedi-
ately and disconnect the power. Get in contact with customer service for further advise
(see Section 10).
Reset mode
The first time you put in the plug of the power supply into the socket the height adjustment can
only be operated in the reset-mode. As long as the reset-mode is enabled, the system can only
move downward. In order to use the system normally, please follow the next steps:
– Press and hold the down-button, the system slowly moves downward.
– Please move the system to the lowest position. This position will be used as reference-point
(zero-point).
– Keep the button pressed for a moment when the system has reached the lowest position.
This will end the reset-mode.
– The system can be operated normally now. Press and hold the up- or down-button to move the
system to the desired height.The system stops when you release the buttons.

EN
English - 15.
25mm 25mm
25mm
3.4.6 Clearance around the tabletop
3.4.7 Screw points on tabletop
Allow a minimum clearance of 25mm from the edge of a tabletop to a wall or moving
parts.
When changing the tabletop position (especially without using pinch protection), there
is a risk of pinching. You must therefore ensure that no people or objects are located in
the hazardous area or can reach into it.
To attach accessories under the tabletop, use only the green marked area. Don‘t screw
any screw on the top Surface of the tabletop.
Only use screws that are screwed into the material with a maximum length of 10 mm.
Cable position
Free mounting surface

EN
English - 16.

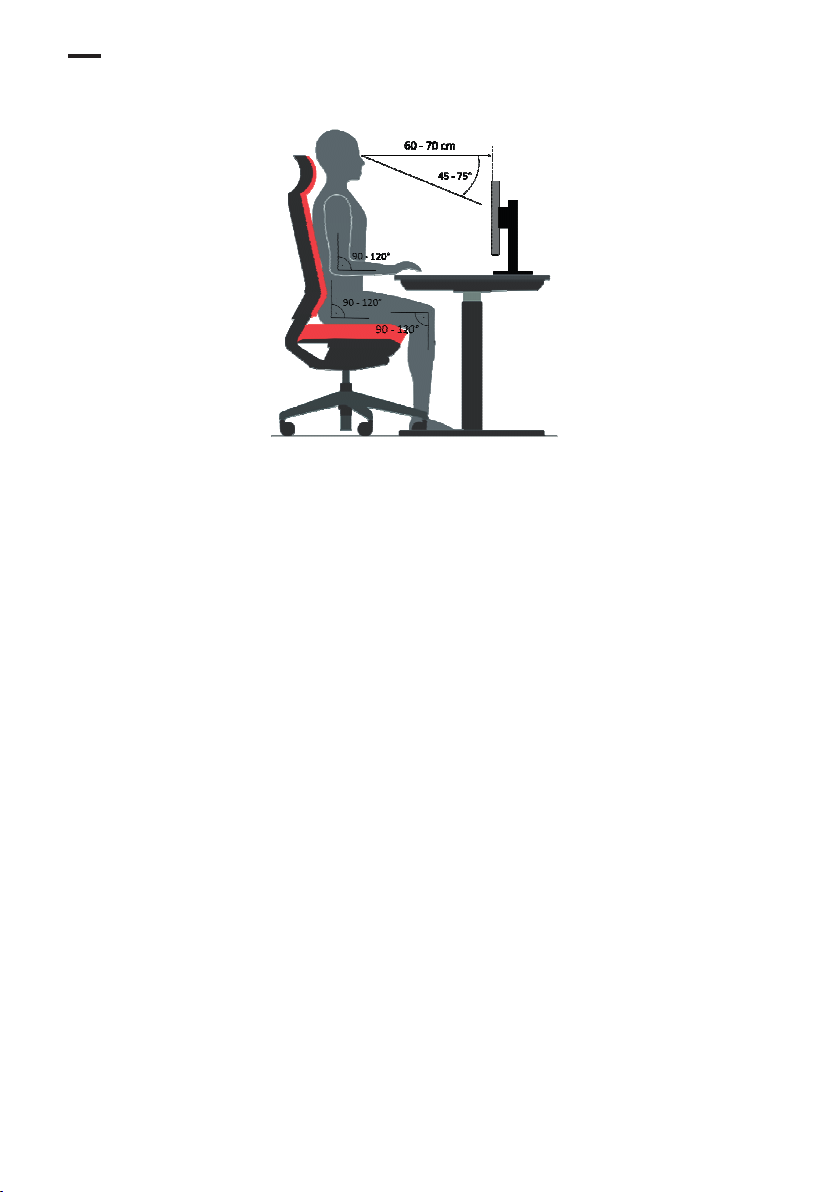

4. Correct position of seat
Correct sitting posture
Sitting incorrectly can lead to injuries at joints, bowstrings and muscles. In order to prevent this
it is necessary to adjust your office chair and table. Apart from the following advise you should
always prevent an uncomfortable sitting posture. If you feel that the following advices leads you to
an uncomfortable sitting posture simply adapt your needs.
Office Chair
– The sitting height has to be adjusted in way that your knee is angled by 90-120° when your
foot is flat on the ground.
– Sitting properly requires that your lower back touches the back rest. If possible align the seat-
ing depth in order to avoid pressure from the seat pan to your lower leg.
– Sit upright but lean back in a relaxed position. If possible adjust the lumbar support of your
chair to your height. Adjust the back rest in a way that pushes your upper body slightly forward
but still offering enough flexibility to yield movement.
– If possible adjust the height of your armrests.Your shoulders should be in a relaxed position
when your arms are touching the arm rest.
Table
– Adjust the table height after you have found your correct sitting posture.
– Your elbows should be angled by 90-120° when your arms rest on the tabletop.
The edge of the top should not press against your arms.
Equipment on the table
– Incident light (day light or lamps) on your monitor should approach the surface of your screen
by an angle of 90°.
– The height of your monitor should be adjusted in way that enables you to look slightly down-
ward while focusing the centre of your screen.
– Please keep a distance of 60-70 cm from your screen
– A careful posture for your wrists can be achieved by a flat narrowed keyboard.
– Please heed the advice in the manuals of your further (ergonomical) equipment.

EN
English - 17.
5. Technical specification
Assembly Manual version ELE-SOL001-0EN-DE-NL
Release date December 2018
Country of origin of the leg unit and foot Malaysia
Country of origin of the tabletop Germany
System 2-step
Material Steel, aluminium, plastic, wood based materials
Stroke (max.) 660 mm
Load (max.) 80 kg
Weight ± 45 kg
Speed load ± 39 mm/s
Input power 230V / 50Hz / max. 8A
Duty cycle 30s on / 3 Minutes off
Durability 10.000 Cycles (average use)
Noise level < 55 dB(A)
Permissible environment temperature 15 - 30 °C
Permissible environment temperature storage 10 - 50 °C
Permissible air humidity <85%
Permissible air humidity storage <50%
Maximum stockholding time -
Standby power, primary (typical) 0,1W
Indoor use only.

EN
English - 18.
5.Technical Specification
(*GeneralTolerance = ± 1 cm)
40 mm
1300 mm
660 mm640 mm
50 mm 60 mm
(B) (T)
(K)
100 mm
40 mm34 mm
Minimum Height 640 mm
Maximum Height 1300 mm
Maximum Stroke 660 mm
Tabletop Width (B) 1380 / 1600 / 1800 / 2000 mm
Top Depth (T) 670 / 800 / 800 / 800 mm
Foot Depth (K) 550 / 750 / 750 / 750 mm
Maximum Load 80 kg

EN
English - 19.
6. Operation and Indicators
Observe the provisions of Section 2, Safety Information, on page 5—7, in particular:
Do not leave children unsupervised with the table. Children may be unaware of the dangers
presented by the table. They would be in serious danger of injuring themselves, possibly even
with fatal consequences. Please make sure that further adjustment is impossible when the table
is still used by children.
Do not exceed the maximum time lag of the table.
Make sure there is ample space to avoid collisions if there are objects on the work surface
such as computers or computer peripherals.
6.1 Indicators
Leave the immediate surroundings of the table at once if it starts to move spontaneously.
Under no circumstances attempt to operate the table. Have the table repaired by specialists.
Refrain from using the table until it has been successfully repaired.
Stop using the table at once if you notice anything unusual (strange sounds, smoke, etc.).
Have the table repaired by specialists. Refrain from using the table until it has been
successfully repaired.
Stop using the table at once if its safety features fail to work as they should.
Only clean the table with a dry or slightly moist cloth. Before cleaning, you must always
unplug the power cord.
Unplug the power cord during a thunderstorm or if you do not intend to use the table
for a longer period.The control unit might otherwise be damages by power surges.

EN
English - 20.
7. Recycling
8. Troubleshooting
7.1Taking the table out of active duty
– Pull the power plug out of the electricity socket.
7.2Taking the table apart
– In case of de-assembling please follow the manual backwards or contact customer service.
7.3 Recycling
– Please split all parts to their type of material. Keep notice of National restrictions!
If your problem couldn´t be solved or is not listed here, please contact your customer
service for further advise.
Problem Possible cause Solution
Height adjustment does not
work.
Cables or connectors defec-
tive.
Check cables for damages
and if necessary replace
them. Power in order?
Height adjustment does not
work.
If cables and connectors have
been checked a possible
cause could be a defective
up-down switch.
Replace up-down switch.
Height adjustment does not
work.
Error in power supply. Initialize reboot.
