Action Fitness X135B User manual

F000068
Mag Elliptical X135B
OWNER’S MANUAL
Call for service 1-800-465-070 www.actionsports.com.au

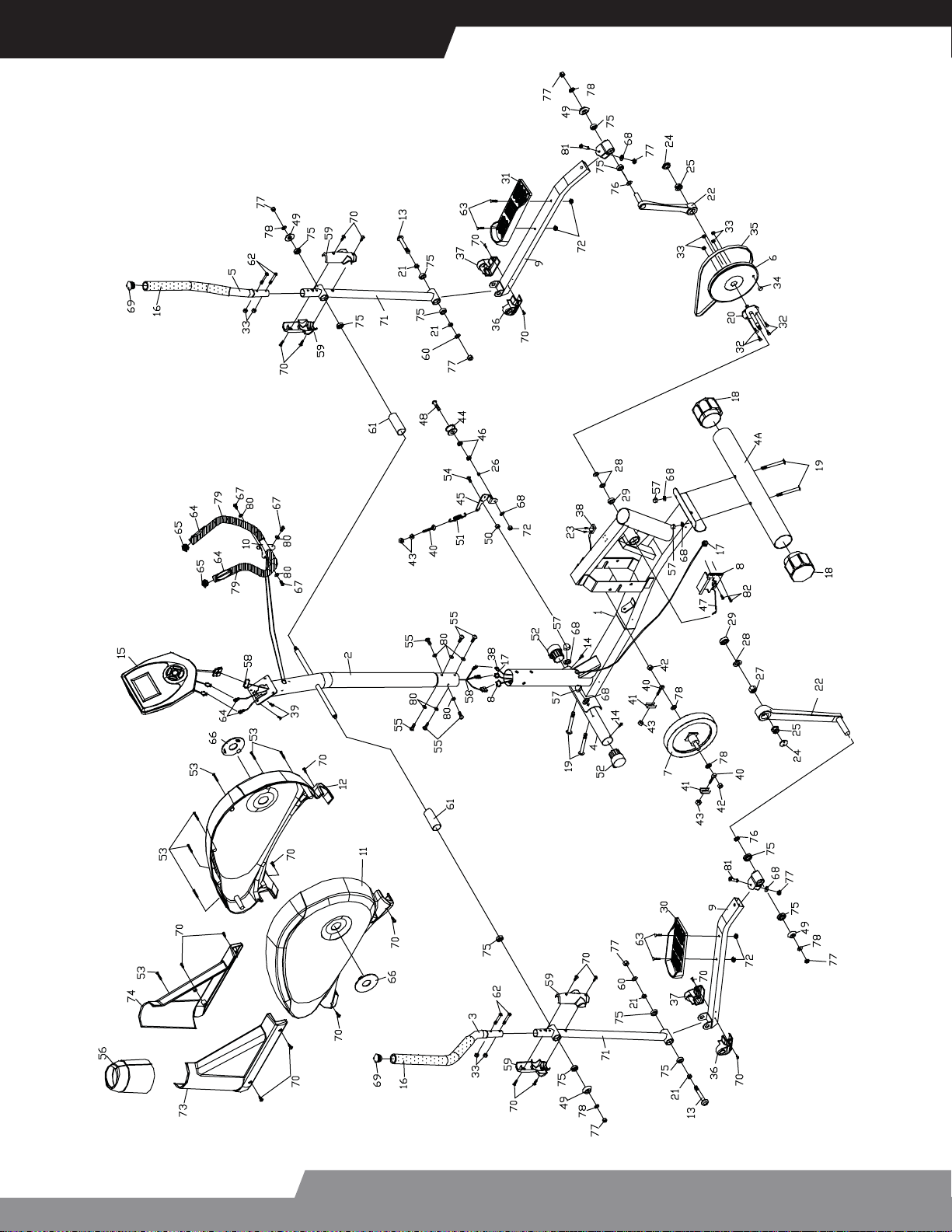

Exploded View
Call for service 1-800-465-070 www.actionsports.com.au
2

Part List
Call for service 1-800-465-070 www.actionsports.com.au
3
ITEM Q’TY PART NAME ITEM Q’TY PART NAME
11 Main Frame 43 4 M6 Hex Nut
21 Console Tube 44 1 Idler Pulley
31 The Upper Foam Handle(Left ) 45 1 Belt Tension Bracket
41 Front Foot Tube 46 2 #608 Precise Bearing
4A 1 Rear Foot Tube 47 1 Tension Cable (Drive Cable)
51 The Upper Foam Handle(Right) 48 1 M8 x 30mm Hex Head Screw
61 Pulley 49 2 M10 Curved Plastic Washer
71 Mag Brake 50 1 8mm Locknut (Thick)
81 Gear Box With Wire 51 1 Spring
92 Foot Frame 52 2 Transportation Wheel
10 1 Front Handlebar 53 8 TP4 x 30mm Screw
11 1 Bottom Left Housing 54 1 M8 x20mm Hex Head Screw
12 1 Bottom Right Housing 55 6 M8 X 25mm Hex Head Screw
13 2 5/8” x 77mm Hex Head Screw 56 1 Console Tube collar plastic Ring
14 2 TP4 x 12mm Screw 57 4 8mm Nut Cap
15 1 Console 58 1 Extension Wire
16 2 Handlebar Sleeve 59 2 Foam Handle Shaft Cover
17 1 DC Power Cord 60 2 M10 x 21 x 1.5 Black Washer
18 2 Foot Cap 61 2 Handle Shaft Spacer
19 4 M8 x 65mm Carriage Bolt 62 4 M6 x37mm Hex Head Screw
20 1 Pully Axle 63 4M8 x 45mm Hex Head Screw
(Black)
21 4 20x16x4 L Spacer 64 2 Hand Pulse Wire with Sensor
22 2 Crank 65 2ψ22.2 BallPlug
23 2 TP3 x 8mm Screw 66 2 Round End Cap
24 2 Crank Cap 67 3 M8 x 15mm Hex Head Screw
25 2 M10 x P1.25R Cap Nut 68 6M8 x 18mm Washer
26 1 8 x 12.5 x 10.5L Spacer 69 2 1 1/2” Ball Plug
27 1 Crank Nut 70 20 TP4 x 16mm Screw
28 3 17 x22 x1 Washer 71 2 The Lower Handlebar (Right & Left)
29 2 #6003 Bearing 72 7 8mm Locknut (Thin)
30 1 Left Foot Pedal 73 1 Left Connecting Cover
31 1 Right Foot Pedal 74 1 Right Connecting Cover
32 4 M6 x 16mm Hex Screw 75 12 #6202 Precise Bearing
33 8 6mm Nylon Nut (sliver) 76 2 16x21.8x1 Black Washer
34 1 Magnet 77 6 10mm Nylon Nut(Thin)
35 1 V-Belt 78 4 10x19x2 mm Black Washer
36 1 Left Foot Frame Side Cover 79 2 Front Handlebar Sleeve
37 1Right Foot Frame Side Cover 80 6 M8x18mm Curved Black Washer
38 1 Reed Switch Wire with Sensor 81 2 M8 x 45mm Hex Head Screw
39 2 M5 x 10mm Metal Screw 82 2 TP5 x10mm Screw
40 3 Eyebolt 6 x 40mm
41 2 Adjustment Channel
42 2 3/8" x 26mm Cap Nut

Table of Contents
Exploded View _____________________
Parts List __________________________
Important Safety Information _____________
Before You Start _____________________
Assembly Instruction ___________________
Console ___________________________
Monitoring Your Heart Rate ____________
Warranty / Service ___________________
Page
2
3
5
6
7
12
13
15
Call for service 1-800-465-070 www.actionsports.com.au
4

Important Safety Information
WARNING!
Before using this unit or starting any exercise program, consult your physician. This is espe-
cially important for persons over the age of 35 and/or persons with pre-existing health prob-
lems. The manufacturer or distributor assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAFETY PRECAUTIONS AND TIPS
1. It is the owner's responsibility to ensure that all users of this unit have read the Owner's
Manual and are familiar with warnings and safety precautions.
2. This unit has a user maximum capacity of 120 kg.
3. The unit should only be used on a level surface and is intended for indoor use only. The unit
should not be placed in a garage, patio, or near water and should never be used while you are
wet. We recommend a mat be placed under the unit to protect floor or carpet and for easier
cleaning.
4. Wear comfortable, good-quality walking or running shoes and appropriate clothing. Do not
ndals, socks or stockings.
5.Always examine your unit before using to ensure all parts are in working order.
6.Allow the un
it to fully stop before dismounting.
7. Pets should never be allowed near the unit.
8. Do not leave children unsupervised near or on the unit.
9. Never operate the unit where oxygen is being administered, or where aerosol products are
being used.
10. Nev: insert any object or body parts into any opening.
11. For safety and to prevent damage to your unit, no more than one person should use the unit
at a time.
12. Service to your unit should only be performed by an authorized service representative,
unless authorized and/or instructed by the manufacturer.
13. Failure to follow these instructions will void the unit warranty.
Call for service 1-800-465-070 www.actionsports.com.au
5

Before You Start
Thank you for purchasing this newAction Mag Elliptical! This quality product you have chosen
was designed to meet your needs for cardiovascular exercise. Before you start, please read the
Owner's Manual and become familiar with the operation of your new unit.
Remember to take the time to perform the stretching exercises provided to avoid injury.
If you are taking medication, consult your physician to see if the medication will affect your
exercise heart rate. If you have heart problems, you are not active, and/or are over the age of
35 years, do not start an exercise program without first contacting and receiving approval from
your physician.
To avoid the risk of electrical shock, always keep the console dry. Do not spill liquids on the
console. We recommend a sealed water bottle for beverages consumed while using the unit
Please review the following drawing below to familiarize yourself with the listed parts.
Call for service 1-800-465-070 www.actionsports.com.au
6

Assembly Instruction
REMOVEALL SECURITY TAPE AND WRAPPING BEFORE BEGINNING

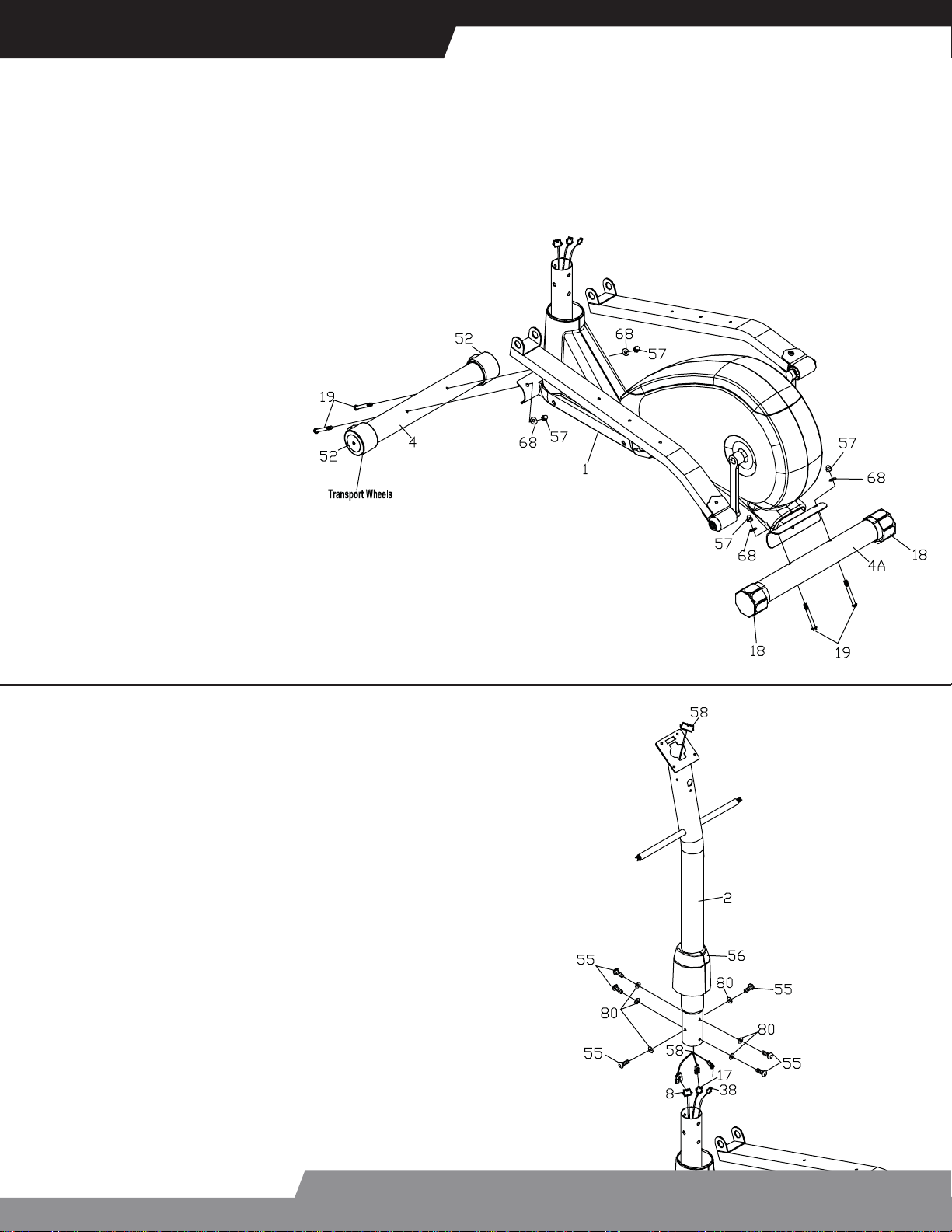

1. Connect Foot Tubes (4&4A) to Main Frame (1) using :
Qty 4 – (19) Hex Head Screw
Qty 4 – (57) 8mm Nut Cap
Qty 4 – (68) M8 Washer
Make sure that the Foot Tube (4&4A) withTransport
Wheels (52) and Foot Caps(18) are assembled to the
front and rear of the Main Frame (1).
2. Connect the pins of Extension Wire(58) in the console
tube to the Sensor Wire (38) ,Gear Box Wire (8),and DC
Power Cord (17) in the main frame.
Then slide the Console Tube (2) onto the
Main FrameAssembly and secure the
Console Tube (2) to the main frame
using Washers(80) and Screws (55).
Call for service 1-800-465-070 www.actionsports.com.au
7

Assembly Instruction
Repeat current step to complete the right side.
Repeat current step to complete the left side assembly.
Call for service 1-800-465-070 www.actionsports.com.au
8

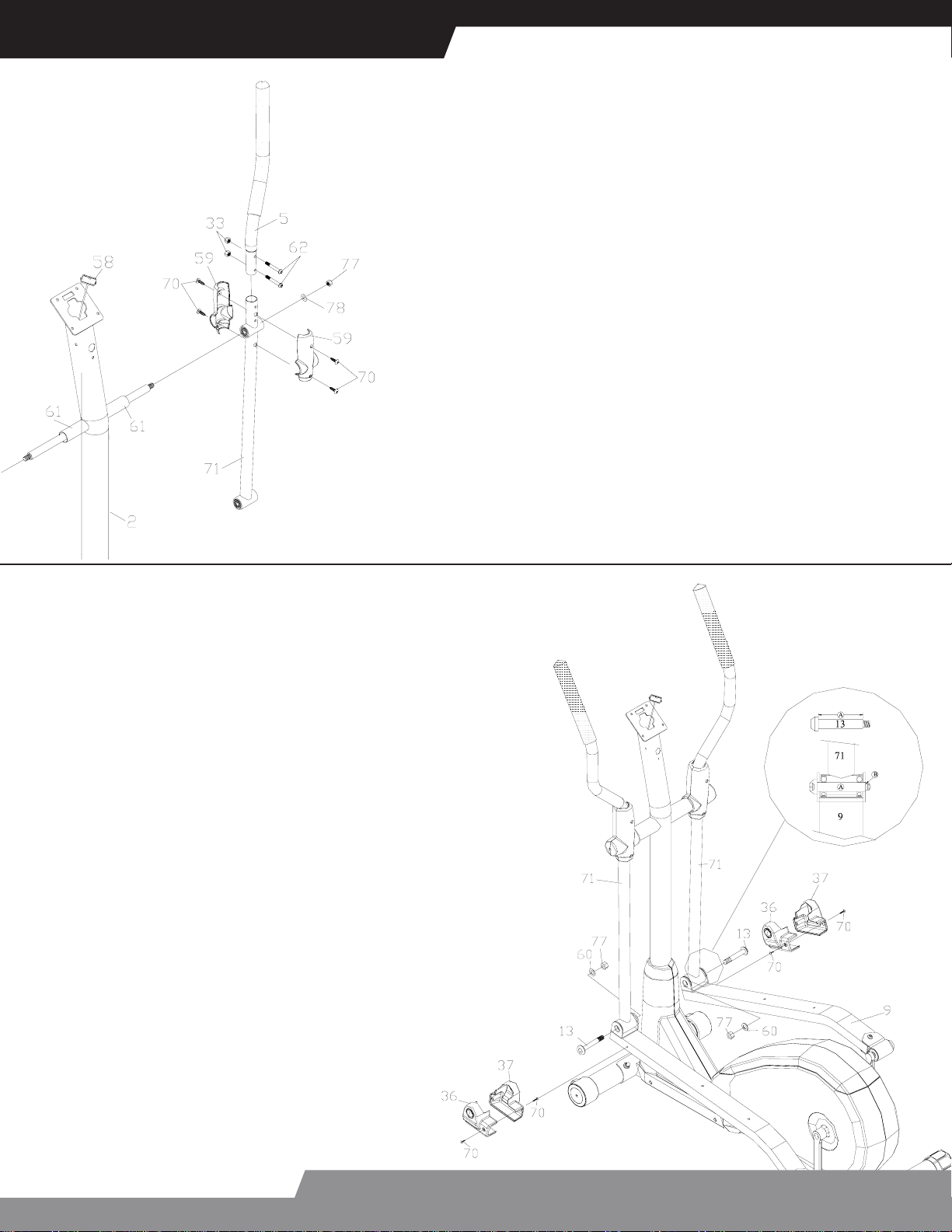

3. Shaft Right Lower Handlebar (71) with Right Pivot of
Console Tube (2) ,then secured by Black Washer (78) and
one Locknut (77).
Slide the Right Upper Foam Handlebar (5) into the Right
Lower Handle (71) and secure with two Hex Head Screws
(62) and two 6mm Nylon Nuts (33) .
Cover the Joint of Upper and Lower Handlebar with Foam
Handle Shaft Covers (59) and securing with four Screws (70)
(as shown in the diagram)
4. Connect Right Lower Handlebar (71) to Right Foot Frame
(9) by using one Hex Head Screw (13), one Washer (60), and
one Locknut (77).
Cover the joint of Right Lower Handlebar(71) and Right Foot
Frame (9) with Foot Frame Side Covers (36 & 37) and secure
with two Screws (70) as shown in diagram.

Assembly Instruction
5. Attach Right Foot Pedal (31) to Right Foot Frame (9)
using two Screws (63) and two8mm Locknuts (72).
Repeat current to complete the left side assembly.
6. Pull both Pulse Wires (64) through a hole at the top
front of Console Tube (2). Next, secure Pulse
Handlebar (10) to Console Tube (2) using three Wash-
ers (68) and three Hex Head Screws (67).
Note: Be sure not to pinch the wires between Pulse
Handlebar (10) and Console Tube (2).
Call for service 1-800-465-070 www.actionsports.com.au
9

7. To change KM or ML, please push the switch to select scale (KM or ML)
8. Connect the Pulse Wires (64) and Extension Wire (58) to the wires from the Monitor (15).
Next secure Monitor (15) to Console Tube (2) using two Screws (39).
Note: The Screws(39) will already be installed into the back of Monitor(15) when you remove
it from the box.
Assembly Instruction
Call for service 1-800-465-070 www.actionsports.com.au
10

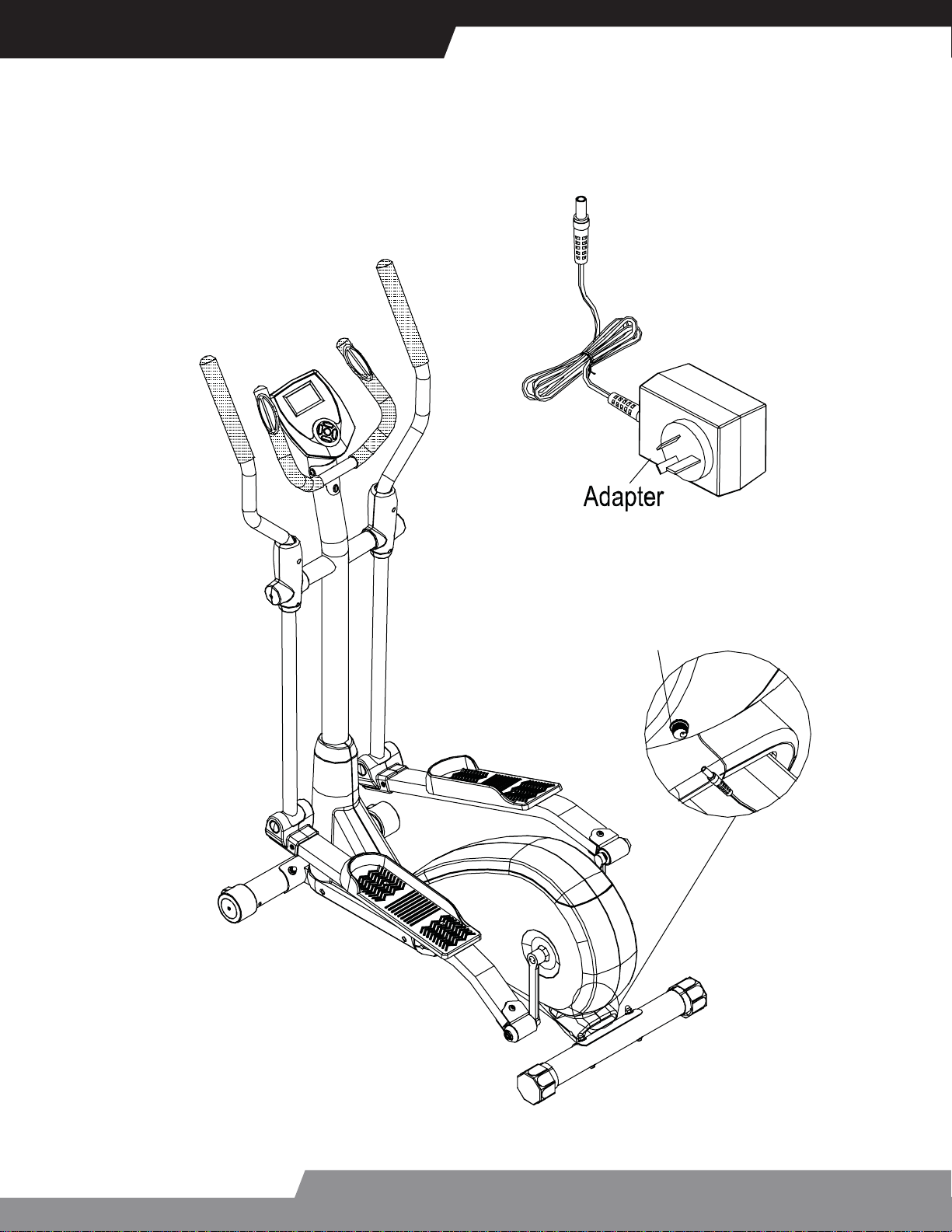

9. The monitor only can be powered by using the AC Adaptor input, pls make sure the AC Adaptor has
already been plugged into the adaptor jack on the bottom housing(as showed on the drawing)
Assembly Instruction
Adapter jack
Call for service 1-800-465-070 www.actionsports.com.au
11

Console
The console with large LCD which can display RPM,
SPEED, TIME, DISTANCE, CALORIES, WATTS, and
HEARTRATE.
___________
Power On
Press any button to turn on the console.Along beep will
sound and the entire LCD display will light up for 2 seconds.
Sleep
This occurs if the unit senses no pedal movement or if the
console buttons have not been pressed for 3 minutes
Wake
After the console enters sleep mode, press any button to
turn on the console back on.
____________
Quick start
When console is on, press QUICK START to enter manual program (P1), press UP/DOWN to adjust tension
____________
Program Operation
Press any button to turn on the console.
Use UP/DOWN to select a desired program.
Press MODE to confirm the program you wish to use.
Programs 1-10: These programs allow you to adjust your desired settings.
press the START to begin your workout.
Program 11: This program allows you to set your target heart rate (THR).
During the setup mode for P11, the Pulse window will flash. Use UP/DOWN to set your desired
THR. You will be asked to set an upper and lower limit. Press MODE to confirm the values then
press the START to begin. During the workout, resistance will decrease if your heart rate exceeds
the upper limit, resistance will increase if your heart rate drops below the upper limit.You must
hold the pulse grips for this program to work.
See MONITORINGYOUR HEART RATE section for more information.
____________
Recovery
This mode is used to determine your physical condition. This fitness test compares your pulse rate
before and after training. You will notice that your fitness will improve with regular exercise.
Stop exercising, press RECOVERYbutton. The Time window will begin to count down 60 seconds.
Hold onto the pulse grips until the 60 seconds has expired. Your score will be displayed in a value
ranging from displayed as F1 to F6, F1 being the best.
Call for service 1-800-465-070 www.actionsports.com.au
12

Monitoring Your Heart Rate
To obtain the greatest cardiovascular benefits from your exercise workout, it is important to work
within your target heart rate zone. TheAmerican Heart Association (AHA) defines this target as
60%-75% percent of your maximum heart rate.
Your maximum heart rate may be roughly calculated by subtracting your age from 220. Your maxi-
mum heart rate and aerobic capacity naturally decreases as you age. This may vary from one
person to another, but use this number to find your approximate effective target zone. For example,
the maximum heart rate for an average 40 year-old is 180 bpm. The target heart rate zone is 60%-
75% of 180 or 108-135 bpm.
Before beginning your workout, check your normal resting heart rate. Place your fingers lightly
against your neck, or against your wrist over the main artery. After finding your pulse, count the
number of beats in 10 seconds. Multiply the number of beats by six to determine your pulse rate per
minute. We recommend taking your heart rate at these times; at rest, after warming up, during your
workout and two minutes into your cool down, to accurately track your progress as it relates to
better fitness.
During your first several months of exercising, the AHA recommends aiming for the lower part of the
target heart rate zone-60%, then gradually progressing up to 75%. According to the AHA, exercising
above 75% of your maximum heart rate may be too strenuous unless you are in top physical condi-
tion. Exercising below 60% of your maximum will result in minimal cardiovascular conditioning.
Check your pulse recovery rate – If your pulse is over 100 bpm five minutes after you stop exercis-
ing, or if it’s higher than normal the morning after exercising, your exertion may have been too
strenuous for your current fitness level. Rest and reduce the intensity next time.
The target heart rate chart indicates average rate zones for different ages.A variety of different
factors (including medication, emotional state, temperature and other conditions) can affect the
target heart rate zone that is best for you. Your physician or health care professional can help you
determine the exercise intensity that is appropriate for your age and condition
(MHR) = Maximum Heart Rate
(THR) = Target Heart Rate
220 - age = maximum heart rate (MHZ)
MHZ x .60 = 60% of your maximum heart rate.
MHZ x .75 = 75% of your maximum heart rate.
For example, if you are 30 years old, your calculations will be as follows:
220 - 30 = 190
190 x .60 = 114 (low end or 60% of MHZ)
190 x .75 = 142 (high end or 75% of MHZ)
30 year-old (THR) Target Heart Rate would be 114-142
See Heart Rate Table (on next page) for additional calculations.
Call for service 1-800-465-070 www.actionsports.com.au
13

Monitoring Your Heart Rate
Call for service 1-800-465-070 www.actionsports.com.au
14

Warranty / Service
IMPORTANT
Please read and retain this manual as it will assist with identification for parts and service.
LIMITED WARRANTY
ACTION FITNESS warrants its F000068 (X135B) Mag Elliptical to be free from defects in material and work-
manship under normal use and service conditions for a period of 12 months from the date of purchase
of this article. Evidence of unfair usage or incorrect adjustment by the owner will void this promise.
All warranty coverage extends only to the original retail purchaser from the date of purchase. ACTION
FITNESS obligation under this Warranty is limited to replacing or repairing the product, at the discretion
of our authorised service centre. Any enquiries relating to warranties or spare parts must first be directed
to our Freecall 1800 465 070 who will then assist you in the appropriate action to be taken. For efficient
processing of your enquiry please have proof of purchase, retailer name you purchased the item from
and the brand on the product.
This warranty does not extend to any damage to a product caused by abuse, improper or abnormal
usage, or repairs not provided by ACTION. Nor does this warranty extend to products used for commer-
cial or rental purposes.This warranty does not cover ordinary wear, tear and weathering, failure to follow
directions, improper installation, improper maintenance or acts of God (such as damage caused by
storms, lightning and by snow or ice). No other Warranty beyond that specifically set forth above is
authorised by ACTION.
Our sales and service centre has been set up to provide assembly assistance, replacement parts and
accessories, and to efficiently handle all warranty related matters.
Freecall 1800 465 070
Hours 9:00am – 4:30pm Monday to Friday (excluding Public Holidays)
9:00am – 3:00pm Saturday
Website: www.actionsports.com.au
Call for service 1-800-465-070 www.actionsports.com.au
15
