Epic Fitness El 1710 Elliptical User manual

Serial Number
Decal
USERʼS MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. EPEL18011.0
Serial No.
Write the serial number in the
space above for reference.
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-866-997-6999
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.iconservice.com

TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
THECHESTHEARTRATEMONITOR ........................................................12
HOWTOUSETHEELLIPTICAL .............................................................13
FCCINFORMATION.......................................................................19
MAINTENANCEANDTROUBLESHOOTING ...................................................20
EXERCISEGUIDELINES ...................................................................22
PARTLIST ..............................................................................23
EXPLODEDDRAWING ....................................................................25
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY ..............................................................BackCover
WARNING DECAL PLACEMENT
2
!
This drawing shows the loca-
tion(s) of the warning decal(s).
If a decal is missing or illegi-
ble, see the front cover of
this manual and request a
free replacement decal. Apply
the decal in the location
shown. Note: The decal(s) may
not be shown at actual size. (inside the frame covers)

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use
of this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from
moisture and dust. Do not put the elliptical
in a garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front
and rear of the elliptical and 2 ft. (0.6 m) on
each side. To protect the floor or carpet from
damage, place a mat under the elliptical.
7. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
9. The elliptical should not be used by persons
weighing more than 325 lbs. (147 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The heart rate monitor is not a medical
device. Various factors may affect the
accuracy of heart rate readings. The heart
rate monitor is intended only as an exercise
aid in determining heart rate trends in
general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
14. Keep your back straight while using the
elliptical; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.

4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary EPIC™ EL
1710 elliptical. The EL 1710 elliptical provides an
impressive selection of features designed to make
your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Heart Rate Monitor
Ramp Controls
Ramp
Upper Body Arm
Pedal Disc
Power
Switch
Access Cover Wheel
Pedal Arm Latch
Latch Button
Power Cord
Pedal
Water Bottle Holder*
Console
Handle
Leveling Foot
Resistance Controls
Fan
*Water bottle is not included
Length: 6 ft. 10 in. (208 cm)
Width: 2 ft. 3 in. (69 cm)
Weight: 214 lbs. (97 kg)

ASSEMBLY
To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
5
M8 Split
Washer (103)–4 M8 Washer
(95)–8
M6 Washer
(112)–8
M4 x 16mm
Screw (106)–8
M8 x 16mm
Screw (102)–16
M8 x 25mm
Screw (121)–2
M6 x 50mm
Screw (62)–4
M10 x 95mm Screw (100)–4
Wave Washer
(118)–2
M6 x 12mm
Screw (111)–4

6
1.
Have a second person hold the Folding Frame
(2) to prevent the elliptical from tipping until this
step is completed.
Attach the Rear Stabilizer (4) to the Folding
Frame (2) with two M10 x 95mm Screws (100).
Next, hold the handle on the Rear Stabilizer (4),
press the Latch Button (67), and unfold the
elliptical so that the Rear Stabilizer is resting on
the floor.
1
2. Orient the Front Stabilizer (3) so that the small
welded tubes are facing away from the Main
Frame (1).
Attach the Front Stabilizer (3) to the Main Frame
(1) with two M10 x 95mm Screws (100).
2
100
Handle
Welded
Tubes
67
3
1
4
2
To make assembly easier, read the
information on page 5 before you begin.
100

7
4. Apply a generous amount of the included
grease to the Upright Axle (48) and to two
Wave Washers (118).
Tip: Avoid damaging the Wire Harness (60).
Insert the Upright Axle (48) through the Upright
(5) and center it. Slide a Wave Washer (118)
onto each side of the Upright Axle.
Next, identify the Right and Left Upper Body
Legs (6, 7), which are marked with “Right” and
“Left” stickers, and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto the right and left sides of the Upright Axle
(48).
Tighten an M8 x 16mm Screw (102) and an M8
Washer (95) into each end of the Upright Axle
(48).
4
Avoid damaging the
Wire Harness (60)
3. Orient the Upright (5) and the Top Cover (27) as
shown, and slide the Top Cover upward onto
the Upright.
Have a second person hold the Upright (5) and
the Top Cover (27) near the Main Frame (1).
Locate the wire tie in the Upright (5). Tie the
lower end of the wire tie to the Wire Harness
(60). Next, pull the upper end of the wire tie
until the Wire Harness is routed through the
Upright.
Tip: To prevent the Wire Harness (60) from
falling into the Upright (5), secure the Wire
Harness with the wire tie.
Tip: Avoid pinching the Wire Harness (60).
Slide the Upright (5) onto the Main Frame (1).
Attach the Upright (5) with four M8 x 16mm
Screws (102) and four M8 Split Washers (103);
do not tighten the Screws yet.
Slide the Top Cover (27) downward; do not
press the Top Cover onto the Frame Covers
(21, 22) yet.
3Wire Tie
Wire Tie
Grease
5
27
60
21
22
95
1
5
7
103
103
102
102
102
95
102
118
102
48
60
6
118
Avoid pinching the
Wire Harness (60)

8
6b
6a
6. See drawing 6a. Locate the Pedal Arm Roller
(32) on the Right Pedal Arm (12). Set the Pedal
Arm Roller on the Ramp (130).
See drawing 6b. Apply grease to the axle on
the right Crank Arm (39).
Orient a Pedal Arm Sleeve (46) so that the flat
side is facing the elliptical. Slide the Pedal Arm
Sleeve onto the axle on the right Crank Arm
(39). Attach the Pedal Arm Sleeve with an M8 x
25mm Screw (121), a Large Axle Cover (113),
and an M8 Washer (95).
Next, pull upward on the Latch (50) on the Right
Pedal Arm (12). Press the Right Pedal Arm onto
the Pedal Arm Sleeve (46). Make sure that the
Right Pedal Arm latches into place.
Repeat this step on the other side of the
elliptical.
32
12
95
46
Flat
Side
12
130
39
Grease
50
121
5
14
12
112
112
62
62
55
111 111
5. Identify the Right Pedal (14), the Right Gel Pad
(55), and the Right Pedal Arm (12), which are
marked with “Right” stickers, and orient them as
shown.
Set the Right Gel Pad (55) on the Right Pedal
Arm (12). Then, set the Right Pedal (14) on the
Right Gel Pad.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with two M6 x 50mm Screws (62), two
M6 x 12mm Screws (111), and four M6
Washers (112).
Attach the Left Pedal (not shown) and the
Left Gel Pad (not shown) to the Left Pedal
Arm (not shown) in the same way.
113

9
8. Identify the Right Link Arm (43), which is
marked with an “R” sticker. Orient the Right Link
Arm as shown.
Apply grease to the axle on the Right Pedal
Arm (12). Slide the Right Link Arm (43) onto the
axle.
Attach the Right Link Arm (43) with an M8 x
16mm Screw (102), a Small Axle Cover (56),
and an M8 Washer (95).
Next, apply grease to a Link Arm Axle (114).
Insert the Link Arm Axle into the Right Upper
Body Leg (6) and the Right Link Arm (43) from
the side shown.
Insert a hex key into the M8 x 16mm Screw
(102) in the Link Arm Axle (114). Using a second
hex key, tighten another M8 x 16mm Screw
(102), a Small Axle Cover (56), and an M8
Washer (95) into the other end of the Link Arm
Axle.
Repeat this step on the other side of the
elliptical.
95
95
56
56
6
114
102
102
Grease
Narrow
Tube
Wide
Tube
12
43
102
Grease
7
7. Press the Ramp Cover (131) downward onto
the Ramp (130).
131
130
8

10
10. Untie and discard the wire ties on the wires in
the Upright (5).
Have a second person hold the Console (33)
near the Upright (5).
Connect the wires on the Console (33) to the
Pulse Wire (105), the Wire Harness (60), and
the Grip Wires (45, 104). Make sure to con-
nect the console wire that has a tag to the
Grip Wire that has a tag.
Insert the Pulse Wire (105) upward into the
Console (33). Insert the other wires downward
into the Upright (5).
Tip: Avoid pinching the wires. Attach the
Console (33) to the Upright (5) with four M4 x
16mm Screws (106).
See step 3. Tighten the four M8 x 16mm
Screws (102). Then, slide the Top Cover (27)
downward and press it onto the Frame Covers
(21, 22).
10
33
60
5
105
104 106
Avoid pinching
the wires
9. Identify the Right Upper Body Arm (8), which is
marked with a “Right” sticker, and orient it as
shown.
Have a second person hold the Right Upper
Body Arm (8) near the Right Upper Body Leg
(6).
Locate the wire tie in the right side of the
Upright (5). Tie the wire tie to the Right Grip
Wire (45). Pull the upper end of the wire tie until
the Right Grip Wire is routed through the
Upright.
Tip: To prevent the Right Grip Wire (45) from
falling into the Upright (5), secure the Right
Grip Wire with the wire tie.
Tip: Avoid pinching Right Grip Wire (45).
Attach the Right Upper Body Arm (8) to the
Right Upper Body Leg (6) with three M8 x
16mm Screws (102).
Attach the Left Upper Body Arm (9) to the
Left Upper Body Leg (7) in the same way.
9
9
7
5
6
45
8
102
102
Wire Tie
Avoid pinching the
Right Grip Wire (45)
45

11
12. Attach the Rear Upright Cover (25) around the
Upright (5) by pressing the tabs on the Rear
Upright Cover into the Front Upright Cover (24).
24
25
5
12
13. Make sure that all parts of the elliptical are properly tightened. Note: Some hardware may be left over
after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical.
11. Attach the Front Upright Cover (24) to the
Upright (5) with four M4 x 16mm Screws (106).
24
106
11
5

12
HOW TO PUT ON THE HEART RATE MONITOR
The heart rate
monitor consists of
achest strap and a
sensor. Insert the
tab on one end of
the chest strap into
the hole in one end
of the sensor as
shown. Then, press
the end of the sen-
sor under the buckle
on the chest strap.
The tab should be
flush with the front
of the sensor.
The heart rate moni-
tor must be worn
under your clothes,
tight against your
skin. Wrap the heart
rate monitor around
your chest in the
location shown.
Make sure that the
logo is right-side-up.
Then, attach the other end of the chest strap to the
sensor. Adjust the length of the chest strap, if neces-
sary.
Pull the sensor away from your body a few inches and
locate the two electrode areas, which are covered by
shallow ridges. Using saline solution such as saliva or
contact lens solution, wet the electrode areas. Then,
return the sensor to a position against your chest.
CARE AND MAINTENANCE
• Thoroughly dry the sensor with a soft towel after
each use. Moisture may keep the sensor activated,
shortening the life of the battery.
• Store the heart rate monitor in a warm, dry place.
Do not store the heart rate monitor in a plastic bag
or other container that may trap moisture.
•Do not expose the heart rate monitor to direct
sunlight for extended periods of time; do not expose
it to temperatures above 122° F (50° C) or below
14° F (-10° C).
• Do not excessively bend or stretch the sensor when
using or storing the heart rate monitor.
• To clean the sensor, use a damp cloth and a small
amount of mild soap. Then, wipe the sensor with a
damp cloth and thoroughly dry it with a soft towel.
Never use alcohol, abrasives, or chemicals to clean
the sensor. Hand wash and air dry the chest strap.
TROUBLESHOOTING
If the heart rate monitor does not function properly, try
the steps below.
• Make sure that you are wearing the heart rate moni-
tor as described at the left. If the heart rate monitor
does not function when positioned as described,
move it slightly lower or higher on your chest.
• If heart rate readings are not displayed until you
begin perspiring, rewet the electrode areas.
• For the console to display heart rate readings, you
must be within armʼs length of the console.
• If there is a battery cover on the back of the sensor,
replace the battery with a new battery of the same
type.
• The heart rate monitor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical
conditions such as premature ventricular contrac-
tions (pvcs), tachycardia bursts, and arrhythmia.
• The operation of the heart rate monitor can be
affected by magnetic interference from high power
lines or other sources. If you suspect that magnetic
interference is causing a problem, try relocating the
fitness equipment.

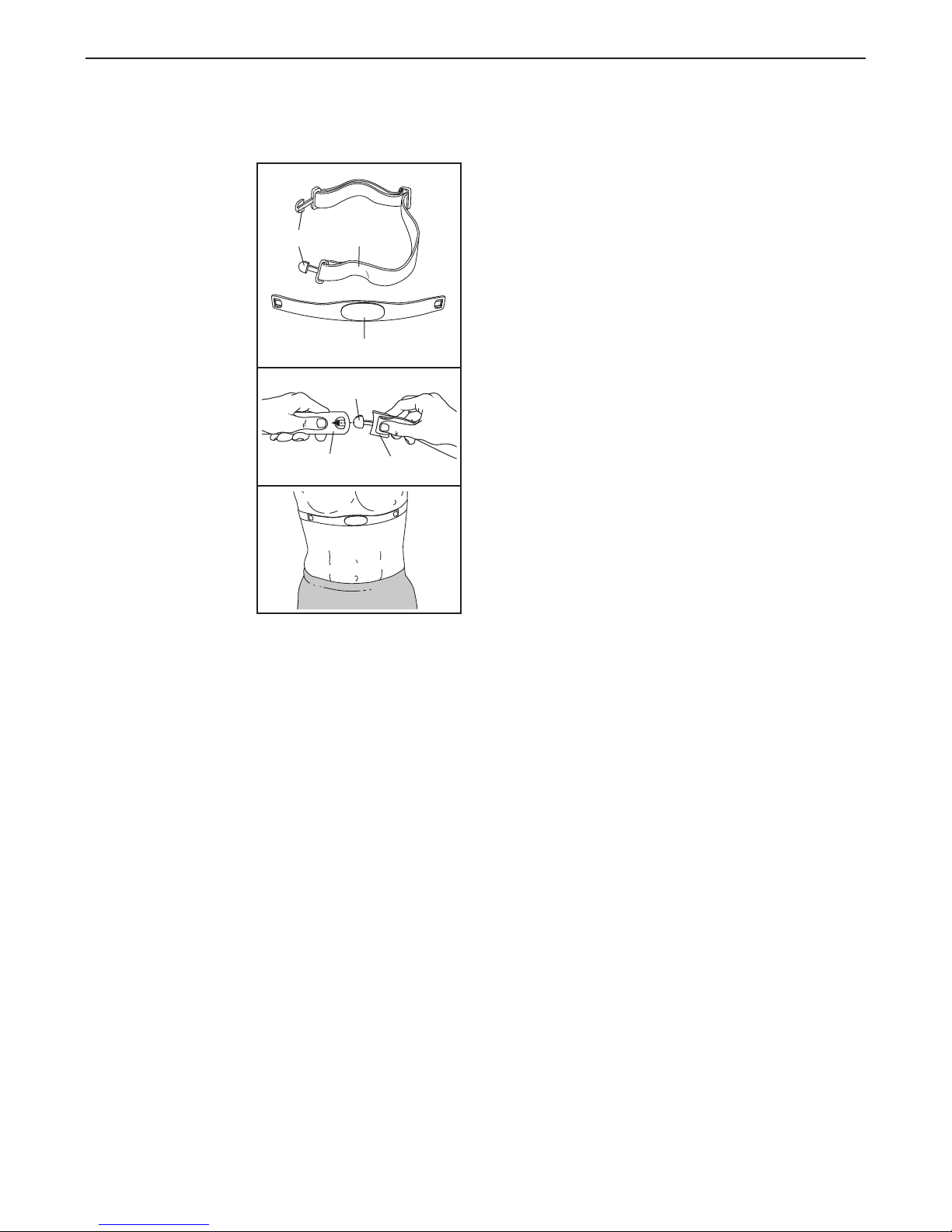

THE CHEST HEART RATE MONITOR
Tab
Sensor Buckle
Chest
Strap
Tabs
Sensor

13
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a
grounding plug. Plug the power cord into an appro-
priate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances. This product is for use on a nominal
120-volt circuit. IMPORTANT: The elliptical is not
compatible with GFCI-equipped outlets and may
not be compatible with AFCI-equipped outlets.
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle as
shown at the
right if a
properly
grounded
outlet is not
available. The temporary adapter should be used only
until a properly grounded outlet can be installed by a
qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in
place by a metal screw. Some 2-pole receptacle out-
let box covers are not grounded. Contact a
qualified electrician to determine if the outlet box
cover is grounded before using an adapter.
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
When the elliptical is not in use, the frame can be
folded out of the way. First, lift the latch under each
pedal arm, and lift the pedal arms off the pedal arm
sleeves.
Next, raise the pedal arms until they touch the handle-
bars; magnets on the pedal arms will hold the pedal
arms in place. Then, hold the handle and lift the frame
until it locks into a vertical position.
To unfold the elliptical, first hold the handle, press the
latch button, and lower the frame. Next, pull the pedal
arms away from the handlebars.
Then, lift the latches under the pedal arms, and set
the pedal arms on the pedal arm sleeves. Release the
latches, and make sure that the pedal arms are
securely connected to the pedal arm sleeves.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet installed
by a qualified electrician.
Grounded Outlet Box
Adapter
Lug
Metal Screw
Power Cord
HOW TO USE THE ELLIPTICAL
Latches
Handle
Sleeve
Pedal Arms
Latch Button
Handlebars

14
HOW TO MOVE THE ELLIPTICAL
To move the elliptical, first fold it as described on page
13. Next, stand in front of the elliptical, hold the
upright, and place one foot against one of the wheels.
Pull the upright until the elliptical rolls on the wheels.
Carefully move the elliptical to the desired position,
and then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly on
your floor during
use, turn one or
both of the level-
ing feet beneath
the rear stabilizer
until the rocking
motion is elimi-
nated.
If the frame of the elliptical flexes during use, turn the
center leveling foot until the flexing motion is elimi-
nated.
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the upper body arms or
the handlebars and step onto the pedal that is in the
lowest position. Next, step onto the other pedal. Push
the pedals until they begin to move with a continuous
motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow; however, for
variety you can turn the crank arms in the oppo-
site direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a freewheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
Pull on
the upright
Place
your foot
here
Leveling
Feet
Upper Body Arms
Handlebars
Pedals
Crank Arm

15
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the
incline of the ramp with the touch of a button. While
you exercise, the console will display continuous exer-
cise feedback. The console will even display your
heart rate when you use the handgrip heart rate moni-
tor or the chest heart rate monitor.
The console also offers twenty preset workouts—ten
target toning workouts and ten performance workouts.
Each workout automatically changes the resistance of
the pedals and the incline of the ramp and prompts
you to vary your pedaling pace as it guides you
through an effective workout.
The console also features an iFit training mode that
allows your console to communicate with your wire-
less network through an optional iFit Live module.
With the iFit Live mode, you can download personal-
ized workouts, create your own workouts, track your
workout results, and access many other features. See
www.iFit.com for complete information. To pur-
chase an iFit Live module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To turn on the power, see page 16. To use the
manual mode, see page 16. To use a preset work-
out, see page 18. To use the iFit training mode, see
page 19. To use the sound system, see page 19. To
use the information mode, see page 19.
Note: If there is a sheet of plastic on the display,
remove the plastic.
CONSOLE DIAGRAM

16
HOW TO TURN ON THE POWER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE
POWER CORD on page
13). Next, locate the power
switch on the frame near
the power cord. Make sure
that the power switch is in
the reset position.
The display will then light and the console will be
ready for use.
Note: When you turn on the power for the first
time, the ramp will calibrate automatically. The
ramp will move upward and downward as it calibrates.
When the ramp stops moving, the ramp is calibrated.
IMPORTANT: If the ramp does not calibrate auto-
matically, see HOW TO CALIBRATE THE RAMP on
page 20 and manually calibrate the ramp.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER above.
2. Select the manual mode.
Each time you turn on the console, the main menu
will appear.
To select the manual
mode, press the
Increase and Decrease
buttons next to the
Enter button and high-
light START. Then,
press the Enter button.
If you have selected a workout or the iFit Training
mode, press the Menu button to return to the main
menu.
3. Change the resistance of the pedals and the
incline of the ramp as desired.
As you pedal, change the resistance of the pedals
by pressing one of the numbered Resistance but-
tons or by pressing the Resistance Increase and
Decrease buttons located on the console or on the
right upper body arm.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resis-
tance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press one of the numbered Ramp buttons or press
the Ramp Increase and Decrease buttons located
on the console or on the left upper body arm.
Note: After you press the buttons, it will take a
moment for the ramp to reach the selected incline
level.
4. Follow your progress with the display.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown. Press the Display
button repeatedly to select the desired display
mode.
The display can show the following workout
information:
Calories—This display mode will show the
approximate number of calories you have burned.
Profile—When a workout is selected, this display
mode will show a profile of the resistance levels of
the workout.
Pulse—This display mode will show your heart
rate when you use the handgrip heart rate monitor
or the chest heart rate monitor (see step 5 on
page 17).
Ramp—This display mode will show the incline
level of the ramp for a few seconds each time the
incline level changes.
Reset
Position

17
Resistance—This display mode will show the
resistance level of the pedals for a few seconds
each time the resistance level changes.
RPM—This display mode will show your pedaling
pace, in revolutions per minute (rpm).
Strides—This display mode will show the total
number of strides you have pedaled.
Time—When the manual mode is selected, this
display mode will show the elapsed time. When a
workout is selected, the display mode will show
the time remaining in the workout instead of the
elapsed time.
Change the volume
level of the console by
pressing the Volume
Increase and Decrease
buttons.
5. Measure your heart rate if desired.
To use the included chest heart rate monitor, see
page 12. To use the handgrip heart rate monitor,
follow the instructions below. IMPORTANT: If you
use both heart rate monitors at the same time,
the console will not display your heart rate
accurately.
If there are sheets
of plastic on the
metal contacts on
the handgrip heart
rate monitor,
remove the plastic.
To measure your
heart rate, hold the
handgrip heart rate
monitor with your
palms resting against
the metal contacts. Avoid moving your hands or
gripping the contacts tightly.
When your pulse is detected, your heart rate will
appear in the display. For the most accurate heart
rate reading, hold the contacts for at least 15 sec-
onds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. Turn on the fan if desired.
The fan has high and
low speed settings.
Press the Fan button
repeatedly to select a
fan speed or to turn off
the fan.
7. When you are finished exercising, unplug the
power cord.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
When you are finished exercising, switch the
power switch to the off position and unplug the
power cord. IMPORTANT: If you do not do this,
the electrical components on the elliptical may
wear prematurely.
Contacts

18
HOW TO USE A PRESET WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on page
16.
2. Select a preset workout.
If you have selected a workout or the iFit Training
mode, press the Menu button to return to the main
menu.
To select a preset work-
out, first press the
Increase and Decrease
buttons next to the
Enter button and high-
light WORKOUTS.
Then, press the Enter
button.
Next, press the Increase and Decrease buttons to
highlight the desired workout category. Then,
press the Enter button. You can also press the
Target Toning Workouts button or the Performance
Workouts button.
Press the Increase and Decrease buttons to high-
light the name of the desired workout. The
duration of the workout, the maximum rpm (pedal-
ing pace), the maximum resistance level, the
maximum ramp level, and a profile of the resis-
tance levels of the workout will appear in the right
side of the display. Then, press the Enter button.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute seg-
ments. One resistance level, one ramp incline, and
one target rpm (pedaling pace) are programmed
for each segment. Note: The same resistance
level, ramp incline, and/or target rpm may be pro-
grammed for consecutive segments.
The workout profile will
show your progress.
The flashing segment
of the profile represents
the current segment of
the workout. The height
of the flashing segment
indicates the resistance level for the current seg-
ment.
When the first segment of the workout ends, the
resistance level, ramp incline, and the target rpm
for the second segment will appear in the display
for a few seconds to alert you. The next segment
of the profile will begin to flash, and the pedals will
automatically adjust to the resistance level and the
ramp incline for the next segment.
As you exercise, you will be prompted to keep
your pedaling pace (rpm) near the target rpm for
the current segment. When the word FASTER
appears in the display, increase your pedaling
pace. When the word SLOWER appears,
decrease your pedaling pace. When no words
appear, maintain your current pedaling pace.
IMPORTANT: The target rpm is intended only to
provide motivation. Your actual pedaling pace
(rpm) may be slower than the target rpm. Make
sure to pedal at a pace that is comfortable for
you.
If the resistance level or the ramp incline for the
current segment is too high or too low, you can
manually override the setting by pressing the
Resistance buttons or the Ramp buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level or the ramp
incline for the next segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. A tone will sound and the time will
begin to flash in the display. To restart the workout,
simply resume pedaling.
4. Follow your progress with the display.
See step 4 on page 16.
5. Measure your heart rate if desired.
See step 5 on page 17.
6. Turn on the fan if desired.
See step 6 on page 17.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 17.
Current Segment

19
HOW TO USE THE IFIT TRAINING MODE
The optional iFit Live module allows the console to
communicate with your wireless network and unlocks
exciting new features: download personalized work-
outs, create your own workouts, track your workout
results, and access many other features on the iFit
Live website. To purchase an iFit Live module at
any time, go to www.iFit.com or call the telephone
number on the front cover of this manual.
Note: To use the iFit Live module, you must have
access to a computer with an internet connection and
a USB port. You must also have your own wireless
network including an 802.11b router with SSID broad-
cast enabled (hidden networks are not supported). In
addition, you must have an iFit.com membership.
To select the iFit training mode, an iFit Live module
must be inserted in the console. Press the Menu but-
ton and then press the Increase and Decrease buttons
next to the Enter button and highlight IFIT TRAINING.
Then, press the Enter button. For more information
about the iFit training mode, go to www.iFit.com.
IMPORTANT: To satisfy exposure compliance
requirements, the antenna and transmitter in the
iFit Live module must be at least 8 in. (20 cm) from
all persons and must not be near or connected to
any other antenna or transmitter.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug the included
audio cable into the jack on the side of the console
and into a jack on your MP3 player or CD player;
make sure that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume con-
trol on your MP3 player or CD player or press the
Volume Increase and Decrease buttons on the console.
HOW TO USE THE INFORMATION MODE
The console features an information mode that allows
you to view usage information and to adjust the con-
trast level of the displays.
To select the information mode, press and hold down
the Display button for a few seconds until the informa-
tion mode appears in the display.
The display will show the
total number (in thousands)
of strides that have been
pedaled on the elliptical.
The display will also show
the total number of hours
that the elliptical has been
used.
The currently selected contrast level will also appear
in the display. Press the Increase and Decrease but-
tons next to the Enter button repeatedly to select the
desired contrast level.
Press the Display button to save the contrast level set-
ting and exit the information mode.
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from the circuit to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user's authority to operate this equipment.

20
Inspect and tighten all parts of the elliptical regularly.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damag-
ing the console, keep liquids away from the
console and keep the console out of direct sun-
light.
CONSOLE TROUBLESHOOTING
If the console does not turn on, make sure that the
power cord is fully plugged in. If lines appear in the
console display, see HOW TO USE THE INFORMA-
TION MODE on page 19 and adjust the contrast level
of the display.
If the console does not display your heart rate when
you hold the handgrip heart rate monitor, or if the dis-
played heart rate appears to be too high or too low,
see step 5 on page 17.
HOW TO CALIBRATE THE RAMP
If the ramp is not functioning properly, the ramp may
need to be calibrated. To calibrate the ramp, press
and hold the Target Toning Workouts button for sev-
eral seconds until the calibration mode appears in the
display.
Next, press the Target Toning Workouts button once.
The ramp calibration instructions will appear in the dis-
play. Press the Ramp Increase or Decrease button to
calibrate the ramp. The ramp will move upward and
downward as it calibrates.
When the ramp stops moving, the ramp is calibrated.
Then, press the Target Toning Workouts button repeat-
edly to exit the calibration mode.
HOW TO AD UST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
To adjust the reed switch, first unplug the power
cord. Next, lift the Latch (50) underneath the Left
Pedal Arm (13), and lift the Left Pedal Arm off the left
Pedal Arm Sleeve (46).
Next, remove the M8 x 25mm Screw (121), the Large
Axle Cover (113), and the M8 Washer (95) from the
left Pedal Arm Sleeve (46), and slide the Pedal Arm
Sleeve off the elliptical. Then, using a flat screwdriver,
gently pry the left Disc (17) off the elliptical.
MAINTENANCE AND TROUBLESHOOTING
13
50
46
17
95
46
121
113
