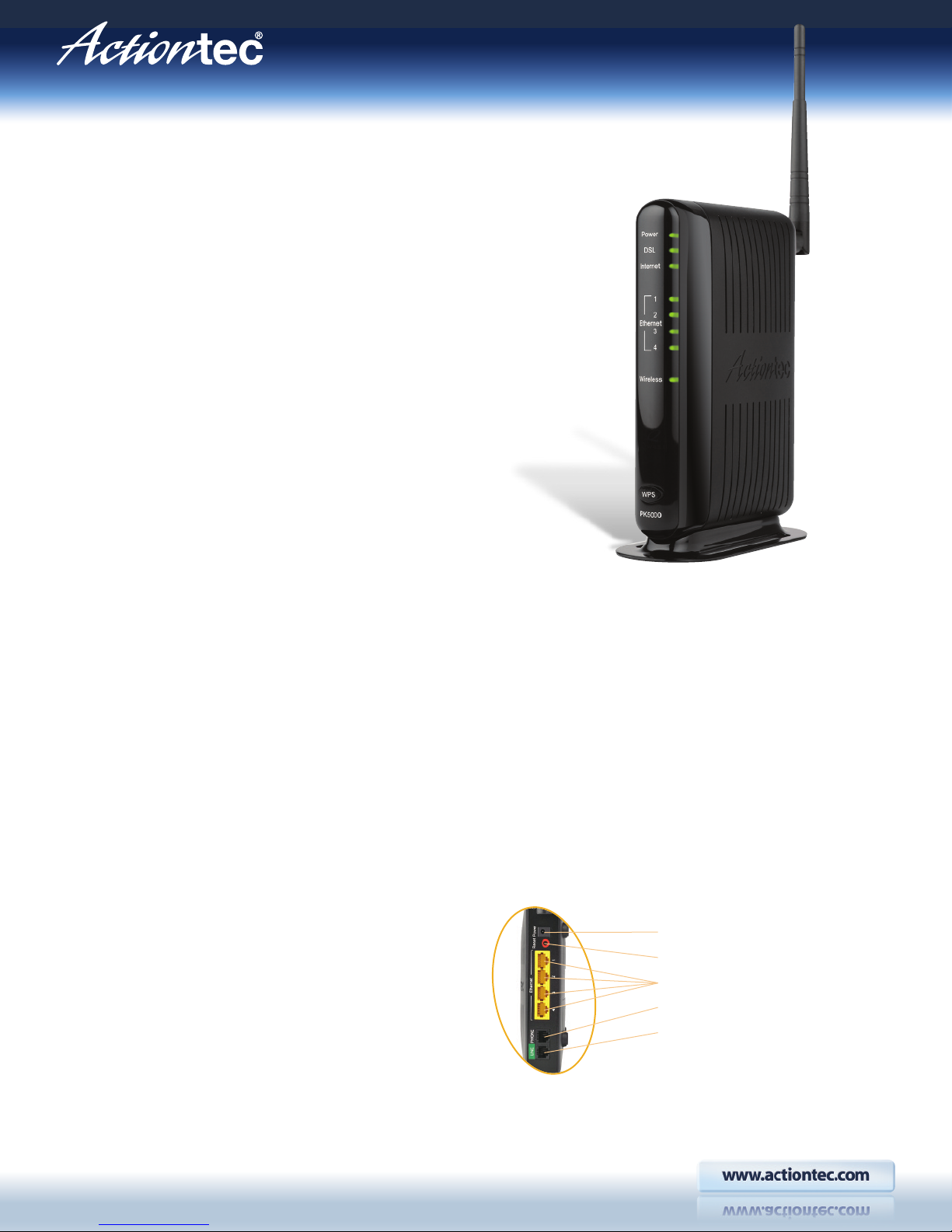

A
ctiontec Electronics, leveraging the experience gained from
shipping over 17.5 million Internet access devices,introduces
a new 802.11g wireless router: the PK5000 DSL Modem
Router. The PK5000 is a small, fast wireless router with more memory
than previous models and advanced features not often found on
similar products in this category, advantages that will make it a
favorite among discerning DSL Internet Service Providers.
Des gned to Fulf ll the Carr er's Needs,Today and Tomorrow
The PK5000 has been designed from the ground up for compactness
and usability. Since both its footprint and weight have been
decreased compared to earlier models, the shipping costs for DSL
carriers will be lowered considerably. Despite these size and weight
reductions, we've managed to include two antennas (one external,
one internal), dramatically boosting the PK5000's wireless signal.
We've also increased the amount of memory available to 32MB of
flash and 64MB of SDRAM, allowing carriers to add new features in
the future. The PK5000 provides everything a DSL Internet Service
provider needs: power, economy, portability, and scalability. Future-
proof your router needs with the PK5000 DSL Modem Router.
Features
•More memory... 32MB Flash & 64MB SDRAM
•TR069 Remote Management
•TR064 Local Management
•WPS (Wireless Protected Setup)
•Multiple SSID (4)
•WMM (WiFi Multimedia)
•Integrated Wired and Wireless Networking using 802.11g and 4
Port 10/100 Mbps Ethernet Switch
•Two wireless antennas included for maximum coverage
– One internal, One external
•802.11b backward compatible, communicating with 802.11b
wireless products at speeds up to 11 Mbps
•802.11g enabled to support speeds up to 54 Mbps wirelessly
•Full-rate ADSL2+ modem – supports data rates of up to 24 Mbps
downstream and up to 1 Mbps upstream*
•Exceeds performance of the DSL Forum specification
•uaranteed loop reach of up to 18,000 feet using ADSL and
18,600 feet using ADSL2
•Tested and compatible with all major DSLAMs
•Advanced security: WPA, WPA2, WEP, Firewall, Stateful Packet
Inspection, NAT, website blocking, web service blocking, Internet
traffic logging, Denial of Service (DOS) protection
•Other features include:
Ports at Rear of Un t
Model # PK5000
802.11g Wireless
DSL Modem Router
Bit Swapping
DHCP Server Option
Compliant with Broadband
Forum TR-48 Rate and
Reach Requirements
DMZ Hosting
DNS Proxy Server
NAT Services Blocking
Port Forwarding
Real-time diagnostics
Remote Management
Services Blocking
Static Routing
Unnumbered Mode Support
VPN Pass Through
WAN IP & LAN IP Address
Selection
Website Blocking
Power Port
Reset Button
4 Ethernet Ports
Phone Port
Line Port

Creat ve Solut ons for the D g tal L fe™
Techn cal Spec f cat ons
Features
ADSL
ATM
OAM
Wireless
Ethernet
Bridge
IP
A P
ICMP
Descriptions
ITU .992.1 ( .dmt), .992.2 ( .Lite), .994.1
( .hs), .992.3/4 (ADSL2), .992.5 (ADSL2+)
ANSI T1.413 Issue2
ATM User-Network Interface, Version 3.1, Section 3.
The ATM Forum
• The full VPI range (0 – 4095) and VCI range
(1 – 65535) are supported
• Adaptation Layers AAL5, AAL2 and AAL0 are
supported
• The traffic shaping function supports traffic
classes CBR, VBR (real time and non-real time)
and UBR (with PCR limiting)
ITU-T Recommendation I.610 B-ISDN “Operation
and Maintenance Principles and Operations
• F5 segment and end-to-end loopback cells
ISO/IEC 8802-3; ANSI/IEEE standard 802.3 part 3
• IEEE 802.3x – Full Duplex capable
• IEEE 802.3u – Auto negotiation
RFC 1213 "Management Information Base for Network
Management of TCP/IP-based Internet: MIB-II"
D-I-X "The Ethernet - A Local Area Network: Data
Link Layer and Physical Layer Specifications"
Transparent MAC level bridge for Ethernet-like devices
in conformance with the IEEE 802.1d specification
ISO/IEC 10038:1993 (E), Std 802.1D
RFC 1213 "Management Information Base for Network
Management of TCP/IP-based Internet: MIB-II"
RFC 1493 “Definitions of Managed Objects for Bridges”
RFC 791 “Internet Protocol”
RFC 950 “Internet Standard Subnetting Procedure”
RFC 1122 “Requirements for Internet Hosts –
Communication Layers”
RFC 1191 “Path MTU discovery”
RFC 1213 “Management Information Base for Network
Management of TCP/IP-based Internet: MIB-II”
RFC 894 “Standard for the Transmission of IP
Datagrams Over Ethernet Networks”
RFC 826 “Ethernet Address Resolution Protocol: Or
Converting Network Protocol Addresses to 48-bit
Ethernet Address for Transmission on Ethernet
Hardware”
RFC 792 “Internet Control Message Protocol”
UDP
TCP
IP outer
IP
DHCP Server
DHCP Client
NAT, PAT
(IP Masquerading)
NAT ALGs
(Application
Level Gateway)
(NAT Pass Through)
NAT advanced
features
Firewall
Universal
Plug-N-Play
(UPnP)
PPPoA
PPPoE
RFC 768 “User Datagram Protocol”
RFC 793 “Transmission Control Protocol”
Support Static Route
Support Unnumbered Mode
RFC 1058 “Routing Information Protocol”
RFC 1723 “RIP Version 2 - Carrying Additional
Information”
RFC 2453 “RIP Version 2”
RFC 1812 “Requirements for IP Version 4 Routers”
RFC 1191 “Path MTU Discovery”
RFC 2131 “Dynamic Host Configuration Protocol”
RFC 2132 “DHCP Options and BOOTP Vendor
Extensions”
RFC 2131 “Dynamic Host Configuration Protocol”
RFC 2132 “DHCP Options and BOOTP Vendor
Extensions”
The DHCP client supports the following minimal
subset of options described in RFC 2132:
• Requested IP Address (requested by default; is
mandatory)
• Parameter Request list (subnet-mask only)
• IP Address Lease time (dhcp-lease-time)
• Client-identifier (dhcp-client-identifier)
• Default route (routers)
• DNS proxy servers
RFC 2663 “IP Network Address Translator (NAT)
Terminology and Considerations”
RFC 3022 “Traditional IP Network Address
Translator (Traditional NAT)”
FTP (over NATP)
Netmeeting
IPSec
PPTP
Port Forwarding
DMZ
Service Blocking
Web site blocking
Web Activity Log
Stateful Firewall: multiple security levels
Basic IDS: Stateful Packet Inspection for prevention
of Denial of Service (DoS) attacks
Internet ateway Device (I D) Standardized Device
Control Protocol V 1.0
RFC 2364 “PPP Over AAL5”
RFC 2516 “Method for Transmitting PPP Over
Ethernet (PPPoE)”
802.11g W reless DSL Modem Router
IEEE 802.11g
IEEE 802.11b
IEEE 802.1x
WPA/WPA2
WEP 64/128/256 bit
encryption
SSID Broadcast
enable/disable
Multi SSID (4)
WMM
WPS
Auto Channel Selection
MAC Address
Authentication

Creat ve Solut ons for the D g tal L fe™
Techn cal Spec f cat ons (cont’d)
802.11g W reless DSL Modem Router
* Depends on the services offered by the Internet Service Provider.
© 2009 Actiontec Electronics, Inc.
Actiontec, Actiontec Installation Buddy, Connection1-2-3, Creative Solutions for the Digital Life,
Actiontec Digital ear and the Actiontec logo are trademarks or registered trademarks of
Actiontec Electronics, Inc. All other names are properties of their respective owners.
Product photo may differ from actual product, however functionality remains as stated above.
Specifications are subject to change without notice.
M n mum System Requ rements
•
PC or Macintosh with Ethernet or 802.11b/802.11g wireless connection
•Microsoft Windows 98SE, Me, 2000, XP,Vista; Mac OS 9 or higher;
Linux/BSD, Unix
•TCP/IP network protocol installed
•Internet Explorer 5.0+ or Netscape 5.0+
Package Contents
•Actiontec 802.11g Wireless DSL Modem Router
•Ethernet Cable
•Power Cord
•DSL Cable
Note: Customers may request customized self-install kit configuration
Corporate Off ce
760N. Mary Avenue, Sunnyvale, CA 94085
Main: [phone]
Sales Info: [phone]
Fax: [phone]
Tech Support: [phone]
Tech Support Fax: [phone]
Internet: www.actiontec.com
DS992/1208
FC 1483/2684
TELNET
FTP
Server/Client
Web Server
and Web Based
Configuration
Operating ange
Environmental
Operating ange
Power
equirements
Setup and
Management
egulatory
Compliance
Limited
Warranty
Supports bridged 802.3 Ethernet frames over an
ATM network
• LLC encapsulation, in which an LLC/SNAP
header is prepended to the (Ethernet) frame
• VC multiplexing, in which a null two byte header
is prepended to the frame
Default is LLC encapsulation; VC multiplexing can be
configured using console command or WEB configuration
• RFC 1483 “Multiprotocol Encapsulation Over
ATM Adaptation Layer 5”
•
RFC 1213 “Management Information Base for Network
Management of TCP/IP-based Internet: MIB-II”
• RFC 2684 “Multiprotocol Encapsulation Over
ATM Adaptation Layer 5”
RFC 854 “Telnet Protocol Specification”
RFC 855 “Telnet Option Specifications”
RFC 857 “Telnet Echo Option”
RFC 858 “Telnet Suppress o Ahead Option”
RFC 1350 “The TFTP Protocol (Revision 2)”
FTP server is in boot loader only
RFC 1945 “Hypertext Transfer Protocol – HTTP/1.0”
RFC 2068 “Hypertext Transfer Protocol –
HTTP/1.1” (partial support)
RFC 2617 “HTTP Authentication: Basic and Digest
Access Authentication”
Indoors: Up to 13m (40 ft) @ 54 Mbps
Up to 17m (55 ft) @ 18 Mbps
Up to 37m (120 ft) @ 11 Mbps
Up to 91m (300 ft) @ 1 Mbps
Outdoors: Up to 55m (180 ft) @ 54 Mbps
Up to 122m (400 ft) @ 18 Mbps
Up to 171m (560 ft) @ 11 Mbps
Up to 533m (1,750 ft) @ 1 Mbps
Operating Temperature: 0-40 degrees Celsius
Humidity: 8-95% non-condensing
Operating voltage: +12V DC +-5% @ 600mA max
Plug-N-Play Install
Web-based Management
FCC Class C, Part 15 & Part 68
UL
One Year
