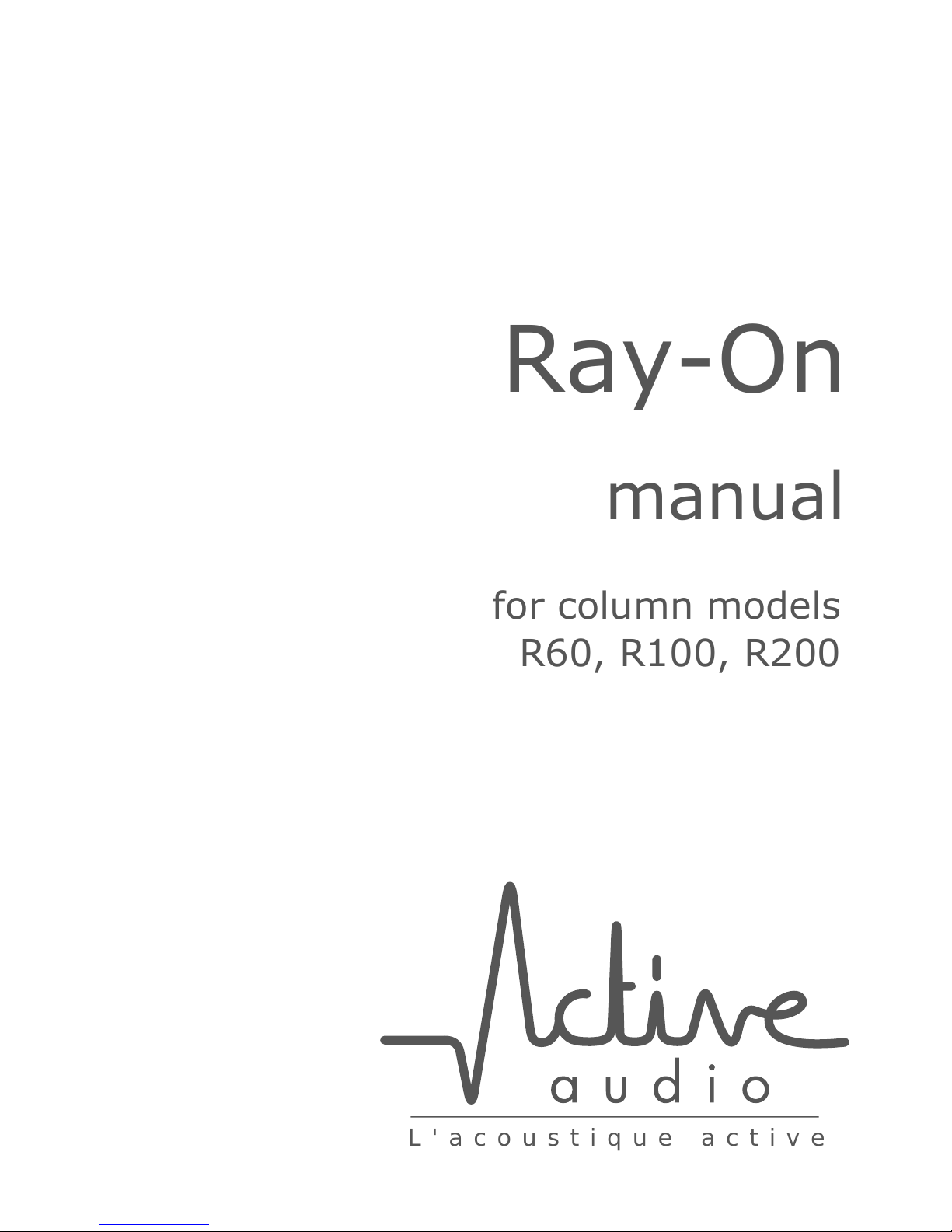

Active Audio R60 User manual

L'acoustique active
manual
Ray-On
for column models
R60, R100, R200

!"
#$%&'()(*+'(,&-&./0%1-2-3456
777777777777777777777777777777
8*'(9%-8.$(,
55:-;$-<+1*%=->+.=?-446@@-A+(&'-
B%10=+(&?-C1+&*%
34
3456D!>ED@55F
777777777777777777777777777777
"G-H4D:42:@@6
IJK%-;
L,.$MK%+N%1-),1-9,(*%-+=+1/-MJM'%/M-
),1-)(1%-$%'%*'(,&-MJM'%/M-+&$-)(1%-+=+1/-
(&-0.(=$(&OM
E+JP&-/,$%=M-
EQ@I!DR?-EQ@I!D0?-E3@@I!DR?-
E3@@I!D0?-E:@@I!DR?-E:@@I!D0
S%'+(=M-(&-E+JP&-<+&.+=-+9+(=+0=%-,&-
RRRT+*'(9%+.$(,T)1

Contents
Contents 3
1 General Presentation 4
2 Positioning 4
3 CAD Modeling 6
4 Equalization and tuning 6
5 Installation and Wiring 7
6 Characteristics and Technical Drawings 10
3

1 General Presentation
The Ray-On column loudspeakers are passive, and based on the DGRC principle. The range includes three column
models, and a proximity speaker:
• R60, height 60cm;
• R100, height 1m;
• R200, height 2m;
• Ray-On Mini, a proximity speaker.
This technical manual is for column speakers R60, R100 and R200. A specific technical manual is devoted
to the Ray-On Mini.
Using the DGRC principle ensures an optimal sound coverage and intelligibility on the listening zone; it is illustrated
in figure 1. For every model, the range depends on the installation height (see section 2).
Figure 1 – DGRC principle illustration
Ray-On loudspeakers are ideal for speech reinforcement in small to large spaces where the listening zone is hori-
zontal (slope < 5°). Made of aluminum, Ray-On loudspeakers can be installed outdoor. They are suited for airports,
railway stations, churches, conference rooms, shopping malls, amusement parks, etc.
Models R60TC, R100TC, and R200TC are compliant with standard EN5424 type B. They can be used in PA systems
for safety announcements.
2 Positioning
The most important parameter for the installation of Ray-On loudspeaker is its mounting height because the range
of the column directly depends on it.
Figure 2 on the facing page shows the ±5dB range1versus to the mounting height, for the direct field2at mid-
frequencies (300Hz-3kHz).
1Range for a standing audience shown. For a seating audience, take off 40cm to the column height.
2Taking the reverberated field into account minimizes the influence of the floor’s material.
4

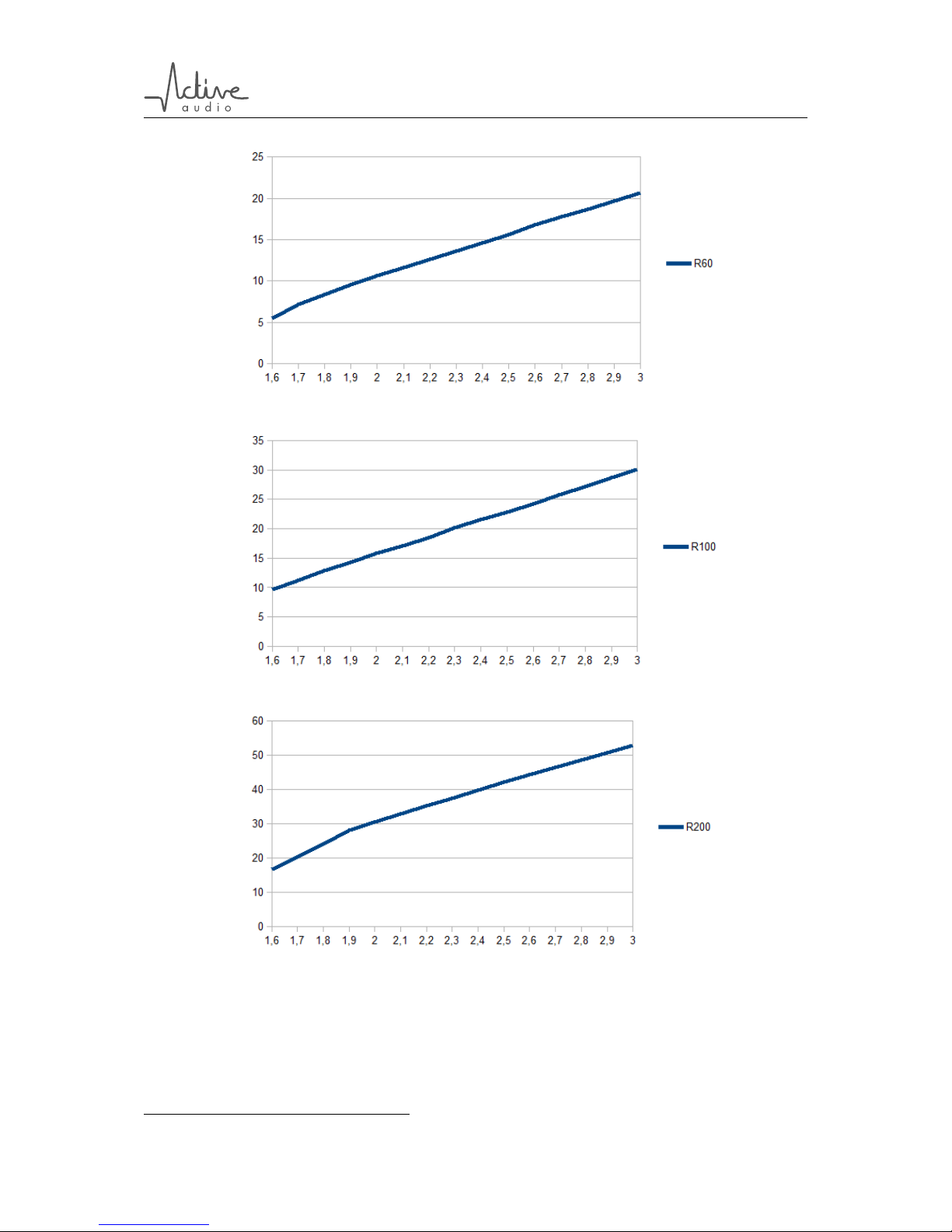

Figure 2 – ±5dB range (m) according to mounting height (from floor to bottom of column, in m).
Table 1 on the next page gives the minimum, maximum, and nominal values for Ray-On mounting height3.
3Ears are at 1.15m from floor for a seated audience, 1.55m for a standing audience.
5

Mounting height
Minimal Nominal Maximal
Ray-On 60 Standing audience 1.65m 2.10m 2.60m
Seated audience 1.25m 1.70m 2.20m
Ray-On 100 Standing audience 1.65m 2.30m 2.80m
Seated audience 1.25m 1.90m 2.40m
Ray-On 200 Standing audience 1.90m 2.50m 3.00m
Seated audience 1.50m 2.10m 2.60m
Table 1 – Ray-On mounting height, from floor to bottom of column (meters).
The Ray-On wall-mounting system allows the subsequent adjustment of the columns height.
3 CAD Modeling
There are powerful CAD software tools that can predict the acoustics of a room and accurately model the radiation of
loudspeaker arrays. These tools can calculate various acoustic indices, such as reverberation time, sound pressure
level, STI, etc.
The sound radiation of the Ray-On loudspeakers can be predicted directly using CATT-Acoustic or EASE softwares.
A simple direct sound simulation tool is directly accessible on www.activeaudio.fr.
Direct sound prediction is also given in the technical characteristics section 6 on page 10.
4 Equalization and tuning
Ray-On loudspeakers may be used without any equalization, but using one is advised. Equalization flattens the
column’s frequency response and protects the loudspeakers by filtering low frequencies.
The recommended equalization is the same for the 3 different models, which allow many columns to be put together
on the same 100V line.
Two equalizations are specified:
• one for speech, which uses 4 cells (n°2-5);
• the other for music, which uses 6 cells (n°1-6).
The table 2 on the next page gives detailed information about these equalizations.. The corresponding frequency
curves are presented in figure 3 on the facing page.
6

Type Parameters
1 Parametric Freq = 100 Hz ; Gain = +6dB ; Width = 1.5 oct (Q=0.92)
2 2nd order high-pass Fcut = 130 Hz ; Gain = -3 dB @ Fcut (Butterworth)
3 Parametric Freq = 280 Hz ; Gain = -3.0 dB ; Width = 1.0 oct (Q=1.4)
4 Parametric Freq = 5 000 Hz ; Gain = +6 dB ; Width = 1.0 oct (Q=1.3)
5 Parametric Freq = 10 700 Hz ; Gain = -7.0 dB ; Width = 0.25 oct (Q=4.0)
6 Parametric Freq = 15 500 Hz ; Gain = +6.0 dB ; Width = 0.5 oct (Q=1.2)
Table 2 – Recommended equalization
If a subwoofer is used, it is advised not to activate the cell 1, frequencies under 180Hz being rendered by the sub.
This allows the columns to not be driven with important levels of low frequencies.
102103104
−30
−25
−20
−15
−10
−5
0
5
10

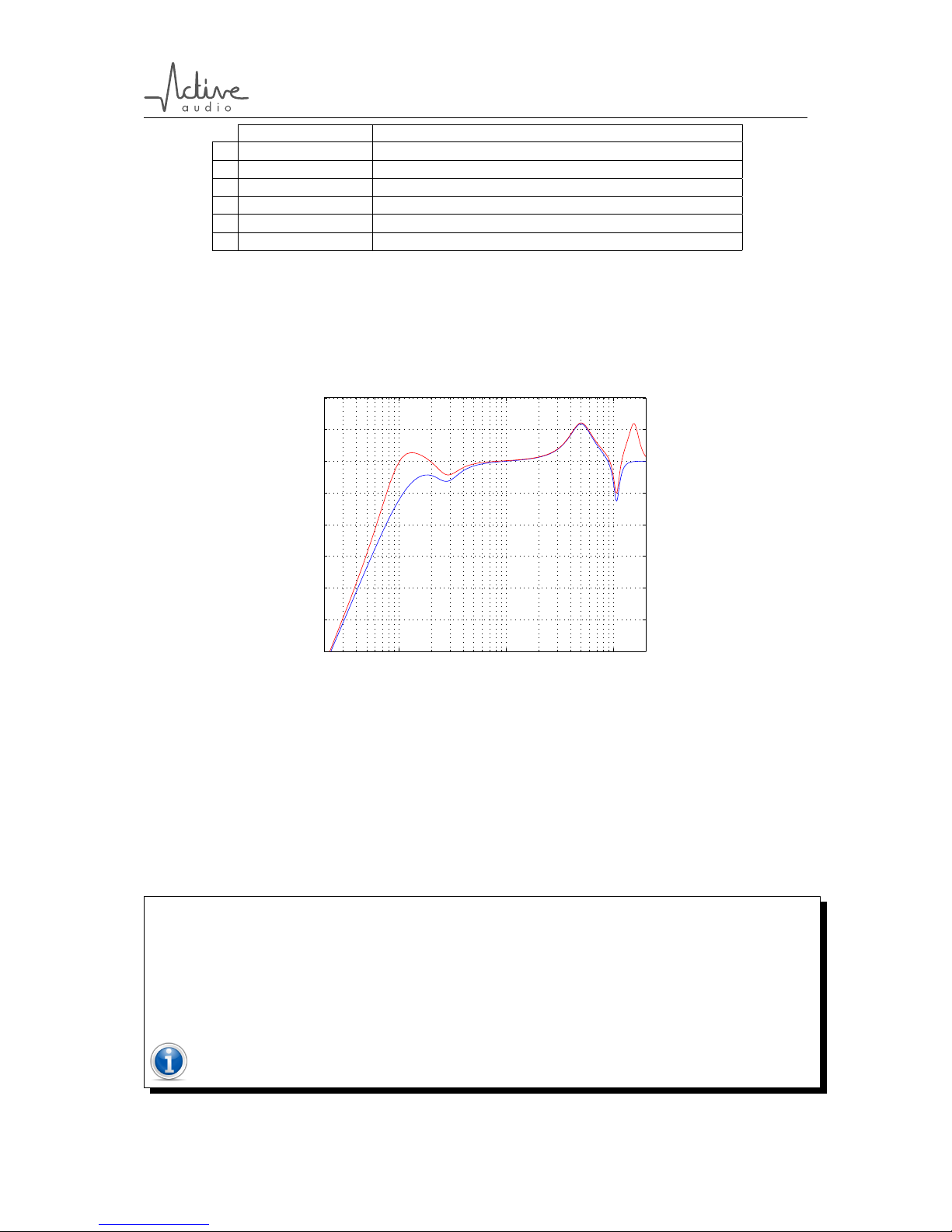

Figure 3 – Recommended equalization curve with (red) and without (blue) cells n°1 and n°6.
5 Installation and Wiring
Ray-On loudspeakers are vertically mounted, usually on a wall, using the supplied wall-mounting system. The next
two pages illustrate the steps to follow for column mounting.
An accessory is available for mast mounting.
Height adjustment: If changing the column’s height is necessary, take the column off its wall-mounting
system, move the «hook-slide» along the backside rail, then put the column back on its wall-mounting system.
100V: Power selection is made on the connection terminal.
Safety: An M5 thread is available at the back of the column designed to accommodate a ring for mounting a
safety cable.
«Daisy-chain» cabling: Two bushings are available on the back of the Ray-On columns, the second one
being used to connect the column to an other Ray-On.
Good to know: The cable diameter must be less than 7.5 mm, the wire’s between 0.5 and 2.5 mm².
7

x3
x1
x1
(Not provided)
3mm
2mm
0
5
10
15
20
25
30
35
40
45
50
55
30 minutes
1
~2.70m
257mm
Ø6mm
max
38mm
3
4
1
2
~400mm
25W 50W 100W 8Ω 100V 8Ω
5
2
25W 50W 100W 8Ω
100V 8Ω

6
6
Version 8Ω
1
2
25W 50W 100W 8Ω
8Ω
100V
3
Version 100V
Loop-through
10
78
12
9

6 Characteristics and Technical Drawings
6.1 General Characteristics
Ray-On 60 Ray-On 100 Ray-On 200
Acoustical data48mode 100V mode 8 mode 100V mode 8 mode 100V mode
Continuous power 75W 18W / 36W /
72W
150W 25W / 50W /
100W
300W 25W / 50W /
100W / 200W
SPL max 91dB at
5m
85 / 88 / 91dB
at 5m
92dB at
8m
84 / 87 / 90dB
at 8m
94,5dB at
16m
84/87/90/
93dB at 16m
Sensitivity 71dB / W at 5m 72dB / W at 8m 71dB / W at 16m
Freq. bandwidth at
-3dB/-10dB
150Hz - 14,5kHz /
120Hz - 17kHz
150Hz - 16,5kHz /
120Hz - 18kHz
150Hz - 16,5kHz /
120Hz - 19kHz
Range ±3dB/±5dB 6.5 / 12m 15 / 20 m 31 / 42 m
Vertical directivity Wavefront synthesis
Horizontal -6dB opening
angle
360°at 500Hz / 190°at 1kHz
156°at 2kHz / 119°at 4kHz
Loudspeakers 6 loudspeakers
70x70mm, outdoor
12 loudspeakers
70x70mm, outdoor
24 loudspeakers
70x70mm, outdoor
Electrical data 8 mode 100V mode 8 mode 100V mode 8 mode 100V mode
Nominal impedance 8 556 / 278 /
139 
8400 / 200 /
100 
8400 / 200 /
100 / 50 
Amp. power recom. 150 W - 300 W - 500 W -
Connectors Ceramic terminal block screw, with "loop-through"
Wire section from 0,5 to 2,5mm²
Protection Thermal fuse and protection against overload
Mechanical data 8 mode 100V mode 8 mode 100V mode 8 mode 100V mode
Materials Body: aluminum ; Grid: steel treated against rust and UV
Dimensions H x L x P 611 x 128 x 117 mm 1026 x 128 x 117 mm 1977 x 128 x 117 mm
Net / shipping weight 5.2 / 5.7 kg 8.3 / 9.1 kg 16.2 / 17.8 kg
Environment IP54 ; from -25°C to +55°C, indoor / outdoor
Colors White (RAL9016 paintable) and Black (RAL9005)
Mounting Vertical mounting on a wall or on a mast
Tuning and
exploitation
8mode 100V mode 8 mode 100V mode 8 mode 100V mode
Mounting height (cm) 1.70 seating / 2.10 standing 1.90 seating / 2.30 standing 2.10 seating / 2.50 standing
Recom. equalization Speech: 4 parametric cells / Music: 6 parametric cells
Modeling EASE and CATT-Acoustic models available
4Unless specified otherwise, characteristics are measured with column at nominal mounting height on horizontal reflecting floor, and using
recommended music equalization.
10

Ray-On 60 Ray-On 100 Ray-On 200
Miscellaneous 8 mode 100V mode 8 mode 100V mode 8 mode 100V mode
Warranty 5 years
Maintenance No maintenance required
Serial number YYMMXXXX (YY: year - MM: month - XXXX: serial)
Certification EN54-24 type B for indoor and outdoor VA systems
102103104
0
5
10
15
20
25
30
35
40
(a) R60 impedance curve
102103104
0
5
10
15
20
25
30
35
(b) R100 impedance curve
102103104
0
5
10
15
20
25
30
(c) R200 impedance curve

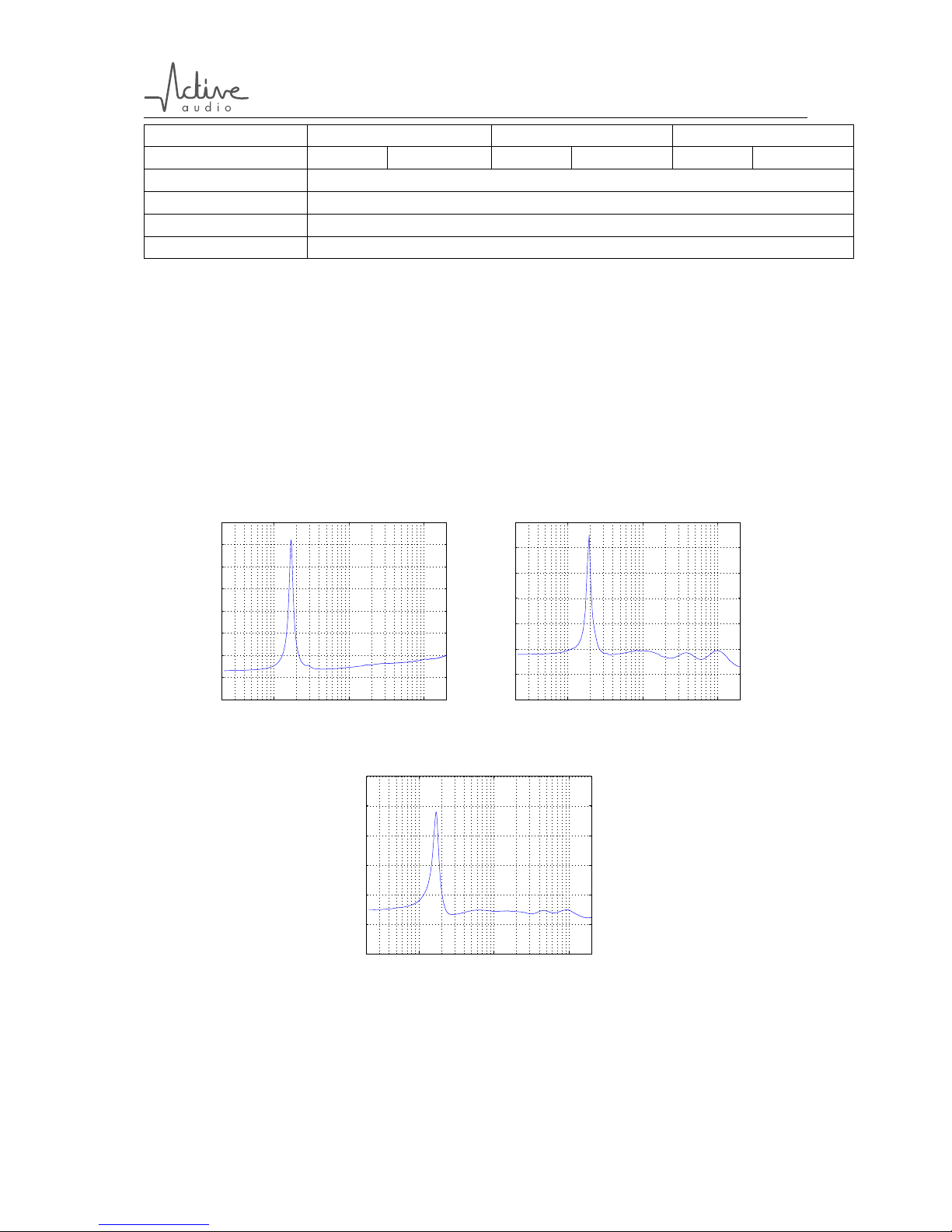

Figure 4 – Ray-On loudspeakers impedance curves
11

6.2 Technical drawings
H
257
7
326,4
38
55,4
128
156,5
117
147
140
Ray-On : General and Front view
Top views
Fixation: General and Back view
R60 R100 R200
H (mm) 611 1026 1977
Figure 5 – Technical drawings
12

6.3 Acoustical data5
(a) Ray-On 60 vertical directivity : sound level for the speech octaves (500Hz,1kHz,2kHz) in the vertical
median plane.
(b) Ray-On 60 horizontal directivity: sound level for
the speech octaves (500Hz,1kHz,2kHz) on the listening
plane (60cm below the column).
(c) Ray-On 60 frequency response, with recommended music equalization. Average from 2
to 10m in the axis.
FIGURE 6 – Ray-On 60 : acoustical data
5Column in nominal position at 2.30m from the floor. The reference SPL is the mean level in the listening zone.
13

12
2.3
0
01020 30
10
0
-10
-20
(a) Ray-On 100 vertical directivity: sound level for the speech octaves (500Hz,1kHz,2kHz) in the
vertical median plane.
15
10
5
0
-5
-10
-15
01020
10
5
0
-5
-10
-15
-20
(b) Ray-On 100 horizontal directivity: sound level for the speech octaves (500Hz,1kHz,2kHz)
on the listening plane (80cm below the column).
(c) Ray-On 100 frequency response, with recommended music equalization. Average from 2 to
15m in the axis.
Figure 7 – Ray-On 100: acoustical data.
14

(a) Ray-On 200 vertical directivity: sound level for the speech octaves (500Hz,1kHz,2kHz) in the vertical median plane.
(b) Ray-On 200 horizontal directivity:
sound level for the speech octaves
(500Hz,1kHz,2kHz) on the listening plane
(100cm below the column).
(c) Ray-On 200 frequency response, with recommended music equalization. Average from 2
to 30m in the axis.
FIGURE 8 – Ray-On 200: acoustical data
15
