POL-AUDIO DJT 2100 AK User manual

WWW.POLAUDIO.PL
TOOLS FOR PROFESSIONALS
DJT 2100 AK
MANUAL

MANUAL POL-AUDIO DJT 2100 AK
2
POL-AUDIO Leszek Polanowski | WWW.POLAUDIO.PL
Manufacturer: POL-AUDIO Leszek Polanowski
Manufacturer Address: Skłodowskiej 33, 05-420 Józefów, Polska
Model: DJT 2100 AK
Version: 1.0
Issue date: 2017.05.11
Legend
WARNING
INFO
DANGER
TIPS
Keep this document and act according to keep the warranty and operate the system in a proper way.
Please check the package in presence of a forwarder and make sure it is not damaged during the transport.
Notify the forwarder company and sender about any problems with the package.
SERVICE
To contact manufacturer service pleaseuse phone or email:
[phone]
[e-mail]
We appreciate your purchase of POL-AUDIO product. Welcome to the users family! If you will have any ideas that you would
like to share –please let us know! We are always interested in how the system perform and what is your experience.
+ 48 22 789 30 02
[e-mail]
All POL-AUDIO loudspeaker systems are being manufactured in Poland.

MANUAL DJT 2100 AK
If you have a question call us [phone]
GENERAL SAFETY AND USAGE
PRODUCT DAMAGE
In case of a product damage, contact authorized service immediately. Do not use damaged product and do not
try to repair it. You should not modify the product. Violating those conditions can exclude product from
warranty.
Operating conditions
Do not operate the system next to source of water or other fluids. Product should be placed on stable and dry
ground. Please avoid operating the system next to a heat source. Protect the system from strong wind to avoid
possible collapse.
System can’t be placed near fire source. During storm, system should be unplugged. Atmospher ic discharge can
lead to product damage. Cables should be placed in a way that protects it from being cut or damaged in any
other way.
WARRANTY
POL-AUDIO products aresecured with 36 months of warranty from the date of sale.It protects defects found in
the materials or workmanship. The owner should inform about these defects the dealer or the distributor,
providing receipt or invoice of date of purchaseand defect detailed description. This warranty does not extend
to damage resulting from improper installation, misuse, neglect or abuse. POL-AUDIO will verify damage on
returned units, and when the unithas been properly used and warranty is still valid, then the unit will bereplaced
or repaired. POL-AUDIO is not responsible for any “direct damage” or “indirect damage” caused by product
defectiveness.
WARRANTY CANCELLATION
Operating system with a preset different than the one provided by the manufacturer can lead to system damage
and warranty cancellation. Presets provided with the system can only be modified within necessary scope on the
input channels. Manufacturer is not responsible for damages caused by misuse of preset.
Technical data of the product can be changed by a manufacturer without previous notification.
All rights to this document and product described are restricted by POL-AUDIO Leszek Polanowski.
PRODUCT DESCRIPTION
DJT 2100 AK is a self powered, full range, portable sound reinforcement system. It was designed to provide complete solution for
mobile performers that need to provide high quality sound in a different venue each day. Minimum setup time is guaranteed by
built in amplifier module with FIR-capable DSP module on board. Surprisingly loud and detailed sound will comfort almost any
sound requirements at events up to 150 –250 people.
On board very high quality DSP module provides 3 presets based on application of thesystem: Vocal, Music, Flat. Additional switch
allows to implement subwoofer boost for more low frequency demanding events. Separate volume control for Satellites and
Subwoofers.
Column formation of speakers in satellites gives higher vertical dispersion control that will limit ceiling and floor reflection and
radiate most of the energy toward the crowd.
Very high power 15” woofer easily beats competitor’s solutions for mobile performers with 1200 W of AES power and 7000 W
peak power.
Enclosure is manufactured using high grade plywood providing durability and high resonancedumping. In standard version,both
subwoofer and satellites, are finished with Poliurea –high durability cover. All pole sockets are M20 threaded.

MANUAL POL-AUDIO DJT 2100 AK
4
POL-AUDIO Leszek Polanowski | WWW.POLAUDIO.PL
OPERATION
Before you connect the product to other elements of the system, make sure all of the parameters match and
guaranty a safe operation.
After exposure to very low temperatures system should be left until the temperature is similar to the operating
conditions during the event. If the system is exposed to the temperature shock it can be damaged.
Before turning the system on –make sure that the signal is within operating levels of equipment.
HOW TO MINIMIZE RISK OF SYSTEM DAMAGE
Make sure the signal is not distorted and is within operating levels of the system. Avoid placing a microphone in
front of the system to minimizethe risk of a feedback. Before you turn on the system make surethe amplifier and
loudspeaker system are properly matched with all of the technical data.
Before powering the system, make sureit is placed in a place that guarantee safe operation. Make sure the power supply socket
and cord has properly wired grounding. Next plug in the power supply cable.
Before you turn the volume up, make sure the signal supplied to the module input is within operating range of every device from
the source to the module. This way you will keep the quality of the signal as well as protect the module and speakers from damage
caused by distorted signal.
Mono setup
In standard setup, DJT 2100 AK is design to operate in stereo mode. Howeever if mono setup is necessary please use
LINK out XLR of the first channel to supply second channel.

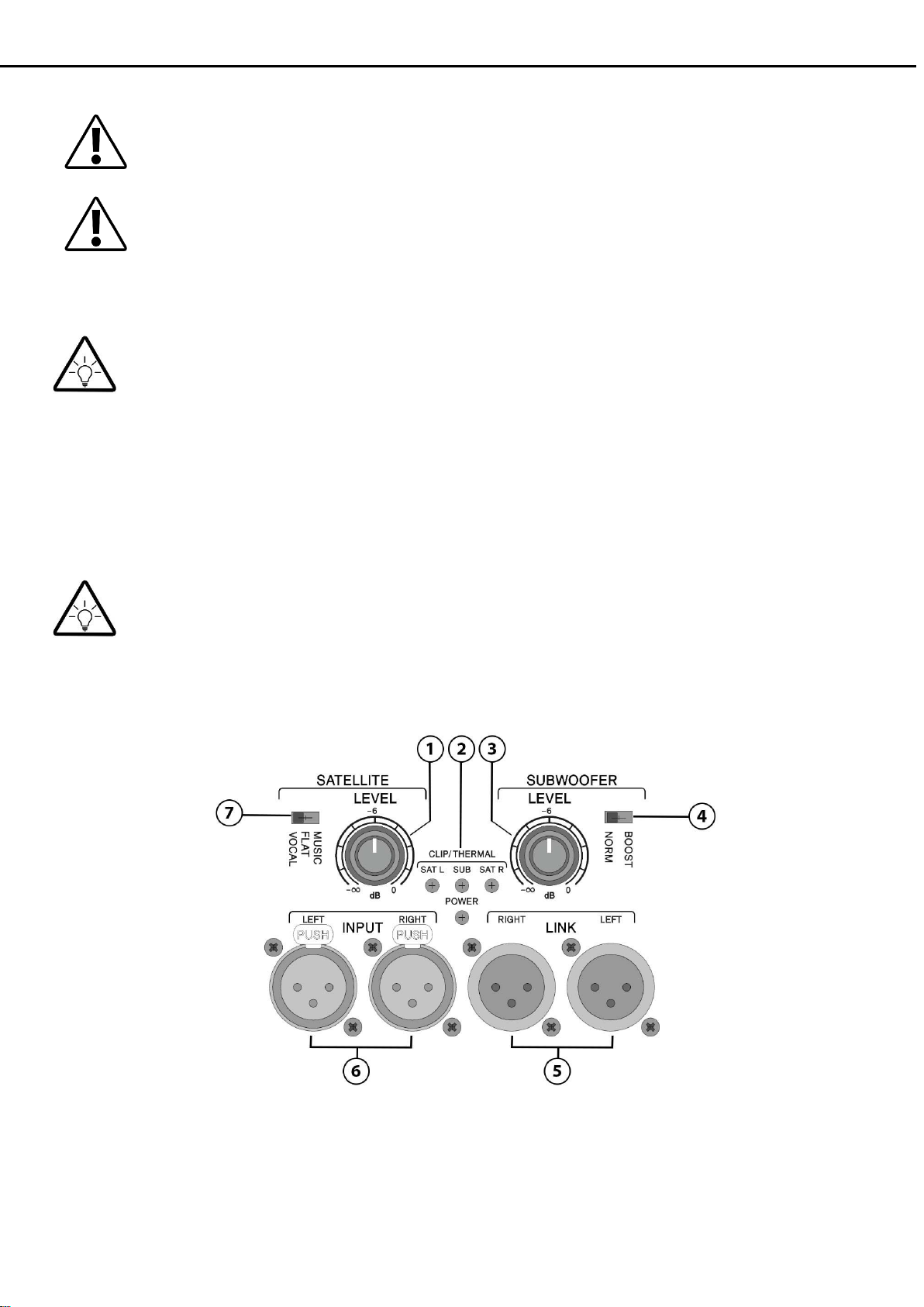

DJT 2100 AK POWER MODULE PANEL
1. Volume control for satellites
2. State LEDs
3. Volume control for subwoofer
4. Subwoofer boost switch
5. Signal LINK
6. Signal Input
7. Preset selection switch

MANUAL DJT 2100 AK
If you have a question call us [phone]
PRESETS
Preset 1. VOCAL –Vocal clarity boost
Preset 2. FLAT –Flat characteristic
Preset 3. MUSIC –Low and high range boost for better music perception
RIGGING
It is possible to fly satellites using mounting points on the top and on the sides of the enclosure.
TECHNICAL DATA
Model
SAT 83 ND
Type
Column Satellite
Frequency range
150 Hz –18 kHz
AES Power
160 W
SPL
97 dB (1 W / 1 m)
Components
8 x 3”(0,75”)
Application
Bands, DJs, Mobile performers
Signal input
Speakon NL4
Dimensions
Height
Width
Depth
675 mm
130 mm
175 mm
Weight
6 kg
Enclosure
High grade plywood
Finish
Poliurea
Rigging
3 x point
Model
SW 115 ND AK
Type
Active 15”subwoofer
Frequency range
35 Hz –300 Hz
AES Power
1200 W
SPL
102 dB (1 W / 1 m)
Components
15” (4”)
Application
Bands, DJs, Mobile performers
Amplifier module
2100 W, 3 x Preset + subwoofer boost, FIR filters
Signal input
XLR
Dimensions
Height
Width
Depth
657 mm
455 mm
595 mm
Weight
34 kg
Enclosure
High grade plywood
Finish
Poliurea
Technical data of the product can be changed by a manufacturer without previous notification.
All rights to this document and product described are restricted by POL-AUDIO Leszek Polanowski.

MANUAL POL-AUDIO DJT 2100 AK
6
POL-AUDIO Leszek Polanowski | WWW.POLAUDIO.PL
ADDITIONAL ACCESSORIES
Durable cover
Cover for subwoofer with holes for handles
Loudspeaker stand
Stable speaker stand for satellite placement
Loudspeaker pole connector
For placing satellite on subwoofer
Adapter M20
To place satellite on a standard connector ending
SYSTEM CONFIGURATION
Wiring schmeas
Stereo + additional set
Mono

MANUAL DJT 2100 AK
If you have a question call us [phone]
PRESETS
FLAT
For general application. No additional correction. Optimized for flat frequency response.
VOCAL
For higher vocal clarity.
Frequency response 1 relative equalization with FLAT as reference
MUSIC
For better user listening experience when listening to music.
Frequency response 2 relative equalization with FLAT as reference
SUBWOOFER BOOST
Additional subwoofer boost by about 2dB.

MANUAL POL-AUDIO DJT 2100 AK
8
POL-AUDIO Leszek Polanowski | WWW.POLAUDIO.PL
CE DECLARATION OF CONFORMITY
NAME AND ADRES OF MANUFACTURER:
POL-AUDIO Leszek Polanowski
ul. M.C. Skłodowskiej 33
05-420 Józefów
Poland
Systems list:
Passive loudspeaker systems: POL-AUDIO SW 115 ND AK, POL-AUDIO SAT 83 ND
DIRECTIVES AND NORMS:
EMC 89/336/EEC 03.05.1989 with annotations 91/31/EEC and 93/68 EEC
73/23/EC 19.02.1973 with annotations 93/68/EEC
PN-EN50081-1: 1996
PN-EN50082-1: 1999
Declarations was issued by POL-AUDIO Leszek Polanowski company.
Issuedate: …………………… Signature: …………………………………..
