Active Audio StepArray+ User manual
L'acoustique active
User Manual
StepArray+
Self-powered digitally steerable column loudspeakers
2/24 3/24ver. 2021/20/02
DOP_1112_A
ver. 2021/20/02
User Manual - StepArray+ series User Manual - StepArray+ series
Table of contents
1. Introduction...............................................................................4
2. System components ...................................................................5
3. Assembling ................................................................................6
4. Wiring .......................................................................................7
4.1. Example setup using Dante® ................................................7
5. StepArray+ control software........................................................8
5.1. System requirements.............................................................8
5.2. Installation on Windows ........................................................8
5.3. Installation on OS X ..............................................................9
5.4. Using the StepArray+ software ............................................10
6. Installation of the columns........................................................ 12
6.1. Dimensions of the brackets.................................................. 13
7.Specications ...........................................................................14
8. Acoustical data.........................................................................16
8.1. Common data ..................................................................... 16
8.2. SA100P / SA150P+ acoustical data1.................................................................... 17
8.3. SA180P / SA230P+ acoustical data1.................................................................... 18
8.4. SA250P / SA300P+ acoustical data1.................................................................... 19
8.5. SA400P / SA450P+ acoustical data1.................................................................... 20
8.6. SA180S / SA230S+ acoustical data1.................................................................... 21
8.7..SA250S / SA300S+ acoustical data1.................................................................... 22
9. Declaration of conformity..........................................................23
4/24 5/24ver. 2021/20/02
DOP_1112_A
ver. 2021/20/02
User Manual - StepArray+ series User Manual - StepArray+ series
1. Introduction
StepArray+ column speakers ensure perfect speech intelligibility and optimal
acoustic comfort, even in noisy and reverberant venues. They are based on
the DGRC (Digital & Geometric Radiation Control) principle patented by Active
Audio.
Compared with a classic sound system in which each loudspeaker is controlled
independently, the DGRC method makes it possible to decrease the number of
channelstobecontrolled,therebyenhancingeconomicefciency.
StepArray+ also allows the use of existing network cables and helps to achieve
signicantsavingsinwiring,withupto64channelsonasingleEthernetcable.
StepArray+ combines the features of DanteTM and StepArray to achieve ever
higherlevelsofefciencyandexibility.

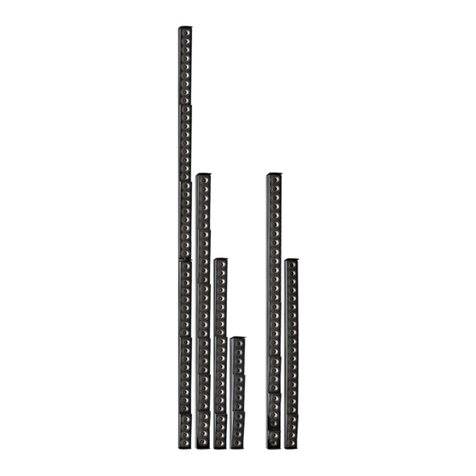

The StepArray+ range includes 6 models of column speakers, from 1.50m to
4.50m high.
SA150P+
1.50m high
at area, 21m
3 channels
8Ω min.
SA230P+
2.30m high
at area, 40m
3 channels
8Ω min.
SA230S+
2.30m high
10° area, 29m
3 channels
8Ω min.
SA300P+
3.00m high
at area, 45m
6 channels
4Ω min.
SA300S+
3.00m high
12° area, 36m
6 channels
4Ω min.
SA450P+
4.50m high
at area, 90m
6 channels
8Ω min.
2. System components
StepArray+ columns are made of two parts: a standard StepArray passive co-
lumn,anditscompanionStepArray+ampliermodule.
StepArray+
amplifier module
StepArray
passive column
Figure 1 :
System components
6/24 7/24ver. 2021/20/02
DOP_1112_A
ver. 2021/20/02
User Manual - StepArray+ series User Manual - StepArray+ series
3. Assembling
1. Remove the back
plate of the amplifier
module.
2. Place the amplifier
module at the top of
the passive column.
3. Secure the amplifier
module using the
supplied M8 nut.
4. After wiring, close
the connection box by
mounting the back
plate.
Figure 2 :
Assembling StepArray+ columns
4. Wiring
INPUT
OUTPUTS
LINK/
ACT
SP EED
4 -6
1 -3
StepArray series - patent FR-0403052 EU-05736-560.3 US-10-593.821 CN-7965608A
45
123
6
100-240V ~ 50-60Hz
Made in France
Ethernet
for Dante
and tuning
Power cord
Analog
input
Output to passive column module
(using supplied cable)
Figure 3 :
Wiring StepArray+ columns
4.1. Example setup using Dante®
E t h er n et s wi t c h
E t h er n et Controller
A u d io so u rc e
M i c ro p h o n e r e c ei ver
M ic ro p h on e s
M at r i x
E t h er n et sw it c h C o n f e r e n c e r o o m
SA300P+ SA300P+
Figure 4 :
StepArray+ setup using Dante network
8/24 9/24ver. 2021/20/02
DOP_1112_A
ver. 2021/20/02
User Manual - StepArray+ series User Manual - StepArray+ series
5. StepArray+ control software
The StepArray+ control software is available for Windows and OSX operating
systems. Installers can be found on the supplied USB key or on Active Audio’s
website by following this link: http://www.activeaudio.fr/ downloads.
5.1. System requirements
Processor 1Ghz or better
Memory 512Mbyte of RAM
Network Standard wired Ethernet network interface (100Mbps or Gigabit).
Wireless LAN (Wi-Fi) Ethernet interfaces are not supported
Operating System Windows 7 SP1 or newer Mac OS X 10.7.5 or newer
5.2. Installation on Windows
Start the installer package by double-clicking on it, then follow the instructions.
Figure 5 :
StepArray+ Software installation on Windows
5.3. Installation on OS X
Start the installer package by double-clicking on it, then follow the instructions.
Figure 6 :
StepArray+ Software installation on OS X
Group gain
Group ID
10/24 11/24ver. 2021/20/02
DOP_1112_A
ver. 2021/20/02
User Manual - StepArray+ series User Manual - StepArray+ series
5.4. Using the StepArray+ software
The StepArray+ control software gives access to the following functions:
• input selection: Dante or analog input
• general output volume
• steering parameters for directivity control
The StepArray+ control software does not include
Dante routing functionality. When using Dante to
transmit audio, you will need the Dante Controller
software to assign Dante channels to StepArray+ co-
lumns.
Dante Controller is available free of charge from the
Audinate website: https://www.audinate.com/pro-
ducts/software/dante-controller.
WhenlaunchingtheStepArray+controlsoftware,therstscreenlistsallthe
StepArray+columnsitcanndonthenetwork.TherstconnectiontoaSte-
pArray+ column can take up to 1 minute: this is the time needed to initiate the
communication.
Figure 7 :
StepArray+ control software: main screen
AclickonaStepArray+boxleadstothesettingsscreenofthatspeciccolumn.
All the parameters of the column can be changed within that screen.
Figure 8 :
StepArray+ control software: column settings screen
12/24 13/24ver. 2021/20/02
DOP_1112_A
ver. 2021/20/02
User Manual - StepArray+ series User Manual - StepArray+ series
6. Installation of the columns
StepArray+ columns are mounted vertically, usually on a wall, using the sup-
plied brackets. Figure 9 illustrates the steps to follow for column mounting. See
alsogure10onthenextpagefortechnicaldrawingsofthebrackets.
Place
the 2 brackets
on the wall
using 8mm
diameter screws
x3
x3
1
Column height
+ 5mm
2
Ensure
verticality
3
Mount the column
using the supplied
nut and screw
4
Figure 9 :
Column mounting on a wall
It is important to ensure verticality when mounting
StepArray+ columns.
6.1. Dimensions of the brackets
121.51
5
ϕ11
2 52 5
96.51
35.65
82.89
34.42
11
ϕ8.5
11 11
11
71.22
M4
Red is bottom bracket only
Figure 10 :
Fixing brackets for wall mounting of StepArray columns
14/24 15/24ver. 2021/20/02
DOP_1112_A
ver. 2021/20/02
User Manual - StepArray+ series User Manual - StepArray+ series
7. Specications
Electrical data
max output power 450W
max continuous output power (25°) 300W
power consumption Idle 22W
Typ. 80W
Max 500W
number of Channels 3
power supply 85-264VAC
45-65Hz
Inputs
1x balanced analog 3-pin input
1x DanteTM input
Network
1x RJ45 connector, DanteTM
max. operating ambient temperature 60°C
SA150P+
Acoustical data
range ±3dB 30m
range ±5dB 40m
max SPL 95dBSPL at 15m
angle of audience 0°-5°
frequency bandwidth (-10dB) 110Hz-19kHz
horizontal opening angle 180°
Mechanical data
net weight 22 kg
shipping weight 24 kg
height 2340mm
width 124mm
depth 135mm
standard colors white RAL 9016
black RAL 9005
SA150P+
1.50m high
at area, 21m
3 channels
8Ω min.
SA230P+
2.30m high
at area, 40m
3 channels
8Ω min.
SA230S+
2.30m high
10° area, 29m
3 channels
8Ω min.
SA300P+
3.00m high
at area, 45m
6 channels
4Ω min.
SA300S+
3.00m high
12° area, 36m
6 channels
4Ω min.
SA450P+
4.50m high
at area, 90m
6 channels
8Ω min.
Attention: police Trade Gothic
SA230P+
Acoustical data
range ±3dB 22m
range ±5dB 29m
max SPL 95dBSPL at 15m
angle of audience 5°-20°
frequency bandwidth (-10dB) 110Hz-19kHz
horizontal opening angle 180°
Mechanical data
net weight 22 kg
shipping weight 24 kg
height 2340mm
width 124mm
depth 135mm
standard colors white RAL 9016
black RAL 9005
SA150P+
1.50m high
at area, 21m
3 channels
8Ω min.
SA230P+
2.30m high
at area, 40m
3 channels
8Ω min.
SA230S+
2.30m high
10° area, 29m
3 channels
8Ω min.
SA300P+
3.00m high
at area, 45m
6 channels
4Ω min.
SA300S+
3.00m high
12° area, 36m
6 channels
4Ω min.
SA450P+
4.50m high
at area, 90m
6 channels
8Ω min.
Attention: police Trade Gothic
SA230P+
Electrical data
max output power 450W
max continuous output power (25°) 300W
power consumption Idle 22W
Typ. 80W
Max 500W
number of Channels 3
power supply 85-264VAC
45-65Hz
Inputs
1x balanced analog 3-pin input
1x DanteTM input
Network
1x RJ45 connector, DanteTM
max. operating ambient temperature 60°C
Electrical data
max output power 450W
max continuous output power (25°) 300W
power consumption Idle 22W
Typ. 80W
Max 500W
number of Channels 3
power supply 85-264VAC
45-65Hz
Inputs
1x balanced analog 3-pin input
1x DanteTM input
Network
1x RJ45 connector, DanteTM
max. operating ambient temperature 60°C
Acoustical data
range ±3dB 15m
range ±5dB 21m
max SPL 95dBSPL at 10m
angle of audience 0°-5°
frequency bandwidth (-10dB) 110Hz-19kHz
horizontal opening angle 180°
Mechanical data
net weight 14 kg
shipping weight 17 kg
height 1524mm
width 124mm
depth 131mm
standard colors white RAL 9016
black RAL 9005
Acoustical data
range ±3dB 35m
range ±5dB 45m
max SPL 95dBSPL at 20m
angle of audience 0°-5°
frequency bandwidth (-10dB) 110Hz-19kHz
horizontal opening angle 180°
Mechanical data
net weight 29 kg
shipping weight 33 kg
height 3005mm
width 124mm
depth 159mm
standard colors white RAL 9016
black RAL 9005
SA300P+
Electrical data
max output power 900W
max continuous output power (25°) 600W
power consumption Idle 41W
Typ. 150W
Max 1000W
number of Channels 6
power supply 85-264VAC
45-65Hz
Inputs
1x balanced analog 3-pin input
1x DanteTM input
Network
1x RJ45 connector, DanteTM
max. operating ambient temperature 60°C
SA150P+
1.50m high
at area, 21m
3 channels
8Ω min.
SA230P+
2.30m high
at area, 40m
3 channels
8Ω min.
SA230S+
2.30m high
10° area, 29m
3 channels
8Ω min.
SA300P+
3.00m high
at area, 45m
6 channels
4Ω min.
SA300S+
3.00m high
12° area, 36m
6 channels
4Ω min.
SA450P+
4.50m high
at area, 90m
6 channels
8Ω min.
Attention: police Trade Gothic
Acoustical data
range ±3dB 28m
range ±5dB 36m
max SPL 95dBSPL at 20m
angle of audience 5°-20°
frequency bandwidth (-10dB) 110Hz-19kHz
horizontal opening angle 180°
Mechanical data
net weight 29 kg
shipping weight 33 kg
height 3005mm
width 124mm
depth 159mm
standard colors white RAL 9016
black RAL 9005
SA150P+
1.50m high
at area, 21m
3 channels
8Ω min.
SA230P+
2.30m high
at area, 40m
3 channels
8Ω min.
SA230S+
2.30m high
10° area, 29m
3 channels
8Ω min.
SA300P+
3.00m high
at area, 45m
6 channels
4Ω min.
SA300S+
3.00m high
12° area, 36m
6 channels
4Ω min.
SA450P+
4.50m high
at area, 90m
6 channels
8Ω min.
Attention: police Trade Gothic
SA300S+
Acoustical data
range ±3dB 68m
range ±5dB 90m
max SPL 95dBSPL at 30m
angle of audience 0°-3°
frequency bandwidth (-10dB) 110Hz-19kHz
horizontal opening angle 180°
Mechanical data
net weight 44 kg
shipping weight 47 kg
height 4596mm
width 124mm
depth 135mm
standard colors white RAL 9016
black RAL 9005
SA150P+
1.50m high
at area, 21m
3 channels
8Ω min.
SA230P+
2.30m high
at area, 40m
3 channels
8Ω min.
SA230S+
2.30m high
10° area, 29m
3 channels
8Ω min.
SA300P+
3.00m high
at area, 45m
6 channels
4Ω min.
SA300S+
3.00m high
12° area, 36m
6 channels
4Ω min.
SA450P+
4.50m high
at area, 90m
6 channels
8Ω min.
Attention: police Trade Gothic
SA450P+
Electrical data
max output power 900W
max continuous output power (25°) 600W
power consumption Idle 41W
Typ. 150W
Max 1000W
number of Channels 6
power supply 85-264VAC
45-65Hz
Inputs
1x balanced analog 3-pin input
1x DanteTM input
Network
1x RJ45 connector, DanteTM
max. operating ambient temperature 60°C
Electrical data
max output power 900W
max continuous output power (25°) 600W
power consumption Idle 41W
Typ. 150W
Max 1000W
number of Channels 6
power supply 85-264VAC
45-65Hz
Inputs
1x balanced analog 3-pin input
1x DanteTM input
Network
1x RJ45 connector, DanteTM
max. operating ambient temperature 60°C
16/24 17/24ver. 2021/20/02
DOP_1112_A
ver. 2021/20/02
User Manual - StepArray+ series User Manual - StepArray+ series
8.2. SA100P / SA150P+ acoustical data1
20m10m0m
10m
h=2,55m
10dB
5dB
0dB
-5dB
-10d
B
-15d
B
-20dB
Figure 13 :
SA100P / SA150P+ vertical directivity: sound level for the voice
octaves (500Hz,1kHz,2kHz) in the vertical median plane
0m 10m 20m
10m
10dB
5dB
0dB
-5dB
-10d
B
-15d
B
-20d
B
Figure 14 :
SA100P / SA150P+ horizontal directivity: sound level for the voice
octaves (500Hz,1kHz,2kHz) on the listening plane
0 2 4 6 8 10 12 14 16 18 20
−15
−10
−5
0
5
10
15
SPL(dist) SA100P
250Hz
500Hz
1000Hz
2000Hz
4000Hz
8000Hz
Figure 15 :
Sound level by octave in the axis of the listening plane in front of
the column with respect to the distance from the column
8. Acoustical data
All data presented below is obtained with columns in their nominal position and
usingnominalDSPlteringparam-eters(atEQ,etc).
8.1. Common data
102103104
−30
−25
−20
−15
−10
−5
0
5
10
frequency (Hz)
amplitude (dB)
Figure 11 :
Frequency response (column SA250P / SA300P+). Average of the
mesurements at 7, 10, 15, 20, 25, and 30m. In red: with bass high-pass on
position «100Hz», in blue: with bass high-pass on position «200Hz».
90
60
30
0
330
300
270
-20dB
-10dB
500Hz
1kHz
2kHz
4kHz
8kHz
Figure 12 :
Horizontal directivity (column SA250P/SA300P+)
18/24 19/24ver. 2021/20/02
DOP_1112_A
ver. 2021/20/02
User Manual - StepArray+ series User Manual - StepArray+ series
8.4. SA250P / SA300P+ acoustical data1
20m10m0m 40m30m
10m
50m
h=2,55m
10dB
5dB
0dB
-5dB
-10d
B
-15d
B
-20dB
Figure 19 :
SA250P / SA300P+ vertical directivity: sound level for the voice
octaves (500Hz,1kHz,2kHz) in the vertical median plane
0m 10m 20m 30m 40m
10m
20m
50m
10dB
5dB
0dB
-5dB
-10d
B
-15d
B
-20d
B
Figure 20 :
SA250P / SA300P+ horizontal directivity: sound level for the voice
octaves (500Hz,1kHz,2kHz) on the listening plane
0510 15 20 25 30 35 40 45
−15
−10
−5
0
5
10
15
SPL(dist) SA250P
250Hz
500Hz
1000Hz
2000Hz
4000Hz
8000Hz
Figure 21 :
Sound level by octave in the axis of the listening plane in front of
the column with respect to the distance from the column
8.3. SA180P / SA230P+ acoustical data1
20m10m0m 40m30m
10m
h=2,55m
10dB
5dB
0dB
-5dB
-10d
B
-15d
B
-20dB
Figure 16 :
SA180P / SA230P+ vertical directivity: sound level for the voice
octaves (500Hz,1kHz,2kHz) in the vertical median plane
0m 10m 20m 30m 40m
10m
20m
10dB
5dB
0dB
-5dB
-10d
B
-15d
B
-20d
B
Figure 17 :
SA180P / SA230P+ horizontal directivity: sound level for the voice
octaves (500Hz,1kHz,2kHz) on the listening plane
0510 15 20 25 30 35
−15
−10
−5
0
5
10
15
SPL(dist) SA180P
250Hz
500Hz
1000Hz
2000Hz
4000Hz
8000Hz
Figure 18 :
Sound level by octave in the axis of the listening plane in front of
the column with respect to the distance from the column
20/24 21/24ver. 2021/20/02
DOP_1112_A
ver. 2021/20/02
User Manual - StepArray+ series User Manual - StepArray+ series
8.6. SA180S / SA230S+ acoustical data1
0m 10
m
20
m
10m
SA180S
h=2,65m
10dB
5dB
0dB
-5dB
-10dB
-15dB
-20dB
Figure 25 :
SA180S / SA230S+ vertical directivity: sound level for the voice
octaves (500Hz,1kHz,2kHz) in the vertical median plane
0
m
10
m
20
m
10
m
10dB
5dB
0dB
-5d
B
-10d
B
-15d
B
-20d
B
Figure 26 :
SA180S / SA230S+ horizontal directivity: sound level for the voice
octaves (500Hz,1kHz,2kHz) on the listening plane
0510 15 20 25
−15
−10
−5
0
5
10
15
SPL(dist) SA180S
250Hz
500Hz
1000Hz
2000Hz
4000Hz
8000Hz
Figure 27 :
Sound level by octave in the axis of the listening plane in front of
the column with respect to the distance from the column
8.5. SA400P / SA450P+ acoustical data1
20m10m0m 40m30m
10m
50m 60m 70m
h=3,05m
10dB
5dB
0dB
-5dB
-10d
B
-15d
B
-20dB
Figure 22 :
SA400P / SA450P+ vertical directivity: sound level for the voice
octaves (500Hz,1kHz,2kHz) in the vertical median plane
0m 10m 20m 30m 40m
10m
20m
50m 60m 70m
30m
40m 10dB
5dB
0dB
-5dB
-10d
B
-15d
B
-20d
B
Figure 23 :
SA400P / SA450P+ horizontal directivity: sound level for the voice
octaves (500Hz,1kHz,2kHz) on the listening plane
0 10 20 30 40 50 60 70
−15
−10
−5
0
5
10
15
SPL(dist) SA400P
250Hz
500Hz
1000Hz
2000Hz
4000Hz
8000Hz
Figure 24 :
Sound level by octave in the axis of the listening plane in front of
the column with respect to the distance from the column
22/24 23/24ver. 2021/20/02
DOP_1112_A
ver. 2021/20/02
User Manual - StepArray+ series User Manual - StepArray+ series
9. Declaration of conformity
We,
ACTIVE AUDIO SAS,
8 Rue Johannes Gutenberg 44340 , France,
Declares under our sole responsability
that the following products
SA150P+, SA230P+, SA300P+, SA450P+,
SA230S+, SA300S+
complie with the council directive 2004/108/CE
Assessment of compliance is based on the following standards:
EN50081-1, EN61000, EN60065
Established on the 6th of January 2016
by Régis CAZIN, CEO.
8.7. SA250S / SA300S+ acoustical data1
0m 10
m
20m
10m
SA250S
h=3,85
m
10dB
5d
B
0d
B
-5d
B
-10d
B
-15d
B
-20d
B
Figure 28 :
SA250S / SA300S+ vertical directivity: sound level for the voice
octaves (500Hz,1kHz,2kHz) in the vertical median plane
0m 10m 20
m
10
m
10dB
5dB
0dB
-5dB
-10dB
-15dB
-20dB
Figure 29 :
SA250S / SA300S+ horizontal directivity: sound level for the voice
octaves (500Hz,1kHz,2kHz) on the listening plane
0510 15 20 25 30
−15
−10
−5
0
5
10
15
SPL(dist) SA250S
250Hz
500Hz
1000Hz
2000Hz
4000Hz
8000Hz
Figure 30 :
Sound level by octave in the axis of the listening plane in front of
the column with respect to the distance from the column
www.activeaudio.fr
Active Audio
8 Rue Johannes Gutenberg
44340 Bouguenais - France
Phone: +33 (0)2 404 666 64
Contact
Table of contents
Other Active Audio Speakers manuals
Active Audio
Active Audio R60 User manual
Active Audio
Active Audio R100SM User manual
Active Audio
Active Audio Vendome User manual
Active Audio
Active Audio StepArray User manual
Active Audio
Active Audio StepArray+ Series User manual
Active Audio
Active Audio CL62 Operation manual
Active Audio
Active Audio R80+ User manual
Active Audio
Active Audio Ray-On Mini User manual
Active Audio
Active Audio Ray-On B70 PoE User manual
