ActiveProducts PW0501400 User manual

PW0501400CA_11/2006_REV.2
PLEASE KEEP THE ORIGINAL BOX, PACKAGING AND RECEIPT.
BEFORE OPERATING THIS UNIT, PLEASE READ THIS MANUAL THOROUGHLY AND
RETAIN IT FOR FUTURE REFERENCE.
IF YOU MUST STORE YOUR PRESSURE WASHER IN A PLACE WHERE TEMPERATURE IS
BELOW 5ºC, YOU MUST APPLY WINTERIZING PROCEDURE TO PROTECT IT. FAILURE TO
WINTERIZE THE UNIT MAY PERMANENTLY DAMAGE PUMP AND VOID THE WARRANTY.
WARRANTY REGISTRATION BY INTERNET, WWW.ACTIVEPRODUCTS.COM.
1-866-924-7626
Model: PW0501400
If you have any questions or comments, please call our toll free
Instruction Manual
1200 EVERYDAY
PRESSURE WASHER

Warranty
Precautions
Safety Features and Electrical Power Information
Parts Diagram and List
Assembly and Operating Instructions
Using the Accessories
Shut Down and Clean-up
Taking a Break
Winterizing and Long-term Storage
Maintaining Your Pressure Washer
Technical data
Troubleshooting
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
2
3
4
5
8
9
9
10
11
12
13
TABLE OF CONTENTS

1
LIMITED 12-MONTH WARRANTY
This Active Products pressure washer is warranted to be free of defects in materials and workman-
ship under normal residential use for one (1) year.
Specific warranty applies to:
• Electric motor and pump are warranted for one (1) year.
• Standard accessories and attachments including the gun, wand/hose and coupler are warranted
for a ninety (90) day period.
The warranty period is calculated from the date of purchase by the end user and covers the cost for
replacement parts/equipment. In order to verify a warranty situation a copy of the original receipt or
gift receipt must accompany the warranty claim, along with the manufacturer’s serial number from
the product. Any warranty claim, work, or replacements given are to fulfill the terms of the original
warranty period only.
Active Products’ obligation under this warranty shall strictly be limited, at Active Products’ option, to
replace any pressure washer or parts thereof, which in the opinion of the manufacturer, shows
defect in workmanship or material. All decisions of Active Products with regard to this limited
warranty shall be final. NO RETURNS or REFUNDS will be allowed by the retailer or manufacturer.
To make a warranty claim or inquiry, you must call 1-866-924-7626. You must have the product
serial number and receipt information ready.
If defects should appear within one year of purchase, you may return the unit with your receipt as
proof of purchase to the place of purchase for an exchange of either a new or refurbished unit, at
Active Products’ discretion. There will be no REFUNDS provided.
The warranty does NOT cover:
• Merchandise sold as reconditioned, used, demonstration or floor models.
• Any commercial, industrial or rental usage of this product. Any such usage will void the implied
warranty.
• Any product that has been damaged by freezing, dropping, misuse, neglect, accident, abuse,
improper handling, normal wear and tear, or non-compliance with the owner’s manual
• Any product that has been damaged by a contaminated water supply, water sediment or
chemicals/detergents that are not approved by or recommended by Active Products.
• Any product that has been damaged by acts of nature such as fires, floods, earthquakes, lighten-
ing strikes, etc.
• Damage caused by repairs made by the end user or any service center not authorized by Active
Products. Any such tampering will void the implied warranty.
• Any cost for shipping by the customer or authorized service center of the allegedly defective
product.
• Any cost for shipping of replacement parts or accessories. Such shipping costs will be borne in
full by the end user.
• Any non-standard or bonus accessory/attachement included with the original product.
Active Products shall in no event be liable for injuries to persons or property, or for incidental,
contingent, special or consequential damages arising from the use of this product. This warranty
does not apply to damage due directly or indirectly to misuse, abuse, negligence or accidents;
repairs or alterations; or lack of maintenance. Active Products shall not be liable for any misrepre-
sentations by stores, store employees, or any parties, that make claims on this product.
This warranty is non-transferable and only applies to products that were sold in and reside in
Canada.
If you have any questions or comments, visit our web site at www.activeproducts.com or call our toll
free customer service line at 1-866-924-7626
WARRANTY

Safety Warnings
When using this product, basic precautions should
always be followed:
Read all the instructions before using the product.
High-pressure jets can be dangerous if subject to
misuse. The jet must not be directed at persons or
animals.
Water spray must never be directed towards any
electric wiring, devices or directly towards the
pressure washer machine itself or fatal electric
shock may occur.
To reduce the risk of injury, do not operate the
machine near children.
Learn how to stop the machine and release
pressure quickly. Be thoroughly familiar with the
controls.
Stay alert—watch what you are doing.
Wear safety goggles.
For use with cold water supply only. Do not draw
other liquids.
Do not use acids, solvents, or any other
flammable material in this product. These
products can cause physical injuries to the
operator and irreversible damage to the machine.
To reduce the risk of electrocution, keep all
connections dry and off the ground. Do not touch
plug with wet hands.
The pressure washer should not be used in areas
where gas vapours may be present. An electric
spark could cause an explosion or fire.
To minimize the amount of water getting into the
pressure washer, the unit should be placed as far
as possible from the cleaning site during
operation.
Avoid accidental starts. Shut power “OFF” before
connecting or disconnecting cord to electrical
outlets.
Do not operate the product when fatigued or
under the influence of alcohol or drugs.
Do not stand on unstable surfaces. Stand with
both feet balanced at all times.
Prior to starting the pressure washer in cold
weather, be sure ice has not formed in any part of
the equipment.
Never carry your pressure washer by the cord. Do
not pull on the cord to disconnect from the outlet.
To allow free air circulation, the pressure washer
should not be covered during operation.
The Trigger Gun Safety Lock prevents the trigger
from accidentally being engaged. This safety
feature does not lock trigger in the “ON” position.
Warnings
Do not use with flammable liquids and toxic
chemicals.
Injection Hazard: Equipment can cause serious
injury if the spray penetrates the skin. Do not point
the gun at anyone or any part of the body. In case
of penetration seek medical aid immediately.
This system is capable of producing 1200PSI. To
avoid rupture and injury, do not operate this pump
with components rated less than 1200PSI working
pressure (including but not limited to spray guns,
hose and hose connections).
Before servicing, cleaning or removal of any parts,
shut “OFF” power and relieve pressure.
Do not spray electrical apparatus and wiring.
If connection is made to a portable water system,
the system shall be protected against backflow.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
2
IMPORTANT PRECAUTIONS – READ FIRST!

Extension cords are not recommended unless
they are plugged into a groundfault circuit-
interrupter found in circuit boxes or protected
receptacles.
Warning
The pressure washer is also equipped with a
main power “ON/OFF” switch located on the
unit. It should always be moved to the “OFF”
position when the pressure washer is not
being used to prevent possible injury or
damage.
Warning
The pressure washer is equipped with a stop
device that will sense when the trigger on the gun
is released. It will open the power circuit to the motor
and cause the pressure washer motor to stop. Motor
will resume again when trigger is pulled.
Extension Cords
If possible, do not use extension cords with this
product. However, if you must use one, observe all
the warnings and instructions listed below:
Use a sufficient gauge:
Maximum cable length: 50’ = 14 AWG
Use only extension cords that are intended for
outdoor use. These extension cords are identified
by a marking “Acceptable for use with outdoor
appliances; store indoors while not in use.”
Use only extension cords having an electrical rating
not less than the rating of the product.
Do not use damaged extension cords. Examine
extension cord before using and replace if
damaged. Do not abuse extension cord and do not
yank on any cord to disconnect.
Keep cord away from heat and sharp edges.
Always disconnect the extension cord from the
receptacle before disconnecting the product from
the extension cord.
To reduce the risk of electrocution, keep all connec-
tions dry and off the ground. Do not touch plug with
wet hands.
•
•
•
•
•
•
SAFETY FEATURES AND ELECTRICAL POWER INFORMATION
3

Parts No.
Part NameItem no. Quantity
Parts List
Pressure washer
Adjustable wand
Gun assembly & pressure hose
Quick-connect coupling & inlet adaptor
Water filter
1
5
4
3
2
1
1
1
1
1JH03-000-0001
JH03-001-0000
JH03-091-0000
JH03-090-0000
JH03-050-0000
1
23
4
5
PARTS DIAGRAM AND LIST
4

Fig.3
Fig.2Fig.1

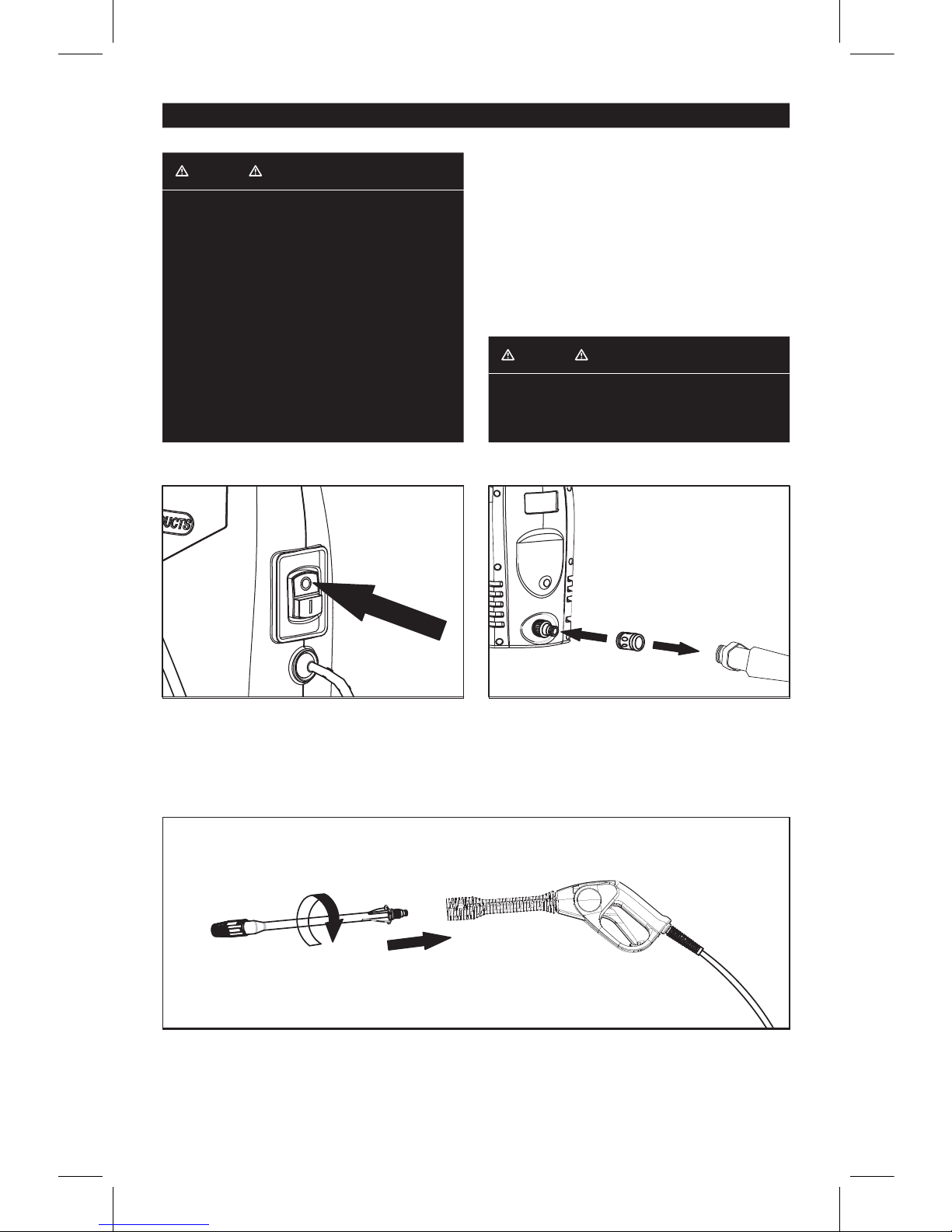

Make sure that the ON/OFF switch is in the
“OFF” position.
•
•
•
•
•
Separate the adaptor and quick-connect
coupling. Attach inlet adaptor to the machine’s
inlet and attach the quick-connect coupling
onto the garden hose.
Insert the wand into spray gun, and twist 1/4 turn until rectangular tab appears.
Do not draw non-water liquids through the unit. For
use with cold water supply only.
Water hose must be at least a 1/2” in diameter.
Flow rate of water supply must not fall below 2 GPM
(gallons per minute).
Flow rate can be determined by running the water
for one minute into an empty 5-gallon container.
The water supply temperature must not exceed
40°C (104°F).
Step 1 Step 2
Step 3
Water Supply (cold Water Only)
Caution
To prolong the life of the unit, it is
recommended to rest the unit 5 minutes
after every 30 minutes of use.
Caution
• Never use the pressure washer to draw
in water contaminated with solvents
(e.g. paint thinners, gasoline, oil, etc.).
• Dirt in the feed water will damage the
unit. To avoid this risk, we recommend
checking the water filter (located inside
the water inlet; to clean it out see
Maintenance section).
• Always prevent debris from being
drawn into the unit by using a clean
water source and an accessory water
filter if required.
ASSEMBLY AND OPERATING INSTRUCTIONS
5

Fig.6Fig.5
Fig.4
Step 4
Step 5 Step 6

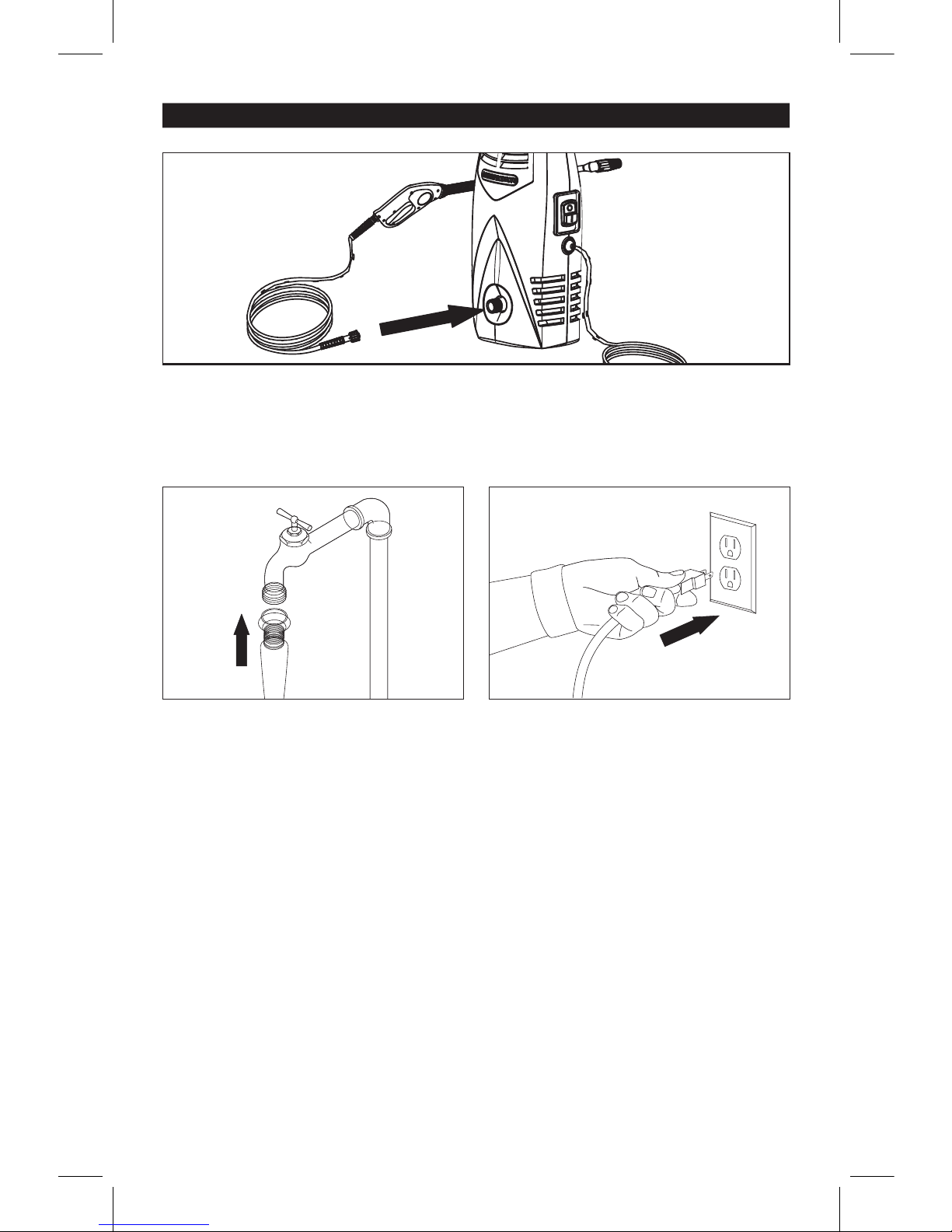

Attach the high-pressure hose to the water outlet. Twist tightly to avoid leakage.
Attach garden hose to water supply and turn
water on.
Plug the unit into an outlet.
ASSEMBLY AND OPERATING INSTRUCTIONS – continued
6

Fig.7
Fig.8
Step 7
Step 8
Start the pressure washer by turning ON/OFF switch to ON.
Before turning the unit ON, depress the trigger to bleed any trapped air out of the pump and
hose.
Surface Preparation
Before starting any cleaning task, it is important to inspect the area for objects which could create a
hazard. Remove from the workarea which could be tripped over, such as toys or outdoor furniture.
Ensure that all doors and windows are closed tight.
ASSEMBLY AND OPERATING INSTRUCTIONS – continued
7

Fig.9

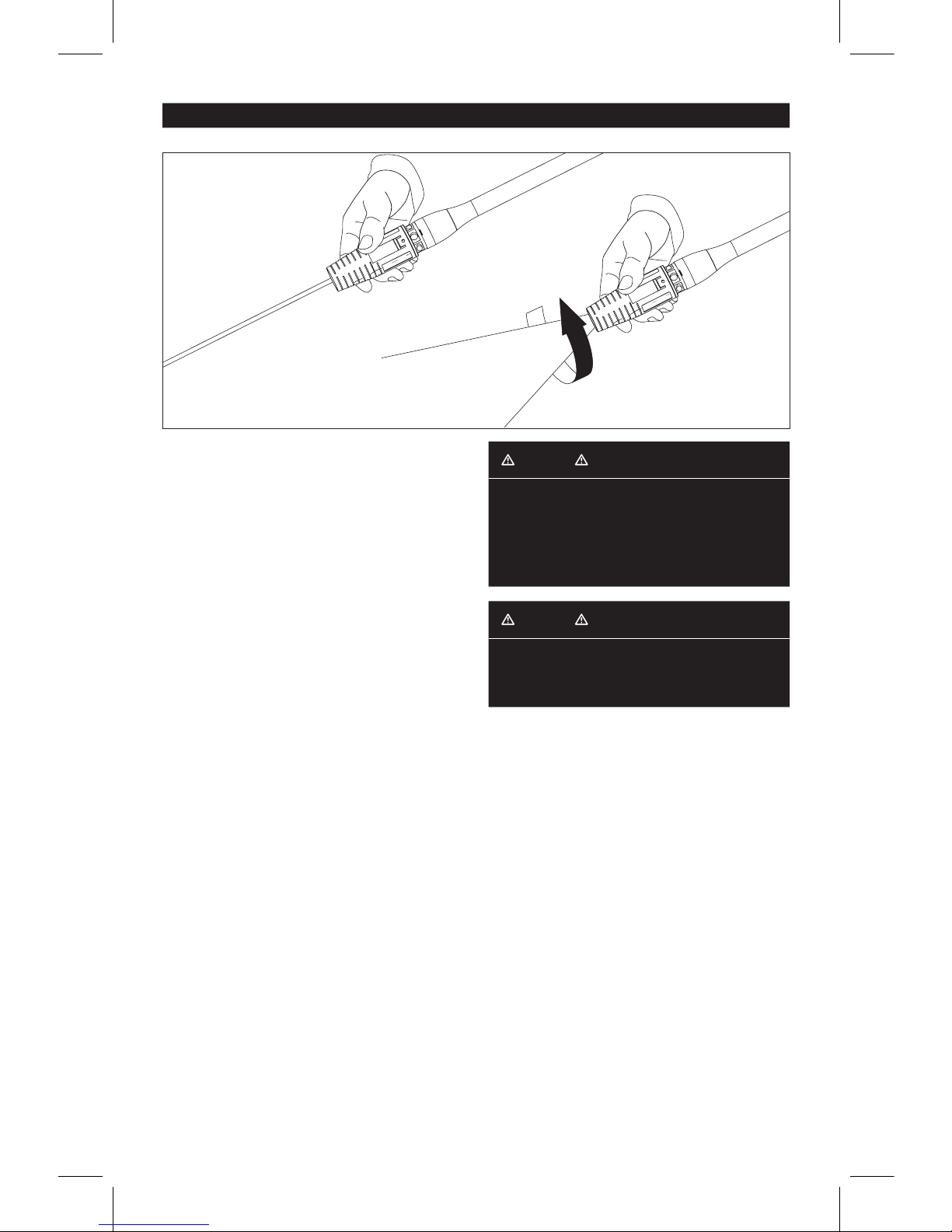

Adjusting The Spray
The adjustable spray nozzle can be adjusted
from fan to jet. The spray is adjusted from jet
to fan spray by turning the nozzle as shown in
Fig.9.
Caution
Jet spray adjustment is very aggressive.
Do not adjust while spraying. We recom-
mend that for most cleaning applications
a 20º spray angle should be used to avoid
damage to the surface being sprayed.
USING THE ACCESSORIES
8
Caution
To prolong the life of the unit, it is
recommended to rest the unit 5 minutes
after every 30 minutes of use.

Unplug the power cord from the outlet.
Step 3
Turn pressure washer to “OFF” (O) position.
Step 2
Engage gun safety lock.
Step 1
If taking a break of five minutes or more:
Step 4
Disconnect the garden hose from the water inlet on
the unit.
Step 5
Disconnect the high-pressure hose from the high-
pressure outlet and engage the gun safety lock.
Step 1
Turn the switch to “OFF” (0) position and unplug cord
from outlet.
Step 2
Turn off the water supply.
Step 3
Turn off water supply and squeeze trigger
to depressurize the unit. Failure to do so
could result in personal injury due to dis-
charge of high-pressure water.
Warning
TAKING A BREAK
SHUTTING DOWN AND CLEANING UP
9
Press trigger to release water pressure and remove
excess water from the pressure washer.

Fig.10
Disconnect all water connections.
Turn on the machine for a few seconds. Press
trigger to bleed any remaining water in the pump.
Turn off immediately.
Remove the gun and hose from the pressure
washer. Drain any excess water. Roll hose
carefully and do not allow hose to be kinked.
Store the machine and accessories in a room that
does not reach freezing temperatures. Do not store
near furnace or other heat source as it may dry out
the pump seals.
Alternative Procedure
If you cannot do the Optimum Winterizing pro-
cedure, you can still protect your pressure washer
from winter-damage by doing below:
1.
2.
3.
4.
4. Remove the hose from pump inlet.
3. Continue until fluid exits the pump outlet.
2. Depress button on top of antifreeze container.
and quick-connect coupling.
1. Connect the pump saver hose onto the adaptor
Optimum Winterizing Procedure
Winterizing your pressure washer will help protect
and prolong its life. It is strongly recommend you
follow the below steps using pump saver. This will
keep the internal parts lubricated, protected from
rust, and prevents the pump from freezing.
Pump saver is available at your local hardware
stores.
WINTERIZING AND LONG-TERM STORAGE
10

Fig.12Fig.11
Air Vents
The air vents located on the sides of the pressure
washer must be kept clean and free of any obstruc-
tions to ensure proper air-cooling of the motor during
operation.
To clean inner water screen, remove quick-
connector and remove the filter screen from the
pump inlet (Fig.12).
Rinse screen until it is free of debris and
blockage.
Replace screen and quick-connector immediately
to prevent any foreign matter from entering the
pump.
3.
2.
1.
Water Filter Screen
The pressure washer is equipped with a water inlet
filter that prevents debris going into the pump. If the
filter is not kept clean, the flow of water to the
pressure washer will be restricted and the pump may
be damaged.
Adjustable Nozzle
When the nozzle is clogged, it will cause the pump
to build pressure and may cause the unit to surge.
You can clean the nozzle by carefully inserting a
thin, sharp instrument (i.e. paperclip) into the tip to
rid it of deposits.
For the adjustable nozzle, you can also lubricate the
nozzle collar (high-pressure/low-pressure) by
using non-water soluble grease regularly.
Connections
Connections on pressure washer hoses, gun and spray wand should be cleaned regularly and lubricated with
non-water soluable grease.
USER MAINTENANCE
11

900 PSI
1200 PSI
1.3 GPM
120 V, 15 A, 60 Hz
23’
17’
11 A
Cold tap water
Pump Pressure:
Max. Pressure:
Water Flow Rate:
Power Source Requirement:
Electrical cord:
High-pressure hose:
Current Drawn:
Water supply:
Specifications
TECHNICAL SPECIFICATIONS
12

Symptom
Motor will
not start.
Unit does
not reach
high-pressure.
Output pressure
varies high
and low.
On/Off switch is in the
“OFF” (O) position.
Power cord is not plugged in.
Extension cord is too long.
Extension cord is not proper gauge.
Extension cord is damaged.
Electrical outlet does
not supply adequate power.
Diameter of garden hose is too small.
Water supply is restricted.
Not enough inlet water supply.
Water inlet filter is clogged.
Pump is sucking air.
Not enough inlet water supply.
Pump is sucking air.
Water inlet filter is clogged.
Discharge nozzle is obstructed.
Calcified gun, hose or power nozzle.
Turn switch to the “ON” ( | ) position.
Plug in power cord.
Replace extension cord with a
50’ 14 gauge cord.
Try a different outlet.
Replace with a inch or
5/8” garden hose.
Check garden hose for kinks,
leaks and blockage.
Open water source full force.
Remove filter and rinse
out in warm water.
Check that hoses and fittings are air
tight. Turn “OFF” machine and purge
pump by squeezing trigger gun until a
steady flow of water emerges through
the nozzle.
Turn water on full force. Check garden
hose for kinks, leaks or blockage.
Check that hoses and fittings are air
tight. Turn “OFF” machine and purge
pump by squeezing trigger gun until a
steady flow of water emerges through
the nozzle.
Remove filter and rinse
out in warm water.
Blow out or remove debris
with a fine needle.
Rinse and clean with diluted vinegar
solution.
Cause Solution
Disconnect the machine from the power source before making any repair.
TROUBLESHOOTING
13

IF YOU ENCOUNTER ANY ADDITIONAL DIFFICULTIES NOT LISTED, VISIT OUR WEBSITE AT
WWW.ACTIVEPRODUCTS.COM OR CALL CUSTOMER SERVICE AT 1-866-924-7626 FOR
ASSISTANCE.
Garden hose
connection leaks.
Spray wand, or
extension, or
nozzle leaks.
Pump is noisy.
Water leaks from
pump (up to 10
drops per minute
is permissible).
Oil Drip.
Motor buzzes
but fails to run.
Loose fittings.
Missing/worn rubber washer.
Spray nozzle not properly attached.
Broken o-ring or plastic insert.
Pump is sucking air.
Loose fittings.
Water seals are damaged or worn.
Oil seals are damaged or worn.
Supply voltage below minimum.
System has residual pressure.
Voltage loss due to extension cord.
Pressure washer not
used for long periods.
Tighten fittings.
Insert new washer.
Insert the spray nozzle into the trigger
gun. Carefully press in against the
spring tension and twist into the
locked position.
Call Customer Service.
Check that hoses and fittings are air
tight. Turn off machine and purge
pump by squeezing trigger gun until a
steady flow of water emerges through
the nozzle.
Check that all fittings are tight.
Call Customer Service.
Call Customer Service.
Verify that only the pressure washer is
running on this circuit.
Turn unit “OFF”, squeeze trigger on
spray want to release pressure, then
turn unit “ON”.
Do not use extension cord with this
unit—plug directly into power outlet.
Call Customer Service.
Symptom Cause Solution
TROUBLESHOOTING – continued
14
