Ryobi RY80544 Series User manual

OPERATOR’S MANUAL
MANUEL D’UTILISATION
MANUAL DEL OPERADOR
3100 PSI PRESSURE WASHER
NETTOYEUR HAUTE PRESSION DE 3100 PSI
LAVADORA A PRESIÓN DE 3100 PSI
RY80544
SERIES/SÉRIE/SERIE
NOTICE AVIS AVISO
Do not use E15 or E85 fuel (or fuel
containinggreaterthan10%ethanol)
in this product. It is a violation of
federal law and will damage the unit and void your warranty.
Ne pas utiliser d’essence E15 ou E85 (ou un carburant
contenant plus de 10 % d’éthanol) dans ce produit. Une
telle utilisation représente une violation de la loi fédérale et
endommagera l’appareil et annulera la garantie.
No utilice combustibles E15 o E85 (ni combustibles que
contengan más de 10 % de etanol) con este producto. Esto
constituye una violación a la ley federal, dañará la unidad
y anulará la garantía.
Ce nettoyeur haute pression a été conçu et fabriqué conformément
aux strictes normes de fiabilité, simplicité d’emploi et sécurité
d’utilisation. Correctement entretenu, il vous donnera des années
de fonctionnement robuste et sans problème.
AVERTISSEMENT : Pour réduire les risques de
blessures, l’utilisateur doit lire et veiller à bien comprendre le
manuel d’utilisation avant d’utiliser ce produit.
Su lavadora a presión ha sido diseñada y fabricada de conformidad
con las estrictas normas para brindar fiabilidad, facilidad de uso
y seguridad para el operador. Con el debido cuidado, le brindará
muchos años de sólido y eficiente funcionamiento.
ADVERTENCIA: Para reducir el riesgo de lesiones,
el usuario debe leer y comprender el manual del operador antes
de usar este producto.
CONSERVER CE MANUEL
POUR FUTURE RÉFÉRENCE GUARDE ESTE MANUAL
PARA FUTURAS CONSULTAS
SAVE THIS MANUAL FOR FUTURE REFERENCE
Your pressure washer has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using
this product.

ii
See this fold-out section for all of the figures
referenced in the operator’s manual.
Consulter l’encart à volets afin d’examiner toutes les
figures mentionnées dans le manuel d’utilisation.
Consulte esta sección desplegable para ver todas las
figuras a las que se hace referencia en el manual del
operador.

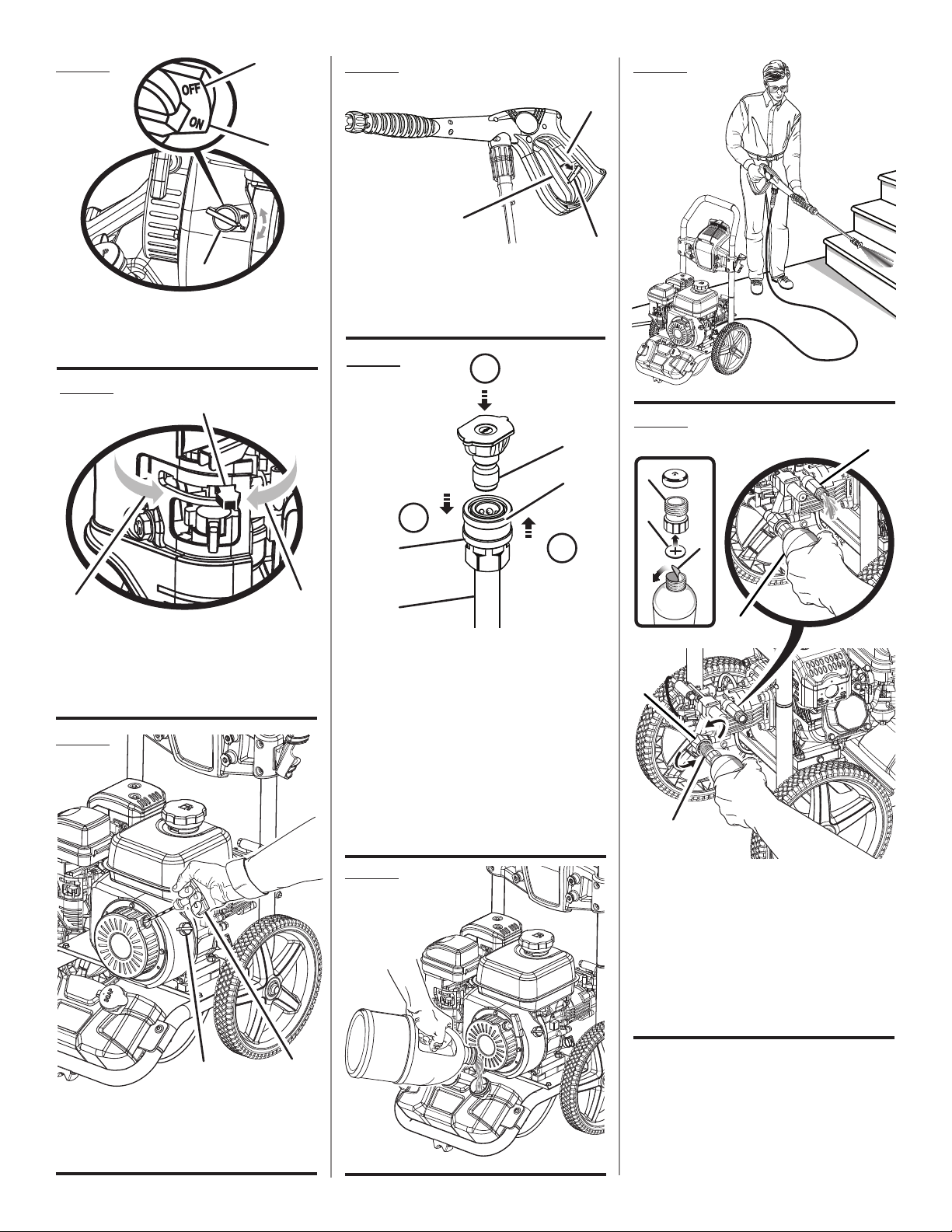

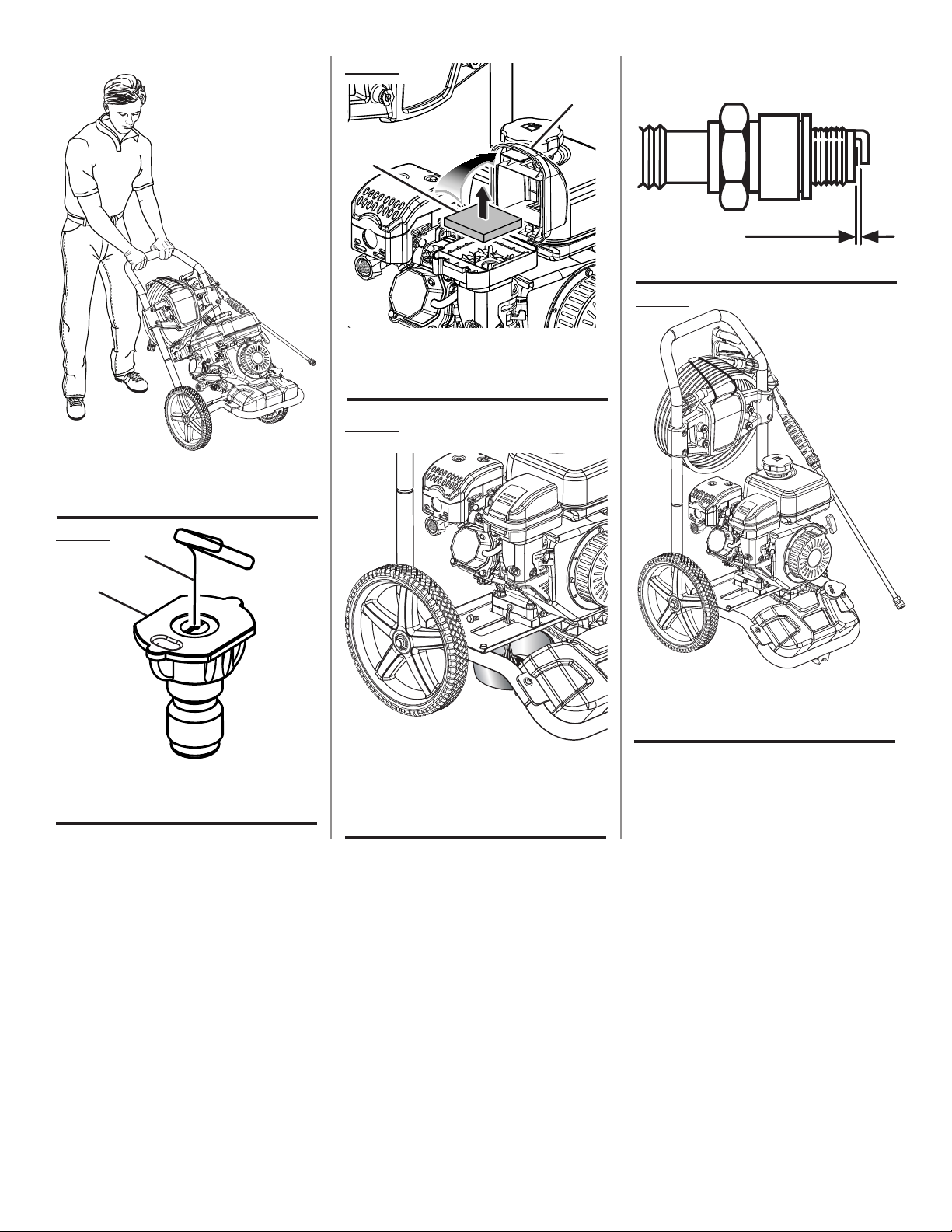

Fig. 1
A - Fuel cap (bouchon de carburant, tapa del
combustible)
B - Starter grip and rope (poignée du lanceur et
corde, mango del arrancador y cuerda)
C - Fuel tank (réservoir de carburant, tanque de
combustible)
D - Oil cap/dipstick (bouchon/jauge d’huile , tapa
del aceite con varilla de nivel)
E - Gripping surface (surface de prise, superficie
de sujeción)
F - Muffler (silencieux, silenciador)
G - Fuel valve - (robinet de carburant, válvula de
combustible)
H - On/off switch (interrupteur marche / arrêt,
interruptor de encendido/apagado)
I - Choke lever (levier d’étrangleur, palanca del
anegador)
J - High pressure hose (tuyau haute pression,
manguera de alta presión)
K - Hose storage (rangement de tuyaux,
compartimiento para manguera)
L - Handle (poignée, mango)
M - Trigger handle (poignée de gâchete, mango
del gatillo)
N - Trigger with lock out (gâchette avec
verouillage, gatillo con seguro)
O - Spray wand (lance de pulvérisation , tubo de
rociado)
P - Detergent tank (réservoir de détergent,
tanque de detergente)
Q - Detergent injection hose (tuyau pour
l’injection du détergent, manguera de
inyección de detergente)
C
G
D
E
F
L
A
I
B
D
H
M
J
K
N
O
Q
P

iii

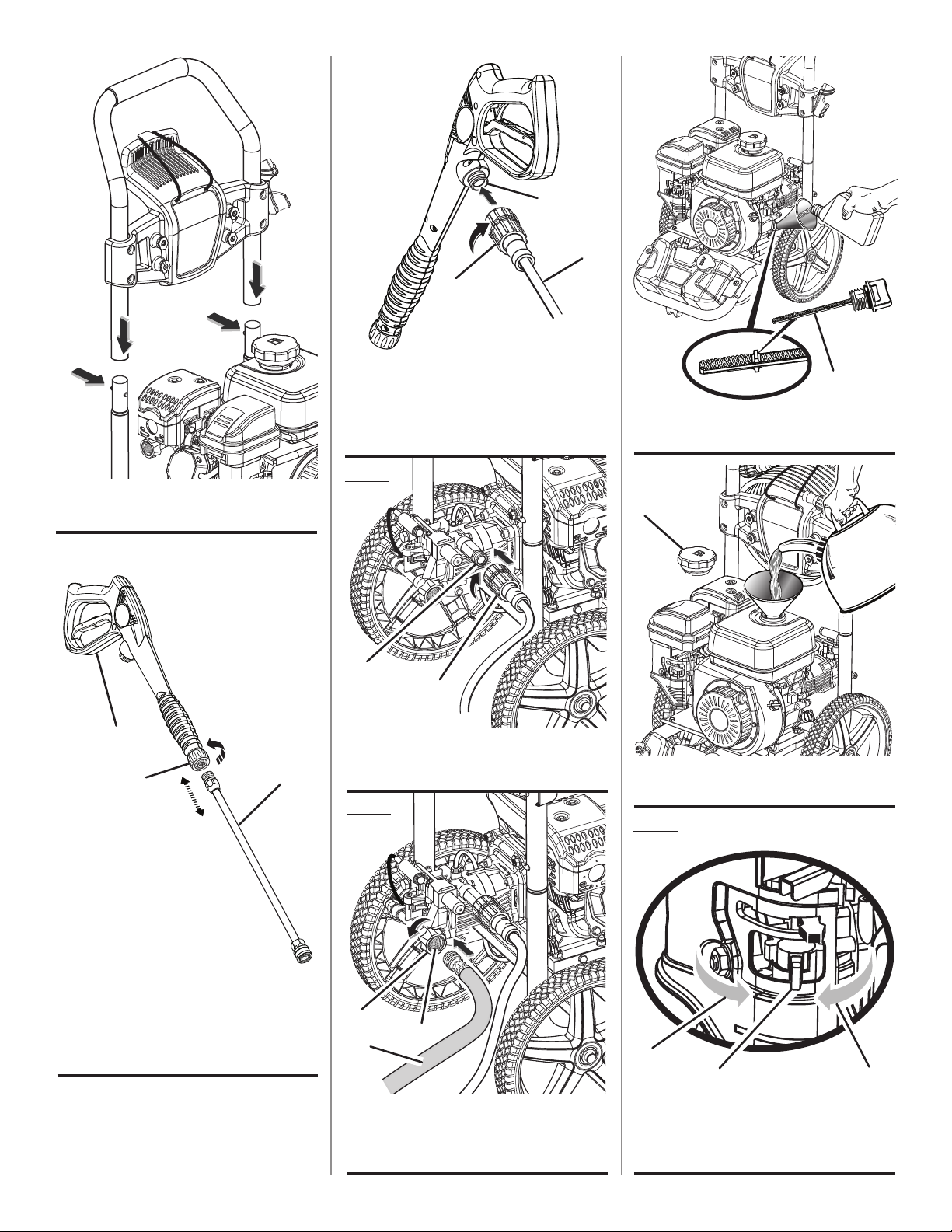

Fig. 2
A - Push to insert (capuchon de verrouillage du
manche, tapa de aseguramiento del mango)
Fig. 3
Fig. 4
A - Trigger handle (poignée à gâchette, mango
del gatillo)
B - Connector (connecteur, conector)
C - Spray wand (lance de pulvérisation, tubo de
rociado)
A - Collar (collier, casquillo)
B - Inlet coupler (raccord d’entrée, acoplador de
entrada)
C - High pressure hose (tuyau haute pression,
manguera de alta presión)
A
A
A
BC
A
B
C
Fig. 5
Fig. 6
A - Threaded nipple (têton fileté, conexión
roscada)
B - Collar (collier, casquillo)
A - Water intake (prise d’eau, entrada de agua)
B - Screen (tamis, cedazo)
C - Garden hose (tuyau d’arrosage, manguera de
jardín)
A
CB
A - Oil cap/dipstick (bouchon / jauge d’huile, tapa
del aceite con varilla de nivel)
A - Fuel valve (robinet de carburant, válvula de
combustible)
B - Open (ouvert, abierto)
C - Closed (fermé, cerrado)
Fig. 8
Fig. 9
A - Fuel cap (bouchon du réservoir, tapa del
tanque de combustible)
A
A
B
C
A
Fig. 7
AB

iv
Fig. 14
A - Trigger (gâchette, gatillo)
B - Slot (fente, ranura)
C - Lock out (bouton de verrouillage, seguro)
Fig. 13
A
Fig. 17
A - Nozzle (embout, boquilla)
B - “Click” (déclic, hasta que trabe)
C - Quick-connect collar (casquillo de conexión
rápida)
D - Spray wand (lance de pulvérisation, tubo de
rociador)
E - Pull back the quick-connect collar (tirer la
bague à connexion rapide, tire del collar de
conexión rápida)
F - Push the nozzle into place (insérer en place la
buse, introduzca la boquilla en su lugar)
G - Push the collar forward (poussez en avant la
bague, empuje del collar adelante)
A
B
C
D
F
E
G
C
B
A - Choke lever (levier d’étrangleur, palanca del
anegador)
B - Start (cold start) [démarrage (démarrage à
froid), arranque (arranque en frío)]
C - Run (marche, funcionamiento)
A - Starter grip and rope (poignée du lanceur et
corde, mango del arrancador y cuerda)
B - On/off switch (interrupteur marche / arrêt,
interruptor de encendido/apagado)
A - On/off switch (interrupteur marche / arrêt,
interruptor de encendido/apagado)
B - On (marche, encendido)
C - Off (arrêt, apagado)
Fig. 11
Fig. 10
Fig. 12
Fig. 15
Fig. 16
A - Threaded top (bouchon vissé, parte superior
roscada)
B - Rubber seal (joint de caoutchouc, sello de
goma)
C - Paper seal (sceaux de papier, sello de papel)
D - Water intake (rise d’eau, entrada de agua)
E - Pump outlet (sortie de la pompe, orificio de
descarga de la bomba)
F - Pump protector (protecteur de pompe,
protector de bomba)
C
B
A
A
D
E
F
BC
A
A
C
B
A
B

v
Fig. 19
Fig. 23
Fig. 22
Fig. 21
TO MOVE THE MACHINE
DÉPLACEMENT DE LA MACHINE
PARA MOVER LA MÁQUINA
CHANGING LUBRICANT
VIDANGE DE LE LUBRIFIANT
CAMBIO DEL LUBRICANTE
TO STORE THE MACHINE
REMISAGE DE LA MACHINE
PARA GUARDAR LA MÁQUINA
Fig. 18
A - Straightened paper clip (trombone droit, clip
para papel abierto)
B - Nozzle (buse, boquilla)
A - Filter cover (couvercle du filtre à air, tapa de
la cámara de ventilación)
B - Foam filter (filtre, filtro)
A
B
A
B
15
0.7 - 0.8 mm
(0,7 - 0,8 mm)
0.7 - 0.8 mm
(0,7 - 0,8 mm)
Fig. 20

Page 2 — English
Introduction ...................................................................................................................................................................... 2
Introduction / Introducción
Important Safety Instructions ........................................................................................................................................... 3
Instructions importantes concernant la sécurité / Instrucciones de seguridad importantes
Specific Safety Rules........................................................................................................................................................ 4
Règles de sécurité particulières / Reglas de seguridad específicas
Symbols.........................................................................................................................................................................5-6
Symboles / Símbolos
Features............................................................................................................................................................................ 7
Caractéristiques / Características
Assembly.......................................................................................................................................................................8-9
Assemblage / Armado
Operation...................................................................................................................................................................10-14
Utilisation / Funcionamiento
Maintenance..............................................................................................................................................................14-16
Entretien / Mantenimiento
Troubleshooting.............................................................................................................................................................. 17
Dépannage / Solución de problemas
Warranty ....................................................................................................................................................................18-20
Garantie / Garantía
Parts Ordering and Service ...............................................................................................................................Back Page
Commande de pièces et réparation / Pedidos de piezas y servicio ......................................................... Page arrière / Pág. posterior
This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability
have been given top priority in the design of this product making it easy to maintain and operate.
* * *
Ce produit offre de nombreuses fonctions destinées à rendre son utilisation plus plaisante et satisfaisante. Lors de la
conception de ce produit, l’accent a été mis sur la sécurité, les performances et la fiabilité, afin d’en faire un outil facile à
utiliser et à entretenir.
* * *
Este producto ofrece numerosas características para hacer más agradable y placentero su uso. En el diseño de este producto
se ha conferido prioridad a la seguridad, el desempeño y la fiabilidad, por lo cual se facilita su manejo y mantenimiento.
TABLE OF CONTENTS
TABLE DES MATIÈRES / ÍNDICE DE CONTENIDO
INTRODUCTION
INTRODUCTION / INTRODUCCIÓN

Page 3 — English
WARNING:
Read and understand all instructions. Failure to follow all
instructions listed below may result in electric shock, fire
and/or carbon monoxide poisoning which will cause death
or serious personal injury.
READ ALL INSTRUCTIONS
Know your tool. Read the operator’s manual carefully.
Learn the machine’s applications and limitations as well
as the specific potential hazards related to this tool.
Keep guards in place and in working order. Never
operate the tool with any guard or cover removed. Make
sure all guards are operating properly before each use.
Remove adjusting keys and wrenches. Form habit of
checking to see that keys and adjusting wrenches are
removed from tool before turning it on.
To reduce the risk of injury, keep children and visitors
away. All visitors should wear safety glasses and be kept
a safe distance from work area.
Keep the area of operation clear of all persons,
particularly small children, and pets.
Do not start or operate the engine in a confined space,
building, near open windows, or in other unventilated
space where dangerous carbon monoxide fumes can
collect. Carbon monoxide, a colorless, odorless, and
extremely dangerous gas, can cause unconsciousness
or death.
Use right tool. Don’t force tool or attachment to do a
job it was not designed for. Don’t use it for a purpose not
intended.
Dress properly. Do not wear loose clothing, gloves,
neckties, or jewelry. They can get caught and draw you
into moving parts. Rubber gloves and nonskid footwear
are recommended when working outdoors. Also wear
protective hair covering to contain long hair.
Do not operate the equipment while barefoot or when
wearing sandals or similar lightweight footwear. Wear
protective footwear that will protect your feet and improve
your footing on slippery surfaces.
Exercise caution to avoid slipping or falling.
Always wear eye protection with side shields marked
to comply with ANSI Z87.1. Following this rule will
reduce the risk of serious personal injury.
Don’t overreach or stand on unstable support. Keep
proper footing and balance at all times.
Use only recommended accessories. The use of
improper accessories may cause risk of injury.
Follow the maintenance instructions specified in this
manual.
Check damaged parts. Before further use of the tool, a
guard or other part that is damaged should be carefully
checked to determine that it will operate properly and
perform its intended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts,
mounting, and any other conditions that may affect its
operation. A guard or other part that is damaged must
be properly repaired or replaced by an authorized service
center to avoid risk of personal injury.
Never leave tool running unattended. Turn power off.
Don’t leave tool until it comes to a complete stop.
Keep the engine free of grass, leaves, or grease to
reduce the chance of a fire hazard.
Keep the exhaust pipe free of foreign objects.
Follow manufacturer’s recommendations for
safeloading, unloading, transport, and storage of
machine.
Be thoroughly familiar with controls. Know how to stop
the product and bleed pressure quickly.
Keep tool dry, clean, and free from oil and grease.
Always use a clean cloth when cleaning. Never use
brake fluids, gasoline, petroleum-based products, or any
solvents to clean tool.
Stay alert and exercise control. Watch what you are
doing and use common sense. Do not operate tool when
you are tired. Do not rush.
Do not operate the product while under the influence
of drugs, alcohol, or any medication.
Check the work area before each use. Remove all
objects such as rocks, broken glass, nails, wire, or
string which can be thrown or become entangled in the
machine.
Do not use tool if switch does not turn it off. Have
defective switches replaced by an authorized service
center.
Before cleaning, repairing, or inspecting, shut off the
engine and make certain all moving parts have stopped.
Disconnect the spark plug wire, and keep the wire away
from the plug to prevent accidental starting.
Avoid dangerous environment. Don’t use in damp or
wet locations or expose to rain. Keep work area well
lit.
Never use in an explosive atmosphere. Normal
sparking of the motor could ignite fumes.
Do not operate while smoking or near an open flame.
Do not operate around dry brush, twigs, cloth rags, or
other flammable materials.
WARNING: Risk of injection or injury – Do not direct
discharge stream at persons.
IMPORTANT SAFETY INSTRUCTIONS

Page 4 — English
Use caution when positioning the pressure washer
for use. Warm air from the engine could cause
discolored spots on grass.
Never direct a water stream toward people or pets,
or any electrical device.
Before starting any cleaning operation, close doors
and windows. Clear the area to be cleaned of debris,
toys, outdoor furniture, or other objects that could create
a hazard.
Never pick up or carry a machine while the engine is
running.
Never start the machine if ice has formed in any part
of the equipment.
Do not use acids, alkalines, solvents, flammable
material, bleaches, or industrial grade solutions
in this product. These products can cause physical
injuries to the operator and irreversible damage to the
machine.
Always operate the machine on a level surface. If the
engine is on an incline, it could seize due to improper
lubrication (even at the maximum lubricant level).
WARNING: High pressure jets can be dangerous
if subject to misuse. The jet must not be directed at
persons, animals, electrical devices, or the machine
itself.
Hold the handle and wand securely with both hands.
Expect the trigger handle to move when the trigger is
pulled due to reaction forces. Failure to do so could cause
loss of control and injury to yourself and others.
Never attempt to make any adjustments while the
engine (motor) is running (except where specifically
recommended by the manufacturer).
Protective covers must always cover rotating parts
when the engine is running.
Keep cooling air intake (starter grip and rope area)
and muffler side of the engine at least 3 feet away from
buildings, obstructions, and other combustible objects.
Keep the engine away from flammables and other
hazardous materials.
Keep away from hot parts. The muffler and other engine
parts become very hot; use caution.
Do not touch the spark plug and ignition cable when
starting and operating the engine.
Check fuel hoses and joints for looseness and fuel
leakage before each use.
Check bolts and nuts for looseness before each use.
A loose bolt or nut may cause serious engine problems.
Always refuel outdoors. Never refuel indoors or in a
poorly ventilated area.
Never store the machine with fuel in the fuel tank
inside a building where ignition sources are present,
such as hot water and space heaters, clothes dryers, and
the like.
If the fuel tank has to be drained, do this outdoors.
To reduce the risk of fire and burn injury, handle fuel
with care. It is highly flammable.
Do not smoke while handling fuel.
Add fuel before starting the engine. Never remove the
cap of the fuel tank or add fuel while the engine is running
or when the engine is hot.
Loosen fuel cap slowly to release pressure and to keep
fuel from escaping around the cap.
Replace all fuel tank and container caps securely.
Wipe spilled fuel from the unit.Move 30 feet away from
refueling site before starting engine.
If fuel is spilled, do not attempt to start the engine but
move the machine away from the area of spillage and
avoid creating any source of ignition until fuel vapors
have dissipated.
Never attempt to burn off spilled fuel under any
circumstances.
Before storing, allow the engine to cool and drain fuel
from the unit.
Store fuel in a cool, well-ventilated area, safely away
from spark and/or flame-producing equipment.
Store fuel in containers specifically designed for this
purpose.
Empty fuel tank and restrain the unit from moving
before transporting in a vehicle.
When servicing use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
ONLY use cold water.
Make sure minimum clearance of 3 feet is maintained
from combustible materials.
Never spray close to the surface to be cleaned as you
can damage the surface.
After stopping the engine, always pull the trigger on
the trigger handle to relieve stored pressure in the
high pressure hose. Failure to do so could result in
serious personal injury.
For outdoor use only.
Ensure the high pressure hose is properly connected
before using the product.
Save these instructions. Refer to them frequently and
use them to instruct other users. If you loan someone this
tool, loan them these instructions also.
SPECIFIC SAFETY RULES

Page 5 — English

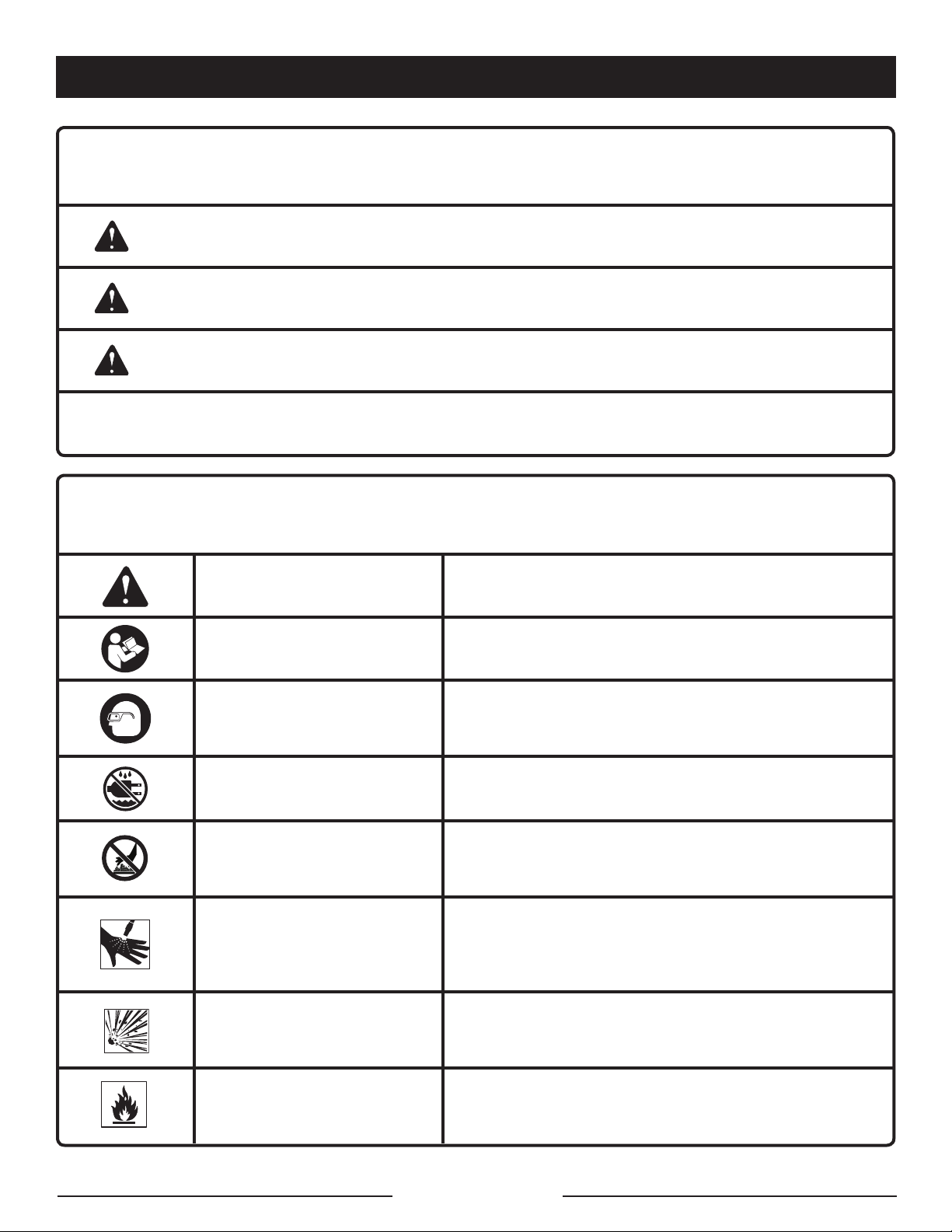

Some of the following symbols may be used on this product. Please study them and learn their meaning for safe
operation of this product.
SYMBOL NAME EXPLANATION
Safety Alert Indicates a potential personal injury hazard.
Read Operator’s Manual To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye Protection Always wear eye protection with side shields marked to comply
with ANSI Z87.1.
Wet Conditions Alert Do not expose to rain or use in damp locations.
Hot Surface To reduce the risk of injury or damage, avoid contact with any
hot surface.
Risk of Injections
To reduce the risk of injection or injury, never direct a water
stream towards people or pets or place any body part in the
stream. Leaking hoses and fittings are also capable of causing
injection injury. Do not hold hoses or fittings.
Risk of Explosion Fuel and its vapors are explosive and can cause severe burns
or death.
Risk of Fire Fuel and its vapors are extremely flammable and explosive. Fire
can cause severe burns or death.
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
NOTICE: (Without Safety Alert Symbol) Indicates important information not related to an
injury hazard, such as a situation that may result in property damage.
SYMBOLS

Page 6 — English
Some of the following symbols may be used on this product. Please study them and learn their meaning for safe
operation of this product.
SYMBOL NAME EXPLANATION
Toxic Fumes
Gas products emit carbon monoxide, an odorless, colorless,
poison gas. Breathing carbon monoxide can cause nausea,
fainting, or death.
Kickback To reduce the risk of injury from kickback, hold the spray wand
securely with both hands when the machine is on.
Electric Shock Failure to use in dry conditions and to observe safe practices
can result in electric shock.
Chemical Burns
To reduce the risk of injury or damage, DO NOT USE ACIDS,
ALKALINES,BLEACHES, SOLVENTS,FLAMMABLE MATERIAL,
OR INDUSTRIAL GRADE SOLUTIONS in this product.
SYMBOLS

Page 7 — English
PRODUCT SPECIFICATIONS
Fuel Tank Capacity ....................................................................................................................................................0.66 gal.
Lubricant Fill Volume .....................................................................................................................................................17 oz.
Maximum Pounds Per Square Inch Pressure* .........................................................................................................3,100 psi
Maximum Gallons Per Minute*...................................................................................................................................2.5 gpm
Maximum Inlet Water Temperature ................................................................................................................................104˚F
Spark Plug...................................................................................................................................................... Torch/LG F6TC
*Max. rating determined by PWMA Standard 101
KNOW YOUR PRESSURE WASHER
See Figure 1.
The safe use of this product requires an understanding of
the information on the tool and in this operator’s manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
AUTOMATIC DETERGENT INJECTION SYSTEM
Pour pressure washer detergent into the detergent tank to
apply detergent quickly and easily to your cleaning project.
Use of the soap nozzle will activate the detergent injector
at a 20:1 dilution ratio.
FUEL TANK
This fuel tank has a maximum capacity of 0.66 gal. Use
unleaded automotive gasoline in the engine.
HOSE STORAGE
Once the high pressure hose is rolled, hang it on the back
of the machine using the stretch strap to secure in place.
IDLE DOWN
The engine idle speed is automatically reduced when the
trigger is released. This feature increases fuel efficiency,
reduces the noise level, and decreases wear and tear over
the life of the pressure washer.
ON/OFF SWITCH
The on/off switch is used in combination with the starter
grip and rope to start the engine. It is also used to turn the
engine off.
STARTER GRIP AND ROPE
The starter grip and rope is pulled to start the machine.
SOAP NOZZLE
The blue soap nozzle is used to apply detergent at low
pressure only.
THERMAL RELIEF VALVE
This pump feature will prevent water temperatures from
reaching harmful levels by releasing a small amount of
water. Once the water has drained, the thermal relief valve
will reset itself.
TRIGGER HANDLE
The trigger handle has a gripping surface that provides
added control of the spray wand and helps reduce fatigue.
TRIGGER WITH LOCK OUT
Pulling the trigger releases a stream of water for high
pressure cleaning. The lock out provides protection against
unauthorized use.
FEATURES

Page 8 — English
UNPACKING
This product requires assembly.
Carefully remove the product and any accessories from
the box. Make sure that all items listed in the packing list
are included.
NOTE: This tool is heavy. To avoid back injury, lift with
your legs, not your back, and get help when needed.
WARNING:
Do not use this product if any parts on the Packing List
are already assembled to your product when you unpack
it. Parts on this list are not assembled to the product by
the manufacturer and require customer installation. Use
of a product that may have been improperly assembled
could result in serious personal injury.
Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
Do not discard the packing material until you have
carefully inspected and satisfactorily operated the tool.
If any parts are damaged or missing, please call
1-800-860-4050 for assistance.
PACKING LIST
Pressure Washer
25 ft. High Pressure Hose
Trigger Handle
Spray Wand
Quick-Connect Nozzles (4)
4-Cycle Engine Lubricant (SAE 30 or SAE 10W30)
Disposable Funnel
Handle
Operator’s Manual
WARNING:
If any parts are damaged or missing do not operate this
tool until the parts are replaced. Use of this product
with damaged or missing parts could result in serious
personal injury.
WARNING:
Do not attempt to modify this tool or create accessories
not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
WARNING:
To prevent accidental starting that could cause serious
personal injury, always disconnect the engine spark plug
wire from the spark plug when assembling parts.
INSTALLING THE HANDLE
See Figure 2.
CAUTION:
Be careful to avoid pinching your fingers or hands when
installing the handle onto the frame.
Push and hold the button on the handle as you slide the
handle into the holes in the frame.
NOTE: Before use, pull the handle up until the lock button
snaps through the locking slot to secure the handle in
place.
CONNECTING THE SPRAY WAND TO THE
TRIGGER HANDLE
See Figure 3.
Place the threaded end of the spray wand in the connector
on the end of the trigger handle. Tighten securely.
NOTE: Be careful to avoid cross-threading, which can
cause the trigger handle to leak during use.
Turn the connector clockwise until it stops. This secures
the spray wand in place.
CONNECTING HIGH PRESSURE HOSE TO
TRIGGER HANDLE
See Figure 4.
Screw the collar on the high pressure hose into the trigger
handle inlet coupler by turning the hose collar clockwise.
NOTE: Be careful to avoid cross-threading, which can
cause the trigger handle to leak during use.
Pull on the hose to be certain it is properly secured.
CONNECTING THE HIGH PRESSURE HOSE TO
THE PUMP
See Figure 5.
Completely uncoil and straighten the high pressure hose
to prevent kinks.
NOTE: See Using The High Pressure Hose in Operation
for more information about using the high pressure hose.
Align the collar on the threaded nipple on the pump.
Insert the the end of the high pressure hose collar into
the threaded nipple.
ASSEMBLY

Page 9 — English
Turn the collar clockwise to tighten the hose securely to
the pump.
NOTE: Be careful to avoid cross-threading, which can
cause the hose to leak during use.
Pull on the hose to be certain it is properly secured.
CONNECTING THE GARDEN HOSE TO THE
PRESSURE WASHER
See Figure 6.
NOTICE:
Always observe all local regulations when connnecting
hoses to the water main. Some areas have restrictions
against connecting directly to public drinking water
supply to prevent the feedback of chemicals into the
drinking water supply. Direct connection through a
receiver tank or backflow preventer is usually permitted.
The water supply must come from a water main. NEVER use
hot water or water from pools, lakes, etc. Before connecting
the garden hose to the pressure washer:
Run water through the hose for 30 seconds to clean any
debris from the hose.
Inspect the screen in the water intake.
If the screen is damaged, do not use the machine until
the screen has been replaced.
If the screen is dirty, clean it before connecting the garden
hose to the machine.
To connect the garden hose to the machine:
Completely uncoil the garden hose or remove completely
from reel to prevent kinks.
NOTE: There must be a minimum of 10 feet of unrestricted
hose between the pressure washer intake and the hose
faucet or shut off valve (such as a “Y” shut off connector).
With the hose faucet turned completely off, attach the
end of the garden hose to the water intake. Tighten by
hand.
NOTICE:
Do not run the pressure washer without water supply
connected and turned on, as this may damage the high
pressure seals and decrease pump life. Completely
unwind the hose from its reel or coil and make sure the
hose is not being restricted by tires, rocks, or any other
objects that may lessen or prevent water flow to the
pressure washer.
DO NOT OVERTILT THE UNIT!
ASSEMBLY

Page 10 — English
WARNING:
Do not allow familiarity with tools to make you careless.
Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1. Failure to do so could result in
objects being thrown into your eyes resulting in possible
serious injury.
WARNING:
Do not use any attachments or accessories not
recommended by the manufacturer of this tool. The use
of attachments or accessories not recommended can
result in serious personal injury.
WARNING:
Never direct a water stream toward people or pets, or
any electrical device. Failure to heed this warning could
result in serious injury.
NOTICE:
This product is not equipped with a spark arrestor
and cannot be used on U.S. forest lands; in addition,
product users must comply with Federal, State, and
local fire prevention regulations. Check with appropriate
authorities. Contact customer service to purchase a
spark arrestor.
APPLICATIONS
You may use this tool around the house for cleaning most
small to large horizontal or vertical exterior surfaces, smaller
exterior objects and structures, and outdoor equipment and
tools.* You can:
Clean or remove mold and mildew from weathered decks,
driveways, patios, walkways, sidewalks, etc.
Remove dirt from various exterior vertical surfaces such
as house exteriors, siding, fences, brick, concrete or stone
walls, etc.
Wash boats, outdoor furniture, powered or non-powered
garden equipment, gutters, window screens, grills,
playground equipment, etc.
*Always test in an inconspicuous area first.
ADDING/CHECKING ENGINE LUBRICANT
See Figure 7.
NOTE: This machine has been shipped with approximately
2 oz. of lubricant in the engine from testing. You must add
lubricant to the engine before starting it the first time.
NOTICE:
Any attempt to start the engine without adding lubricant
will result in engine failure.
To add engine lubricant:
Place pressure washer on a flat, level surface. Do not tilt.
Unscrew the oil cap/dipstick by turning counter-
clockwise.
Before first use, squeeze the entire contents of the
lubricant container provided into the oil reservoir.
After initial use, add 4-stroke engine lubricant (SAE 30 or
SAE 10W30) until the fluid level rises to the upper portion
of the hatched area on the dipstick. Do not overfill.
Replace the oil cap/dipstick and securely tighten.
To check engine lubricant level:
Place pressure washer on a flat, level surface. Do not tilt.
Unscrew the oil cap/dipstick by turning counter-
clockwise.
Wipe dipstick clean and re-seat in hole; do not rethread.
Remove dipstick again and check lubricant level. Lubricant
level should fall within the hatched area on the dipstick.
If level is low, add engine lubricant until the fluid level rises
to the upper portion of the hatched area on the dipstick.
Replace and secure the oil cap/dipstick.
NOTICE:
Do not overfill. Overfilling the crankcase may cause
excessive smoke and engine damage.
OXYGENATED FUELS
NOTICE:
Do not use E15 or E85 fuel (or fuel containing greater
than 10% ethanol) in this product. It is a violation of
federal law and will damage the unit and void your
warranty.
Fuel system damage or performance problems resulting
from the use of an oxygenated fuel containing more than
the percentage of oxygenates stated below are not covered
under warranty.
Ethanol. Gasoline containing up to 10% ethanol by volume
(commonly referred to as E10) is acceptable. E15 and E85
are not.
OPERATION

Page 11 — English
ADDING GASOLINE TO THE FUEL TANK
See Figure 8.
WARNING:
Gasoline and its vapors are highly flammable and
explosive. To prevent serious personal injury and property
damage, handle gasoline with care. Keep away from
ignition sources, handle outdoors only, do not smoke
while adding fuel, and wipe up spills immediately.
When adding gas to the pressure washer, make sure the unit
is sitting on a flat, level surface. If the engine is hot, let the
pressure washer cool before adding gas. ALWAYS fill the
fuel tank outdoors with the machine turned off.
NOTE: This is a 4-cycle engine. DO NOT mix fuel and
lubricant together.
Mix fuel stabilizer with gasoline according to fuel stabilizer
manufacturer’s directions.
Before removing the fuel cap, clean the area around it.
Remove the fuel cap.
Insert a clean funnel into the fuel tank then slowly pour
gasoline into the tank. Fill tank to approximately 1-1/2 in.
below the top of the tank neck (this allows for fuel
expansion).
Replace fuel cap and tighten until the cap “clicks”.
Clean up any spills before starting the engine.
WARNING:
Always shut off engine before fueling. Never add fuel to
a machine with a running or hot engine. Move at least
30 ft. from refueling site before starting engine. Do not
smoke and stay away from open flames and sparks!
Failure to follow these instructions could result in serious
personal injury.
STARTING AND STOPPING THE PRESSURE
WASHER
See Figures 9 - 12.
NOTICE:
Do not run the pressure washer without water supply
connected and turned on, as this may damage the high
pressure seals and decrease pump life. Completely
unwind the hose from its reel or coil and make sure the
hose is not being restricted by tires, rocks, or any other
objects that may lessen or prevent water flow to the
pressure washer.
Before starting the engine:
Connect all hoses.
NOTE: Make sure the pressure washer’s water intake
screen is in place and unclogged before connecting
garden hose.
Check all fluids (oil and gas).
Turn on the garden hose then squeeze the trigger to
relieve air pressure; hold the trigger until a steady stream
of water appears.
NOTE: Make sure the faucet is turned on fully and that
there are no kinks or leaks in the hose.
To start the engine:
Move the fuel valve to the OPEN position.
Put the on/off switch in the ON position.
Move the choke to the START (cold start) position.
NOTE: If restarting after a brief stop (i.e., after refueling
or moving), leave the choke lever in the RUN position.
Pull the starter grip and rope until the engine runs (a
maximum of 6 times).
NOTE: Do not allow the grip to snap back after starting;
return it gently to its original place.
Allow the engine to run for 5 seconds, then push the
choke to the RUN position.
To stop the engine:
Put the on/off switch in the OFF position.
Move the fuel valve to the CLOSED position.
NOTE: Shutting off the engine will not relieve pressure in the
system. Pull trigger to release water pressure.
WARNING:
While operating and storing, keep at least 3 feet of
clearance on all sides of this product, including overhead.
Allow a minimum of 30 minutes of “cool down” time
before storage. Keep all body parts, clothing, combustible
materials, and hoses away from the muffler. Heat created
by muffler and exhaust gases could be hot enough to
cause serious burns, ignite combustible objects, and/
or damage high pressure hoses that can result in an
injection injury.
USING THE SPRAY WAND TRIGGER
See Figure 13.
For greater control and safety, keep both hands on the trigger
handle at all times.
Pull back and hold the trigger to operate the pressure
washer.
Release the trigger to stop the flow of water through the
nozzle.
To engage the lock out:
Push up on the lock out until it clicks into the slot.
To disengage the lock out:
Push the lock out down and into its original position.
To use the spray wand, start with the nozzle 1-2 ft. away
from the cleaning surface. Carefully approach the surface
just until the desired level of cleaning is achieved. If the spray
is too close it can damage the cleaning surface.
OPERATION

Page 12 — English

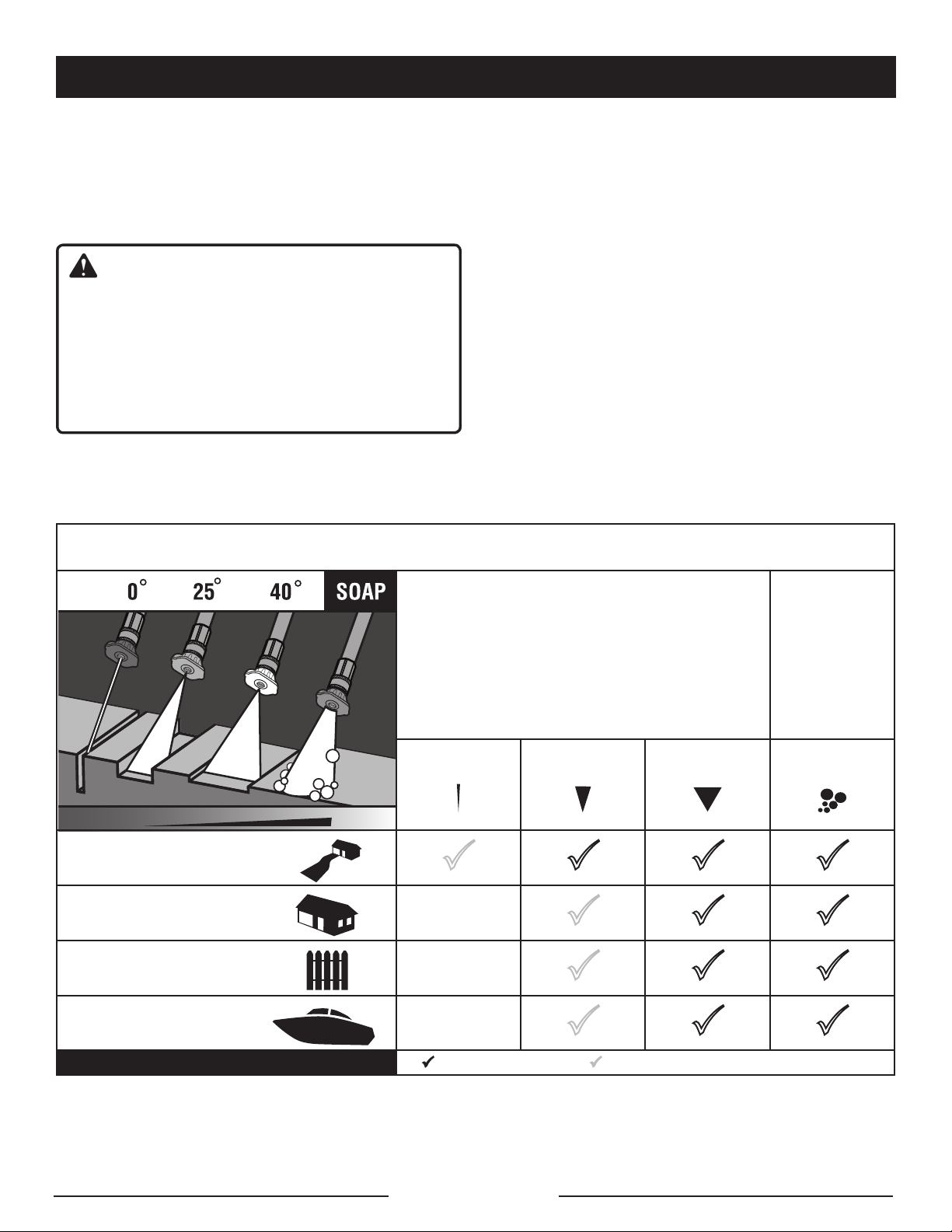

SELECTING THE RIGHT NOZZLE FOR THE JOB
See Figure 14.
Each of the nozzles has a different spray pattern. Before
starting any cleaning job, determine the best nozzle for the
job.Refer to theNozzleSelection Guide formoreinformation
about which nozzle to choose.
WARNING:
NEVER remove nozzles without first turning off the
engine, relieving the water pressure in the trigger
handle, and locking the lock out on the trigger handle.
NEVER point the nozzle at your face or at others. The
quick-connect feature contains small springs that could
eject the nozzle with some force. Failure to follow these
instructions could result in an eye injury or other serious
personal injury.
To connect a nozzle to the trigger handle:
Turn off the pressure washer and shut off the water
supply. Pull trigger to release water pressure.
Engage the lock out on the trigger handle by pushing up
on the lock out until it clicks into the slot.
Pull back the quick-connect collar.
Push the nozzle into place in the spray wand.
Push the collar forward so that the nozzle is secured
properly. Check to see that the nozzle is secure.
To disconnect a nozzle from the trigger handle once the
cleaning job is complete:
Turn off the pressure washer and shut off the water
supply. Pull trigger to release water pressure.
Engage the lock out on the trigger handle by pushing up
on the lock out until it clicks into the slot.
Pull back and hold the quick-connect collar.
Remove the nozzle by pulling it from the quick-connect
collar. Place nozzle in the nozzle storage area on the top
of the machine.
ABRASIVE GENTLE
NOZZLE SELECTION GUIDE
HIGH PRESSURE
(NO SOAP WHEN USING THESE NOZZLES)
LOW
PRESSURE
(FOR SOAP OR
GENTLE RINSE)
0º Red 25º Green 40º White Blue Soap Nozzle
Concrete, Brick, Masonry   
Siding, Gutters, House  
Fencing, Deck, Patio  
Lawn Equipment, Boat, RV  
Recommended Nozzle Use With Caution for Certain Applications
OPERATION

Page 13 — English
USING THE HIGH PRESSURE HOSE
WARNING:
Injection hazard. Fully unwrap and straighten high
pressure hose prior to and during each use and do
not allow it to become kinked. The high pressure hose
features an outer covering that provides strength to the
hose. If the outer covering becomes damaged, stop using
the hose and replace it immediately. A kinked or damaged
hose can develop a high pressure leak and result in a
possible injection or other serious personal injury.
To prevent damage to the outer covering:
Inspect the hose before every use.
Fully unwrap and straighten hose before use.
Do not allow the high pressure hose to be kinked.
Keep hose away from hot surfaces and sharp edges.
Do not pull unit by high pressure hose.
Do not allow hose to be crushed or wrapped around
objects.
WASHING WITH DETERGENT
See Figures 15 - 16.
As sold, this unit is designed for use with “downstream”
pressure washer detergents. To convert for use with
“upstream” detergents, contact an authorized customer
service center for more information.
NOTICE:
USE ONLY DETERGENTS DESIGNED FOR PRESSURE
WASHERS. Do not use household detergents, acids,
alkalines, bleaches, solvents, flammable material, or
industrial grade solutions, which can damage the pump
or cause property damage. Many detergents may
require mixing prior to use. Prepare cleaning solution
as instructed on the solution bottle. Always test in an
inconspicuous area before beginning.
Remove the cap from the detergent tank and pour
pressure washer detergent in the tank. Replace cap on
tank.
NOTE: The machine setting of this unit is 20:1, which
usually allows the use of 1 gallon pressure washer
detergent without further dilution. Check your detergent
instructionsto besure additionaldilution isnot necessary.
Install the blue soap nozzle on the spray wand.
Squeeze the trigger and wait approximately 5 seconds
for the detergent to appear.
Spray the detergent on a dry surface using long, even,
overlapping strokes. To prevent streaking, do not allow
detergent to dry on the surface.
Before shutting off the engine:
Fill the detergent tank with clean water.
Spray the clear water through the spray wand until the
tank is empty.
If any soap remains in the spray, repeat with a second
tank of clean water.
Shut off the engine.
NOTE: Shutting OFF (O) the engine will not relieve pressure
in the system. Pull trigger to release water pressure.
RINSING WITH THE PRESSURE WASHER
Turn off the pressure washer and shut off the water
supply. Pull trigger to release water pressure.
Engage the lock out on the trigger handle by pushing up
on the lock out until it clicks into the slot.
Remove the nozzle by placing hand over nozzle then
pulling back the quick-connect collar. Place nozzle in the
nozzle storage area on the top of the machine.
Select the right nozzle for the job. See the chart on the
previous page for selecting the appropriate nozzle.
Start at the top of the area to be rinsed and work down,
overlapping the strokes.
USING PUMP PROTECTOR
See Figure 17.
Regular use of a commercially available pump protector
prolongs the life of the pressure washer by removing hard
water mineral deposits, lubricating pump seals and pistons,
and preventing freeze damage. Pump protector should be
added to the unit after every use and before storage. Pump
protectorcanbepurchasedattheretailerwhereyoupurchased
your pressure washer, or by calling customer service.
The instructions below are for G-Protect Pump Protector.
For other brands, follow the instructions provided by the
manufacturer.
Turn off the pressure washer engine and shut off the water
supply. Pull trigger to release water pressure.
Disconnect garden hose and high pressure hose.
Unscrew threaded top from pump protector bottle and
remove paper seal from bottle. Reinstall top on bottle and
tighten securely.
NOTE: The rubber seal should remain inside the threaded
top. If it comes out, be sure to replace before reinstalling
the top.
Remove bottle cap and attach threaded end of bottle
securely to pressure washer pump water intake.
Squeeze bottle to inject contents into pump.
With engine still off, pull starter grip and rope to cycle
pump, then squeeze bottle again to guarantee complete
coverage.
Pump is protected when the protector fluid exits the pump
outlet.
OPERATION

Page 14 — English
WARNING:
When servicing, use only identical replacement parts.
Use of any other parts could create a hazard or cause
product damage.
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1. Failure to do so could result in
objects being thrown into your eyes resulting in possible
serious injury.
WARNING:
Before inspecting, cleaning or servicing the machine,
shut off engine, wait for all moving parts to stop, and
disconnect spark plug wire and move it away from spark
plug. Failure to follow these instructions can result in
serious personal injury or property damage.
NOTICE:
This product is not equipped with a spark arrestor
and cannot be used on U.S. forest lands; in addition,
product users must comply with Federal, State, and
local fire prevention regulations. Check with appropriate
authorities. Contact customer service to purchase a
spark arrestor.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which could result in serious personal
injury.
Before running the engine, perform the following pre-
operation steps:
Check that all bolts, nuts, etc., are securely tightened.
Make sure the air filter is clean.
Check both the engine lubricant level and the fuel tank
level; refill as needed.
Inspect the work area for hazards.
If there is excessive noise or vibration, stop the unit
immediately.
NOZZLE MAINTENANCE
See Figure 19.
Excessive pump pressure (a pulsing sensation felt while
squeezing the trigger) may be the result of a clogged or
dirty nozzle.
Turn off the pressure washer and shut off the water
supply. Pull trigger to release water pressure.
Remove the nozzle from the spray wand.
NOTE: Never point the spray wand at your face.
To free any foreign materials clogging or restricting the
nozzle, blow out or remove debris with a straightened
paper clip or fine needle.
Using a garden hose, flush debris out of nozzle by back
flushing (running the water through the nozzle backwards
or from the outside to the inside).
Reconnect the nozzle to the spray wand.
Turn on the water supply and start the engine.
MAINTENANCE
OPERATION
MOVING THE PRESSURE WASHER
See Figure 18.
NOTE: Never lift or carry this product using the handle and
never place the unit in any position other than upright on
its wheels.
Turn the pressure washer off.
Tilt the machine toward you slightly until it balances on
the wheels then roll the machine to the desired position.
Do not tilt forward or sideways when moving.
DO NOT attempt to move the unit by pulling on any of
the hoses.
HIGH ALTITUDE OPERATION
Specificmodifications areneeded forhigh-altitude operation
for equipment operating in altitudes greater than 3000 feet
abovesealevel. Please contactyourauthorizedservice center
for important information regarding these modifications.
Operatingthis enginewithout theproperaltitude modification
may increase the engine’s emissions and decrease fuel
economy and performance.

Page 15 — English
MAINTENANCE
CLEANING/REPLACING THE AIR FILTER
See Figure 20.
A dirty air filter will cause starting difficulty, loss of
performance, and shorten the life span of the engine. Check
the air filter monthly. For best performance, replace the air
filter at least once a year.
The filter cover pivots up and lifts off.
Using a damp cloth, wipe the air filter cover and
inner surface. Take care not to allow dust to enter the
carburetor.
Remove the air filter.
Rinse filter with clean water.
Gently squeeze filter until excess water is removed.
Apply a light coat of engine lubricant to the filter, then
squeeze it out.
Reinstall the foam filter.
NOTE: Make sure the filter is seated properly inside the
compartment. Installing the filter incorrectly will allow dirt
to enter the engine, causing rapid engine wear.
Reinstall the filter cover.
CHANGING ENGINE LUBRICANT
See Figure 21.
Shut off the engine.
Clean the area around the oil cap/dipstick, then remove
the oil cap/dipstick.
Disconnect the spark plug wire from the engine.
To drain the lubricant, remove the drain plug from the
bottom of the engine. Drain lubricant into approved
container.
NOTE: Remove the dipstick to allow lubricant to drain
easier and more quickly.
WARNING:
Do not change engine lubricant while it is hot. Accidental
contact with hot engine lubricant could result in serious
burns.
Fill with lubricant following the instructions in Adding/
Checking Engine Lubricant earlier in this manual.
For amount of lubricant needed to refill, see Product
Specifications earlier in this manual or the accompanying
engine manual, if applicable.
Before using the pressure washer, check to ensure that
no lubricant is leaking from the engine.
NOTE: Consult hazardous waste management guidelines in
your area for the proper way to dispose of used lubricant.
CHECKING SPARK PLUG
See Figure 22.
Clean the area around the base of the spark plug before
removing to keep dirt and debris out of the engine.
Remove spark plug.
Clean off carbon deposits on the spark plug electrode
using a plug cleaner or wire brush. Replace the plug if
worn or reuse is questionable. For replacement spark
plug, see Product Specifications earlier in this manual
or the accompanying engine manual, if applicable.
Check electrode gap. The gap should be 0.7 - 0.8 mm.
Adjust the gap, if necessary, by carefully bending the
ground electrode.
Check the condition of the spark plug gasket.
Reinstall spark plug. Start the spark plug in its threads
by hand and finger-tighten.
Tighten with wrench to compress washer. If spark plug
is new, use 1/2 turn to compress washer appropriate
amount. If reusing old spark plug, use 1/8 to 1/4 turn for
proper washer compression.
NOTE: An improperly tightened spark plug will become
very hot and could damage the engine.
PUMP MAINTENANCE
Routinely make a visual inspection of the pump. If you notice
any leaking of lubricant around the pump seals, take the
pressure washer to an authorized service center for repair.
There are no user serviceable parts to the pressure washer
pump. Any attempt to service or alter the pump may damage
the pressure washer and void your product warranty.
STORING THE PRESSURE WASHER
See Figure 23.
NOTE: Regular use of fuel stabilizer and pump protector
will give you better performance of the unit and increase
the life of the pump. See the Replacement Parts List for
available sizes and part numbers of these items and call
customer service to order.
WARNING:
While storing, keep at least 3 feet of clearance on all sides
of this product, including overhead. Allow a minimum
of 30 minutes of “cool down” time before storage. Heat
created by muffler and exhaust gases could be hot
enough to ignite combustible objects.
Storein a dry,coveredareawherethe weathercan’tdamage it.
It is important to store this product in a frost-free area. Always
empty water from all hoses, the pump, and the detergent
bucket before storing.
Drain the fuel tank completely by running the pressure
washer until the gas runs out. Stored gas can go stale in
30 days.

Page 16 — English
MAINTENANCE
NOTE: Make sure the water supply is connected and
turned on when allowing the pressure washer engine to
run.
Make sure the on/off switch is OFF and fuel valve is
CLOSED.
Disconnect the water connection.
Empty the pump by pulling on the starter grip and rope
about 6 times. This should remove most of the liquid from
the pump.
NOTICE:
The use of a pump protector is strongly recommended
after each use and before storing to prevent cold weather
and seal damage during storage.
Drain the lubricant and replace with fresh, clean lubricant
as described in Adding/Checking Engine Lubricant in
the Operation section of this manual.
Disconnect spark plug wire and remove the spark plug.
Pour about a teaspoon of clean, air-cooled, four-cycle
lubricant through the spark plug hole into the combustion
chamber.
Leaving the spark plug out, pull the starter cord two or
three times to coat the inside of the cylinder wall.
Inspect the spark plug and clean or replace, as necessary.
Reinstall the spark plug, but leave the spark plug wire
disconnected.
Clean the air filter.
Extend the starter grip and rope rope to check its condition.
If the rope is frayed, have it replaced immediately by an
authorized service center.
Remove all hoses. Coil the hoses and store as shown.
Do not allow the hose to become kinked.
Store the unit and accessories in an area that does not
reach freezing temperatures. Do not store near furnace or
other sources of heat that could dry out the pump seals.
PREPARING FOR USE AFTER STORAGE
Pull the starter grip and rope grip three or four times to
clean lubricant from the combustion chamber.
Remove spark plug from the cylinder. Wipe lubricant from
the spark plug and return it to the cylinder.
Reconnect the spark plug wire.
Refuel the machine as described earlier in the operator’s
manual.
PERIODIC MAINTENANCE SCHEDULE TABLE
NOTE: If a separate engine manual is provided for this pressure washer, please follow the maintenance schedule provided
in the engine manual for all engine maintenance items instead of the maintenance information listed below.
Maintenance Items Each
Use
Every
8 hrs.
Every
20 hrs.
Every
50 hrs.
Every
100 hrs.
Every
300 hrs.
Clean engine & check bolts & nuts X X
Check engine lubricant X
Change engine lubricant1X
Check water inlet filter placement2X
Add fuel stabilizer X
Add pump protector X
Clean spark plug X
Clean air cleaner X X
Replace air cleaner element X
Clean & adjust spark plug & electrodes X
Replace spark plug X
Remove carbon from cylinder head3X
Check & adjust valve clearance3X
1 Initial lubricant change should be performed after the first 20 hours of operation. Do not pour old lubricant down sewage
drains, into garden soil, or into open streams. Your local zoning or environmental regulations will give you more detailed
instruction on proper disposal.
2 If water inlet filter is missing or damaged, it must be replaced. See Replacement Parts List for part number to order.
3 Have performed by your nearest service center
