ActiveProducts ZE02 User manual

CAUTION
BEFORE OPERATING THIS UNIT, PLEASE READ THIS MANUAL THOROUGHLY AND
RETAIN IT FOR FUTURE REFERENCE.
IF YOU MUST STORE YOUR PRESSURE WASHER IN A PLACE WHERE TEMPERATURE IS BELOW
41ºF (5ºC), YOU MUST APPLY WINTERIZING PROCEDURE TO PROTECT IT. FAILURE TO WINTERIZE
THE UNIT MAY PERMANENTLY DAMAGE PUMP AND VOID THE WARRANTY. SEE PAGE 10 FOR
WINTERIZING PROCEDURE.
QUESTIONS, PROBLEMS, MISSING PARTS?
Before returning to your retailer, call our customer service at 1-866-924-7626
or email us at [email protected]
PURCHASE DATE: _______________ SERIAL#: ___________________________________
PLEASE KEEP THE ORIGINAL BOX, PACKAGING AND RECEIPT.
ZE02-ManualE-v1
SKU#: 39-8504-4
MODEL NO.: ZE02

TABLE OF CONTENTS
Technical Specications ....................................................................................................................... i
Precautions..........................................................................................................................................1
Safety Features and Electrical Power Information ..............................................................................2
Replacement Parts and Diagram ........................................................................................................3
Assembly and Operating Instructions..................................................................................................4
Using the Accessories .........................................................................................................................8
Working with Detergent .......................................................................................................................9
Shut Down and Clean-up ..................................................................................................................10
Taking a Break...................................................................................................................................10
Winterizing and Long-term Storage................................................................................................... 11
Maintaining Your Pressure Washer ...................................................................................................12
Troubleshooting.................................................................................................................................13
Warranty ............................................................................................................................................15
TECHNICAL SPECIFICATIONS
SPECIFICATIONS
Max. pressure: 1450PSI
Water ow rate: 1.3GPM
Power source requirement: 120V, 60HZ
Electrical cord: 23 ft
High-pressure hose: 20 ft
Rated current: 11A
Water supply: COLD TAP WATER
i.

IMPORTANT SAFETY INSTRUCTIONS - READ FIRST!
SAFETY WARNINGS
When using this product, basic precautions
should always be followed:
• Read all the instructions before using the product.
• High-pressure jets can be dangerous if subject to
misuse. The jet must not be directed at persons
or animals.
• Water spray must never be directed towards any
electric wiring, devices or directly towards the
pressure washer machine itself or fatal electric
shock may occur.
• To reduce the risk of injury, do not operate the
machine near children.
• Learn how to stop the machine and release pres-
sure quickly. Be thoroughly familiar with the controls.
• Stay alert—watch what you are doing.
• Wear safety goggles.
• For use with cold water supply only. Do not draw
other liquids.
• Do not use acids, solvents, or any other am-
mable material in this product. These products
can cause physical injuries to the operator and
irreversible damage to the machine.
• To reduce the risk of electrocution, keep all con-
nections dry and off the ground. Do not touch plug
with wet hands.
• The pressure washer should not be used in areas
where gas vapours may be present.
• An electric spark could cause an explosion or re.
• To minimize the amount of water getting into the
pressure washer, the unit should be placed as far
as possible from the cleaning site during operation.
• Avoid accidental starts. Shut power “OFF” before
connecting or disconnecting cord to electrical outlets.
• Do not operate the product when fatigued or
under the inuence of alcohol or drugs.
• Do not stand on unstable surfaces. Stand with
both feet balanced at all times.
• Prior to starting the pressure washer in cold
weather, be sure ice has not formed in any part of
the equipment.
• Never carry your pressure washer by the cord. Do
not pull on the cord to disconnect from the outlet.
• To allow free air circulation, the pressure washer
should not be covered during operation.
• The Trigger Gun Safety Lock prevents the trigger
from accidentally being engaged. This safety
feature does not lock trigger in the “ON” position.
• California Proposition 65: This product or its
power cord contains lead, a chemical known
to the State of California to cause cancer, birth
defects or other reproductive harm. Wash hands
after use
WARNINGS
• Do not use with ammable liquids and toxic chemicals.
• Injection Hazard: Equipment can cause serious injury if
the spray penetrates the skin.
• Do not point the gun at anyone or any part of the body.
In case of penetration seek medical aid immediately.
• This system is capable of producing 1450PSI. To
avoid rupture and injury, do not operate this pump with
components rated less than 1450PSI working pres-
sure (including but not limited to spray guns, hose and
hose connections).
• Before servicing, cleaning or removal of any parts, shut
“OFF” power and relieve pressure.
• Do not spray electrical apparatus and wiring. If connec-
tion is made to a portable water system, the system
shall be protected against backow.• Inspect cord
before using - Do not use if cord is damaged.
• Keep all connections dry and off the ground.
• Do not touch plug with wet hands.
• Do not use extension cord with the product.
1
Save These Instructions
In a double-insulation product, two sys-
tems of insulation are provided instead of
grounding. No grounding means is pro-
vided on a double-insulated product, nor
should a means for grounding be added to
the product. Servicing a double-insulated
product requires extreme care and knowl-
edge of the system, and should be done
only by qualified service personnel.
Replacement parts of a double-insulated
product must be identical to the parts
they replace. A double-insulated product
is marked with the words “DOUBLE
INSULATION” or “DOUBLE INSULATED”.
The symbol “ ” may also be marked on
the product.

2
SAFETY FEATURES AND ELECTRICAL POWER INFORMATION
The pressure washer is equipped with a stop de-
vice that will sense when the trigger on the gun is
released. It will open the power circuit to the motor
and cause the pressure washer motor to stop. Motor
will resume again when trigger is pulled.
Ground Fault Circuit Interrupter:
This pressure washer has a ground-fault circuit-in-
terrupter (GFCI) built into the plug of the power sup-
ply cord. This device provides additional protection
from the risk of shock. Should replacement of the
plug or cord become necessary, use only identical
replacement parts that include GFCI protection.
Extension Cords
If possible, do not use extension cords with this
product. However, if you must use one, observe all
the warnings and instructions listed below:
Use a sufcient gauge:
Maximum cable length: 50 ft = 14 AWG
• Use only extension cords that are intended for out-
door use. These extension cords are identied by
a marking “Acceptable for use with outdoor appli-
ances; store indoors while not in use.”
• Use only extension cords having an electrical rat-
ing not less than the rating of the product.
• Do not use damaged extension cords. Examine
extension cord before using and replace if dam-
aged. Do not abuse extension cord and do not
yank on any cord to disconnect.
• Keep cord away from heat and sharp edges.
• Always disconnect the extension cord from the re-
ceptacle before disconnecting the product from the
extension cord.
• To reduce the risk of electrocution, keep all con-
nections dry and off the ground. Do not touch plug
with wet hands.
WARNING
The pressure washer is also equipped with
a main power “ON/OFF” switch located on
the unit. It should always be moved to the
“OFF” position when the pressure washer
is not being used to prevent possible injury
or damage.
WARNING
Extension cords are not recommended
unless they are plugged into a ground fault
circuit-interrupter found in circuit boxes or
protected receptacles.

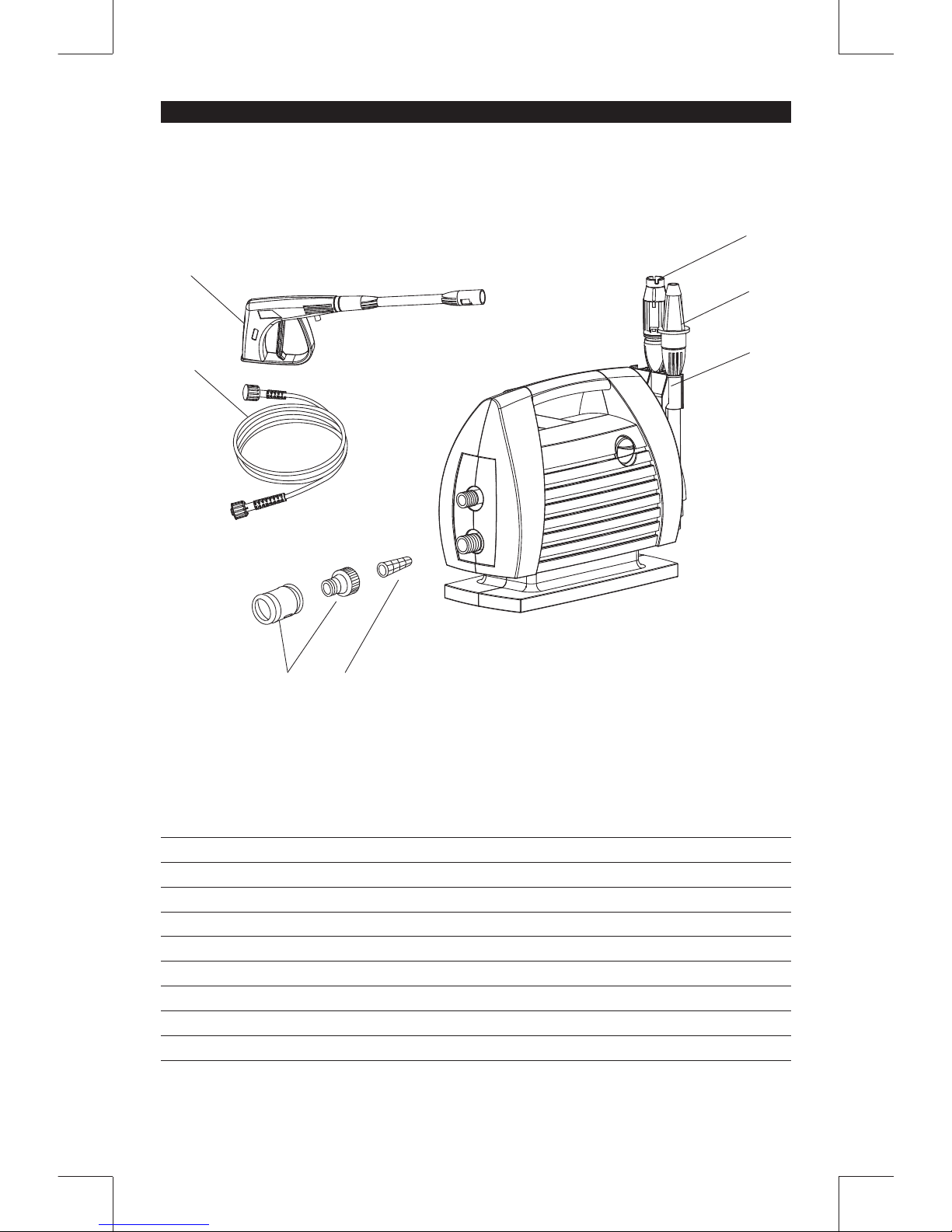

REPLACEMENT PARTS AND DIAGRAM
3
4
1
2
3
5
6
7
Parts List
Item No. Quantity Part Name Parts No.
1 1 Water lter ZE01-000-0003
2 1 Quick-connect coupling & inlet adaptor ZE01-050-0000
3 1 Gun assembly ZE01-090-0001
4 1 High-pressure hose ZE01-090-0002
5 1 Adjustable wand ZE01-090-0003
6 1 Turbo wand ZE01-090-0004
7 1 Gun/wand holder ZE01-000-0001
8 1 User manual ZE01-900-0002
9 1 Needle ZE01-900-0001

4

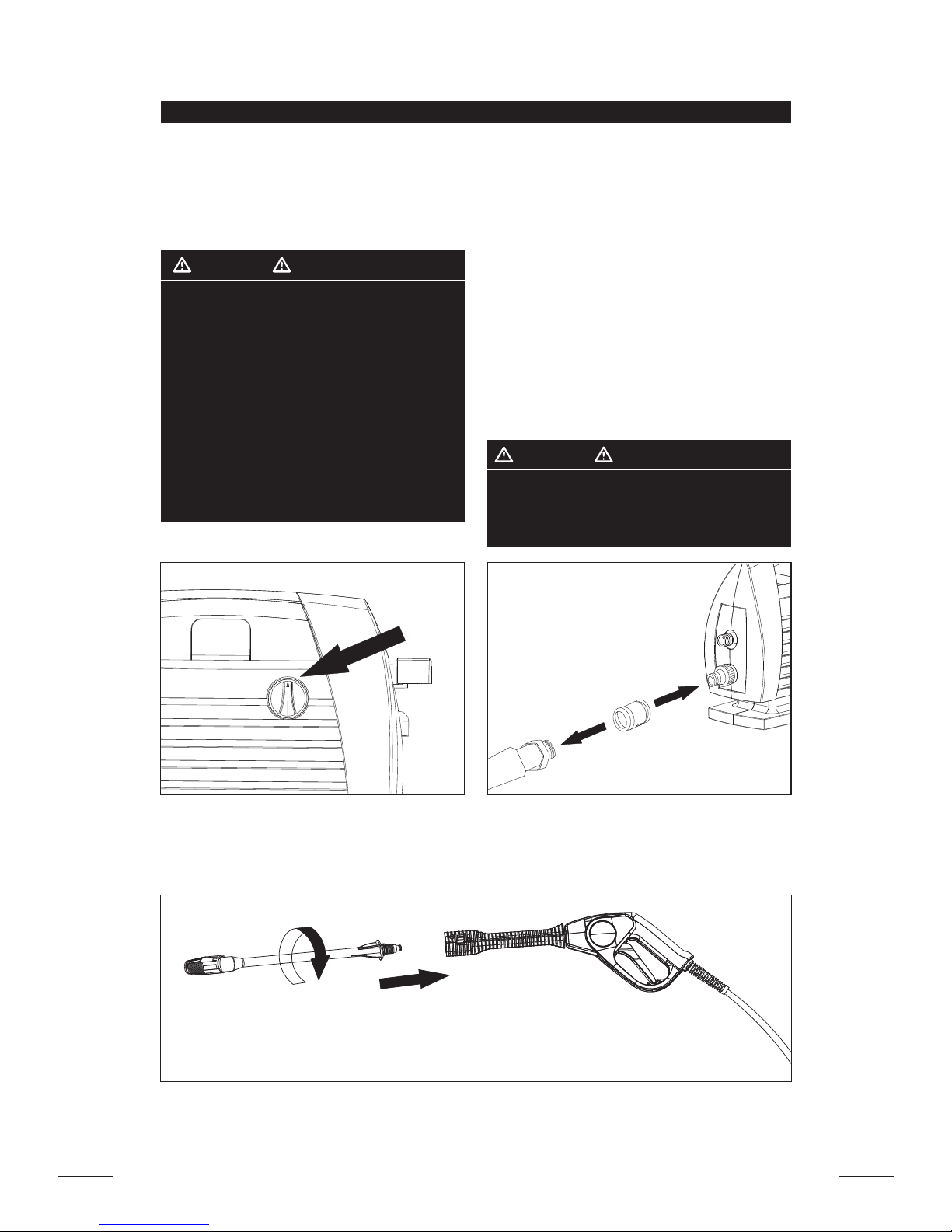

ASSEMBLY AND OPERTATING INSTRUCTIONS
Water Supply (Cold Water Only):
• Do not draw non-water liquids through the unit. For
use with cold water supply only.
• Water hose must be at least a 1/2 inch diameter.
• Flow rate of water supply must not fall below 2
GPM (gallons per minute).
• Flow rate can be determined by running the water
for one minute into an empty 5-gallon container.
• The water supply temperature must not exceed
104°F (40°C).
CAUTION
• Never use the pressure washer to draw
in water contaminated with solvents (e.g.
paint thinners, gasoline, oil, etc.).
• Dirt in the feed water will damage the unit.
To avoid this risk, we recommend checking
the water lter (located inside the water
inlet; to clean it out see Maintenance sec-
tion on page 11).
• Always prevent debris from being drawn
into the unit by using a clean water source
and an accessory water lter if required.
CAUTION
To prolong the life of the unit, it is recom-
mended to rest the unit 5 minutes after
every 30 minutes of use.
Assembly Time: 2 minutes / Tools Required: None
Surface Preparation
Before starting any cleaning task, it is important to inspect the area for objects which could create a hazard.
Remove from the workarea which could be tripped over, such as toys or outdoor furniture. Ensure that all
doors and windows are closed tight.
Step 1
Make sure that the ON/OFF switch is in the
“OFF” position.
Step 3
Insert the wand into spray gun, and twist 1/4 turn until rectangular tab appears.
Step 2
Separate the adaptor and quick-connect coupling.
Attach inlet adaptor to the machine’s inlet and attach
the quick-connect coupling onto the garden hose.
Fig. 1
Fig. 3
Fig. 2

ASSEMBLY AND OPERTATING INSTRUCTIONS
5

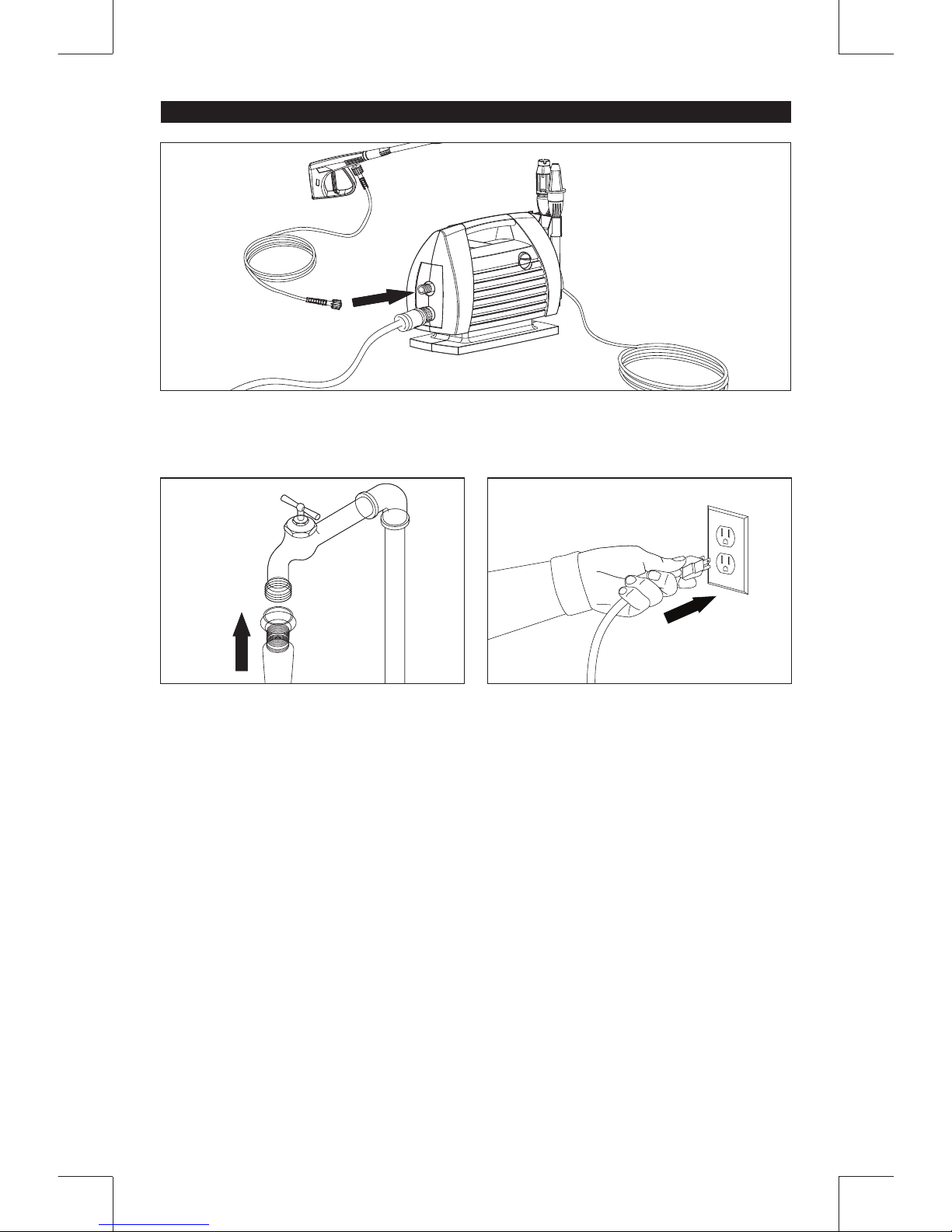

Step 4
Attach the high-pressure hose to the water outlet. Twist tightly to avoid leakage.
Fig. 4
Step 5
Attach garden hose to water supply and turn water on.
Step 6
Plug the unit into an outlet. Press “TEST”. Then press
“RESET” to assure proper connection to power.
Fig. 5 Fig. 6

6
ASSEMBLY AND OPERTATING INSTRUCTIONS
Step 7
Insert the wand (A or B) into spray gun, and twist 1/4 turn until rectangular tab appears.
Fig. 7
Fig. 8

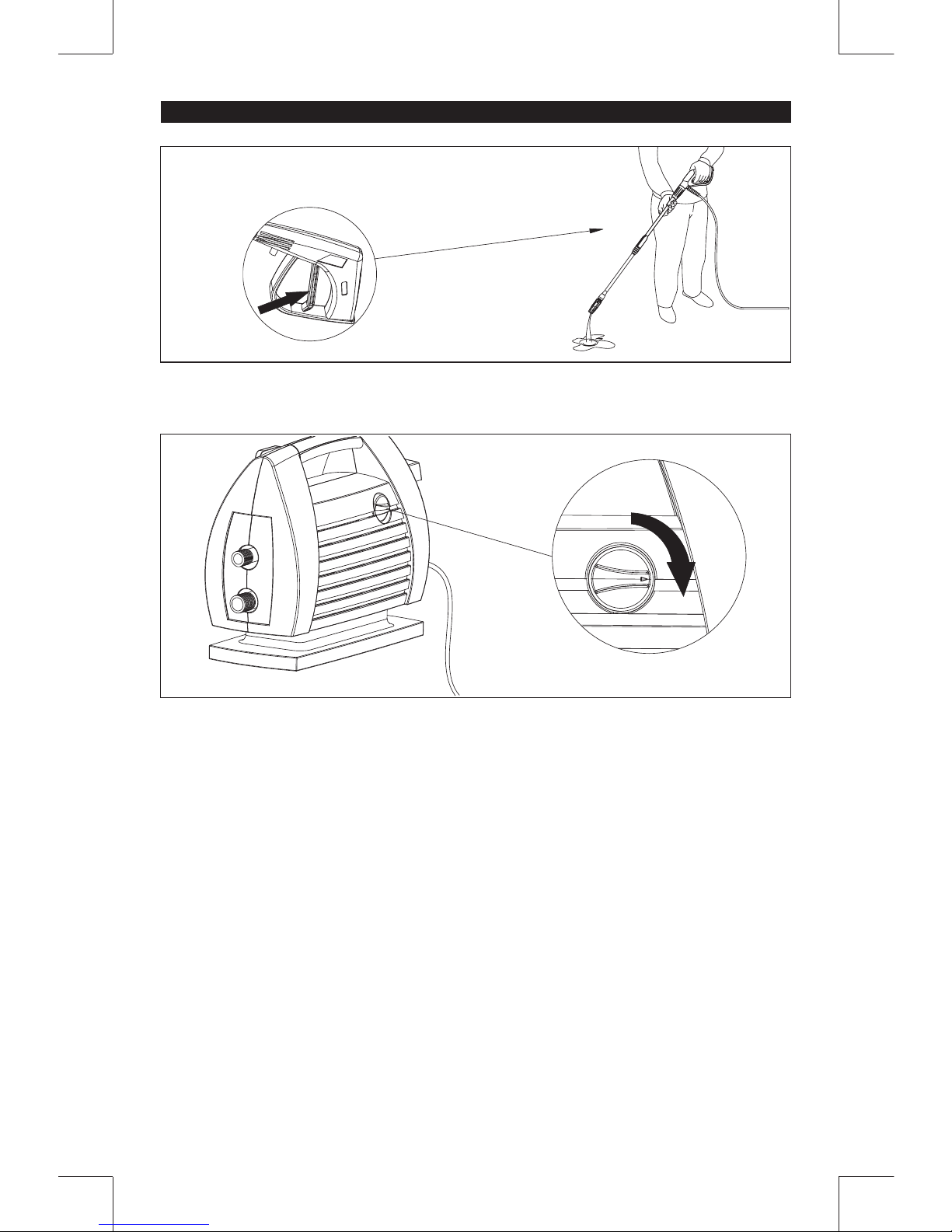

Step 8
Start the pressure washer by turning ON/OFF switch to ON.

7
ASSEMBLY AND OPERTATING INSTRUCTIONS
Fig. 9
Adjusting The Spray
The adjustable spray nozzle can be adjusted
from fan to jet. The spray is adjusted from jet
to fan spray by turning the nozzle as shown
in Fig. 9.
CAUTION
Jet spray adjustment is very aggressive. Do
not adjust while spraying. We recommend
that for most cleaning applications a 20º
spray angle should be used to avoid dam-
age to the surface being sprayed.
CAUTION
To prolong the life of the unit, it is recom-
mended to rest the unit 5 minutes after
every 30 minutes of use.

8
USING THE ACCESSORIES
Fig. 10
Adjusting the spray
The adjustable spray nozzle can be adjusted from
fan to jet. The spray is adjusted from jet to fan
spray by turning the nozzle as shown in Fig. 10.
CAUTION
Jet spray adjustment is very aggressive. Do
not adjust while spraying. We recommend
that for most cleaning applications a 20º
spray angle should be used to avoid dam-
age to the surface being sprayed.
CAUTION
To prolong the life of the unit, it is recom-
mended to rest the unit 5 minutes after
every 30 minutes of use.

9
WORKING WITH DETERGENTS
Using the detergent
To enhance the efciency of the pressure washer,
sometimes it is necessary to use detergents to help
loosen tough dirt and grime.
Note: To apply detergent, the adjustable nozzle
must be in the low-pressure position.
Detergent Application
Important notice
When you have nished using detergent, always
follow the “Cleanup Instructions”. Failure to clean
properly will cause the injection system to become
clogged and inoperable.
CAUTION
• Never use bleach, chlorine products and
other corrosive chemicals.
• Never use liquids containing solvents (i.e.,
paint thinners, gasoline, oils).
• Never use ammonia products.
• Never use acid-based products.
These products can cause physical injuries
to the operator and irreversible damage to
the machine and/or damage the surface
being cleaned.
CAUTION
This machine has been designed for use
with pressure washer detergents only. The
use of other detergents or chemicals may
affect the operation of the machine and will
void the warranty.
Fig. 11
Step 1
Pull the detergent suction tube out and insert it
into a detergent container.
Step 2
Adjust the nozzle to low-pressure setting to
apply the detergent.
Step 3
Depress the gun trigger and the detergent will
be automatically injected and mixed with water.
Step 4
Apply detergent to work area. Do not allow
detergent to dry on surface.
Step 5
Release the gun trigger and adjust nozzle to
high pressure setting. Depress the gun trigger
and rinse the surface in a sweeping motion.
Cleaning Instructions
Step 1
Insert the detergent suction tube into a con-
tainer of fresh water.
Step 2
Set the nozzle to the low-pressure setting.
Step 3
Pull and hold the gun trigger for 20~30 sec-
onds. Allow fresh water to rinse through the
detergent injection system.

SHUTTING DOWN AND CLEANING UP
Step 1
Turn the switch to “OFF” (0) position and unplug
cord from outlet.
Step 2
Turn off the water supply.
Step 3
Press trigger to release water pressure for 20~30 seconds.
Step 4
Disconnect the garden hose from the water inlet on
the unit.
Step 5
Disconnect the high-pressure hose from the high-
pressure outlet and engage the gun safety lock.
WARNING
Turn off water supply and squeeze trigger to
depressurize the unit. Failure to do so could
result in personal injury due to discharge of
high-pressure water.
TAKING A BREAK
If taking a break of ve minutes or more:
Step 1
Engage gun safety lock.
Step 2
Turn pressure washer to “OFF” (O) position.
Step 3
Unplug the power cord from the outlet.
10

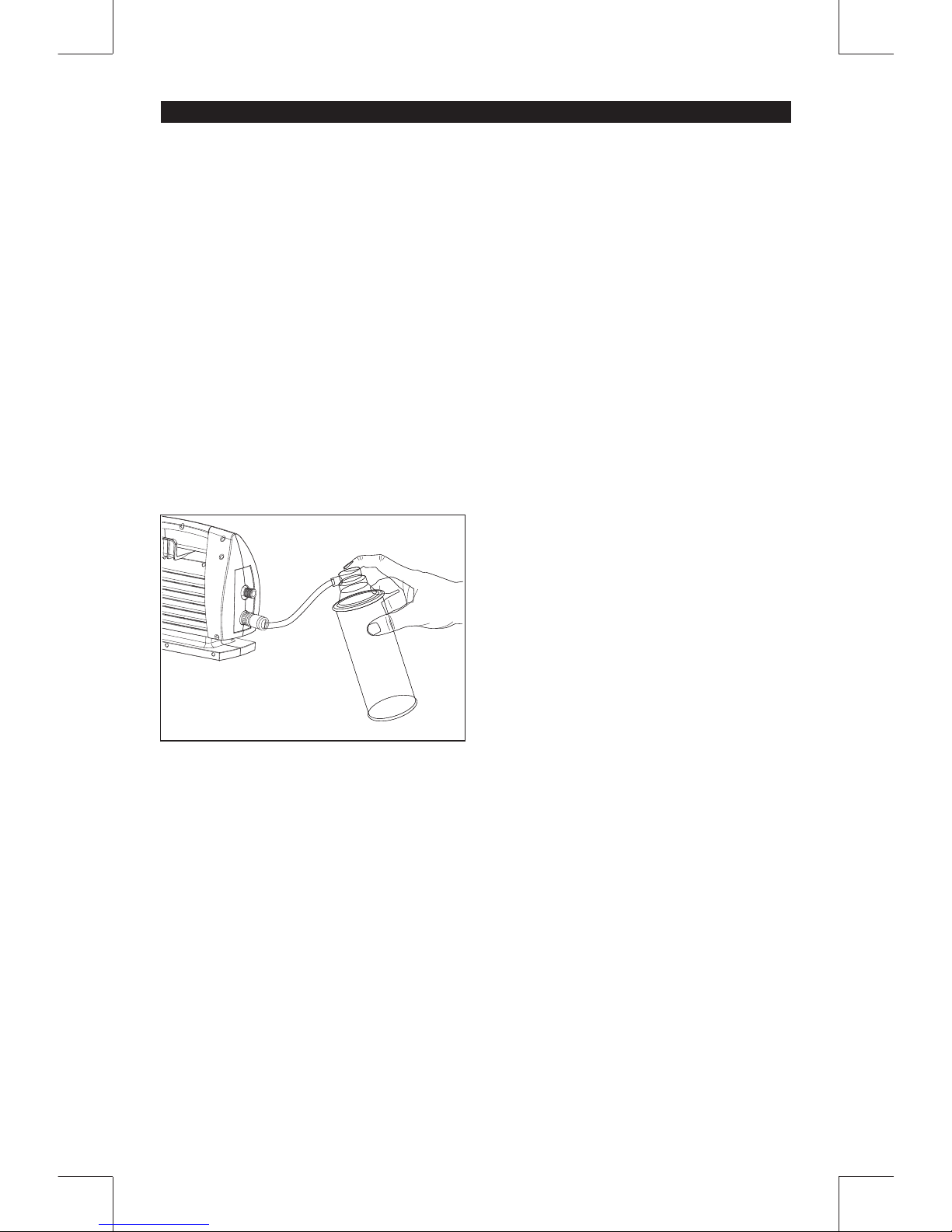

WINTERIZING AND LONG-TERM STORAGE
Optimum Winterizing Procedure
Material required: Pump saver
Winterizing your pressure washer will help protect
and prolong its life. It is strongly recommend you
follow the below steps using a pump saver. This will
keep the internal parts lubricated, protected from
rust, and prevent the pump from freezing.
1. Connect the pump saver hose onto the adaptor
and quick-connect coupling.
2. Depress button on top of antifreeze container.
3. Continue until uid exits the pump outlet.
4. Remove the hose from pump inlet.
Pump saver is available at your local hardware stores.
Alternative Procedure
If you cannot perform the Optimum Winterizing proce-
dure, you can still protect your pressure washer from
winter-damage:
1. Disconnect all water connections.
2. Turn on the machine for a few seconds. Press
trigger to bleed any remaining water in the pump.
Turn off immediately.
3. Remove the gun and hose from the pressure
washer. Drain any excess water. Roll hose care-
fully and do not allow hose to be kinked.
4. Store the machine and accessories in a room that
does not reach freezing temperatures. Do not
store near furnace or other hot areas.
Fig. 12
11

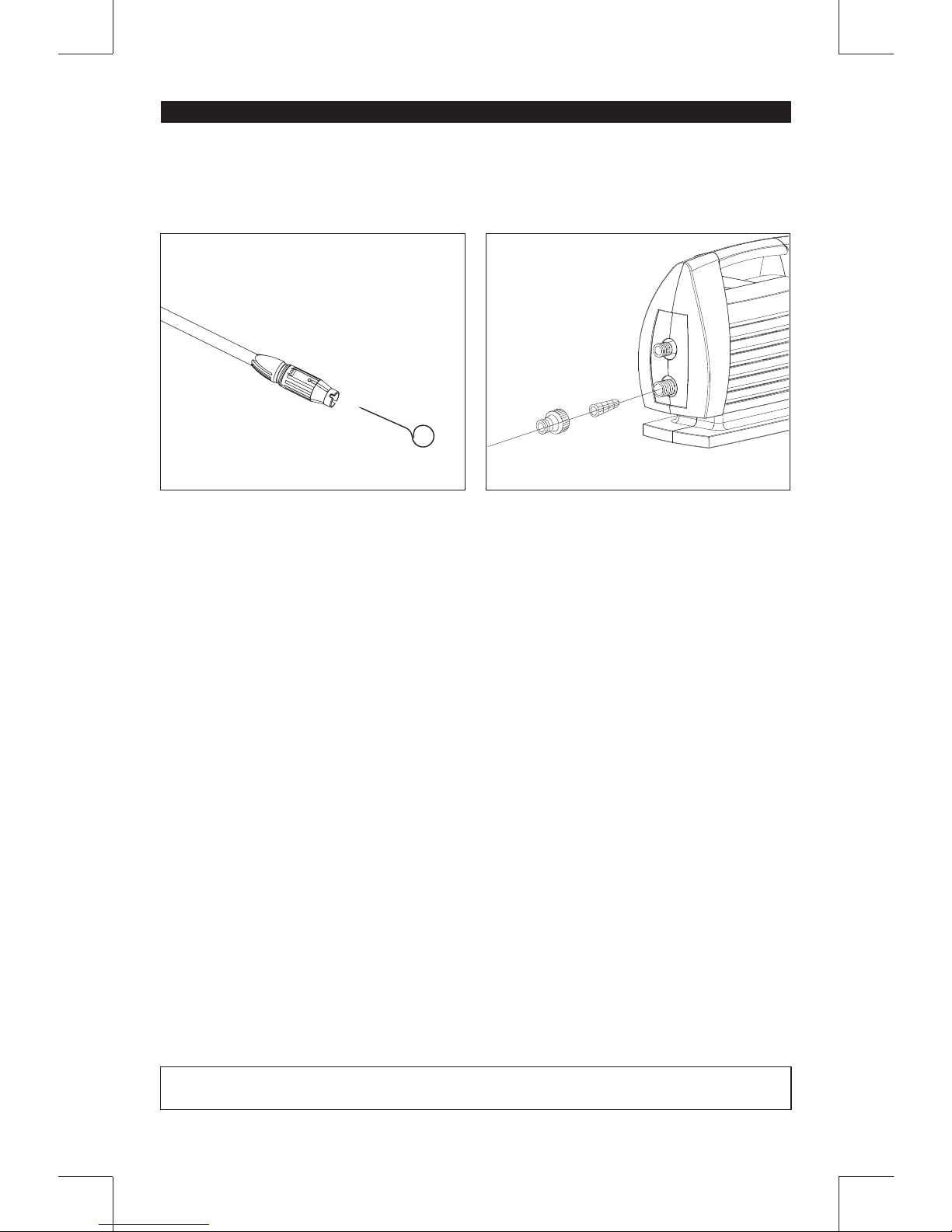

USER MAINTENANCE
Connections
Connections on pressure washer hoses, gun and spray wand should be cleaned regularly and lubricated
with non-water soluable grease.
B
N
Fig. 13
Water Filter Screen
The pressure washer is equipped with a water inlet
lter (L) that prevents debris going into the pump.
If the lter is not kept clean, the ow of water to the
pressure washer will be restricted and the pump
may be damaged.
1. To clean the screen, remove quick connector and
remove the lter screen from the pump inlet.
2. Rinse screen until it is free of debris and blockage.
3. Replace screen and quick-connector immediately.
Air Vents
The air vents located on the front and back of the
pressure washer must be kept clean and free of any
obstructions to ensure proper air-cooling of the mo-
tor during operation.
Fig. 14
SERVICING SHOULD BE PERFORMED BY AN AUTHORIZED SERVICE REPRESENTATIVE. CHECK WITH YOUR
LOCAL RETAILERS FOR THE WARRANTY POLICY AND SERVICE OPTION.
Adjustable Nozzle
When the nozzle is clogged, it will cause the pump to
build pressure and may cause the unit to surge. You
can clean the nozzle by inserting needle (N) into the
tip to rid it of the deposits.
For the adjustable nozzle, you can also lubricate the
nozzle collar (high-pressure low-pressure) by using
non-water soluble grease regularly.
12

TROUBLESHOOTING
Problem Cause Solution
Motor will not start On/Off switch is in the “OFF” (O) position. Turn switch to the “ON” ( | ) position.
Power cord is not plugged in. Plug in power cord.
Extension cord is too long. Replace extension cord with one no
Extension cord is not proper gauge. greater than 14AWG, 50ft.
Extension cord is damaged.
Electrical outlet does not supply Try a different outlet.
adequate power.
Unit does not reach Diameter of garden hose is too small. Replace with an inch or 5/8 inch
garden hose.
Water supply is restricted. Check garden hose for kinks, leaks
and blockage.
Not enough inlet water supply. Open water source full force.
Water inlet lter is clogged. Remove lter and rinse out in
warm water.
Pump is sucking air. Check that hoses and ttings are air
tight. Turn “OFF” machine and purge
pump by squeezing trigger gun until a
steady ow of water emerges through
the nozzle.
Output pressure Not enough inlet water supply. Turn water on full force. Check garden
varies high and low hose for kinks, leaks or blockage.
Pump is sucking air. Check that hoses and ttings are air
tight. Turn “OFF” machine and purge
pump by squeezing trigger gun until a
steady ow of water emerges through
the nozzle.
Water inlet lter is clogged. Remove lter and rinse out in warm water.
Discharge nozzle is obstructed. Blow out or remove debris with a
ne needle.
No detergent. Detergent container is empty. Add more detergent.
Detergent bottle or suction tube Check connections.
not properly connected.
Detergent is too thick. Dilute detergent
Filter on detergent suction tube Run warm water through lter
is clogged. to remove debris.
Damaged or clogged detergent Remove obstruction or replace
suction tube. detergent suction tube.
Discharge nozzle is obstructed. Turn nozzle tip to low-pressure position.
Blow out or remove debris with a
ne needle.
13

TROUBLESHOOTING - CONTINUED
Problem Cause Solution
Garden hose Loose ttings. Tighten ttings.
connection leaks. Missing/worn rubber washer. Insert new washer.
Spray wand, or Spray nozzle not properly attached. Insert the spray nozzle into the trigger
extension, or gun. Carefully press in against the
nozzle leaks. spring tension and twist into the
locked position.
Broken o-ring or plastic insert. Call Customer Service.
Pump is noisy. Pump is sucking air. Check that hoses and ttings are air
tight. Turn off machine and purge
pump by squeezing trigger gun until a
steady ow of water emerges through
the nozzle.
Water leaks from Loose ttings. Check that all ttings are tight.
pump (up to 10 Water seals are damaged or worn. Call Customer Service.
drops per minute
is permissible).
Oil Drip. Oil seals are damaged or worn. Call Customer Service.
Motor buzzes Supply voltage below minimum. Verify that only the pressure washer is
but fails to run. running on this circuit.
System has residual pressure. Turn unit “OFF”, squeeze trigger on
spray want to release pressure, then
turn unit “ON”.
Voltage loss due to extension cord. Do not use extension cord with this
unit—plug directly into power outlet.
Pressure washer not used for long periods Call Customer Service.
IF YOU ENCOUNTER ANY ADDITIONAL DIFFICULTIES NOT LISTED, CALL CUSTOMER SERVICE
AT 1-866-924-7626 FOR ASSISTANCE.
14

WARRANTY
LIMITED 1-YEAR WARRANTY
This pressure washer is warranted to be free of defects in materials and workmanship under normal resi-
dential use for one (1) year.
Specic warranty applies to:
• Electric motor and pump are warranted for one (1) year.
• Standard accessories and attachments including the gun, wand/hose and coupler are warranted for a
ninety (90) day period.
The warranty period is calculated from the date of purchase by the end user and covers the cost for
replacement parts/equipment. In order to verify a warranty situation a copy of the original receipt or gift
receipt must accompany the warranty claim, along with the manufacturer’s serial number from the product.
Any warranty claim, work, or replacements given are to fulll the terms of the original warranty period only.
The manufacturer‘s obligation under this warranty shall strictly be limited, at manufacturer’s option, to re-
place any pressure washer or parts thereof, which in the opinion of the manufacturer, shows defect in work-
manship or material. All decisions of the manufacturer with regard to this limited warranty shall be nal.
To make a warranty claim or inquiry, you must call 1-866-924-7626. You must have the product serial
number and receipt information ready.
If defects should appear within one year of purchase, you may return the unit with your receipt as proof of
purchase to the place of purchase for an exchange of either a new or refurbished unit, at manufacturer’s
discretion. There will be no REFUNDS provided.
The warranty does NOT cover:
• Merchandise sold as reconditioned, used, demonstration or oor models.
• Any commercial, industrial or rental usage of this product. Any such usage will void the implied warranty.
• Any product that has been damaged by freezing, dropping, misuse, neglect, accident, abuse, improper
handling, normal wear and tear, or non-compliance with the owner’s manual.
• Any product that has been damaged by a contaminated water supply, water sediment or chemicals/deter-
gents that are not approved by or recommended by the manufacturer.
• Any product that has been damaged by acts of nature such as res, oods, earthquakes, lightening
strikes, etc.
• Damage caused by repairs made by the end user or any service center not authorized by the manufac-
turer. Any such tampering will void the implied warranty.
• Any cost for shipping by the customer or authorized service center of the allegedly defective product.
• Any cost for shipping of replacement parts or accessories. Such shipping costs will be borne in full by the
end user.
• Any non-standard or bonus accessory/attachment included with the original product.
The manufacturer shall in no event be liable for injuries to persons or property, or for incidental, contingent,
special or consequential damages arising from the use of this product. This warranty does not apply to
damage due directly or indirectly to misuse, abuse, negligence or accidents; repairs or alterations; or lack
of maintenance. The manufacturer shall not be liable for any misrepresentations by stores, store employ-
ees, or any parties, that make claims on this product.
This warranty is non-transferable and only applies to products that were sold in and reside in the United
States. This warranty gives you specic legal rights. You may have other rights, which vary by state.
If you have any questions or comments, call our toll free customer service line at 1-866-924-7626.
15

Printed in China
