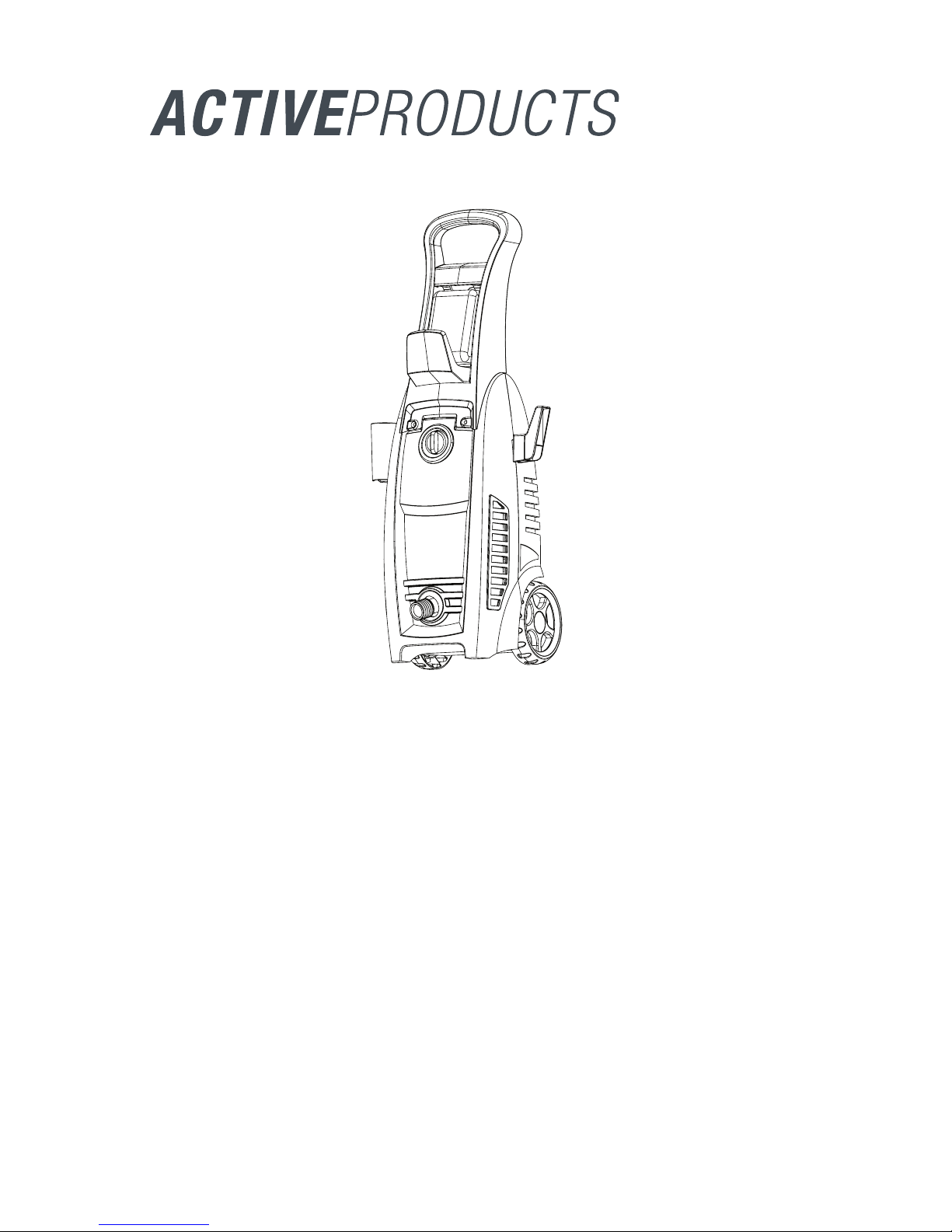

ActiveProducts XE06 User manual

1600 PSI ELECTRIC PRESSURE WASHER
Owner’s Manual
Purchase Date:___________________ Serial #: __________________
v e r s i o n x e 06_09/2009_r e v .1
QUESTIONS, PROBLEMS, MISSING PARTS?
Before returning to your retailer, visit our web site or call our customer service at
www.activeproducts.com / 1-866-924-7626
PLEASE KEEPTHE ORIGINAL BOX, PACKAGING AND RECEIPT. BEFORE OPERATING
THIS UNIT, PLEASE READTHIS MANUALTHOROUGHLY AND RETAIN IT FOR FUTURE
REFERENCE. IFYOU MUST STOREYOUR PRESSURE WASHER IN A PLACE WHERE
THETEMPERATURE IS BELOW 5ºC,YOU MUST APPLY WINTERIZING PROCEDURETO
PROTECT IT. FAILURETO WINTERIZETHE UNIT MAY PERMANENTLY DAMAGE PUMP
AND VOIDTHE WARRANTY.
MODEL NO.: XE06
SKU: 039-8592-2

1 2
TABLE OF CONTENTS
Technical specifications ........................................................................................................ 1
Warranty ............................................................................................................................... 2
Important precautions – Read first!...................................................................................... 3
Safety features and electrical power information ................................................................. 5
Parts and diagram list ........................................................................................................... 6
Assembly and operating instructions.................................................................................... 7
Using the accessories..................................................................................................10
Working with detergents .............................................................................................10
Shutting down and cleaning up....................................................................................12
Taking a break ..............................................................................................................12
Winterizing and long-term storage ......................................................................................13
Cleaning and maintenance .................................................................................................14
Troubleshooting ...................................................................................................................15
TECHNICAL SPECIFICATIONS
Pressure Washer Specifications
Peak Pressure: 1600 PSI
Power Source Requirement: 120 V / 60 Hz
Electrical cord: 23’ (7 m)
High-pressure hose: 20’ (6 m)
Water Flow Rate: 1.35 GPM
Current Drawn: 12A
Inlet water: Cold tap water
WARRANTY
LIMITED 1 YEAR WARRANTY
This pressure washer is warranted to be free of defects in materials and workmanship
under normal residential use for one (1) year.
Specific warranty applies to:
• Electric motor and pump are warranted for one (1) year.
• Standard accessories and attachments including the gun, wand/hose and coupler are war-
ranted for a ninety (90) day period.
The warranty period is calculated from the date of purchase by the end user and covers the
cost for replacement parts/equipment. In order to verify a warranty situation a copy of the
original receipt or gift receipt must accompany the warranty claim, along with the manufac-
turer’s serial number from the product. Any warranty claim, work, or replacements given
are to fulfill the terms of the original warranty period only.
The manufacturer‘s obligation under this warranty shall strictly be limited, at manufacturer’s
option, to replace any pressure washer or parts thereof, which in the opinion of the manu-
facturer, shows defect in workmanship or material. All decisions of Active Products with
regard to this limited warranty shall be final. NO RETURNS or REFUNDS will be allowed by
the retailer or manufacturer. To make a warranty claim or inquiry, you must call 1-866-924-
7626. You must have the product serial number and receipt information ready.
If defects should appear within one year of purchase, you may return the unit with your
receipt as proof of purchase to the place of purchase for an exchange of either a new or
refurbished unit, at manufacturer’s discretion. There will be no REFUNDS provided.
The warranty does NOT cover:
• Merchandise sold as reconditioned, used, demonstration or oor models.
• Any commercial, industrial or rental usage of this product. Any such usage will void the
implied warranty.
• Any product that has been damaged by freezing, dropping, misuse, neglect, accident,
abuse, improper handling, normal wear and tear, or non-compliance with the owner’s
manual.
• Any product that has been damaged by a contaminated water supply, water sediment or
chemicals/detergents that are not approved by or recommended by Active Products.
• Any product that has been damaged by acts of nature such as res, oods, earthquakes,
lightening strikes, etc.
• Damage caused by repairs made by the end user or any service center not authorized by
Active Products. Any such tampering will void the implied warranty.
• Any cost for shipping by the customer or authorized service center of the allegedly defec-
tive product.
• Any cost for shipping of replacement parts or accessories. Such shipping costs will be
borne in full by the end user.
• Any non-standard or bonus accessory/attachement included with the original product.
The manufacturer shall in no event be liable for injuries to persons or property, or for inci-
dental, contingent, special or consequential damages arising from the use of this product.
This warranty does not apply to damage due directly or indirectly to misuse, abuse, negli-
gence or accidents; repairs or alterations; or lack of maintenance. The manufacturer shall
not be liable for any misrepresentations by stores, store employees, or any parties, that
make claims on this product.
This warranty is non-transferable and only applies to products that were sold in and reside
in Canada.
If you have any questions or comments, visit our web site at www.activeproducts.com or
call our toll free customer service line at 1-866-924-7626.

3 4
Save These Instructions
In a double-insulation product, two systems of insulation are provided instead of
grounding. No grounding is provided on a double-insulated product, nor should a
means for grounding be added to the product. Servicing a double-insulated
product requires extreme care and knowledge of the system, and should be
done only by qualified service personnel.
Replacement parts of a double-insulated product must be identical to the parts they
replace. A double-insulated product is marked with the words “DOUBLE INSULATION”
or “DOUBLE INSULATED”. The symbol “ ” may also be marked on the product.
IMPORTANT PRECAUTIONS – READ FIRST
Warnings
When using this product, basic precautions should always be followed:
• Read all the instructions before using the product.
• Water spray must never be directed toward any electric wiring, devices or directly toward
the pressure washer machine itself, or fatal electric shock may occur.
• To reduce the risk of injury, do not operate the machine near children.
• Learn how to stop the machine and release pressure quickly. Be thoroughly familiar with
the controls.
• Stay alert—watch what you are doing.
• For use with cold water supply only. Do not draw other liquids.
• The pressure washer should not be used in areas where gas vapours may be present. An
electric spark could cause an explosion or fire.
• To minimize the amount of water getting into the pressure washer, the unit should be
placed as far as possible from the cleaning site during operation.
• Avoid accidental starts. Shut power “OFF” before connecting or disconnecting cord to
electrical outlets.
• Do not operate the product when fatigued or under the inuence of alcohol or drugs.
• Do not stand on unstable surfaces. Stand with both feet balanced at all times.
• Prior to starting the pressure washer in cold weather, be sure ice has not formed on any
part of the equipment.
• Never carry your pressure washer by the cord.
• Do not pull on the cord to disconnect from the outlet.
• To allow free air circulation, the pressure washer should not be covered during operation.
• Keep operating area clear of people and pets.
• Follow the maintenance instructions specied in the manual.
If replacement of the plug or cord is needed, use only identical replacement parts.
• This product or its power cord contains lead, a chemical known to cause cancer, birth
defects or other reproductive harm. Wash hands after use.
Warnings
•Donotusewithammableliquidsandtoxicchemicals.
•InjectionHazard:Equipmentcancauseseriousinjuryifthespraypenetratestheskin.
•Donotpointthegunatanyoneoranypartofthebody.Incaseofpenetration,seek
medicalaidimmediately.
•ThissystemiscapableofproducinghighpressureasratedintheTechnicalSpeci-
cations.Toavoidruptureandinjury,donotoperatethismachinewithcomponents
ratedlessthantheunititself(includingbutnotlimitedtosprayguns,hoseand
hoseconnections).
•Beforeservicing,cleaningorremovalofanyparts,shut“OFF”powerand
relievepressure.
•Donotsprayelectricalapparatusandwiring.
•Ifconnectionismadetoaportablewatersystem,thesystemmustbeprotected
againstbackow.
IMPORTANT PRECAUTIONS – READ FIRST
WARNING-RiskofInjury
DoNotDirectDischargeStreamatPersons.
• High-pressurejetcanbedangerousifmisused.
• Thejetmustnotbedirectedatpersons,animals,electricaldevices,ortheunititself.
WARNING-RiskofExplosion
• Donotsprayammableliquids.
• Donotuseacidsandsolventsinthisproduct.
• Theseproductscancausephysicalinjuriestotheoperatorandirreversibledamage
 tothemachine.
CAUTION-GunKicksBack
• Holdwithbothhands
•Thetriggergunsafetylockpreventsthetriggerfrombeingengagedaccidentally.
•ThesafetyfeatureDOESNOTlocktriggerintheONposition.
WARNING-RiskofElectricShock
• Inspectcordbeforeusing-donotuseifcordisdamaged.
• Keepallconnectionsdryandofftheground.
• Donottouchplugwithwethands.
• Donotuseextensioncordslongerthan50’(15.2m).Onlyuse12or14AWGrated
extensioncords.

5 6
SAFETY FEATURES & ELECTRICAL POWER INFORMATION
The pressure washer is equipped with a stop device that will sense when the trigger on
the gun is released. It will open the power circuit to the motor, and cause the pressure
washer motor to stop. The motor will start again when the trigger is pulled.
WARNING
Thepressurewasherisalsoequippedwithamainpower“ON/OFF”switchlocated
ontheunit.Itshouldalwaysbemovedtothe“OFF”positionwhenthepressure
washerisnotbeingusedtopreventpossibleinjuryordamage.
DANGER
Improperconnectionofpoweroutletcanresultinariskofelectricshock.Checkwith
aqualiedelectricianorservicepersonnelifyouareindoubtastowhethertheout-
letisproperlygrounded.Donotmodifytheplugprovidedwiththeproduct—Ifitwill
notttheoutlet,haveaproperoutletinstalledbyaqualiedelectrician.Donotuse
anytypeofadaptorwiththisproduct.
ExtensionCords
If possible, do not use extension cords with this product. However, if you must use one,
observe all of the warnings and instructions listed below:
Useasufcientgauge:
Maximum cable length: 50’ (15.2 m). Only use 12 or 14 AWG rated extension cords.
• Use only extension cords that are intended for outdoor use. These extension cords are
identified by a marking that reads “Acceptable for use with outdoor appliances; store
indoors while not in use.”
• Use only extension cords having an electrical rating not less than the rating of the product.
• Do not use damaged extension cords. Examine extension cord before using and replace
if damaged. Do not abuse extension cord and do not yank on any cord to disconnect.
• Keep cord away from heat and sharp edges.
• Always disconnect the extension cord from the receptacle before disconnecting the
product from the extension cord.
• To reduce the risk of electric shock, keep all connections dry and off the ground. Do not
touch plug with wet hands.
CAUTION
Thismachinehasbeendesignedforusewithdetergentsthatarespecicallyap-
provedforpressurewasheruse.Theuseofothercleaningdetergentsmayaffectthe
operationofthemachineandvoidthewarranty.

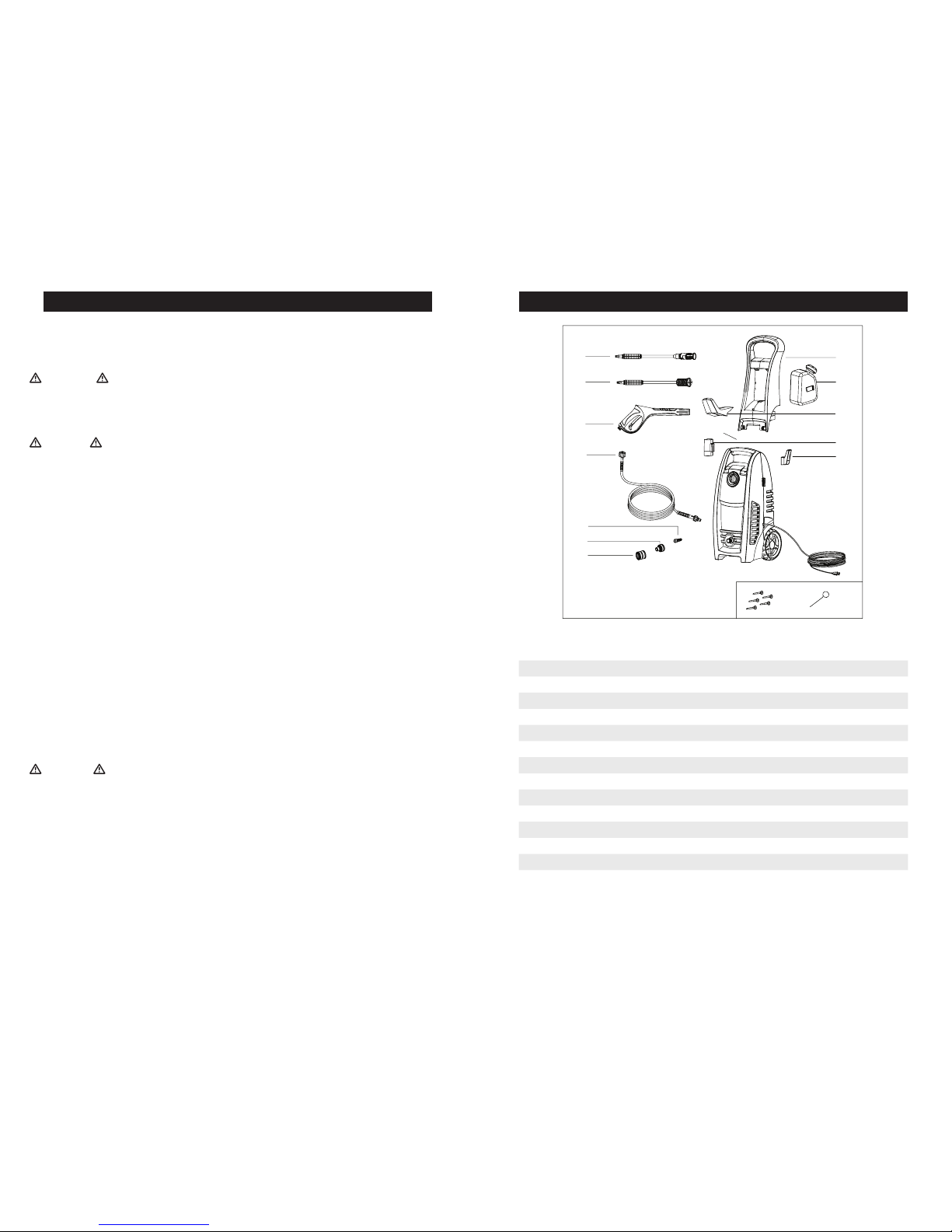

PARTS AND DIAGRAM LIST
ItemNo. Quantity PartName PartsNumber
A 1 Adjustable wand XE06-020-0002
B 1 Turbo wand XE03-020-0001
C 1 Spray gun XE03-020-0003
D 1 High-pressure hose XE03-020-0004
E 1 Water filter XE03-030-0001
F1 1 Quick-connect coupling XE03-030-0003
F2 1 Inlet adapter XE03-030-0002
G 1 Handle XE06-000-0002
H 1 Detergent bottle assembly XE06-020-0006
I 1 Hose bracket XE06-000-0003
J 1 Gun holder XE06-000-0004
K1 Power cord bracket XE06-000-0005
L 5 Screws XE06-000-0006
M 1 Needle (for nozzle cleaning) XE03-062-0002
* Inlet adapter and water lter come pre-attached on the water inlet, located on the front of the
pressure washer.
G
F2
E
D
C
B
A
I
J
K
H
L
F1
M

78
SurfacePreparation
Before starting any cleaning task, it is important to inspect the area for objects that could
create a hazard. Remove any objects from the work area that could be tripped over, such as
toys or outdoor furniture. Ensure that all doors and windows are closed tightly.
WaterSupply(ColdWaterOnly)
Only draw water through the unit. For use with cold water supply only. Water hose must be
at least a 1/2” (13 mm) in diameter. Flow rate of water supply must not fall below 2 GPM
(gallons per minute) [9.1 lpm (litres per minute)]. Flow rate can be determined by running
the water for one minute into an empty 5-gallon (19 L) container.
CAUTION
•Neverusethepressurewashertodrawinwatercontaminatedwithsolvents(e.g.
paintthinners,gasoline,oil,etc.).
•Dirtinthewaterinletwilldamagetheunit.Toavoidthisrisk,werecommendchecking
thewaterlter(locatedinsidethewaterinlet.TocleanitoutseeMaintenancesection).
•Alwayspreventdebrisfrombeingdrawnintotheunitbyusingacleanwatersource
andanadditionalaccessorywaterlterifrequired.
•Toprolongthelifeoftheunit,resttheunitfor5minutesafterevery30minutesofuse.

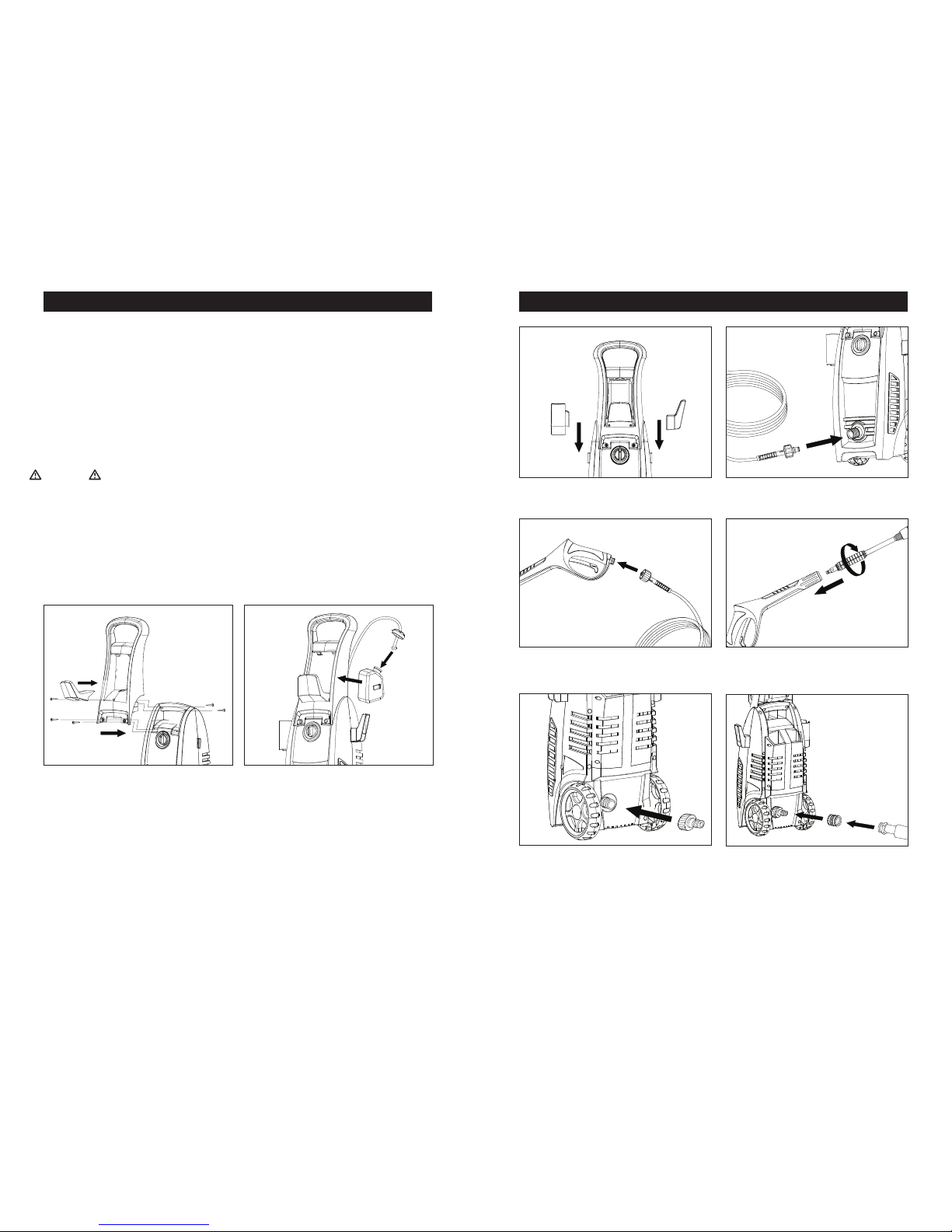

ASSEMBLY AND OPERATING INSTRUCTIONS ASSEMBLY AND OPERATING INSTRUCTIONS
3
Attach gun holder and power cord bracket.
Attach the inlet adapter to the machine’s
water inlet. Hand tighten only. (Some models
come with inlet adapter pre-assembled.
Check your unit.)
Attach high pressure hose to the machine’s
water outlet (hand tighten only)
Attach quick connect coupling to garden
hose (hand tighten only) and attach to inlet
adapter.
1
Assemble handle onto pressure washer
and attach hose bracket to handle. Tighten
the screws.
Connect detergent suction tube to the
bottle and attach to the handle.
2
4
78
5
Attach high pressure hose to the gun assembly
(hand tighten only).
Insert choice of wand to the gun and twist
¼ turn to lock in position.
6
