ABC40SKX / ABC40SKXF

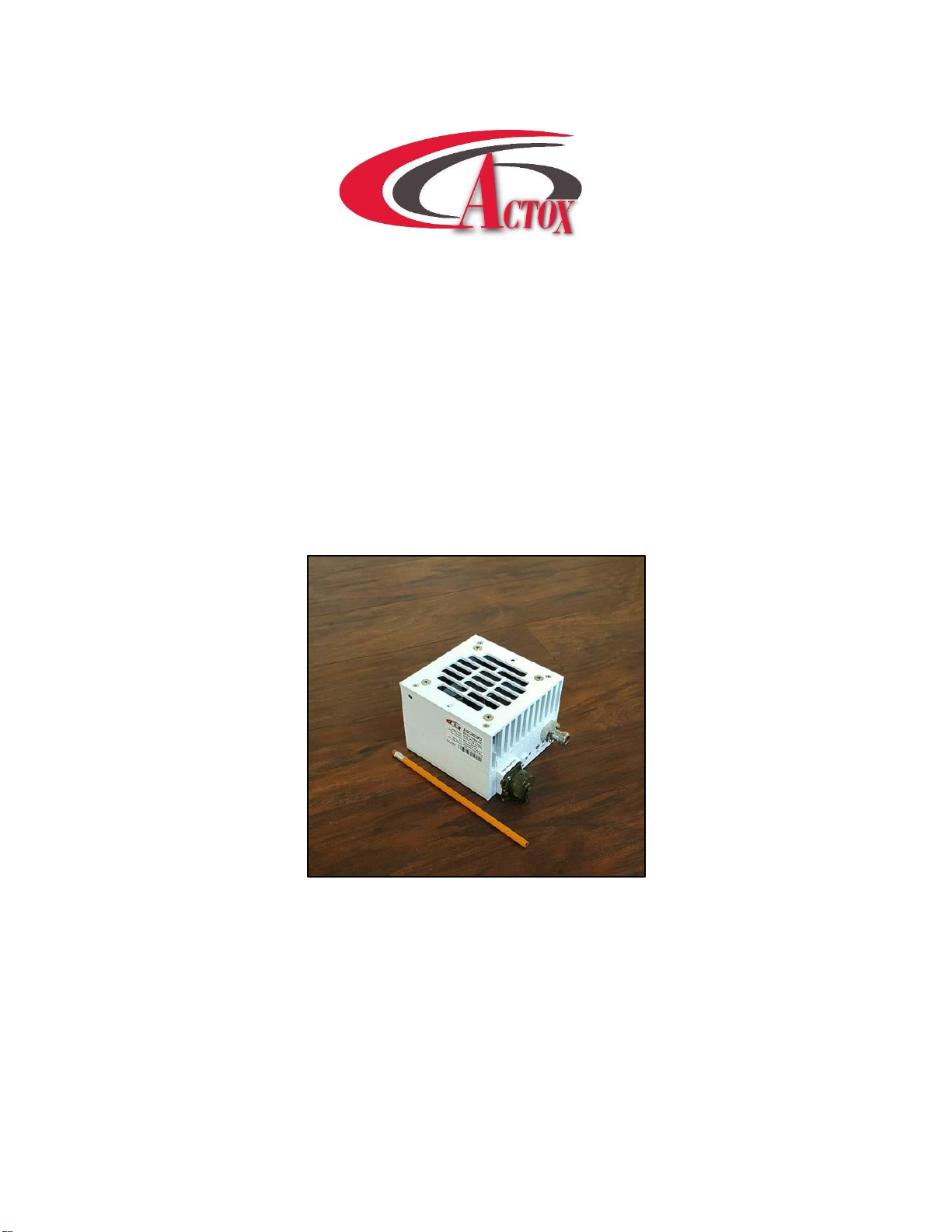

40W Ext. Ku-Band BUC
USER MANUAL

ABC40SKX User Manual
Page 2 of 34
Table of contents
Introduction........................................................................................................................................................... 5
Receiving and Inspection ................................................................................................................................... 6
Equipment Damage or Loss
Return of Equipment
Preparing for Installation ..................................................................................................................................7
Safety Precautions
Installation & Overview.....................................................................................................................................8
General Description
Specifications
General Considerations
Securing the Block Up Converter
Installing the Block Up Converter .................................................................................................................... 9
Tools & Test Equipment
Site Considerations
Preparation
LED Indication.................................................................................................................................................. 10
10 MHz Reference
Setting the L.O
Recommended Test Equipment....................................................................................................................... 11
Equipment Type
Connections and Mounting Hardware ........................................................................................................... 12
Assembly and Installation
Functional Overview ........................................................................................................................................ 13
General
IF/RF Conversion and Amplification

ABC40SKX User Manual
Page 3 of 34
Monitor and Control (optional)
Operation........................................................................................................................................................... 14
Procedure
Maintenance......................................................................................................................................................15
Preventive Maintenance
Block Up Converter Cooling System Preventive Maintenance
Performance Check ..........................................................................................................................................16
Out-of Warranty Repair
Appendix 1 Technical Specification................................................................................................................17
Appendix 2 Mechanical Drawing....................................................................................................................18
Appendix 3 Spare Parts.................................................................................................................................... 19
Appendix 4 M&C Commands......................................................................................................................... 20
M&C Serial Protocol
CRC Calculation Example
Appendix 5 M&C Connection Instructions.................................................................................................... 25
BUC 19 pin connector for a PC / Laptop
BUC Connection to PC via Serial Port
BUC Connection via Ethernet

ABC40SKX User Manual
Page 4 of 34
Scope
This document covers the installation, operation, and maintenance of the ABC40SKX BUC. It contains
information intended for engineers, technicians and operators working with the block up converter.
To make inquiries, or to report errors of fact or omission in this document, please contact Actox Corporation
at toll free 866-888-6087.

ABC40SKX User Manual
Page 5 of 34
Introduction
The ABC40SKX is a reliable, high quality, cost efficient stand-alone block up converter. The application for
this block up converter is Ku-Band VSAT communication in an outdoor environment. This line of superior
products, engineered using state of the art technology, is characterized by unparalleled durability and
dependability.
This is the smallest and lightest 40W L-To Ku-Band Block Up Converter and is designed to be mounted on the
feed horn. The unit is ideal for portable and mobile applications.
KEYFEATURES
RF Frequency: 13.75-14.50 GHz
IF Frequency: 950 to 1700 MHz
Double L.O. (switchable 12.80 & 13.05 GHz)
Auto-ranging powering option 30-60 VDC
Incomparable low power consumption (192W max.)
Field-exchangeable (F/N) IF connector
Digital temperature compensation
L.O. lock, 10MHz and amplifier LED
Internal auto-sensing and controllable 10MHz high stability reference (optional)
M&C –combined RS-232/485, Ethernet (HTTP and SNMP), FSK (optional)
RoHS compliant

ABC40SKX User Manual
Page 6 of 34
Receiving and Inspection
The block up converter is designed to function outdoors and will arrive in a standard shipping container.
Immediately upon receipt of the block up converter, check the packing slip against the actual equipment you
have received. Inspect the shipping containers exteriors for visible damage incurred during shipping.
Handle the block up converter with extreme care. Excessive shock may damage block up converter’s delicate
internalcomponents.
Using the supplied packing list, verify that all items have been received and undamaged during shipment. Verify
that all items are complete. If there are any omissions or evidence of improper packaging, please notify Actox
Corporationimmediately.
Equipment Damage or Loss
Actox Corporation is not responsible for damage or loss of equipment during transit. For further information,
contact the responsible transport carrier.
When declaring equipment as damaged during transit, preserve the original shipping cartons to facilitate
inspectionreporting.
Return of Equipment
When returning equipment to Actox Corporation for repair or replacement:
 Identify, in writing, the condition of the equipment,
 Refer to the Invoice, Purchase Order and the date the equipment was received.
Notify Actox Corporation RMA department of the equipment condition and obtain a Return Material
Authorization (RMA) number and shipping instructions.
NOTE
Do not return any equipment without an RMA number.
This is important for prompt, efficient handling of the
returned equipment and of the associated complaint.

ABC40SKX User Manual
Page 7 of 34
Preparing for Installation
Before attempting to install or use the block up converter, we recommend that you first familiarize yourself with
the product by reading through this manual. Understanding the operation of the system will reduce the possibility
of incorrect installation, thereby causing damage or injury to yourself or others. The block up converter must be
installed in accordance with the conditions and recommendations contained in the following sections.
SafetyPrecautions
Carelessness or mishandling of the block up converter may damage the unit causing serious injury to yourself
or others. Please adhere to the following:
WARNING!!
If your unit is equipped with an AC power cord and plug, do not tamper with, or attempt to reconfigure, the cord
or plug supplied with the unit, as this can:
Result in personal injury;
Void the warranty;
Cause damage to the units or related equipment.

ABC40SKX User Manual
Page 8 of 34
Installation & Overview
GeneralDescription
This section describes the installation and theory of operation of the block up converter.
ABC40SKX is powered by +30~+60 VDC via MS connector.
It will amplify an input signal from an L-Band RF source up to a power level of 40 Watts (min) CW in Ku-
Band.
The block up converter can be used as a stand-alone unit or in a redundant configuration.
Specifications

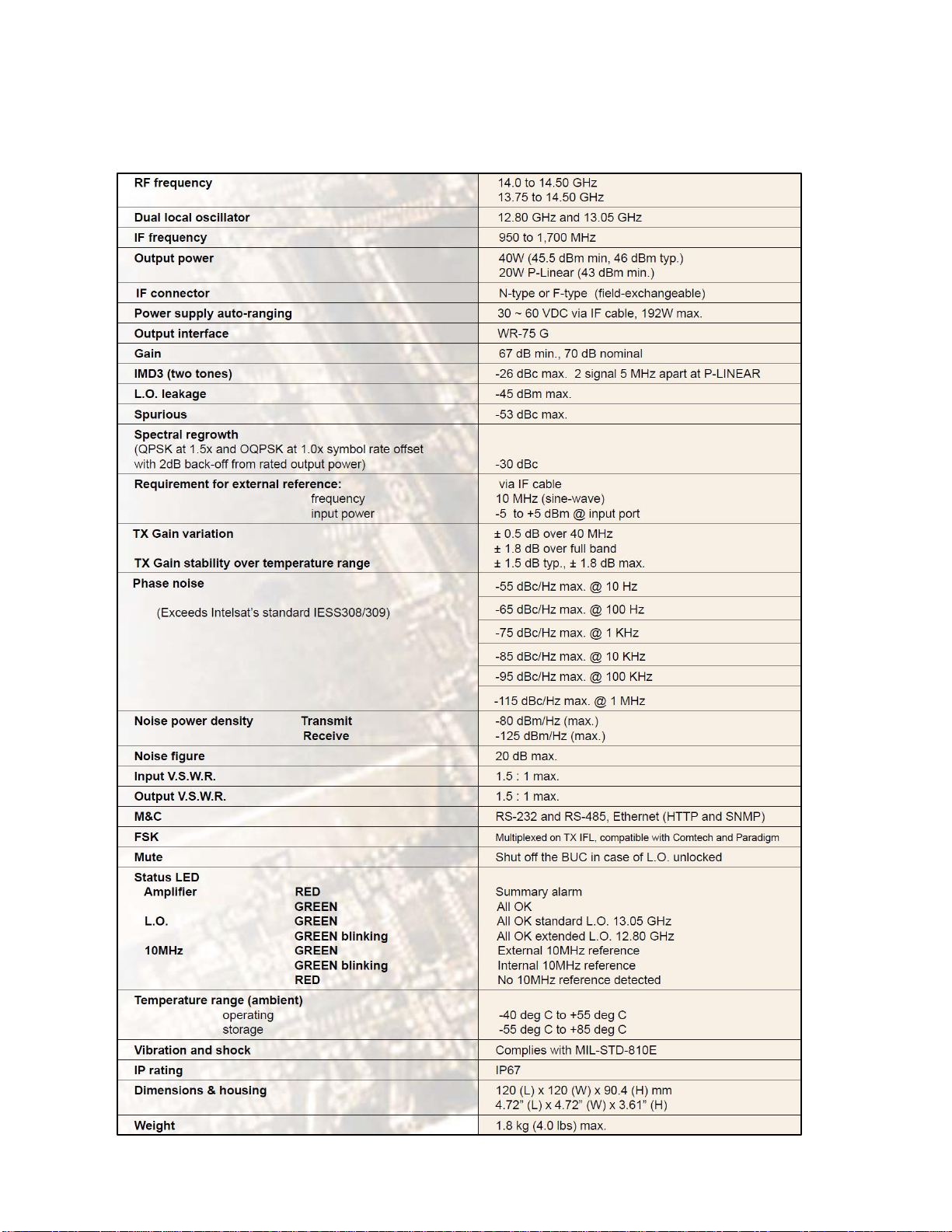

Table 1 summarizes the specifications of the ABC40SKX BUC. For mechanical specifications, refer to the
outline drawing, Appendix 1.
GeneralConsiderations
The block up converter shall meet all specifications over full bandwidth and under all environmental conditions
when terminated with a load of VSWR at 1.5:1 unless otherwise specified. All RF specifications shall be met
within five minutes after applying power, except gain flatness, which shall be met after a warm-up period of ten
minutes. During the warm-up period, the block up converter shall not exhibit any alarm or require an RF mute
input signal to reset any alarm/fault latches.
Securing the Block Up Converter
Align the block up converter output waveguide flange with the mating flange of the antenna feeder waveguide.
Using the O-ring and hardware provided, connect the antenna feeder waveguide. Torque the flange screws to 16
inch-pounds (1.8 N-m). Attach the proper cables for waveguide for IF input, AC power and M&C if equipped
to the corresponding connectors of the block up converter.
The cylindrical connectors are labeled clearly and have different pin layouts. It is impossible to incorrectly
install the mating connectors.

ABC40SKX User Manual
Page 9 of 34
Installing the Block-Up Converter
Tools and Test Equipment
Have on hand a standard electrician's tool kit and any tools listed in the antenna manufacturer's installation
instructions.
SiteConsiderations
The BUC is designed to mount on the antenna. Locate and install the antenna according to instructions supplied
by the antenna manufacturer. Choose an area that is free of extraneous interference from motors and electrical
equipment and has a clear line of sight from the antenna to the satellite. Lightning arrestors should be used at
the site to protect personnel and equipment.
Preparation
MountingConsiderations:
Optional Mounting Brackets are available that will facilitate mounting for most antennas.
The ODU must be mounted such that:
- Sufficient support is afforded to the BUC, the LNB and the Power supply to minimize the effects of antenna
sway in strong winds.
- Air movement across the heat fins is possible.
- The length of the Power supply cables is taken into consideration in determining the mounting location of the
power supply.
Throughout installation and during any polarization, azimuth or elevation adjustment, ensure that cables and
waveguide are not crimped or pinched.

ABC40SKX User Manual
Page 10 of 34
LED Indication
SSPA LED Green
SSPA LED Red
All OK
Summary Alarm
L.O. LED Green
L.O. LED Green Blinking
L.O. is set to 13.05 GHz
L.O. is set to 12.80 GHz
10MHz LED Green
10MHz LED Red
10MHz LED Green Blinking
External 10MHz Reference
10MHz is Absent
Internal 10MHz Reference
10MHzReference
The BUC must receive a stable external 10MHz reference provided by a stable signal source such as a signal
generator, satellite modem or injected externally with a Bias T (for example, ABT6ARN/ABT6ARF
manufactured by Actox Corporation) or a similar bias T type.
Please make sure to check the sticker on the BUC for the appropriate power source before any power connections
are performed.
Setting the L.O.
Switchable L.O. is mechanically changed by unscrewing the L.O. screw and pressing it in with any small object
such as toothpick. If the BUC is equipped with M&C interface, the L.O. could be switching electronically with
the appropriate M&C command.

ABC40SKX User Manual
Page 11 of 34
Recommended Test Equipment
The following equipment or equivalent is recommended for installation and system alignment:
EquipmentType
SpectrumAnalyzer HP8563E
Digital Voltmeter Fluke 8050
Adapter Waveguide to coax C or Ku-band
RF cables With calibrated insertion loss up to 15GHz
40 dB attenuator High Power to match HPA output.
Assortment of cables, connectors and adapters (calibrated up to 18 GHz).
Ensure that the BUC TX output power is disabled to prevent accidental transmission interference with
adjacent satellites or transponders before attempting to align or performing any other operation involving the
ODU. Before attempting any system change, carefully evaluate the possible effects of the transmitted signal.

ABC40SKX User Manual
Page 12 of 34
Connections and Mounting Hardware
The IF input connection requires a coaxial cable with an F or N type connector. The RF output requires a
waveguide with a WR-75G flat flange. An O-ring shall be used to seal the waveguide connection.
Assembly and Installation
Use the information in this section as a guide to assemble and install the block up converter. The specified
humidity is up to 100% during operation. However, installation should be carried out in dry conditions, free of
salt spray or excessive humidity. This will eliminate the possibility of moisture and other foreign substances
from entering the output waveguide flange.
CAUTION!!
Only authorized technical personnel should perform the Installation and proper electrical hookups of the block
up converter.
The block up converter is designed to operate in an outdoor environment and is waterproof when mounted in
the correct orientation. To provide a sufficient airflow, the block up converter should be mounted with a
minimum clearance of 3 inches on all four sides and the bottom. Adequate cooling for the block up converter
will provide years of top performance.

ABC40SKX User Manual
Page 13 of 34
Functional Overview
General
This section describes the block up converter functions in detail. The functional overview explains the RF
amplification, monitor & control and power distribution.
IF/RF Conversion and Amplification
The IF Input requires a signal with a 10MHz reference, and 30-60 VDC power source. 2-4.5Amps nominal
enters the BUC by a coaxial cable, converted to Ku-Band by the BUC and goes through an internal isolator and
reject filter, which provides a good VSWR at the input. Under normal operation, the RF amplifier will amplify
the RF Input signal level up to a power level of 45.5 dBm or 40 Watts CW minimum.
To achieve the rated output power of the RF Amplifier, provide the necessary gain and low insertion loss. The
amplified signal is transmitted through the output waveguide section to a satellite up-link system.
Monitor and Control (optional)
The block up converter may have a RS-485 and RS-232 serial interface. With this option the block up converter
can communicate to the indoor unit or redundancy control block up converter via RS-485 or RS-232.
The control system can provide the following M&C functions:
 BUC Alarm (via RS-485/RS-232): when an input BUC within the block up converter system current
draw is below 0.3A, a BUC alarm signal will be transmitted via the RS-485/RS-232 serial interface.
 Mute Control (via RS-485/RS-232)
 Mute Control (via hardware line): TTL high level signal will mute a block up converter
 Output Power Monitoring: 20 dB dynamic range (via RS-485/RS-232)
 Base Plate Temperature Monitoring (via RS-485/RS-232)

ABC40SKX User Manual
Page 14 of 34
Operation
It shall be performed by authorized personnel prior to maintenance and/or repair.
Procedure
Verify that the installation procedure described was completed. A complete physical check of the customer’s
system is suggested.
WARNING!!
The output power available at the output waveguide flange is extremely
hazardous. Under no circumstances should block up converter be operated
without the waveguide feed or a high power load attached. Do not operate
this equipment in the presence of flammable gases or fumes. Failure to
observe this precaution will result in personal injury. Safe and careful
installation of this block up converter will eliminate the possibility of
accidents and provide years of top performance.
Verify the antenna feed waveguide connection is properly done before the block up converter is energized.
NOTE
The block up converter can withstand any source or load VSWR. However,
the block up converter will meet all specification requirements only if the
source/load VSWR is sufficient. Normal operation is not possible if the
antenna feeder VSWR is greater than 1.5:1.
Turn ON the power and allow a warm up period of twenty minutes before operating the block up converter.
This will assure stable gain and power. The block up converter can function with a coupler when a direct
measurement of the output power is made.

ABC40SKX User Manual
Page 15 of 34
Maintenance
This section contains information on how to maintain, troubleshoot and repair the block up converter. The block
up converter is extremely reliable, requiring very little preventive maintenance, or repair. Should there be a
malfunction, this section also contains technical information to help diagnose basic failures.
PreventiveMaintenance
WARNING!!
Shut down the block up converter before disassembly and remove all cables
and connectors. Failure to observe this precaution may result in personal
injury or death. This includes the removal of any RF power originating from
other system components.
When the block up converter is in the hot stand-by mode in a redundant system, switch it to the operation mode
at least once every three months.
When the block up converter is in the cold stand-by mode in a redundant system, switch it to the operation
mode at least once every three months.
Block Up Converter Cooling System Preventive Maintenance
Preventive maintenance is limited to checking the performance of the block up converter cooling system. No
electrical or mechanical adjustments are required for normal operation.

ABC40SKX User Manual
Page 16 of 34
Performance Check
Verify the system is properly set up.
It is recommended to measure the following parameters for ensuring that the block up converter is in good
working condition:
- Gain and Gain flatness
- RF load VSWR and RF source VSWR
- Two-Tone Inter-modulationDistortion
- Return Loss at connectors of the block up converter
Using a Source and an IF input signal level within the small signal region of the block up converter, measure
the power level at connectors IF or MS connector. Plot the swept response on a test data sheet. From the plot,
determine gain and gain flatness.
Plot the swept return loss for both the IF Input and RF Output signals on a test data sheet. From the plot
determine the return loss.
From the output power measurements determine rated output power. Record value on a test data sheet.
Measure the Two-tone Inter-modulation Suppression using two equal signals separated by 5 MHz. Record value
on test data sheet.
WARNING!!
Cable connection and disconnection shall be done carefully to avoid physical
damage to the cables and connectors, which may cause intermittent problems
in the future.
Symptom
Action
Fails performance test
Check power source, RF source, cabling and connectors. Check LED indicators for
status and if the light is red contact Actox Corporation. If we are not able to assist
you remotely, return block up converter to Actox Corporation after RMA number
has been issued.
Out-of Warranty Repair
A non-warranty and out-of-warranty repair service is available from Actox Corporation for a nominal charge.
The customer is responsible for paying the cost of shipping the BUC both to and from Actox Corporation for
these repairs.

ABC40SKX User Manual
Page 17 of 34
Appendix 1. Technical Specification

ABC40SKX User Manual
Page 18 of 34
Appendix 2. Mechanical Drawing

ABC40SKX User Manual
Page 19 of 34
Appendix 3. Spare Parts
The following sheet can be copied and used as a fax form to order the required spare parts. Please make sure to
include all identifying information to facilitate the processing of your order. The order may be sent via email to
the following address.
Fax: [phone]
Email:[email protected]
For additional information, please contact our customer service department at:
[phone]or 1-866-888-6087
Actox Corporation
designers and manufacturers of telecom & wireless products
Spare Parts Order Form
ABC40SKX Ext. Ku-Band BUC
From:
Place By:
Signature:
Telephone:
Fax
Email:
Part Description
Part Number
Quantity
Unit
Price*
Line
Total*
Fax to: Customer Service 1-866-888-6087

ABC40SKX User Manual
Page 20 of 34
Appendix 4. M&C Commands
Reply
Packetformat
Explanation
Interpretation
Examples
ACK(Acknowledge
7E FX E0 ZZ 7F
Acknowledge that the
received packet was
properlyprocessed.
X = Device address of the packet
source device.
ZZ = CRC.
1) reply: 7E FF E0 E0
7F
(ACK reply sent from
the BUC)
NACK (Not
Acknowledge)
7E FX F1 YY ZZ
7F
Indicate that a
problemwas
encounteredwith
the received packet.
X = Device address of the packet
source device.
YY = Error code
(03 = Incorrect CRC
18 = Unrecognized command
30 = Set command attempted on a
restricted database element)
ZZ = CRC.
1) reply: 7E FF F1 03
F2 7F
(NACK reply sent from
the BUC for an
invalid CRC)
2) reply: 7E FF F1 18
E9 7F
(NACK reply sent from
the BUC for an
unrecognized
command).
Command
Packet
format
Explanation
Possiblereplies
Interpretation
Examples
Get Device
7E FF 02
Query device for
UpdateDevice
TT TT = Device temp in °C
1) cmd: 7E FF 02 06 06 02
7F
reply: 7E FF 84 06 06 01 02
87 7F
(Temp = 0x0102 = 0d258 –
Temperature
06 06 02
currenttemperature
Temp: 7E FF 84 06
+ 273. ZZ = CRC.
273 = -15°C) 2) cmd: 7E FF
7F
06 TT TT ZZ 7F
02 06 06 02 7F
reply: 7E FF 84 06 06 01 34
B1 7F
(Temp = 0x0134 = 0d308 –
273 = +35°C)
Get Power
Supply
Temperature
7E FF 02
06 07 03
7F
Query device for
current power supply
temperature
Update Device PS
Temp: 7E FF 84 06
07 TT TT ZZ 7F
TT TT = PS temp in °C +
273. ZZ = CRC
1) cmd: 7E FF 02 06 07 03
7F reply: 7E FF 84 06 07 01
02 86 7F (Temp = 0x0102 =
0d258 –273 = -15°C) 2)
cmd: 7E FF 02 06 07 03 7F
reply: 7E FF 84 06 07 01 34
B0 7F (Temp = 0x0134 =
0d308 –273 = +35°C)
Get Output
Power
7E FF 02
17 FF
EA 7F
Query device for
current output power
UpdateOutput
Power: 7E FF 84 17
FF PP PP ZZ 7F
PP PP = Output power in 10
x dBm. ZZ = CRC.
1) cmd: 7E FF 02 17 FF EA
7F
reply: 7E FF 84 17 FF 01 2C
41 7F
(Power = 0x012C = 0d300 =
30.0dBm.) 2) cmd: 7E FF 02
17 FF EA 7F
reply: 7E FF 84 17 FF 01 A0
CD 7F
(Power = 0x01A0 = 0d416 =
41.6dBm.)
Get Gain
7E FF 02
18 FF E4
7F
Query device for
current gain. Note:
value is depending of
attenuationsettings.
Update Gain: 7E FF
84 18 FF GG GG ZZ
7F
GG GG = Gain in 10 x dB.
ZZ = CRC.
1) cmd: 7E FF 02 18 FF E5
7F reply: 7E FF 84 18 FF 02
8A 69 7F (Gain = 0x028A =
0d650 = 65.0dB.) 2) cmd:
7E FF 02 18 FF E5 7F reply:
7E FF 84 18 FF 01 F9 F7 7F
(Gain = 0x01F9 = 0d505 =
50.5dB.)
