ActronAir SWB52E User manual

C R 03 8 -R G 35D
2020550A5693
27052014
Model Numbers
SWB52C/E
SWB70C/E
SWB82C/E
©Copyright 2014 ActronAir.
® Registered Trade Mark of ActronAir [ABN 34 002 767 240] 05/2014.
User’s Manual
AIR CONDITIONER
Before using your air conditioner, please read
this manual carefully and keep it for future reference.
REMOTE CONTROLLER
The design and specifications are subject to change without prior notice for product
improvement. Consult with the sales agency or manufacturer for details.
last updated 27052014
Read This Manual
Thank you very much for purchasing an ActronAir
air conditioner.
Please read this owner’s manual
carefully before using your air conditioner.
www.actronair.com.au
1800 119 229

CONTENTS
Use the remote controller within a distance of 8
metres from the appliance, pointing it towards the
receiver. Reception is confirmed by a beep.
Location of the remote controller.
8m
The remote controller is powed by two dry batteries(R03/LR03X2) housed in the
rear part and protected by a cover.
(1) Remove the cover by pressing and sliding off.
(2) Remove the old batteries and insert the new batteries,placing the(+) and (-)
ends correctly.
(3) Reattach the cover by sliding it back into position.
When the batteries are removed, the remote controller erases all progra-
mming. After inserting new batteries, the remote controller must be reprogrammed.
NOTE:
Replacing batteries
Handling the remote controller
CAUTIONS
The air conditioner will not operate if curtains, doors or other materials
block the signals from the remote controller to the indoor unit.
Prevent any liquid from falling into the remote controller. Do not expose
the remote controller to direct sunlight or heat.
If the infrared signal receiver on the indoor unit is exposed to direct
sunlight, the air conditioner may not function properly. Use curtains to
prevent the sunlight from falling on the receiver.
If other electrical appliances react to the remote controller, either move
these appliances or consult your local dealer.
CAUTIONS
Do not mix old and new batteries or batteries of different types.
Do not leave the batteries in the remote controller if they are not
going to be used for 2 or 3 months.
Do not dispose batteries as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.
2
3
5
7
8
8
8
9
9
10
14
14
Handling the remote controller ......................................................
Remote controller specifications ...................................................
Function buttons .................. .........................................................
Indicators on LCD ..........................................................................
How to use the buttons .................................................................
Auto operation.................................................................................
Cooling/Heating/Fan operation......................................................
Dehumidifying operation ....
.
...........................................................
Adjusting air flow direction............................................................
Timer operation..............................................................................
LED/FOLLOW ME function ...........................................................
SELF CLEAN function ......................................................
TURBO/
NOTE: Replace the batteries when there is no receiving beep from the indoor
unit or if the transmission indicator on the remote controller fails to light.

Model
Rated Voltage
8m (when using 3.0 voltage, it gets 11m)
3.0V(Dry batteries 1.5V AAA x 2)
Remote Controller Specifications
1. Operating Mode: AUTO, COOL, DRY, HEAT, and FAN.
2. Timer Setting Function in 24 hours.
3. Indo
4. Full function of LCD (Liquid Crystal Display).
Environment
Signal Receiving
Range
Performance Feature
RG35D // BG(C)EF
-5ºC 60ºC
1
2
4
5
3
9
10
8
Each time the button is pressed, the operation
mode is selected in a sequence of following:
MODE Button
ON/OFF Button
Operation starts when this button is pressed
and stops when this button is pressed again.
AUTO COOL DRY HEAT FAN
NOT E: While the unit is running under SLEEP
mode, it would be cancelled if press the MODE,
FAN SPEED or ON/OFF button.
6
7
SWING Button
SWING Button
Active/Disable SLEEP function.The sleep
function enables the unit to automatically
increase(cooling) or decrease(heating)
1 C per hour for the first two hours, then hold
steady for the next 5 hours, after that the unit
will stop operation.This function is only available
under Cooling, Heating and AUTO operations.
O
SLEEP Button
Used to stop or start horizontal louvre move-
ment or set the desired up/down air flow
direction. The louvre changes 6º degrees in
angle for each press. When pressed for more
than 2 seconds, the louvre will swing up and
down automatically.
Used to stop or start vertical louvre movement
and set the desired left/right air flow direction.
The vertical louvre changes 6 degree in angle
for each press. And the temperature display
area of indoor unit displays for one
second. When pressed for more than 2 seconds,
the vertical louvre swing feature is activated.
And the display area of indoor unit displays
, flashes four times, then the temperature
setting reverts back. If the vertical louvre swing
feature is stopped, it displays LC and remains
on for 3 seconds.
IIII
,
,
,
,
,
,
11
12
13
14
Function buttons
MODE
ON/OFF
SWING T EMP
SHORTC UT
FAN
SPEED
TIMER
OF F
RE SET LO CK
LED
FOLLOW ME
TIMER
ON
T URBO
SELF C LEA N
SWING
SLEEP
2
1
3
4
5

SHORTCUT Button
TIMER OFF Button
Used to restore the current settings or resume
previous settings.
When power is connected for the first time, select
the SHORTCUT button.The unit will operate on
AUTO mode, 24 C, and fan speed is Auto.
When this button is selected remote controller is on,
the system will automatically revert back to the
previous settings including operating mode,
setting temperature, fan speed level and sleep
feature (if activated). And transmit the signals to
the unit.
When this button is selected remote controller is off,
the system will only resume the previous settings
and will not transmit the signals to the unit. And
the sleep feature is disable.
When you press button for more than 2 seconds,
the system will automatically restore the current
operation settings including operating mode, setting
temperature, fan speed level and sleep feature
(if activated ).
O
12
13
10
11
Used to select the fan speed in four steps:
AUTO LOW MED HIGH
FAN SPEED Button
Press this button to initiate the auto-off time
sequence. Each press will increase the auto-
timed setting in 30 minutes increments. When
the setting time displays 10H, each press will
increase the auto-timed setting 60 minutes
increments. To cancel the auto-timed program,
simply adjust the auto-off time to 0:0
8
7
When you press the recessed RESET button,
all current settings are cancelled and the
control will return to the initial settings.
RESET Button:
Push this button to decrease setting temper-
ature in a range of 17 C~30 C.
O O
UP Button ( )
Push this button to increase setting temper-
ature in a range of 17 C~30 C.
O O
DOWN Button ( )
9
14
LOCK Button
When you press the recessed LOCK button,
all current settings are locked in and the
remote controller does not accept any
operation except that of the LOCK. Press
again to cancel the LOCK mode.
Bu tton de sign mig ht be slig htly
different fro m th e ac tual one you
pu rchased dependi ng on ind ividual
mo dels .
NO TE:
Activate/Disable TURBO function. If pressed
for more than 2 seconds, the SELF CLEAN
function will be activated. Press again for
2 seconds to disable (depending on models).
TURBO / SELF CLEAN Button:
,
,
1
1
2
2
4
4
5
5
3
3
9
9
10
10
8
8
6
6
7
7
11
11
12
12
13
13
14
14
MODE
MODE
SWING
SWING
TEMP
TEMP
SHORTCUT
SHORTCUT
FAN
SPEED
FAN
SPEED
TIMER
OFF
TIMER
OFF
RESET
RES ET
LO CK
LOC K
LED
FOLLOWME
LED
FOLLOWME
TIMER
ON
TIMER
ON
TURBO
SELF CLEAN
TURBO
SELF CLEAN
SWING
SWING
SLEEP
SLEEP
LED/FOLLOW ME Button
Disable/Active indoor screen Display. When
pushing more than 2 seconds, the FOLLOW ME
function will be activated. Press again for
more than 2 seconds to disable.
,
,
TIMER ON Button
Press this button to initiate the auto-on time
sequence. Each press will increase the auto-timed
setting in 30 minutes increments. When the setting
time displays 10H, each press will increase the
auto-timed setting 60 minutes increments. To
cancel the auto-timed program, simply adjust
the auto-on time to 0:0.
6
ON/OFF
ON/OFF

Indicators on LCD
Transmission Indicator
Temperature / Timer display
Fan speed display
Sleep Display
Mode display
ON/OFF display
The transmission indicator lights when remote
controller transmits signals to the indoor unit.
Displays the current operation mode. Including
auto ( ), cool ( ), dry ( ), heat ( ) (Not
applicable to cooling only models), fan ( )
and back to auto ( ).
Displays the temperature setting (17 C~30 C). When
you set the operating mode to FAN, no temperature
setting is displayed. And
O O
if in the TIMER mode, shows
the ON and OFF settings of the TIMER.
Displayed by pressing the ON/OFF button.
Press the ON/OFF button again to remove.
Displays the selected fan speed, AUTO(no display)
and three fan speed levels " " (LOW) "
(HIGH) can be indicated. The fan speed is AUTO
when the operating mode is either AUTO or DRY.
" (MED)
" "
Displayed under sleeping operation.
Press the SLEEP button again to remove.
Note:
All indicators shown in the diagram are for instruction purposes
only. But during the actual operation only the relative functional
signs are shown on the display window.
Lock Display
Displayed when LOCK mode is activated.
FOLLOW ME Display
Displayed when Follow me function is activated.
auto cool dry heat fan
sleep follow me lock run
SET TEMP. TIMER ONOFF
How to use the buttons
Cooling /Heating/Fan operation
MODE
UP/DOWN
FAN
ON/O FF
En sure the un it is plug ged in an d power is
available.
1. Press the button to select COOL,
HEAT or FAN mode.
2. Press the but tons to set the
de sired temperature.
3. Press the button to select the fan speed
in four st eps- Auto, Low, Med,or High.
4. Press the button to start the air
conditione r.
The temperature c an
be set wi thin a ra nge of 17 C~ 30 C in 1 C
increments.
O O O
In the FAN mode, the set temperature is not
displayed on the remote controller and you are not
able to control the room t emperature either. In this
case, only step 1, 3 and 4 may be performed.
NOTE
Auto operation
MO DE
UP /DOWN
ON /OFF
Ensure the unit is plug ged in and p ower is
ava il ab le. T h e O PER AT IO N i ndi c ato r on t he
dis play panel of the indoor unit s tarts flashing.
1. P res s the button to sel ect Auto.
2. P ress the butto n to set the
desir ed t emperat ure. The tempera ture can
be set with in a range of 17 C~ 30 C in 1 C
incre ments.
3. P ress the button to start t he air
conditioner.
O O O
1. In the Auto mode, the air conditioner can logically
choose the mode of Cooling, Fan, and Heating
by sensing the difference between the actual
ambient room temperature and the set temperature
on the remote controller.
2. In the Auto mode, you can not switch the fan speed.
It has already been automatically controlled.
3. If the Auto mode is not comfortable for you, the
desired mode can be selected manually.
NOTE
1
2
3
4
MODE
SWING TEMP
SHORTCUT
FAN
SPEED
TIMER
OFF
RES E T L OC K
LED
FOLLOW ME
TIMER
ON
TURBO
SELF CLEAN
SWING
SLEEP
ON/OFF

Dehumidifying operation
MODE
UP/DOWN
ON/OFF
Ensure the u nit is plugged in and power is
available. The OP ERATIO N indicator on the
display panel of the indoor un it st arts flashing.
1. Press the button to select DRY mode .
2. Press the buttons to set th e
de sire d temperature.
3. Press the but ton to start th e air
co ndi tioner.
The t emperature
ca n be set within a range of 17 C~ 30 C
in 1 C inc re me nts.
O O
O
In the Dehumidifying mode, you can not switch the
fan speed. It has already been automatically controlled.
NOTE
Adjusting air flow direction
Use the SWING and SWING buttons to adjust
the desired airflow direction.
1. When the SWING button is selected, the horizontal
louvre changes 6º degrees in angle for each push.
If
you the SWING button for more than 2 seconds, the
louvre will automatically swing up and down.
2. When the SWING button is selected, the vertical
louvre changes 6º degrees in angle for each push.
If
you the SWING button for more than 2 seconds, the
louvre will automatically swing left and right.
If the horizontal/vertical louvre swing
Is moved to a position which would affect
the cooling or heating of the air conditioner,
the unit will automatically change the swing
direction.
NOTE:
Timer operation
Press the TIMER ON button to set the auto-on
time of the unit. Press the TIMER OFF button
to set the auto-off time of the unit.
1. Press the TIMER ON button. The remote
controller shows TIMER ON, the last Auto-on
setting time and the signal "H" will be shown on
the LCD display area. Now it is ready to reset
the Auto-on time to START the operation.
2. Push the TIMER ON button again to set desired
Auto-on time. Each time you press the button,
the time increases by half an hour between 0
and 10 hours and by one hour between 10 and
24 hours.
3. After setting the TIMER ON ,there will be a one
second delay before the remote controller
transmits the signal to the air conditioner. Then,
after approximately another 2 seconds, the
signal "H" will disappear and the set temperature
will re-appear on the LCD display window.
To set the Auto-on time.
To set the Auto-off time.
1. Press the TIMER OFF button. The remote
controller shows TIMER OFF, the last Auto-off
setting time and the signal "H" will be shown on
the LCD display area. Now it is ready to reset
the Auto-off time to stop the operation.
2. Push the TIMER OFF button again to set
desired Auto-off time. Each time you press the
button, the time increases by half an hour
between 0 and 10 hours and by one hour
between 10 and 24 hours.
3. After setting the TIMER OFF, there will be a
one second delay before the remote controller
transmits the signal to the air conditioner. Then,
after approximately another 2 seconds, the
signal "H
" will disappear and the set temperature
will re-appear on the LCD display window.
1
2
1
2
3
MODE
MODE
SWING
SWING
TEMP
TEMP
SHORTCUT
SHORTCUT
FAN
SPEED
FAN
SPEED
TIMER
OFF
TIMER
OFF
RES ET
RESET
LOCK
LO CK
LED
FOLLOWME
LED
FOLLOWME
TIMER
ON
TIMER
ON
TURBO
SELF CLEAN
TURBO
SELF CLEAN
SWING
SWING
SLEEP
SLEEP
ON/OFF
ON/OFF

The effective operation time set by the remote controller for the timer function
is limited to the following settings: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0,
5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13, 14, 15,16,17, 18, 19, 20,
21, 22, 23 and 24.
CAUTIO N
!
Example of timer setting
Start
Off
6hours later
(Auto-on Operation)
The TIMER ON feature is useful when you want
the unit to turn on automatically before you return
home. The air conditioner will automatically start
operating at the set time.
To start the air conditioner in 6 hours.
1. Press the TIMER ON button, the last setting
of starting operation time and the signal
2. Press the TIMER ON button to display "6:0H"
on the TIMER ON display of the remote
controller.
3.
"H"
will show on the display area.
Wait for 3 seconds and the digital display
area will show the temperature again. The
"TIMER ON" indicator remains on and this
function is activated.
TIMER ON
Example:
TI M E R O N
Stop
On
Set 10 hours later
(Auto-off Operation)
The TIMER OFF feature is useful when you want the
unit to turn off automatically after you go to bed. The
air conditioner will stop automatically at the set time.
To stop the air conditioner in 10 hours.
1. Press the TIMER OFF button, the last setting of
stopping operation time and the signal "H" will
show on the display area.
2. Press the TIMER OFF button to display "10H" on
the TIMER OFF display of the remote controller.
3. Wait for 3 seconds and the digital display area
will show the temperature again. The "TIMER
OFF" indicator remains on and this function is
activated.
TIMER OFF
Example:
On
Stop
2hours later
after setting
Set
To stop the air conditioner 2 hours after setting and
start it again 10 hours after setting.
1. Press the TIMER OFF button.
2. Press the TIMER OFF button again to display
2.0h on the TIMER OFF display.
3.
4. Press the TIMER ON button again to display 10h
on the TIMER ON display .
5.
Press the TIMER ON button.
Wait for 3 seconds and the digital display area
will show the temperature again. The "TIMER
ON OFF" indicator remains on and this function is
activated.
TIMER OFF TIMER ON
(On Stop Start operation)
This feature is useful when you want to stop the air
conditioner after you go to bed, and start it again in
the morning when you wake up or when you return
home.
Example:
COMBINED TIMER
(S both ON and OF )Fetting timers simultaneously
Start
10 hours later
after setting
TIMER OFF
TIMER ON OFF

Example:
TIMER ON TIMER OFF
(Off Start Stop operation)
This feature is useful when you want to start
the air conditioner before you wake up and
stop it after you leave the house.

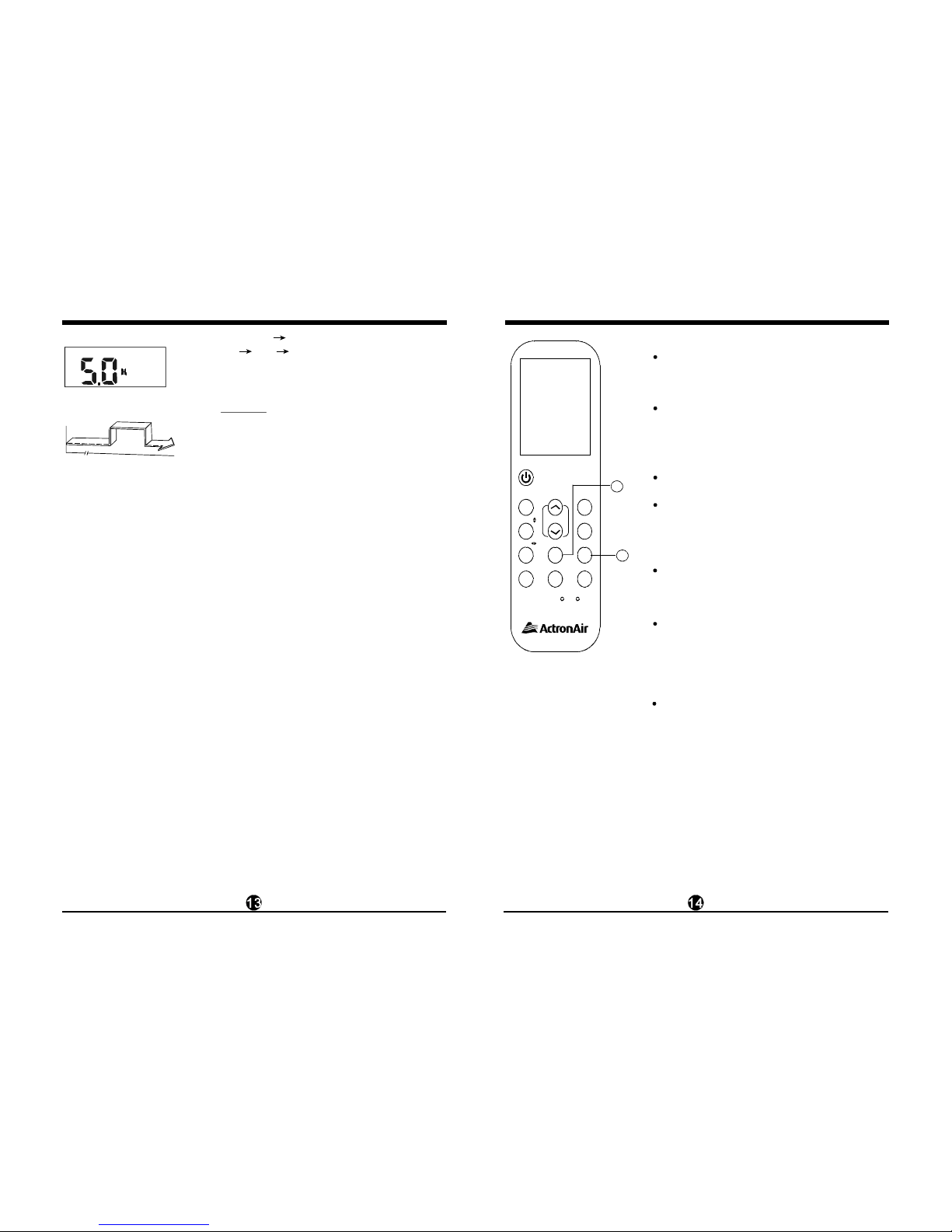

To start the air conditioner 2 hours after setting,
and stop it 5 hours after setting.
1. Press the TIMER ON button.
2. Press the TIMER ON button again to display
2.0Hon the TIMER ON display.
3. Press the TIMER OFF button.
4. Press the TIMER OFF button again to display
5.0Hon the TIMER OFF display .
5. Wait for 3 seconds and the digital display area
will show the temperature again. The "TIMER
ON OFF" indicator remains on and this function
is activated.
Off Stop
Start
2 hours later
after setting 5 hours later
after setting
Set
The timer setting(TIMER ON or TIMER
OFF) that in sequence occurs directly after the
set time will be activated first.
NOTE:
T IM E R O N OFF
LED / FOLLOW ME function
When this button is pressed for less than
LED function.
If this button is pressed for more than 2 seconds,
the FOLLOW ME function is initiated.
When the fun ction is activ ated, the
rem ote displays the actual temperature at its
location . The remote control will s end this
signal to the air condition er every 3 minutes
inte rval until press the FO LLOW ME b utton
aga in.
The Foll ow Me fu nction is no t available un der
DRY and FA N mo de.
Switch t he opera tion mode or turn off the unit
will cancel the Fo llow Me function automatica lly.
2 seconds this will initiate the
FOLLOW ME
TURBO / SELF CLE AN function
When this button is pressed or less than 2 seconds
this will initiate TURBO function. If this button is
,the SELF CLEAN
function is initiated.
Turbo function enables the unit to reach the preset
temperature in the shortest time. When press this
button on cooling mode, the unit will blow strong
cooling air with super high fan speed. When press
this button on heating mode, will increase heating
operation.
Under SELF CLEAN mode,the air conditioner
will automatically clean and dry the Evaporator
and keep it as fresh for the next operation.
pressed for more than 2 seconds
1
2
MODE
SWING TEMP
SHORTCUT
FAN
SPEED
TIMER
OFF
RES ET LOC K
LED
FOLLOW ME
TIMER
ON
TURBO
SELF CLEAN
SWING
SLEEP
ON/OFF
