Adam CO9043 User manual

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9043 V3_151110
- 1 -
These instructions are for your safety. Please read through them thoroughly
before use and retain for future reference. Failure to follow them could cause
injur y and/or property damage.
Note: Styles may vary.
HANDLING
Before continuing any further with the installation of this fire please read the
following:
•One person should be sufficient to lift the fire. If for any reason it is considered
too heavy then obtain assistance.
•When lifting always keep your back straight. Bend your legs and not your back.
•Avoid twisting at the waist. It is better to reposition your feet.
•Avoid upper body / top heavy bending. Always bend from the knees rather than
the waist. Do not lean forward or sideways whilst handling the heater.
•Always grip with the palm of the hand. Do not use the tips of fingers for support.
•Gloves can be used to provide additional grip.
•Always use assistance if required.
Use & Care Manual
Contemporary Electric Fires

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9043 V3_151110
- 2 -
PARTS SUPPLIED
Please ensure you have ALL the correct parts before installing the unit.
FIXING PACK
Please identify the fixings listed below and ensure you have ALL the correct fixings
before installing the unit.
TOOLS REQUIRED
•Electric Drill (with 6mm
masonry bit)
•Crosshead screw driver
(Electric screwdriver
recommended)
•Spirit level
•Pencil
UNPACKING THE PRODUCT
The unit is supplied in a single package carton. Carefully unpack the product using
the following procedure:
•Carefully lift the product from the carton, and stand on the floor
•Remove the protective polystyrene and plastic bag from the fire
• Remove the protective cover from the facia and the plug
Description Illustration Qty
Facia x 1
Electric Fire
x 1
Fixings Pack (See Below) x 1
Description Illustration Qty
Pebble Pack
x 1
32mm Screw x 3
Wall Plug
x 3

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9043 V3_151110
- 3 -
ELECTRICAL SPECIFICATIONS
Important Electrical Safety
The fire must not be located under an electrical socket; the socket must always be
accessible in order to disconnect the heater from the electrical supply for
maintenance and cleaning. Never cut off the plug and hard wire into a fixed fused
spur.
Important!
•Do not spray liquids directly onto any surface of the unit.
•This fire must be earthed. The mains supply must be safely routed from the fire
to an electrical socket.
•If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
•This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have had supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the appliance.
•The plug must be accessible after installation to allow for isolation in an
emergency.
Warning: In order to avoid overheating, DO NOT COVER THE HEATER
Note: Any new wiring must be installed in compliance with local and national codes
of practice and other applicable regulations in order to reduce the risk of fire,
electric shock, or other injuries.
Note: When the fire is turned on for the first time, it may release a slight, harmless
odour. This odour is a normal occurrence caused by the initial heating of the
internal heating elements and should not occur again, unless the appliance is
unused for a period of time.

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9043 V3_151110
- 4 -
CAUTIONS
Do’s
•Always install the fire in accordance with this guide. If in doubt obtain
expert advice.
•Always make sure the electrical socket is accessible and located
adjacent to, but not above the fire.
•Always disconnect the fire from the electrical supply before carrying
out cleaning, maintenance or replacing the light bulbs.
•Always make sure the fire is firmly secured.
Don’ts
•Never leave children unsupervised in a room where the fire is ON and
unguarded.
•Never obstruct or cover the fan outlet or force items into fire openings.
•Never install or use the fire anywhere where water is in use, i.e.
Bathrooms, Kitchens, Shower Rooms, and Swimming Pool etc.
•Never use aerosols or steam cleaners on or around the fire.
•Never route the mains supply cable under carpet etc.
•Never install the fire close to curtains or combustible materials.
•
Neve
r use the fire to dry clothes etc.
•Never sit or stand on the fire.
•Do not use outdoors
•Never cut off the plug and hard wire into a fixed fused spur.
•
Do not position furniture, curtains or other combustible material closer
than 1 metre from the heater.
SAFETY CUT-OUT SYSTEM
DO NOT OBSTRUCT THE AIR VENTS OF THE ELECTRIC HEATER.
This appliance has a ‘self resetting’ safety cut out system, that will activate if the air
inlets or outlets are obstructed. If the electric fire is obstructed, it will overheat. When
the temperature exceeds 85 degrees C, the heater element will cut out, until a safe
temperature is regained.
THIS PRODUCT MUST BE INSTALLED CORRECTLY. FAILURE TO DO
SO MAY CAUSE DAMAGE TO YOUR PRODUCT AND/OR YOUR
SURROUNDINGS
DO NOT INSET IN TO A WALL OR SURROUND. THIS IS A WALL
MOUNTED APPLIANCE ONLY

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9043 V3_151110
- 5 -

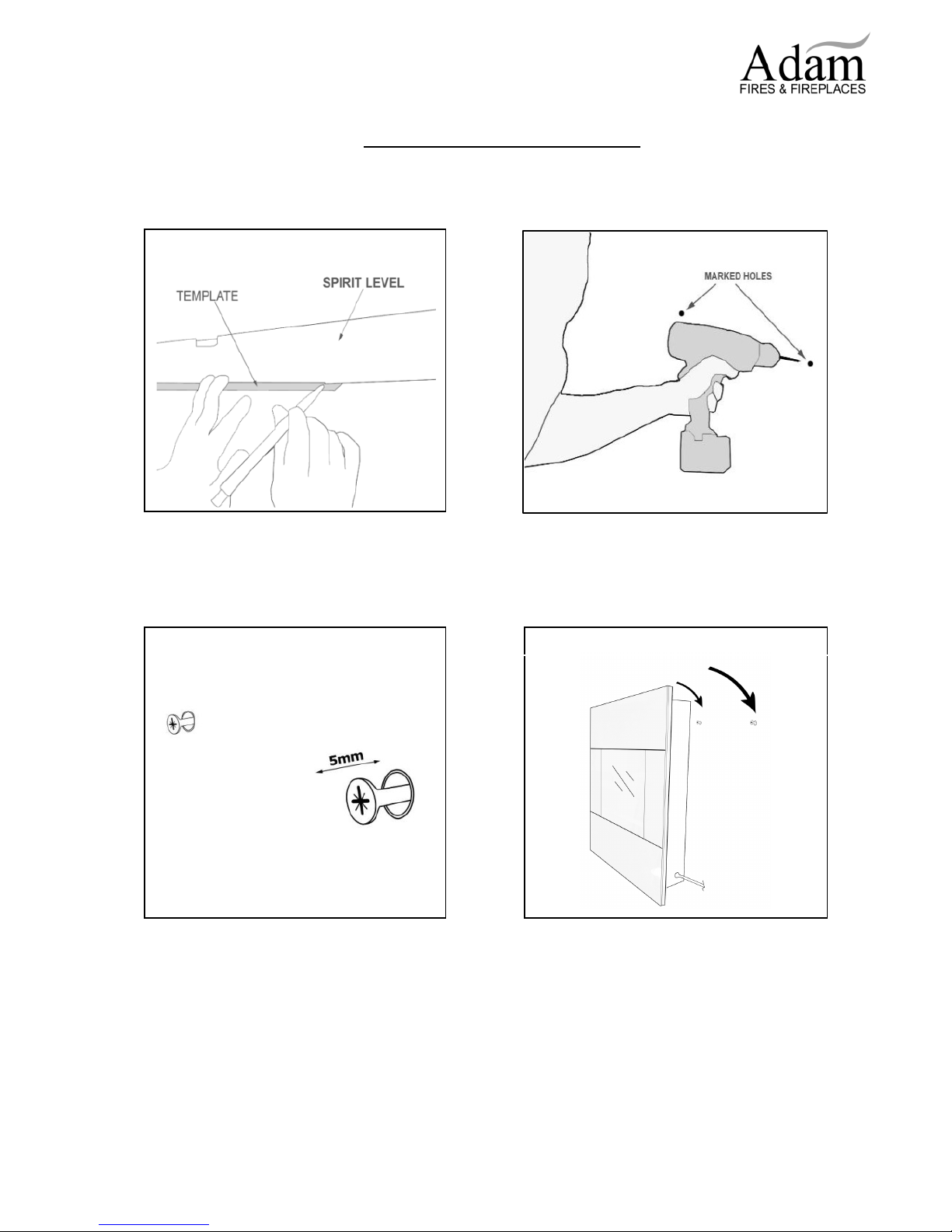

INSTALLATION of the hang on the wall electric fire
NOTE: Please take care when installing the fire as some edges may be sharp.
3)
Insert the 2 screws,
leaving 5mm
(approx)
proud of wall.
4)
Hang the fire on the hooks situated on the
back of the fire.
1) Using
the TEMPLATE provided and a
spirit level, mark through with a pencil.
2)
Drill 2 holes using a 6mm drill bit, then fit
the supplied wall plugs. Note if fitting on to
plaster board, propriety wall fixings should be
used (not supplied).

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9043 V3_151110
- 6 -
INSTALLATION of the hang on the wall electric fire - CONTINUED
5)
Mark a 3
rd
hole when the fire is mounted.
Remove the fire, drill hole and insert the wall
plug.
Replace the fire and insert the 3
rd
screw to
secure.
6
)
PUSH the tab underneath the fire then
PULL and LIFT the facia off the fire.
7
)
Randomly place the pe
bbles along the
bed as illustrated.
8
)
HOOK the facia on to the fire then CLICK
to secure.

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9043 V3_151110
- 7 -
OPERATING THE FIRE

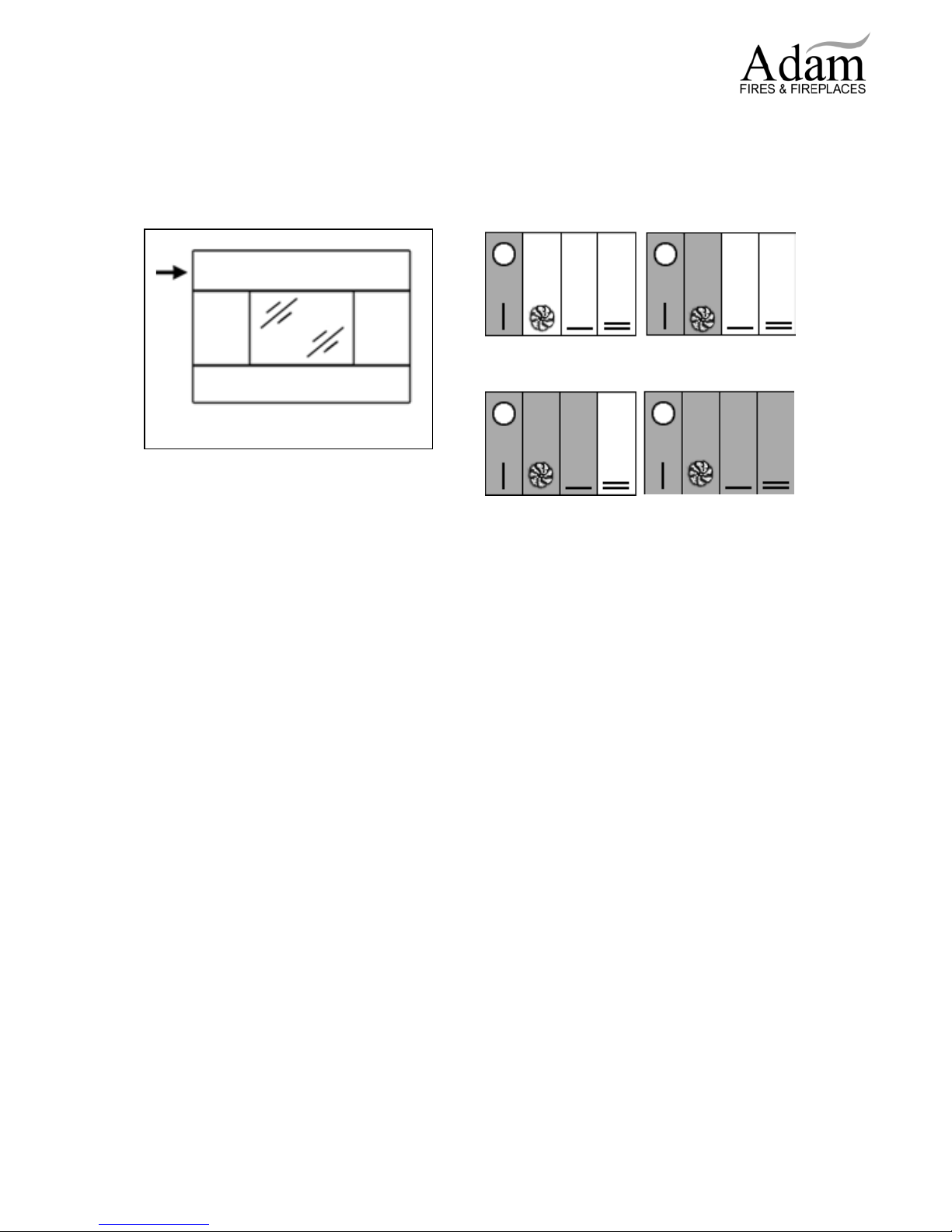

The appliance is controlled using 4 switches, located on the top left side of the fire.
Use the following sequence to operate. The grey represents a ‘pressed switch.’
MAINTENANCE
There are no specific requirements for the care of this unit, other than general
cleaning.
•Other features (non-silver) can be cleaned using a damp cloth, and buff up
dry with a soft cloth.
•If the cable is damaged it must be replaced by a suitably qualified person.
•The area around the fire should be kept free from animal hair, lint and other
extraneous material that may be drawn into workings of the appliance and
could affect its performance.
Controls located at the top left side of the
fire
On/Off
with Effect
only
Cool Air Blow &
Effect
1kW Heat
s
etting
2kW Heat Setting

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9043 V3_151110
- 8 -
CHANGING THE BULBS
2 x 40W SES/E14 (small screw cap) candle bulbs required.
Please ensure that the electric fire is switched off at the mains and unplugged
before attempting to change the bulbs. Allow the fire to cool down.
2)
Remove the 2 screws on each side of the
fire, then remove front panel.
1
)
PUSH the tab underneath the fire then
PULL and LIFT the facia off the fire.
3
)
Remove bulb/s and replace.
Replace front panel.
4
)
HOOK the facia
to the fire then CLICK to
secure.

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9043 V3_151110
- 9 -
PLUG REPLACEMENT
•This appliance is supplied with a BS1363 3 pin plug fitted with a 13 Amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13
Amp and approved to BS1362.
•In the event the mains plug has to be removed/replaced for any reason, please
note:
The wires in the mains lead on this appliance are coloured in accordance with the
following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
THIS APPLIANCE MUST BE EARTHED
As the colours may not correspond with the markings identifying the terminals in your
plug proceed as follows.
•The green and yellow earth wire must be connected to the terminal in the plug
which is marked with the letter E or with the earth symbol
•The blue wire must be connected to the terminal marked N
•The brown wire must be connected to the terminal marked L
Important - any cut off plug should be disposed of safely to prevent hazard. There is
a danger of electric shock if a cut off plug is inserted into a socket outlet.
APPLIANCE DATA
•Supply Voltage: AC 220-240V, 50Hz
•Rated Power: 2000W
•Fuse Rating: 13 AMP
•Lighting: 2 x 40W SES/E14 (small screw cap) candle bulbs

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9043 V3_151110
- 10 -
CONFORMITY WITH DIRECTIVES
Conforms with relevant European Directives
This electric fire has been tested by TÜV Rheinland Group,
a global leader in independent testing and assessment services.
ENVIRONMENTAL PROTECTION
•(WEEE) Waste Electrical and Electronic Equipment
Waste electrical products should not be disposed of
with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for
recycling advice.
•This appliance complies with the RoHS directive which restricts the use of
certain hazardous substances in electrical and electronic equipment.
This Directive bans the placing on the EU market of new electrical and
electronic equipment containing more than agreed levels of lead, cadmium,
mercury, hexavalent chromium, polybrominated biphenyl (PBB) and
polybrominated diphenyl ether (PBDE) flame retardants.
Adam Fires and Fireplaces are part of the FiredUp Corporation.
