Adam Flame Effect User manual

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9039 V3_151110
- 1 -
These instructions are for your safety. Please read through them thoroughly
before use and retain for future reference. Failure to follow them could cause
injur y and/or property damage.
Note: This manual applies for a number of different products. Please make
sure you follow the appropriate product guide lines.
FIRE IDENTIFICATION
INTRODUCTION
Thank you for choosing this Electric Fire. The fire is designed to meet the most
stringent quality, performance, and safety requirements. This guide aims to improve
your understanding and appreciation of your new fire by providing simple and
informative assembly instructions.
Flame Effect
(Inset)
Pebble Glow
(Inset)
Traditional
(Inset)
Use & Care Manual
Inset Electric Fires

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9039 V3_151110
- 2 -
CONTENTS
Fire Identification 1
Introduction 1
Handling 2
Unpacking 2
Parts Supplied 3
Electrical Specification 4
Maintenance 4
Safety Cut-Out System 5
Cautions 5
Installation 6
Fire Preparations (Pebble Glow Fires Only) 7
Operating the Fire 7
Changing the Bulb – Pebble Glow Fire 8
Changing the Bulb – Flame Effect Fire 9
Changing the Bulb – Traditional Fire 10
Plug Replacement 11
Appliance Data 11
Certifications 12
HANDLING
Before continuing any further with the installation of this fire please read the
following:
•When lifting always keep your back straight. Bend your legs and not your back.
•Avoid twisting at the waist. It is better to reposition your feet.
•Avoid upper body / top heavy bending. Always bend from the knees rather than
the waist. Do not lean forward or sideways whilst handling the fire.
•Always grip with the palm of the hand. Do not use the tips of fingers for support.
•Always keep the product as close to the body as possible. This will prevent
unnecessary and undue strain on the body.
•Use gloves to provide additional grip.
•Always use assistance if required.
UNPACKING THE PRODUCT
The unit is supplied in a single package carton. Carefully unpack the product using
the following procedure:
•Carefully lift the pieces out of the box
•Carefully remove the protective wrapping from the pieces
•Locate the fixing pack and put aside
•Carefully remove the electric fire from its box and put aside

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9039 V3_151110
- 3 -

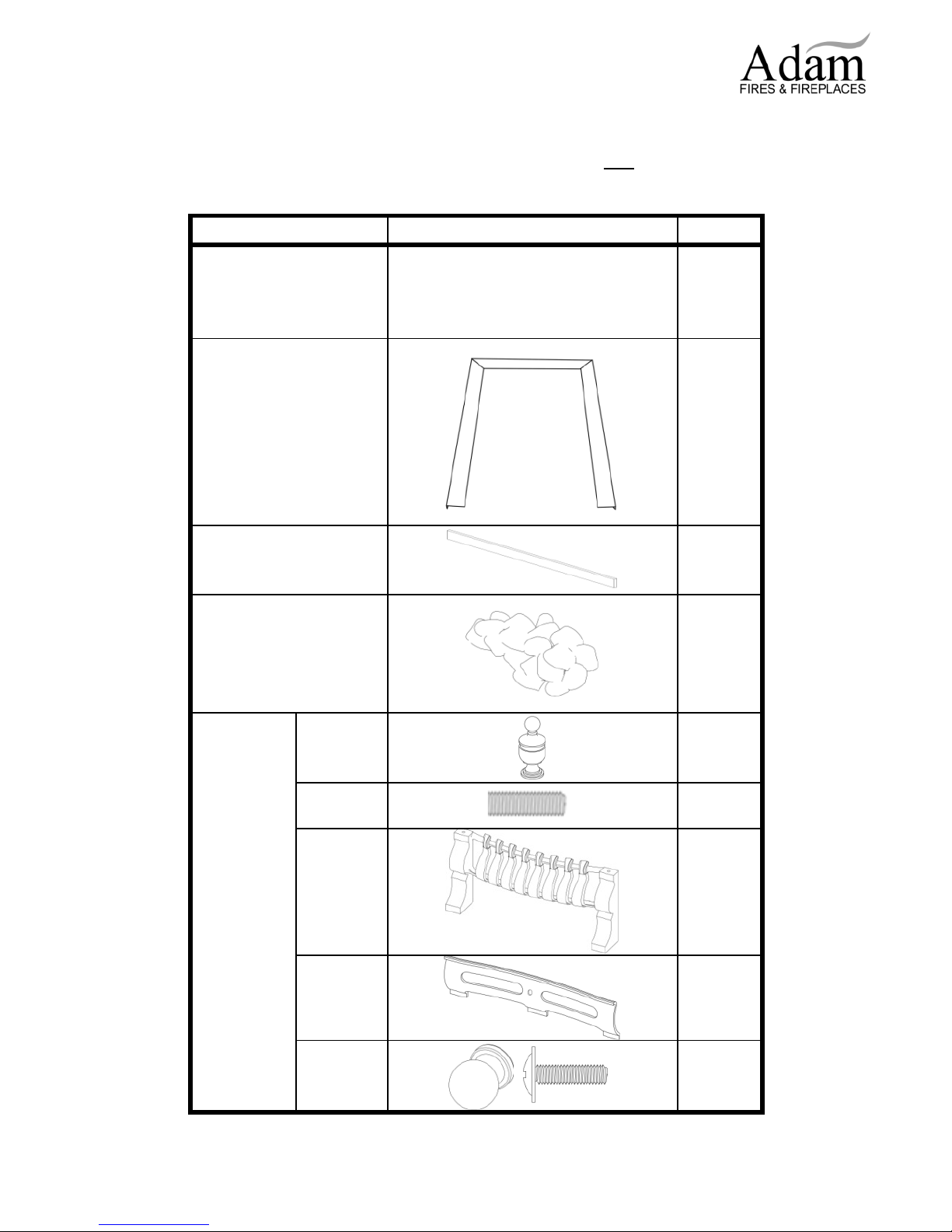

PARTS SUPPLIED
Please identify the parts listed below and ensure you have ALL the correct parts
before installing the unit.
Description Illustration Qty
Electric Fire
NOTE: The trim often
comes unassembled as
an extra part
(See Page 1‘) x 1
Trim x 1
Neoprene Strips x 3
Pebble Set
(ONLY FOR PEBBLE
GLOW FIRES)
x 1
These Fret
parts are
only for
Traditional
Fires
Brass
finials
x 2
Finial
screws x 2
Blenheim
fret
x 1
Ash pan
cover
x 1
Ash pan
cover
handle and
screw
x 1
(of each)

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9039 V3_151110
- 4 -
ELECTRICAL SPECIFICATIONS
Important Electrical Safety
The fire must not be located under an electrical socket; the socket must always be
accessible in order to disconnect the heater from the electrical supply for
maintenance and cleaning. Never cut off the plug and hard wire into a fixed fused
spur.
Important!
•Do not spray liquids directly onto any surface of the unit.
•This fire must be earthed. The mains supply must be safely routed from the
fire to an electrical socket.
•If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
•This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have had supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the
appliance.
•The plug must be accessible after installation to allow for isolation in an
emergency.
Warning: In order to avoid overheating, DO NOT COVER THE HEATER
Note: Any new wiring required, must be In accordance with local and national codes
and other applicable regulations in order to reduce the risk of fire, electric
shock, or other injuries.
Note: When the fire is turned on for the first time or when it has not been used for
some time, it may release a slight, harmless odour. This odour is a normal
occurrence caused by the initial heating of the internal heating elements and
will disappear with use
MAINTENANCE
•Brushed stainless steel (silver) fires can be cleaned using a cloth and
proprietary cleaner. Other features (non-silver) can be cleaned using a damp
cloth.
•If the cable is damaged, it must be replaced by a suitably qualified person.
•The area around the fire should be kept free from animal hair, lint and other
extraneous material that may be drawn into the workings of the appliance
which could affect its performance.

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9039 V3_151110
- 5 -
SAFETY CUT-OUT SYSTEM
PLEASE DO NOT OBSTRUCT THE AIR VENTS OF THE ELECTRIC FIRE.
This appliance has a ‘self resetting’ safety cut out system. To prevent overheating,
ensure the air inlets and outlets are not obstructed. If the safety cut-out operates,
switch off the electric fire and allow to fully cool down. Remove any obstruction
before re-use.
CAUTIONS
Do’s
•Always install the fire in accordance with this guide. If in doubt obtain expert
advice.
•Always make sure the electrical socket is accessible and located adjacent
to, but not above or behind the fire.
•Always disconnect the fire from the electrical supply before carrying out
cleaning, maintenance or replacing the light bulbs.
•Always make sure the fire is firmly secured.
•
Always ensure the product is assembled in an area that is free from du
st,
grease or liquids.
•Always ensure that the correct tools are used to mount this fire.
•Always make sure the fire is firmly secured to the wall when complete
Don’ts
•Never leave children unsupervised in a room where the fire is ON and
unguarded.
•Never obstruct or cover the fan outlet or force items into fire openings.
•Never install or use the fire anywhere where water is in use, i.e. Bathrooms,
Kitchens, Shower Rooms, and Swimming Pool etc.
•Never use aerosols or steam cleaners on or around the fire.
•Never route the mains supply cable under carpet etc.
•Never install the fire close to curtains or combustible materials.
•
Never use the fire to dry clothes etc.
•Never sit or stand on the fire.
•Never lean or put weight on the fire.
•Do not use outdoors.
•
Do not position furniture, curtains or other combustible material closer than
1 metre from the heater.
•Do not site the fire on deep pile carpets or rugs.
•Never cut off the plug and hard wire into a fixed fused spur

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9039 V3_151110
- 6 -
INSTALLATION
This fire is inset and must be fixed to a surround (which must be fixed to a wall).
Please ensure the floor and wall is flat before installation.
NOTE: The fire and surround shown above are examples; this method applies
for all other inset fires.
Stick one side of the Neoprene Strip (x3)
to the back of the electric fire (as shown
right). Position the fire within the
surround and peel back the other side of
the Neoprene Strips.
Firmly push the electric fire against the
surround until it is secure, ensuring the
mains cable of the fire exits the same
side of the suite where the mains socket
is located.
Check the supply cable is not trapped
under the fire such that it may cause it to
be damaged.
Mains cable of Electric Fire

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9039 V3_151110
- 7 -

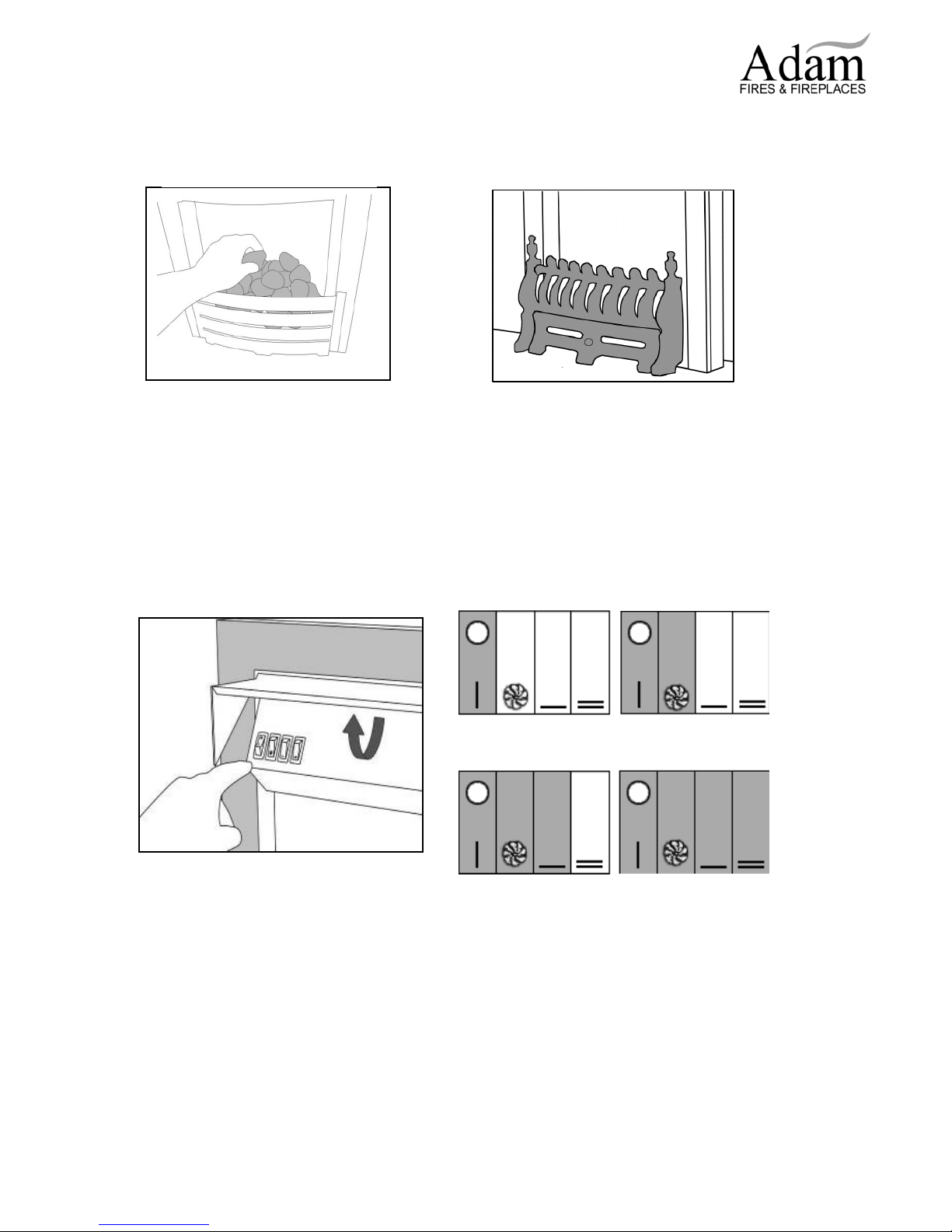

PREPARING THE ELECTRIC FIRE
OPERATING THE ELECTRIC FIRE
The appliance is controlled using 4 switches, located under the hood of the fire.
Use the following sequence to operate. The grey represents a ‘pressed switch.’
Co
ntrols located under the hood
Randomly place the pebbles
in the open fuel bed of the
fire
On/Off
with Effect
only
Cool Air Blow &
Effect
1kW Heat
s
etting
2kW Heat Setting
Pebble Glow Fires
Traditiona
l
Fires
Assemble the f
ret pieces
and put in place.

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9039 V3_151110
- 8 -

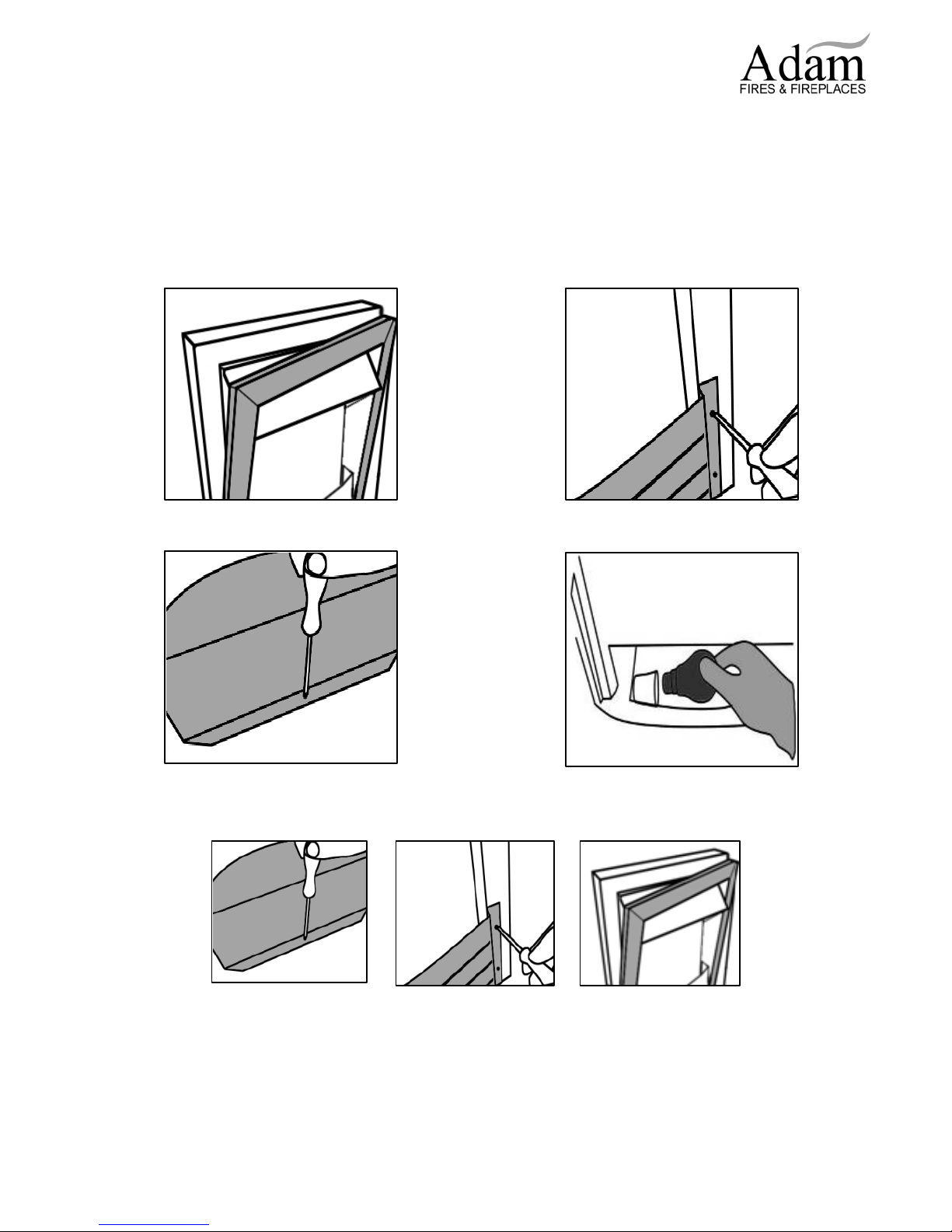

CHANGING THE BULB
Pebble Glow Fires
Please ensure that the electric fire is switched off at the mains and unplugged
before attempting to change the bulb.
Remove all pebbles before attempting to change the bulb.
3)
. Unscrew the pebble bed
panel.
4) Unscrew the old
bulb and repla
ce with
a Pebble Glow : 40W BC bulb (MAX)
2) Unscrew the fret
.
1) Remove the magnetized trim.
5
)
Replace the pebble bed, pebbles, fret and magnetized trim.
WARNING! Only replace the bulb with the same rated one (
40
W
BC
max.)
Due to their indeterminate life span, light bulbs are excluded from the guarantee.

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9039 V3_151110
- 9 -

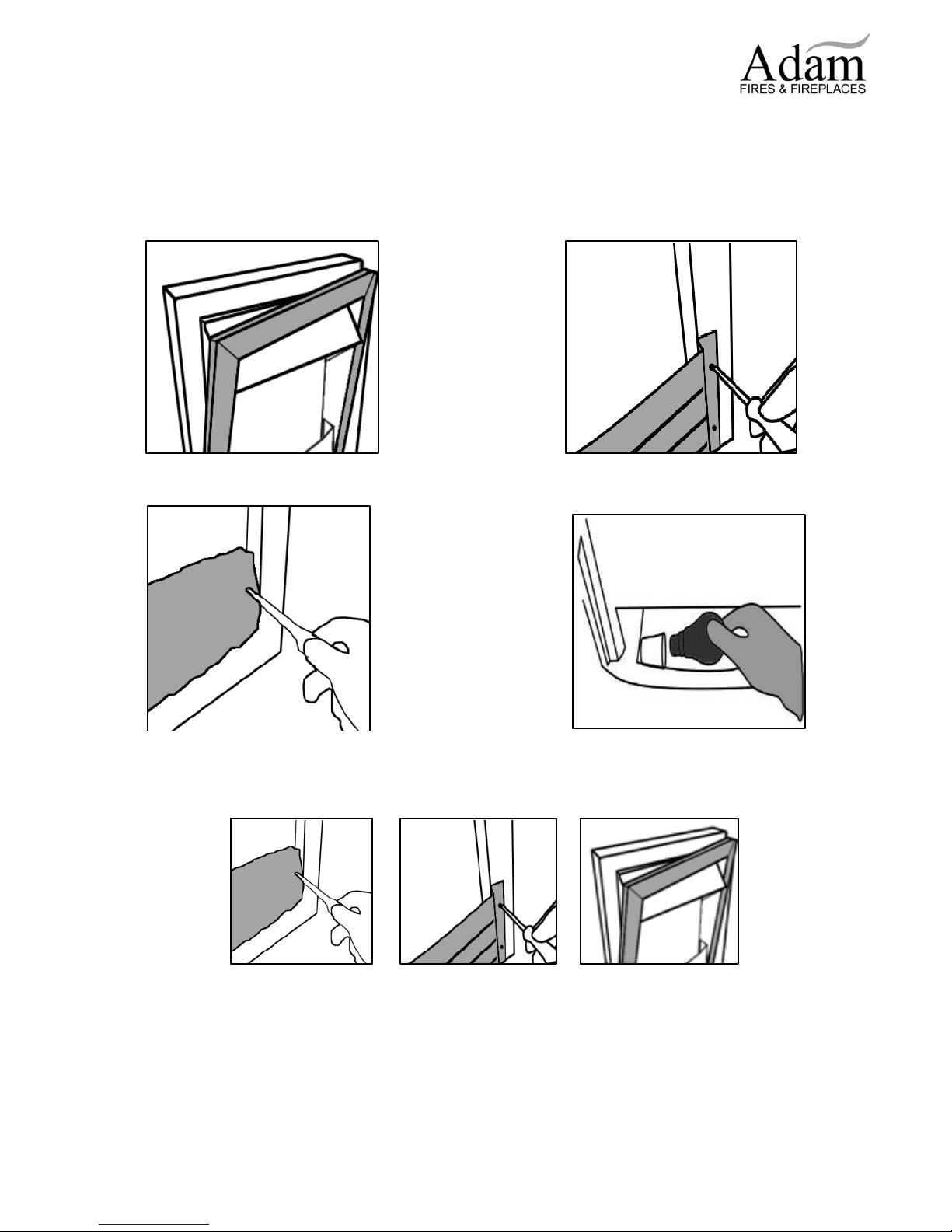

CHANGING THE BULB
Flame Effect Fires
Please ensure that the electric fire is switched off at the mains and unplugged
before attempting to change the bulb.
1
)
Remove the magnetized trim.
2) Unscrew the fret.
4
) Unscrew the old
bulb and replace
with a 25W BC bulb (MAX).
5
)
Replace the coal bed, fret, and magnetized trim.
WARNING! Only replace the bulb with the same rated one (
25
W
BC
max.)
Due to their indeterminate life span, light bulbs are excluded from the guarantee.
3) Unscrew the coal bed.

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9039 V3_151110
- 10 -
CHANGING THE BULB
Traditional Fires
Please ensure that the electric fire is switched off at the mains and unplugged
before attempting to change the bulb.
1
)
Remove the fret and ash pan
cover.
3
) Unscrew the old
bulb and replace
with a 25W BC bulb (MAX).
4
)
Replace the coal bed,
fret, and ash pan cover.
WARNING! Only replace the bulb with the same rated one (
25
W
BC
max.)
Due to their indeterminate life span, light bulbs are excluded from the guarantee.
2) Unscrew the coal bed.

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9039 V3_151110
- 11 -
PLUG REPLACEMENT
•This appliance is supplied with a BS1363 3 pin plug fitted with a 13 Amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13
Amp and approved to BS1362.
•In the event the mains plug has to be removed/replaced for any reason, please
note:
The wires in the mains lead on this appliance are coloured in accordance with the
following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
THIS APPLIANCE MUST BE EARTHED
As the colours may not correspond with the markings identifying the terminals in your
plug proceed as follows.
•The green and yellow earth wire must be connected to the terminal in the plug
which is marked with the letter E or with the earth symbol
•The blue wire must be connected to the terminal marked N
•The brown wire must be connected to the terminal marked L
Important - any cut off plug should be disposed of safely to prevent hazard. There is
a danger of electric shock if a cut off plug is inserted into a socket outlet.
APPLIANCE DATA
Flame Effect Pebble Glow
Supply Voltage: AC 220-240V, 50Hz Supply Voltage: AC 220-240V, 50Hz
Rated Power: 2000W Rated Power: 2000W
Fuse Rating: 13 Amp Fuse Rating: 13 Amp
Lighting: 1 x 25W BC Bulb (MAX) Lighting: 1 x 40W BC Bulb (MAX)

Customer telephone helpline: 08448 809301
Helpline email address: [e-mail]
CO9039 V3_151110
- 12 -
CONFORMITY WITH DIRECTIVES
Conforms with relevant European Directives
ENVIRONMENTAL PROTECTION
•(WEEE) Waste Electrical and Electronic Equipment
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or
retailer for recycling advice.
•This appliance complies with the RoHS directive which restricts the use of
certain hazardous substances in electrical and electronic equipment.
This Directive bans the placing on the EU market of new electrical and
electronic equipment containing more than agreed levels of lead, cadmium,
mercury, hexavalent chromium, polybrominated biphenyl (PBB) and
polybrominated diphenyl ether (PBDE) flame retardants.
Adam Fires and Fireplaces is part of the Fired Up Corporation LTD
